MultiProtocol Label Switch MPLS Overview and short tutorial

Multi-Protocol Label Switch (MPLS) Overview and short tutorial Credits: Part of this presentation is based on James Yu lecture (Many thanks!) and from MPLS council web site

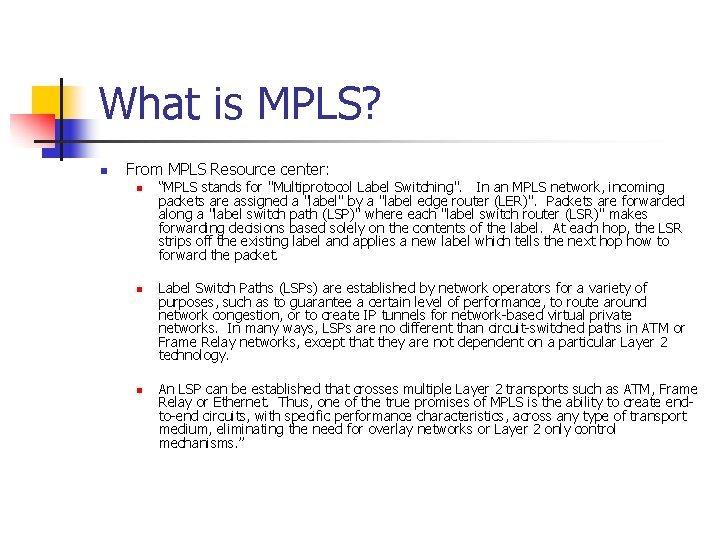

What is MPLS? n From MPLS Resource center: n n n “MPLS stands for "Multiprotocol Label Switching". In an MPLS network, incoming packets are assigned a "label" by a "label edge router (LER)". Packets are forwarded along a "label switch path (LSP)" where each "label switch router (LSR)" makes forwarding decisions based solely on the contents of the label. At each hop, the LSR strips off the existing label and applies a new label which tells the next hop how to forward the packet. Label Switch Paths (LSPs) are established by network operators for a variety of purposes, such as to guarantee a certain level of performance, to route around network congestion, or to create IP tunnels for network-based virtual private networks. In many ways, LSPs are no different than circuit-switched paths in ATM or Frame Relay networks, except that they are not dependent on a particular Layer 2 technology. An LSP can be established that crosses multiple Layer 2 transports such as ATM, Frame Relay or Ethernet. Thus, one of the true promises of MPLS is the ability to create endto-end circuits, with specific performance characteristics, across any type of transport medium, eliminating the need for overlay networks or Layer 2 only control mechanisms. ”

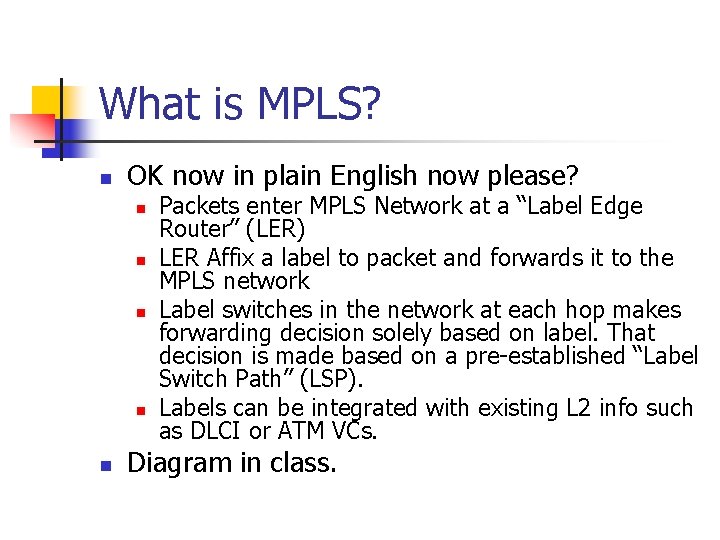

What is MPLS? n OK now in plain English now please? n n n Packets enter MPLS Network at a “Label Edge Router” (LER) LER Affix a label to packet and forwards it to the MPLS network Label switches in the network at each hop makes forwarding decision solely based on label. That decision is made based on a pre-established “Label Switch Path” (LSP). Labels can be integrated with existing L 2 info such as DLCI or ATM VCs. Diagram in class.

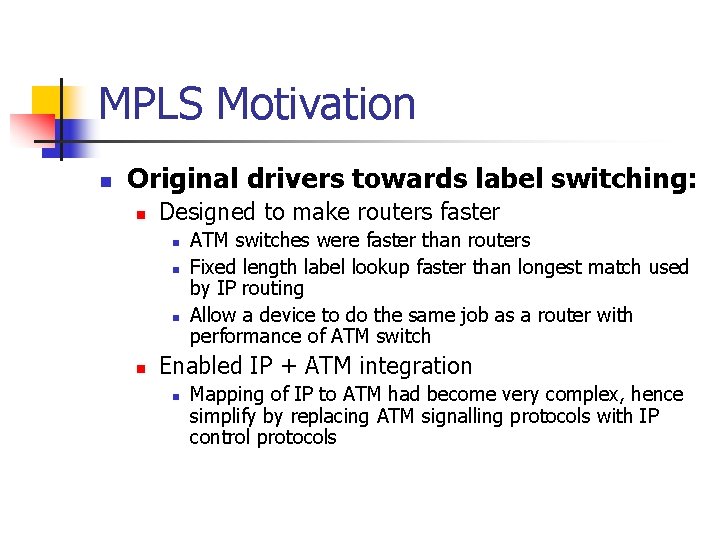

MPLS Motivation n Original drivers towards label switching: n Designed to make routers faster n n ATM switches were faster than routers Fixed length label lookup faster than longest match used by IP routing Allow a device to do the same job as a router with performance of ATM switch Enabled IP + ATM integration n Mapping of IP to ATM had become very complex, hence simplify by replacing ATM signalling protocols with IP control protocols

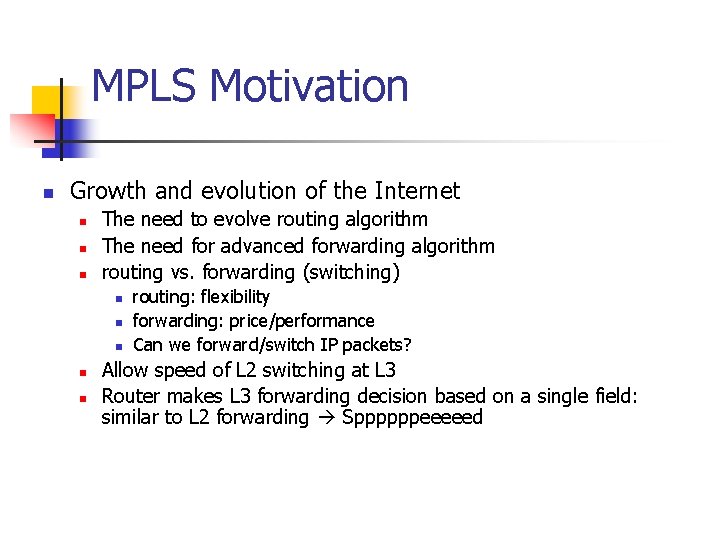

MPLS Motivation n Growth and evolution of the Internet n n n The need to evolve routing algorithm The need for advanced forwarding algorithm routing vs. forwarding (switching) n n n routing: flexibility forwarding: price/performance Can we forward/switch IP packets? Allow speed of L 2 switching at L 3 Router makes L 3 forwarding decision based on a single field: similar to L 2 forwarding Sppppppeeeeed

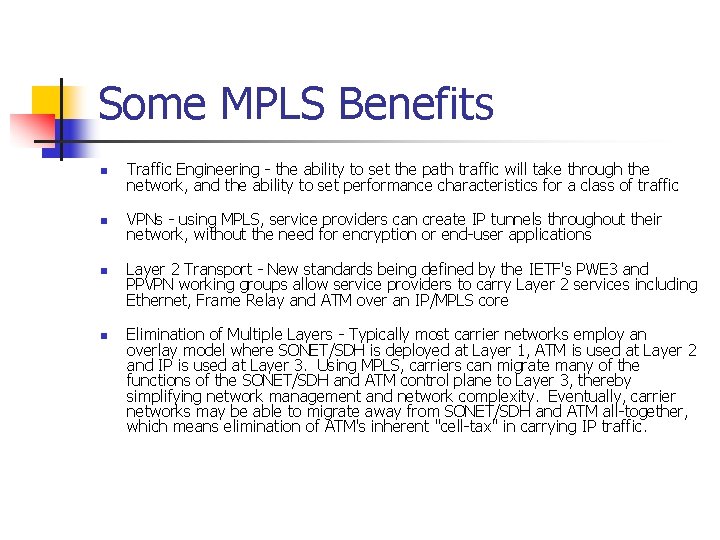

Some MPLS Benefits n Traffic Engineering - the ability to set the path traffic will take through the network, and the ability to set performance characteristics for a class of traffic n VPNs - using MPLS, service providers can create IP tunnels throughout their network, without the need for encryption or end-user applications n n Layer 2 Transport - New standards being defined by the IETF's PWE 3 and PPVPN working groups allow service providers to carry Layer 2 services including Ethernet, Frame Relay and ATM over an IP/MPLS core Elimination of Multiple Layers - Typically most carrier networks employ an overlay model where SONET/SDH is deployed at Layer 1, ATM is used at Layer 2 and IP is used at Layer 3. Using MPLS, carriers can migrate many of the functions of the SONET/SDH and ATM control plane to Layer 3, thereby simplifying network management and network complexity. Eventually, carrier networks may be able to migrate away from SONET/SDH and ATM all-together, which means elimination of ATM's inherent "cell-tax" in carrying IP traffic.

MPLS History n n n IP over ATM IP Switching by Ipsilon Cell Switching Router (CSR) by Toshiba Tag switching by Cisco Aggregate Route-based IP Switching (IBM) IETF – MPLS n n http: //www. ietf. org/html. charters/mpls-charter. html RFC 3031 – MPLS Architecture RFC 2702 – Requirements for TE over MPLS RFC 3036 – LDP Specification

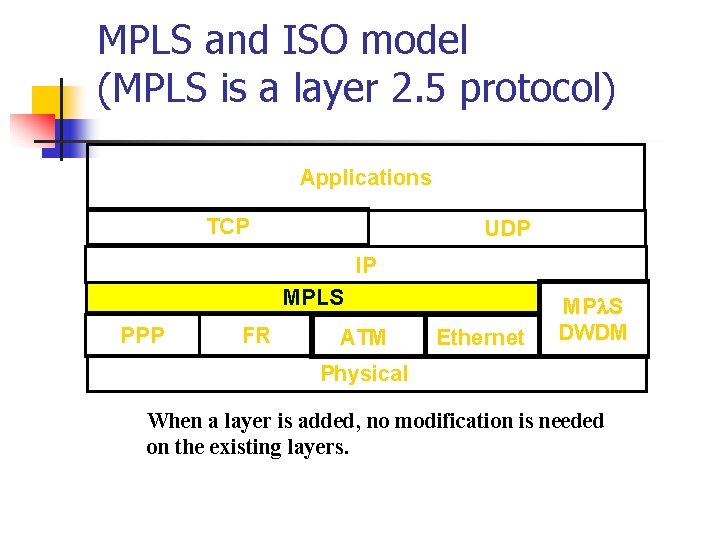

MPLS and ISO model (MPLS is a layer 2. 5 protocol) Applications TCP UDP IP MPLS PPP FR ATM Ethernet MP S DWDM Physical When a layer is added, no modification is needed on the existing layers.

Label Switching n n What is it? Goal: sending a packet from A to B n n n We can do it in a broadcast way. We can use source routing where the source determines the path. How do we do it on the Internet today? n Hop-by-hop routing: continue asking who is closer to B at every stop (hop).

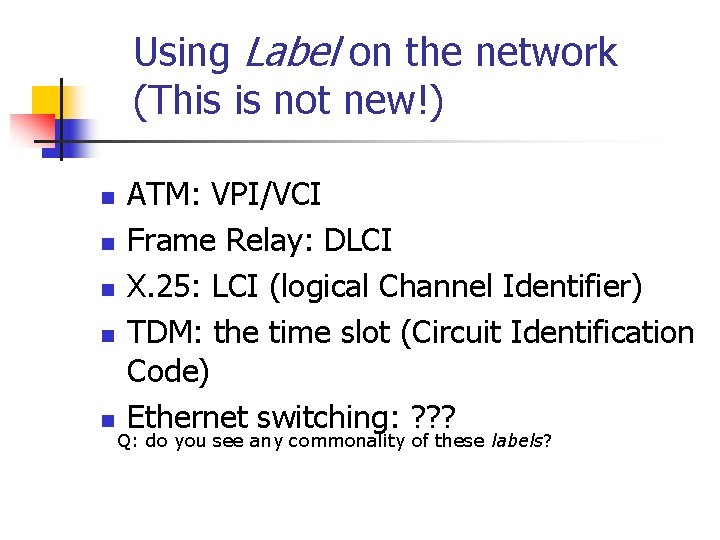

Using Label on the network (This is not new!) n n n ATM: VPI/VCI Frame Relay: DLCI X. 25: LCI (logical Channel Identifier) TDM: the time slot (Circuit Identification Code) Ethernet switching: ? ? ? Q: do you see any commonality of these labels?

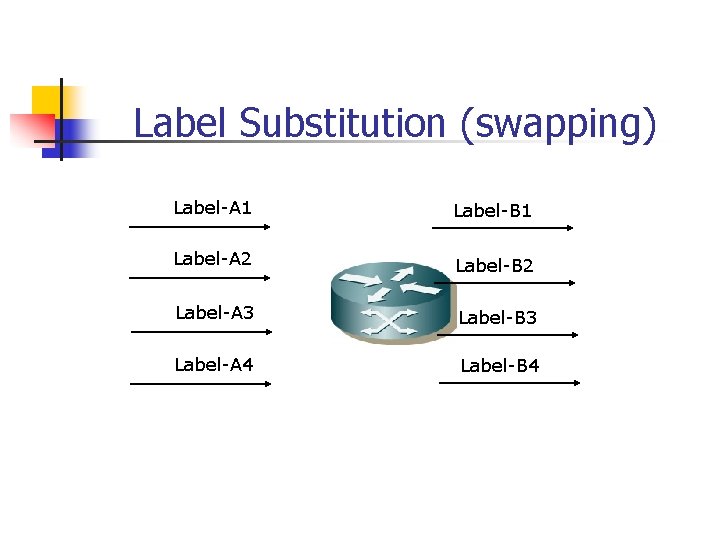

Label Substitution (swapping) Label-A 1 Label-B 1 Label-A 2 Label-B 2 Label-A 3 Label-B 3 Label-A 4 Label-B 4

MPLS n n n A protocol to establish an end-to-end path from source to the destination A hop-by-hop forwarding mechanism Use labels to set up the path n n Require a protocol to set up the labels along the path It builds a connection-oriented service on the IP network

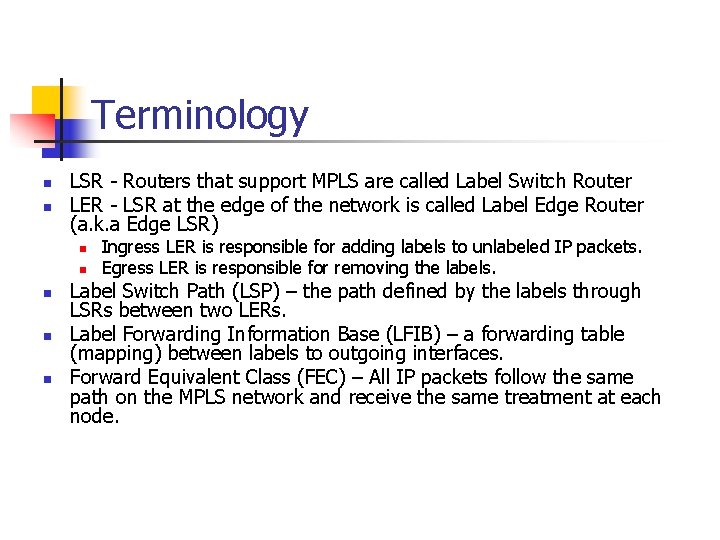

Terminology n n LSR - Routers that support MPLS are called Label Switch Router LER - LSR at the edge of the network is called Label Edge Router (a. k. a Edge LSR) n n n Ingress LER is responsible for adding labels to unlabeled IP packets. Egress LER is responsible for removing the labels. Label Switch Path (LSP) – the path defined by the labels through LSRs between two LERs. Label Forwarding Information Base (LFIB) – a forwarding table (mapping) between labels to outgoing interfaces. Forward Equivalent Class (FEC) – All IP packets follow the same path on the MPLS network and receive the same treatment at each node.

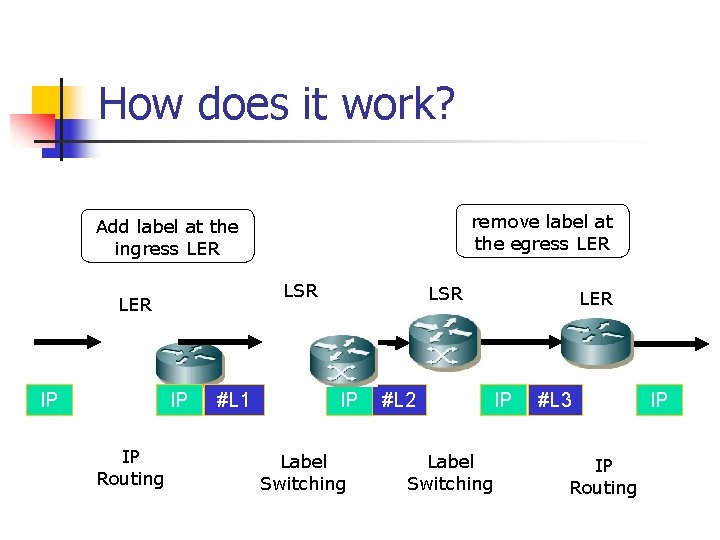

How does it work? remove label at the egress LER Add label at the ingress LER LSR LER IP IP IP Routing #L 1 LSR IP Label Switching #L 2 LER IP Label Switching #L 3 IP Routing IP

MPLS Operation Label Path: R 1 => R 2 => R 3 => R 4

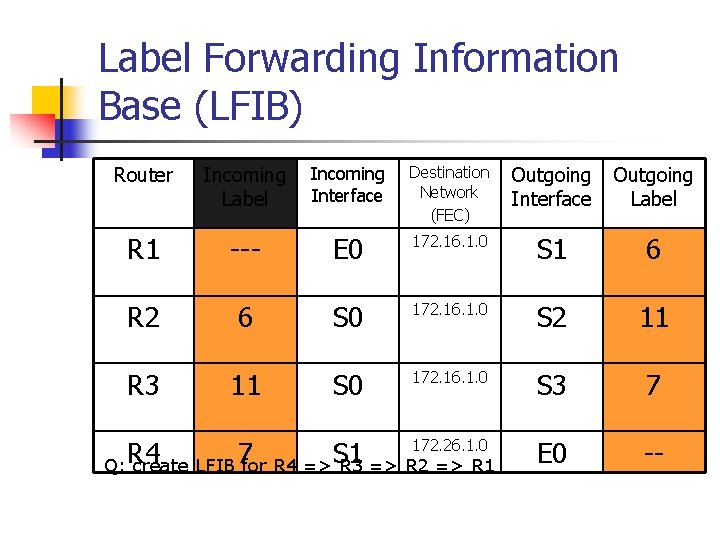

Label Forwarding Information Base (LFIB) Router Incoming Interface Label Destination Network (FEC) Outgoing Interface Label R 1 --- E 0 172. 16. 1. 0 S 1 6 R 2 6 S 0 172. 16. 1. 0 S 2 11 R 3 11 S 0 172. 16. 1. 0 S 3 7 E 0 -- 172. 26. 1. 0 R 4 7 S 1 Q: create LFIB for R 4 => R 3 => R 2 => R 1

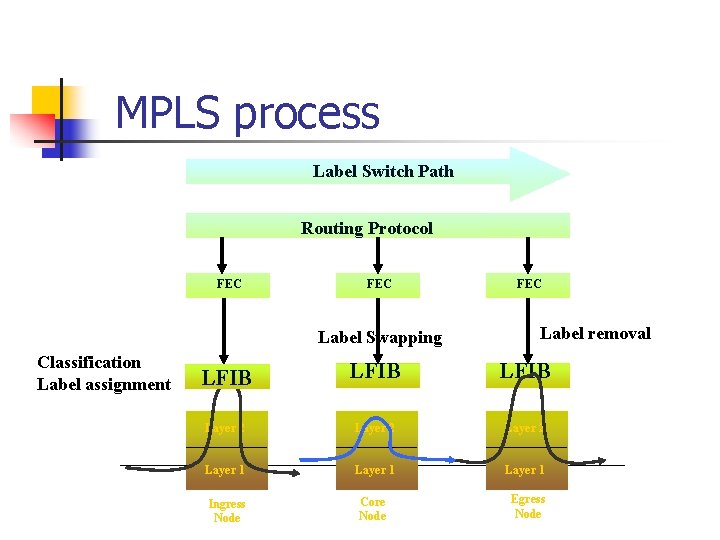

MPLS process Label Switch Path Routing Protocol FEC Label Swapping Classification Label assignment FEC Label removal LFIB Layer 2 Layer 1 Ingress Node Core Node Egress Node LFIB

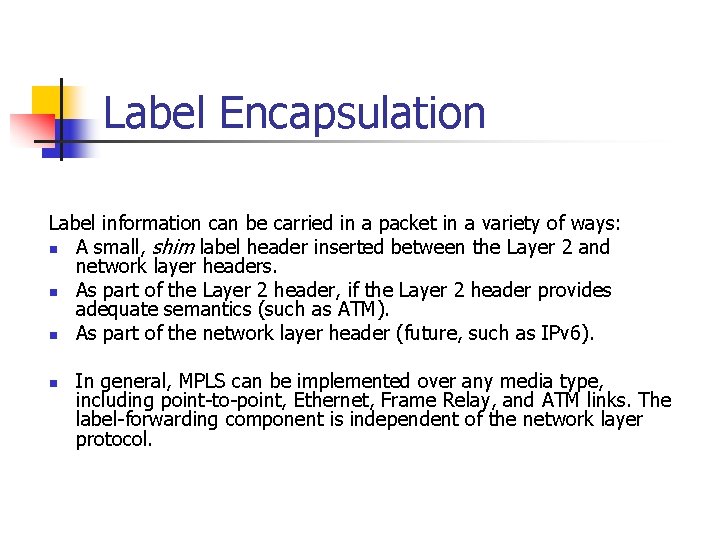

Label Encapsulation Label information can be carried in a packet in a variety of ways: n A small, shim label header inserted between the Layer 2 and network layer headers. n As part of the Layer 2 header, if the Layer 2 header provides adequate semantics (such as ATM). n As part of the network layer header (future, such as IPv 6). n In general, MPLS can be implemented over any media type, including point-to-point, Ethernet, Frame Relay, and ATM links. The label-forwarding component is independent of the network layer protocol.

Label Encapsulation ATM FR VPI/VCI DLCI L 2 Label L 2 Header Label Ethernet PPP Shim Label IP Header Datagram MPLS Encapsulation is specified over various media types. Labels may use existing format (e. g. , VPI/VCI) or use a new shim label format.

Shim Header n n n The Label (Shim Header) is represented as a sequence of Label Stack Entry Each Label Stack Entry is 4 bytes (32 bits) 20 Bits is reserved for the Label Identifier (also named Label) Label (20 bits) Label : Exp : S: TTL : Exp (3 bits) S (1 bit) TTL (8 bits) Label value (0 to 15 are reserved for special use) Experimental Use Bottom of Stack (set to 1 for the last entry in the label) Time To Live

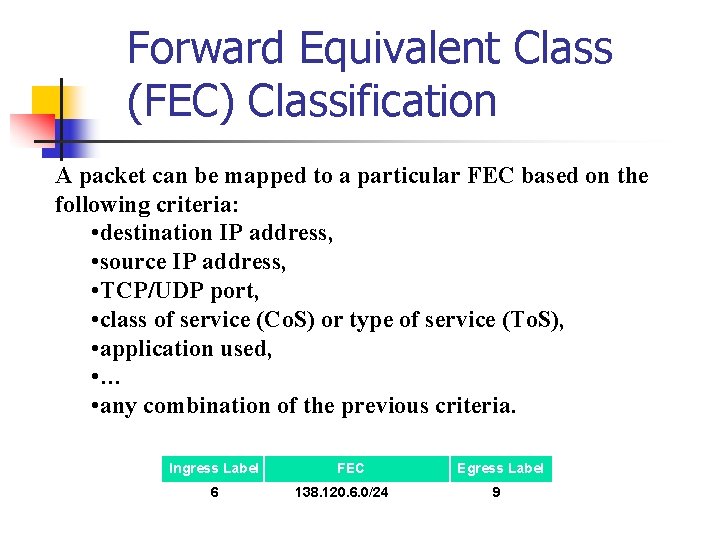

Forward Equivalent Class (FEC) Classification A packet can be mapped to a particular FEC based on the following criteria: • destination IP address, • source IP address, • TCP/UDP port, • class of service (Co. S) or type of service (To. S), • application used, • … • any combination of the previous criteria. Ingress Label 6 FEC 138. 120. 6. 0/24 Egress Label 9

Forwarding Equivalence Classes (FEC) LER LSR IP 1 #L 1 IP 1 #L 2 IP 1 #L 3 IP 1 IP 2 #L 2 IP 2 #L 3 IP 2 IP 3 #L 4 IP 3 #L 5 IP 3 #L 6 IP 3 IP 4 #L 4 IP 4 #L 5 IP 4 #L 6 IP 4 • FEC = A group of packets that are treated the same way by a router. • The concept of FECs provides for flexibility, scalability, and traffic engineering. • In legacy routing, the To. S field is used to determine FEC at each hop. In MPLS it is only done once at the network ingress.

MPLS Applications n n n Traffic Engineering Virtual Private Network Quality of Service (Qo. S)

Traffic Engineering n n n Traffic engineering allows a network administrator to make the path deterministic and bypass the normal routed hop-by-hop paths. An administrator may elect to explicitly define the path between stations to ensure Qo. S or have the traffic follow a specified path to reduce traffic loading across certain hops. The network administrator can reduce congestion by forcing the frame to travel around the overloaded segments. Traffic engineering, then, enables an administrator to define a policy forwarding frames rather than depending upon dynamic routing protocols. Traffic engineering is similar to source-routing in that an explicit path is defined for the frame to travel. However, unlike source-routing, the hop-byhop definition is not carried with every frame. Rather, the hops are configured in the LSRs ahead of time along with the appropriate label values.

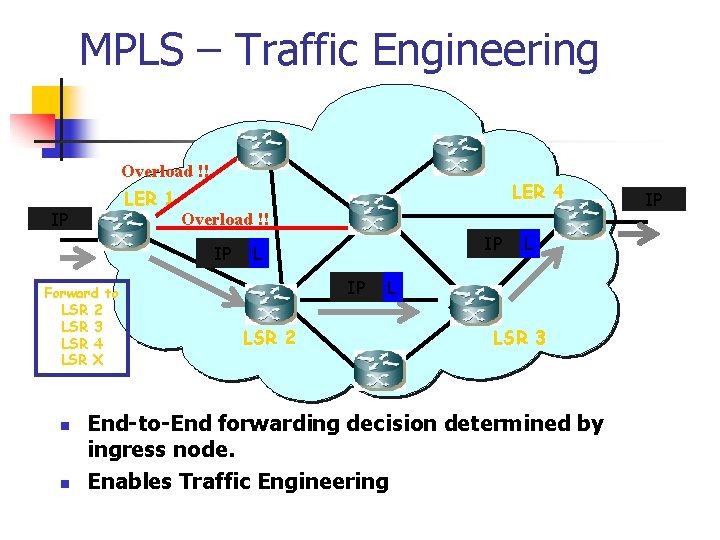

MPLS – Traffic Engineering Overload !! LER 1 IP LER 4 Overload !! IP Forward to LSR 2 LSR 3 LSR 4 LSR X n n IP LSR 2 L L LSR 3 End-to-End forwarding decision determined by ingress node. Enables Traffic Engineering IP

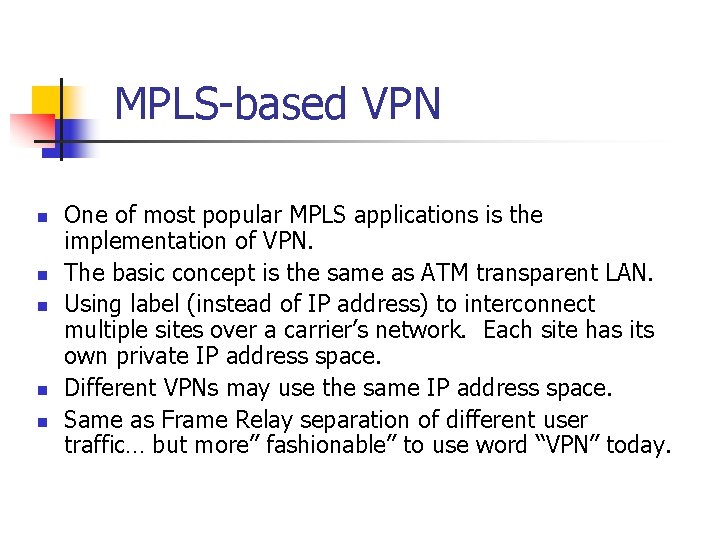

MPLS-based VPN n n n One of most popular MPLS applications is the implementation of VPN. The basic concept is the same as ATM transparent LAN. Using label (instead of IP address) to interconnect multiple sites over a carrier’s network. Each site has its own private IP address space. Different VPNs may use the same IP address space. Same as Frame Relay separation of different user traffic… but more” fashionable” to use word “VPN” today.

MPLS VPN Connection Model VPN_A MPLS Edge MPLS Core MPLS Edge VPN_A 10. 2. 0. 0 11. 5. 0. 0 VPN_B VPN_A 10. 2. 0. 0 10. 1. 0. 0 VPN_A 11. 6. 0. 0 VPN_B 10. 3. 0. 0 10. 1. 0. 0 VPN_A: 10. 2. 0. 0/24, 11. 6. 0. 0/24, 11. 5. 0. 0/24 VPN_B: 10. 2. 0. 0/24, 10. 1. 0. 0/24, 10. 3. 0. 0/24

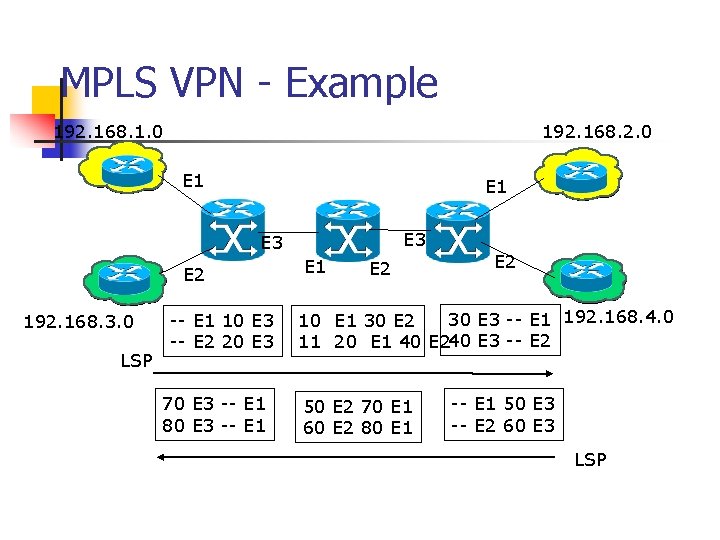

MPLS VPN - Example 192. 168. 1. 0 192. 168. 2. 0 E 1 E 3 E 2 192. 168. 3. 0 LSP -- E 1 10 E 3 -- E 2 20 E 3 70 E 3 -- E 1 80 E 3 -- E 1 E 2 30 E 3 -- E 1 192. 168. 4. 0 10 E 1 30 E 2 11 20 E 1 40 E 240 E 3 -- E 2 50 E 2 70 E 1 60 E 2 80 E 1 -- E 1 50 E 3 -- E 2 60 E 3 LSP

MPLS and Qo. S n n An important proposed MPLS capability is quality of service (Qo. S) support. Qo. S mechanisms: n n n n Pre-configuration based on physical interface Classification of incoming packets into different classes Classification based on network characteristics (such as congestion, throughput, delay, and loss) A label corresponding to the resultant class is applied to the packet. Labeled packets are handled by LSRs in their path without needing to be reclassified. MPLS enables simple logic to find the state that identifies how the packet should be scheduled. The exact use of MPLS for Qo. S purposes depends a great deal on how Qo. S is deployed. Support various Qo. S protocols, such as Int. Serv, Diff. Serv, and RSVP.

FEC Qo. S Classification LER MPLS label based on 1. physical interface 2. Source IP address 3. Destination IP address 4. Type of Service (To. S) 5. Protocol information 6. etc. LSR A priority scheme for different label switch path (LSP)

IP Differentiated Model Layer 3 IPV 4 Version Length 7 To. S 1 Byte 6 5 IP Precedence Data other IP header info 4 3 2 1 0 Unused Bits; 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Label | EXP |S| TTL | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

MPLS between Carriers? Carrier-B Carrier-A Carrier-C Internet Carrier-D Q: Does LDP work on different carriers’ network? A (short): not yet A (long): no network-to-network interface (NNI) signaling. . And I really don’t expect it in the near future…

Summary n n n MPLS is accepted by the industry to migrate ATM-based core to IP/MPLS-based core. It is applied to carrier networks and large enterprise networks. How do we set the label path: LDP What is the need: traffic classification What are the applications: traffic engineering, VPN, Qo. S, etc. Challenges: n n NNI for MPLS for the Internet
