Multiparadigm Programming in Scala H. Conrad Cunningham James C. Church Computer and Information Science

Multiparadigm Programming in Scala H. Conrad Cunningham James C. Church Computer and Information Science University of Mississippi 4 April 2009

What is Multiparadigm Programming? Definition: A multiparadigm programming language provides “a framework in which

What is Multiparadigm Programming? Definition: A multiparadigm programming language provides “a framework in which programmers can work in a variety of styles, freely intermixing constructs from different paradigms. ” [Tim Budd] Programming paradigms: § § imperative versus declarative (e. g. , functional, logic) other dimensions – object-oriented, component-oriented, concurrency-oriented, language-oriented 4 April 2009 2

Why Learn Multiparadigm Programming? Tim Budd: “Research results from the psychology of programming indicate

Why Learn Multiparadigm Programming? Tim Budd: “Research results from the psychology of programming indicate that expertise in programming is far more strongly related to the number of different programming styles understood by an individual than it is the number of years’ experience in programming. ” The “goal of multiparadigm computing is to provide. . . a number of different problem-solving styles” so that a programmer can “select a solution technique that best matches the characteristics of the problem to be solved”. 4 April 2009 3

Why Teach Multiparadigm Programming? § Contemporary imperative and object-oriented languages increasingly have functional programming

Why Teach Multiparadigm Programming? § Contemporary imperative and object-oriented languages increasingly have functional programming features, e. g. , • • § higher order functions (closures) list comprehensions New explicitly multiparadigm (objectoriented/functional) languages are appearing, e. g. , • • Scala on the Java platform (and. Net in future) F# on the. Net platform 4 April 2009 4

Scala Programming language developed by Martin Odersky’s team at EPFL in Switzerland § Executes

Scala Programming language developed by Martin Odersky’s team at EPFL in Switzerland § Executes on the Java platform § Integrates with Java § Has growing usage (e. g. , twitter. com) Multiparadigm language § Object-oriented (with generics and mixins) § Functional (similar to Haskell and SML) § Extensible (method calls as operators, currying, closures, by-name parameters) • • § Actor-based concurrency-oriented programming Language-oriented programming Statically typed with Hindley-Milner type inference 4 April 2009 5

Scala References § Website http: //www. scala-lang. org • • Martin Odersky. Scala Tutorial

Scala References § Website http: //www. scala-lang. org • • Martin Odersky. Scala Tutorial for Java Programmers. Martin Odersky. Scala By Example. § Martin Odersky, Lex Spoon, and Bill Venners. Programming in Scala: A Comprehensive Step-By -Step Guide, Artima, Inc. , 2009. § Books from Apress and Pragmatic Bookshelf in May, O’Reilly in August, Cambridge late 2009 4 April 2009 6

Defining Hello World object Hello. World { // Mississippi version def main(args: Array[String]){ println("Hey

Defining Hello World object Hello. World { // Mississippi version def main(args: Array[String]){ println("Hey world!") } } § § Singleton object named Hello. World (also replaces static methods and variables) Method main defined (procedure) Parameter args of type Array[String] Array is generic class with type parameter 4 April 2009 7

Interpreting Hello World > scala This is a Scala shell. Type in expressions to

Interpreting Hello World > scala This is a Scala shell. Type in expressions to have them evaluated. Type : help for more information. scala> object Hello. World { | def main(args: Array[String]) { | println("Hey world!") | } |} defined module Hello. World scala> Hello. World. main(null) Hey world! unnamed 0: Unit = () scala>: q 4 April 2009 8

Compiling & Executing Hello World > scalac Hello. World. scala > scala Hello. World

Compiling & Executing Hello World > scalac Hello. World. scala > scala Hello. World Hey world! 4 April 2009 9

Numbers are Objects § Consider expression 1 + 2 * 3 / x §

Numbers are Objects § Consider expression 1 + 2 * 3 / x § Operators are method calls (like Smalltalk) § Operator symbols are identifiers § Expression above is same as (1). +(((2). *(3)). /(x)) 4 April 2009 10

Functions are Objects object Timer { def once. Per. Second(callback: () => Unit){ while

Functions are Objects object Timer { def once. Per. Second(callback: () => Unit){ while (true) { callback(); Thread sleep 1000 } // 1 -arg method sleep used as operator } def welcome() { println("Welcome to CCSC: MS!") } def main(args: Array[String]) { once. Per. Second(welcome) } } 4 April 2009 11

Timer Execution scala> : l Timer. scala Loading Timer. scala. . . defined module

Timer Execution scala> : l Timer. scala Loading Timer. scala. . . defined module Timer scala> Timer. main(null) Welcome to CCSC: MS! … 4 April 2009 12

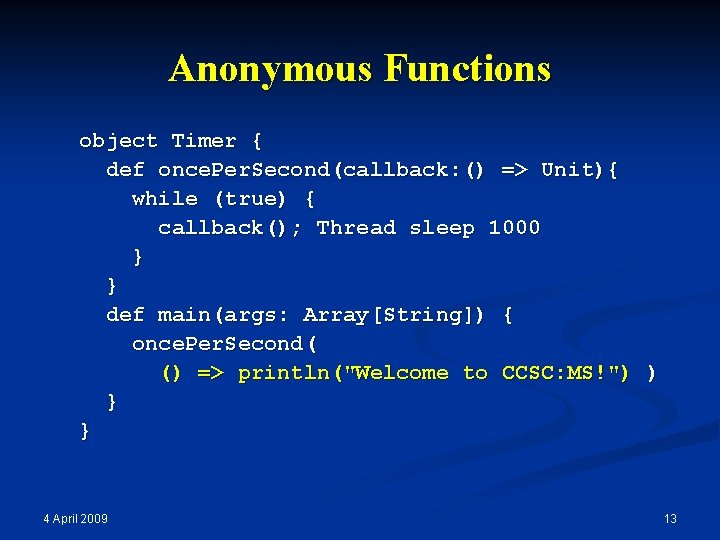

Anonymous Functions object Timer { def once. Per. Second(callback: () => Unit){ while (true)

Anonymous Functions object Timer { def once. Per. Second(callback: () => Unit){ while (true) { callback(); Thread sleep 1000 } } def main(args: Array[String]) { once. Per. Second( () => println("Welcome to CCSC: MS!") ) } } 4 April 2009 13

Classes class Complex(real: Double, imag: Double){ def re = real def im = imag

Classes class Complex(real: Double, imag: Double){ def re = real def im = imag } § § § Class primary constructor combined with class body Parameters of class private constants within class Parameterless methods re and im Return types of re and im inferred from expression (cannot be inferred for recursive functions) Thus more concise syntax 4 April 2009 14

Method Overriding // Complex. scala class Complex(real: Double, imag: Double) { def re =

Method Overriding // Complex. scala class Complex(real: Double, imag: Double) { def re = real def im = imag override def to. String = re + (if (im < 0. 0) "" else "+") + im + "i“ } § § § Classes extend class Any. Ref by default Methods must explicitly override parent method if expressions 4 April 2009 15

Using Classes and Objects scala> : load Complex. scala Loading Complex. scala. . .

Using Classes and Objects scala> : load Complex. scala Loading Complex. scala. . . defined class Complex scala> val x = new Complex(1, -3) x: Complex = 1. 0 -3. 0 i scala> x. to. String res 0: java. lang. String = 1. 0 -3. 0 i 4 April 2009 16

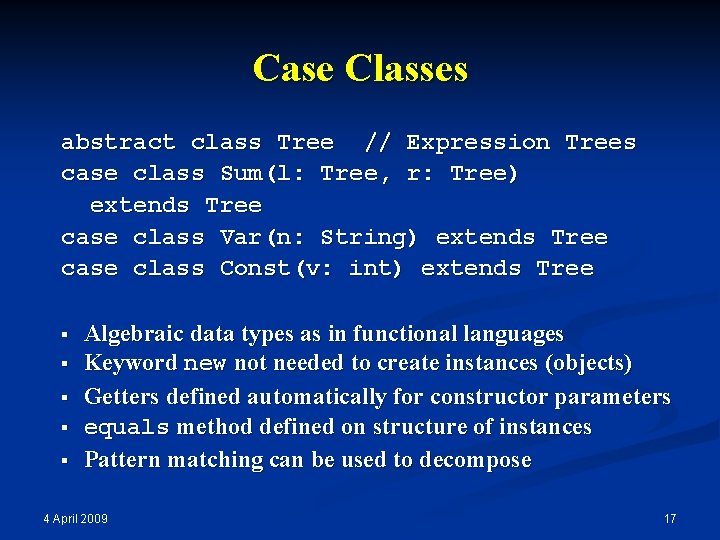

Case Classes abstract class Tree // Expression Trees case class Sum(l: Tree, r: Tree)

Case Classes abstract class Tree // Expression Trees case class Sum(l: Tree, r: Tree) extends Tree case class Var(n: String) extends Tree case class Const(v: int) extends Tree § § § Algebraic data types as in functional languages Keyword new not needed to create instances (objects) Getters defined automatically for constructor parameters equals method defined on structure of instances Pattern matching can be used to decompose 4 April 2009 17

Pattern Matching object Expressions { type Environ = String => Int def eval(t: Tree,

Pattern Matching object Expressions { type Environ = String => Int def eval(t: Tree, env: Environ): Int = t match { case Sum(l, r) => eval(l, env) + eval(r, env) case Var(n) => env(n) case Const(v) => v } def derive(t: Tree, v: String): Tree = t match { case Sum(l, r) => Sum(derive(l, v), derive(r, v)) case Var(n) if (v == n) => Const(1) case _ => Const(0) } 4 April 2009 18

Test Expression Trees def main(args: Array[String]) { val exp: Tree = Sum(Var("x"), Var("x")), Sum(Const(7),

Test Expression Trees def main(args: Array[String]) { val exp: Tree = Sum(Var("x"), Var("x")), Sum(Const(7), Var("y"))) val env: Environ = { case "x" => 5 case "y" => 7 } println("Expression: " + exp) println("Evaluation with x=5, y=7: " + eval(exp, env)) println("Derivative relative to x: n " + derive(exp, "x")) println("Derivative relative to y: n " + derive(exp, "y")) } } 4 April 2009 19

Execute Expression Trees scala> : load Expressions. scala Loading Expressions. scala. . . …

Execute Expression Trees scala> : load Expressions. scala Loading Expressions. scala. . . … scala> Expressions. main(null) Expression: Sum(Var(x), Var(x)), Sum(Const(7), Var(y))) Evaluation with x=5, y=7: 24 Derivative relative to x: Sum(Const(1), Const(1)), Sum(Const(0), Const(0))) Derivative relative to y: Sum(Const(0), Const(0)), Sum(Const(0), Const(1))) 4 April 2009 20

Defs, Vals, and Vars Three types of identifier definitions defines functions with parameters; RHS

Defs, Vals, and Vars Three types of identifier definitions defines functions with parameters; RHS expression evaluated each time called val defines unchanging values; RHS expression evaluated immediately to initialize var defines storage location whose values can be changed by assignment statements; RHS expression evaluated immediately to initialize 4 April 2009 21

Traits trait Ord { // Order comparison operators def < (that: Any): Boolean //

Traits trait Ord { // Order comparison operators def < (that: Any): Boolean // abstract def <=(that: Any): Boolean = (this < that) || (this == that) def > (that: Any): Boolean = !(this <= that) def >=(that: Any): Boolean = !(this < that) } § Like Java interfaces except can have concrete methods § Can be “mixed-in” to class § Note < abstract; others defined with < and equals 4 April 2009 22

Date Class with Mixin Trait Ord class Date(y: Int, m: Int, d: Int) extends

Date Class with Mixin Trait Ord class Date(y: Int, m: Int, d: Int) extends Ord { def year = y def month = m def day = d override def to. String(): String = year + "-" + month + "-" + day // need definition of < and equals } § § Can only extend only one class or trait May mix-in additional classes using keyword with 4 April 2009 23

Date Class Equals Method override def equals(that: Any): Boolean = that. is. Instance. Of[Date]

Date Class Equals Method override def equals(that: Any): Boolean = that. is. Instance. Of[Date] && { val o = that. as. Instance. Of[Date] o. day == day && o. month == month && o. year == year } § § § is. Instance. Of[T] checks whether object is an instance of the given type T as. Instance. Of[T] casts static type to T if compatible with dynamic type of object Value of last statement of function is returned 4 April 2009 24

Date Class < Method def <(that: Any): Boolean = { if (!that. is. Instance.

Date Class < Method def <(that: Any): Boolean = { if (!that. is. Instance. Of[Date]) error("Cannot compare " + that + " and a Date") val o = that. as. Instance. Of[Date] (year < o. year) || (year == o. year && (month < o. month || (month == o. month && day < o. day))) } 4 April 2009 25

Date. Test object Date. Test { def main(args: Array[String]) { val x = new

Date. Test object Date. Test { def main(args: Array[String]) { val x = new Date(1, 1, 2000) val y = new Date(12, 31, 2001) println("x = " + x) println("y = " + y) println("x < y: " + (x<y)) println("x > y: " + (x>y)) } } 4 April 2009 26

Date. Test Output > x y x x scala Date. Test = 1 -1

Date. Test Output > x y x x scala Date. Test = 1 -1 -2000 = 12 -31 -2001 < y: true > y: false 4 April 2009 27

Scala Functions § § § Are first-class values – i. e. , functions are

Scala Functions § § § Are first-class values – i. e. , functions are objects Can be higher-order – take functions as arguments or return them as result Can be anonymous May be curried – take arguments one at a time, allowing partial application Are often passed in a closure – with references to free variables they maninpulate Provide ability to build powerful libraries of higher-order functions 4 April 2009 28

Curried Functions scala> def add(x: Int, y: Int) = x + y add: (Int,

Curried Functions scala> def add(x: Int, y: Int) = x + y add: (Int, Int)Int scala> add(1, 3) res 0: Int = 4 scala> def addc(x: Int)(y: Int) = x + y addc: (Int)Int scala> addc(1)(3) res 1: Int = 4 4 April 2009 29

Partial Application scala> def addc(x: Int)(y: Int) = x + y addc: (Int)Int scala>

Partial Application scala> def addc(x: Int)(y: Int) = x + y addc: (Int)Int scala> val z = addc(1) _ z: (Int) => Int = <function> scala> z(3) res 2: Int = 4 4 April 2009 30

Closures scala> val inc = 10 inc: Int = 10 scala> def incre(x: Int)

Closures scala> val inc = 10 inc: Int = 10 scala> def incre(x: Int) = x + incre: (Int)Int scala> def app(y: Int, g: (Int=>Int)) = g(y) app: (Int, (Int) => Int)Int scala> app(13, incre) res 0: Int = 23 4 April 2009 31

List Processing // Not actual Scala API code abstract class List[+A]{ … def map[B](f:

List Processing // Not actual Scala API code abstract class List[+A]{ … def map[B](f: (A)=> B): List[B] = this match { case Nil => this case x: : xs => f(x): : xs. map(f) } … } case object Nil extends List[Nothing] case final class : : [B] (private hd: B, val tl: List[B]) extends List[B] 4 April 2009 32

Using List Map scala> val xs = List(3, 4, 5) xs: List[Int] = List(3,

Using List Map scala> val xs = List(3, 4, 5) xs: List[Int] = List(3, 4, 5) scala> val triples = xs. map(x => 3*x) triples: List[Int] = List(9, 12, 15) 4 April 2009 33

More List Processing // Not actual Scala API code abstract class List[+A]{ … def

More List Processing // Not actual Scala API code abstract class List[+A]{ … def filter(p: (A) => Boolean): List[A] = this match { case Nil => this case x: : xs => if (p(x)) x: : xs. filter(p) else xs. filter(p) } … } 4 April 2009 34

Using List Filter scala> val xs = List(3, 4, 5, 6) xs: List[Int] =

Using List Filter scala> val xs = List(3, 4, 5, 6) xs: List[Int] = List(3, 4, 5, 6) scala> val evens = xs. filter(x => x%2==0) evens: List[Int] = List(4, 6) 4 April 2009 35

Other Higher Order List Methods § flat. Map § fold. Left, fold. Right §

Other Higher Order List Methods § flat. Map § fold. Left, fold. Right § reduce. Left, reduce. Right § take. While, drop. While § span, break § foreach 4 April 2009 36

For Comprehensions scala> for(i <- 1 to 30; | j <- List(2, 3, 5,

For Comprehensions scala> for(i <- 1 to 30; | j <- List(2, 3, 5, 7); | if i % j == 0) yield (i, j) res 0: Seq. Projection[(Int, Int)] = Range. G((2, 2), (3, 3), (4, 2), (5, 5), (6, 2), (6, 3), (7, 7), (8, 2), (9, 3), (10, 2), (10, 5), (12, 2), (12, 3), (14, 2), (14, 7), (15, 3), (15, 5), (16, 2), (18, 3), (20, 2), (20, 5), (21, 3), (21, 7), (22, 2), (24, 3), (25, 5), (26, 2), (27, 3), (28, 2), (28, 7), (30, 2), (30, 3), (30, 5)) 4 April 2009 37

Actors in Scala 4 April 2009 38

Actors in Scala 4 April 2009 38

Motivation Concurrency is hard! n Real World is parallel and distributed. n Erlang's notion

Motivation Concurrency is hard! n Real World is parallel and distributed. n Erlang's notion of a process: n n Concurrent processes should pass messages to other processes rather than share memory. Erlang's processes are part of the language. n Scala's actors are part of the library. n 4 April 2009 39

Actors act independent of other actors. n Actors have mailboxes. n Actors communicate by

Actors act independent of other actors. n Actors have mailboxes. n Actors communicate by sending messages to other actors. n Actors will check their mailbox and react to their messages. n 4 April 2009 40

Message in a Bottle n Any object can be sent to an Actor case

Message in a Bottle n Any object can be sent to an Actor case object my. Message. Object. . . my. Actor ! my. Message. Object 4 April 2009 41

Please Mr. Postman n How urgent is it? react: I need it now! n

Please Mr. Postman n How urgent is it? react: I need it now! n receive. Within: I need it soon! n receive: I'll wait. n n All three methods will perform pattern matching on the objects received. 4 April 2009 42

Overacting import scala. actors. _ object Silly. Actor extends Actor { def act() {

Overacting import scala. actors. _ object Silly. Actor extends Actor { def act() { // Defines how our actor acts for (i <- 1 to 5) { println(“I'm acting!”) Thread. sleep(1000) } } }. . . Silly. Actor. start() // Begins acting 4 April 2009 43

Vegetable Launcher case object Tomato case object Lettuce object Vegetable. Launcher extends Actor {

Vegetable Launcher case object Tomato case object Lettuce object Vegetable. Launcher extends Actor { def act() { for (i <- 1 to 5) { Vegetable. Catcher ! Tomato // Send it! Thread. sleep(1000) Vegetable. Catcher ! Lettuce // Send it! Thread. sleep(1000) } } } 4 April 2009 44

Vegetable Catcher object Vegetable. Catcher extends Actor { def act() { loop { react

Vegetable Catcher object Vegetable. Catcher extends Actor { def act() { loop { react { // Non-blocking call // Pattern Matching case Lettuce => println(“I caught a lettuce!”) case Tomato => println(“I caught a tomato!”) } } 4 April 2009 45

Lights, Camera, . . . Vegtable. Launcher. start() Vegtable. Catcher. start() Silly. Actor. start()

Lights, Camera, . . . Vegtable. Launcher. start() Vegtable. Catcher. start() Silly. Actor. start() I'm acting! I caught a tomato! I'm acting! I caught a lettuce! I'm acting! I caught a tomato! I caught a lettuce! 4 April 2009 46

Dining Philosophers Five philosophers compete for limited resources. n Deadlocks are possible. n Solution

Dining Philosophers Five philosophers compete for limited resources. n Deadlocks are possible. n Solution implemented with a waiter. n 11 actors total: n 5 philosophers n 5 chopsticks (A mutex actor) n 1 waiter (A singleton object actor) n 4 April 2009 47

The waiter only allows four to sit. After that, names are on the wait

The waiter only allows four to sit. After that, names are on the wait list. n Philosophers must still wait for chopsticks after sitting. n 4 April 2009 48

Six Messages import scala. actors. _ scala. actors. Actor. _ java. util. Random //

Six Messages import scala. actors. _ scala. actors. Actor. _ java. util. Random // Philosopher and Waiter communication case object Need. To. Eat case object Have. ASeat case object Done. Eating // Philosopher and Chopstick communication case object Need. Chopstick case object Heres. AChopstick case object Give. Back. Chopstick 4 April 2009 49

Chopstick “Mutex” class Chopstick extends Actor { def act() { loop { react {

Chopstick “Mutex” class Chopstick extends Actor { def act() { loop { react { case Need. Chopstick => sender ! Heres. AChopstick receive { case Give. Back. Chopstick => 1 } } } 4 April 2009 50
