MultiMeters and What They Do Volts AC MultiMeters

  • Slides: 17
Download presentation
Multi-Meters and What They Do Volts AC

Multi-Meters and What They Do Volts AC

Multi-Meters and What They Do Volts AC Volts DC

Multi-Meters and What They Do Volts AC Volts DC

Multi-Meters and What They Do Volts AC Volts DC 300 m. V (millivolts)

Multi-Meters and What They Do Volts AC Volts DC 300 m. V (millivolts)

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω)

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω)

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω) Diode

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω) Diode Test / Audible Continuity Test

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω) Diode

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω) Diode Test / Audible Continuity Test Amps AC

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω) Diode

Multi-Meters and What They Do Volts AC 300 m. V (millivolts) Ohms (Ω) Diode Test / Audible Continuity Test Amps AC Amps DC

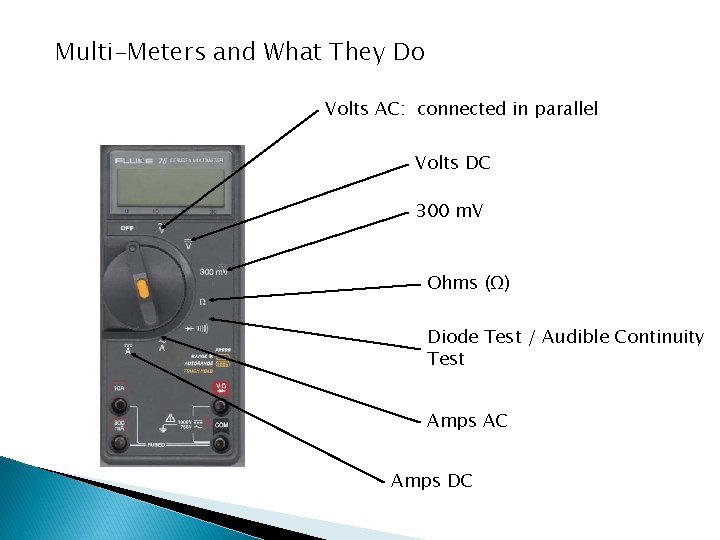

Multi-Meters and What They Do Volts AC: connected in parallel Volts DC 300 m.

Multi-Meters and What They Do Volts AC: connected in parallel Volts DC 300 m. V Ohms (Ω) Diode Test / Audible Continuity Test Amps AC Amps DC

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V Ohms

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V Ohms (Ω) Diode Test / Audible Continuity Test Amps AC Amps DC

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use with amp clamp Ohms (Ω) Diode Test / Audible Continuity Test Amps AC Amps DC

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use with amp clamp Ohms (Ω): series & power off Diode Test / Audible Continuity Test Amps AC Amps DC

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use with amp clamp Ohms (Ω): series & power off Diode Test / Audible Continuity Test: test diodes and use for continuity testing Amps AC Amps DC

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use with amp clamp Ohms (Ω): series & power off Diode Test / Audible Continuity Test: test diodes and use for continuity testing Amps AC: connect in series Amps DC

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use

Multi-Meters and What They Do Volts AC: connected in parallel 300 m. V: use with amp clamp Ohms (Ω): series & power off Diode Test / Audible Continuity Test: test diodes and use for continuity testing Amps AC: connect in series Amps DC: connect in series
