Multimedia Retrieval
Outline • Audio Retrieval • Spoken information • Music • Document Image Analysis and Retrieval • Video Retrieval

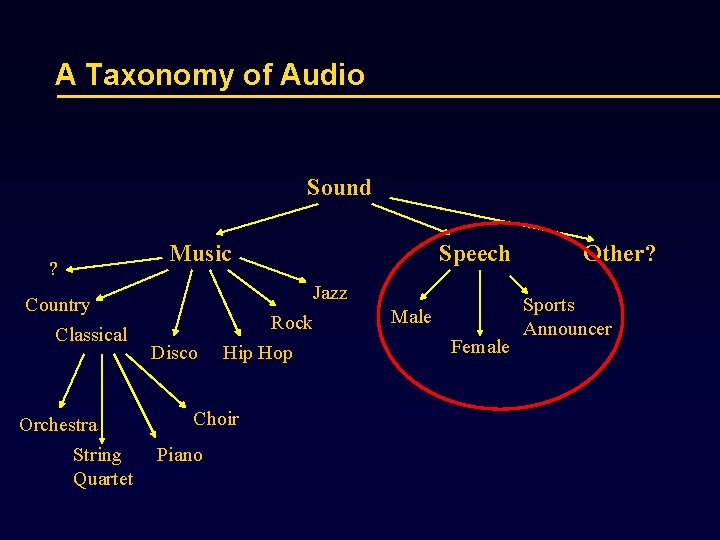

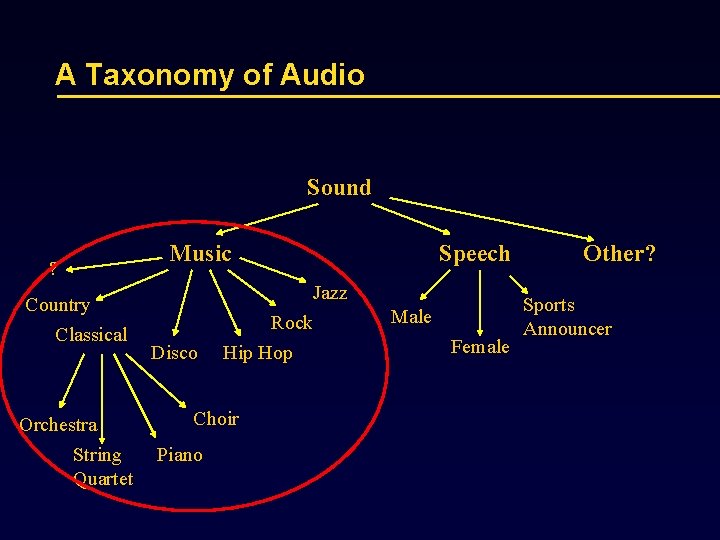

A Taxonomy of Audio Sound ? Country Classical Orchestra String Quartet Music Disco Jazz Rock Hip Hop Choir Piano Speech Male Female Other? Sports Announcer
Spoken Document Retrieval

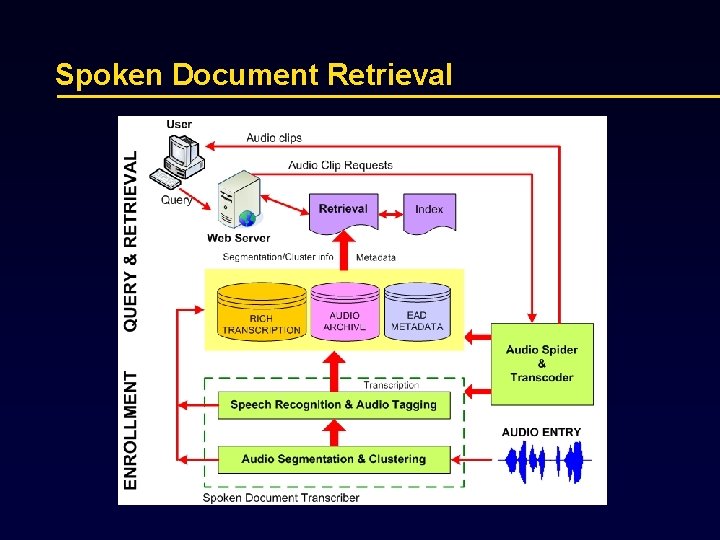

Spoken Document Retrieval

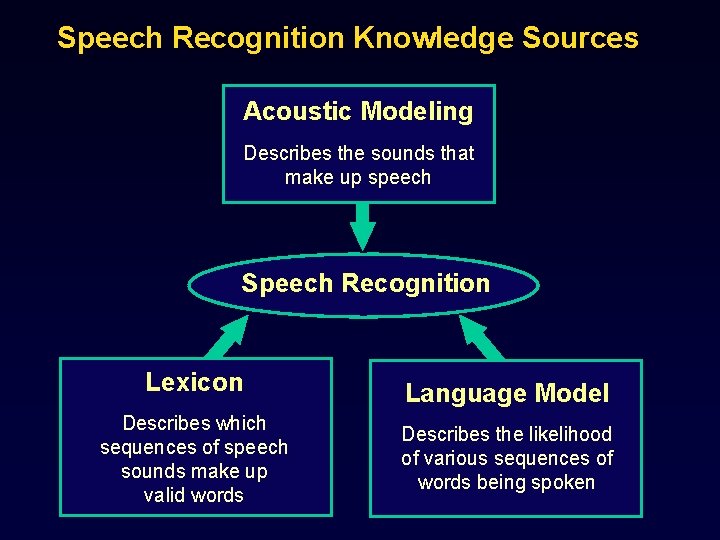

Speech Recognition Knowledge Sources Acoustic Modeling Describes the sounds that make up speech Speech Recognition Lexicon Describes which sequences of speech sounds make up valid words Language Model Describes the likelihood of various sequences of words being spoken

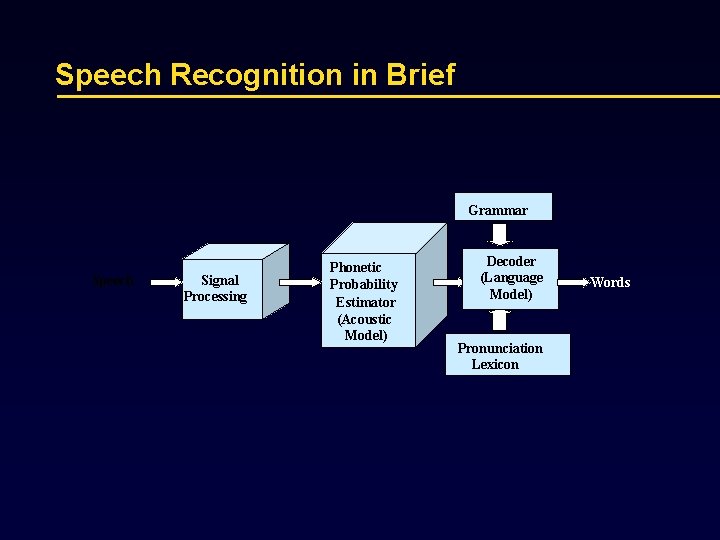

Speech Recognition in Brief Grammar Speech Signal Processing Phonetic Probability Estimator (Acoustic Model) Decoder (Language Model) Pronunciation Lexicon Words

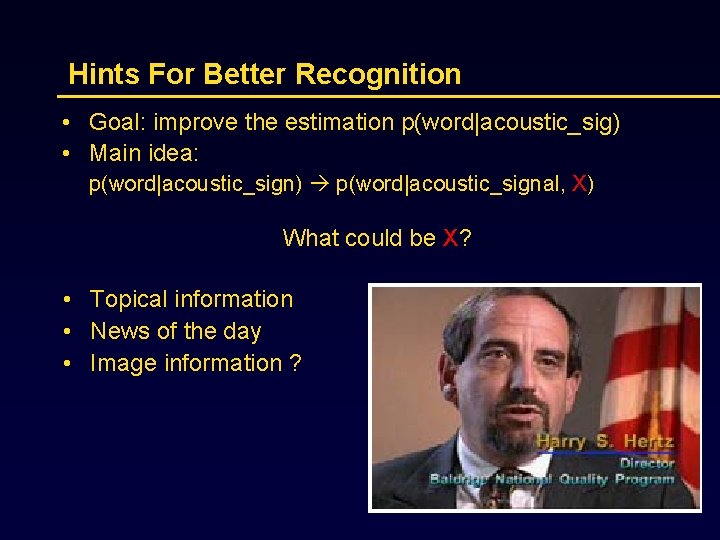

Hints For Better Recognition • Goal: improve the estimation p(word|acoustic_sig) • Main idea: p(word|acoustic_sign) p(word|acoustic_signal, X) What could be X? • Topical information • News of the day • Image information ?

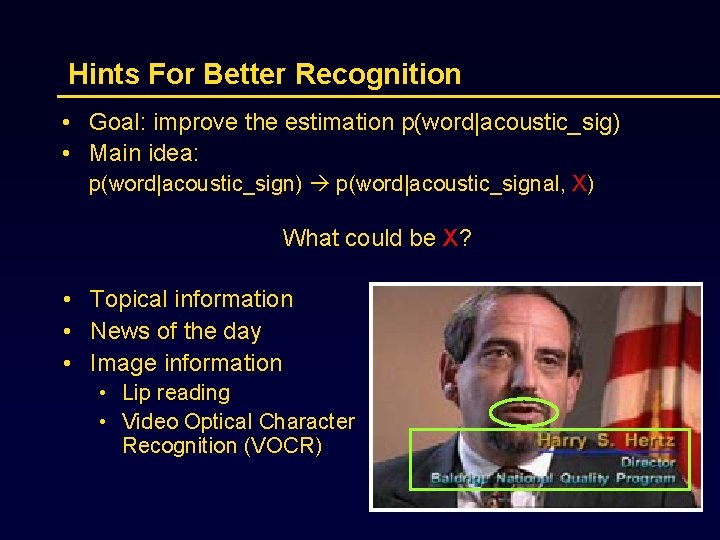

Hints For Better Recognition • Goal: improve the estimation p(word|acoustic_sig) • Main idea: p(word|acoustic_sign) p(word|acoustic_signal, X) What could be X? • Topical information • News of the day • Image information • Lip reading • Video Optical Character Recognition (VOCR)
Speech Recognition Accuracy Word Error Rate

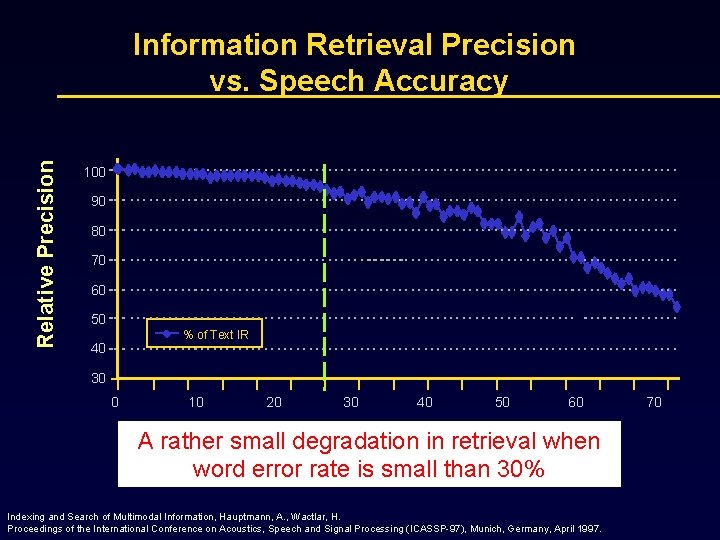

Relative Precision Information Retrieval Precision vs. Speech Accuracy 100 90 80 70 60 50 % of Text IR 40 30 0 10 20 30 40 50 60 A rather small degradation in retrieval when Word Error Rate word error rate is small than 30% Indexing and Search of Multimodal Information, Hauptmann, A. , Wactlar, H. Proceedings of the International Conference on Acoustics, Speech and Signal Processing (ICASSP 97), Munich, Germany, April 1997. 70

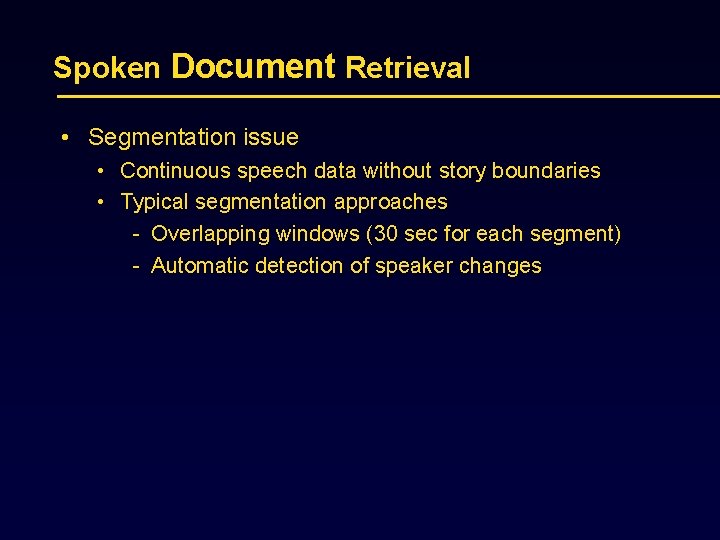

Spoken Document Retrieval • Segmentation issue • Continuous speech data without story boundaries • Typical segmentation approaches Overlapping windows (30 sec for each segment) Automatic detection of speaker changes

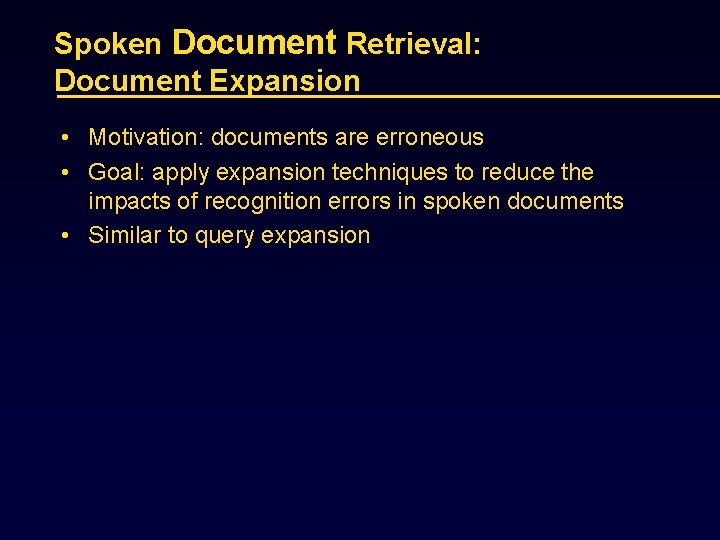

Spoken Document Retrieval: Document Expansion • Motivation: documents are erroneous • Goal: apply expansion techniques to reduce the impacts of recognition errors in spoken documents • Similar to query expansion

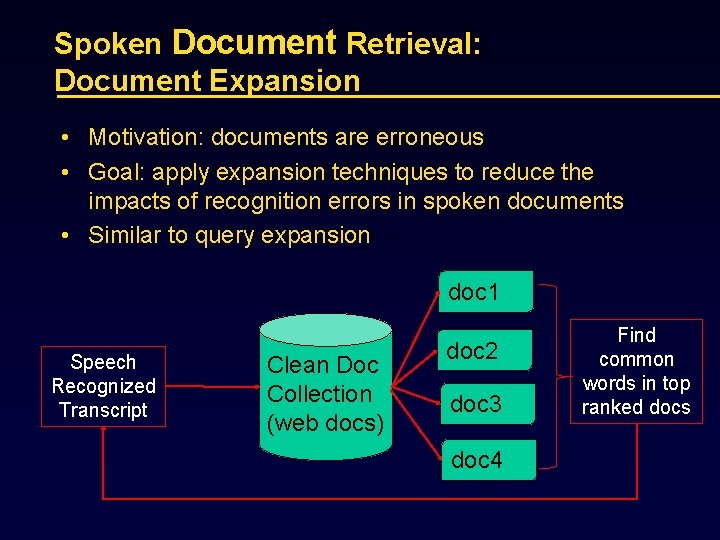

Spoken Document Retrieval: Document Expansion • Motivation: documents are erroneous • Goal: apply expansion techniques to reduce the impacts of recognition errors in spoken documents • Similar to query expansion doc 1 Speech Recognized Transcript Clean Doc Collection (web docs) doc 2 doc 3 doc 4 Find common words in top ranked docs

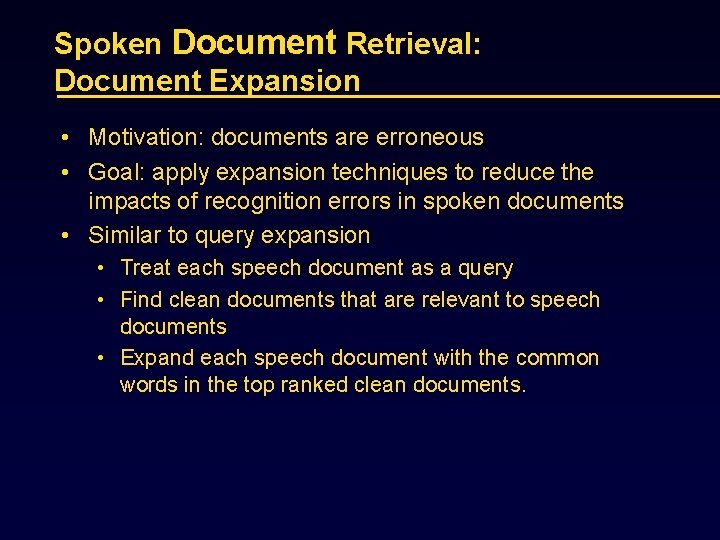

Spoken Document Retrieval: Document Expansion • Motivation: documents are erroneous • Goal: apply expansion techniques to reduce the impacts of recognition errors in spoken documents • Similar to query expansion • Treat each speech document as a query • Find clean documents that are relevant to speech documents • Expand each speech document with the common words in the top ranked clean documents.
Document Expansion (Sighal & Piereira, 1999)
A Taxonomy of Audio Sound ? Country Classical Orchestra String Quartet Music Disco Jazz Rock Hip Hop Choir Piano Speech Male Female Other? Sports Announcer
Music Information Retrieval

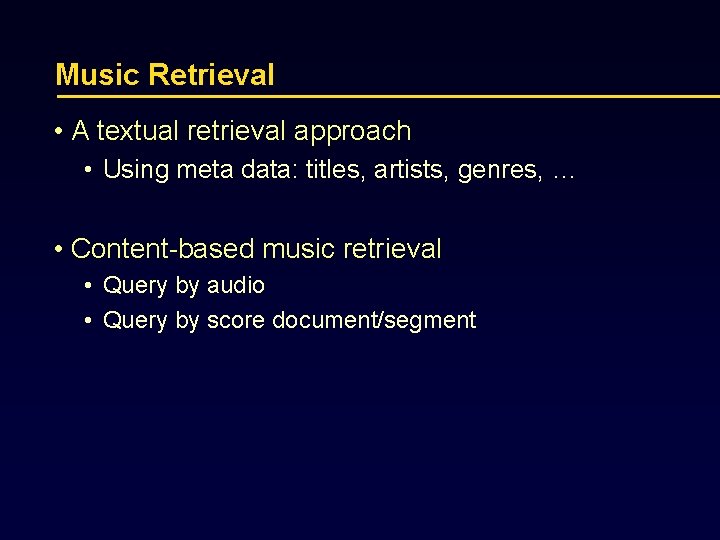

Music Retrieval • A textual retrieval approach • Using meta data: titles, artists, genres, … • Content based music retrieval • Query by audio • Query by score document/segment

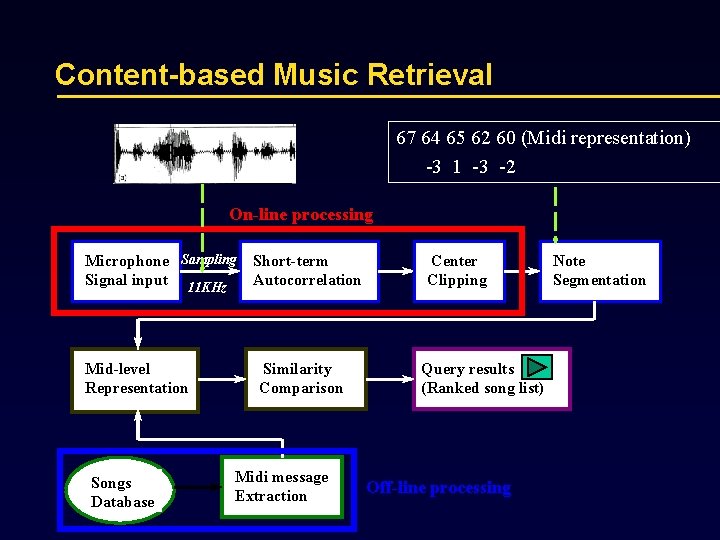

Content-based Music Retrieval 67 64 65 62 60 (Midi representation) -3 1 -3 -2 On-line processing Microphone Sampling Signal input 11 KHz Mid-level Representation Songs Database Short-term Autocorrelation Similarity Comparison Midi message Extraction Center Clipping Query results (Ranked song list) Off-line processing Note Segmentation

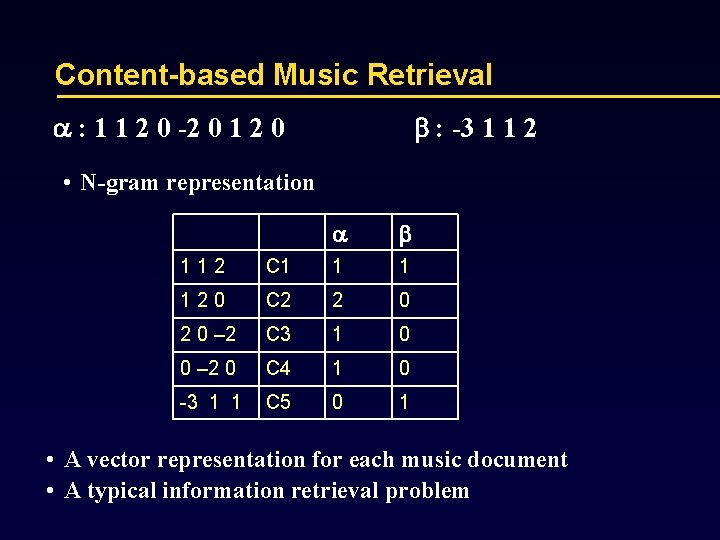

Content-based Music Retrieval : 1 1 2 0 -2 0 1 2 0 : -3 1 1 2 • N-gram representation 112 C 1 120 C 2 2 0 – 2 C 3 1 0 0 – 2 0 C 4 1 0 3 1 1 C 5 0 1 • A vector representation for each music document • A typical information retrieval problem

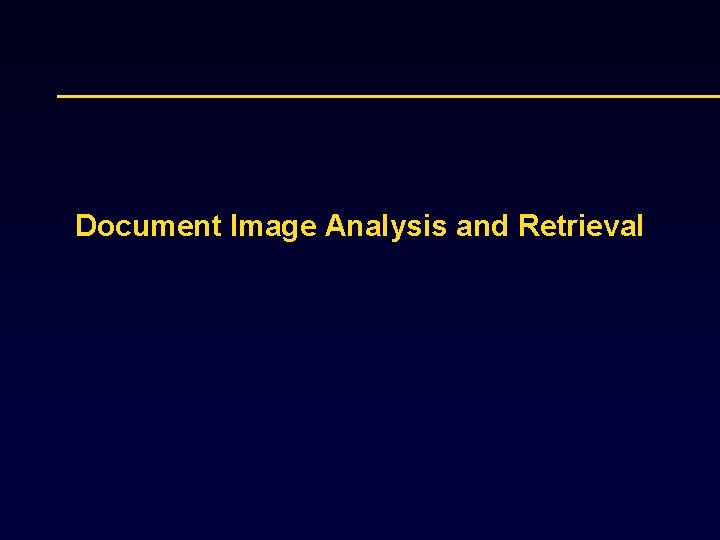

Document Image Analysis and Retrieval

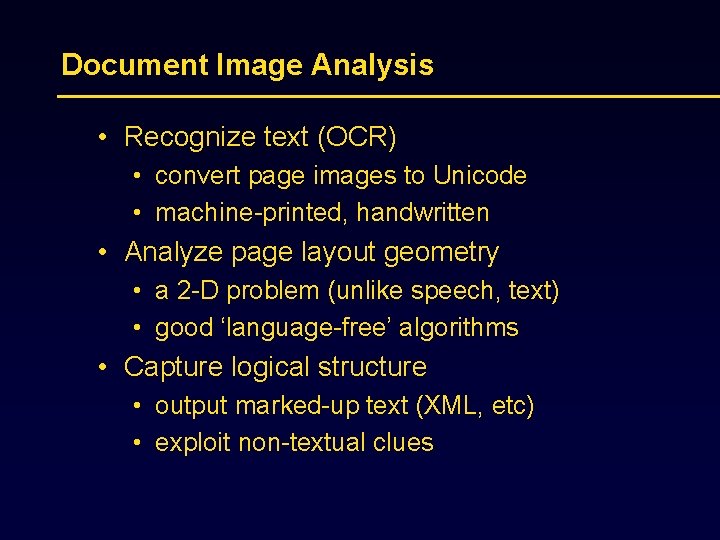

Document Image Analysis • Recognize text (OCR) • convert page images to Unicode • machine printed, handwritten • Analyze page layout geometry • a 2 D problem (unlike speech, text) • good ‘language free’ algorithms • Capture logical structure • output marked up text (XML, etc) • exploit non textual clues

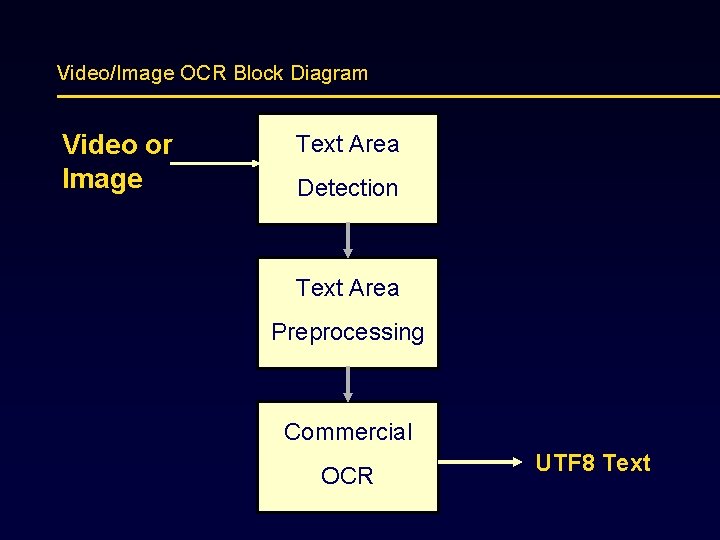

Video/Image OCR Block Diagram Video or Image Text Area Detection Text Area Preprocessing Commercial OCR UTF 8 Text

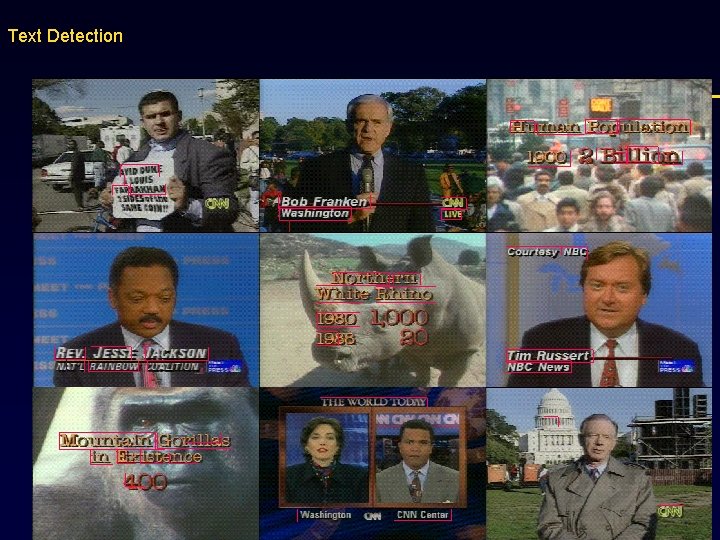

Text Detection

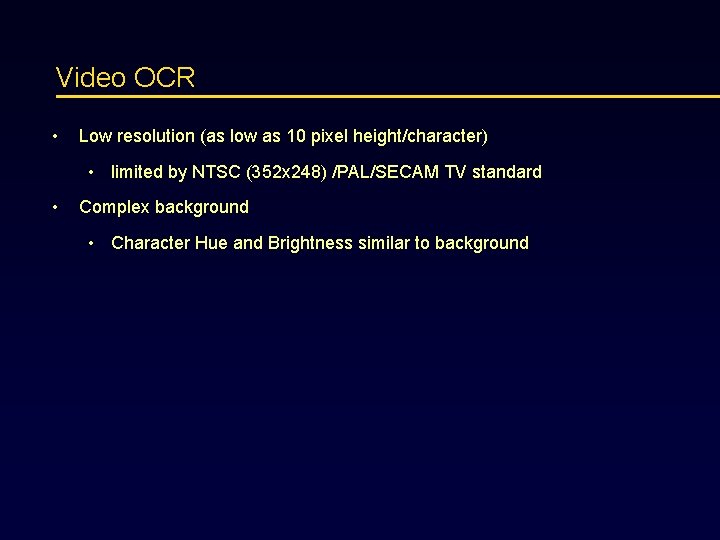

Video OCR • Low resolution (as low as 10 pixel height/character) • limited by NTSC (352 x 248) /PAL/SECAM TV standard • Complex background • Character Hue and Brightness similar to background

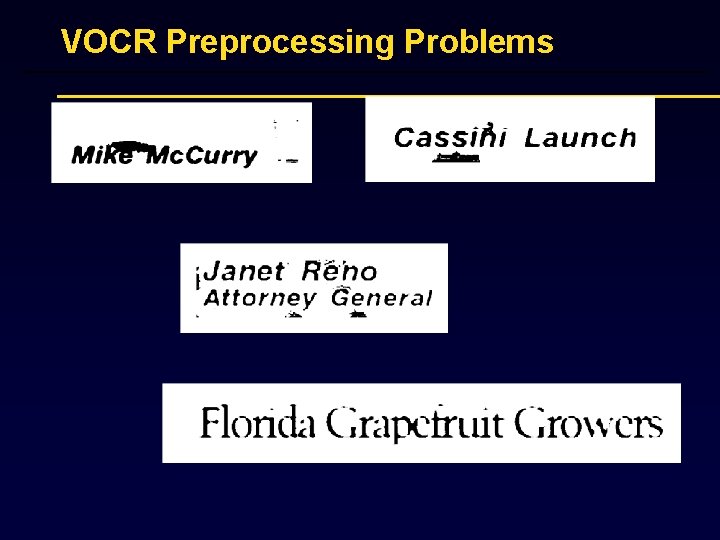

VOCR Preprocessing Problems

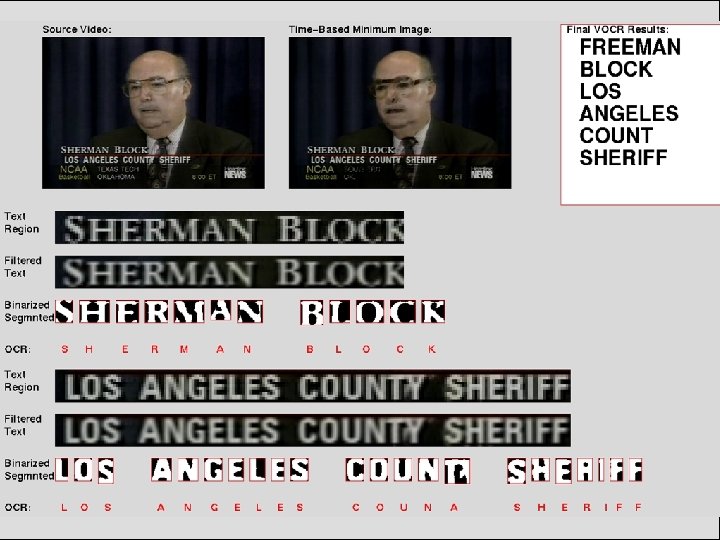

Video Frames (1/2 s intervals) Filtered Frames AND-ed Frames

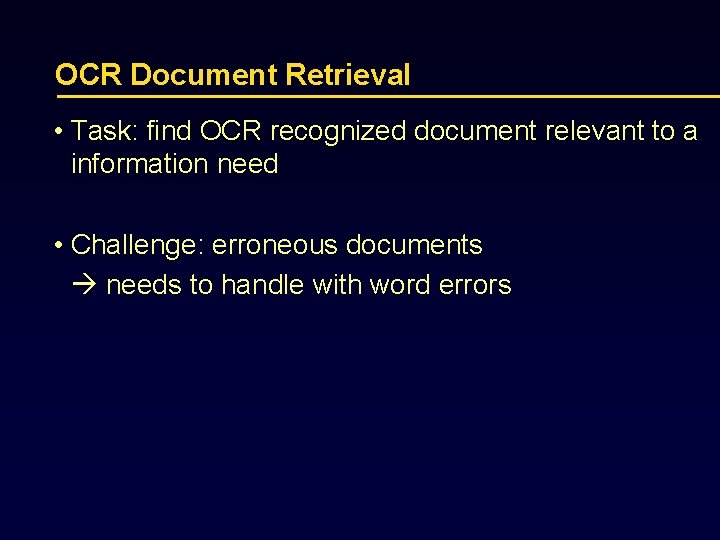

OCR Document Retrieval • Task: find OCR recognized document relevant to a information need • Challenge: erroneous documents needs to handle with word errors

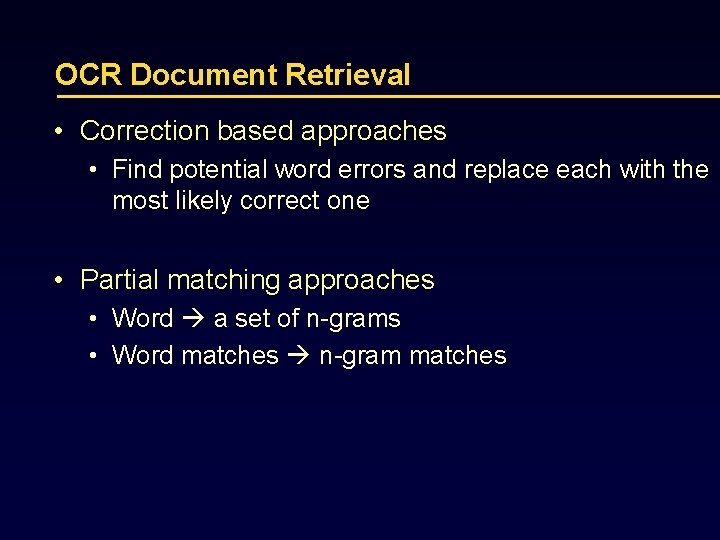

OCR Document Retrieval • Correction based approaches • Find potential word errors and replace each with the most likely correct one • Partial matching approaches • Word a set of n grams • Word matches n gram matches
Video Retrieval

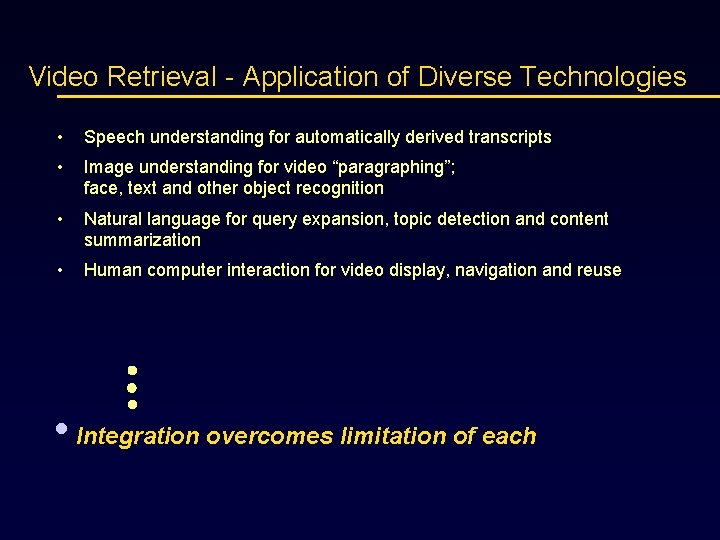

Video Retrieval Application of Diverse Technologies • Speech understanding for automatically derived transcripts • Image understanding for video “paragraphing”; face, text and other object recognition • Natural language for query expansion, topic detection and content summarization • Human computer interaction for video display, navigation and reuse • Integration overcomes limitation of each

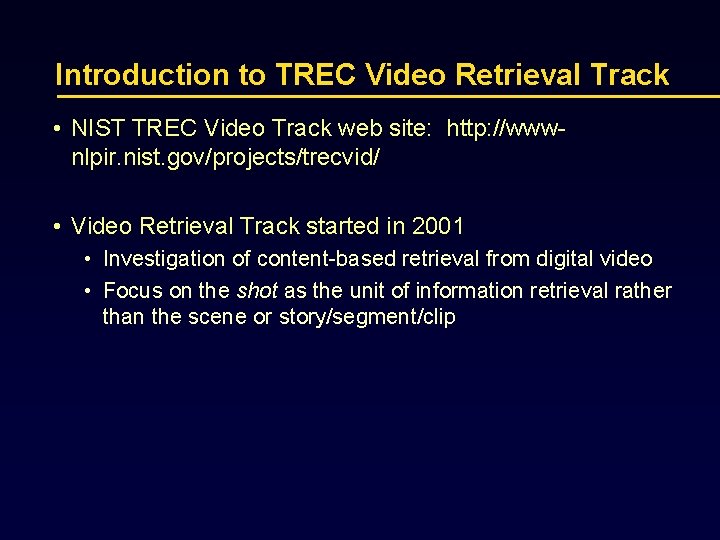

Introduction to TREC Video Retrieval Track • NIST TREC Video Track web site: http: //www nlpir. nist. gov/projects/trecvid/ • Video Retrieval Track started in 2001 • Investigation of content based retrieval from digital video • Focus on the shot as the unit of information retrieval rather than the scene or story/segment/clip
The TRECVID Collections 2001 11 hours, 74 queries, 8000 shots 2002 40 hours, 25 queries, 14000 shots Video from the Internet Archive between the ‘ 50’s and ’ 70’s Advertising, educational, industrial and amateur films Common shot boundaries 2003 – 56 hours, 25 queries, 32000 shots 1998 Broadcast News (CNN, ABC, CSpan) + Common Speech Recognition + Common Annotations 2004 – 61 hours, 24 queries, 33000 shots More 1998 Broadcast News

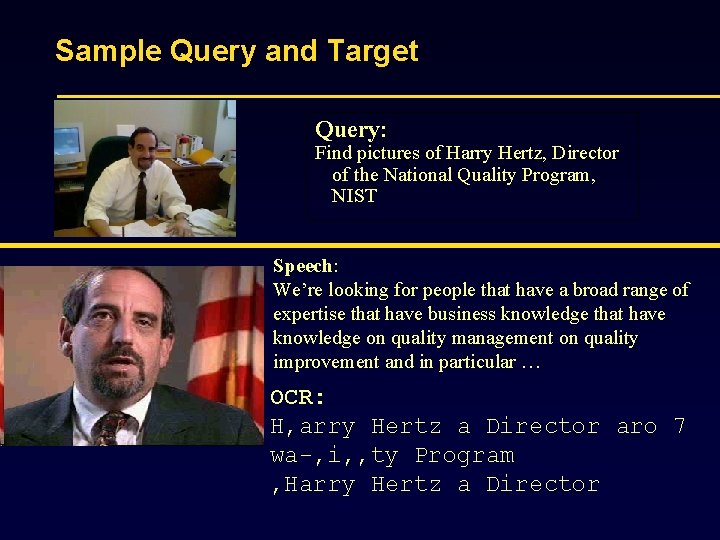

Sample Query and Target Query: Find pictures of Harry Hertz, Director of the National Quality Program, NIST Speech: We’re looking for people that have a broad range of expertise that have business knowledge that have knowledge on quality management on quality improvement and in particular … OCR: H, arry Hertz a Director aro 7 wa-, i, , ty Program , Harry Hertz a Director

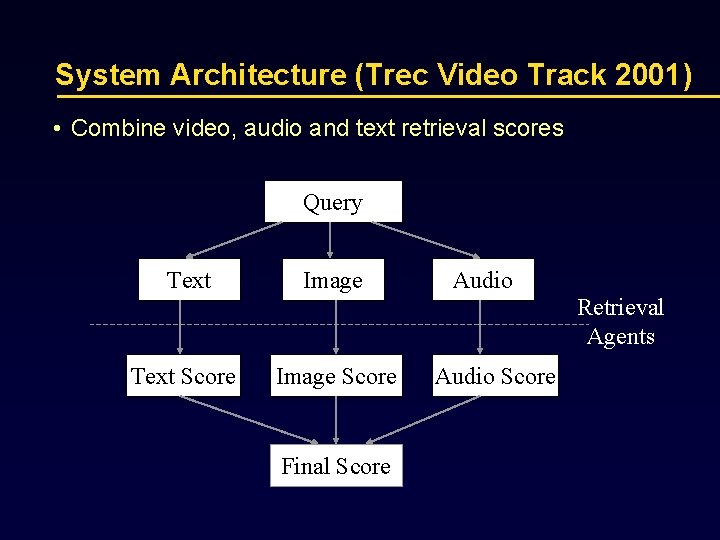

System Architecture (Trec Video Track 2001) • Combine video, audio and text retrieval scores Query Text Image Audio Retrieval Agents Text Score Image Score Final Score Audio Score

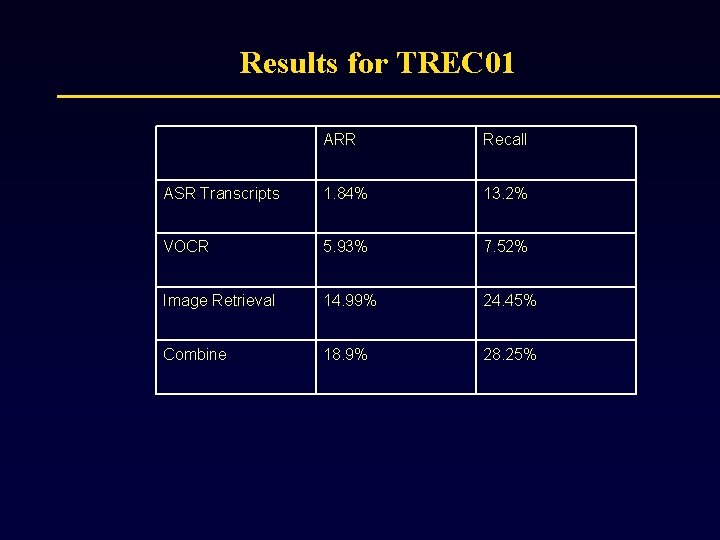

Results for TREC 01 ARR Recall ASR Transcripts 1. 84% 13. 2% VOCR 5. 93% 7. 52% Image Retrieval 14. 99% 24. 45% Combine 18. 9% 28. 25%
