Multimedia Devices Definitions and Terms

Chapter Objectives After completing this chapter you will: • Understand various CD and DVD technologies. • Understand the meaning of a CD or DVD’s X factor. • Understand how a CD drive works. • Know the different interfaces used with CD and DVD drives and be able to configure the drive. • Understand the basic operation of a sound card. • Understand the software associated with CD and DVD drive installation. • Be able to install a sound card. • Be able to use various operating system tools to verify drive and sound card installation.

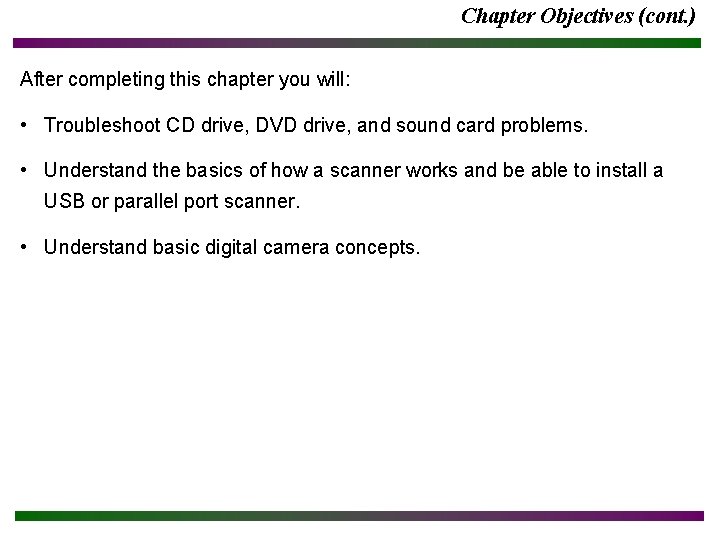

Chapter Objectives (cont. ) After completing this chapter you will: • Troubleshoot CD drive, DVD drive, and sound card problems. • Understand the basics of how a scanner works and be able to install a USB or parallel port scanner. • Understand basic digital camera concepts.

Multimedia Overview • The term multimedia has different meanings to different people because there are so many different types of multimedia devices. This chapter focuses on the most popular areas and you will find that other devices are similar to install and troubleshoot. • Multimedia devices: – CD and DVD technologies – Sound cards – Speakers

CD-ROM Drive Overview • CD-ROM terms: – CD-ROM (Compact Disk-Read Only Memory) Drive is a device that holds CDs and is used for audio and data files. – CD (Compact Disk) is a disk that holds large amounts of data (628 MB and higher), such as audio, video, and software applications. – A list of common controls can be found on 10 -4.

CD-ROM Drive Speeds • CD-ROM drives operate much slower than hard drives. • CD-ROM drive specifications: – Average Seek Time is the time required for a drive to move randomly about the disk. – Average Access Time is the time required to find and retrieve data on a disk or in memory.

CD-ROM Drive Speeds CD-ROM Transfer Speeds Multimedia – Table # 1

CD-ROM Drive Speeds CD-ROM Access Times Multimedia – Table # 2

CD-ROM Drive Buffers/Cache • Ways to increase CD-ROM data transfers: – Buffer memory located on the CD-ROM drive – Adjust the CD-ROM cache

Theory of CD-ROM Drive Operation • Data is stored on a CD with pits and flats. – Pits are indentations along the track of a CD. – Flats are lands that separate the pits in a CD.

Theory of CD-ROM Drive Operation Inside a CD-ROM Drive Multimedia – Figure #2

Internal and External CD-ROM Drives • Types of CD-ROM drives – Internal CD-ROM drives using either IDE or SCSI interface – External CD-ROM drives using the SCSI interface

CD-ROM Disk Loading • Methods for inserting a compact disk into a CD-ROM drive: – Tray Loaded is a method to insert a CD or DVD into a drive. They are less expensive but more likely to have lower MTBFs. • MTBF (Mean Time Between Failures) is the average number of hours before a device fails. – Caddy Loaded is a term used to describe how a CD inserts into a CD drive using a special holder. • Caddy is a holder for a compact disk that inserts into the CD drive. – Slot Loaded is a term used to describe how a CD loads into a slot in the CD drive. This has the disadvantage of disk jams.

CD-ROM Disk Loading CD-ROM Drive with Tray and CD-ROM Caddy Multimedia – Figure #3

CD-R and CD-RW • CD-R (Compact Disk Recordable) is a CD drive that can create a compact disk by writing once to the disk. – UDF (Universal Disk Format) is a CD-R drive standard used by some manufacturers. – DDCD (Double Density CD) is a CD disk format that extends to 1. 3 GB. Drives that use this specification can also read regular CDs, CD-R disks, and CD-RW disks. • WORM (Write Once-Read Many) is a technology that writes data once to a disk. It is often used to make backups or distribute software.

CD-R and CD-RW • CD-RW (Compact Disk Re. Writable) or CD-E is a CD drive that can write data multiple times to a particular disk. – PD (Phase-Change Dual) is a laser technology used to make CD-E and CD-RW disks. – Dye-Polymer is a technology for making CD-E or CD-RW disks by laser-heating the disk surface to produce light reflecting bumps. • Multi. Read or Multi. Read 2 is an OSTA specification that states the CDRW drive is backward compatible with CD-ROM and CD-R disks.

CD Standards Multimedia – Table # 3

Magneto-Optical Drives • MO (Magneto-Optical) Drive is a type of drive that uses a special technology for reading and writing multiple times to a compact disk. After the disk is heated by the laser to produce a bump, a magnet applies a charge to the surface.

DVD-ROM • DVD-ROM is a technology that produces disks with superior audio and video performance and increased storage capacity. – In DVD drives, the MPEG-2 video must be converted, and the decoder is the way to convert the data. – Direct. X is a Microsoft DVD technology that integrates multimedia drivers, application code, and 3 -D support for audio and video. – Region Code is a setting on a DVD drive or disk that specifies a geographic region.

DVD-ROM DVD Region Codes Multimedia – Table # 5

Decoders • Decoders are used to decompress the video and audio from a DVD. – Hardware Decoder requires a PCI adapter and handles the decoding. – Software Decoder is a type of DVD decoder that puts the burden on the CPU to decode and uncompress the MPEG-2 video data from the DVD.

Other DVD Technologies • Types of DVD Technologies: – DVD-RAM uses a phase technology like CD-RW and allows data to be rewritten on a DVD-RAM disk. – DVD-R uses WORM technology to use one or two sides of the disk. – DVD-RW (DVD-Re. Writable) uses 4. 7 GB disks that can be erased and rewritten to the disk. – DVD+RW (DVD Read and Write) is a drive that can be read from, written to, and holds 3 GB.

DVD Standards DVD Specifications Multimedia – Table # 5

CD/DVD Drive Interfaces and Connections • Types of CD and DVD Drive Interfaces: – IDE – most common – SCSI – USB – Fire. Wire – Proprietary

Installing a DVD Drive and Hardware Decoder Adapter • To install a DVD drive and hardware decoder adapter, always follow the manufacturer’s instructions. – General guidelines are given for this installation procedure on page 10 -22.

Drive Upgrades • Questions to analyze a CD-ROM Drive Upgrade: – Are speakers or sound wanted? – What microprocessor is installed in the computer? – Is a slot available in the computer for a sound card? – Will video-intensive CDs be used? – Does the computer have enough RAM? – Does the computer have a sound system that accepts digital audio input and support Dolby Digital Surround Sound?

Preventive Maintenance for CD and DVD Drives • If the laser lens gets dust, dirt, or moisture on it, the drive may report data or read errors. – Laser Lens or Objective Lens is a special component of the CDROM drive that is responsible for reading information from the CD disk.

New Technologies • FML/C (Flourescent Multi. Layer Disk/Card) is a new CD/DVD-type technology that uses a fluorescent dye embedded in pits and grooves on each layer of the disk or card.

CD and DVD Drive Installation • CD and DVD Drive Installation Steps: – Install any necessary mounting brackets on the drive. – Set the appropriate master/slave, SCSI ID, or termination for the drive interface. – Set any interrupt, I/O address, or DMA channel. – Attach the appropriate cables to the drive.

CD and DVD Driver Installation • Device Driver is a small piece of software that stays in RAM to allow communication with a piece of hardware. – MSCDEX. EXE is a program provided with DOS and Windows 3. x that assigns a drive letter to the CD-ROM drive. – Device Name is an eight-character name unique for each CD-ROM drive.

The MSCDEX. EXE Program • MSCDEX. EXE is a program provided with DOS and Windows 3. x that assigns a drive letter to the CD-ROM drive. It is included as a line in the AUTOEXEC. BAT file.

The MSCDEX. EXE Program MSCDEX. EXE Switches Multimedia – Table # 6

Troubleshooting the MSCDEX. EXE Installation • Troubleshooting the MSCDEX. EXE Installation – Verify the CD-ROM device driver in the CONFIG. SYS file loads correctly. – Verify the correct device name is used with the MSCDEX. EXE command – Verify the number of drive letters available.

CD/DVD Drives (Windows 9 x/NT/2000/XP) • CDFS (CD-ROM File System) is the Windows 9 x/NT/2000/XP 32 -bit protected mode CD drive file system driver. • Steps to disable the CD Autorun feature are given on page 10 -30.

Troubleshooting CD/DVD Drive Problems • Troubleshooting CD/DVD Drive Problems: – Always use the latest drivers. – Correct any interrupt, DMA channel, and I/O address conflicts. – Verify that the CD or DVD is installed in the drive. – Check power connections, cabling, and configuration settings. – Additional troubleshooting tips can be found on page 10 -31.

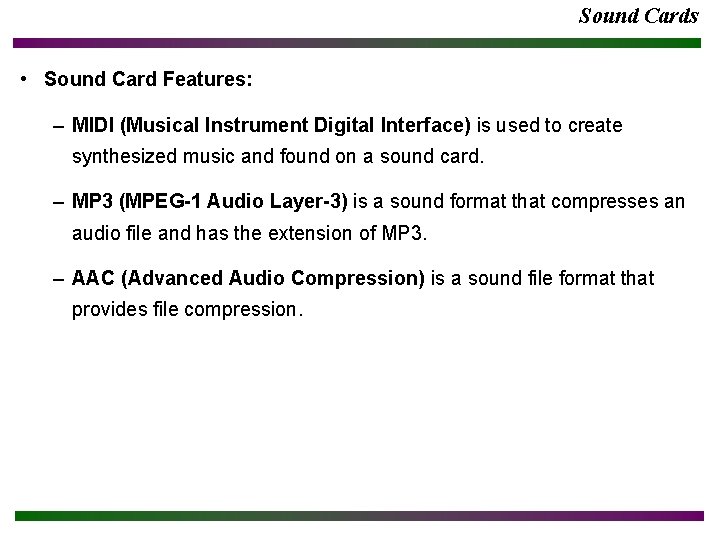

Sound Cards • Sound Card Features: – MIDI (Musical Instrument Digital Interface) is used to create synthesized music and found on a sound card. – MP 3 (MPEG-1 Audio Layer-3) is a sound format that compresses an audio file and has the extension of MP 3. – AAC (Advanced Audio Compression) is a sound file format that provides file compression.

Sound Cards CD Drive with Sound Card Multimedia – Figure # 6

Sound Cards Sound Blaster Live Platinum 5. 1 Sound Card Ports Multimedia – Figure # 7

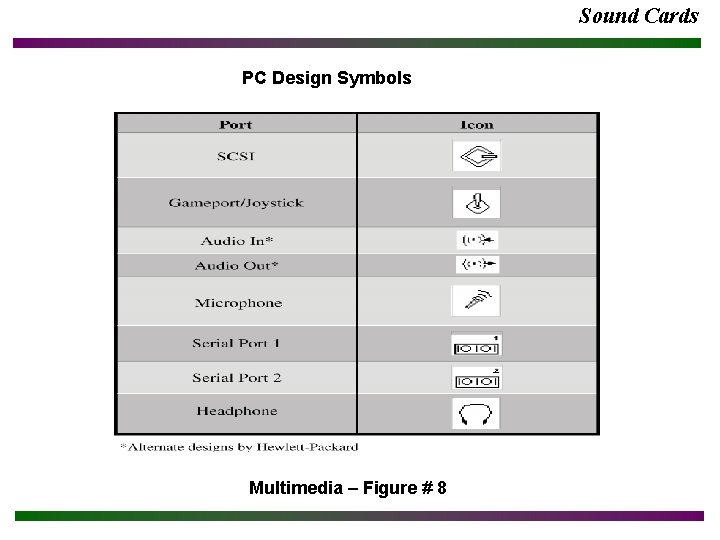

Sound Cards PC Design Symbols Multimedia – Figure # 8

Sound Card Theory of Operation • The sound card must take the analog signal and convert it to a digital format to send the sound into the computer. To convert an analog waveform to 1 s and 0 s, samples of data are taken. • Frequency Response is the number of samples taken by a sound card. • It is recommended to purchase a PCI sound card that uses a minimum of 16 bits for sampling.

Sound Card Theory of Operation Sound Wave Multimedia – Figure #9

Sound Card Theory of Operation 8 -Bit Sampling Multimedia – Figure #10

Sound Card Theory of Operation 16 -Bit Sampling Multimedia – Figure # 11

Installing Sound Cards • The steps to installing a sound card are similar to any other adapter. The onboard sound must be disabled before installing a new sound adapter.

Sound Cards Using Windows 9 X/NT/2000/XP • Audio Drivers: – WDM (Windows Driver Model) is a kernel mode process that handles audio management such as multiple streams of real-time audio. – DS 3 D (Direct. Sound 3 D) is a Microsoft development included in Direct. X 3 that adds more 3 D audio effect commands. – A 3 D is an audio standard developed by Aureal Semiconductor that supports hardware acceleration and allows simulation of sounds in certain environments such as a tunnel or under water. – EAX (Environmental Audio Extensions) is Creative Labs’ development that allows software and game developers to create a realistic audio environment such as muffling effects and audio directional effects.

Sound Cards Using Windows 9 X/NT/2000/XP NT’s Multimedia Control Panel Tabs Multimedia – Table # 9

Sound Cards Using Windows 9 X/NT/2000/XP 2000’s Sounds and Multimedia Control Panel Tabs Multimedia – Table # 10

Speakers • Speaker Features: – Power Rating is how loud the volume can go without distorting the sound and is expressed in watts-per-channel. – Frequency Response Range is the range of sounds a speaker can reproduce. – Shielding cancels out and keeps magnetic interference from devices. – Listen to speakers with an audio CD and without headphones to hear the quality of the speakers.

Speakers • The following is a list of extras for speakers: – An external volume control – Headphone jacks – Headphone and microphone pass-through connectors – AC adapter – Proper connectors to connect speakers to the sound card – If the sound card is capable of 3 D sound, a four or six speaker system is an enhancement.

Troubleshooting Sound Problems • Troubleshooting Sound Problems: – Verify that the sound card is secured in a PCI or ISA slot and no cuts are present in the speaker wires. – Verify installation of the correct sound drivers. – Verify that there are not any resource conflicts. – Check the speaker’s connection to the back of the computer. • An enhanced list can be found on 10 -45.

Troubleshooting Sound Problems (MS-DOS Mode) • Troubleshooting Sound Problems for DOS applications or DOS games: – Verify the audio CD is inserted in the CD-ROM drive. – Play the audio CD from the DOS CD-ROM control panel. – Check the connection of the speaker cables. – Verify that there are not any resource conflicts. – Verify installation of the correct sound drivers. – Check the speaker’s connection to the back of the computer. – Locate the speakers away from the monitor. – Always refer to the documentation of the sound card or CD drive manufacturer.

Scanners • A Scanner is an input device that allows documents including text and pictures to be brought into the computer and displayed, printed, etc. • The most common types of scanners: – Flatbed – Sheetfed – Handheld – Film • Scanners attach to the computer using one of three methods: – Parallel – USB – SCSI

Scanners • How a scanner operates can be found on page 10 -50. • The most common scanner file formats: – JPEG (Joint Photographic Experts Group) is good for web pictures and master copies – GIF (Graphic Interchange Format) is limited to 256 colors and good for web pictures – TIFF (Tag Image File Format) is good for master copies – PNG (Portable Network Graphics) is the newest type and supports 24 and 48 -bit color. • Scanner Terms: – Resolution is measured in dots per inch and determined by the number of sensors in the CCD array – Bit depth is the number of bits used for color. The more bits, the more colors and color depth – Interpolation is software used by the scanner to achieve a greater resolution – OCR (Optical Character Recognition) is software that processes printed or written text characters – TWAIN is a driver used that allows applications to access and acquire images directly from the scanner.

Digital Cameras • Digital camera stores photographs in digital form. • Digital cameras connect to the computer with several different interfaces: – Serial – Parallel – USB – SCSI – Fire. Wire • The most common types of Digital Camera Batteries: – AA – Ni. Cad – Ni. MH (Nickel Metal Hydride) – Li-Ion (Lithium Ion)

Digital Cameras The most common types of Digital Camera Data Storage: – CF (Compact Flash) – Smart. Media – Memory Stick – Secure Digital – PC Card drives
