Multilevel Indexing and B Trees 1 Indexed Sequential

Multilevel Indexing and B+ Trees 1

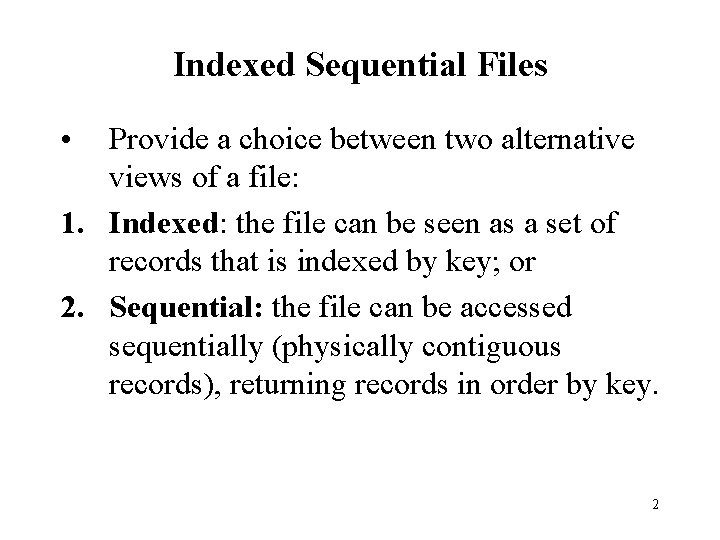

Indexed Sequential Files • Provide a choice between two alternative views of a file: 1. Indexed: the file can be seen as a set of records that is indexed by key; or 2. Sequential: the file can be accessed sequentially (physically contiguous records), returning records in order by key. 2

Example of applications • Student record system in a university: – Indexed view: access to individual records – Sequential view: batch processing when posting grades • Credit card system: – Indexed view: interactive check of accounts – Sequential view: batch processing of payments 3

The initial idea • Maintain a sequence set: – Group the records into blocks in a sorted way. – Maintain the order in the blocks as records are added or deleted through splitting, concatenation, and redistribution. • Construct a simple, single level index for these blocks. – Choose to build an index that contain the key for the last record in each block. 4

Maintaining a Sequence Set • Sorting and re-organizing after insertions and deletions is out of question. We organize the sequence set in the following way: – Records are grouped in blocks. – Blocks should be at least half full. – Link fields are used to point to the preceding block and the following block (similar to doubly linked lists) – Changes (insertion/deletion) are localized into blocks by performing: • Block splitting when insertion causes overflow • Block merging or redistribution when deletion causes underflow. 5

Example: insertion • Block size = 4 • Key : Last name Block 1 ADAMS … BIXBY … CARSON … COLE … • Insert “BAIRD …”: Block 1 ADAMS … BAIRD … Block 2 CARSON. . BIXBY … COLE … 6

Example: deletion Block 1 ADAMS … BAIRD … BIXBY … Block 2 BYNUM… CARSON. . CARTER. . Block 3 BOONE … DENVER… ELLIS … Block 4 COLE… DAVIS • Delete “DAVIS”, “BYNUM”, “CARTER”, 7

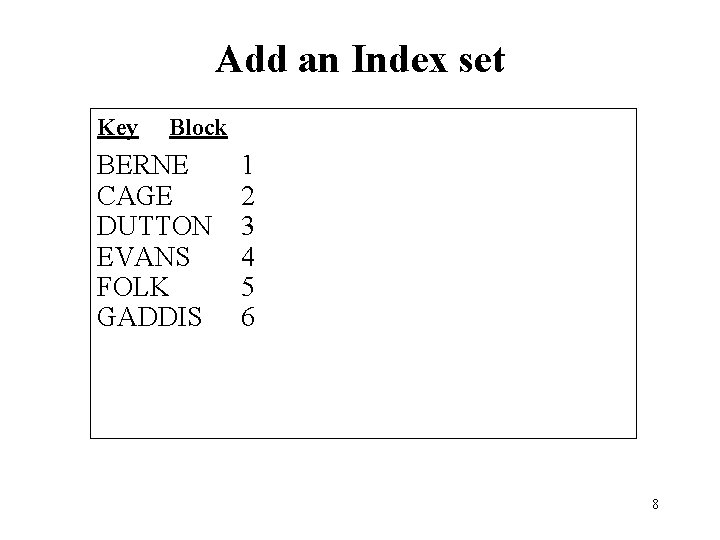

Add an Index set Key Block BERNE CAGE DUTTON EVANS FOLK GADDIS 1 2 3 4 5 6 8

Tree indexes • This simple scheme is nice if the index fits in memory. • If index doesn’t fit in memory: – Divide the index structure into blocks, – Organize these blocks similarly building a tree structure. • Tree indexes: – – B Trees B+ Trees Simple prefix B+ Trees … 9

Separators Block Range of Keys Separator 1 ADAMS-BERNE BOLEN 2 BOLEN-CAGE CAMP 3 CAMP-DUTTON EMBRY 4 EMBRY-EVANS FABER 5 FABER-FOLKS 6 FOLKS-GADDIS 10

root EMBRY Index set BOLEN FABER CAMP-DUTTON ADAMS-BERNE 1 CAMP BOLEN-CAGE 2 3 FOLKS EMBRY-EVANS 4 FOLKS-GADDIS FABER-FOLK 6 5 11

B Trees • B-tree is one of the most important data structures in computer science. • What does B stand for? (Not binary!) • B-tree is a multiway search tree. • Several versions of B-trees have been proposed, but only B+ Trees has been used with large files. • A B+tree is a B-tree in which data records are in leaf nodes, and faster sequential access is possible. 12

Formal definition of B+ Tree Properties • Properties of a B+ Tree of order v : – All internal nodes (except root) has at least v keys and at most 2 v keys. – The root has at least 2 children unless it’s a leaf. . – All leaves are on the same level. – An internal node with k keys has k+1 children 13

B+ tree: Internal/root node structure P 0 K 1 P 1 K 2 ……………… Pn-1 Kn Pn Each Pi is a pointer to a child node; each Ki is a search key value # of search key values = n, # of pointers = n+1 § Requirements: § K 1 < K 2 < … < Kn § For any search key value K in the subtree pointed by Pi, If Pi = P 0, we require K < K 1 If Pi = Pn, Kn K If Pi = P 1, …, Pn-1, Ki < K Ki+1 14

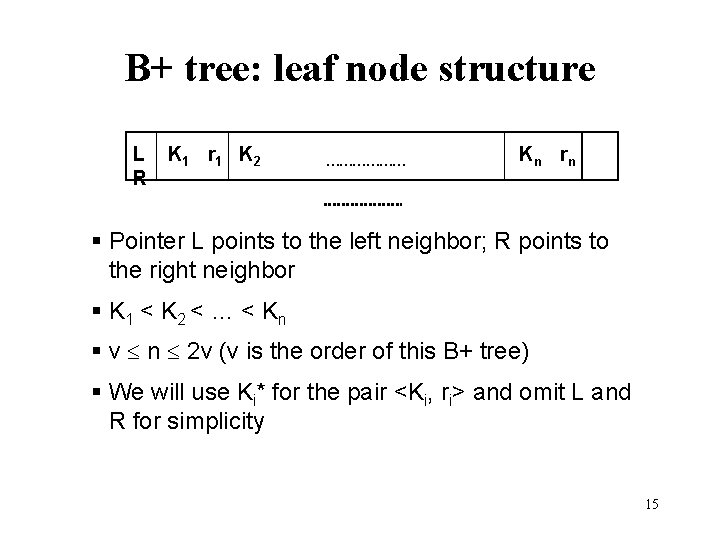

B+ tree: leaf node structure L K 1 r 1 K 2 R ……………… Kn rn § Pointer L points to the left neighbor; R points to the right neighbor § K 1 < K 2 < … < Kn § v n 2 v (v is the order of this B+ tree) § We will use Ki* for the pair <Ki, ri> and omit L and R for simplicity 15

Example: B+ tree with order of 1 • Each node must hold at least 1 entry, and at most 2 entries Root 40 10* 15* 20 33 20* 27* 51 33* 37* 40* 46* 51* 63 55* 63* 97* 16

Example: Search in a B+ tree order 2 • Search: how to find the records with a given search key value? – Begin at root, and use key comparisons to go to leaf • Examples: search for 5*, 16*, all data entries >= 24*. . . – The last one is a range search, we need to do the sequential scan, starting from the first leaf containing a value >= 24. Root 13 2* 3* 5* 7* 14* 15* 17 24 19* 20* 22* 30 24* 27* 29* 33* 34* 38* 39* 17

B+ Trees in Practice • Typical order: 100. Typical fill-factor: 67%. – average fanout = 133 (i. e, # of pointers in internal node) • Can often hold top levels in buffer pool: – – – Level 1 = 1 page = 8 Kbytes Level 2 = 133 pages = 1 Mbyte Level 3 = 17, 689 pages = 133 MBytes • Suppose there are 1, 000, 000 data entries. – – H = log 133(100000/132) < 4 The cost is 5 pages read 18

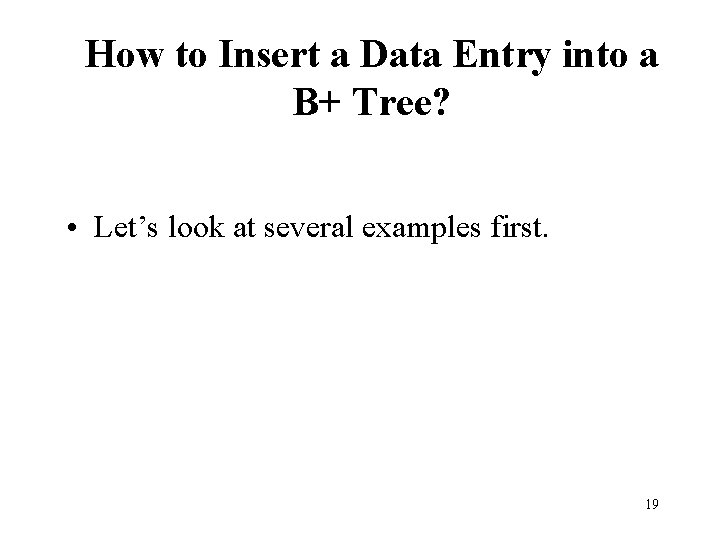

How to Insert a Data Entry into a B+ Tree? • Let’s look at several examples first. 19

Inserting 16*, 8* into Example B+ tree Root 2* 3* 5* 7* 8* 13 17 24 30 15* 16* 14* You overflow 13 2* 3* 5* 7* 17 24 30 8* One new child (leaf node) generated; must add one more pointer to its parent, thus one more key value as well. 20

Inserting 8* (cont. ) • Copy up the middle value (leaf split) 13 17 24 30 Entry to be inserted in parent node. (Note that 5 is s copied up and continues to appear in the leaf. ) 5 2* 5 3* 13 5* 17 24 30 7* 8* You overflow! 21

Insertion into B+ tree (cont. ) • Understand difference between copy-up and push-up • Observe how minimum occupancy is guaranteed in both leaf and index pg splits. 5 13 17 24 30 We split this node, redistribute entries evenly, and push up middle key. 17 5 13 24 Entry to be inserted in parent node. (Note that 17 is pushed up and only appears once in the index. Contrast this with a leaf split. ) 30 22

Example B+ Tree After Inserting 8* Root 17 5 2* 3* 24 13 5* 7* 8* 14* 15* 19* 20* 22* 30 24* 27* 29* 33* 34* 38* 39* Notice that root was split, leading to increase in height. 23

Inserting a Data Entry into a B+ Tree: Summary • Find correct leaf L. • Put data entry onto L. – – If L has enough space, done! Else, must split L (into L and a new node L 2) • Redistribute entries evenly, put middle key in L 2 • copy up middle key. • Insert index entry pointing to L 2 into parent of L. • This can happen recursively – To split index node, redistribute entries evenly, but push up middle key. (Contrast with leaf splits. ) • Splits “grow” tree; root split increases height. – Tree growth: gets wider or one level taller at top. 24

Deleting a Data Entry from a B+ Tree • Examine examples first … 25

Delete 19* and 20* Root 17 5 2* 3* 24 13 5* 7* 8* 19* 20* 22* 14* 16* You u rfl nde 30 24* 27* 29* 33* 34* 38* 39* ow 22* 24* 27* 29* Have we still forgot something? 26

Deleting 19* and 20* (cont. ) Root 17 5 2* 3* • • 27 13 5* 7* 8* 14* 16* 22* 24* 30 27* 29* 33* 34* 38* 39* Notice how 27 is copied up. But can we move it up? Now we want to delete 24 Underflow again! But can we redistribute this time? 27

! w ling o l rf sib e d th un wi u e Yo erg M Deleting 24* • Observe the two leaf nodes are merged, and 27 is discarded from their parent, but … • Observe `pull down’ of index entry (below). New root 2* 3* 5* 5 7* 8* 13 14* 16* 30 22* 17 27* 29* 33* 34* 38* 39* 30 22* 27* 29* 33* 34* 38* 39* 28

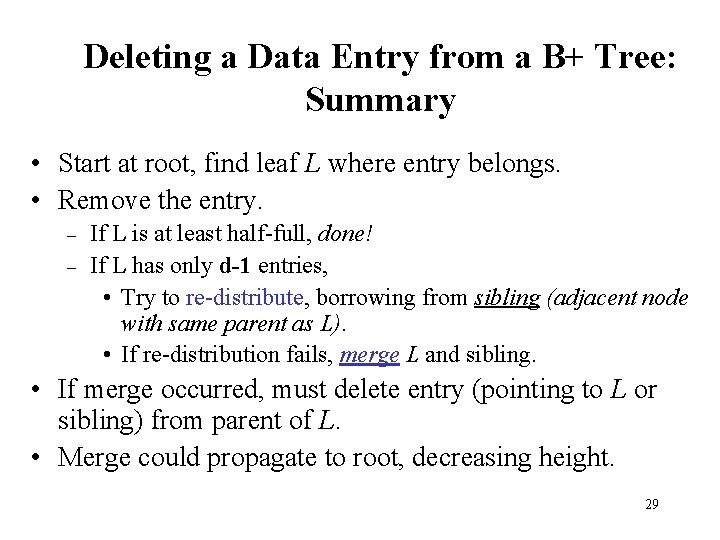

Deleting a Data Entry from a B+ Tree: Summary • Start at root, find leaf L where entry belongs. • Remove the entry. – – If L is at least half-full, done! If L has only d-1 entries, • Try to re-distribute, borrowing from sibling (adjacent node with same parent as L). • If re-distribution fails, merge L and sibling. • If merge occurred, must delete entry (pointing to L or sibling) from parent of L. • Merge could propagate to root, decreasing height. 29

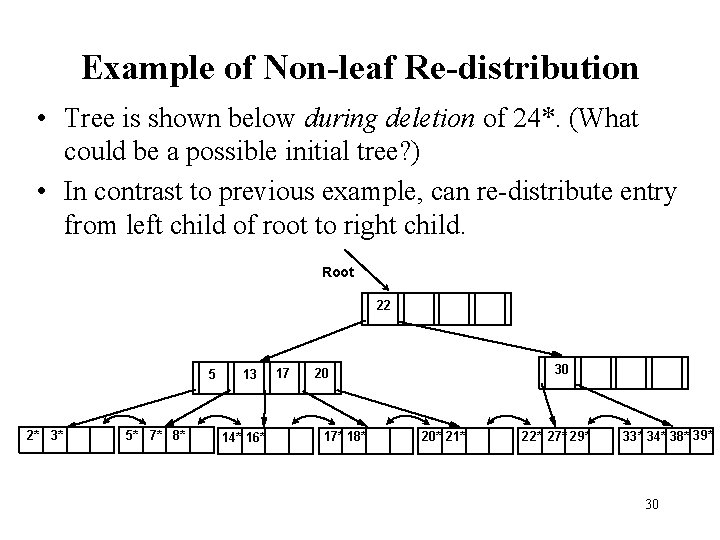

Example of Non-leaf Re-distribution • Tree is shown below during deletion of 24*. (What could be a possible initial tree? ) • In contrast to previous example, can re-distribute entry from left child of root to right child. Root 22 5 2* 3* 5* 7* 8* 13 14* 16* 17 30 20 17* 18* 20* 21* 22* 27* 29* 33* 34* 38* 39* 30

After Re-distribution • Intuitively, entries are re-distributed by `pushing through’ the splitting entry in the parent node. • It suffices to re-distribute index entry with key 20; we’ve re-distributed 17 as well for illustration. Root 17 5 2* 3* 5* 7* 8* 13 14* 16* 20 17* 18* 20* 21* 22 30 22* 27* 29* 33* 34* 38* 39* 31

Terminology • Bucket Factor: the number of records which can fit in a leaf node. • Fan-out : the average number of children of an internal node. • A B+tree index can be used either as a primary index or a secondary index. – Primary index: determines the way the records are actually stored (also called a sparse index) – Secondary index: the records in the file are not grouped in buckets according to keys of secondary indexes (also called a dense index) 32

Summary • Tree-structured indexes are ideal for rangesearches, also good for equality searches. • B+ tree is a dynamic structure. – – Inserts/deletes leave tree height-balanced; High fanout (F) means depth rarely more than 3 or 4. Almost always better than maintaining a sorted file. Typically, 67% occupancy on average. If data entries are data records, splits can change rids! • Most widely used index in database management systems because of its versatility. One of the most optimized components of a DBMS. 33
