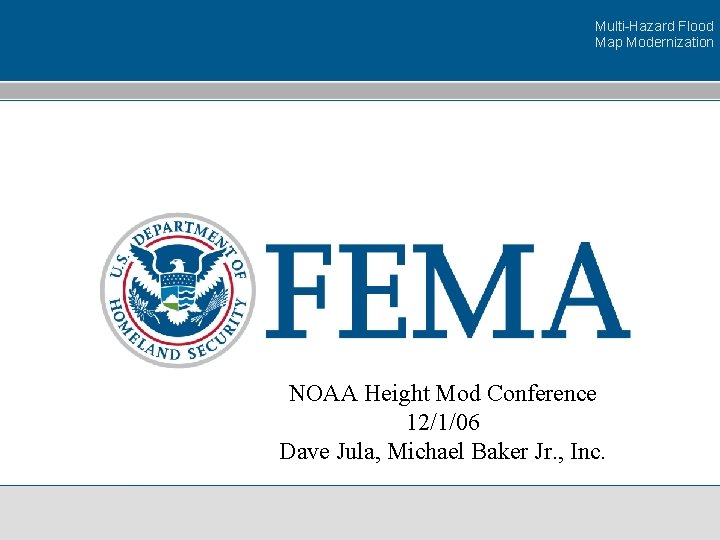

Multi-Hazard Flood Map Modernization NOAA Height Mod Conference 12/1/06 Dave Jula, Michael Baker Jr. , Inc.

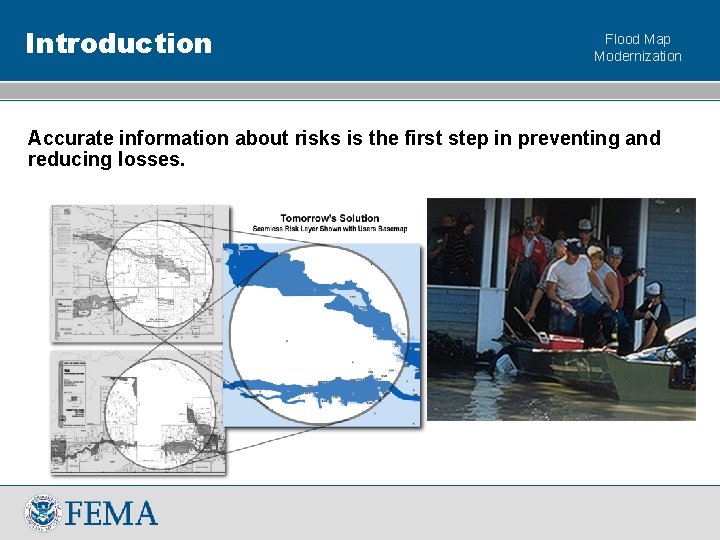

Introduction Flood Map Modernization Accurate information about risks is the first step in preventing and reducing losses.
Introduction Flood Map Modernization To support the vision, “A Nation Prepared, ” the Federal Emergency Management Agency (FEMA), has undertaken the Map Modernization effort to update the Nation’s flood hazard maps.
Map Modernization Objectives Enabling Technology Flood Map Modernization Effective Program Management Provides for the Efficient use of National Resources Establishes Premier Data Collection and Delivery System Partners Delivering Results Builds and Maintains Mutually Beneficial Partnerships Creates Better Informed Users Empowering the User Community
Who Benefits from Map Modernization? Flood Map Modernization

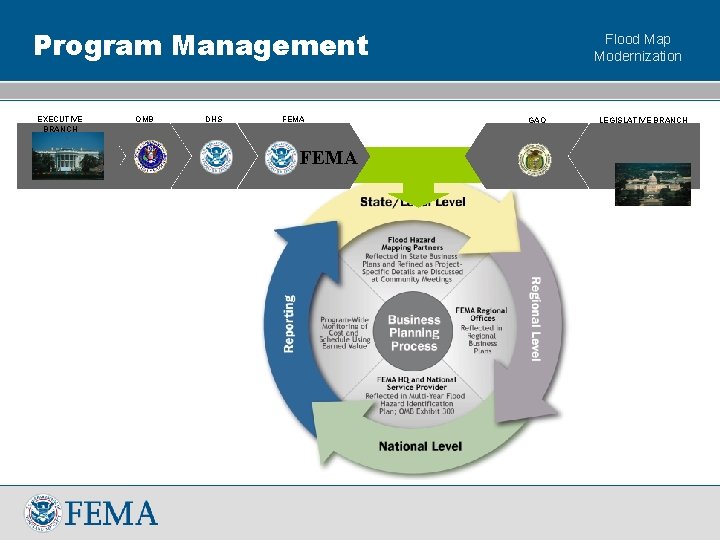

Program Management EXECUTIVE BRANCH OMB DHS FEMA Flood Map Modernization GAO LEGISLATIVE BRANCH
Mapping Information Platform (MIP) What is the MIP? Web-Based Technology that Enables the Management, Extraction, Sharing, and Production of Map Modernization Data Flood Map Modernization How Does it Help? § Proactive Centralized Project Management and Tracking § Standard Data Collection Search and Storage § Free Tools Available

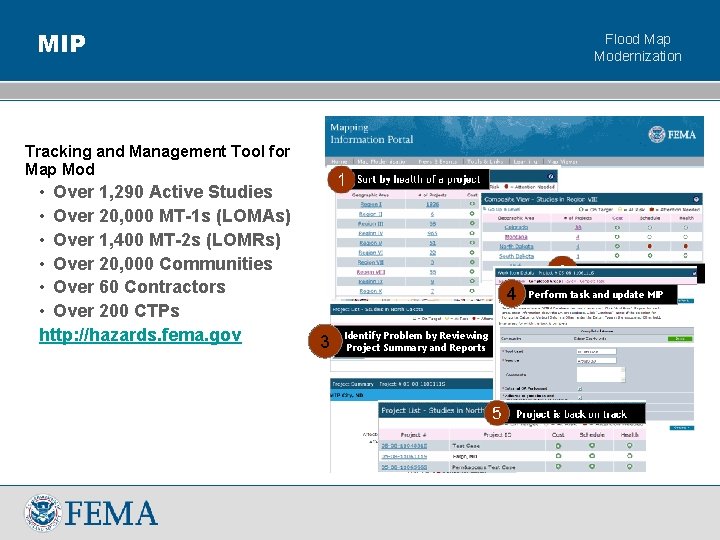

MIP Flood Map Modernization Tracking and Management Tool for Map Mod • Over 1, 290 Active Studies • Over 20, 000 MT-1 s (LOMAs) • Over 1, 400 MT-2 s (LOMRs) • Over 20, 000 Communities • Over 60 Contractors • Over 200 CTPs http: //hazards. fema. gov 4 3 Identify Problem by Reviewing Project Summary and Reports Perform task and update MIP

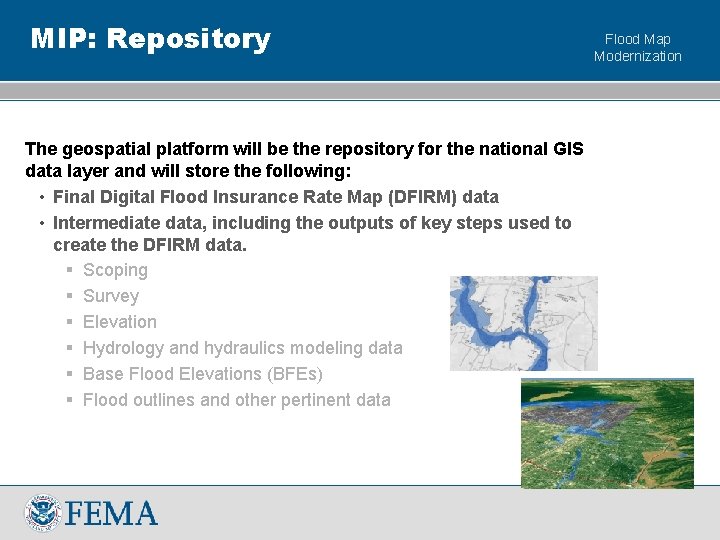

MIP: Repository The geospatial platform will be the repository for the national GIS data layer and will store the following: • Final Digital Flood Insurance Rate Map (DFIRM) data • Intermediate data, including the outputs of key steps used to create the DFIRM data. § Scoping § Survey § Elevation § Hydrology and hydraulics modeling data § Base Flood Elevations (BFEs) § Flood outlines and other pertinent data Flood Map Modernization

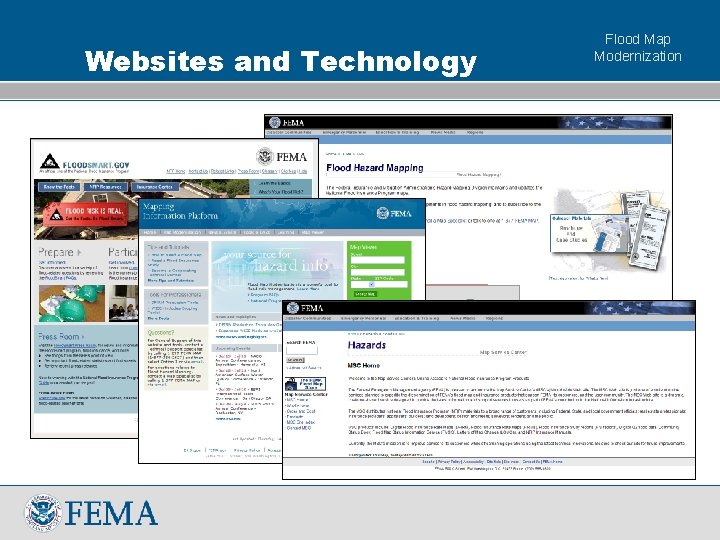

Websites and Technology Flood Map Modernization

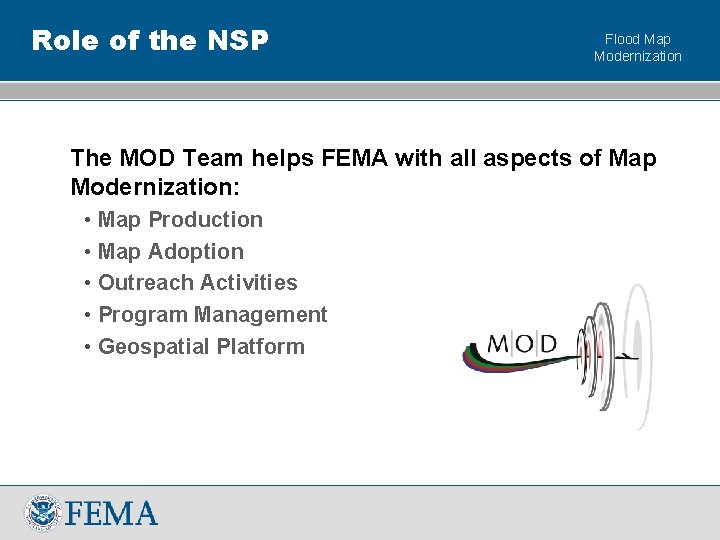

Role of the NSP Flood Map Modernization The MOD Team helps FEMA with all aspects of Map Modernization: • Map Production • Map Adoption • Outreach Activities • Program Management • Geospatial Platform

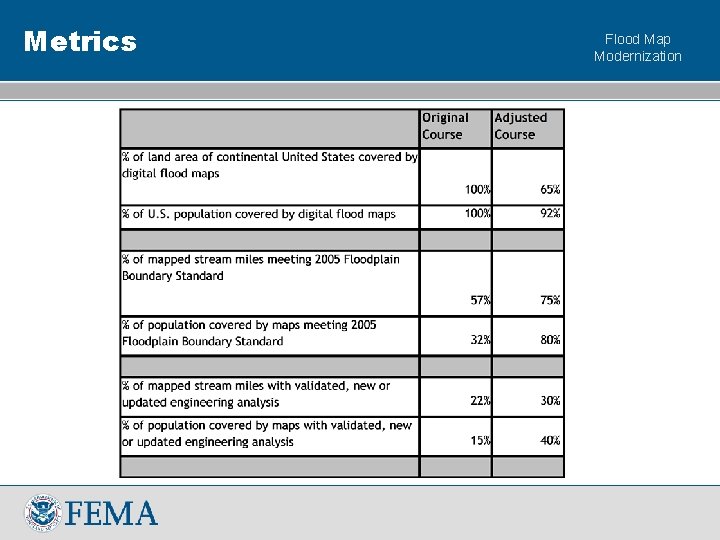

Metrics Flood Map Modernization
Colorado Risk Flood Map Modernization

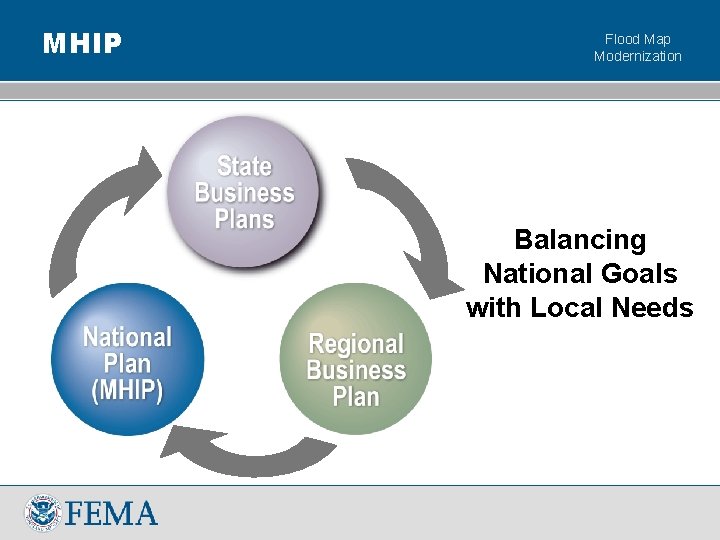

MHIP Flood Map Modernization Balancing National Goals with Local Needs
MHIP – Stakeholder Involvement Flood Map Modernization We are here!
Elevation Data Capture Standards NDEP/NDOP Flood Map Modernization
Purpose of Data Capture Standards Flood Map Modernization § Provide a consistent framework for collection, storage, and retrieval of the data needed for a Flood Insurance Study (FIS) § Describe what needs to be captured from digital data that was used in the FIS § Capture key data required for model maintenance and quality control § Verify that the data can be accessed easily and used for other projects
Survey Data Flood Map Modernization
Survey Data § Complete digital submission of all survey data files, photographs, sketches, and notes § Data specifications for surveyed cross sections and structures • Cross sections • Bridges • Culverts • Dams • Elevation Reference Marks • High water marks • Levees Flood Map Modernization
Acceptable Data Formats § Database tables • Microsoft Access 2000 • d. Base IV tables § Metadata § Photographs • Portable Network Graphic (PNG) • JPEG (JPG) • Bitmap (BMP) Flood Map Modernization § Sketches • Adobe Acrobat (PDF) • PNG • JPG § Spatial files • ESRI shapefiles • Open GML format
Terrain Data Flood Map Modernization
Terrain Data § Point data • LIDAR (bare earth, as well as all returns) • Digital Elevevation Model (DEM) • Simple points Flood Map Modernization ncols 388 nrows 470 xllcorner 1403871. 8063797 yllcorner 596792. 97960783 cellsize 98. 452218539356 NODATA_value -9999 -9999 -9999 878. 5531 875. 2723 868. 7106 865. 4297 868. 7106 878. 5531 885. 1148 888. 3956 891. 6765 881. 834 865. 4297 862. 1489 871. 9915 865. 4297 868. 7106 855. 5872 858. 8681 Sample Grid ASCII Format § Line data • 2 D breaklines • 3 D breaklines • Contours Sample Arc. Info TIN Generate Data Sample space delimited ASCII format

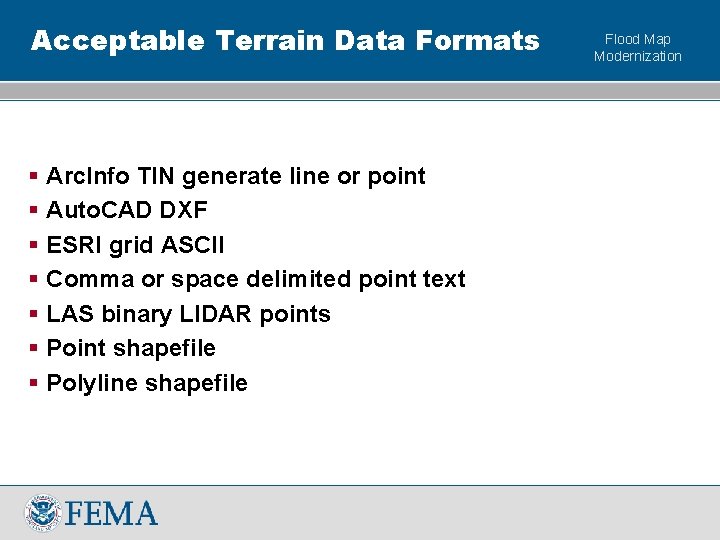

Acceptable Terrain Data Formats § Arc. Info TIN generate line or point § Auto. CAD DXF § ESRI grid ASCII § Comma or space delimited point text § LAS binary LIDAR points § Point shapefile § Polyline shapefile Flood Map Modernization

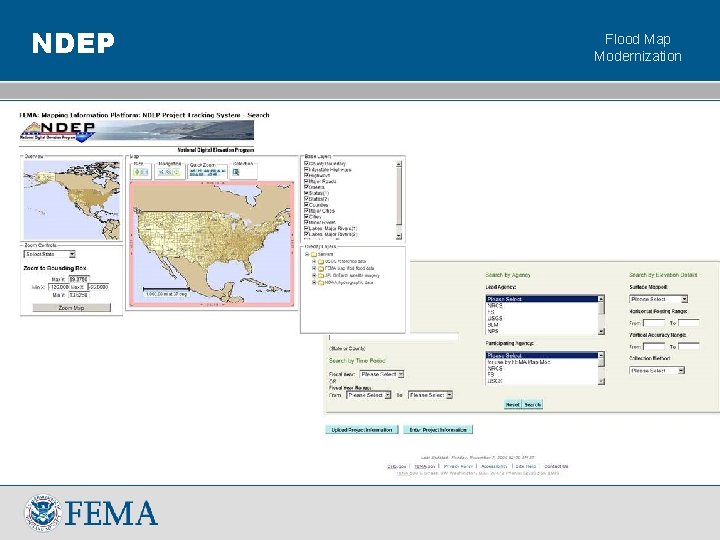

NDEP Flood Map Modernization Purpose: • To track proposed, planned, in-work, and completed projects and associated details Users: • Producers and users of high-quality elevation data • Anyone interested in where and when future elevation data acquisition might happen
NDEP National Digital Elevation Program http: //hazards. fema. gov/metadata/NDEP/ Flood Map Modernization
NDEP Flood Map Modernization
FEMA Map Assistance Center (FMAC) Flood Map Modernization 1 -877 FEMA MAP FMAC representatives also handle map revision inquiries from: • Surveyors • Engineers • Lenders • Insurance Agents • Appraisers • Floodplain Managers
