Multifix Everything you need when it comes to

Multifix Everything you need when it comes to flushmounted boxes

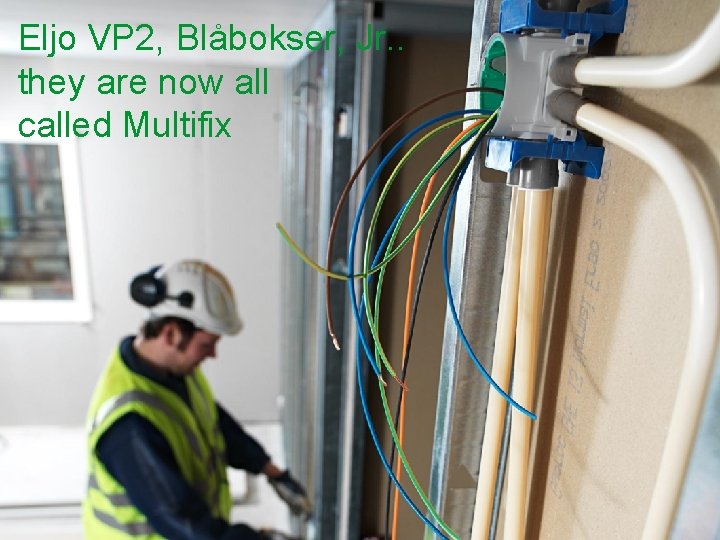

Eljo VP 2, Blåbokser, Jr. . they are now all called Multifix Schneider Electric - February 2010 - ISC 01966 2

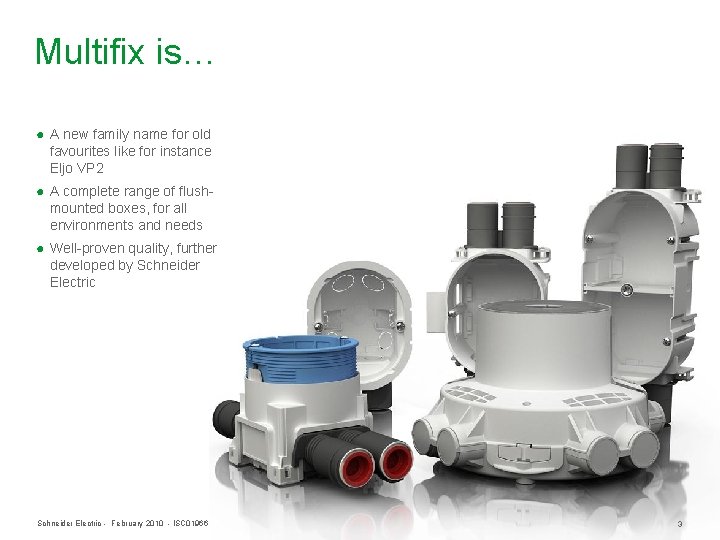

Multifix is… ● A new family name for old favourites like for instance Eljo VP 2 ● A complete range of flushmounted boxes, for all environments and needs ● Well-proven quality, further developed by Schneider Electric - February 2010 - ISC 01966 3

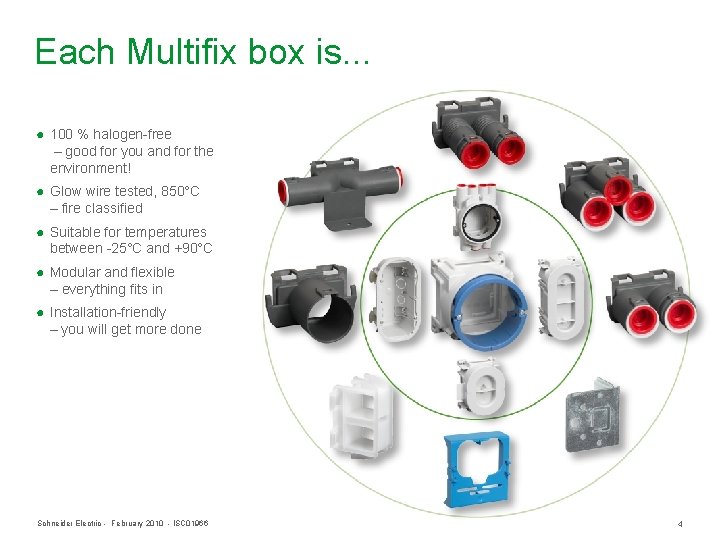

Each Multifix box is. . . ● 100 % halogen-free – good for you and for the environment! ● Glow wire tested, 850°C – fire classified ● Suitable for temperatures between -25°C and +90°C ● Modular and flexible – everything fits in ● Installation-friendly – you will get more done Schneider Electric - February 2010 - ISC 01966 4

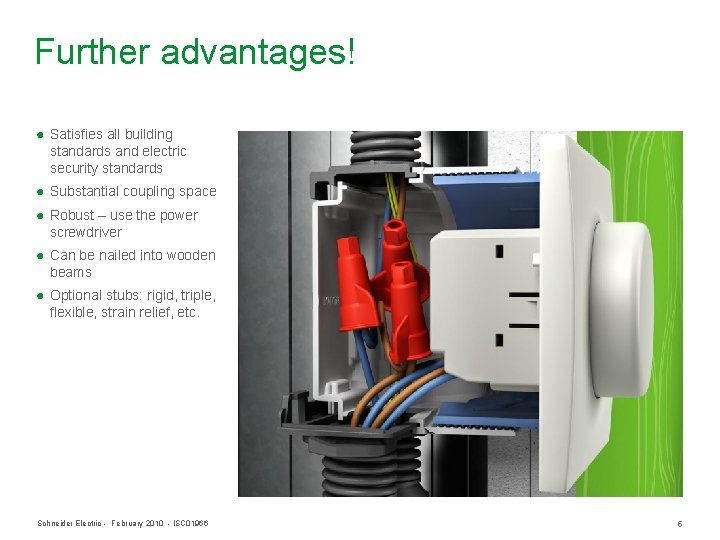

Further advantages! ● Satisfies all building standards and electric security standards ● Substantial coupling space ● Robust – use the power screwdriver ● Can be nailed into wooden beams ● Optional stubs: rigid, triple, flexible, strain relief, etc. Schneider Electric - February 2010 - ISC 01966 5

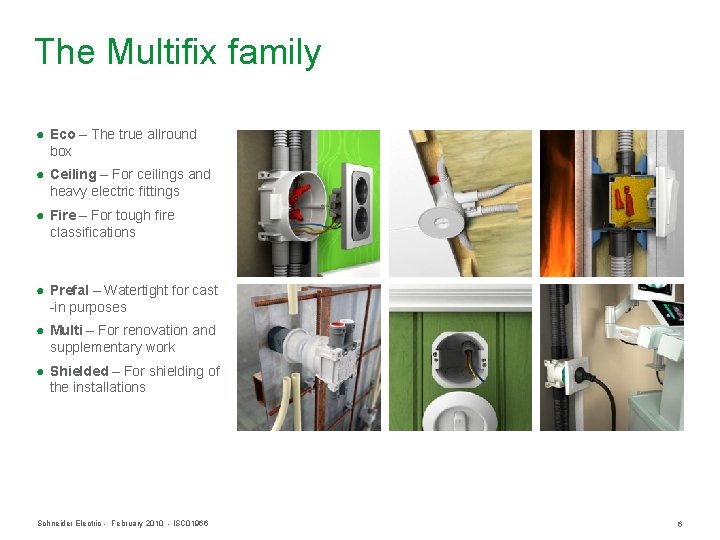

The Multifix family ● Eco – The true allround box ● Ceiling – For ceilings and heavy electric fittings ● Fire – For tough fire classifications ● Prefal – Watertight for cast -in purposes ● Multi – For renovation and supplementary work ● Shielded – For shielding of the installations Schneider Electric - February 2010 - ISC 01966 6

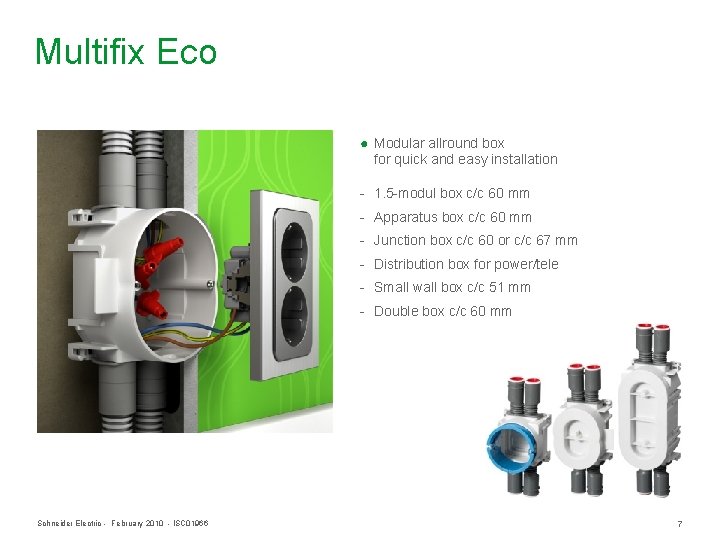

Multifix Eco ● Modular allround box for quick and easy installation - 1. 5 -modul box c/c 60 mm - Apparatus box c/c 60 mm - Junction box c/c 60 or c/c 67 mm - Distribution box for power/tele - Small wall box c/c 51 mm - Double box c/c 60 mm Schneider Electric - February 2010 - ISC 01966 7

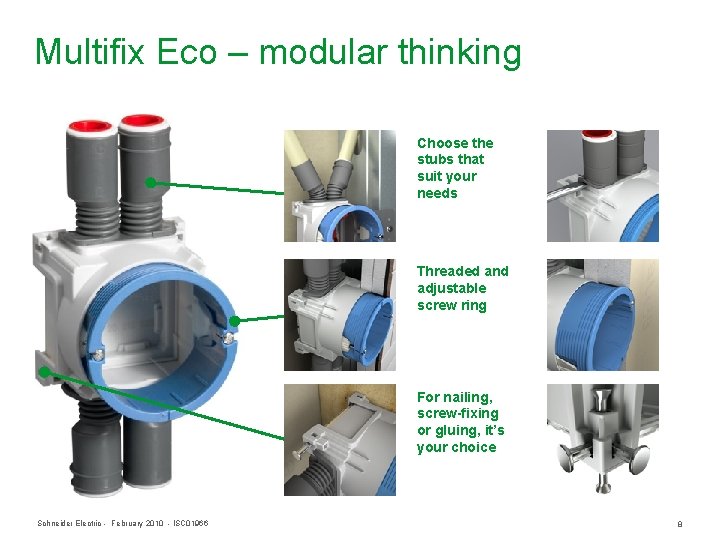

Multifix Eco – modular thinking Choose the stubs that suit your needs Threaded and adjustable screw ring For nailing, screw-fixing or gluing, it’s your choice Schneider Electric - February 2010 - ISC 01966 8

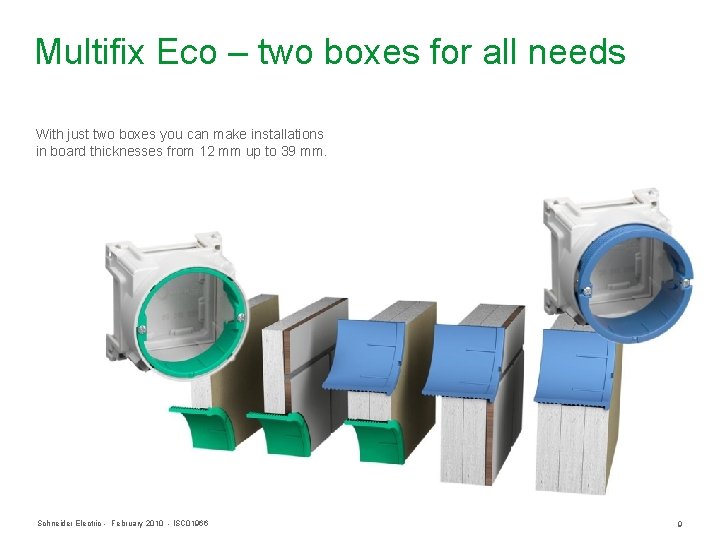

Multifix Eco – two boxes for all needs With just two boxes you can make installations in board thicknesses from 12 mm up to 39 mm. Schneider Electric - February 2010 - ISC 01966 9

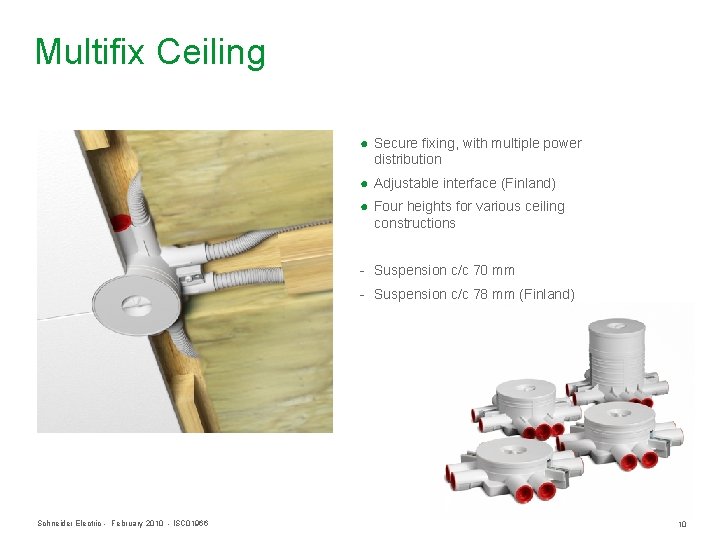

Multifix Ceiling ● Secure fixing, with multiple power distribution ● Adjustable interface (Finland) ● Four heights for various ceiling constructions - Suspension c/c 70 mm - Suspension c/c 78 mm (Finland) Schneider Electric - February 2010 - ISC 01966 10

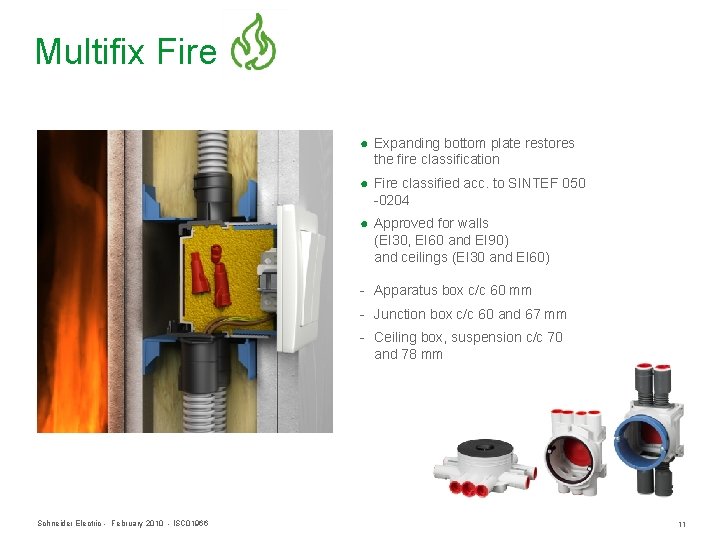

Multifix Fire ● Expanding bottom plate restores the fire classification ● Fire classified acc. to SINTEF 050 -0204 ● Approved for walls (EI 30, EI 60 and EI 90) and ceilings (EI 30 and EI 60) - Apparatus box c/c 60 mm - Junction box c/c 60 and 67 mm - Ceiling box, suspension c/c 70 and 78 mm Schneider Electric - February 2010 - ISC 01966 11

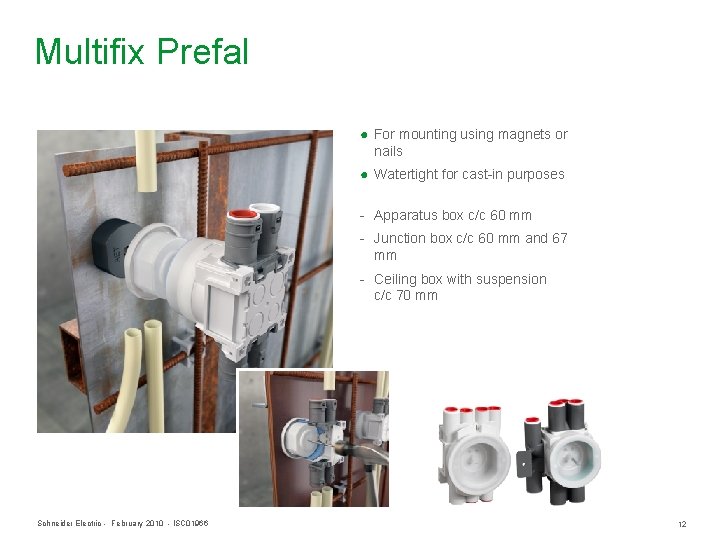

Multifix Prefal ● For mounting using magnets or nails ● Watertight for cast-in purposes - Apparatus box c/c 60 mm - Junction box c/c 60 mm and 67 mm - Ceiling box with suspension c/c 70 mm Schneider Electric - February 2010 - ISC 01966 12

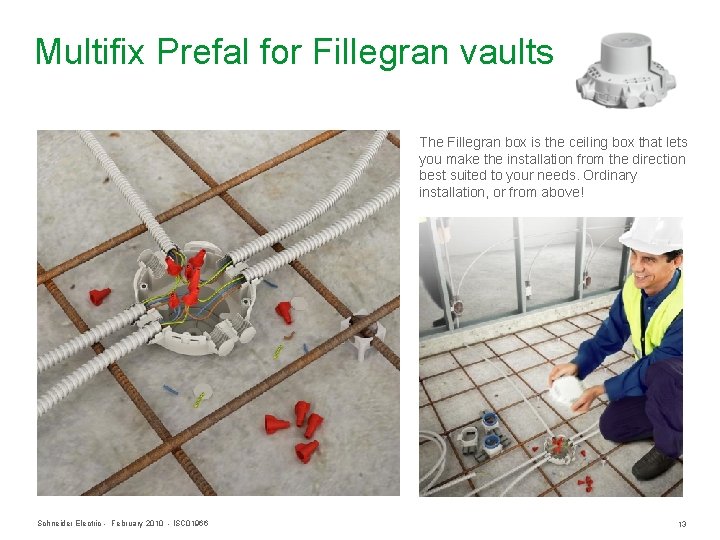

Multifix Prefal for Fillegran vaults The Fillegran box is the ceiling box that lets you make the installation from the direction best suited to your needs. Ordinary installation, or from above! Schneider Electric - February 2010 - ISC 01966 13

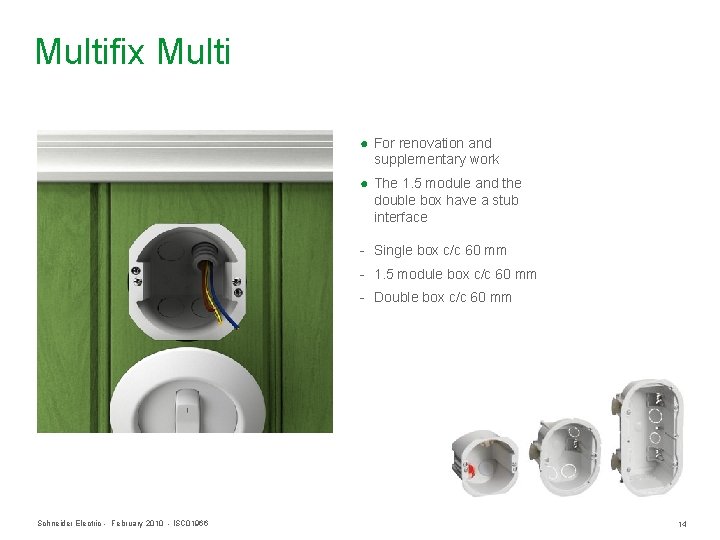

Multifix Multi ● For renovation and supplementary work ● The 1. 5 module and the double box have a stub interface - Single box c/c 60 mm - 1. 5 module box c/c 60 mm - Double box c/c 60 mm Schneider Electric - February 2010 - ISC 01966 14

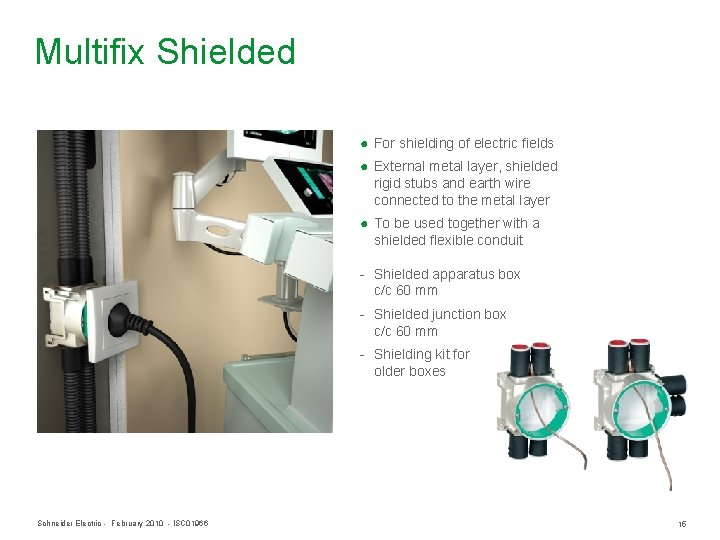

Multifix Shielded ● For shielding of electric fields ● External metal layer, shielded rigid stubs and earth wire connected to the metal layer ● To be used together with a shielded flexible conduit - Shielded apparatus box c/c 60 mm - Shielded junction box c/c 60 mm - Shielding kit for older boxes Schneider Electric - February 2010 - ISC 01966 15

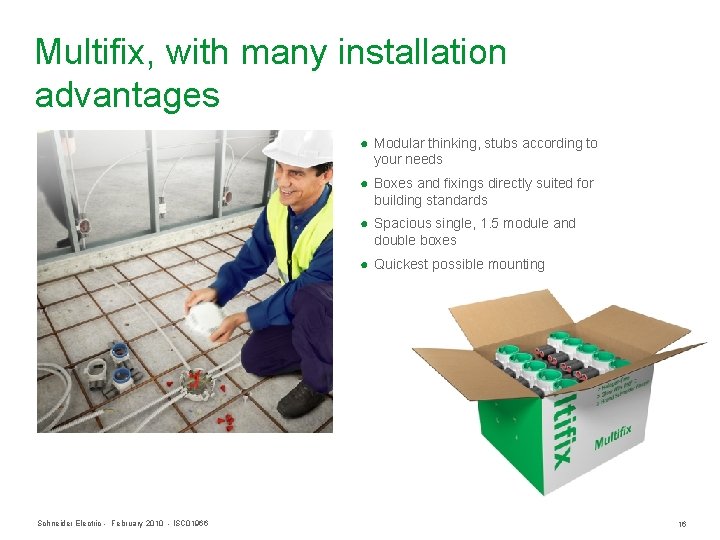

Multifix, with many installation advantages ● Modular thinking, stubs according to your needs ● Boxes and fixings directly suited for building standards ● Spacious single, 1. 5 module and double boxes ● Quickest possible mounting Schneider Electric - February 2010 - ISC 01966 16

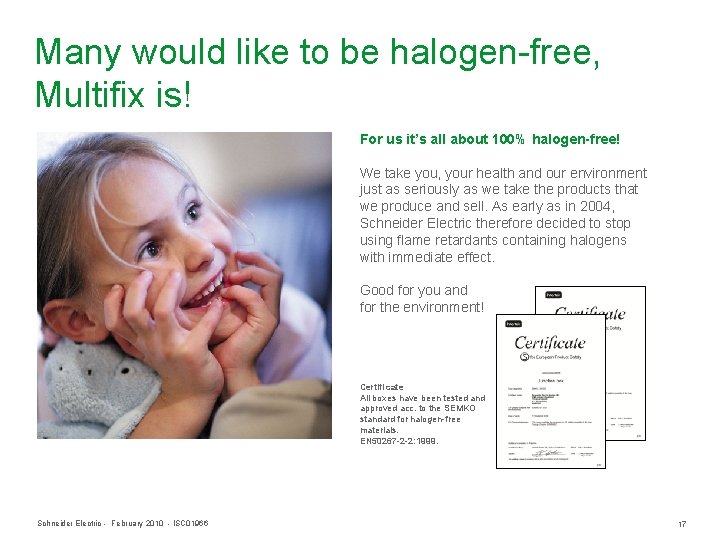

Many would like to be halogen-free, Multifix is! For us it’s all about 100% halogen-free! We take you, your health and our environment just as seriously as we take the products that we produce and sell. As early as in 2004, Schneider Electric therefore decided to stop using flame retardants containing halogens with immediate effect. Good for you and for the environment! Certificate All boxes have been tested and approved acc. to the SEMKO standard for halogen-free materials. EN 50267 -2 -2: 1999. Schneider Electric - February 2010 - ISC 01966 17

Multifix Everything you need when it comes to flush-mounted boxes!
