MULTIDETECOR CT AND EMBOLIC MESENTERIC ISCHEMIA: TAKE A LOOK AT THE HEART! I BEN YAACOUB, F SNENE, R KHARRAT, R BENNACEUR, H RAJHI, N MNIF Radiology department, Charles Nicolle hospital

Introduction § Mesenteric ischemia (MI) is a frequent clinical condition characterized by its clinical polymorphism. § It has an increasing prevalence because of eldering of the population. § 1% of emergency admission for acute abdomen. § It is associated with a high mortality rate due to diagnosis delay.

Introduction § MI is considered as a diagnosis and therapeutic emergengy. § The prognosis is closely related to the delay between the symptoms onset and the preoperative correct diagnosis. § Rapid diagnosis the original cause and mechanism of MI is of great concern for therapeutic issues.

Material & Methods § 10 patients § Mean age: 50 ans, sex ratio: 3/7. § History: • • • Cardiac rythm abnormalities (n=4) Coagulopathy (n=3) Atherosclerosis (n=6) § Clinical features: • • Abdominal pain (n=10) with rapid (n=7) or progressive onset (n=3). No relevant abnormalities on abdominal examination or blood tests (n=10).

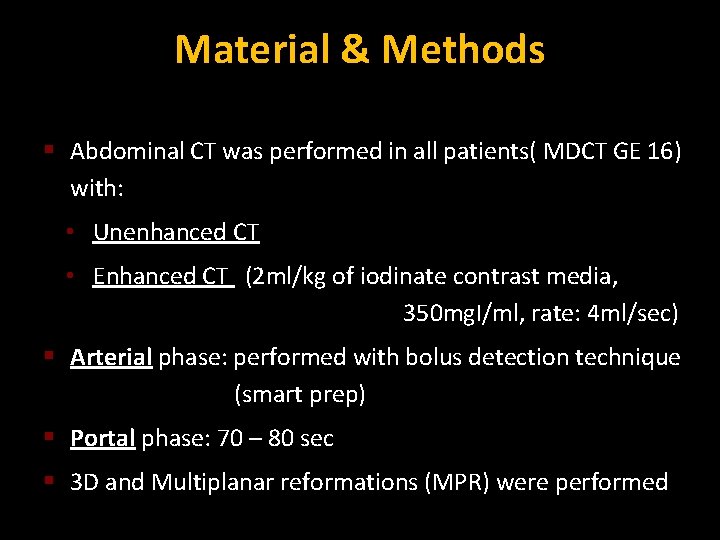

Material & Methods § Abdominal CT was performed in all patients( MDCT GE 16) with: • Unenhanced CT • Enhanced CT (2 ml/kg of iodinate contrast media, 350 mg. I/ml, rate: 4 ml/sec) § Arterial phase: performed with bolus detection technique (smart prep) § Portal phase: 70 – 80 sec § 3 D and Multiplanar reformations (MPR) were performed

Results VASCULAR SIGNS § Ostial filling defect of the superior mesenteric artery (SMA) (n=2). § Filling defect of the main branch of the SMA (n=2). § No vascular filling defect (n=6)

Analyzing the filling of mesenteric vessels on transversal images demonstrated abrupt defect of SMA while superior vein is well enhanced

MPR allow better spatial assessment of vascular abnormalities. Thrombosis of the SMA without underlying vascular lesions (no evidence of atherosclerosis) is very suggestive of embolic MI.

Subocclusion of SMA 3 D vascular reformation showed clearly the atherothrombosis of the SMA with heavy calcifications distally

On upper CT images involving the lower thoracic region, we saw an apical thrombus of the left ventricle. This finding was diagnostic for embolic MI Cardiac MRI performed in this 25 -year-old women showed a transmural infarction in the LAD territory. CARDIAC EMBOLISM

SMA thrombosis associated with renal infarct PARADOXICAL EMBOLISM The upper thoracic images showed bilateral pulmonary embolism

Results DIGESTIVE SIGNS § Bowel infarct (n=10) § Unehancement of bowel wall (n=8) § Thickening of bowel wall (n=2) § Pneumatosis (n=3) § Aeroportie (n=0)

Defect of enhancement of bowel wall Bowel wall thickening

Pneumatosis Aeromesenterie: air within arterial branchs of SMA Aeroportie

Discussion § Small bowel has terminal arterial vascularisation configuration § Obstruction of a branch or the main SMA resulats in arterial MI § Extension of bowel infarct is correlated to situation of arterial occlusion: • Occlusion of the main SMA results in extensive MI with poor prognosis • Occlusion of a distal branch results in segmental MI that can be managed surgically.

Discussion § Mortality and morbidity of arterial MI are very high although progress in diagnostic and therapeutic issues. § Early diagnosis of arterial MI is critical and remain the unique chance to improve the prognosis § MDCT is now recognized to be an important tool for the diagnosis and must be performed with adapted technique for every MI clinical suspicion. § MDCT reliabilty has grown in the last few year reaching 95% in 2009 ( 75% in 1996)

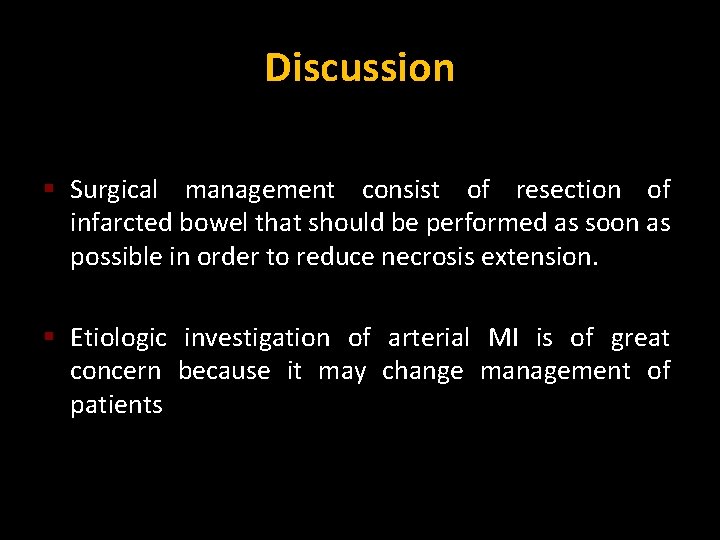

Discussion § Surgical management consist of resection of infarcted bowel that should be performed as soon as possible in order to reduce necrosis extension. § Etiologic investigation of arterial MI is of great concern because it may change management of patients

Discussion § Mecanisms of arterial MI: u u Arterial thrombosis: Arterial embolism: • • ATHEROSCLEROSIS +++ • • • Aged patients Cardiovascular risk factors (Hypertension, Diabetes, obesity…) Evidence of multivascular involvment (carotid, renal artery, coronaropathy, …) EXTRA INTESTINAL THROMBOSIS MIGRATION Younger patients Cardiovascular risk factors =0 Cardiac rythm disorders Atrial fibrillation +++ Evidence of multivascular involvment (carotid, renal artery, coronaropathy, …)

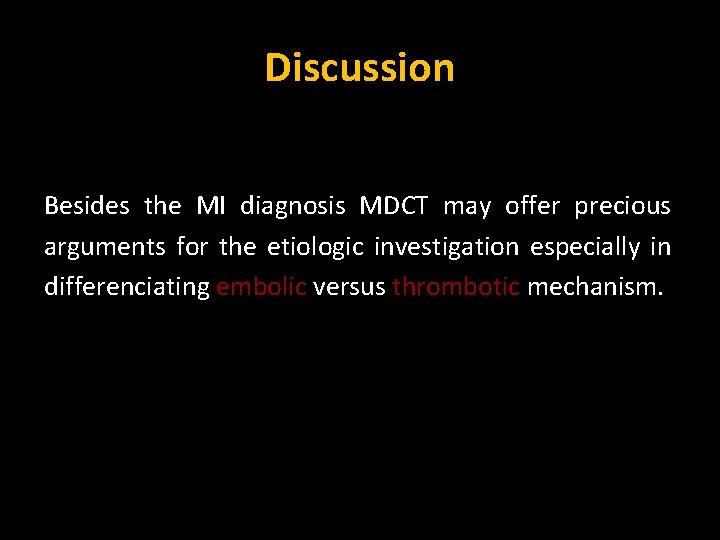

Discussion Besides the MI diagnosis MDCT may offer precious arguments for the etiologic investigation especially in differenciating embolic versus thrombotic mechanism.

Discussion Embolic MI Thrombotic MI Multiple embolism sites Isolated MI Normal underlying arterial wall Diseased arterial wall: - Atherosclerotic infiltration - Heavy arterial calcification - Arterial stenosis Abrupt filling defect of the arterial lumina Progressive arterial occlusion due to underlying stenosis Extra mesenteric cardiovascular thrombosis: - Cardiac thrombosis - Aortic thrombosis or dissection Extra mesenteric atherosclerotic vascular involvment

Discussion Origin of arterial MI embolism: • Cardiac thrombus • Paradoxical embolism • Aortic thombus: due to - Aortic athrombosis - Chronic/acute aortic dissection

Discussion • Cardiac source of embolism - Myocardial infarction (left ventricle+++) - Atrial fibrillation (left atrium+++) - Valvular disease (Aortic stenosis) - Endocarditis (septic embolism) - Cardiac tumors (myxoma +++)

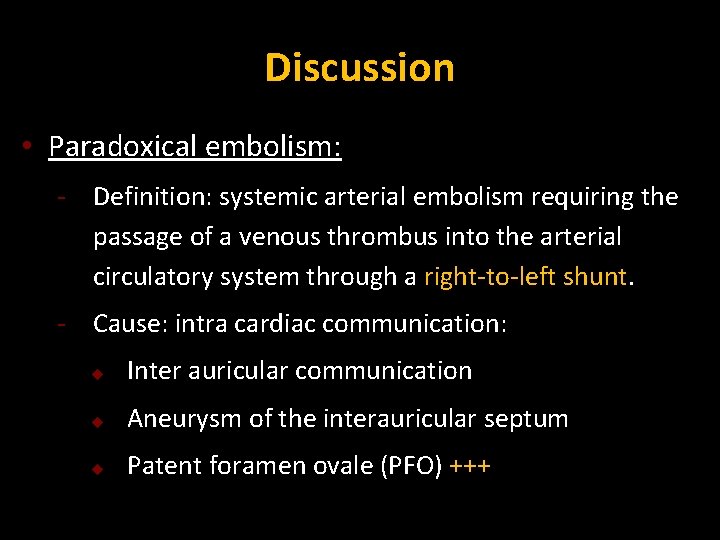

Discussion • Paradoxical embolism: - Definition: systemic arterial embolism requiring the passage of a venous thrombus into the arterial circulatory system through a right-to-left shunt. - Cause: intra cardiac communication: u Inter auricular communication u Aneurysm of the interauricular septum u Patent foramen ovale (PFO) +++

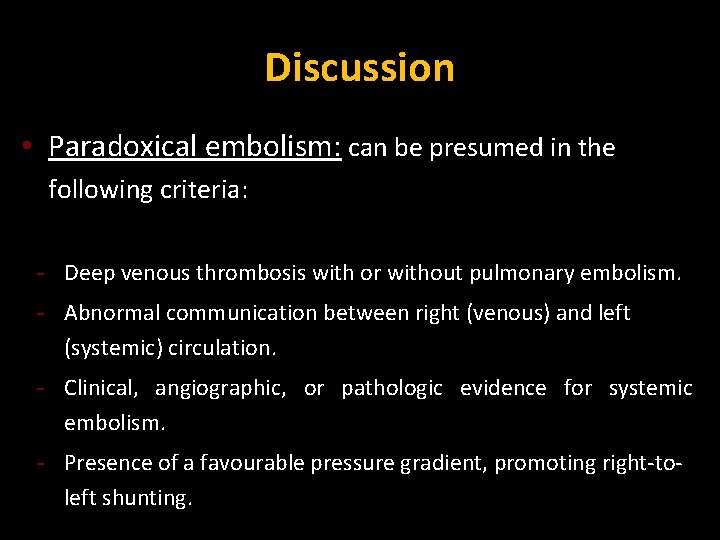

Discussion • Paradoxical embolism: can be presumed in the following criteria: - Deep venous thrombosis with or without pulmonary embolism. - Abnormal communication between right (venous) and left (systemic) circulation. - Clinical, angiographic, or pathologic evidence for systemic embolism. - Presence of a favourable pressure gradient, promoting right-toleft shunting.

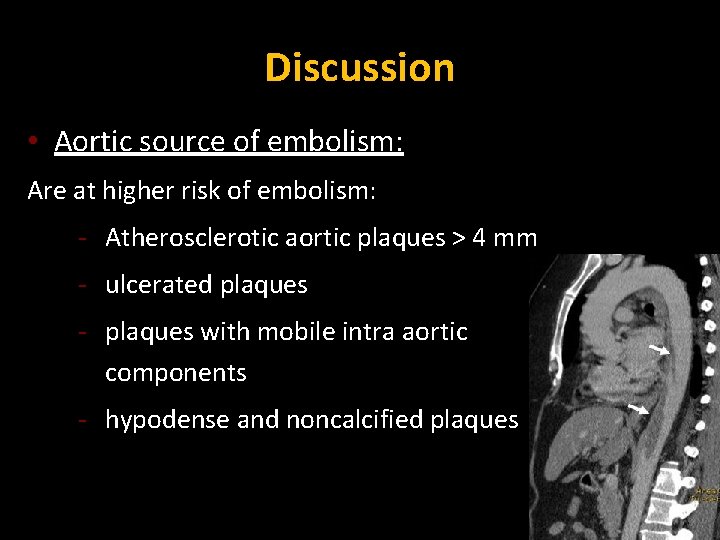

Discussion • Aortic source of embolism: Are at higher risk of embolism: - Atherosclerotic aortic plaques > 4 mm - ulcerated plaques - plaques with mobile intra aortic components - hypodense and noncalcified plaques

Discussion • In our series, the cardiac source of MI embolism was detected thanks to MDCT while analyzing the upper images of the abdominal acquisition. • One of these two patient was a young women with no cardiovascular history. Further investigation were diagnostic for myocardial infarction due to coronary malformation

Conclusion • Determination of MI mechanism is of great concern for therapeutic issues and patients outcome. • MDCT is the key imaging technique for the diagnosis and prognosis of MI • Moreover, MDCT may help considering the mechanism of MI (embolism vs thrombosis) • Systematic analysis of a technically reliable MDCT may even be diagnostic for the origin of embolic MI.

References 1. Pereira Barretto AC. et al. Peripheral embolism. Reoprt of hospitalized cases. Arq Bras Cardiol 2000 ; 74 : 324 -8. 2. Connett MC. Et al. Peripheral arterial emboli. Am J Surg 1984 ; 148 : 14 -9. 3. Omran II, et al. Imaging of thrombi and assessment of left atrial appendage function. Heart 1999; 81: 192 -8. 4. Gossage JA et al. Peripheral arterial embolism: prevalence, outcome, and the role echocardiography in management. Vasc Endovascular Surg 2006; 40: 280 -6. 5. Kim DH et al. Various findings of cardiac thrombi on MDCT and MRI. 6. Millaire A et al. Incidence and prognosis of embolic events and metastatic infections in infective endocarditis. Eur Heart J 1997; 18: 677 -84. 7. Ward R et al. Paradoxical embolism. An unrecognized problem. Chest 1995; 108: 594 -58. Zhong Y et al. Pulmonary embolism and impending paradoxical embolism : a case report. Chin Med J 2008; 121: 1500 -4. 9. Bernard Y. L’apport de l’échocardiographie transoesophagienne au diagnostic des lesions emboligènes de l’aorte thoracique. J Neuroradiol 2005 ; 32 : 266 -72.
