Multicast Publish Subscribe used to build Event Notification
Multicast & Publish - Subscribe used to build Event Notification on IP How to make the Internet work better. John Mathon TIBCO Software Inc

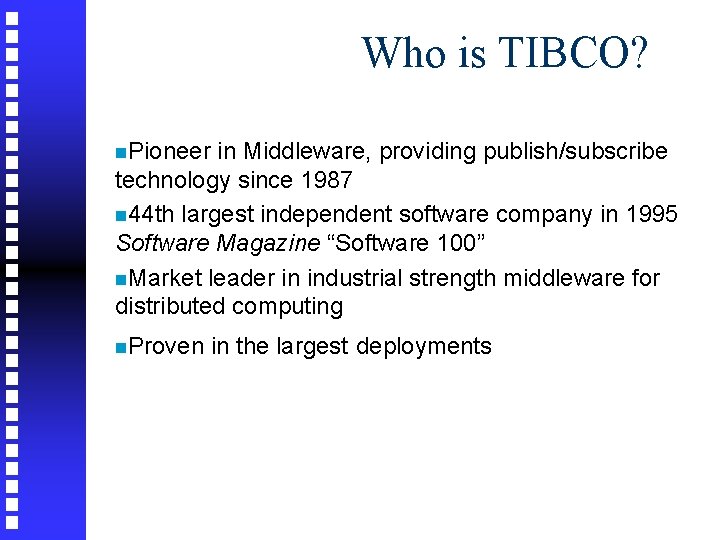

Who is TIBCO? n. Pioneer in Middleware, providing publish/subscribe technology since 1987 n 44 th largest independent software company in 1995 Software Magazine “Software 100” n. Market leader in industrial strength middleware for distributed computing n. Proven in the largest deployments

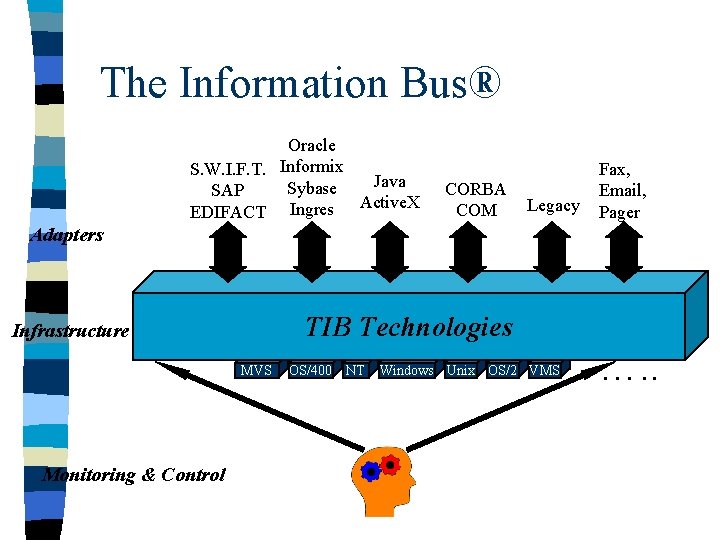

The Information Bus® Oracle S. W. I. F. T. Informix Java Sybase SAP Active. X EDIFACT Ingres CORBA COM Legacy Fax, Email, Pager Adapters TIB Technologies Infrastructure MVS Monitoring & Control OS/400 NT Windows Unix OS/2 VMS …. .

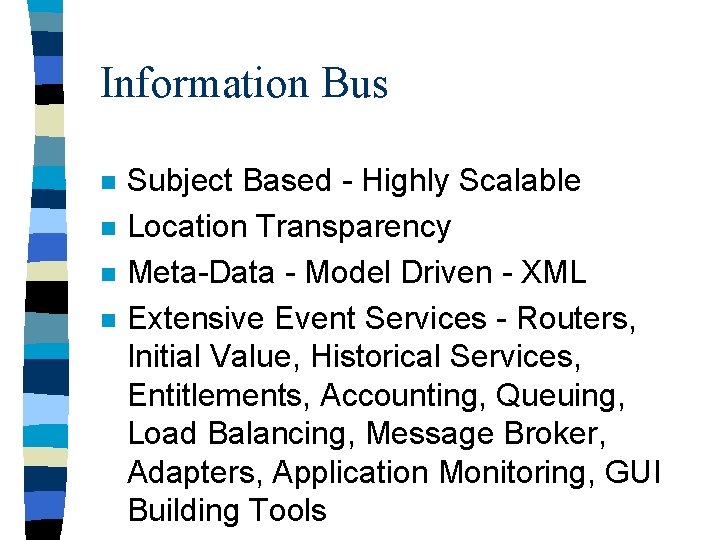

Information Bus n n Subject Based - Highly Scalable Location Transparency Meta-Data - Model Driven - XML Extensive Event Services - Routers, Initial Value, Historical Services, Entitlements, Accounting, Queuing, Load Balancing, Message Broker, Adapters, Application Monitoring, GUI Building Tools

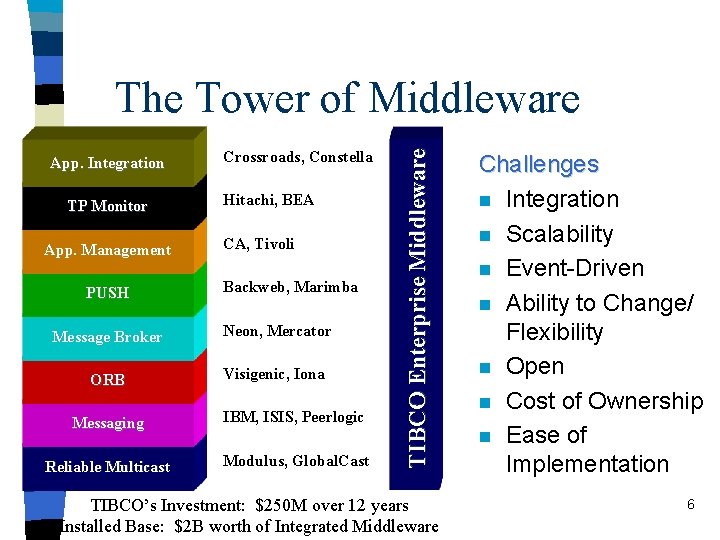

App. Integration TP Monitor App. Management PUSH Crossroads, Constella Hitachi, BEA CA, Tivoli Backweb, Marimba Message Broker Neon, Mercator ORB Visigenic, Iona Messaging IBM, ISIS, Peerlogic Reliable Multicast Modulus, Global. Cast TIBCO Enterprise Middleware The Tower of Middleware TIBCO’s Investment: $250 M over 12 years Installed Base: $2 B worth of Integrated Middleware Challenges n Integration n Scalability n Event-Driven n Ability to Change/ Flexibility n Open n Cost of Ownership n Ease of Implementation 6
Representative Alliances Network Integrators Desktop E-commerce Database Hardware TIB IBM, PW, Andersen Microsoft, Veri. Sign, Pointcast, Back. Web, Cyber. Cash SUN and 11 others Oracle, Informix Cisco, 3 Com Hewlett Packard 7

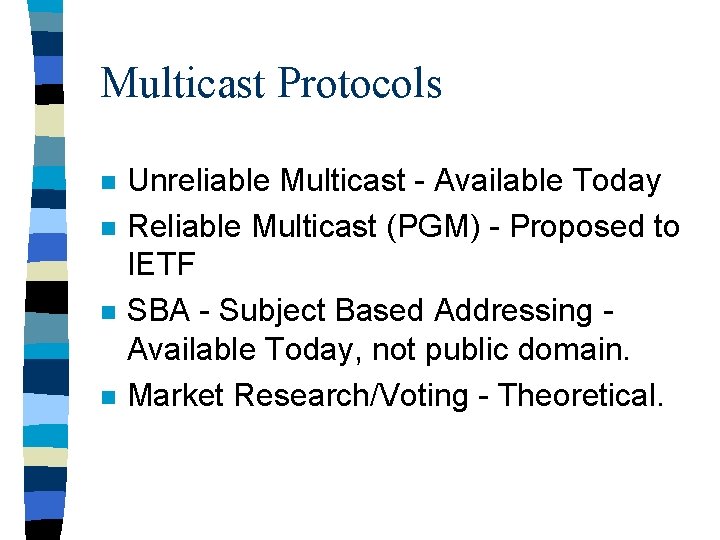

Multicast Protocols n n Unreliable Multicast - Available Today Reliable Multicast (PGM) - Proposed to IETF SBA - Subject Based Addressing Available Today, not public domain. Market Research/Voting - Theoretical.

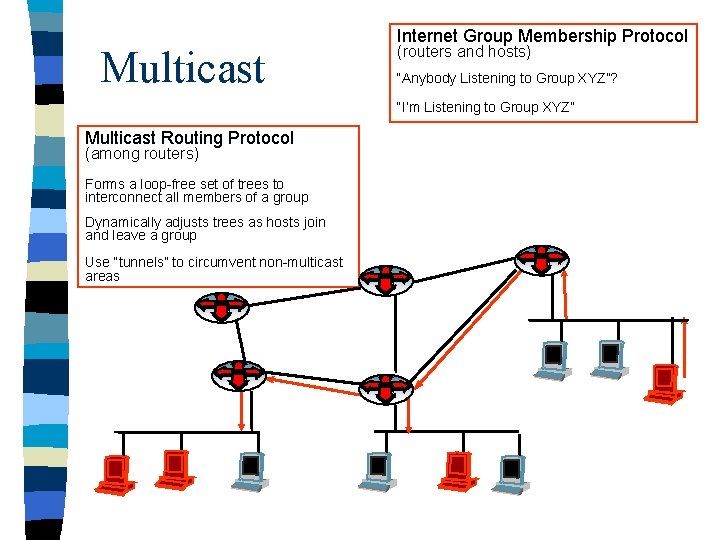

Multicast Internet Group Membership Protocol (routers and hosts) “Anybody Listening to Group XYZ”? “I’m Listening to Group XYZ” Multicast Routing Protocol (among routers) Forms a loop-free set of trees to interconnect all members of a group Dynamically adjusts trees as hosts join and leave a group Use “tunnels” to circumvent non-multicast areas

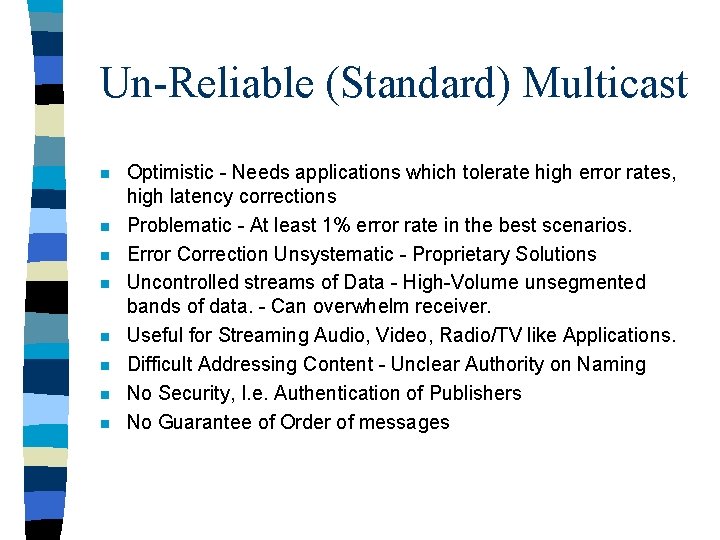

Un-Reliable (Standard) Multicast n n n n Optimistic - Needs applications which tolerate high error rates, high latency corrections Problematic - At least 1% error rate in the best scenarios. Error Correction Unsystematic - Proprietary Solutions Uncontrolled streams of Data - High-Volume unsegmented bands of data. - Can overwhelm receiver. Useful for Streaming Audio, Video, Radio/TV like Applications. Difficult Addressing Content - Unclear Authority on Naming No Security, I. e. Authentication of Publishers No Guarantee of Order of messages

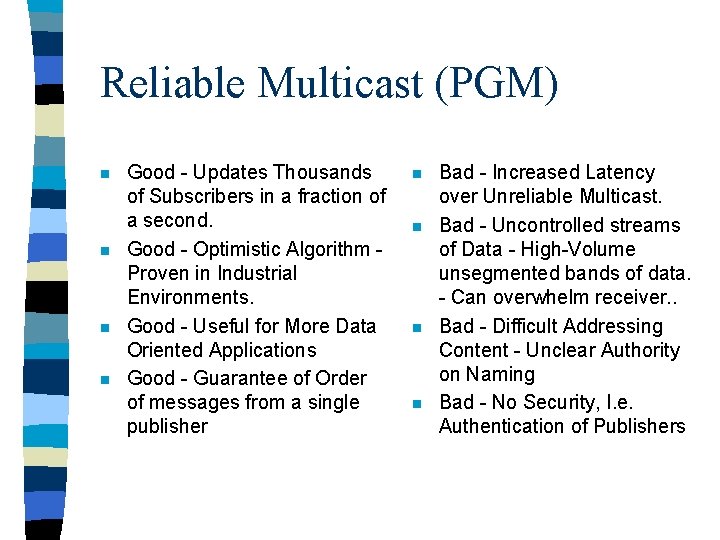

Reliable Multicast (PGM) n n Good - Updates Thousands of Subscribers in a fraction of a second. Good - Optimistic Algorithm Proven in Industrial Environments. Good - Useful for More Data Oriented Applications Good - Guarantee of Order of messages from a single publisher n n Bad - Increased Latency over Unreliable Multicast. Bad - Uncontrolled streams of Data - High-Volume unsegmented bands of data. - Can overwhelm receiver. . Bad - Difficult Addressing Content - Unclear Authority on Naming Bad - No Security, I. e. Authentication of Publishers

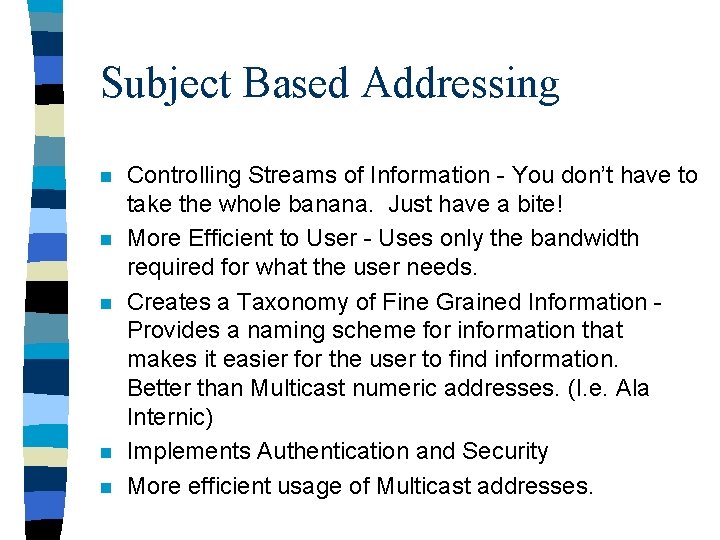

Subject Based Addressing n n n Controlling Streams of Information - You don’t have to take the whole banana. Just have a bite! More Efficient to User - Uses only the bandwidth required for what the user needs. Creates a Taxonomy of Fine Grained Information Provides a naming scheme for information that makes it easier for the user to find information. Better than Multicast numeric addresses. (I. e. Ala Internic) Implements Authentication and Security More efficient usage of Multicast addresses.
Reliable Multicast and SBA n n Proven in Mission Critical Applications Advantageous in almost all circumstances Best for High Bandwidth / Large User Populations where “some” of the information is of interest to “some” of the users. I. e. N to N. But is usually as good as 1 to N, or 1 to 1 or even N to 1 implemented with Point-to-point or pure broadcast protocols.

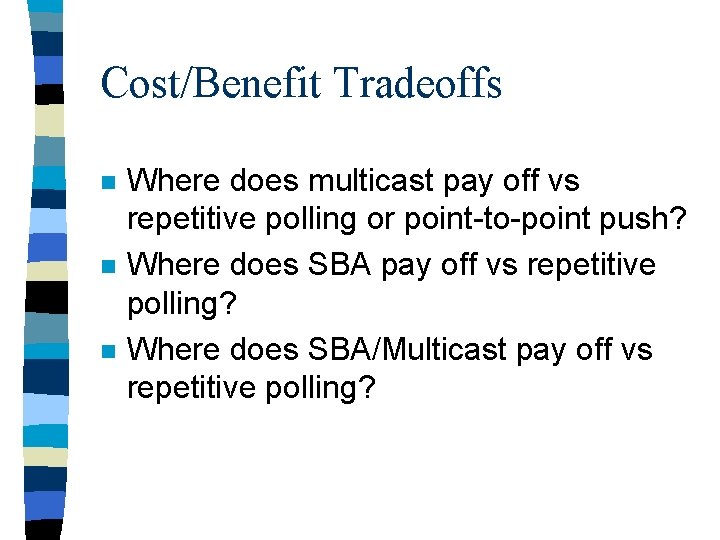

Cost/Benefit Tradeoffs n n n Where does multicast pay off vs repetitive polling or point-to-point push? Where does SBA pay off vs repetitive polling? Where does SBA/Multicast pay off vs repetitive polling?

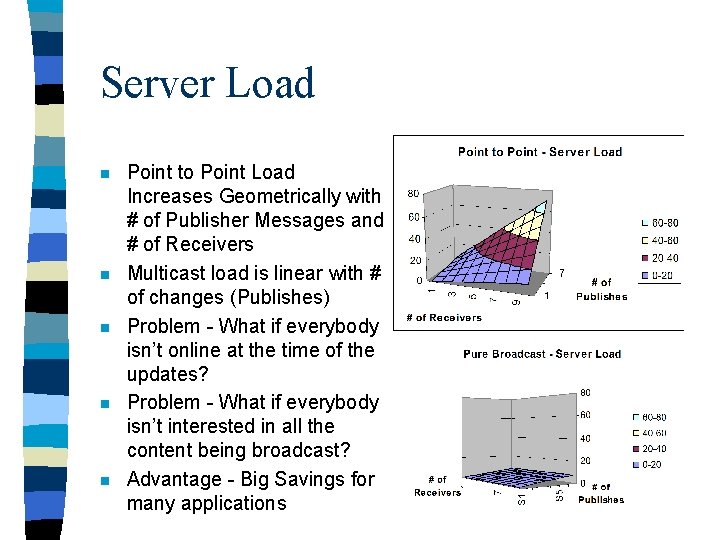

Server Load n n n Point to Point Load Increases Geometrically with # of Publisher Messages and # of Receivers Multicast load is linear with # of changes (Publishes) Problem - What if everybody isn’t online at the time of the updates? Problem - What if everybody isn’t interested in all the content being broadcast? Advantage - Big Savings for many applications

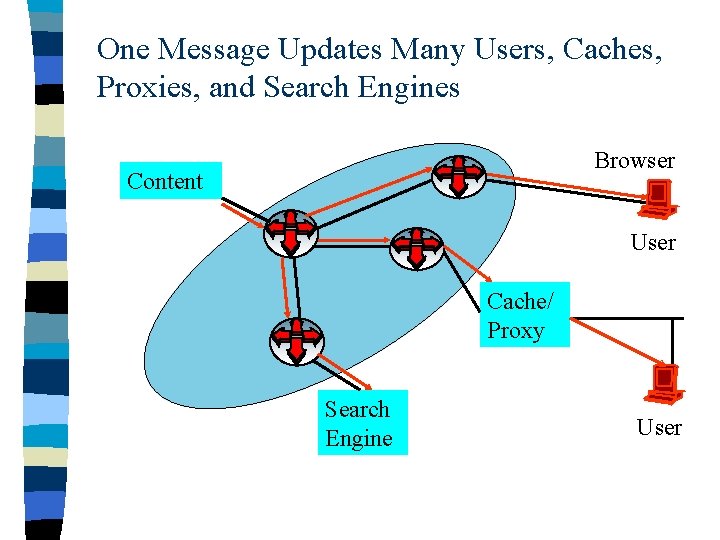

One Message Updates Many Users, Caches, Proxies, and Search Engines Browser Content User Cache/ Proxy Search Engine User

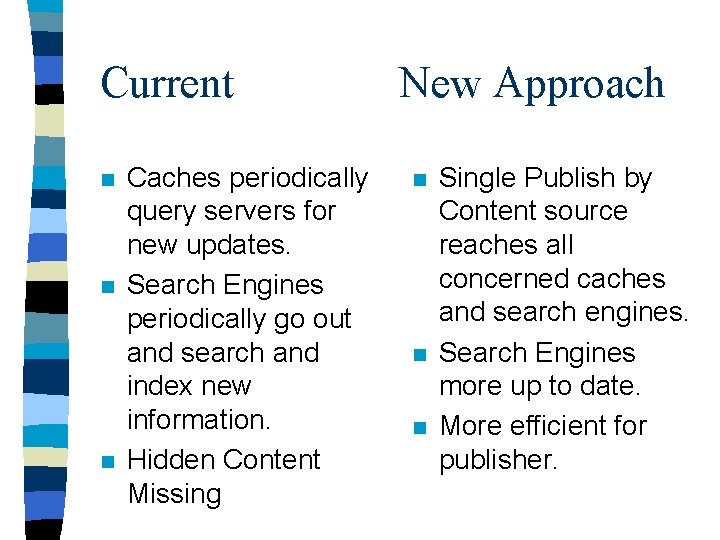

Current n n n Caches periodically query servers for new updates. Search Engines periodically go out and search and index new information. Hidden Content Missing New Approach n n n Single Publish by Content source reaches all concerned caches and search engines. Search Engines more up to date. More efficient for publisher.
Flow Rates - Assume 1, 000 sites changing on average of once a day. Using SBA and PGM. n Search Engines – 1, 000 messages a day which is about a tenth of what a typical trading room sees on a slow day. n Caches, Proxies – 1, 000 pages cached, then 1000 messages a day. Also Trivial. n Users Caches and Browsers. – A few messages a day, typically when viewing highly active sites with constantly changing content.
Advantages n Search Engines n Users – UP TO DATE CURRENT – No More Searching the CONTENT. WIN! Internet - or much more limited crawling and n Content Providers comparing. BIG WIN! – Reduced Load on – Content more up to date, Servers from Polls from more comprehensive. Search Engines, Caches BIG WIN! and Users. – BIG WIN!!! n Proxies, Caches – No polling required, but n Developers - Much need to process updates. simpler to build push applications.
One Message Queries Multiple Search Engines n. Subscribe n. Publish to all queries nand Query topic Search Engine(s) User Cache/ Proxy n. Subscribe to limited set of topics Hidden/Value Added content Search Engine(s) Local Search Engine User

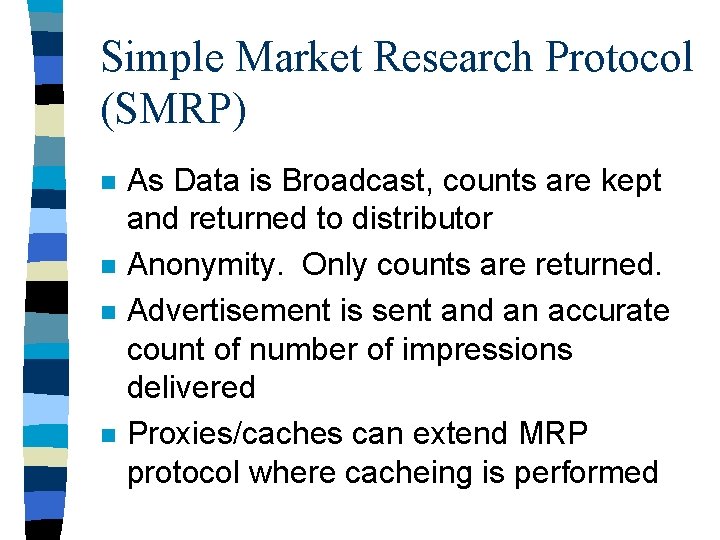

Simple Market Research Protocol (SMRP) n n As Data is Broadcast, counts are kept and returned to distributor Anonymity. Only counts are returned. Advertisement is sent and an accurate count of number of impressions delivered Proxies/caches can extend MRP protocol where cacheing is performed

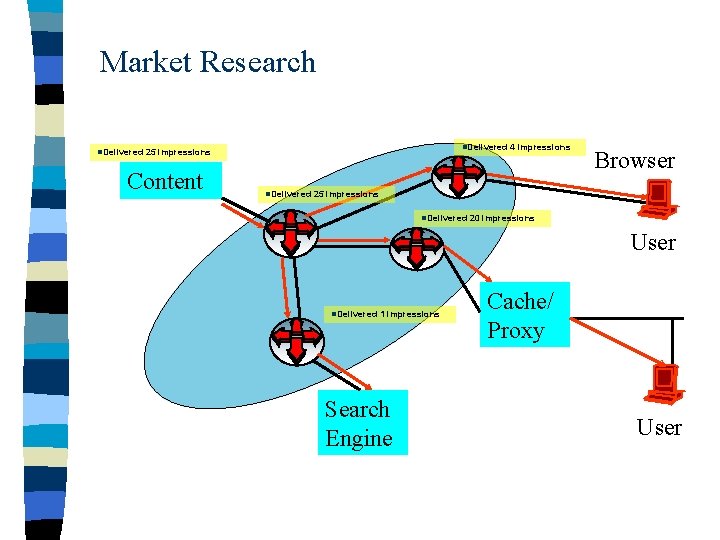

Market Research n. Delivered 25 impressions Content n. Delivered 4 impressions Browser 25 impressions n. Delivered 20 impressions User n. Delivered 1 impressions Search Engine Cache/ Proxy User

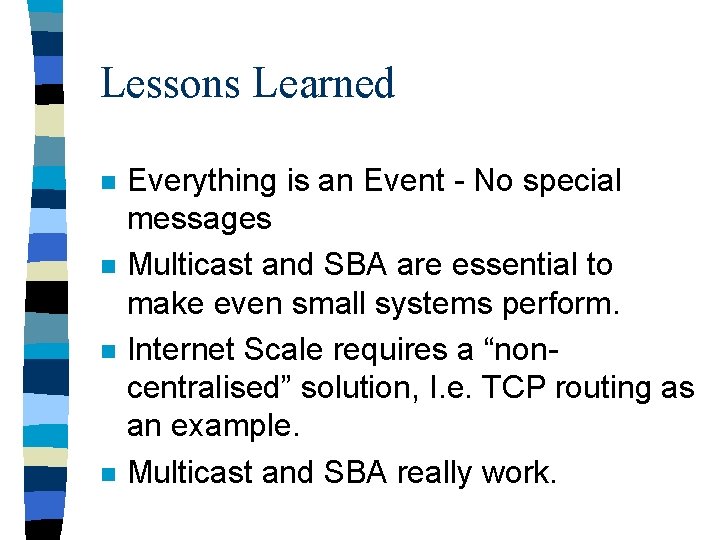

Lessons Learned n n Everything is an Event - No special messages Multicast and SBA are essential to make even small systems perform. Internet Scale requires a “noncentralised” solution, I. e. TCP routing as an example. Multicast and SBA really work.
Lessons Learned n n n Fine Tune the PGM algorithm and SBA algorithms. See how TCP routing has improved over the years. Don’t just standardize the protocol but work on data representation issues as well. Build assuming events are prolific and diverse.
