Multi-band Inter/Intra Team Radio (AN/PRC-148)

Task Navigate yourself though the MBITR functions. Properly fill the 148 -MBITR. Properly hand jam frequencies. Perform a proper radio check.

Conditions Class room environment. Risk is high. In case of a rocket attack, go down stairs to the TOC.

Standards Given the proper equipment, You, the individual must successfully perform your tasks within 10 minuets.

Equipment Inspection • Check for any visible damages, or anything that might cause damages to the equipment or personnel.

Controls, Connectors & Indicators

System Components

MBITR Interoperability KL 43 and KY 99 ANDVT VHF FM Clear, VINSON & Fascinator Low Band VHF FM Clear, VINSON & ECCM VHF/UHF AM Clear, VINSON & ECCM UHF FM Clear & BID 420 UHF FM Clear & Fascinator

Power up your MBITR Make sure your ON/OFF switch is on the off position before connecting the battery to the radio.

Description • 30 -512 MHz AM and FM Transceiver – VHF FM/AM – UHF AM (Air to Ground) – UHF FM (LOS) – UHF FM (Public Service). • Embedded US Type 1 COMSEC • Transmit Output Power: – User Selectable 0. 1 - 5. 0 Watts • Emergency Beacons and GPS: – AM Swept Tone Beacon – GPS Interface to PLGR • 100 Memory Programmable Channels:

Once your radio has powered up. Your display screen will display the battery power, the group, channel and the mode in which the radio is currently functioning under.

• Press GR on your Key Pad. • By pressing GR on your Key Pad this will bring you to your GROUP MENU.

• Select any group you would like to have your frequency under. • There are 10 groups in each radio. • Each group consist of 16 channels • There’s a total of 160 channels.

Comsec Fills 1. Simultaneously press ALT and MODE on your key pad. 2. Using your arrow up key, circle Key Fill and press enter. 3. Circle COMSEC and press enter. 4. Press your PTT button (Push To Talk) to initiate your fill.

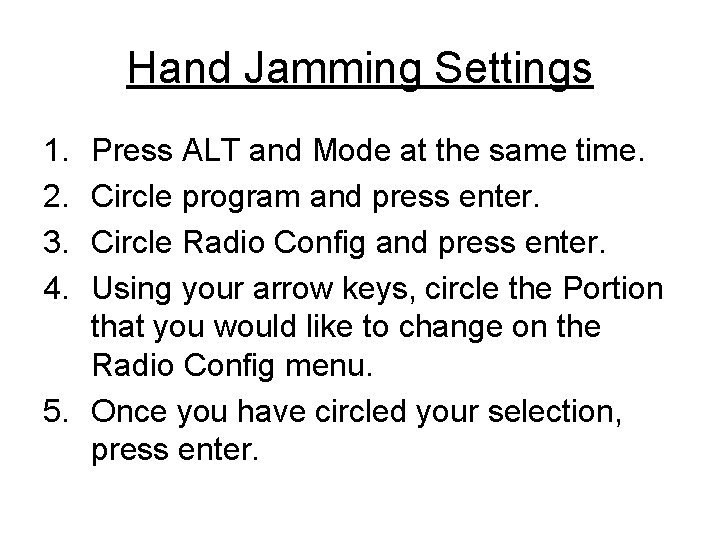

Hand Jamming Settings 1. 2. 3. 4. Press ALT and Mode at the same time. Circle program and press enter. Circle Radio Config and press enter. Using your arrow keys, circle the Portion that you would like to change on the Radio Config menu. 5. Once you have circled your selection, press enter.

HAND JAMMING 6. By pressing enter your selection has been highlighted. 7. Using your arrow keys you can now select your desired function. 8. When typing in the frequencies, you must press ALT and one of the arrow keys to shift from right to left.

HAND JAMMING Note: You must enter in your RX: Freq. first before you type in your TX: Freq.
