# Multiagent learning using a variable learning rate M

Multiagent learning using a variable learning rate M. Bowling and M. Veloso. Artificial Intelligence, Vol. 136, 2002, pp. 215 - 250. Igor Kiselev, University of Waterloo March 21

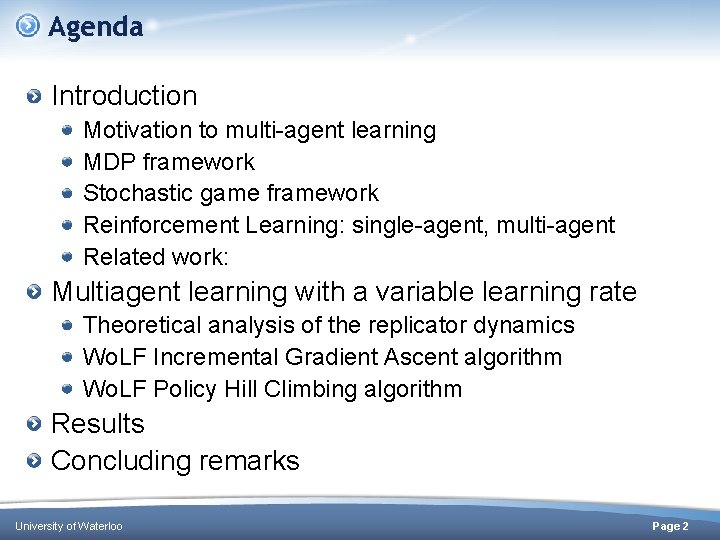

Agenda Introduction Motivation to multi-agent learning MDP framework Stochastic game framework Reinforcement Learning: single-agent, multi-agent Related work: Multiagent learning with a variable learning rate Theoretical analysis of the replicator dynamics Wo. LF Incremental Gradient Ascent algorithm Wo. LF Policy Hill Climbing algorithm Results Concluding remarks University of Waterloo Page 2

Introduction Motivation to multi-agent learning March 21

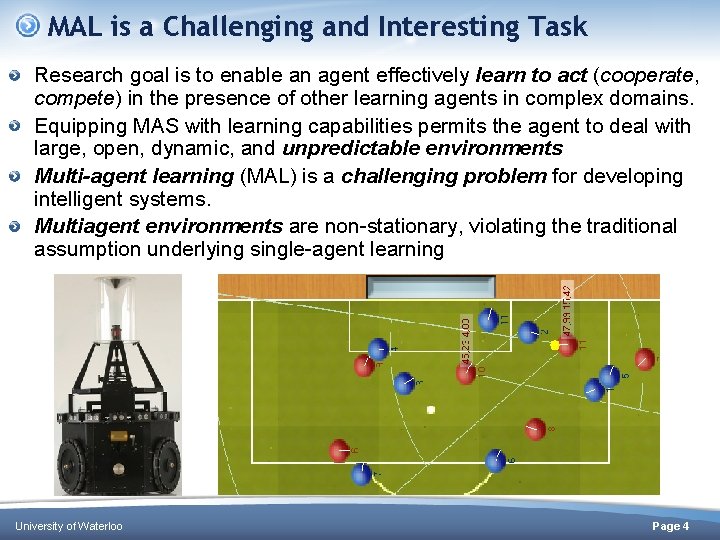

MAL is a Challenging and Interesting Task Research goal is to enable an agent effectively learn to act (cooperate, compete) in the presence of other learning agents in complex domains. Equipping MAS with learning capabilities permits the agent to deal with large, open, dynamic, and unpredictable environments Multi-agent learning (MAL) is a challenging problem for developing intelligent systems. Multiagent environments are non-stationary, violating the traditional assumption underlying single-agent learning University of Waterloo Page 4

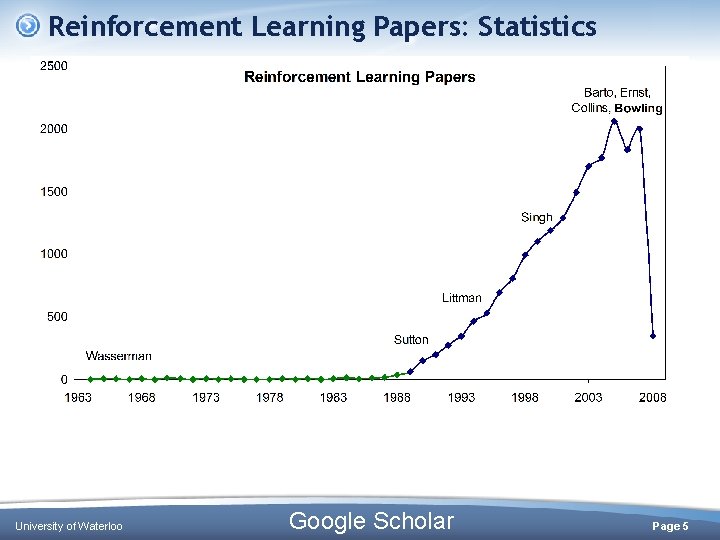

Reinforcement Learning Papers: Statistics University of Waterloo Google Scholar Page 5

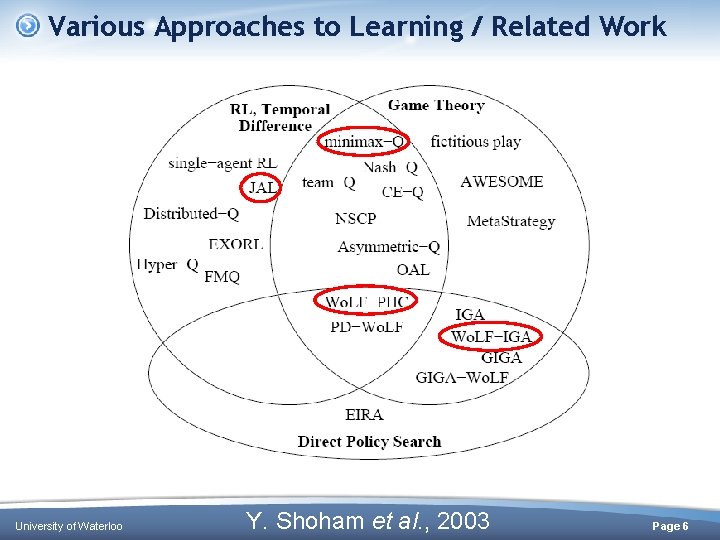

Various Approaches to Learning / Related Work University of Waterloo Y. Shoham et al. , 2003 Page 6

Preliminaries MDP and Stochastic Game Frameworks March 21

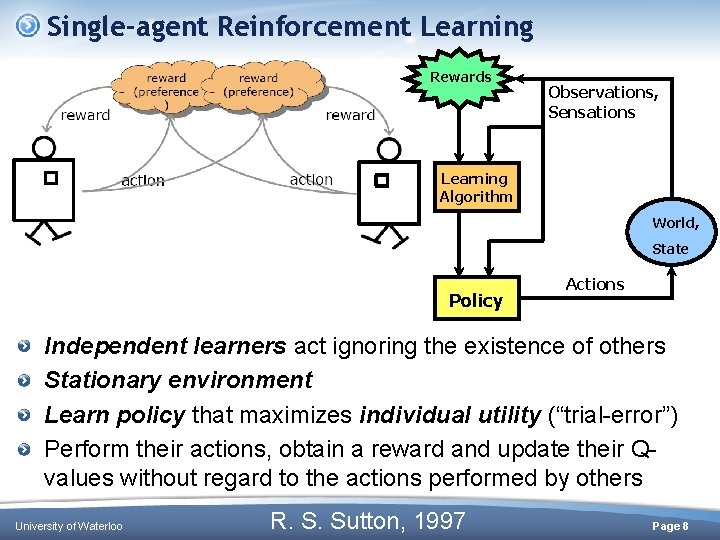

Single-agent Reinforcement Learning Rewards Observations, Sensations Learning Algorithm World, State Policy Actions Independent learners act ignoring the existence of others Stationary environment Learn policy that maximizes individual utility (“trial-error”) Perform their actions, obtain a reward and update their Qvalues without regard to the actions performed by others University of Waterloo R. S. Sutton, 1997 Page 8

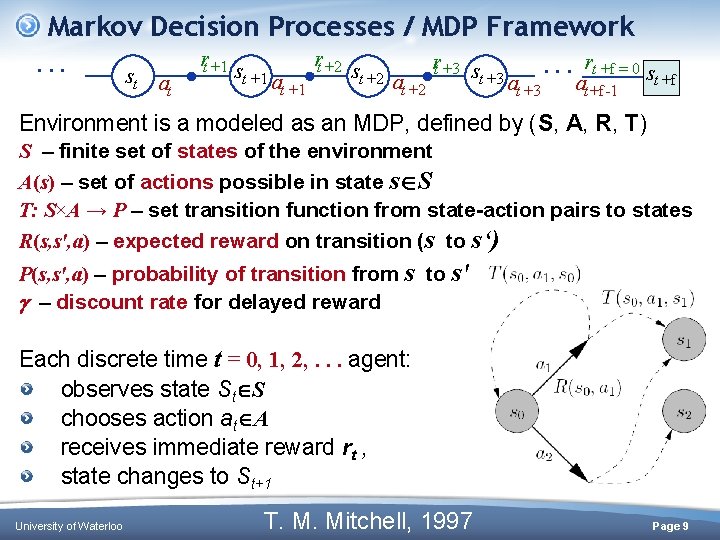

Markov Decision Processes / MDP Framework. . . st at rt +1 st +1 at +1 rt +2 st +2 at +2 rt +3 s t +3 . . . rt +f = 0 s t +f at +3 at+f-1 Environment is a modeled as an MDP, defined by (S, A, R, T) S – finite set of states of the environment A(s) – set of actions possible in state s S T: S×A → P – set transition function from state-action pairs to states R(s, s', a) – expected reward on transition (s to s‘) P(s, s', a) – probability of transition from s to s' – discount rate for delayed reward Each discrete time t = 0, 1, 2, . . . agent: observes state St S chooses action at A receives immediate reward rt , state changes to St+1 University of Waterloo T. M. Mitchell, 1997 Page 9

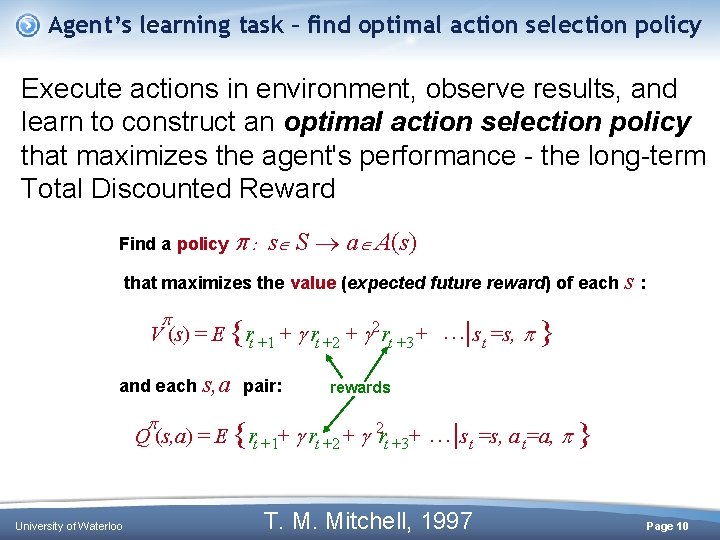

Agent’s learning task – find optimal action selection policy Execute actions in environment, observe results, and learn to construct an optimal action selection policy that maximizes the agent's performance - the long-term Total Discounted Reward Find a policy s S a A(s) that maximizes the value (expected future reward) of each s : V (s) = E {rt +1 + rt +2 + 2 rt +3 + and each s, a pair: s t =s, } rewards Q (s, a) = E {rt +1+ rt +2 + 2 rt +3+ University of Waterloo . . . s t =s, a t=a, } T. M. Mitchell, 1997 Page 10

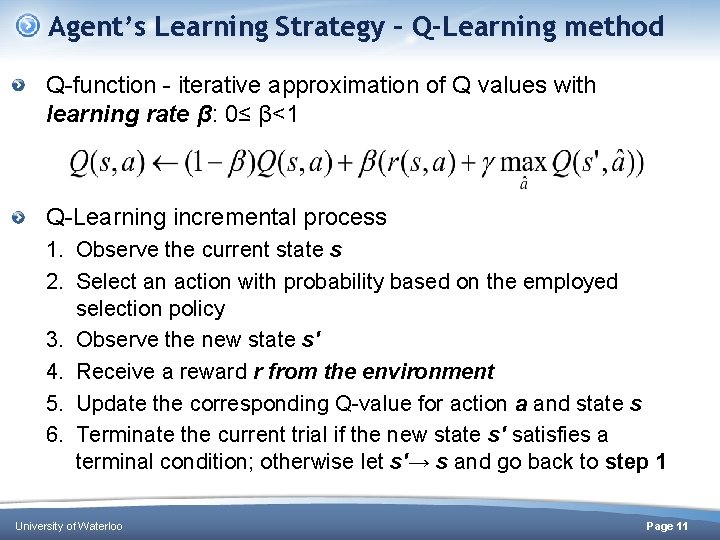

Agent’s Learning Strategy – Q-Learning method Q-function - iterative approximation of Q values with learning rate β: 0≤ β<1 Q-Learning incremental process 1. Observe the current state s 2. Select an action with probability based on the employed selection policy 3. Observe the new state s′ 4. Receive a reward r from the environment 5. Update the corresponding Q-value for action a and state s 6. Terminate the current trial if the new state s′ satisfies a terminal condition; otherwise let s′→ s and go back to step 1 University of Waterloo Page 11

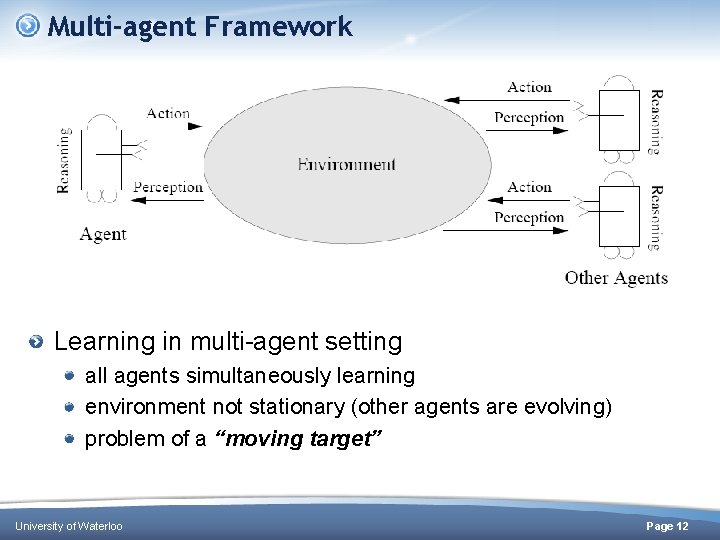

Multi-agent Framework Learning in multi-agent setting all agents simultaneously learning environment not stationary (other agents are evolving) problem of a “moving target” University of Waterloo Page 12

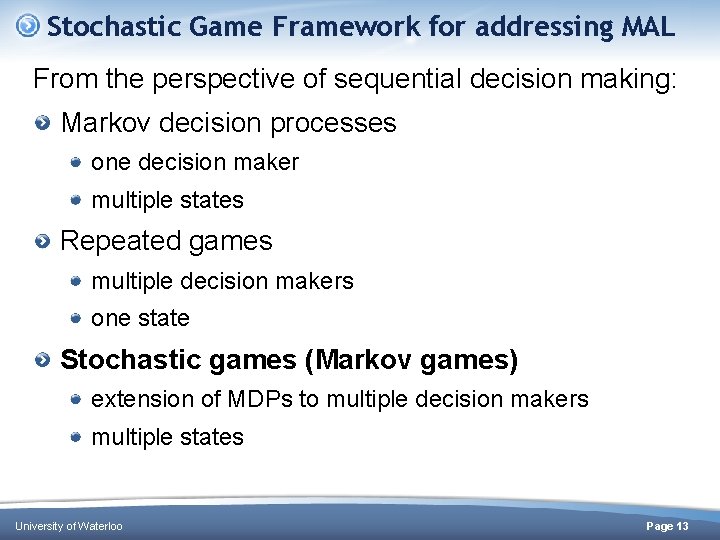

Stochastic Game Framework for addressing MAL From the perspective of sequential decision making: Markov decision processes one decision maker multiple states Repeated games multiple decision makers one state Stochastic games (Markov games) extension of MDPs to multiple decision makers multiple states University of Waterloo Page 13

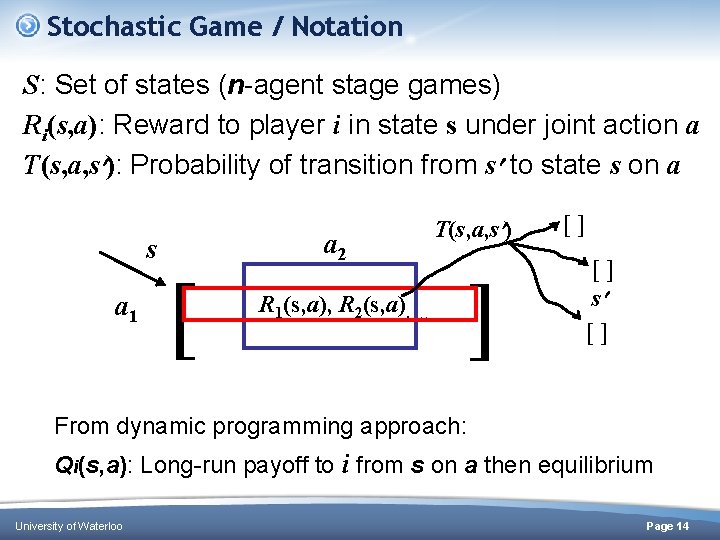

Stochastic Game / Notation S: Set of states (n-agent stage games) Ri(s, a): Reward to player i in state s under joint action a T(s, a, s ): Probability of transition from s to state s on a s a 1 [ a 2 R 1(s, a), R 2(s, a), … T(s, a, s ) ] [] [] s [] From dynamic programming approach: Qi(s, a): Long-run payoff to i from s on a then equilibrium University of Waterloo Page 14

Approach Multiagent learning using a variable learning rate March 21

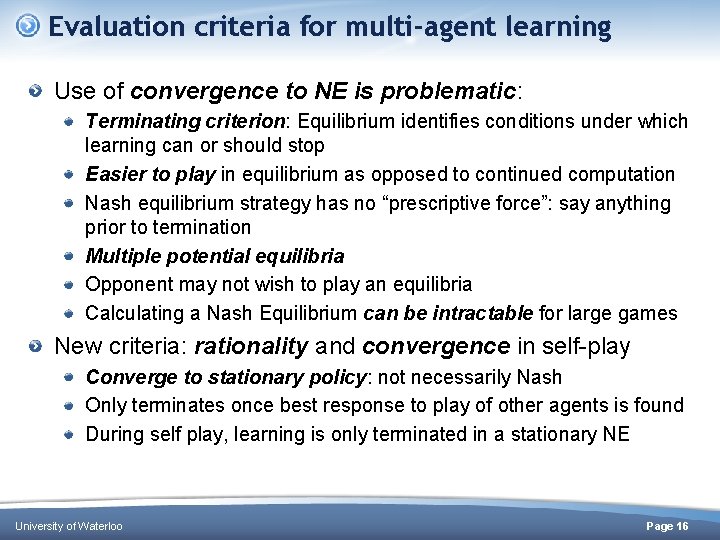

Evaluation criteria for multi-agent learning Use of convergence to NE is problematic: Terminating criterion: Equilibrium identifies conditions under which learning can or should stop Easier to play in equilibrium as opposed to continued computation Nash equilibrium strategy has no “prescriptive force”: say anything prior to termination Multiple potential equilibria Opponent may not wish to play an equilibria Calculating a Nash Equilibrium can be intractable for large games New criteria: rationality and convergence in self-play Converge to stationary policy: not necessarily Nash Only terminates once best response to play of other agents is found During self play, learning is only terminated in a stationary NE University of Waterloo Page 16

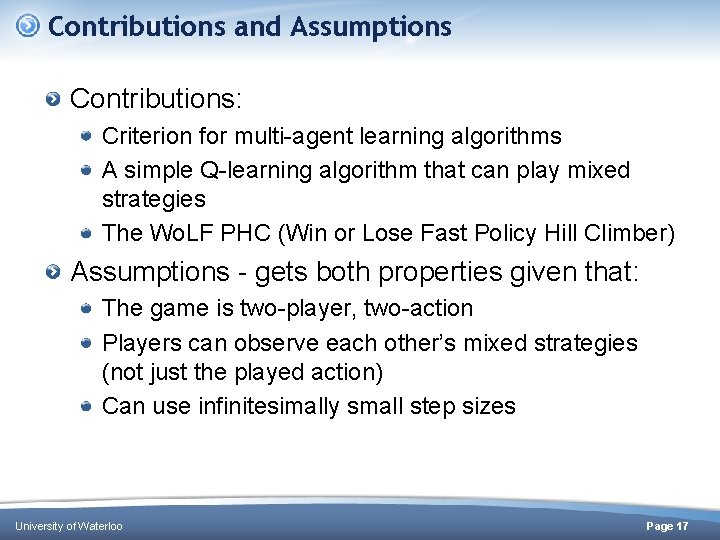

Contributions and Assumptions Contributions: Criterion for multi-agent learning algorithms A simple Q-learning algorithm that can play mixed strategies The Wo. LF PHC (Win or Lose Fast Policy Hill Climber) Assumptions - gets both properties given that: The game is two-player, two-action Players can observe each other’s mixed strategies (not just the played action) Can use infinitesimally small step sizes University of Waterloo Page 17

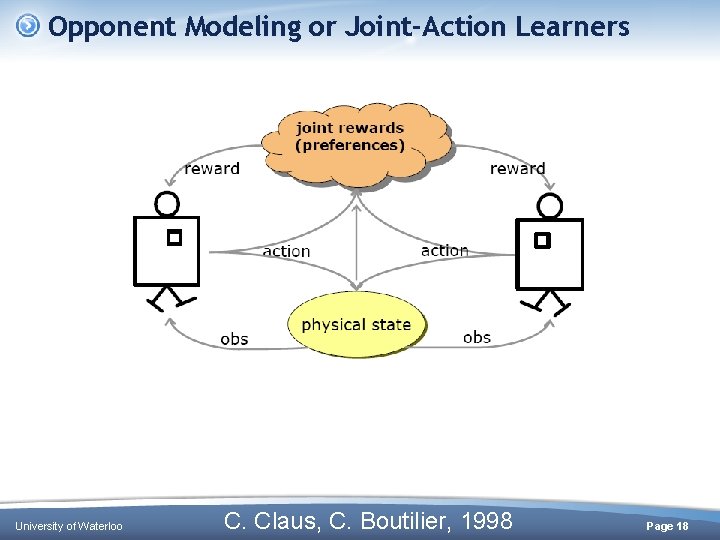

Opponent Modeling or Joint-Action Learners University of Waterloo C. Claus, C. Boutilier, 1998 Page 18

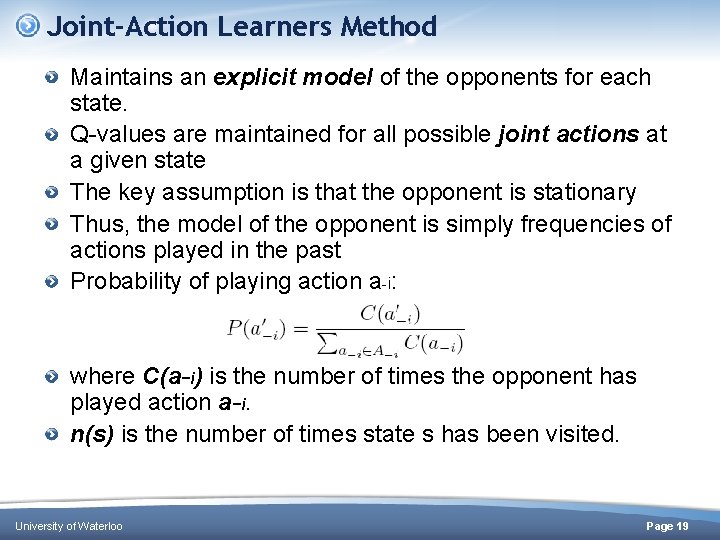

Joint-Action Learners Method Maintains an explicit model of the opponents for each state. Q-values are maintained for all possible joint actions at a given state The key assumption is that the opponent is stationary Thus, the model of the opponent is simply frequencies of actions played in the past Probability of playing action a-i: where C(a−i) is the number of times the opponent has played action a−i. n(s) is the number of times state s has been visited. University of Waterloo Page 19

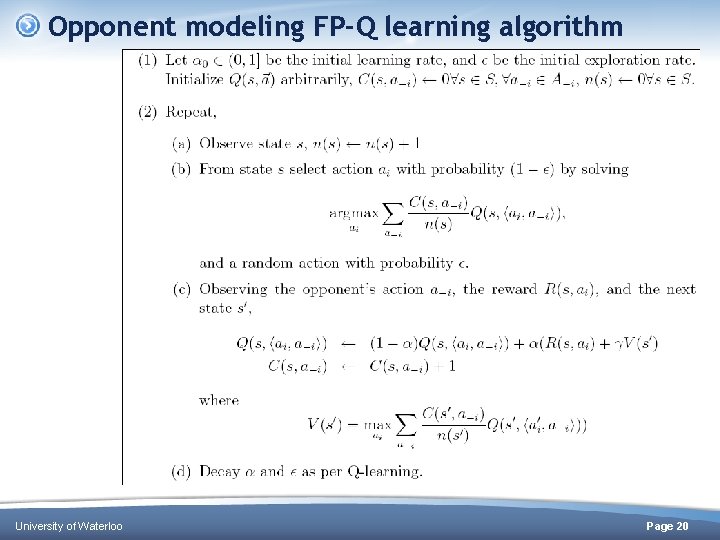

Opponent modeling FP-Q learning algorithm University of Waterloo Page 20

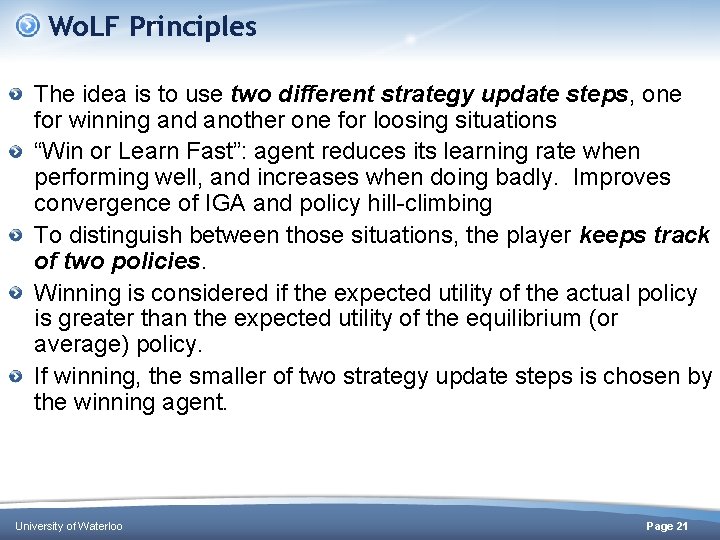

Wo. LF Principles The idea is to use two different strategy update steps, one for winning and another one for loosing situations “Win or Learn Fast”: agent reduces its learning rate when performing well, and increases when doing badly. Improves convergence of IGA and policy hill-climbing To distinguish between those situations, the player keeps track of two policies. Winning is considered if the expected utility of the actual policy is greater than the expected utility of the equilibrium (or average) policy. If winning, the smaller of two strategy update steps is chosen by the winning agent. University of Waterloo Page 21

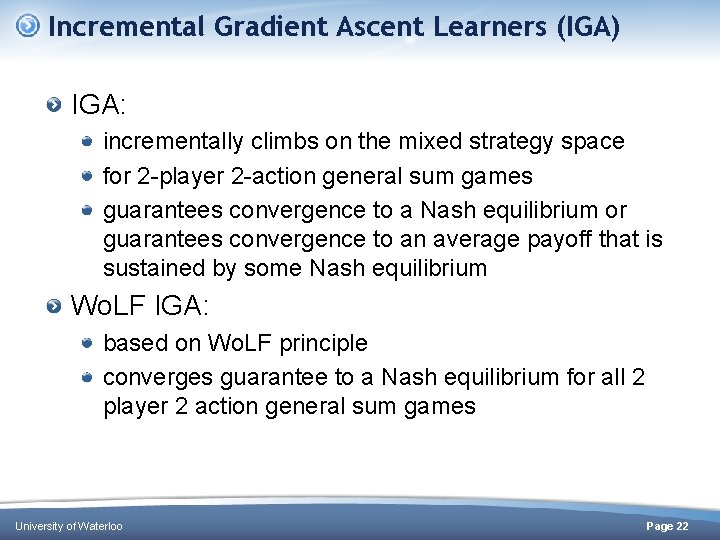

Incremental Gradient Ascent Learners (IGA) IGA: incrementally climbs on the mixed strategy space for 2 -player 2 -action general sum games guarantees convergence to a Nash equilibrium or guarantees convergence to an average payoff that is sustained by some Nash equilibrium Wo. LF IGA: based on Wo. LF principle converges guarantee to a Nash equilibrium for all 2 player 2 action general sum games University of Waterloo Page 22

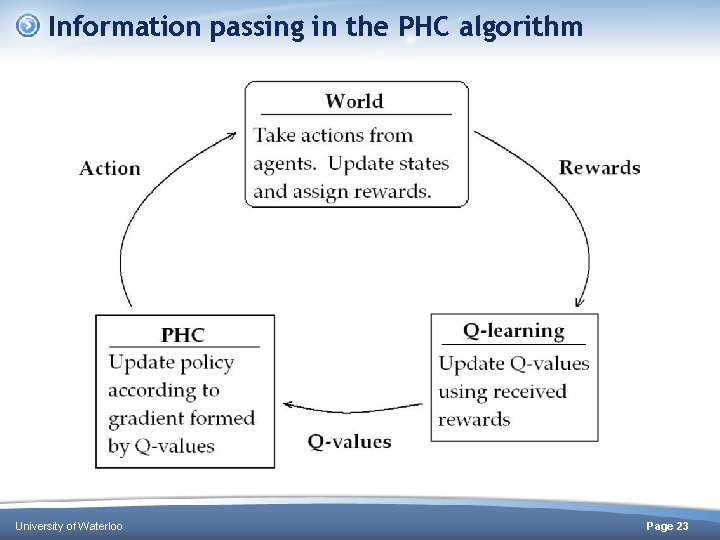

Information passing in the PHC algorithm University of Waterloo Page 23

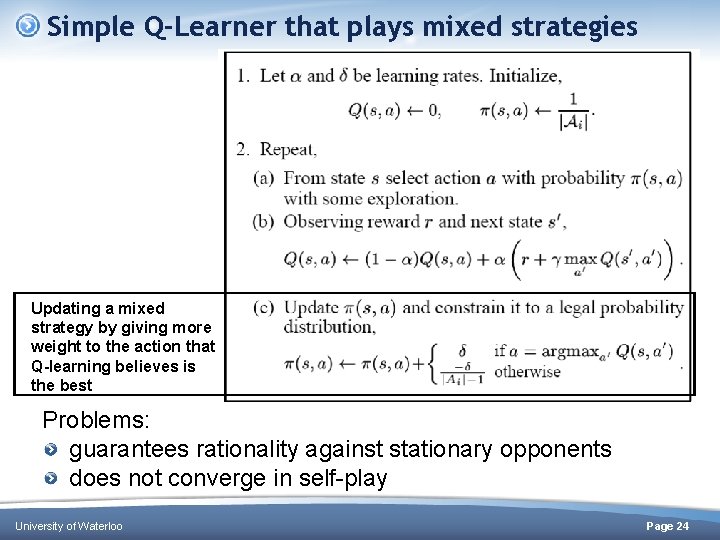

Simple Q-Learner that plays mixed strategies Updating a mixed strategy by giving more weight to the action that Q-learning believes is the best Problems: guarantees rationality against stationary opponents does not converge in self-play University of Waterloo Page 24

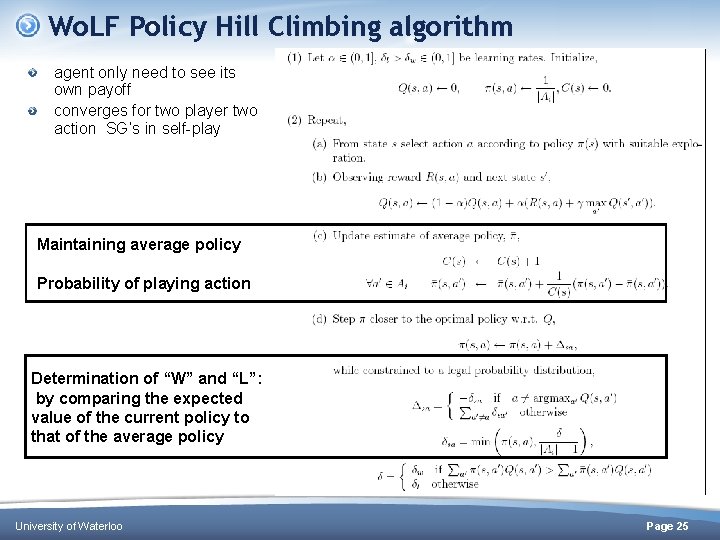

Wo. LF Policy Hill Climbing algorithm agent only need to see its own payoff converges for two player two action SG’s in self-play Maintaining average policy Probability of playing action Determination of “W” and “L”: by comparing the expected value of the current policy to that of the average policy University of Waterloo Page 25

Theoretical analysis Analysis of the replicator dynamics March 21

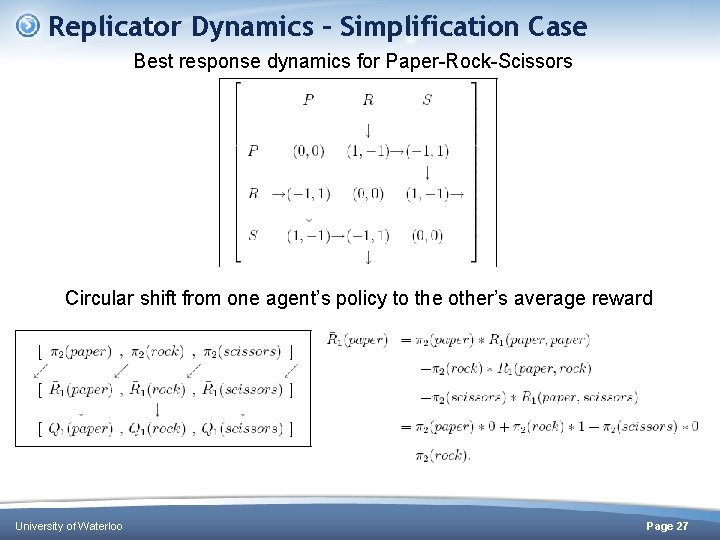

Replicator Dynamics – Simplification Case Best response dynamics for Paper-Rock-Scissors Circular shift from one agent’s policy to the other’s average reward University of Waterloo Page 27

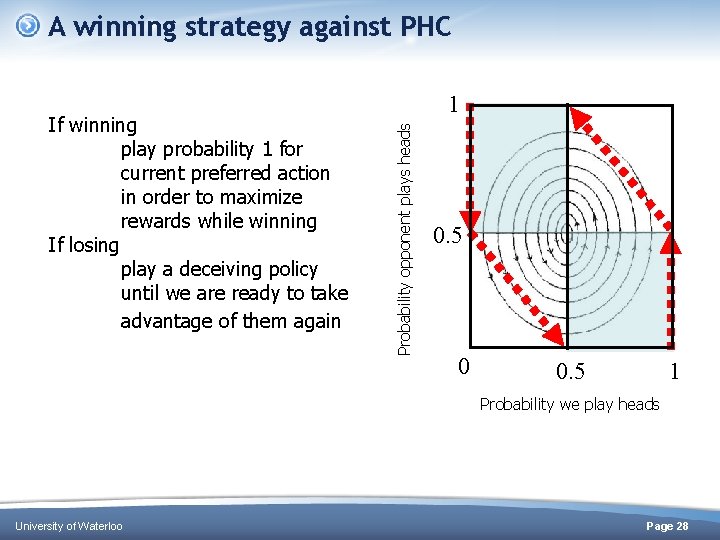

A winning strategy against PHC Probability opponent plays heads If winning play probability 1 for current preferred action in order to maximize rewards while winning If losing play a deceiving policy until we are ready to take advantage of them again 1 0. 5 0 1 0. 5 Probability we play heads University of Waterloo Page 28

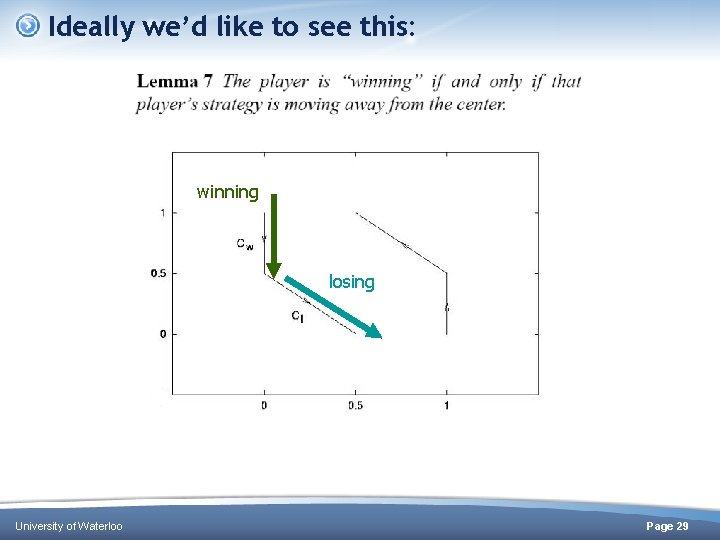

Ideally we’d like to see this: winning losing University of Waterloo Page 29

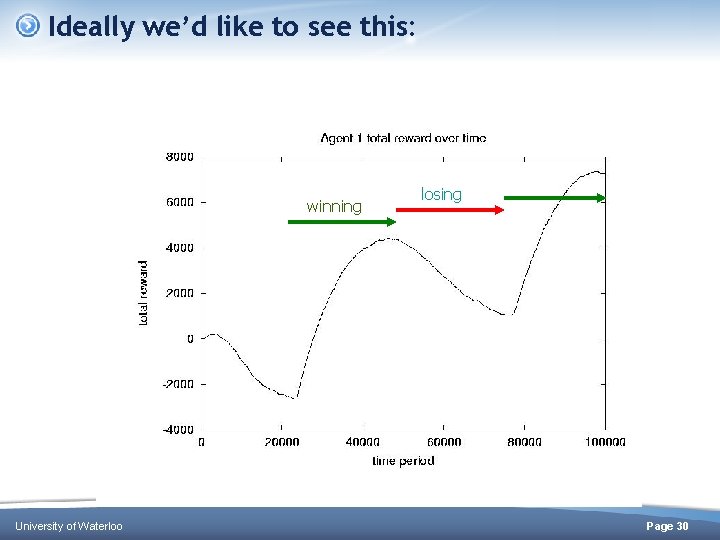

Ideally we’d like to see this: winning University of Waterloo losing Page 30

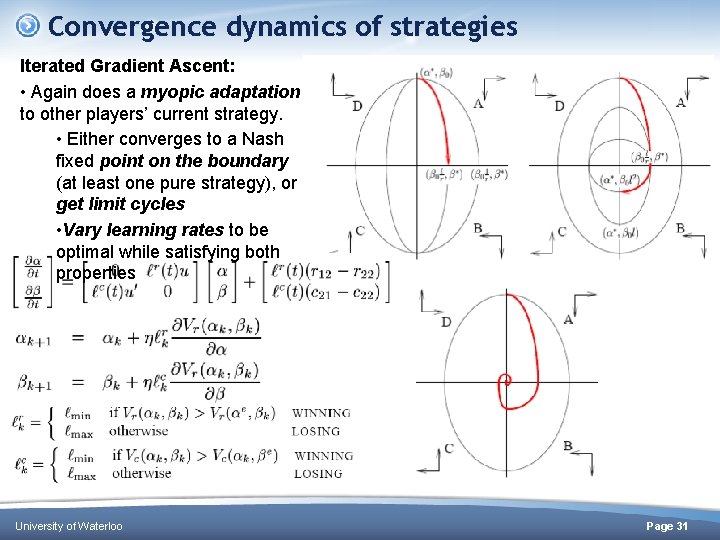

Convergence dynamics of strategies Iterated Gradient Ascent: • Again does a myopic adaptation to other players’ current strategy. • Either converges to a Nash fixed point on the boundary (at least one pure strategy), or get limit cycles • Vary learning rates to be optimal while satisfying both properties University of Waterloo Page 31

Results March 21

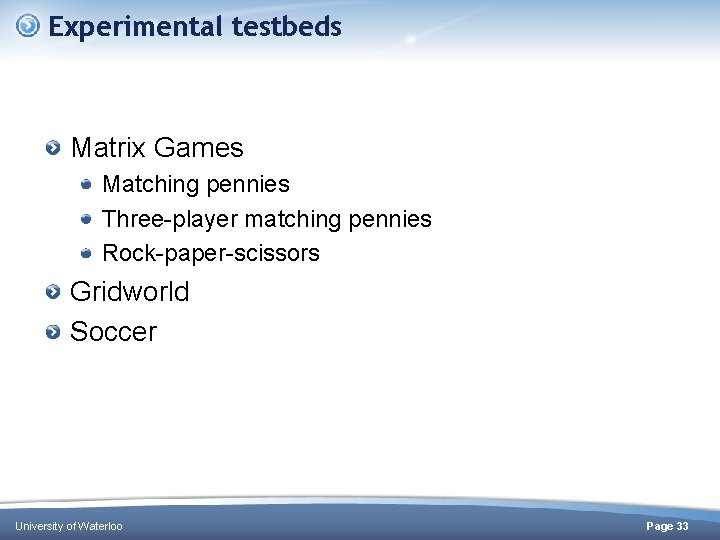

Experimental testbeds Matrix Games Matching pennies Three-player matching pennies Rock-paper-scissors Gridworld Soccer University of Waterloo Page 33

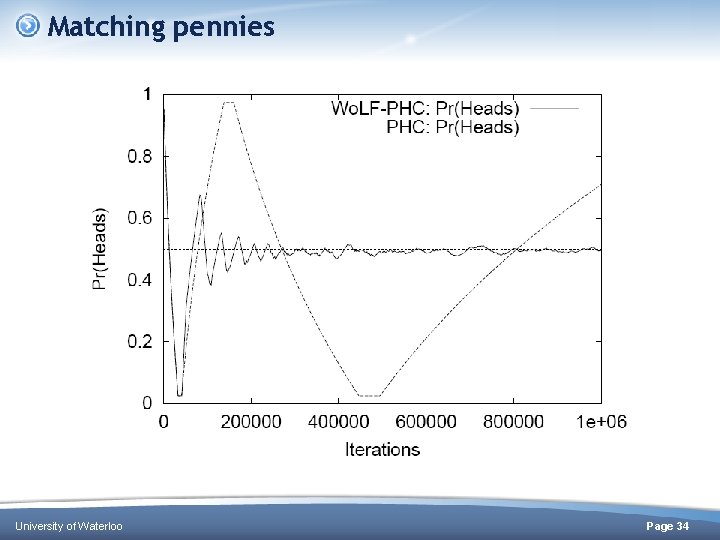

Matching pennies University of Waterloo Page 34

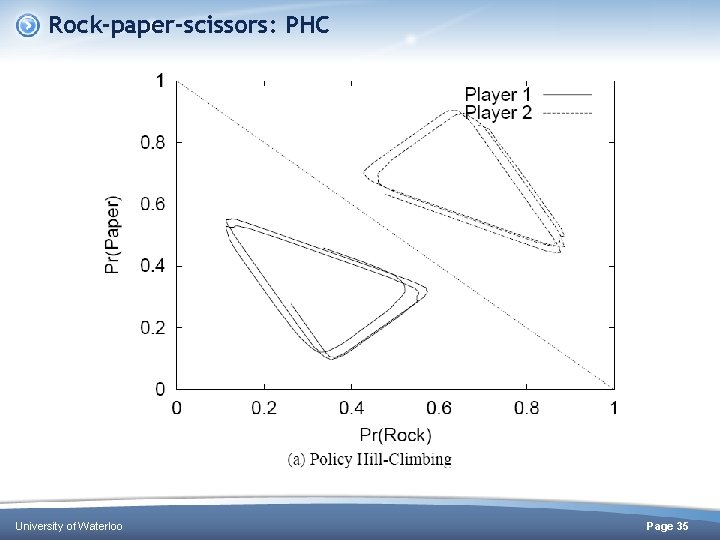

Rock-paper-scissors: PHC University of Waterloo Page 35

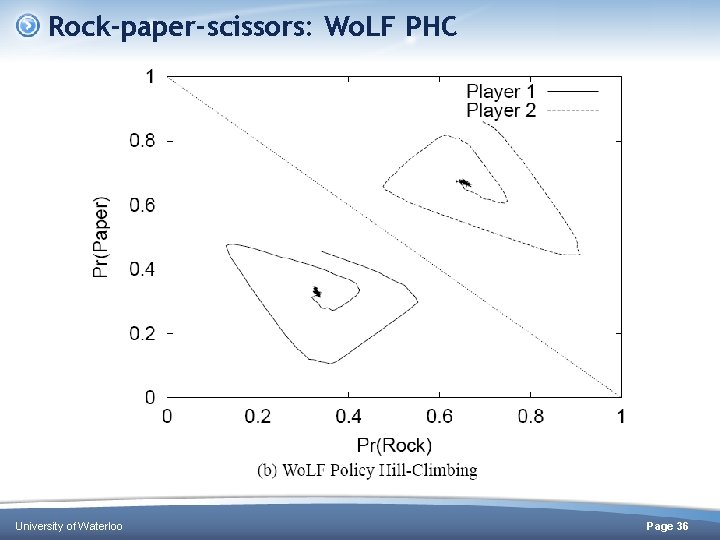

Rock-paper-scissors: Wo. LF PHC University of Waterloo Page 36

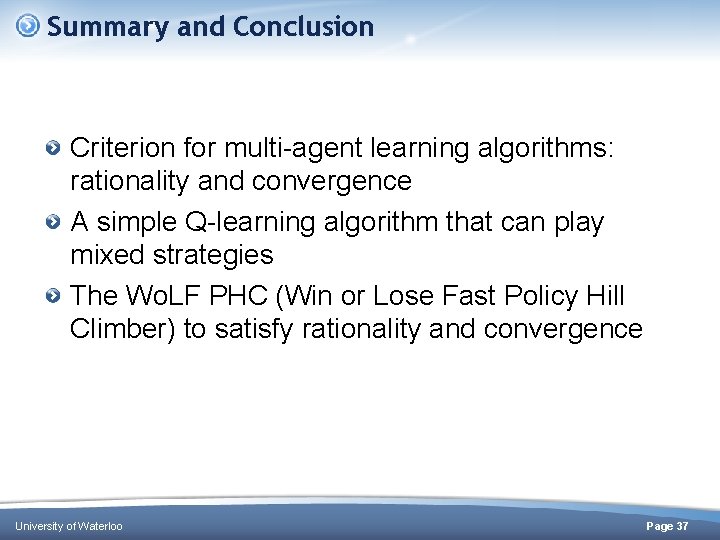

Summary and Conclusion Criterion for multi-agent learning algorithms: rationality and convergence A simple Q-learning algorithm that can play mixed strategies The Wo. LF PHC (Win or Lose Fast Policy Hill Climber) to satisfy rationality and convergence University of Waterloo Page 37

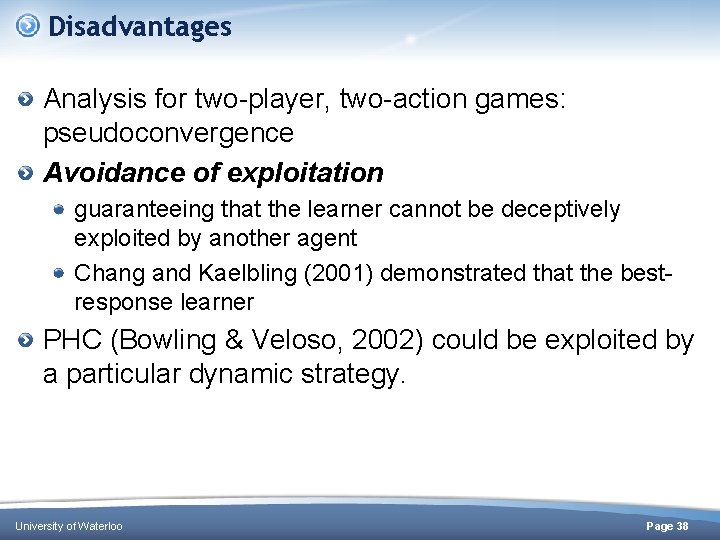

Disadvantages Analysis for two-player, two-action games: pseudoconvergence Avoidance of exploitation guaranteeing that the learner cannot be deceptively exploited by another agent Chang and Kaelbling (2001) demonstrated that the bestresponse learner PHC (Bowling & Veloso, 2002) could be exploited by a particular dynamic strategy. University of Waterloo Page 38

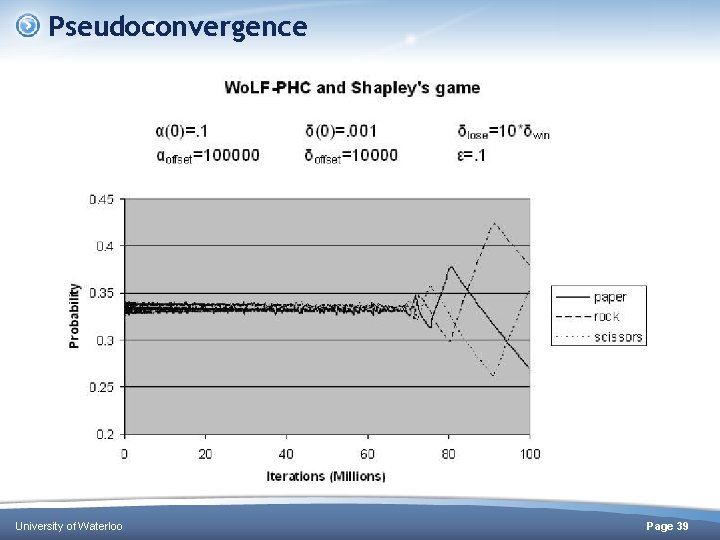

Pseudoconvergence University of Waterloo Page 39

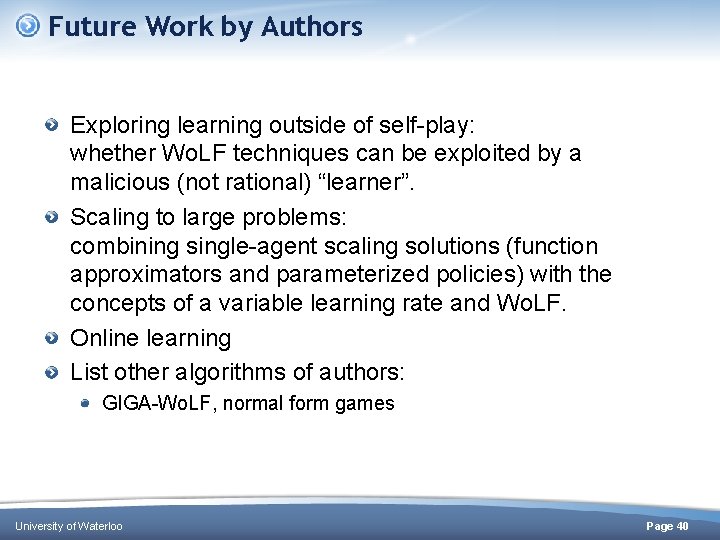

Future Work by Authors Exploring learning outside of self-play: whether Wo. LF techniques can be exploited by a malicious (not rational) “learner”. Scaling to large problems: combining single-agent scaling solutions (function approximators and parameterized policies) with the concepts of a variable learning rate and Wo. LF. Online learning List other algorithms of authors: GIGA-Wo. LF, normal form games University of Waterloo Page 40

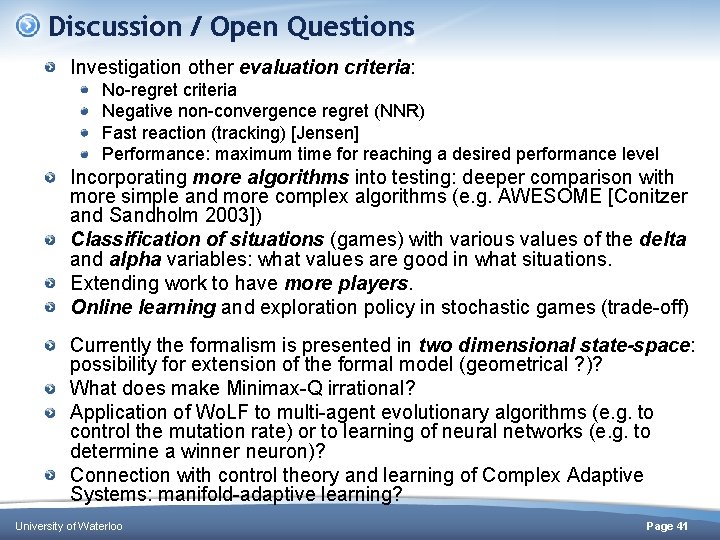

Discussion / Open Questions Investigation other evaluation criteria: No-regret criteria Negative non-convergence regret (NNR) Fast reaction (tracking) [Jensen] Performance: maximum time for reaching a desired performance level Incorporating more algorithms into testing: deeper comparison with more simple and more complex algorithms (e. g. AWESOME [Conitzer and Sandholm 2003]) Classification of situations (games) with various values of the delta and alpha variables: what values are good in what situations. Extending work to have more players. Online learning and exploration policy in stochastic games (trade-off) Currently the formalism is presented in two dimensional state-space: possibility for extension of the formal model (geometrical ? )? What does make Minimax-Q irrational? Application of Wo. LF to multi-agent evolutionary algorithms (e. g. to control the mutation rate) or to learning of neural networks (e. g. to determine a winner neuron)? Connection with control theory and learning of Complex Adaptive Systems: manifold-adaptive learning? University of Waterloo Page 41

Questions Thank you March 21
