Multi-addressed Multipath TCP draft-ford-mptcp-multiaddressed-02 Alan Ford <alan. ford@roke. co. uk> Costin Raiciu, Mark Handley

Multi-addressed Multipath TCP draft-ford-mptcp-multiaddressed-02 Alan Ford <alan. [email protected] co. uk> Costin Raiciu, Mark Handley

MPTCP: Where are we now? • Work has been ongoing for ~2 years •

MPTCP: Where are we now? • Work has been ongoing for ~2 years • Three implementations and two simulators • This talk represents our current understanding of the most appropriate design • We welcome broader feedback in order to make this the protocol the best it can be 2

Objectives • An easy-to-deploy Multipath TCP solution • Our constraints: – Assume that one

Objectives • An easy-to-deploy Multipath TCP solution • Our constraints: – Assume that one or both endpoints are multihomed and multi-addressed – Backwards-compatible with current, regular TCP • External: function through middleboxes • Applications: provide same service to regular TCP • Fall-back: to regular TCP in case of failure 3

Basic Scenario: Throughput 9 8 6 4 Address A 1 Source A 9 8

Basic Scenario: Throughput 9 8 6 4 Address A 1 Source A 9 8 7 6 5 4 Address A 2 Address B 1 Destination B MPTCP Subflows 7 5 9 8 7 6 5 4 Address B 2 4

Basic Scenario: Resilience 7 5 9 8 6 4 Source Destination 9 8 7

Basic Scenario: Resilience 7 5 9 8 6 4 Source Destination 9 8 7 6 5 4 7 5 5

MPTCP Operation • An MPTCP Connection between endpoints is formed of one or more

MPTCP Operation • An MPTCP Connection between endpoints is formed of one or more MPTCP Subflows • Subflows will be created between different IP address pairs • TCP Options used in subflows: – For a new subflow to join an existing connection – For data-level sequence numbering – For closing connections 6

MPTCP Example Host A Address A 1 Host B Address A 2 Address B

MPTCP Example Host A Address A 1 Host B Address A 2 Address B 1 Address B 2 Initial connection setup Additional subflow setup 7

Session Initialisation • Standard TCP SYN/ACK exchange with additional MPTCP option: – Sender’s token

Session Initialisation • Standard TCP SYN/ACK exchange with additional MPTCP option: – Sender’s token to identify this connection – Initial data-level sequence number Host A Host B SYN + Tok. A + DSN SYN/ACK + Tok. B + DSN 8

“Multipath Capable” Option • To declare a sender’s token for this connection in the

“Multipath Capable” Option • To declare a sender’s token for this connection in the first SYN/ACK exchange 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 +---------------+----------------+ | Kind=OPT_MPC | Length = 7 |(resvd)|Version| Sender Token : +---------------+----------------+ : Sender Token (continued: 4 octets total) | +------------------------+ 9

Starting a New Subflow • One or both of local and remote IP addresses

Starting a New Subflow • One or both of local and remote IP addresses will be new • TCP option contains: – Receiver’s token to identify this connection – Sender’s identifier for source address Host A Host B SYN + Tok. B + Address ID SYN/ACK + Tok. A + Address ID 10

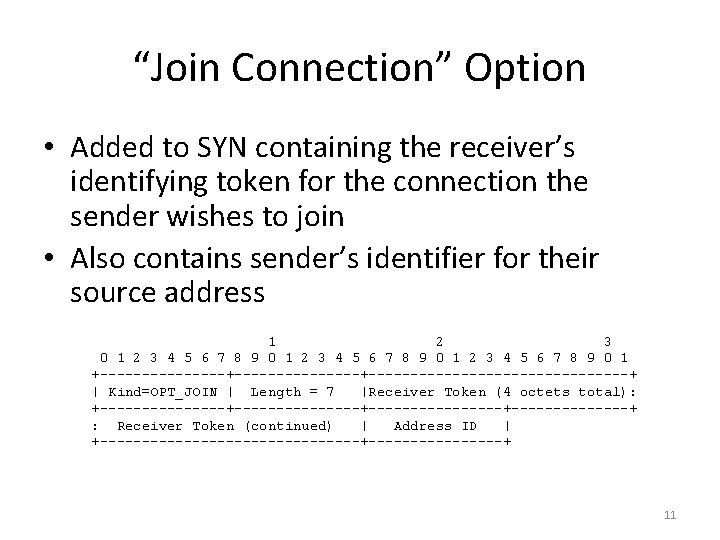

“Join Connection” Option • Added to SYN containing the receiver’s identifying token for the

“Join Connection” Option • Added to SYN containing the receiver’s identifying token for the connection the sender wishes to join • Also contains sender’s identifier for their source address 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 +---------------+----------------+ | Kind=OPT_JOIN | Length = 7 |Receiver Token (4 octets total): +---------------+--------+-------+ : Receiver Token (continued) | Address ID | +----------------+--------+ 11

Address Knowledge Exchange • But how to know a remote end’s addresses? • Address

Address Knowledge Exchange • But how to know a remote end’s addresses? • Address is signalled in TCP options on existing subflow, containing: – Address (v 4 or v 6 depending on IPVer) – Sender’s unique Address Identifier • Can be correlated with that seen in SYN • Remove address also possible when interface is unexpectedly lost – Removed by Address ID, to permit NATs 12

Adding Addresses • Address: declares a local address to a remote endpoint, with local

Adding Addresses • Address: declares a local address to a remote endpoint, with local identifier 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 +---------------+--------+-------+ | Kind=OPT_ADDR | Length | Address ID | IPVer |(resvd)| +---------------+--------+-------+ | Address (IPv 4 - 4 octets) | +--------------------------------+ (. . . further ID/Version/Address fields as required. . . ) • Remote endpoint can attempt to set up new subflow(s) to this address 13

Removing Addresses • Remove Address: declares a previously announced address as no longer valid

Removing Addresses • Remove Address: declares a previously announced address as no longer valid and to be removed from connection 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 +---------------+--------+ |Kind=OPT_REMADR| Length = 2+n | Address ID |. . . +---------------+--------+ • Will trigger receiving endpoint to close all subflows using that address 14

Need for Address Signalling • Many hosts will have firewalls/NATs that permit connections only

Need for Address Signalling • Many hosts will have firewalls/NATs that permit connections only in one direction • Therefore, signalling addresses allows a receiver to open a connection in the opposite direction, e. g. Host A Host B Address A 1 Address B 2 Initial connection setup Try subflow setup Signal Address B 2 Setup new subflow 15

General Operation • MPTCP connection is formed of multiple TCP subflows, with coupled congestion

General Operation • MPTCP connection is formed of multiple TCP subflows, with coupled congestion control and shared receive buffer • Subflows have contiguous sequence numbering • Data is reassembled by connection-level sequence numbering • MPTCP can retransmit failures on original or new path (but if using a new path, must also retransmit on original for continuity) 16

Data Sequence Numbering • Data Sequence Mapping option declares: – Subflow sequence number mapped

Data Sequence Numbering • Data Sequence Mapping option declares: – Subflow sequence number mapped to data-level sequence number – Number of bytes for which this mapping is valid – Data sequence number can be 64 -bits 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 +---------------+---------------+ | Kind=OPT_DSN | Length | Data Sequence Number. . . : +---------------+---------------+ : . . . ( (length-8) octets ) | Data-level Length (2 octets) | +----------------+---------------+ | Subflow Sequence Number (4 octets) | +----------------+---------------+ 17

More on Data Sequence Mapping • The Data Sequence Mapping need not be sent

More on Data Sequence Mapping • The Data Sequence Mapping need not be sent in every packet, and can be omitted when the sender is sure the receiver will understand (e. g. multiple packets covered by same length; or lone subflow) • An initial data sequence number should be set at the first handshake 18

Closing Connection • Subflows operate independently so can be closed with a FIN as

Closing Connection • Subflows operate independently so can be closed with a FIN as normal • If an interface is unexpectedly lost, the Remove Address option can initiate a rapid cleanup from both endpoints • The DATA FIN option (on top of a TCP-level FIN) indicates the end of the connection • RST has subflow-only relevance 19

Security and Threats • Aim for baseline: no worse than current TCP • Some

Security and Threats • Aim for baseline: no worse than current TCP • Some security considerations so far: – Use of existing TCP for subflows minimises new threats from targeting third party addresses – Hijacking could be plausible with token guessing • Additional security with e. g. ensuring correlation with signals on existing subflows • This would also reduce issues with time-shifted attacks 20

Open Issues • • • Is proposed handshake mechanism sufficient? Receiver policy control –

Open Issues • • • Is proposed handshake mechanism sufficient? Receiver policy control – how? Do we want Subflow IDs or Address IDs? Do we need any data-level ACKs? Do we want Connection IDs given in every packet? (Possibility of aiding IDS etc? ) 21

Next Steps • Is this specification ready to become a WG document? 22

Next Steps • Is this specification ready to become a WG document? 22
