Multi video camera calibration and synchronization Motivation Multi

Multi video camera calibration and synchronization

Motivation • Multi camera applications become common. Example: Stereo, Surveillance…. • Using multi camera we can over come problems like hidden objects. • In general more cameras equal more information on the scene.

How does it look • Multi camera setup

The scene • The filmed scene 1/3

The scene • The filmed scene 2/3

The scene • The filmed scene 3/3

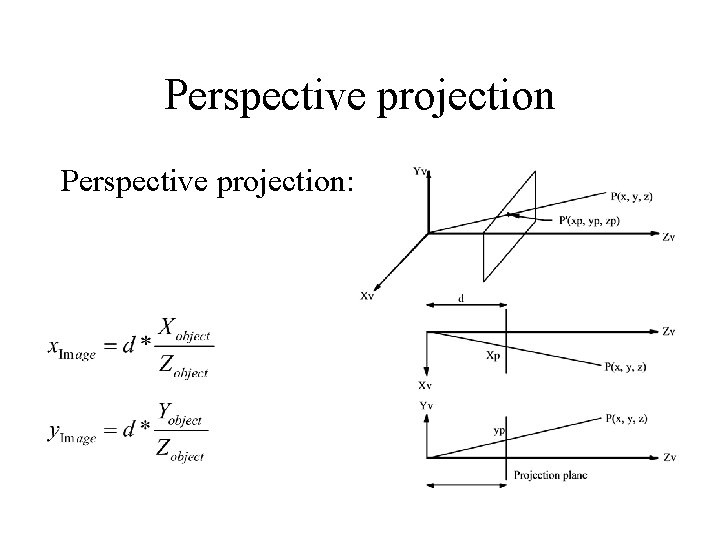

Perspective projection:

The projection matrix • Object point • Image point • Using the model: • And the projection matrix (so far) is: *Homogenous coordinates

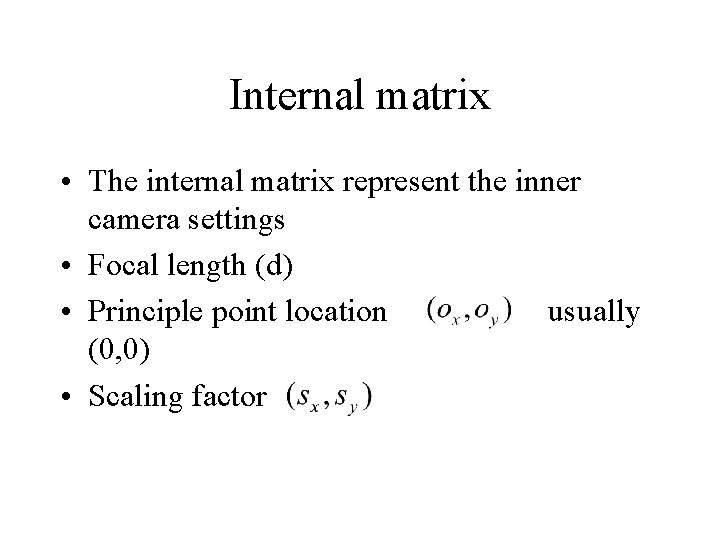

Internal matrix • The internal matrix represent the inner camera settings • Focal length (d) • Principle point location usually (0, 0) • Scaling factor

External matrix • Includes all the orientation properties of the camera • Rotation • Translation

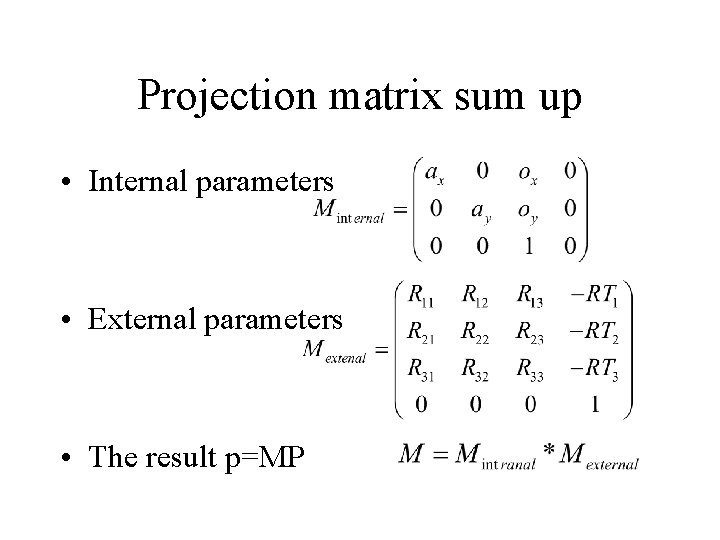

Projection matrix sum up • Internal parameters • External parameters • The result p=MP

Calibration • Camera calibration is used to coordinate between cameras. • Given a 3 D point in the real word finding the projected point in the camera. • The goal is to fined the projection matrix M. • Using known 3 D points and there corresponding image points p=MP can be solved.

When a full calibration is not necessary Homography • Mapping between a point on a ground plane as seen from one camera, to the same point on the ground plane as seen from a second camera.

When an Homography can be used • When the images are of the same plane Camera 1 Camera 2 Result

When an Homography can be used • When images taking using same camera by only rotating it

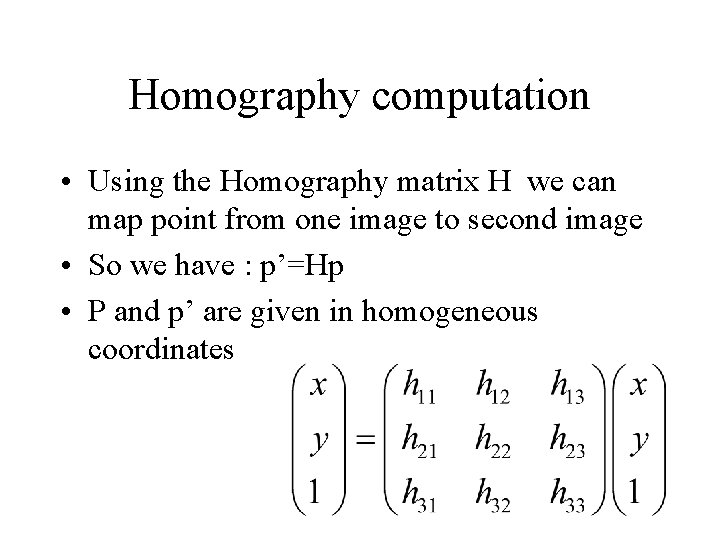

Homography computation • Using the Homography matrix H we can map point from one image to second image • So we have : p’=Hp • P and p’ are given in homogeneous coordinates

Homography computation • H is 3 x 3 • That is 8 D. O. F • To find H we need 4 corassponding points

Finding corresponding points • Manually, detecting by hand similar features. • Not accurate • Good for 2 cameras, what about 9 or more.

Known solution • Automatic Detection of known features. • Large working volume need large objects. • very hard to detect from far distance.

Features detection in wide base line • Noise • Hidden parts • Assuming detection is possible finding the corresponding is hard.

Example of feature detection problems

Goals of the calibration object • • • 360 degrees view. Robust to noise. Accurate regardless the distance (or zoom). Easy to find corresponding points. Automated as possible.

Solution • Use easy to detect features (Active features). • Use the benefits of time dimension video. • This will create a easy to detect corresponding point list. • Find Homography using the list of points.

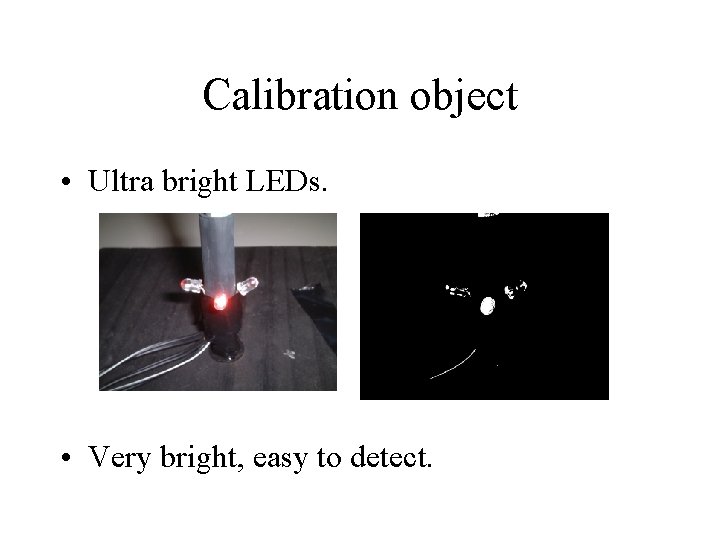

Calibration object • Ultra bright LEDs. • Very bright, easy to detect.

Use flickering as identifier • • • features flicker in constant rate Each feature has a different rate The cameras filming in constant rate The LED flicker can be found The result a list of points in an increasing frequency rate for each camera

Detection method first stage • Filter unnecessary noise • Use the red channel only as filter. • What about acceptable red channel filters in RGB such as: R = ((R-B)+(R-G)). • Remove white pixels (All channels have high intensities ). • Not good for a case a LED caused high saturation (appears as white).

Filter Example • Red channel only)) R-B)+(R-G))

Detection method second stage • Take advantage of video camera time line • The LED is going from on to off state • Subtracting following frames (similar to background subtraction). • Detect features pixels candidates using a threshold. • Save detection frame number to detect flickering rate.

Detection method third stage • So far we have points candidate and there frequencies. • Yet some of the candidates are noise. • Use a frequency as a second filter • Most of the noises have a very short and not consist frequency.

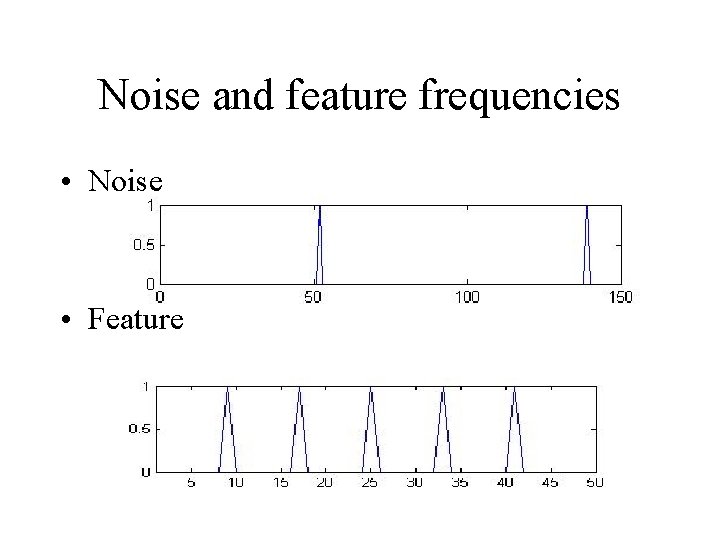

Noise and feature frequencies • Noise • Feature

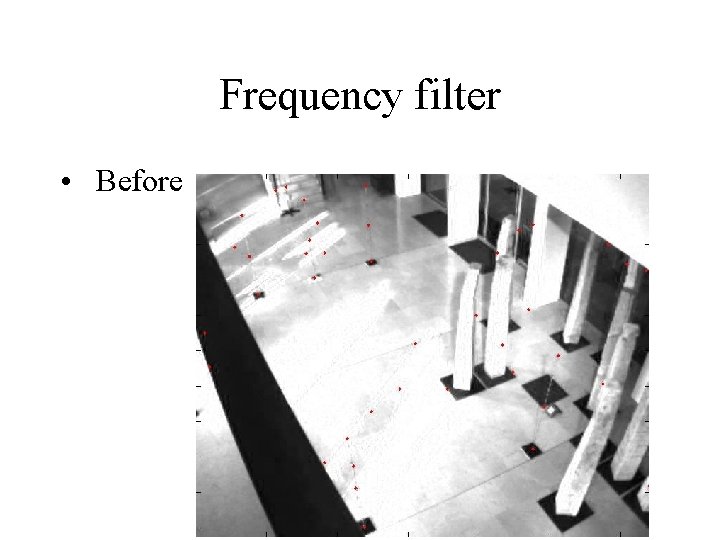

Frequency filter • Before

Frequency filter • After

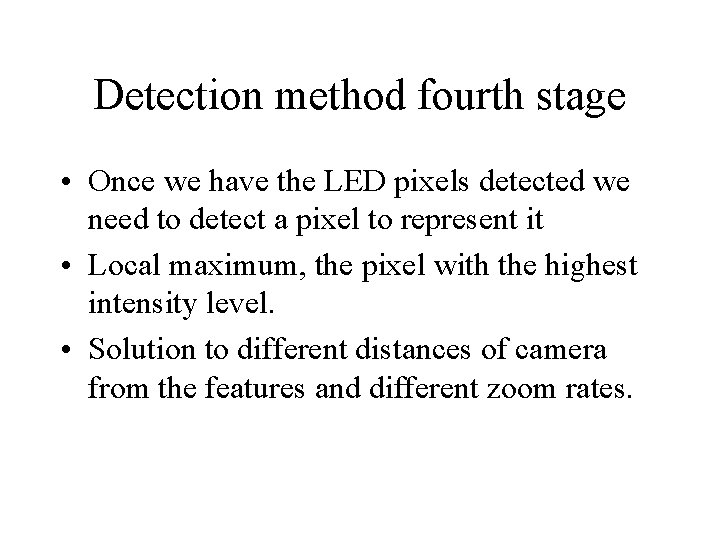

Detection method fourth stage • Once we have the LED pixels detected we need to detect a pixel to represent it • Local maximum, the pixel with the highest intensity level. • Solution to different distances of camera from the features and different zoom rates.

Local maximum example • Before

Local maximum example • After

Full tool example

Synchronization • Given the frame number k in the first camera find the corresponding frame in the second camera. • Not all the cameras starts to film in the same time. • Known solution using temporal features

Temporal features • Hard to find, not suitable for 9 cameras or more

Automatic synchronization • Each feature has a different rate • The signature is based on the gap between the pools vibrate. • Given an index we search for the first time after this index the pool with the lowest frequency vibrate and so on. • Given that the polls turned on in t 0, t 1, t 2, t 3, t 4, t 5 the resulting signature is • (t 1 -t 0, t 2 -t 1, t 3 -t 2, t 4 -t 3, t 5 -t 4)

Synchronization graph 1/2

Synchronization graph 2/2

Tool synchronization example

The end • Thank you!!!
