MTF – Manufacturing and Test Folder Link from MTF to external Databases S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

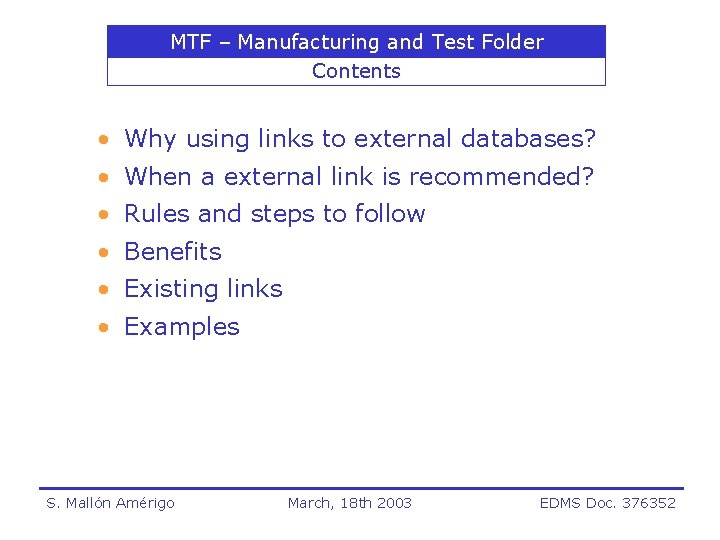

MTF – Manufacturing and Test Folder Contents • Why using links to external databases? • When a external link is recommended? • Rules and steps to follow • Benefits • Existing links • Examples S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder Why using a link from MTF to a external DB? • MTF is a central repository: it is not meant to replace existing databases • MTF is not intended to hold a big amount of properties for one equipment • Production DB’s existed before MTF was in production S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder When a external link is recommended? • A well designed Oracle database that contains data about your equipment already exists and/or • There are many values to store about each equipment (measurements, test results, geometrical data…) S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder Rules and steps to follow • Only for Oracle databases at Cern • You respect the LHC Naming Conventions: - Equipment IDs follow the conventions (19 characters…) - Equipment ID is a column in your DB (preferably as primary or unique key) • You give MTF grants to read your tables or views • Contact MTF team that will define your external link • Create your equipment in MTF Data in your DB is now accessible from MTF! S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder Benefits • Data is not duplicated. There is no redundancy: less errors • We avoid importing into MTF big files of data • MTF manages the access rights to your data • You can use the link to update your database with the information stored in MTF (e. g. parent equipment) • Generate reports on external properties from MTF web interface S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder Existing links • Collars database (Th. Verbeeck and A. Russo) • LHC Dipole Production Database (E. Wildner and J. Beauquis) • Super-conducting Cables database (R. Wolf and N. Emelianenko) • Link to the AT/MTM database (L. Deniau) to generate magnet identity cards for the MEB S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder Examples(I): Super-conducting Cables database S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder Examples(II): Super-conducting Cables database Disclaimer S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352

MTF – Manufacturing and Test Folder Examples(III): Reports External properties S. Mallón Amérigo March, 18 th 2003 EDMS Doc. 376352
