MSRC Summer School 30062009 Hybrids of generative and

MSRC Summer School - 30/06/2009 Hybrids of generative and discriminative methods for machine learning Cambridge – UK

Motivation Generative models • prior knowledge • handle missing data such as labels Discriminative models • perform well at classification However • no straightforward way to combine them

Content Generative and discriminative methods A principled hybrid framework • Study of the properties on a toy example • Influence of the amount of labelled data

Generative methods Answer: “what does a cat look like? and a dog? ” => data and labels joint distribution x : data c : label : parameters

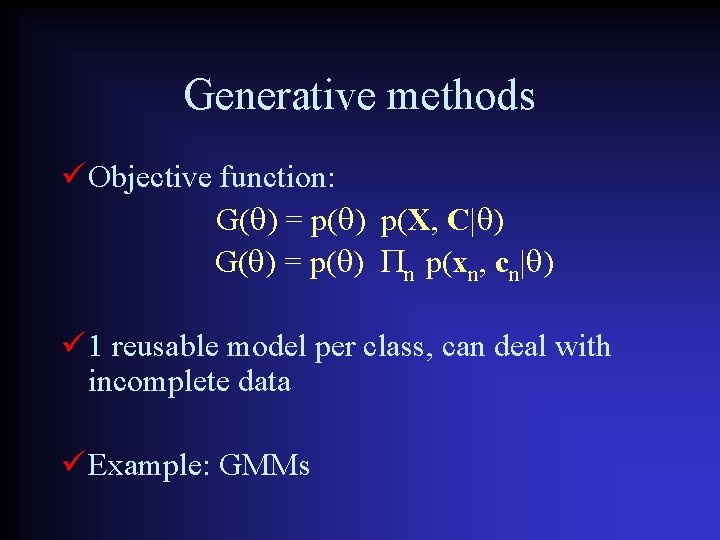

Generative methods Objective function: G( ) = p( ) p(X, C| ) G( ) = p( ) n p(xn, cn| ) 1 reusable model per class, can deal with incomplete data Example: GMMs

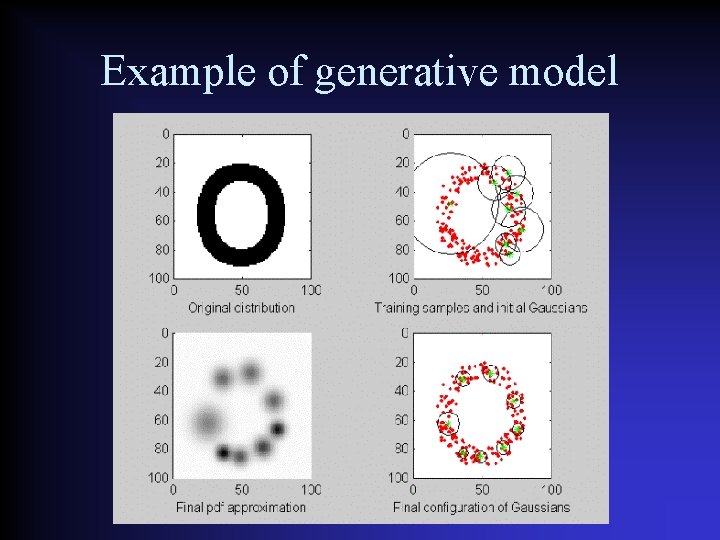

Example of generative model

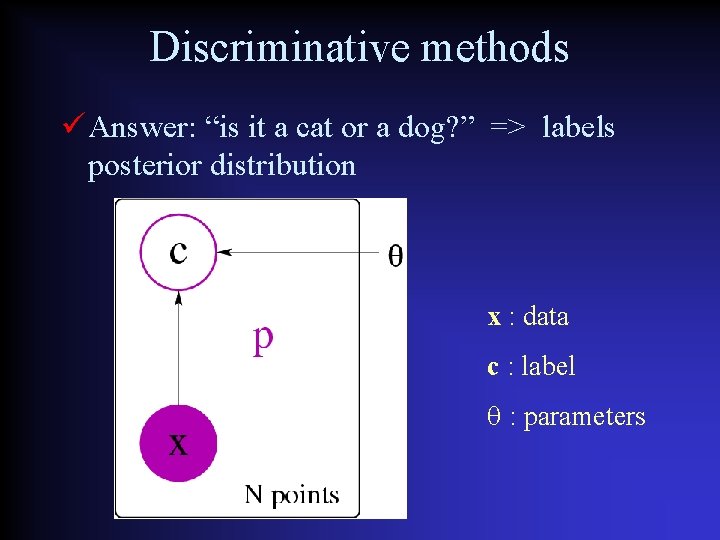

Discriminative methods Answer: “is it a cat or a dog? ” => labels posterior distribution x : data c : label : parameters

Discriminative methods The objective function is D( ) = p( ) p(C|X, ) D( ) = p( ) n p(cn|xn, ) Focus on regions of ambiguity, make faster predictions Example: neural networks, SVMs

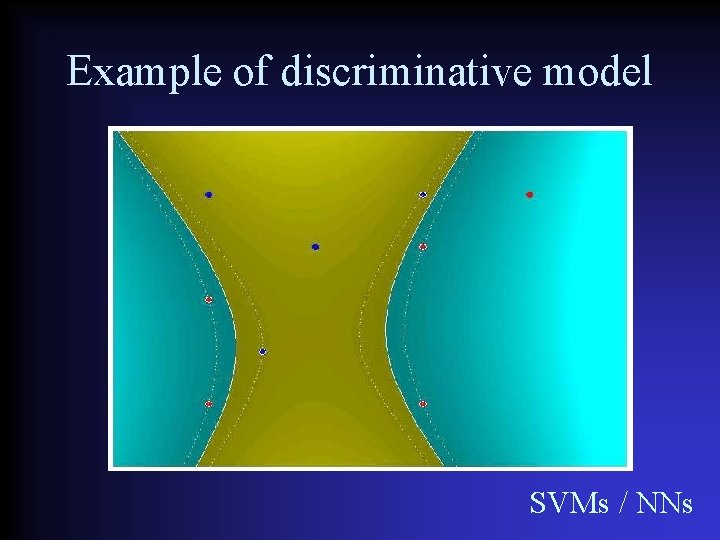

Example of discriminative model SVMs / NNs

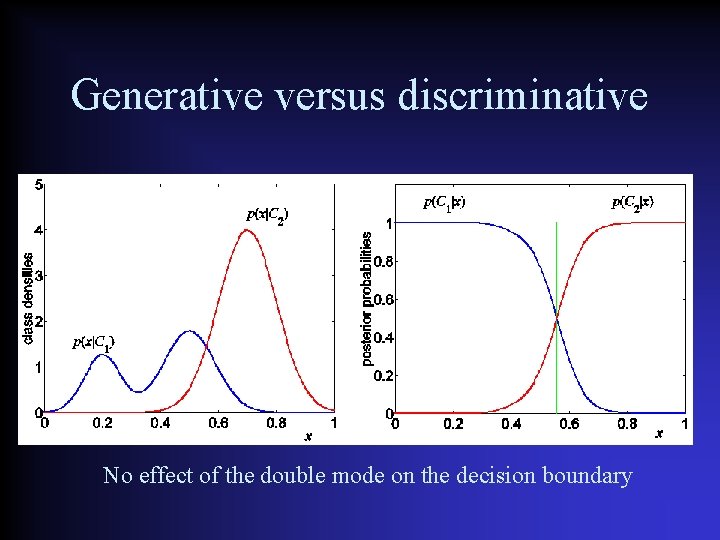

Generative versus discriminative No effect of the double mode on the decision boundary

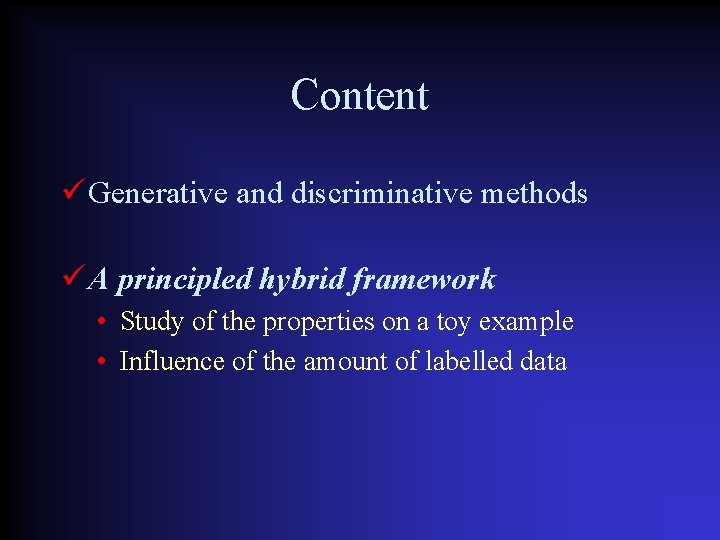

Content Generative and discriminative methods A principled hybrid framework • Study of the properties on a toy example • Influence of the amount of labelled data

Semi-supervised learning Few labelled data / lots of unlabelled data Discriminative methods overfit, generative models only help classify if they are “good” Need to have the modelling power of generative models while performing at discriminating => hybrid models

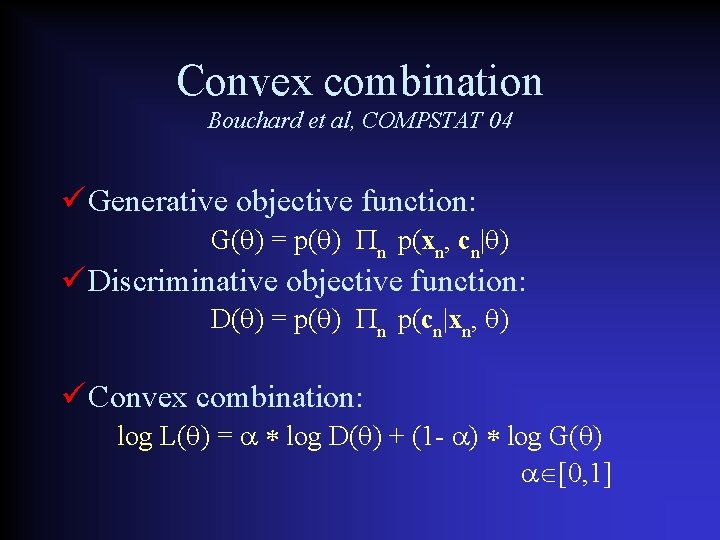

Convex combination Bouchard et al, COMPSTAT 04 Generative objective function: G( ) = p( ) n p(xn, cn| ) Discriminative objective function: D( ) = p( ) n p(cn|xn, ) Convex combination: log L( ) = log D( ) + (1 - ) log G( ) [0, 1]

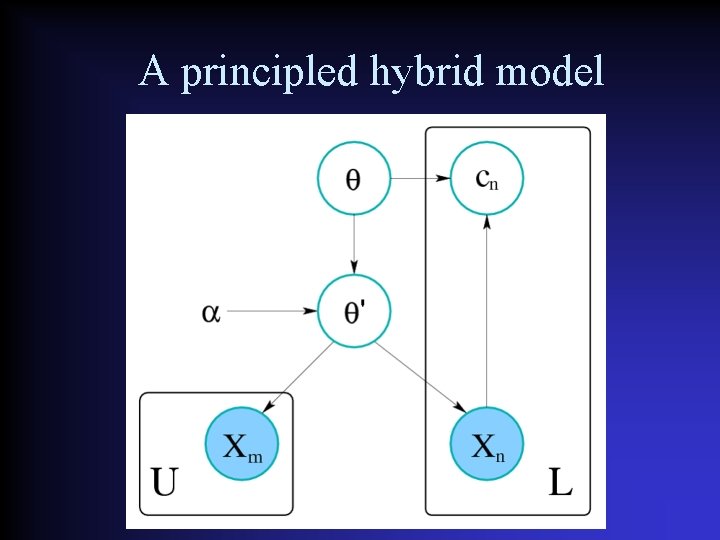

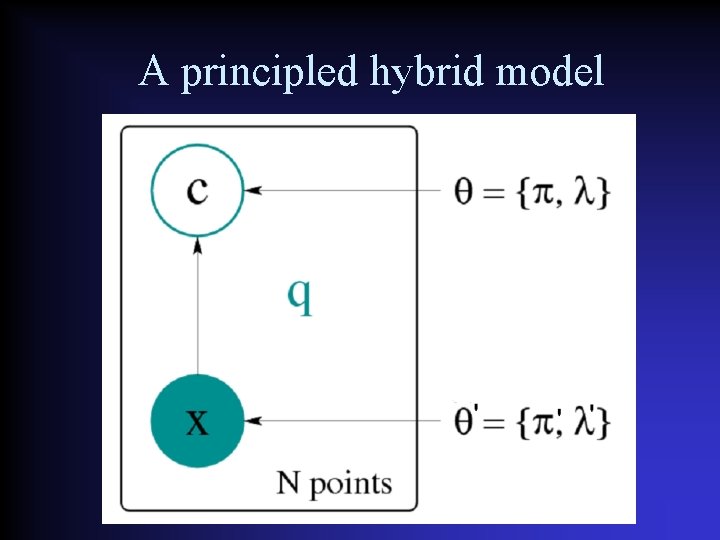

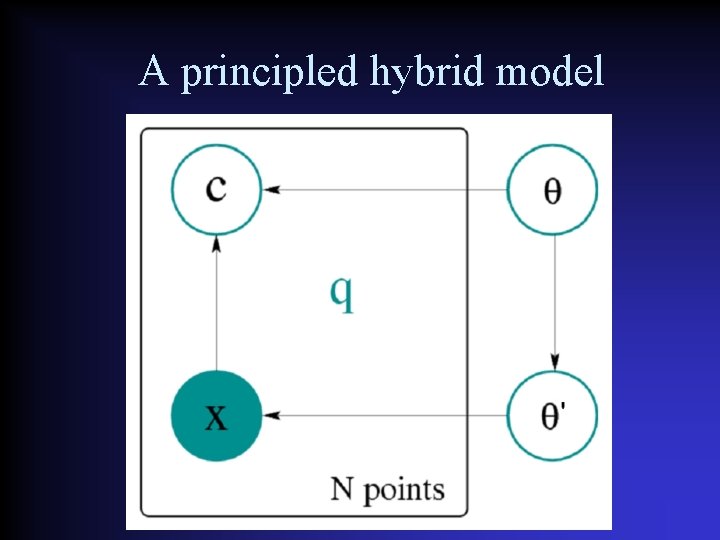

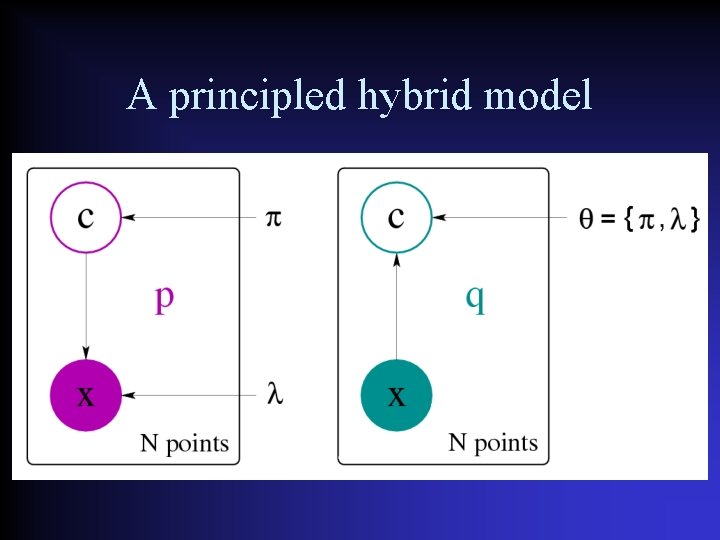

A principled hybrid model

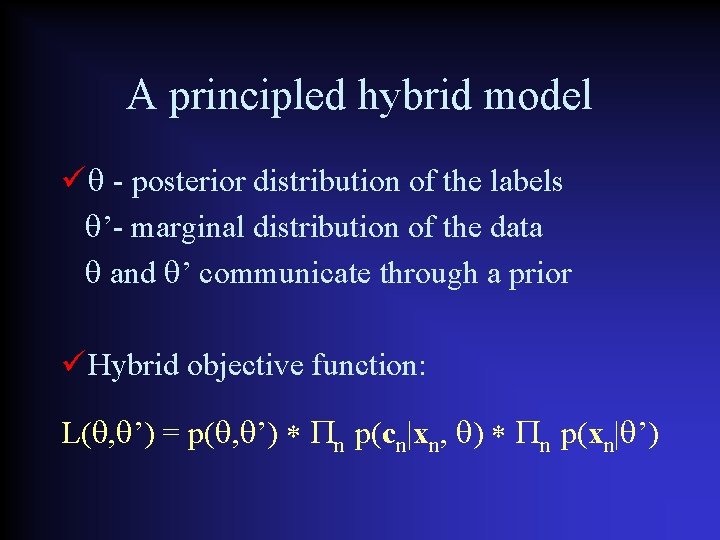

A principled hybrid model - posterior distribution of the labels ’- marginal distribution of the data and ’ communicate through a prior Hybrid objective function: L( , ’) = p( , ’) n p(cn|xn, ) n p(xn| ’)

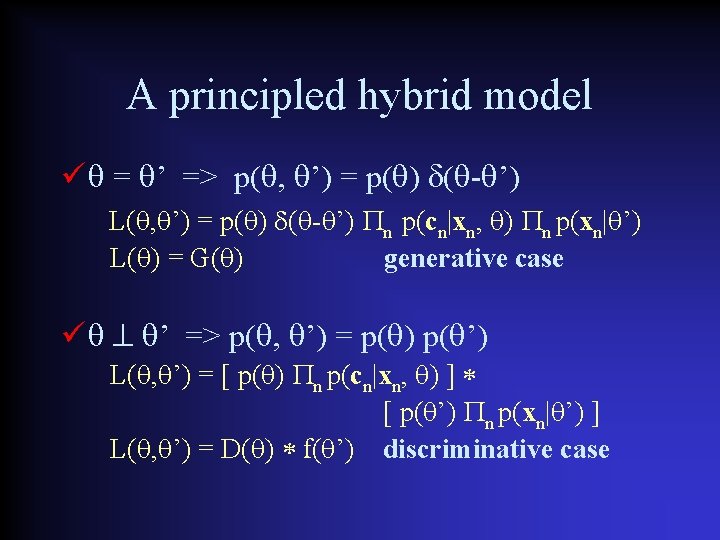

A principled hybrid model = ’ => p( , ’) = p( ) ( - ’) L( , ’) = p( ) ( - ’) n p(cn|xn, ) n p(xn| ’) L( ) = G( ) generative case ’ => p( , ’) = p( ) p( ’) L( , ’) = [ p( ) n p(cn|xn, ) ] [ p( ’) n p(xn| ’) ] L( , ’) = D( ) f( ’) discriminative case

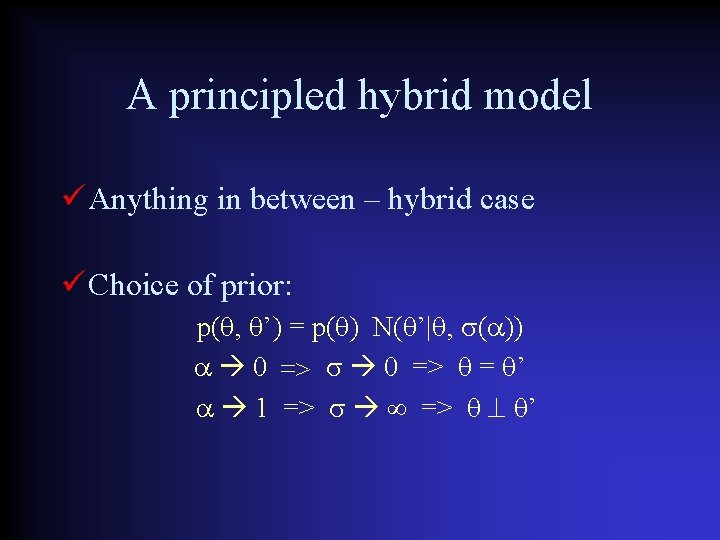

A principled hybrid model Anything in between – hybrid case Choice of prior: p( , ’) = p( ) N( ’| , ( )) 0 => = ’ 1 => ’

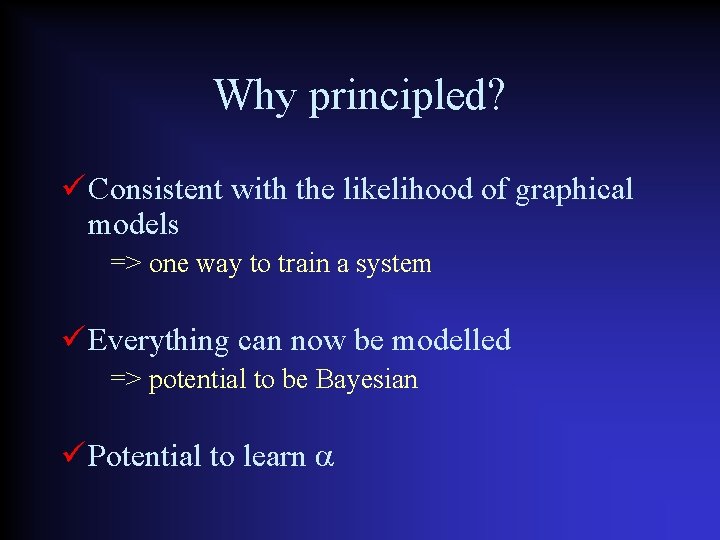

Why principled? Consistent with the likelihood of graphical models => one way to train a system Everything can now be modelled => potential to be Bayesian Potential to learn

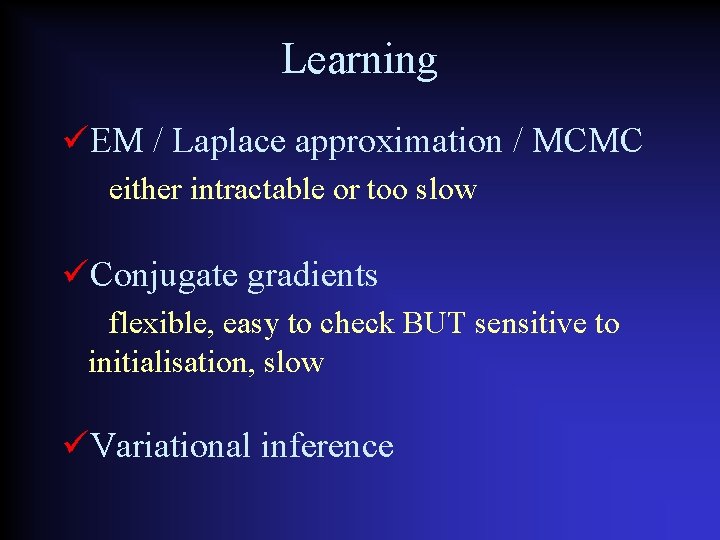

Learning EM / Laplace approximation / MCMC either intractable or too slow Conjugate gradients flexible, easy to check BUT sensitive to initialisation, slow Variational inference

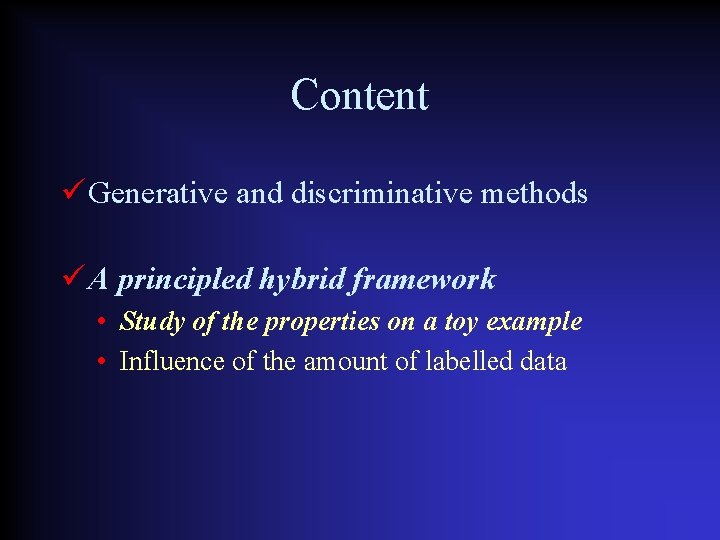

Content Generative and discriminative methods A principled hybrid framework • Study of the properties on a toy example • Influence of the amount of labelled data

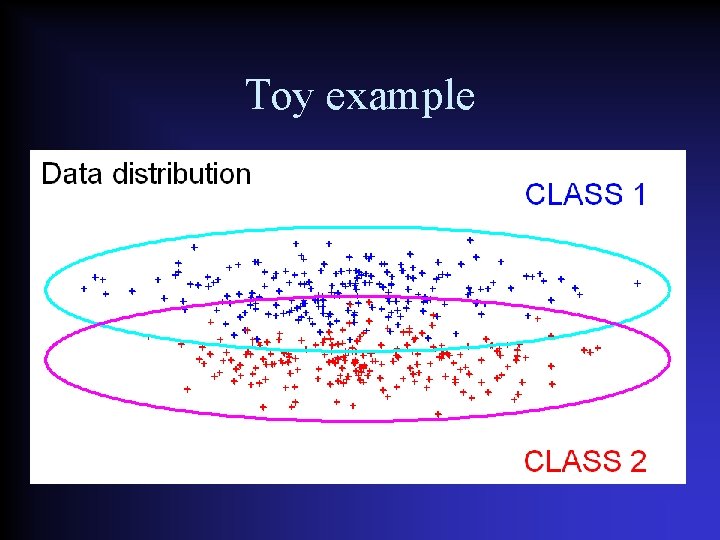

Toy example

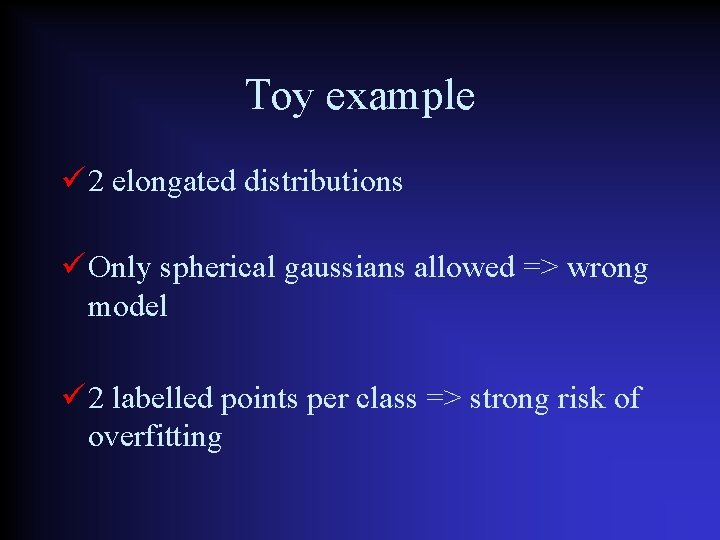

Toy example 2 elongated distributions Only spherical gaussians allowed => wrong model 2 labelled points per class => strong risk of overfitting

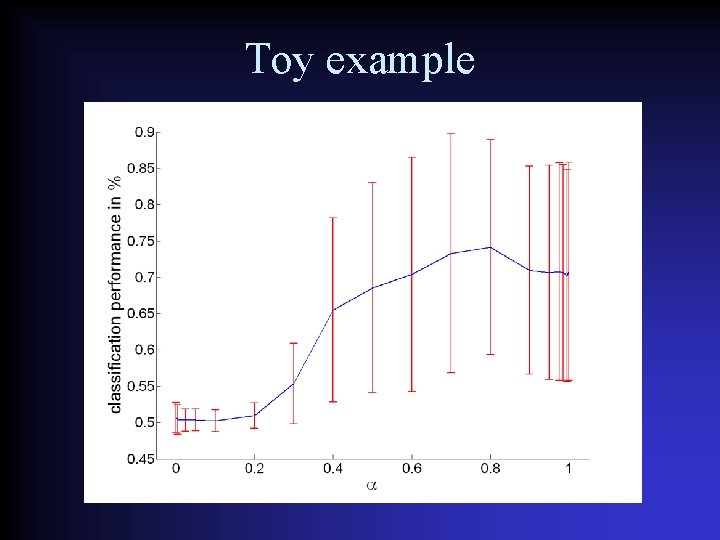

Toy example

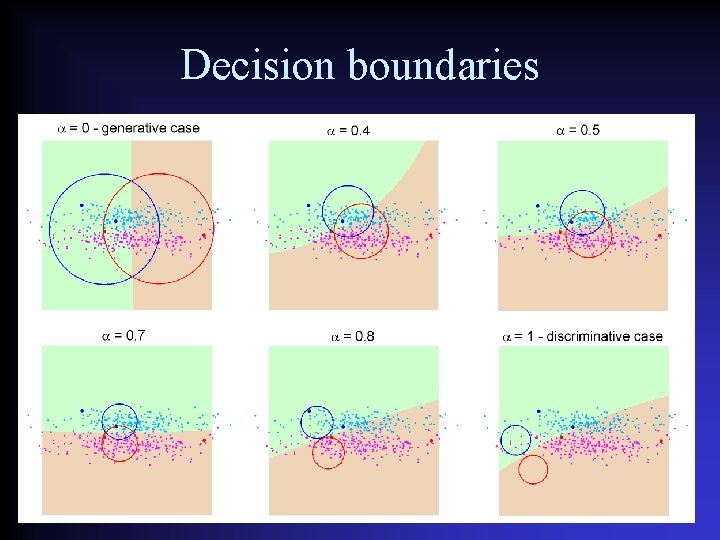

Decision boundaries

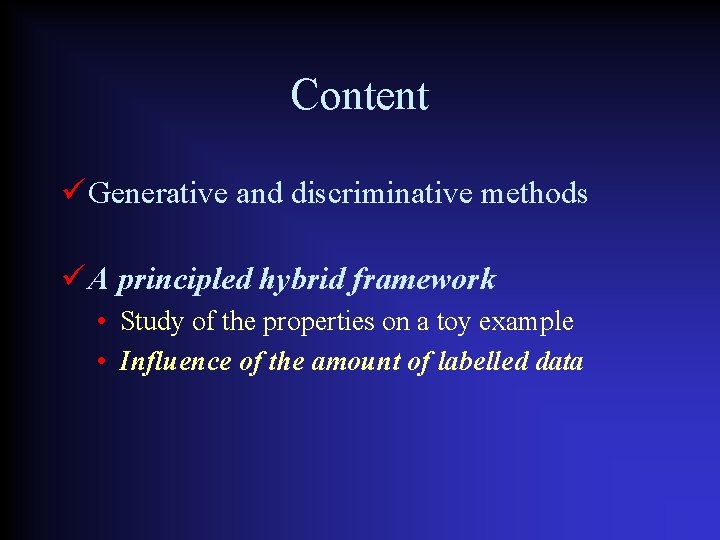

Content Generative and discriminative methods A principled hybrid framework • Study of the properties on a toy example • Influence of the amount of labelled data

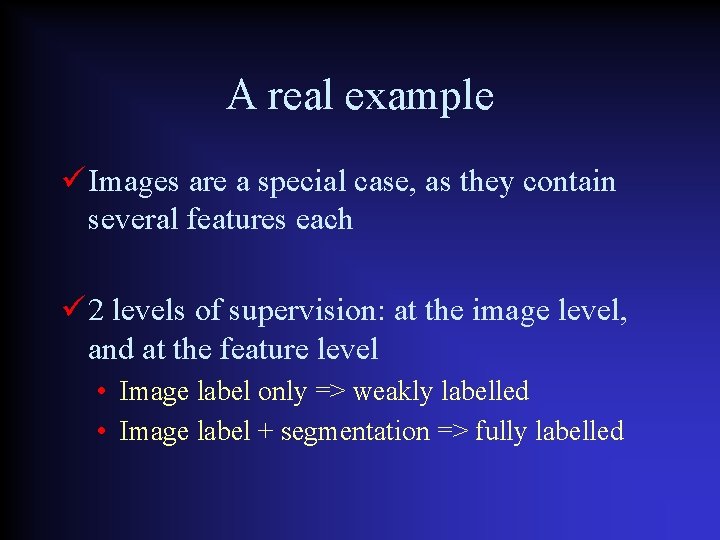

A real example Images are a special case, as they contain several features each 2 levels of supervision: at the image level, and at the feature level • Image label only => weakly labelled • Image label + segmentation => fully labelled

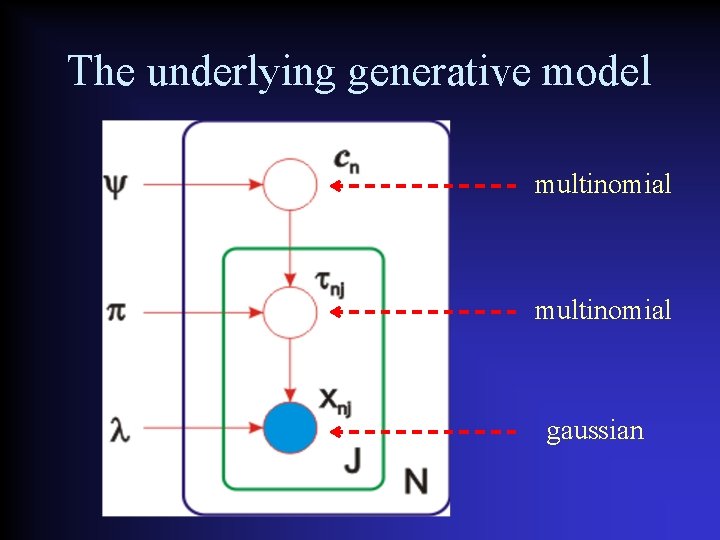

The underlying generative model multinomial gaussian

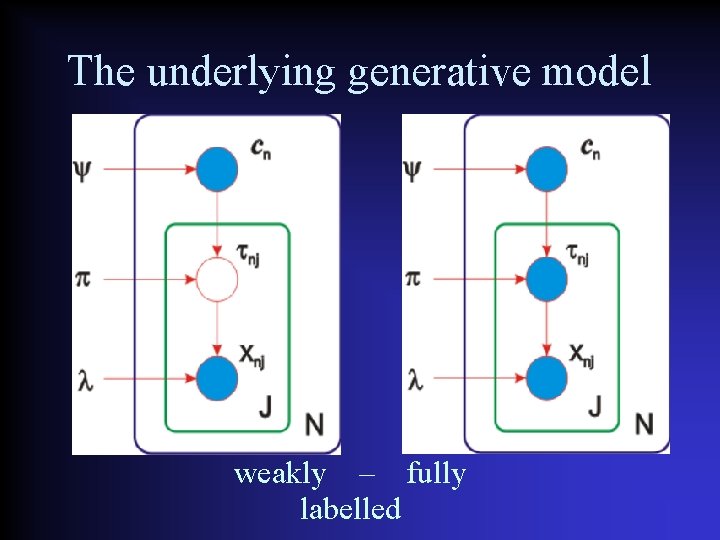

The underlying generative model weakly – fully labelled

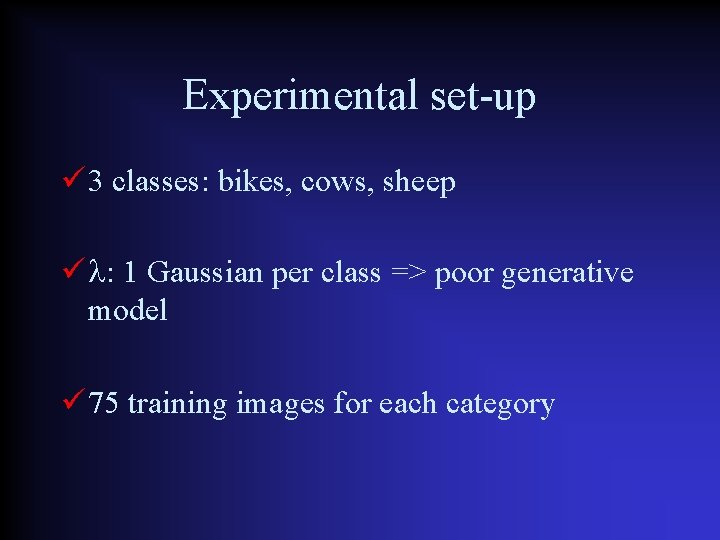

Experimental set-up 3 classes: bikes, cows, sheep : 1 Gaussian per class => poor generative model 75 training images for each category

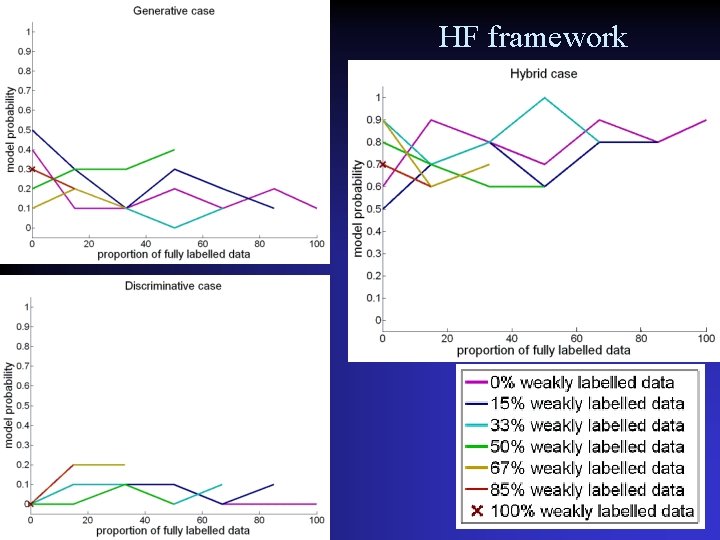

HF framework

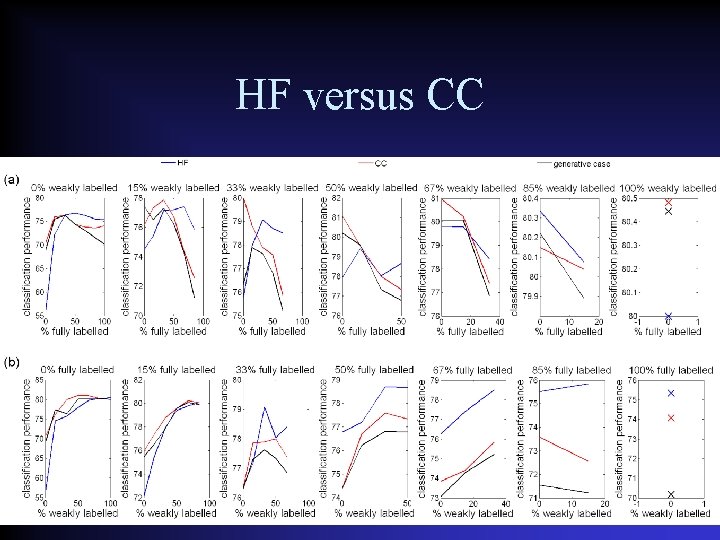

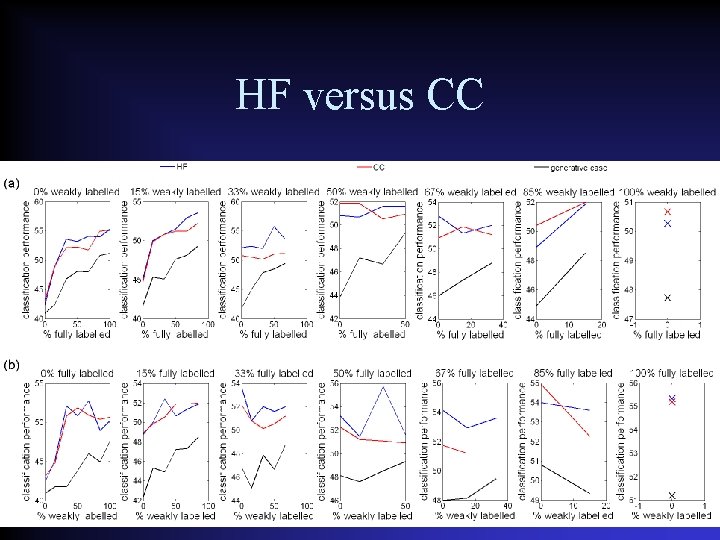

HF versus CC

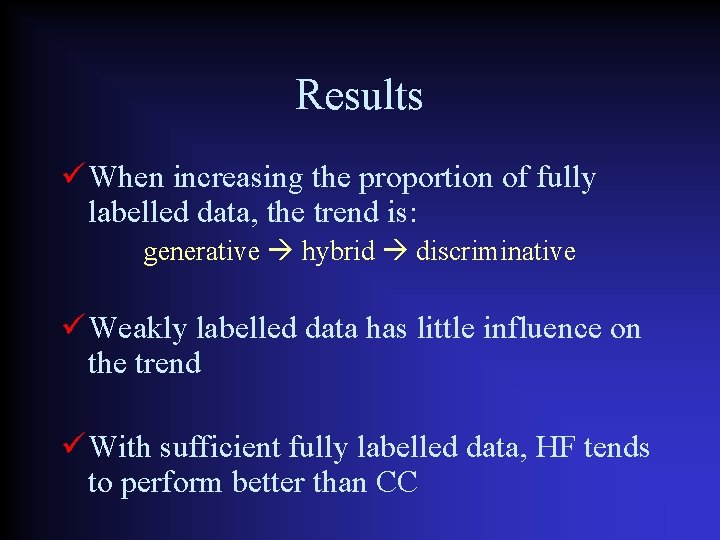

Results When increasing the proportion of fully labelled data, the trend is: generative hybrid discriminative Weakly labelled data has little influence on the trend With sufficient fully labelled data, HF tends to perform better than CC

Experimental set-up 3 classes: lions, tigers and cheetahs : 1 Gaussian per class => poor generative model 75 training images for each category

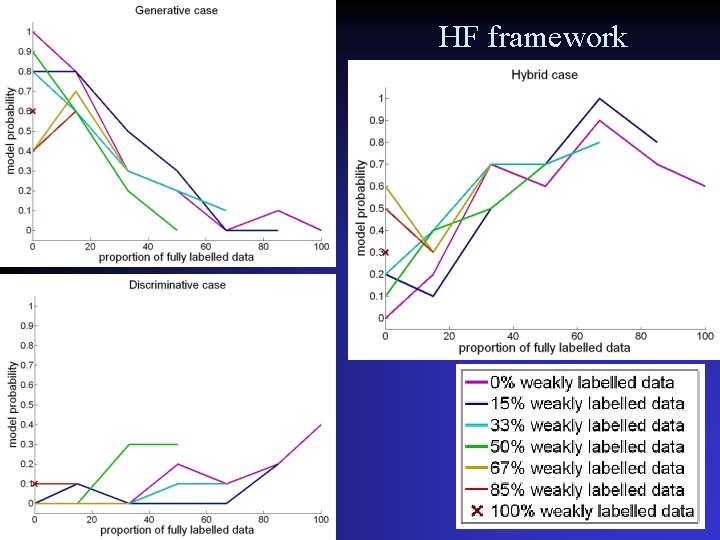

HF framework

HF versus CC

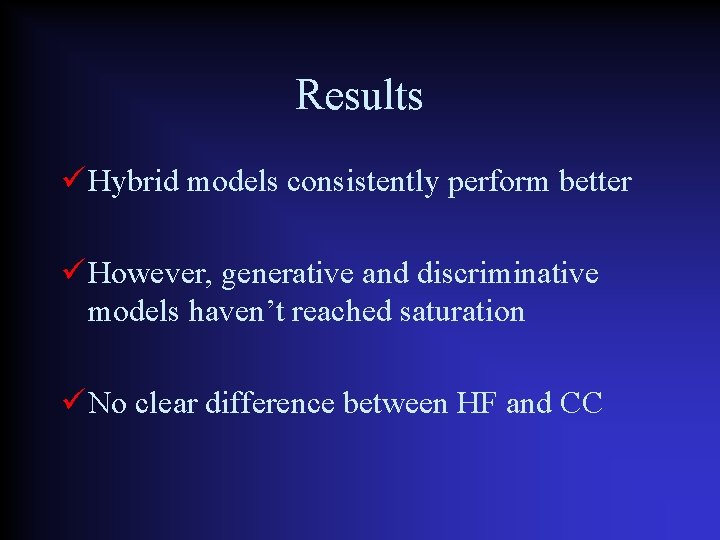

Results Hybrid models consistently perform better However, generative and discriminative models haven’t reached saturation No clear difference between HF and CC

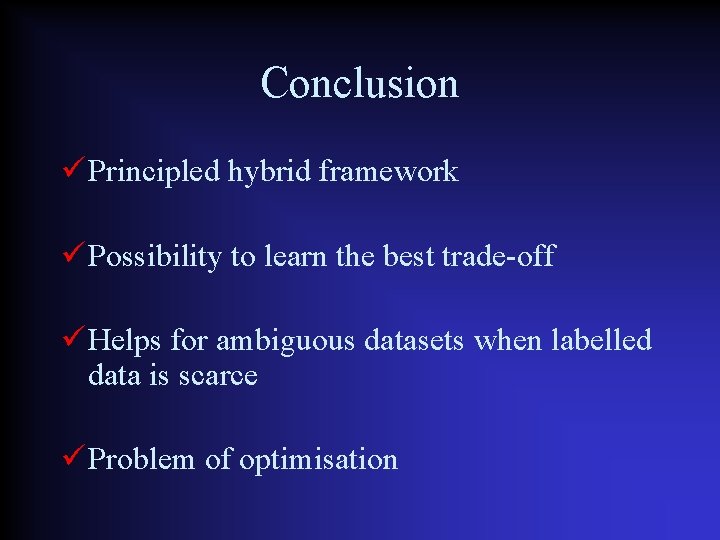

Conclusion Principled hybrid framework Possibility to learn the best trade-off Helps for ambiguous datasets when labelled data is scarce Problem of optimisation

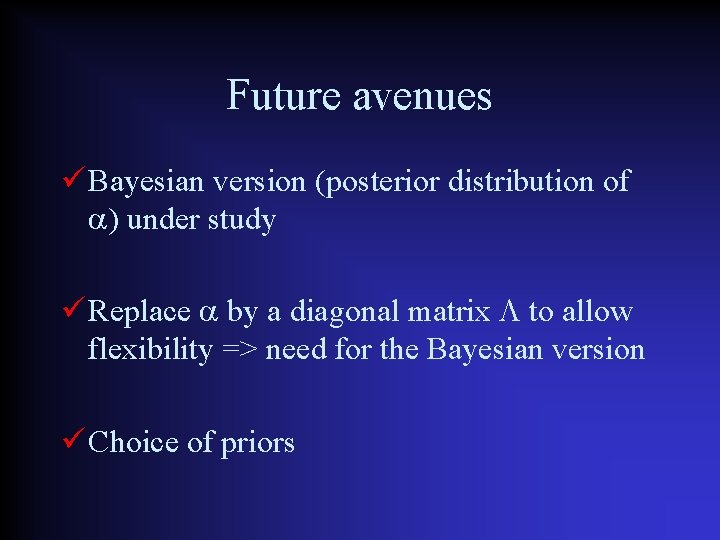

Future avenues Bayesian version (posterior distribution of ) under study Replace by a diagonal matrix to allow flexibility => need for the Bayesian version Choice of priors

Thank you!
