MSG 310 Live Communications Server 2005: Architecture, Deployment and Telephony Integration Sandra Lee-Joe Brendan Carius Microsoft Corporation
Agenda What is RTC Collaboration Landscape Vision & Products Architecture Federation Telephony Integration Deployment Active Directory Case study Development Office Tool. Kit
Integrated Communications Intuitive and contextual Rich-presence; multimodal Any device, any place Standards-based platform Rich APIs and Web Services Developer tools / er or ag rat an e M Op IT ice alue rv V Se De v Va elo lu per e End-User Value Infrastructure simplification Consolidation
Growth in Real-Time Collaboration Enterprise Web conferencing use is expected to increase by 175% by 20081 Source: 1 - Frost & Sullivan; World Web Conferencing Markets 2004 2 - Radicati 20% ofsurpass enterprise IM will users use by IM 2008 now email By 2008 enterprise users will increase to 80%2
Real-Time Collaboration Solutions Microsoft Office Communicator Microsoft Office Live Communications Server Microsoft Office Live Meeting
A Simplified View SIP IM/Presence and telephony infrastructures side-by-side Branches AD LDAP PBX Directory Remote Users Telephone Presence Store PBX LCS 2005 SIP Proxy SIP/CSTA Gateway PSTN Gateway Federated Users Sam Public IM Connectivity Alice r de i ov Pr rk ce o vi etw r Se N PSTN Conference Bridge/CENT REX
What’s Going on Today? Usage of IM solutions has become “viral” Admins forced to allow it Enterprises are dependant on it Corporations have mixture of Presence/IM clients Different clients (both Enterprise and Consumer) Multiple protocols/ports for admin to open Different protocols don’t interoperate Using public clouds to bridge boundaries Varying levels of security available
What are the Problems With This? Existing communication is INSECURE! Can’t confirm identity Messages can’t be retained Nothing going over a public cloud is secure Messages can be spoofed/sniffed No control over links to public clouds Viruses, IP/Customer loss, content No patch management for the admin
Agenda What is RTC Collaboration Landscape Vision & Products Architecture Federation Telephony Integration Deployment Active Directory Case study Development Office Tool. Kit
Live Communications Server SE Standard edition basic topology Single server architecture Supports up to 15 k users User’s data stored in MSDE Authenticated identity in AD Add logging & archiving LCS 2005 Standard Edition Environnent LCS 2005 SE LCS Clients Access Proxy SQL Server Remote user access No VPN required Federate outside firewall Via access proxy Remote Users SQL Logging/Archiving Server

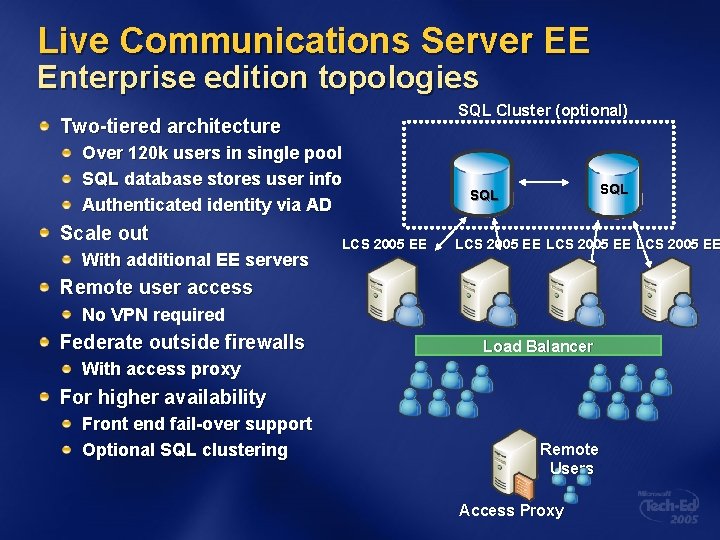

Live Communications Server EE Enterprise edition topologies SQL Cluster (optional) Two-tiered architecture Over 120 k users in single pool SQL database stores user info Authenticated identity via AD Scale out With additional EE servers LCS 2005 EE SQL LCS 2005 EE Remote user access No VPN required Federate outside firewalls Load Balancer With access proxy For higher availability Front end fail-over support Optional SQL clustering Remote Users Access Proxy
LCS Federation Overview Access from outside the firewall Remote user access Direct route federation (enterprise to enterprise) Define one destination for one domain Enhanced federation Define allow and block lists Clearinghouse federation Restricted or default route Key component: Enterprise A LCS 2005 access proxy LCS 2005 Enterprise B LCS 2005 Access Proxy Communicator Clients LCS 2005 Communicator Clients
Enhanced Federation with SP 1 How it works Contoso Supplier LCS 2005 DNS LCS 2005 MTLS Bob@supplier. com Joe@contoso. com 1. Is Supplier. com in the block list? NO 2. Look-up SIPFederation. TLS. _TCP. supplier. com Verify that AP name matches domain name 3. Establish MTLS connection and verify certificate SN
DEMO LCS 2005 SP 1 Access Proxy Configuration
Address Book Service AD UR syncs from AD Address Book Service ABS syncs from LCS User Replicator (UR)

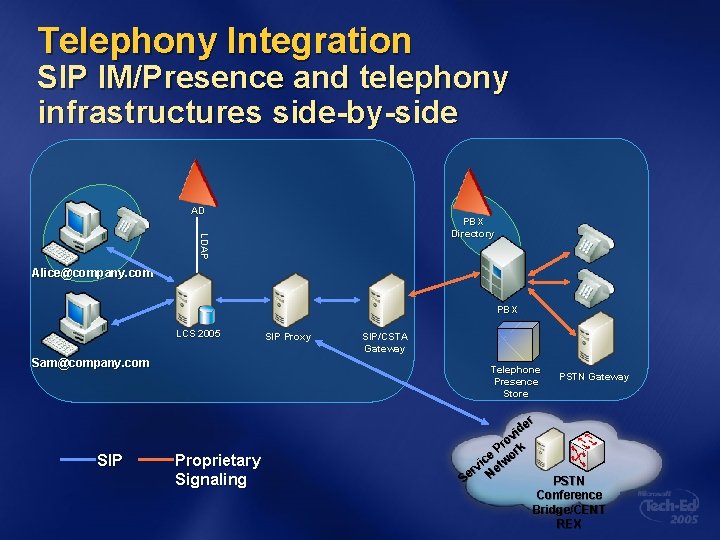

Telephony Integration SIP IM/Presence and telephony infrastructures side-by-side AD LDAP PBX Directory Alice@company. com PBX LCS 2005 Sam@company. com SIP Proxy SIP/CSTA Gateway Telephone Presence Store Proprietary Signaling er id v o Pr rk e o ic tw v e r Se N PSTN Gateway PSTN Conference Bridge/CENT REX
DEMO Office Communicator and LCS Telephony Integration
Agenda What is RTC Collaboration Landscape Vision & Products Architecture Federation Telephony Integration Deployment Active Directory Case study Development Office Tool. Kit
Case Study BHP Billiton Live Communications Server 2005 with SP 1 Office Communicator LCS Architecture Active Directory Preparation Piloting LCS DNS Requirements Certificate Requirements
BHP Billiton LCS 2005 Architecture
Active Directory Preparation Domain Prep Forest Prep Domain. Add Run on every hosting LCS once per domain forest Cross domain administration Creates newroot domain groups Run on the domain Child domain access to Enterprise Objects RTCDomain. Server. Admins Creates global settings Hosting users from other domains RTCDomain. User. Admins Run on: RTCHSDomain. Services Root domain Sets permissions User-only domainsfor these accounts at the root domain Gives permissions to the following groups RTCDomain. Server. Admins to home users RTCHSDomain. Services to read user attributes
Piloting Live Communications Server ms. RTCSIP-Originator. SID object. SID Corporate Forest
DNS SRV (Auto-Configuration) _sip. _tls. <domain> Used for TLS access (MOC assumes external) _sipinternaltls. _tcp. <domain> Used for internal TLS access Not used by Windows Messenger _sip. _tcp. <domain> Used for TCP access (internal assumed) _sipinternal. _tcp. <domain> Used for internal TCP access Not used by Windows Messenger _sipfederationtls. _tcp. <domain> Used for Enhanced Federation by Access Proxy’s
Certificates Subject Name (SN) represents the authoritative name of the server Matches the pool fqdn for front-end servers Matches the published DNS name for Access Proxies Used to determine the identity of the server that is connecting TO your server Subject Alternate Name (SAN) allows a certificate to identify the server with multiple names Note: the SN should be the first name listed in the SAN field Used (in addition to the SN) to validate the server hostname you are connecting to
Building Custom Applications Office Presence Toolkit Presence indicator to drop into apps includes hover behavior & right click menu Active. X Control with extensibility Fully integrated with Visual Studio (control appears in toolbar for drag & drop capability) Control for presence of individuals and list Call control through Communicator automation Available July, 2005 Free download: www. microsoft. com/livecomm
Office RTC Presence Toolkit Active form with current presence Rightclick Menu RTC Controls Presence icon inserted onto a form
Active form with current presence RTC Controls Presence icon inserted onto a form Rightclick Menu
We invite you to participate in our online evaluation on Comm. Net, accessible Friday only If you choose to complete the evaluation online, there is no need to complete the paper evaluation
Platform Overview 3 rd Party Application 3 rd Party Client 3 rd Party Script 3 rd Party Manifest RTC Client APIs (SIP) Real-Time Signaling Infrastructure
LCS 2005 Resources http: //microsoft. com/office/livecomm Documentation – Planning guide LCS quick start guides LCS deployment guide Window messenger resource center 120 -day trial download available Customer case studies Resource kit tools (compliments documentation) Tool to request certificates Federation configuration wizard Configuration & connection validation tool Diagnostics tool Block list manager tool
