MSDN Briefing IIS 7 fr Entwickler Christoph Wille

MSDN Briefing IIS 7 für Entwickler Christoph Wille, MVP ASP. NET http: //chrison. net/

seven i n t e r n e t i n f o r m at i o n s e r v i c e s integrated extensible componentized delegated secure compatible supportable

IIS – A Colorful Past 1996 - V 1 ships with Windows. NT 4. 0 V 2 & V 3 releases came in follow-up SP releases 1997 – V 4 part of NT 4 Option Pack 2000 – V 5 installed by default in Windows 2000 2001 March 2001, #1 in Internet Site Share Fall 2001, Code Red and Nimda 2003 – V 6 released in Windows Server 2003

IIS 6 Today Secure by Default IIS no longer installed by default with OS IIS installs with “locked down” configuration Runs with minimal permissions, secure configuration Secure by Design Extensive design & code reviews Penetration testing Defense in depth Process architecture design for application failure Health detection Automatic recycling of applications Result: Zero critical security patches since release. #1 in reliability for major internet sites.

Agenda Architecture Overview Modularization Extensibility Administration & Troubleshooting

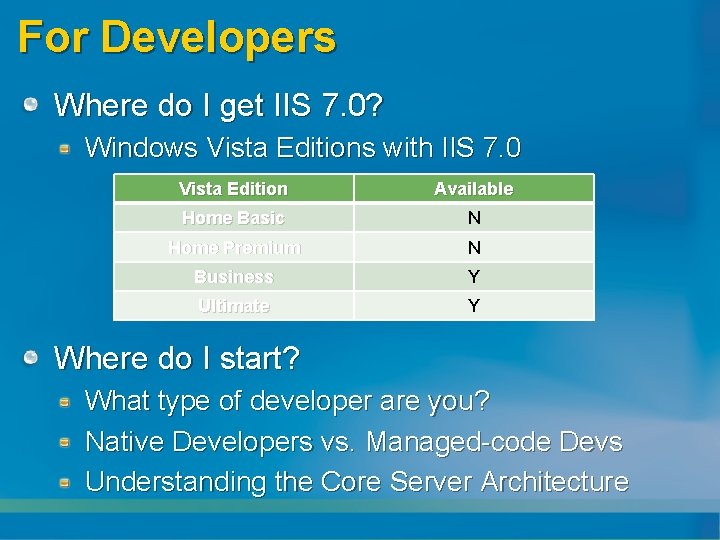

For Developers Where do I get IIS 7. 0? Windows Vista Editions with IIS 7. 0 Vista Edition Available Home Basic N Home Premium N Business Y Ultimate Y Where do I start? What type of developer are you? Native Developers vs. Managed-code Devs Understanding the Core Server Architecture

Installation Differences IIS 7. 0 Rebuilt setup architecture Uses Vista’s Windows Features On and Off Can also use Vista’s Package Manager (Pkgmgr. exe) start /w pkgmgr /iu: IIS-Web. Server. Role; WASWindows. Activation. Service; WAS-Process. Model; WAS-Net. Fx. Environment; WAS-Configuration. API Full Install of all IIS Components start /w pkgmgr /iu: IIS-Web. Server. Role; IIS-Web. Server; IIS-Common. Http. Features; IIS-Static. Content; IIS-Default. Document; IIS-Directory. Browsing; IIS-Http. Errors; IIS-Http. Redirect; IIS-Application. Development; IIS-ASPNET; IIS-Net. Fx. Extensibility; IIS-ASP; IIS-CGI; IISISAPIExtensions; IIS-ISAPIFilter; IIS-Server. Side. Includes; IIS-Health. And. Diagnostics; IIS-Http. Logging; IISLogging. Libraries; IIS-Request. Monitor; IIS-Http. Tracing; IIS-Custom. Logging; IIS-ODBCLogging; IIS-Security; IISBasic. Authentication; IIS-Windows. Authentication; IIS-Digest. Authentication; IIS-Client. Certificate. Mapping. Authentication; IIS-IISCertificate. Mapping. Authentication; IIS-URLAuthorization; IIS-Request. Filtering; IIS-IPSecurity; IIS-Performance; IIS-Http. Compression. Static; IIS-Http. Compression. Dynamic; IISWeb. Server. Management. Tools; IIS-Management. Console; IIS-Management. Scripting. Tools; IIS-Management. Service; IISIIS 6 Management. Compatibility; IIS-Metabase; IIS-WMICompatibility; IIS-Legacy. Scripts; IIS-Legacy. Snap. In; IIS-FTPPublishing. Service; IIS-FTPServer; IIS-FTPManagement; WAS-Windows. Activation. Service; WAS-Process. Model; WASNet. Fx. Environment; WAS-Configuration. API IIS Minimal Install

Architecture Introduction IIS 7. 0’s architecture, albeit similar to IIS 6. 0, offers unique changes Default architecture has same “players” with some fresh new ones W 3 SVC W In 3 W et W 3 WP S A in W 3 WP V S fo HTTP. sys C WPAS HTTP. sys Inetinfo (optional)

A Review…IIS 6. 0 Architecture Authentication NTLM Basic Anon … Monolithic implementation Install or nothing… CGI Determine Handler Static File ASP. NET ISAPI … Send Response Log Compress PHP Extend server functionality only through ISAPI…

IIS 7 Request Processing Authentication NTLM Basic Anon Authorization … Resolve. Cache CGI … Determine Static File Handler Execute. Handler ISAPI … … Update. Cache Send Response Send. Response Log Compress Server functionality is split into ~ 40 modules. . . Modules plug into a generic request pipeline… Modules extend server functionality through a public module API.

Architecture in IIS 7 What does the “Core” do? Exposes interfaces Agrees to “hook” up interfaces via subscription or events Extensibility Primary workhorse for Web server Code authors: Microsoft: In the form of “modules” that will ship with the IIS 7 platform You: The rest of the world

IIS 6 ASP. NET Integration Runtime limitations Only sees ASP. NET requests Feature duplication Authentication NTLM Basic Anon … CGI Determine Handler Static File ISAPI … Send Response Log Compress aspnet_isapi. dll Authentication Forms Windows … Map Handler ASPX Trace … …

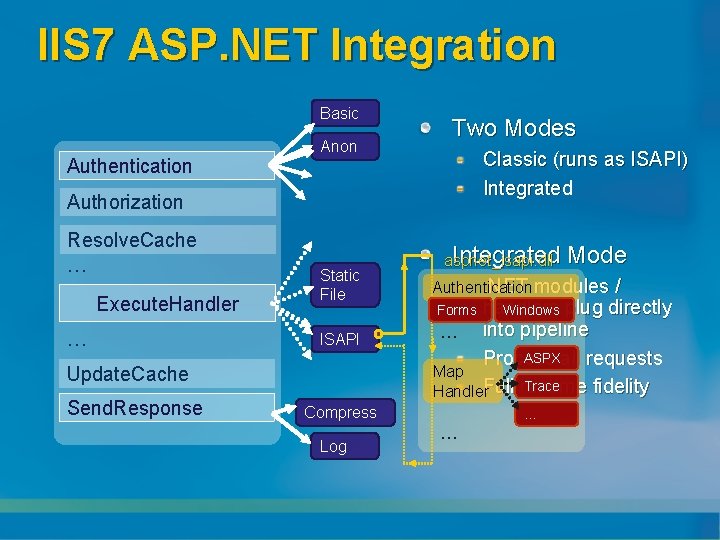

IIS 7 ASP. NET Integration Basic Authentication Anon Two Modes Classic (runs as ISAPI) Integrated Authorization Resolve. Cache … Execute. Handler … Static File ISAPI Update. Cache Send. Response Integrated aspnet_isapi. dll . NET modules / Authentication handlers Windows plug directly … into pipeline ASPXall requests Process Map Trace fidelity Handler. Full runtime Forms Compress Log Mode … …

Reviewing IIS 7. 0 Architecture IIS 6. 0 W 3 WP’s W 3 WP admwprox. dll gzip. dll iismap. dll iisres. dll iis. Rtl. dll iisutil. dll w 3 comlog. dll w 3 cache. dll w 3 core. dll IIS 7. 0 W 3 WP’s W 3 WP myparser. dll cacheuri. dll myauthurl. dll cachfile. dll mybscauth. dll modrqflt. dll mylogging. dll cachhttp. dll compdyn. dll modexp. dll mycompres. dll compstat. dll my. Mossint. dll defdoc. dll mybscauth. dll iisetw. dll static. dll cgi. dll

Demo The Most Secure Web Server Ever

Metabase vs. “App. Host. config” IIS 6. 0’s Metabase Design Supported legacy, out-dated interface (ABO) Maintained own ACL’ing within file, rather than via file system ACL’ing Delegation wasn’t supported, relied solely on Administrative privileges Remote capabilities were limited, not userfriendly experience Schema wasn’t architected in easy-to-use format Extending schema was nearly impossible

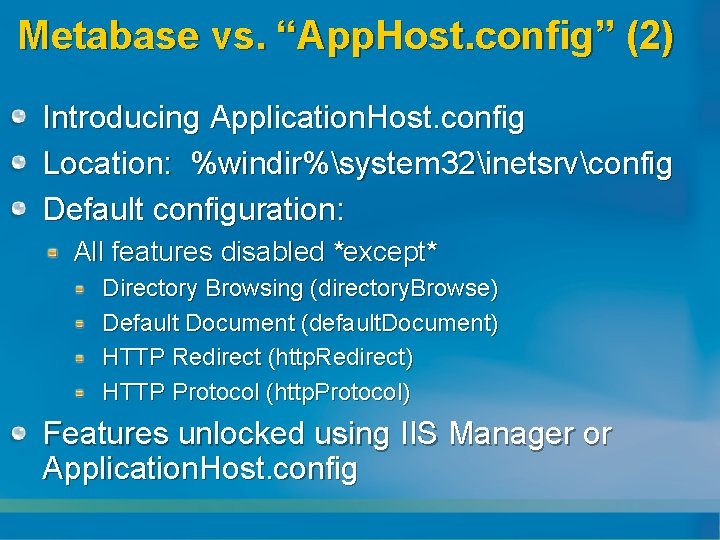

Metabase vs. “App. Host. config” (2) Introducing Application. Host. config Location: %windir%system 32inetsrvconfig Default configuration: All features disabled *except* Directory Browsing (directory. Browse) Default Document (default. Document) HTTP Redirect (http. Redirect) HTTP Protocol (http. Protocol) Features unlocked using IIS Manager or Application. Host. config

Metabase vs. “App. Host. config” (3) Application. Host. config Facts: Uses strongly-typed Schema (%windir%system 32inetsrvconfigschemaIIS_schema. xml) Easily edited using favorite XML editor Broken down into two pieces: system. application. Host system. web. Server Delegation of IIS settings are unlockable and distributable to web. config’s deployed with content

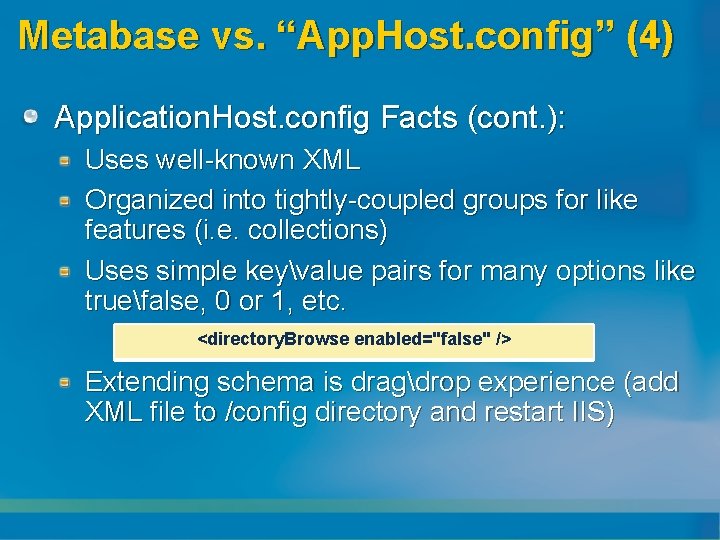

Metabase vs. “App. Host. config” (4) Application. Host. config Facts (cont. ): Uses well-known XML Organized into tightly-coupled groups for like features (i. e. collections) Uses simple keyvalue pairs for many options like truefalse, 0 or 1, etc. <directory. Browse enabled="false" /> Extending schema is dragdrop experience (add XML file to /config directory and restart IIS)

Configuration Highlights Delegated Configuration Administrators may allow app owner to modify settings Developers can set and deploy settings with their applications Xcopy-deployment of self-contained applications without running admin tool or scripts to configure -- even to centralized UNC share Unified Configuration Model for Entire Web Platform Administrators may use same file for IIS, ASP. NET, Indigo settings Developers can use same API and concepts across entire platform Auth. N, Auth. Z, custom errors, handlers, etc are set one single way Extensibility and Customization is easy Administrators can control what sections are registered with the system Developers can reuse base classes to quickly develop custom sections Clean schema allows smooth editing by hand (text/XML editor), API or admin tool Compatibility Built-In at the API level ABO / ADSI scripts and applications continue to work

Configuration Layout Inheritance… IIS + ASP. NET +. NET Framework ASP. NET application. Host. config . NET Framework web. config root web. config machine. config root configuration files web. config files

Configuration Delegation is: Configuration locking, “override. Mode” ACL’s on configuration files By default… All IIS sections locked except: Default Document Directory Browsing HTTP Header HTTP Redirects All. NET Framework / ASP. NET sections are unlocked

Demo Customized Workload Site Creation – A Tour of the UI Currently Executing Requests Configuring a Site for Auth. N

Modules vs. ISAPI IIS 6. 0 Development First-class access to requests were only allowed using Internet Server API (ISAPI) ISAPI only supported CC++ languages and was rather complex technology Client vs. Server Versions Windows XP Professional shipped with IIS 5. 1 yet lots of development was for IIS 6. 0 shipped on Windows Server 2003 and architected differently than IIS 5. x

Modules vs. ISAPI (2) Client vs. Server Versions (cont. ) Managed-code development architecture differed heavily between IIS 5. x & 6. 0 ASP. NET was written as an ISAPI and had duplicate functionality as IIS 6. 0 IIS 7. 0 on client is the same as on Server (via service packs) Support for multiple development interfaces to interact with IIS 7 Core Server

IIS 7. 0 Native Modules Vista ships with the potential of 40+ modules Most are native modules built using the new Native CC++ APIs Native modules are defined in the <global. Modules> section of applicationhost. config IIS 7. 0 full install has 33 native modules

Utility Modules Used to help the server engine with it’s internal operations Do not provide configuration for these in applicationhost. config Module Name cacheuri. dll cachfile. dll cachtokn. dll Purpose If removed? Cache configuration, etc. after first request for a URI Cache of file handles currently opened by core server Caches token for passwordbased authentication Performance

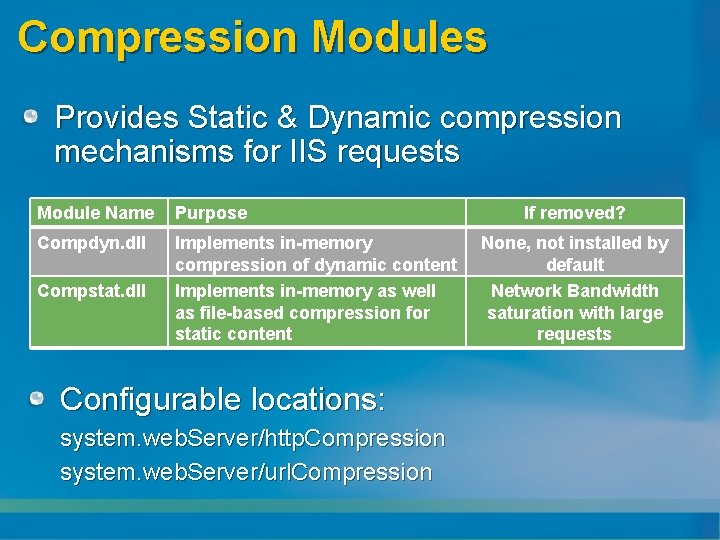

Compression Modules Provides Static & Dynamic compression mechanisms for IIS requests Module Name Purpose Compdyn. dll Implements in-memory compression of dynamic content Implements in-memory as well as file-based compression for static content Compstat. dll Configurable locations: system. web. Server/http. Compression system. web. Server/url. Compression If removed? None, not installed by default Network Bandwidth saturation with large requests

Authentication Modules IIS 7. 0 core authentication modules Module Name authanon. dll authbas. dll authsspi. dll authmd 5. dll authcert. dll authmap. dll Purpose Implements anonymous authentication Implements HTTP basic authentication Implements Windows Authentication (NTLMKerberos) Implements Digest Authentication Implements IIS Client Certificate Mapping (Requires SSL) Maps SSL Client Certs to an Active Directory Account If removed? Anonymous Authentication is not allowed Basic authentication is not available Negotiate (Kerberos), NTLM are unavailable Digest Authentication is not available Client Certificates are not accepted for authenticatio Active Directory mapping is unavailable

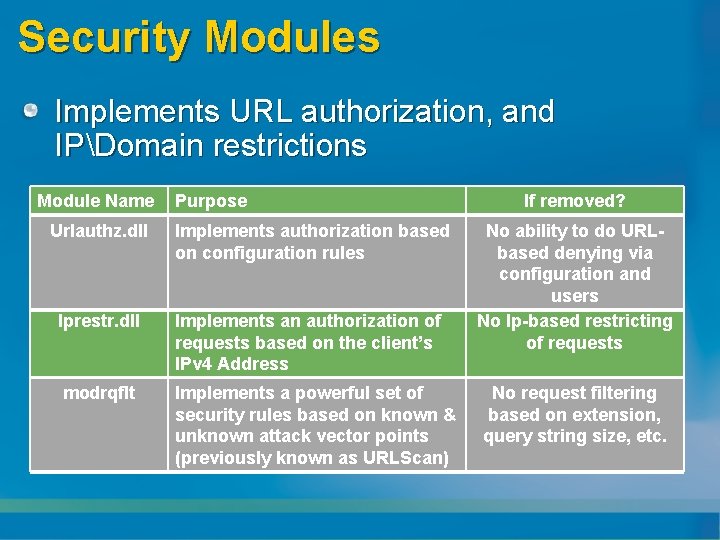

Security Modules Implements URL authorization, and IPDomain restrictions Module Name Purpose Urlauthz. dll Implements authorization based on configuration rules Iprestr. dll Implements an authorization of requests based on the client’s IPv 4 Address modrqflt Implements a powerful set of security rules based on known & unknown attack vector points (previously known as URLScan) If removed? No ability to do URLbased denying via configuration and users No Ip-based restricting of requests No request filtering based on extension, query string size, etc.

Logging & Error Modules Implements logging functionality Implements custom & detailed errors Module Name Logcust. dll Loghttp. dll Custerr. dll Purpose If removed? Implements the ILog. Plugin Applications dependent interface on top of IIS 7. It is not on legacy interface will recommended to use this as it is not work a old implementation. Recommendation is to write your own module and subscribe to RQ_Log_Request event. Implements standard IIS logging No request data will be logged Allows for the use of custom No error messages errors and the new IIS 7 detailed (custom or detailed) error features will be sent to clients

Diagnostics Modules Implements IIS 7. 0’s Request Monitoring, tracing, and Failed Request Tracing Module Name Purpose If removed? iisetw. dll Implements Enterprise Tracing for Windows functionality to capture detailed trace logs No tracing of specific requests are available iisfreb. dll Implements tracing of failed requests No automatic tracing based on the configured rules iisreqs. dll Implements the runtime state & control APIs for IIS 7. 0 allowing viewing of executing requests, startstop of sites, etc. Unable to see runtime data or startstoppause websites

Development Modules Development technologies offered as to execute code from that platform Implements Managed Interfaces, etc. Module Name Isapi. dll Filter. dll Cgi. dll Purpose Implements ISAPI Extension Server Functionality Implements ISAPI filter functionality Implements Common Gateway Interface (CGI) on top of IIS 7. 0 Webengine. dll Connects the IIS core pipeline with the ASP. NET runtime and bridge between native and managed code in IIS 7. 0 If removed? No ISAPI extension will be executed No ISAPI filter will be loaded into any process No CGI dll or exe will is executed No managed code will be supported in IIS 7. 0

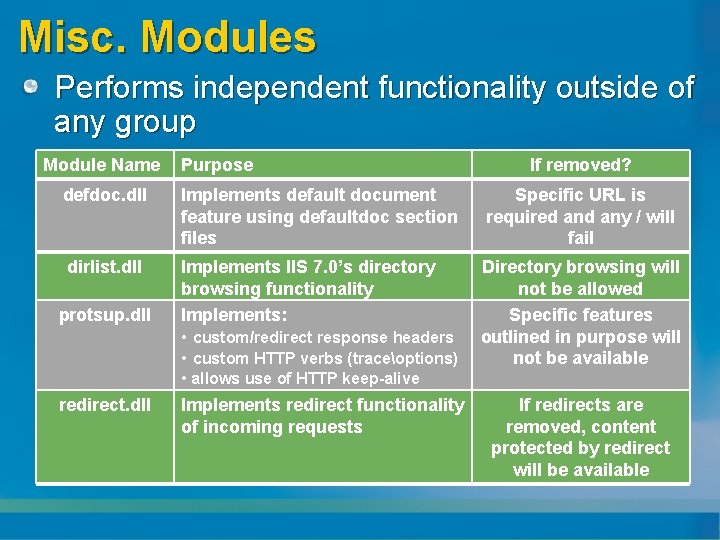

Misc. Modules Performs independent functionality outside of any group Module Name Purpose If removed? defdoc. dll Implements default document feature using defaultdoc section files Specific URL is required any / will fail dirlist. dll Implements IIS 7. 0’s directory browsing functionality Implements: • custom/redirect response headers • custom HTTP verbs (traceoptions) Directory browsing will not be allowed Specific features outlined in purpose will not be available protsup. dll • allows use of HTTP keep-alive redirect. dll Implements redirect functionality of incoming requests If redirects are removed, content protected by redirect will be available

Misc. Modules (cont. ) Module Name Purpose If removed? Iis_ssi. dll Implements server-side includes Special case where this module is actually mapped as handler for. stm, . shtm, and. shtml static. dll Responsible for sending out reponses for extensions listed in mime. Map section Without it, no static file (htm, images, etc. ) will be sent to client validcfg. dll Validates at run-time if configuration is valid for IIS 7. 0’s integrated mode No validation or help is available when configuration is deployed improperly

IIS 7. 0 Managed Modules are loaded in two ways Called by webengine. dll (integrated mode) Called by core ISAPI module – isapimodule. dll (Classic) Integrated Mode offers ASP. NET module features access to all types of content Classic mode runs exactly like IIS 6. 0 & ASP. NET 2. 0 Managed modules are only defined at application level (<modules>) along with native modules

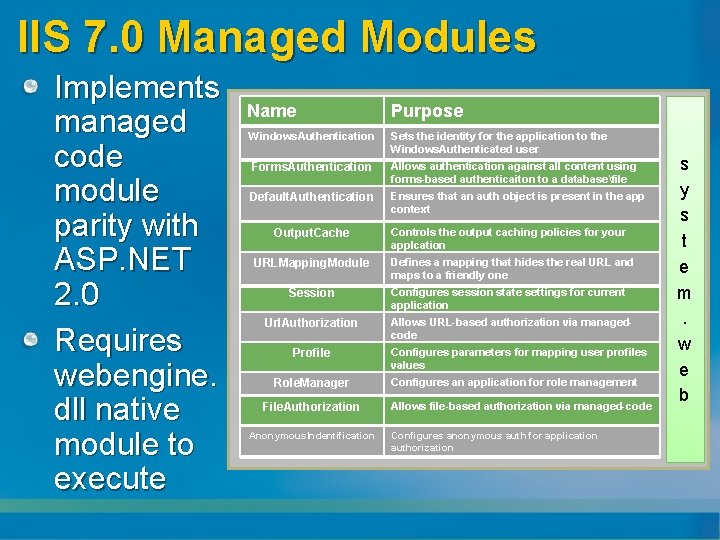

IIS 7. 0 Managed Modules Implements managed code module parity with ASP. NET 2. 0 Requires webengine. dll native module to execute Name Purpose Windows. Authentication Sets the identity for the application to the Windows. Authenticated user Forms. Authentication Allows authentication against all content using forms-based authenticaiton to a databasefile Default. Authentication Ensures that an auth object is present in the app context Output. Cache URLMapping. Module Session Url. Authorization Profile Role. Manager File. Authorization Anonymous. Indentification Controls the output caching policies for your applcation Defines a mapping that hides the real URL and maps to a friendly one Configures session state settings for current application Allows URL-based authorization via managedcode Configures parameters for mapping user profiles values Configures an application for role management Allows file-based authorization via managed-code Configures anonymous auth for application authorization s y s t e m. w e b

Demo URL Rewriting Directory Listing Basic “Deluxe”

IIS 6. 0 Tracing vs. Failed Request Tracing: What it is? IIS 6. 0 Usage: No User Interface Support Updated as part of Service Pack 1 Very difficult to restrict tracing to extensions, or paths Not extensible with custom events written by developers

IIS 6. 0 Tracing vs. Failed Request Tracing (2) IIS 7. 0’s Failed Request Tracing Setting up Tracing: • IIS Manager • Enabled Globally (Administrator) • Actual Trace attributes settable per-site or perapplication

IIS 6. 0 Tracing vs. Failed Request Tracing (3) In Vista RTM Viewing Trace Data in IIS 6. 0 difficult, yet when understood is very useful Viewing Trace Data in IIS 7. 0, easy-touse XLST breaks out various data to simplify reviewing In LHS Beta 3

Demo FREB in Action

IIS 6. 0 Security vs. 7. 0 Security IIS 6. 0 Security – All Bits Installed (%windir%system 32inetsrv) “Features” turned onoff Uses local account and group for anonymous client requests and process account IIS_WPG: Group for allowing process creation and security URLScan added for additional security features not offered by Core server

IIS 6. 0 Security vs. 7. 0 Security (2) IIS 7. 0 Security: Change Purpose Benefit Only Install Bits Selected Reduce the footprint, lesson management tasks such as patching, etc. Build truly customizable Web workloads to maximize security and improve performance Convert URLScan to installable features, rather than add-on Bring a popular security tool into the product to simplify deployment, configuring, and supporting With one click, Request. Filtering. Module can be installed, and with one easy file deployed with your content it is working Change local accounts to built-in accounts Avoid management of passwords, ACL’ing problems and better handle Web farm deployments Every installation of IIS 7. 0 installs the same accounts, with same GUIDs, and with same ACLs and everything “just works. ”

Unified authentication, authorization across web server platform Fully supports non-Windows principals! All authentication schemes configured one single way for all types of content Forms authentication is now fully supported IIS extends its ACL authorization model with URL Authorization: Membership system support (includes support for custom providers) Windows principals (stored in the local SAM or Active Directory) Custom configuration credential sections (non Window principals)

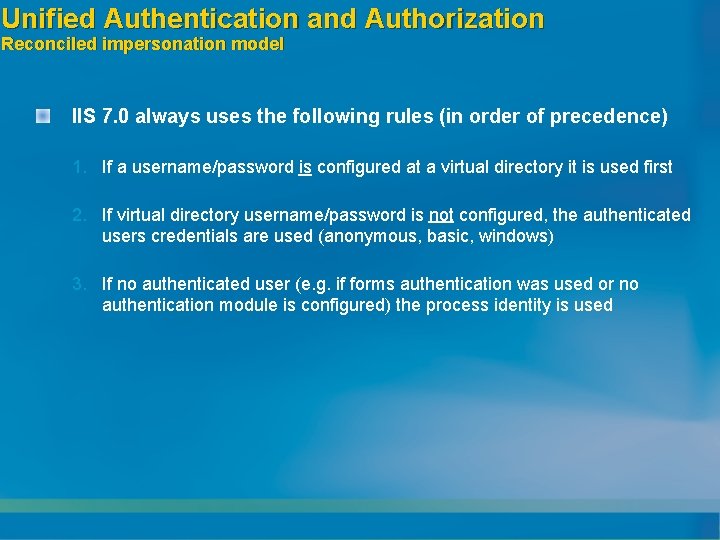

Unified Authentication and Authorization Reconciled impersonation model IIS 7. 0 always uses the following rules (in order of precedence) 1. If a username/password is configured at a virtual directory it is used first 2. If virtual directory username/password is not configured, the authenticated users credentials are used (anonymous, basic, windows) 3. If no authenticated user (e. g. if forms authentication was used or no authentication module is configured) the process identity is used

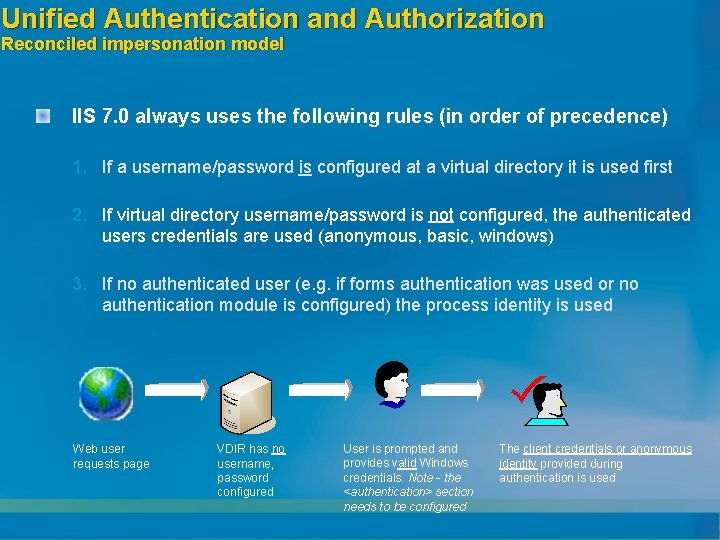

Unified Authentication and Authorization Reconciled impersonation model IIS 7. 0 always uses the following rules (in order of precedence) 1. If a username/password is configured at a virtual directory it is used first 2. If virtual directory username/password is not configured, the authenticated users credentials are used (anonymous, basic, windows) 3. If no authenticated user (e. g. if forms authentication was used or no authentication module is configured) the process identity is used Web user requests page VDIR has username and password configured Credentials configured for the virtual directory are used

Unified Authentication and Authorization Reconciled impersonation model IIS 7. 0 always uses the following rules (in order of precedence) 1. If a username/password is configured at a virtual directory it is used first 2. If virtual directory username/password is not configured, the authenticated users credentials are used (anonymous, basic, windows) 3. If no authenticated user (e. g. if forms authentication was used or no authentication module is configured) the process identity is used Web user requests page VDIR has no username, password configured User is prompted and provides valid Windows credentials. Note - the <authentication> section needs to be configured The client credentials or anonymous identity provided during authentication is used

Unified Authentication and Authorization Reconciled impersonation model IIS 7. 0 always uses the following rules (in order of precedence) 1. If a username/password is configured at a virtual directory it is used first 2. If virtual directory username/password is not configured, the authenticated users credentials are used (anonymous, basic, windows) 3. If no authenticated user (e. g. if forms authentication was used or no authentication module is configured) the process identity is used Web user requests page VDIR has no username, password configured No user authentication is configured The process identity is used

Unified Authentication and Authorization Reconciled impersonation model ASP. NET developers can still define their own identity section if required by their applications Useful for applications that reside on different machines Web user requests page IIS uses any of the impersonation methods and impersonates some Windows identity ASP. NET developers can use their web. config to impersonate an alternate identity (example - for database access)

Demo Extending Auth. N & Auth. Z

Administration Extensibility Delegated administration Non-administrators can change relevant settings. Admins specify what’s allowed per site and application. Unified management for the entire web platform IIS and ASP. NET settings are presented within the same user interface. Extensible architecture Developers can create custom management features. Remote administration Administer locally, over the intranet, or over the Internet. New modern look and feel A new navigation-based, task-oriented, rich user experience.

Architecture

Extensibility Points New Features and Pages Register new pages with the Control Panel Existing plug-in points Authentication Lock Configuration Provider Configuration Validation Custom extensibility using the Extensibility Manager

Extensibility Adding a new management module Server Write a new Module Provider Write a Module Service Install the DLL to the GAC Register the module in the root configuration Enable the module Client Write a new Module Write a Module Service Proxy Write some Module Pages Plug in existing features using the Extensibility Manager

Demo MRU Server Header End-to-End Sample with Module

Microsoft. Web. Administration

Demo Microsoft. Web. Administration Listing Sites Creating a Site App Pool Creation

Summary Something new for everyone in IIS 7. 0 Most radical changes in IIS since IIS 4. 0 IIS 6. 0 was… Limited for Developers because of ISAPI and less-than desirable support for Managed-code Limiting configuration for key scenarios, such as delegation and schema extensibility Limited troubleshooting capabilities to support zero-repro environments IIS 7. 0 is… Easy to extend using any language, native or managed Robust configuration supporting delegation, schema extensibility Task-based oriented, newly re-written IIS Manager supporting delegation, and much more Has awesome diagnostics which is natively built-in to the plumbing of IIS 7. 0
