MSD 1 System Level Design Review Biomass Compressor

MSD 1 System Level Design Review Biomass Compressor TEAM 13432

Terminology Biomass – any grown organic matter to be used in the system Compressor – increases pressure on the biomass FVP – force versus power TIE – team industrial engineering TC – team compression TSP – team slicing and packaging

Goals • Present design criteria and customer needs for approval by customer • Update customer in regards to concept generation • Settle upon final systems architecture for approval by customer

EDGE Website https: //edge. rit. edu/edge/P 13432/public/Home One Page Summary Concept Generation

Functional Analysis

House of Quality

PUGH Baseline Pugh Diagram Loose Biomass Hydraulic Twiner Auger Flywheel Twiner Guillotine Worm Gear Unbound Weight Datum Design 1 Design 2 Design 3 Design 4 Budget Production Standards 2 0 - 0 + - 1 0 + - - + Efficiency 1 0 - + + + Ease of Use 3 0 0 + + + Safety 2 0 - - Size 3 0 - - Noise 3 0 - + 0 + Description Selection Criteria Vibrating Wire Pnumatic Flywheel Glue Hemp Wrap

PUGH Refined criteria auger weigh flywheel hydraulic t twiner guillotine wormgear unbound vibe wire pneumatic glue vibe wire flywheel hemp wrap budget prod standards 2 0 + + - - 1 0 0 - efficiency ease of use/mainte nance 1 0 + + - + 3 0 0 - + - safety 2 0 + + size 3 0 + + noise 3 0 0 - 0 +

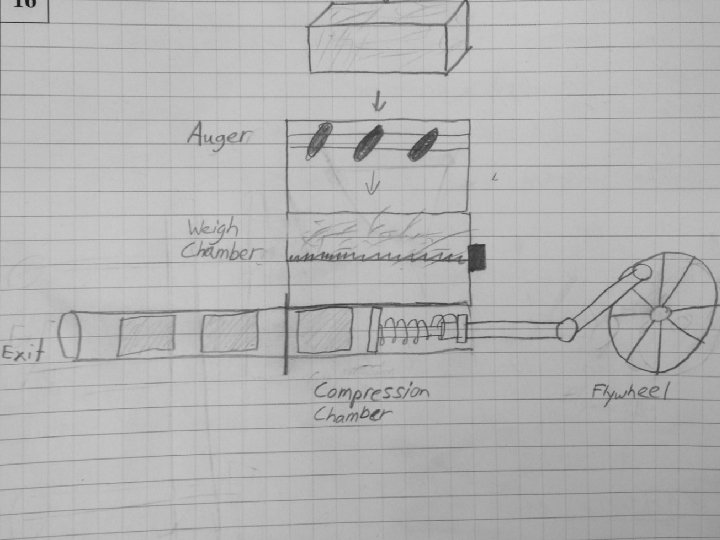

System Architecture

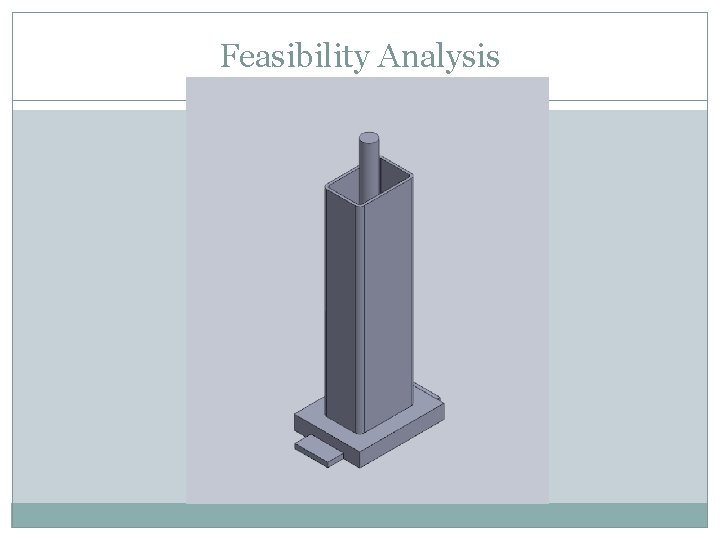

Feasibility Analysis

Feasibility Analysis What the mechanical testing will answer 1. What does the force v. displacement curve look like? 2. Does moisture have an effect on the results? 3. Is the compressed material isotropic or an-isotropic? 4. What are the effects of the three different materials? 5. What is Poisson’s ratio for the materials tested? 6. What are the effects of the orientation of the material on resulting forces? 7. What is the force needed to eject the brick from the compression chamber? 8. Do the results scale? 9. What are the effects of dwell time in compression chamber? 10. What is the maximum achievable density of brick? 11. How does friction affect the compression and ejection of the biomass?

Feasibility Analysis Steel 1018 CD Sut (psi) Sy (psi) E (psi) Critial Load (psi) Factor of Safety Max Load (psi) Load Marin Factors ka kb (axial) kc (axial) kd ke kf Se (psi) Factor of Safety¹ 64000 54000 29000000 43277. 79754 2 21638. 89877 15000 0. 896862925 1 0. 85 1 0. 99 1 24150. 72483 1. 3158098

Flywheel Calculations (back of the envelope)

Flywheel Calculations Position (°) Factor 90 -0. 013 100 -1. 765 110 -3. 629 120 -5. 796 130 -8. 401 140 -11. 904 150 -17. 405 160 -27. 559 170 -56. 667 179 -612. 080 179. 9 -7957. 720

INGREDIENTS: 1. Sun-cured Chopped Grass Hay (Timothy and Orchardgrass), 2. Sun-cured Chopped Alfalfa, Vegetable Oil. • • • OVERVIEW 2 lbs bricks Goal is to promotes Water Intake for Proper Hydration Convenient, Lightweight and Easy to Use Quickly Expands in a Bucket of Water to About One Flake of Moist Hay Compressed Blend of Premium Grass and Alfalfa Hay NUTRIOTIONAL INFO: Crude Protein (min). . . . 8. 00% Crude Fat (min). . . 1. 50% Crude Fiber (max). . . . . 37. 00% Ash (max). . . . 9. 00% http: //purinahorsesupplements. com/media/pdf/Hydration. Hay. Block. Original. Sell. Sheet-FINAL-Sep-24 -2012. pdf

Schaetzel family hay brick production • Purchasing a hydraulic machine ($350, 000) • Plant plans on using 20 tons of hay per day • Economically unfeasible to transport hay more than 100 miles away http: //www 2. ljworld. com/news/2008/mar/31/county_residents_have_hot_idea_new_type_biofuel_ha/

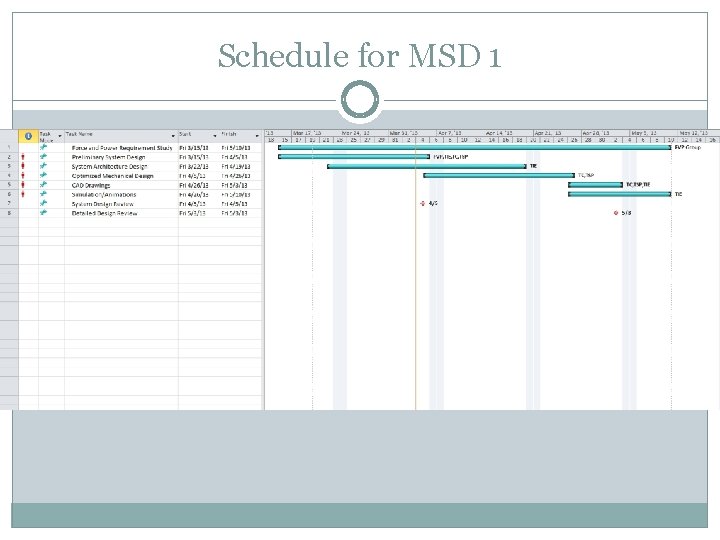

Schedule for MSD 1

Work Breakdown Structure Team Action Items Phase Define Date: 2013 -03 -21 Action Item Responsibility Start Date Target Actual Completion Meet with Customer All 03/08/13 Narrow scope Define specs Project roles Dani All 03/08/13 03/21/13 03/08/13 03/22/13 03/15/13 Project Manager and Lead Engineer roles chosen, Documentation Officer and EDGE specialists created. Subgroups created to attack individual parts of machinery. Measure Analyze Implement Control Design process Research Examples Brainstorm Preliminary Ideas Measure Design Performance Create Cad Drawings Analyze Cost Analyze Feasibility Analyze Energy Consumption Analyze Location Analyze Optimization Analyze Safety Minimize Noise Select Materials Analyze Failure Mechanics Create B. O. M. Select Final Design Customer Approval Select Prototype Method Assemble Prototype Measure Compression All Leila, Ahkil All All Customer 03/15/13 03/08/13 03/15/13 Week 9/10 Week 8 Week 8 Week 5 Week 8 Week 7 Week 5/6 Week 5 MSD II 04/05/13 03/21/13 Improve Repeatability Measure Weight Improve Safety Measure Energy Consumption Create Instruction Manual Create PFMEA Create Fault Tree Analysis MSD II MSD II Comments 3/8/13 Group meeting with customer to explain initial details 3/16/13 Angela, Jackson, Josh, Sean, Akhil Taveled to Overmoyer farms to see original design and process.

Future Plans 1. 2. 3. 4. 5. WORKSPACE OSHA REGULATIONS MATERIAL FLOW FLOOR LAYOUT EOQ & ROP PRODUCTION TIMES: a) b) c) d) e) 6. 7. 8. Mean time to repair Utilization times Throughput rate WIP Raw Processing time MAINTENANCE MANUAL NET ENERGY CALCULATIONS SENSOR ARRAY / CONTROLS a) b) c) d) Emergency Switch Brick and Cycle Counters Light Indicators Hazard Area Protection

Questions / Concerns
