MSA Gas Gard XL Controller Gas Gard XL

MSA Gas. Gard® XL Controller

Gas. Gard XL Controller Multi-channel, wall-mounted economical controller for all of your gas monitoring needs. A practical partner for hazardous gas monitoring.

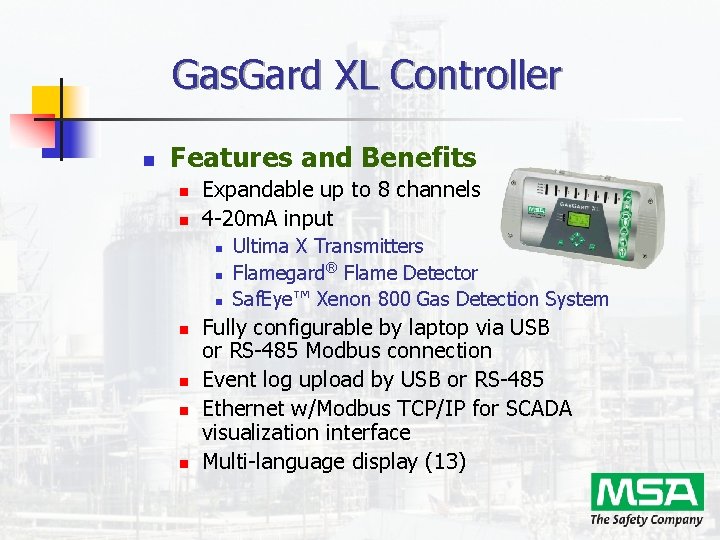

Gas. Gard XL Controller n Features and Benefits n n Expandable up to 8 channels 4 -20 m. A input n n n n Ultima X Transmitters Flamegard® Flame Detector Saf. Eye™ Xenon 800 Gas Detection System Fully configurable by laptop via USB or RS-485 Modbus connection Event log upload by USB or RS-485 Ethernet w/Modbus TCP/IP for SCADA visualization interface Multi-language display (13)

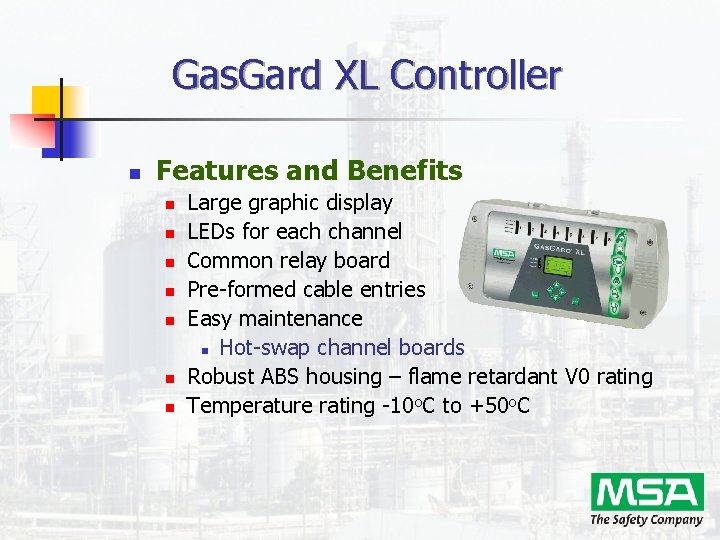

Gas. Gard XL Controller n Features and Benefits n n n n Large graphic display LEDs for each channel Common relay board Pre-formed cable entries Easy maintenance n Hot-swap channel boards Robust ABS housing – flame retardant V 0 rating Temperature rating -10 o. C to +50 o. C

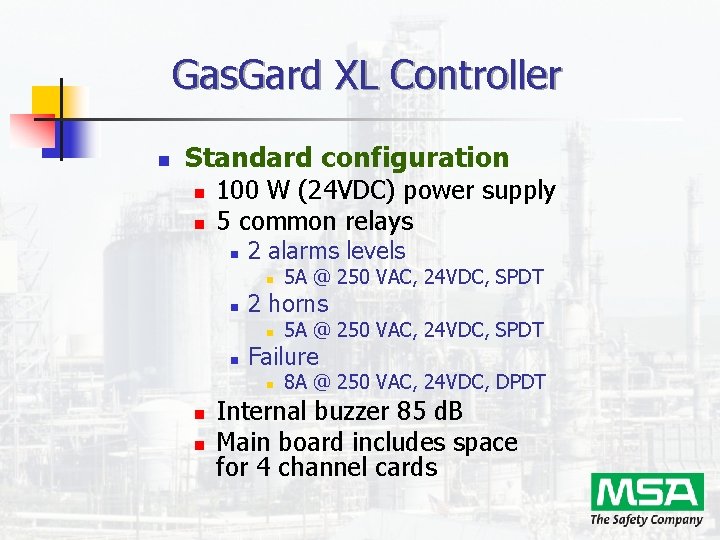

Gas. Gard XL Controller n Standard configuration n n 100 W (24 VDC) power supply 5 common relays n 2 alarms levels n n 2 horns n n n 5 A @ 250 VAC, 24 VDC, SPDT Failure n n 5 A @ 250 VAC, 24 VDC, SPDT 8 A @ 250 VAC, 24 VDC, DPDT Internal buzzer 85 d. B Main board includes space for 4 channel cards

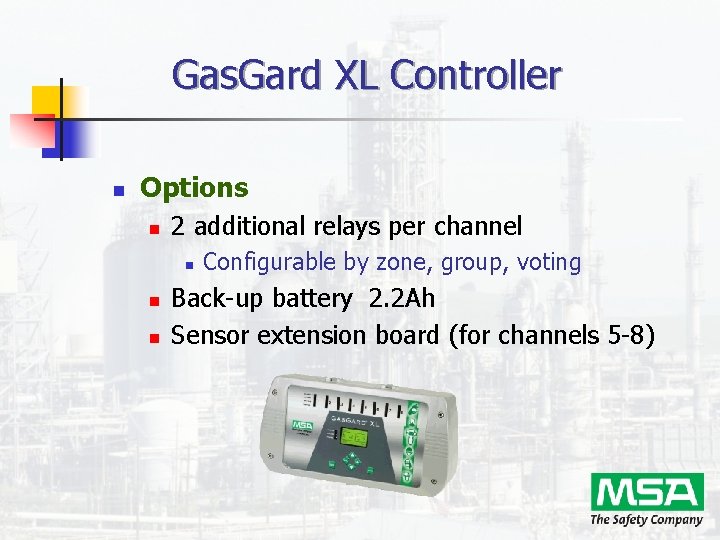

Gas. Gard XL Controller n Options n 2 additional relays per channel n n n Configurable by zone, group, voting Back-up battery 2. 2 Ah Sensor extension board (for channels 5 -8)

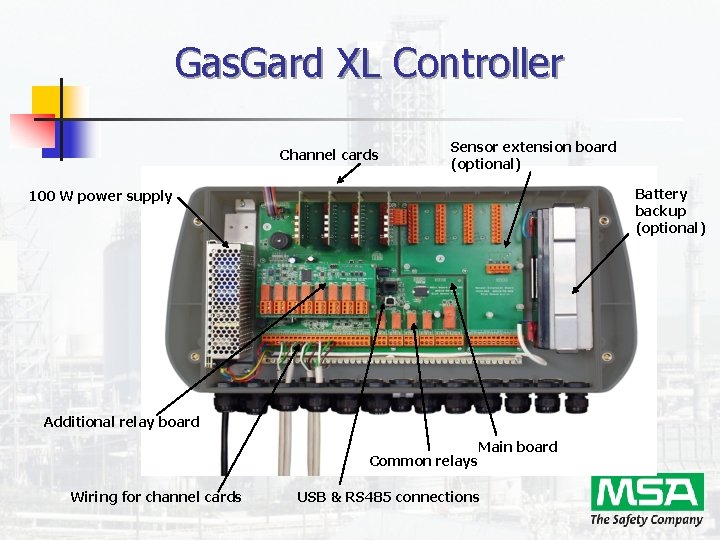

Gas. Gard XL Controller Channel cards Sensor extension board (optional) Battery backup (optional) 100 W power supply Additional relay board Common relays Wiring for channel cards Main board USB & RS 485 connections

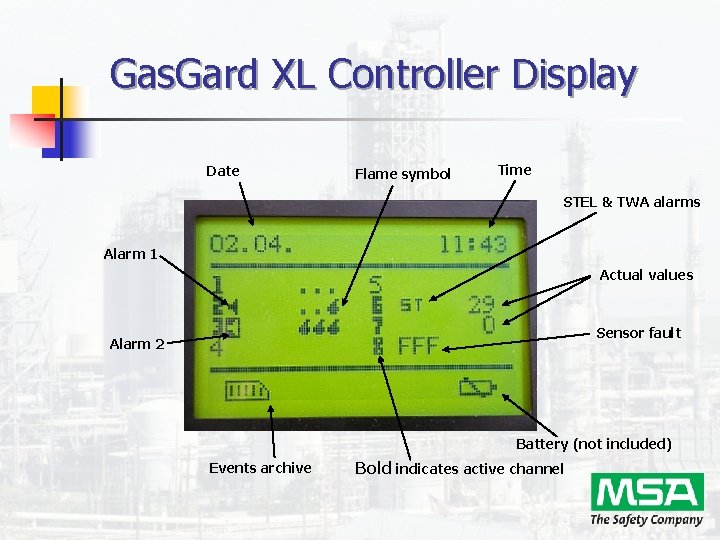

Gas. Gard XL Controller Display Date Flame symbol Time STEL & TWA alarms Alarm 1 Actual values Sensor fault Alarm 2 Battery (not included) Events archive Bold indicates active channel

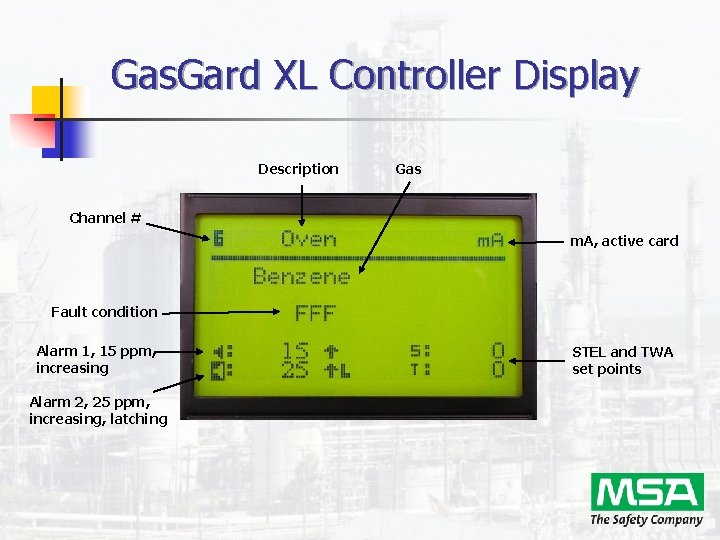

Gas. Gard XL Controller Display Description Gas Channel # m. A, active card Fault condition Alarm 1, 15 ppm, increasing Alarm 2, 25 ppm, increasing, latching STEL and TWA set points

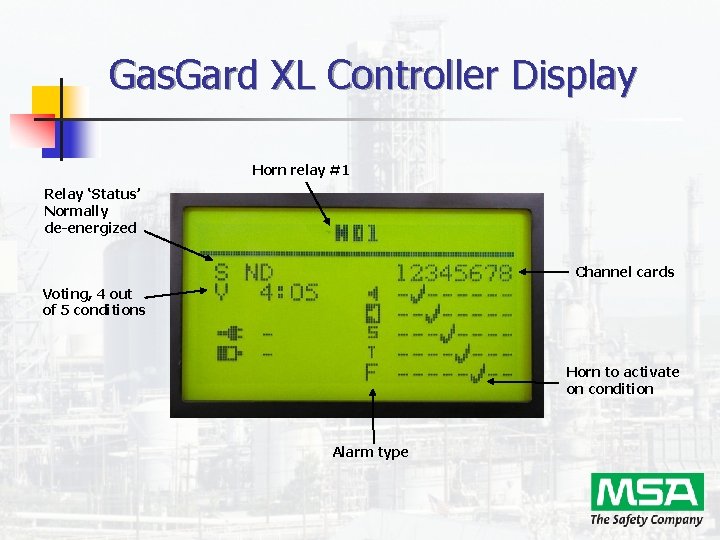

Gas. Gard XL Controller Display Horn relay #1 Relay ‘Status’ Normally de-energized Channel cards Voting, 4 out of 5 conditions Horn to activate on condition Alarm type

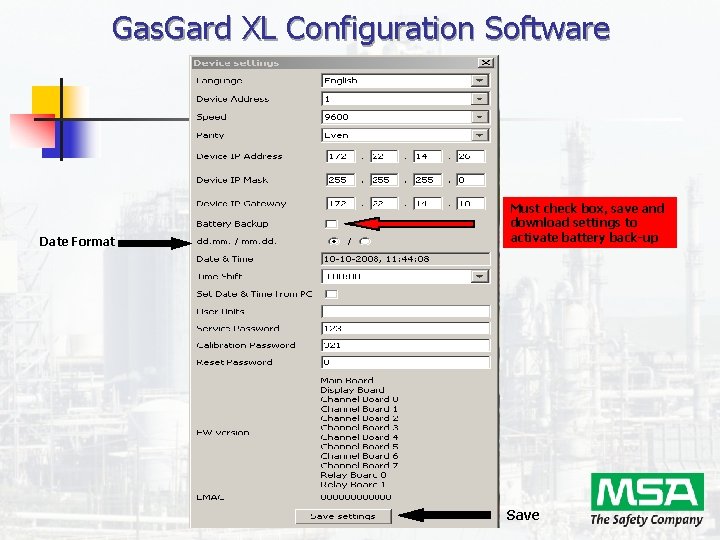

Gas. Gard XL Configuration Software Date Format Must check box, save and download settings to activate battery back-up Save

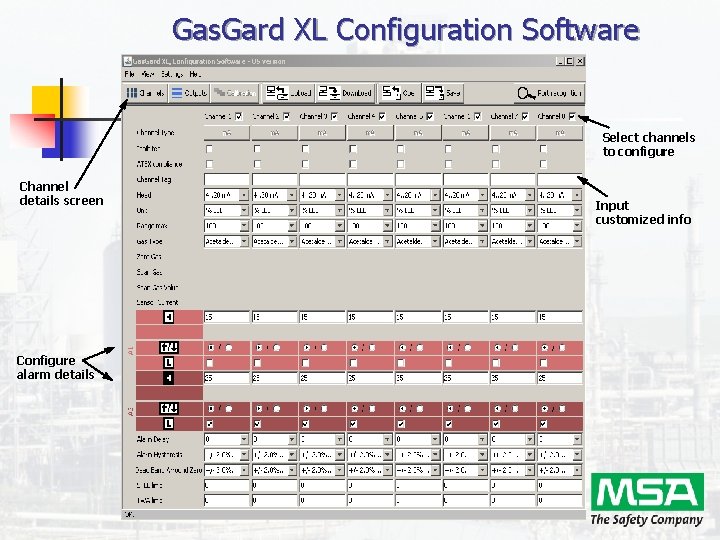

Gas. Gard XL Configuration Software Select channels to configure Channel details screen Configure alarm details Input customized info

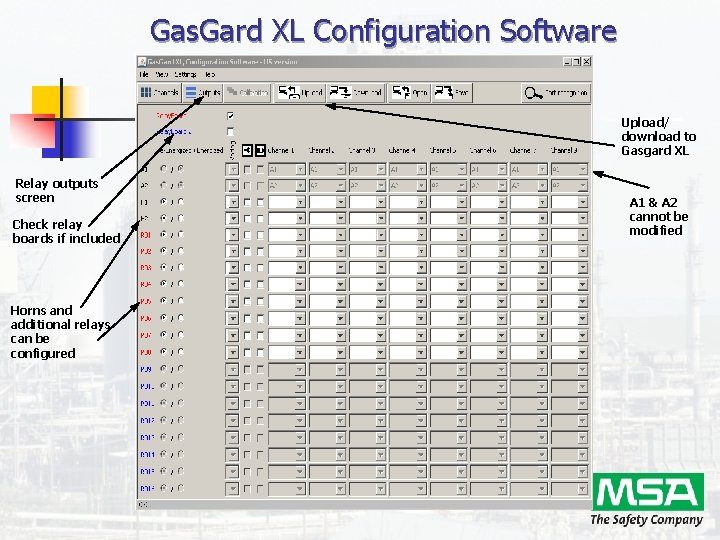

Gas. Gard XL Configuration Software Upload/ download to Gasgard XL Relay outputs screen Check relay boards if included Horns and additional relays can be configured A 1 & A 2 cannot be modified

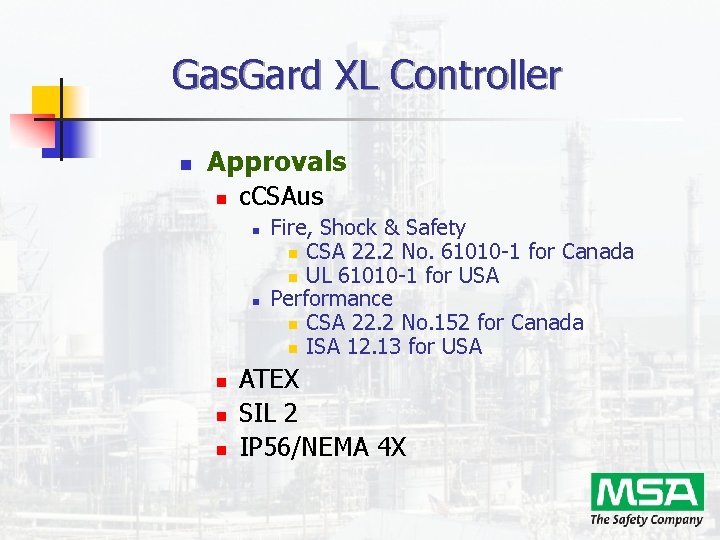

Gas. Gard XL Controller n Approvals n c. CSAus n n n Fire, Shock & Safety n CSA 22. 2 No. 61010 -1 for Canada n UL 61010 -1 for USA Performance n CSA 22. 2 No. 152 for Canada n ISA 12. 13 for USA ATEX SIL 2 IP 56/NEMA 4 X

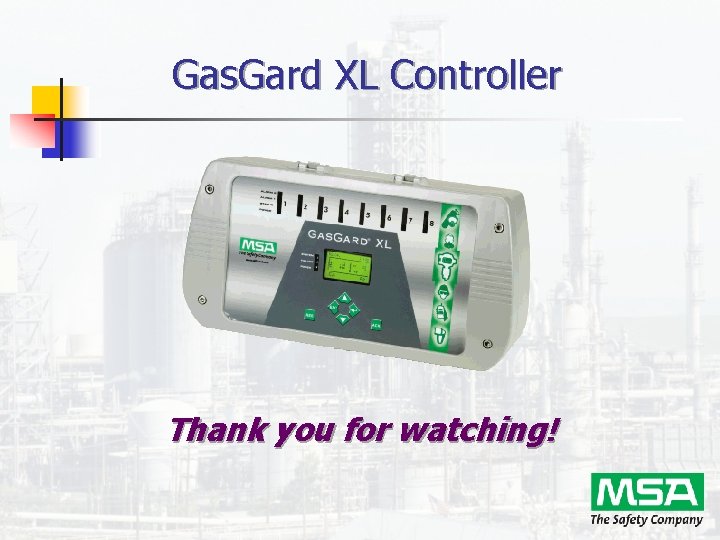

Gas. Gard XL Controller Thank you for watching!
