MRV 9 PODs 1 CHACON transportation Specifications Agenda

MRV 9 PODs 1 CHACON

transportation Specifications

Agenda • Description of the assets • Deployment constraints • Paperwork

Description of the assets • Pods • Vehicle-based assets: • Mini-Radar Van (MRV)

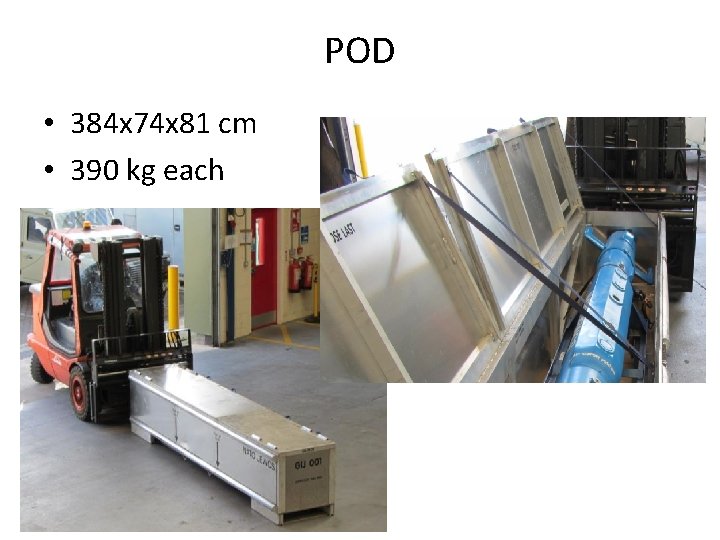

POD • 384 x 74 x 81 cm • 390 kg each

1 POD

Markings

MRV 511 x 206 x 298 cm - 3. 3 tons - Land Rover base vehicle -

Deployment constraints • • Transportation of military equipment in a stressed international situation. The movements of the equipment are extremely time critical. Therefore, it is very important to follow the timings, neither later nor sooner. • All the drivers are to be English speakers. – Improve coordination & safety – There are too many middle-men between JEWCS operators and Drivers: • • • Drivers Sub-contractor manager DAMCO manager JEWCS manager (deployment officer) JEWCS operator • JEWCS is to receive the transportation company name, the truck and trailer registration plate number, the name of the drivers and their identity number 7 days before the first sub-task offloading – Requested by the Nations to grant access to military bases overseas (48 h on RNAS Yeovilton) • The company has to provide JEWCS with the truck routes 7 days before the first sub-task offloading (unless there is a specific comment). – Give us time to access the feasibility of the journey (security & authorization) • The company has to confirm the type of truck 7 days before the first sub-task offloading. – Especially when it is not a flat-bed • The transport is not required to stay for the duration. – IOT reduce the cost – Better if they are around, since it gives flexibility

Strapping • At Yeovilton JEWCS personnel will supervise the loading/unloading of equipment. Away from JEWCS, if no JEWCS personnel are available a responsible person will be briefed on how to supervise the load/unload and will forward the Transport Report Forms to JEWCS. The positioning of the load of the trailer will be under the supervision of the driver who is responsible for the securing and security of the load. JEWCS personnel will arrange all lifting equipment. – • All equipment is to be laid on flat surfaces. – • No change of the load during the transportation Equipment structure design Pod boxes are not to be stacked more than 3 high. – Box design • As soon as there is a vehicle, there is a need for ramps • Empty spaces in the middle of a pod load are to be kept to a minimum so if the load shifts slightly boxes will not be displaced. Suitable and serviceable webbing, straps, metal chains and ratchet tensioners should be provided to secure loads. Other merchandise from other customers can’t be carried on the same load. The load and delivery in JEWCS, Yeovilton can only be done between 09 h 00 and 16 h 00 local time. • • • – JEWCS working hours : 08 h 30 -17 h 00

Mix • To reduce the cost, assets are often mixed on a trailer • As long as, the trailer is flat (with ramps for vehicles if needed) => No worries • On a 40 -feet trailer: – 9 Pods + Chacon + MRV

Paperwork • The contractor is responsible for clearing the load through customs and preparing corresponding paperwork. • Documentation provided by JEWCS: – Description and ownership – Loss & damage certificate – NATO 302 (for Non-EU countries) • European non-NATO member country (e. g. Austria) • NATO non-EU member country (e. g Norway or Turkey)
