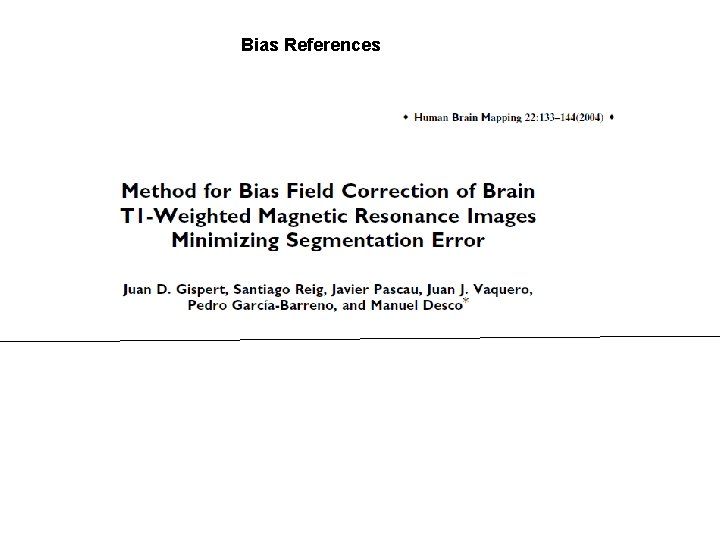

Bias References
Segmentation References
Segmentation pipeline Validation Clarke, 1995
1. Preprocessing 1. 1. Brain extraction 1. 2. Removal of field inhomogeneities (bias-field)

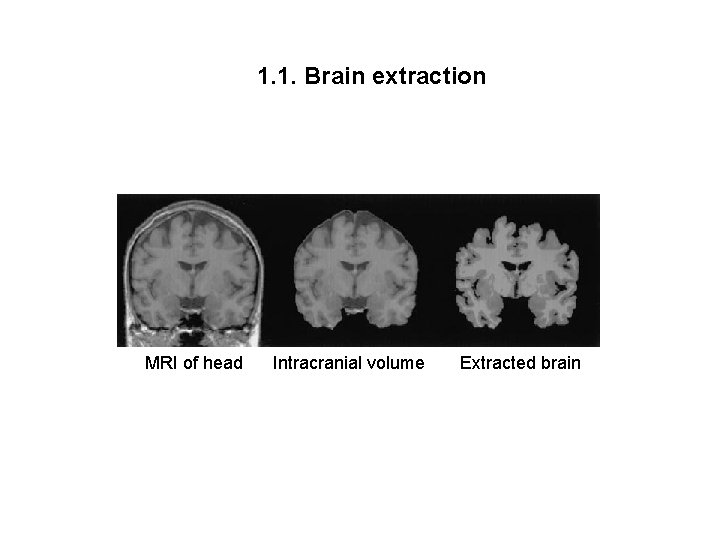

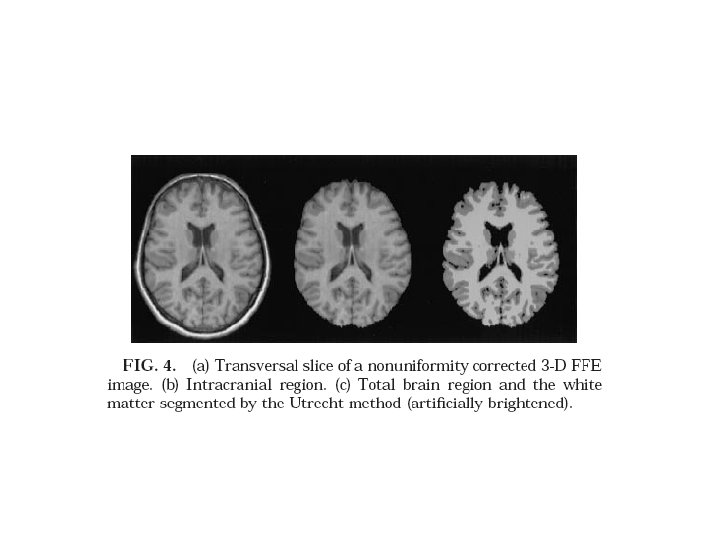

1. 1. Brain extraction MRI of head Intracranial volume Extracted brain
1. 1. Brain extraction FSL: Initiate a mesh inside the skull and expand-wrap onto brain surface Huh, 2002 method: go to mid sagittal, find brain, copy mask on adjacent slices correct the copied mask

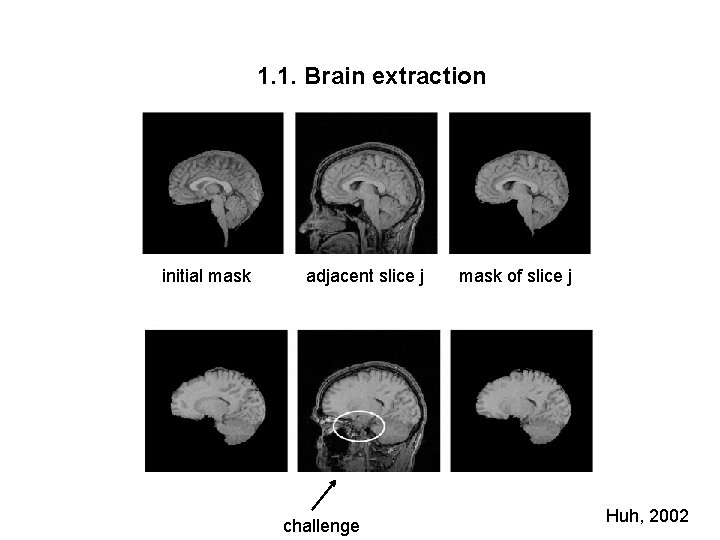

1. 1. Brain extraction initial mask adjacent slice j challenge mask of slice j Huh, 2002

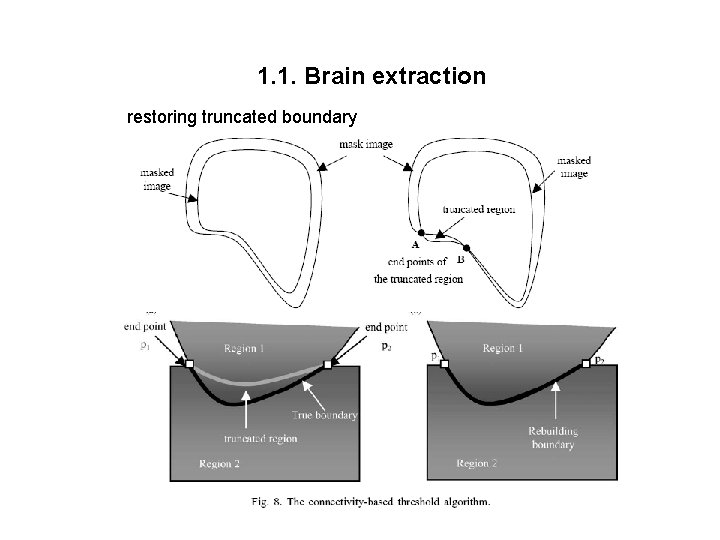

1. 1. Brain extraction restoring truncated boundary

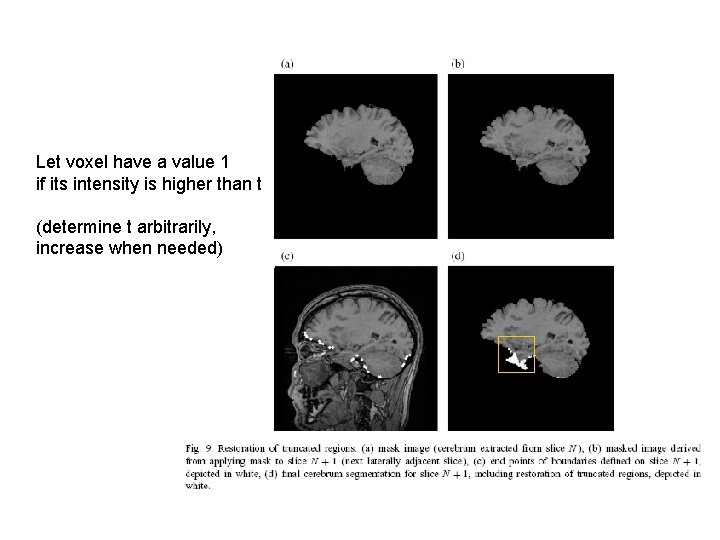

Let voxel have a value 1 if its intensity is higher than t (determine t arbitrarily, increase when needed)
1. 2. Removal of field inhomogeneities Bias field Phantom studies: Typical signal falloff in SI direction is 20% intensity S 20 % x I
1. 2. Removal of field inhomogeneities Statistical methods: probabilistic, gaussian and mixture models of bias-field Polynomial methods: smooth polynomial fit to bias-field
1. 2. Removal of field inhomogeneities Polynomial method example: Milchenko, 2006
Milchenko, 2006

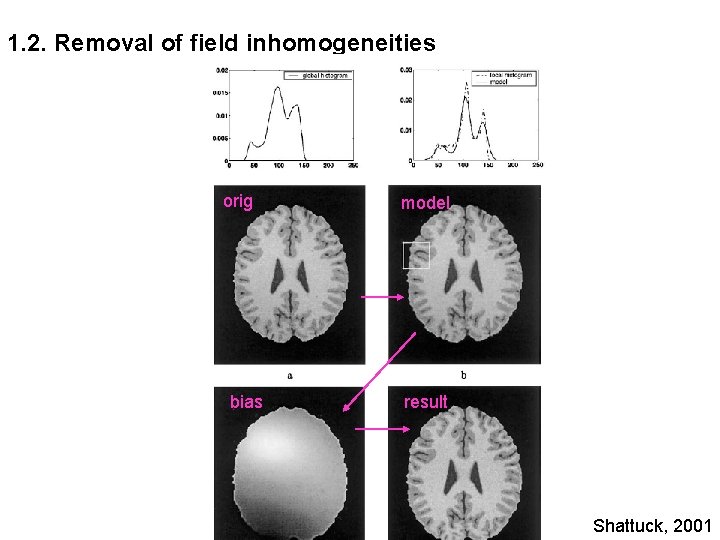

1. 2. Removal of field inhomogeneities orig bias model result Shattuck, 2001

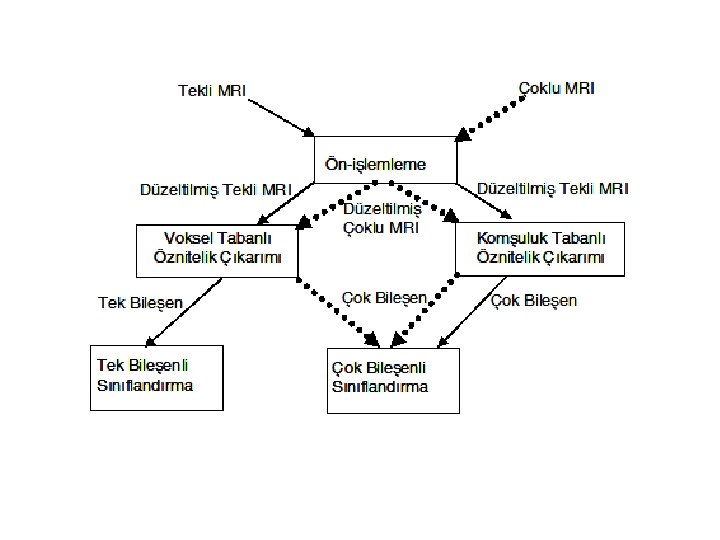

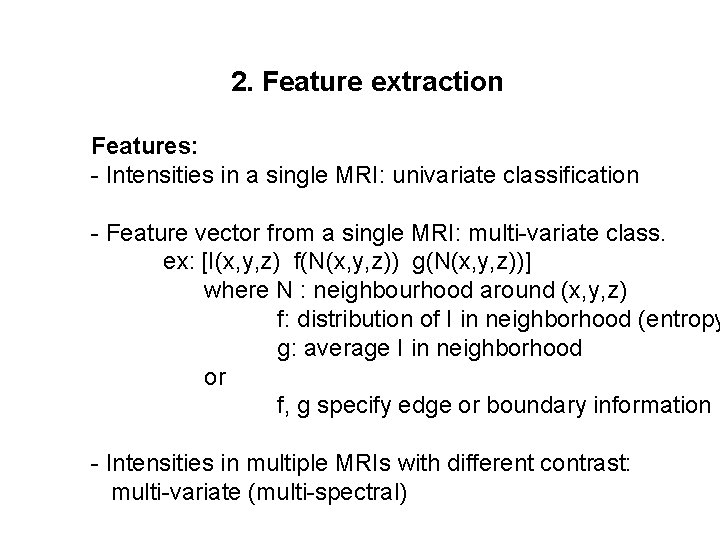

2. Feature extraction Features: - Intensities in a single MRI: univariate classification - Feature vector from a single MRI: multi-variate class. ex: [I(x, y, z) f(N(x, y, z)) g(N(x, y, z))] where N : neighbourhood around (x, y, z) f: distribution of I in neighborhood (entropy g: average I in neighborhood or f, g specify edge or boundary information - Intensities in multiple MRIs with different contrast: multi-variate (multi-spectral)
3. Segmentation 3 tissue types: CSF, GM, WM 4 regions: R 1: air, scalp, fat, skull (background, removed) R 2: subarachnoid space (CSF) R 3: parenchyma (GM, WM) R 4: ventricles(CSF)
3. Segmentation (T 1 weighted) (dual echo: T 2, PD or T 1, T 2, PD weighted) Clarke, 1995
3. Segmentation T 1 weighted, single intensity 3. 1. Histogram based thresholding 3. 2. Bayesian dual echo: T 2, PD or T 1, T 2, PD weighted or T 1 weighted with feature vector Unsupervised Supervised Parametric 3. 3. Max. Likelihood Non-parametric 3. 4. k-NN 3. 6. k-means 3. 7. fuzzy ANN cmeans 3. 5. MLP
3. 1. Histogram based thresholding WM GM Lcp crossing point of tangents Histogram of extracted, bias corrected brain in T 1 -weighted MRI L = g * Lcp (set g manually on 80 images) if I(x, y, z) < L then GM else WM Schnack, 2001
3. 2. Bayesian segmentation GM WM Population 1 Population 2 (#of voxels/#ofallvoxels in the brain) Population 3 (intensity) Hypothetical distributions

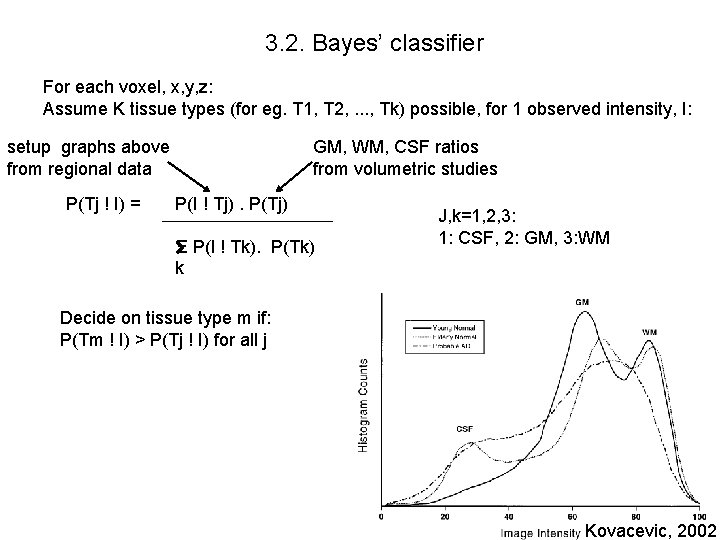

3. 2. Bayes’ classifier For each voxel, x, y, z: Assume K tissue types (for eg. T 1, T 2, . . . , Tk) possible, for 1 observed intensity, I: setup graphs above from regional data P(Tj ! I) = GM, WM, CSF ratios from volumetric studies P(I ! Tj). P(Tj) Ξ P(I ! Tk). P(Tk) k J, k=1, 2, 3: 1: CSF, 2: GM, 3: WM Decide on tissue type m if: P(Tm ! I) > P(Tj ! I) for all j Kovacevic, 2002
Methods based on feature vector or multi-spectral data Supervised vs unsupervised Methods Supervised: - Color indicates known classes - Separation contour is to be found during training phase - Separation contour is used for classification during recall phase Unsupervised: - No color, classes unknown - Clusters are found during training phase - Association with clusters are made during recall phase
PD weighted image intensity voxel x, y, z T 2 weighted Kovacevic, 2001 T 2 weighted image

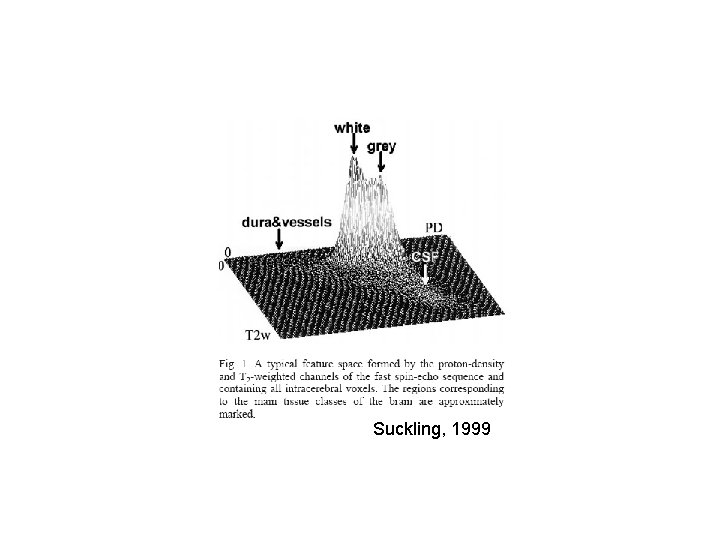

Suckling, 1999

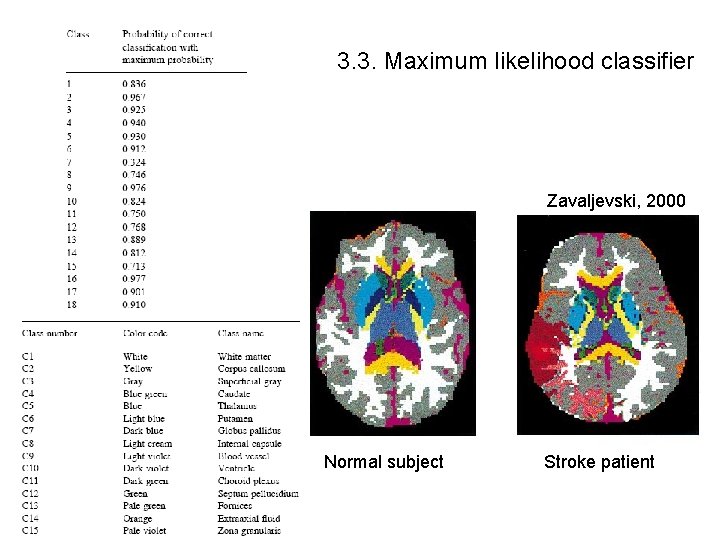

3. 3. Maximum likelihood classifier - Assume the distribution P(I ! Tj) in Bayes can be obtained by a mixture of Gaussian or Normal distribution - Estimate means and co-variance matrix - For better results use Hidden Markov fields within neighborhoods 15 classes Zavaljevski, 2000
3. 3. Maximum likelihood classifier Zavaljevski, 2000 Normal subject Stroke patient
3. 4. K-NN, K-Nearest neighbor classifier Hypothetical distribution T 2 intensity T 1 intensity - k is always odd, 1<k<15 (as k increases comput time increases) - given a point p find k closest samples known from before - decide on class m where m is the highest number of classes among these k samples
3. 4. K-NN classifier Uses 5 different contrast MRIs manual labels k=1 k=45 Vrooman, 2007 atlas labels with linear reg. atlas labels with non-lin reg.
3. 5. ANN, MLP classifier for segmentation, M = 3, 3 classes : F MLP Architecture: 1 layer: linear contour >1 layers: complex contours countours are used for class separation transfer fcn: sigmoid feature vector W 1 W 3
3. 5. ANN, MLP classifier Results This page is empty on purpose
3. 6. k-means classifier This classifier is not used much in segmentation, but explained here as an introduction to fuzzy c-means Algorithm: - k is equal to number of classes - choose k arbitrary initial seed points (*) - assume seed points are class centroids 1 for each sample point j, find distance to all k centroids Let j belong to class m if j is closest to centroid m 2 for each class k, recalculate centroids repeat steps 1 and 2 above until no change in centroids Note how class assignments change at each iteration Minimized measure:

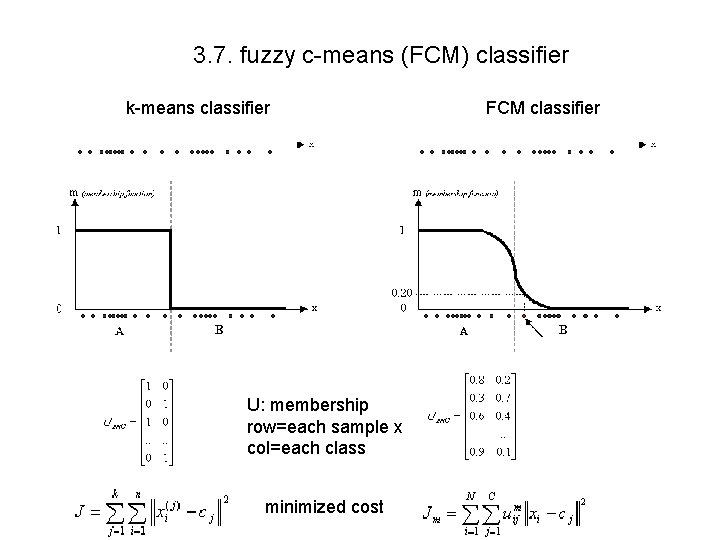

3. 7. fuzzy c-means (FCM) classifier k-means classifier U: membership row=each sample x col=each class minimized cost FCM classifier

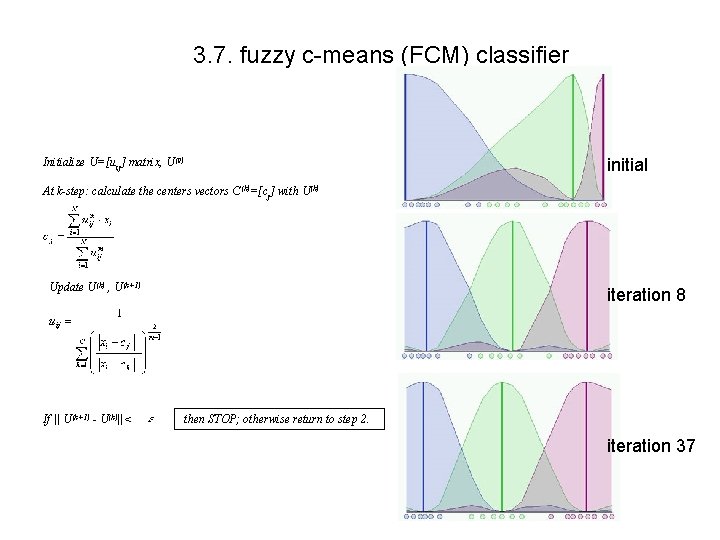

3. 7. fuzzy c-means (FCM) classifier initial Initialize U=[uij] matrix, U(0) At k-step: calculate the centers vectors C (k)=[cj] with U(k) Update U(k) , U(k+1) If || U(k+1) - U(k)||< iteration 8 then STOP; otherwise return to step 2. iteration 37
3. 7. fuzzy c-means classifier Results
4. Validation Important issues: - Partial volume effect, visualization - Validation in manually segmented image - Performance comparison with other methods on simulated image: Ex: Brainweb from Mcgill
4. Validation Clark, 2006 Partial volume effect for boundary separation Shattuck, 2001 segmented gold std corrrect WM misclassified (colored by subejct number there a total of 10 subjects)
