MRI of BrainHead and Neck labeling by Amanda
MRI of Brain/Head and Neck labeling by Amanda Butcher, MD JCE SOM Class of 2008

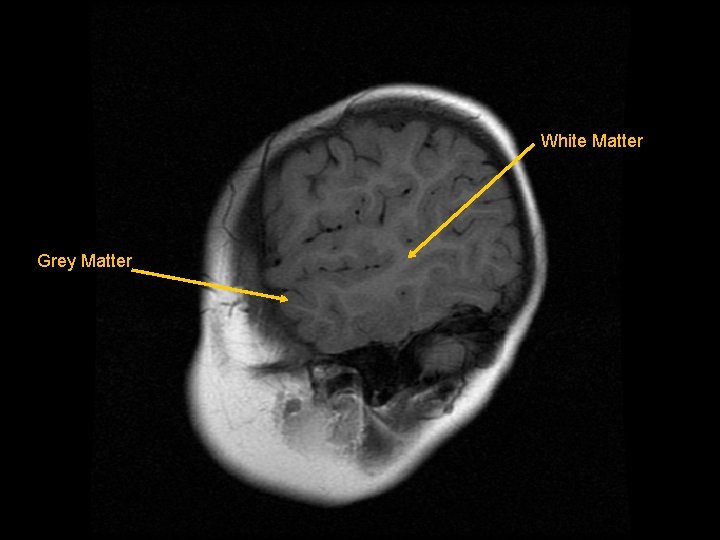

White Matter Grey Matter

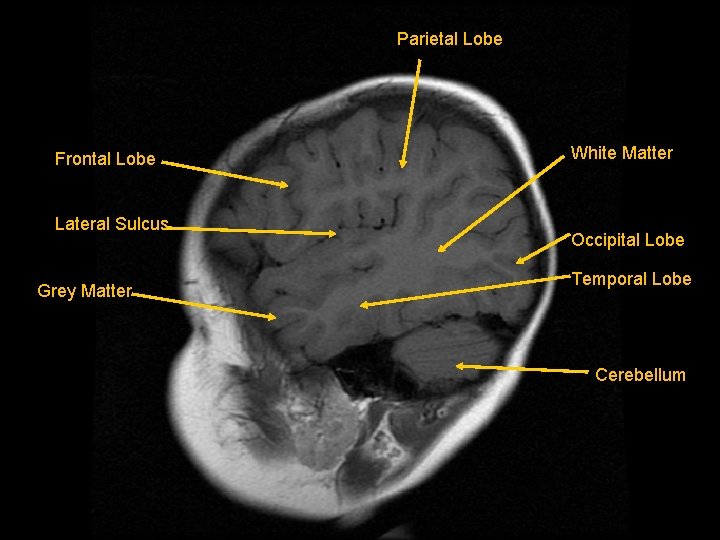

Parietal Lobe Frontal Lobe Lateral Sulcus Grey Matter White Matter Occipital Lobe Temporal Lobe Cerebellum

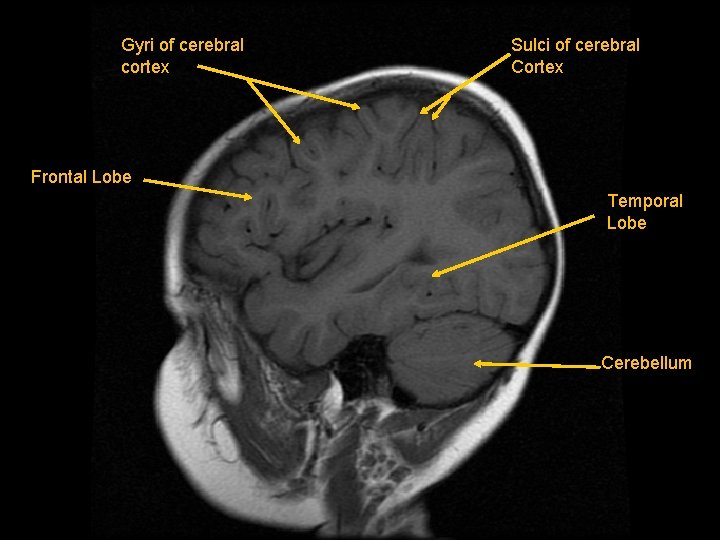

Gyri of cerebral cortex Sulci of cerebral Cortex Frontal Lobe Temporal Lobe Cerebellum

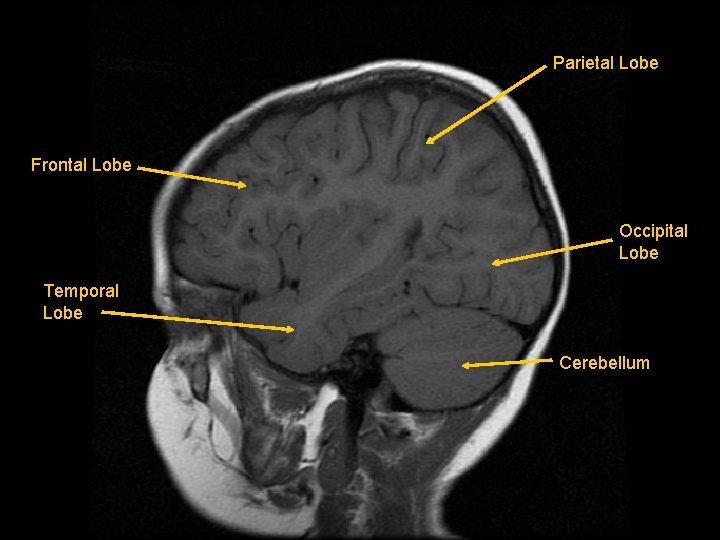

Parietal Lobe Frontal Lobe Occipital Lobe Temporal Lobe Cerebellum
Parietal Lobe Frontal Lobe Occipital Lobe Eye Ball Transverse Sinus Cerebellar Hemisphere

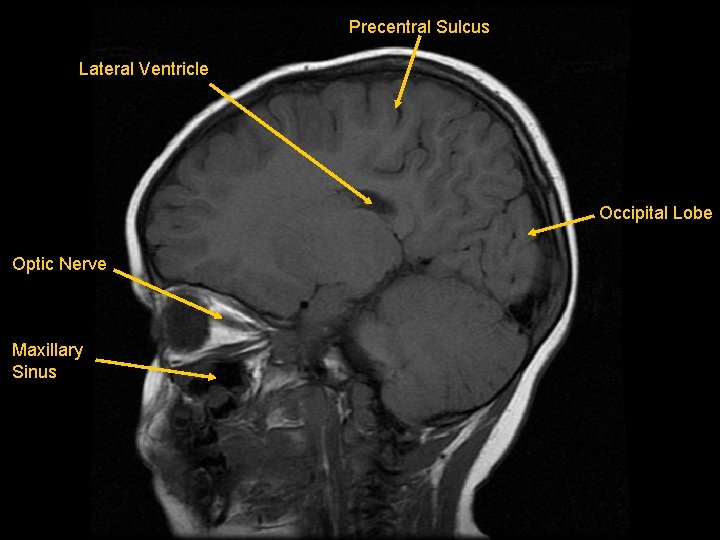

Precentral Sulcus Lateral Ventricle Occipital Lobe Optic Nerve Maxillary Sinus

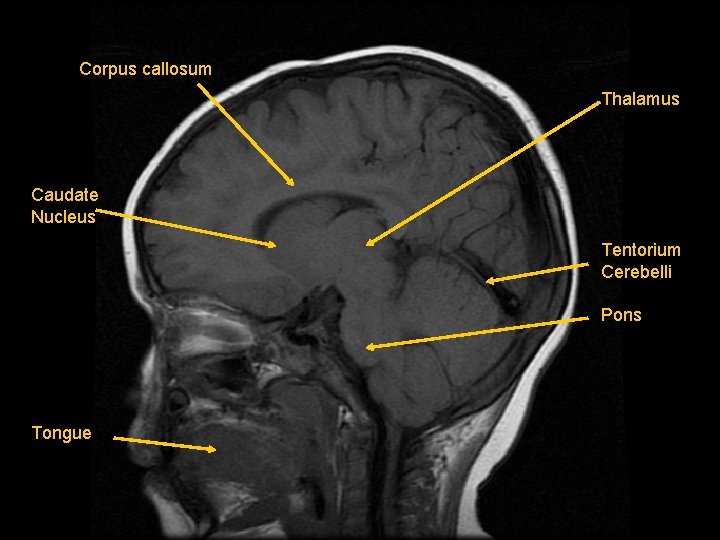

Corpus callosum Thalamus Caudate Nucleus Tentorium Cerebelli Pons Tongue

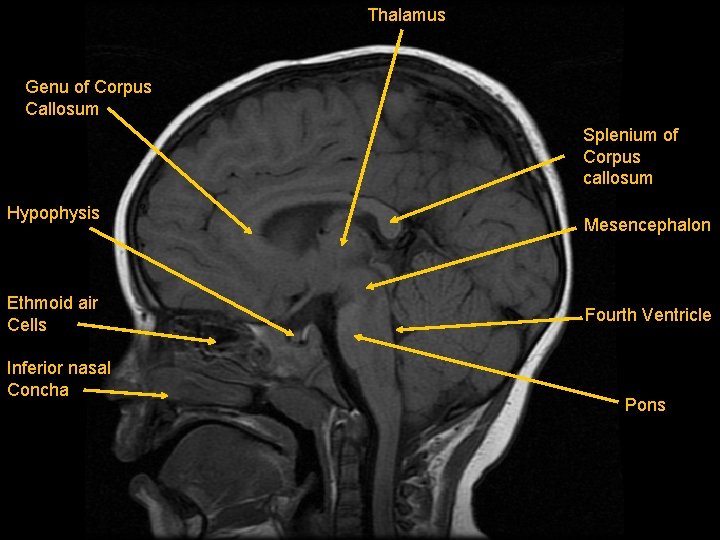

Thalamus Genu of Corpus Callosum Splenium of Corpus callosum Hypophysis Ethmoid air Cells Inferior nasal Concha Mesencephalon Fourth Ventricle Pons

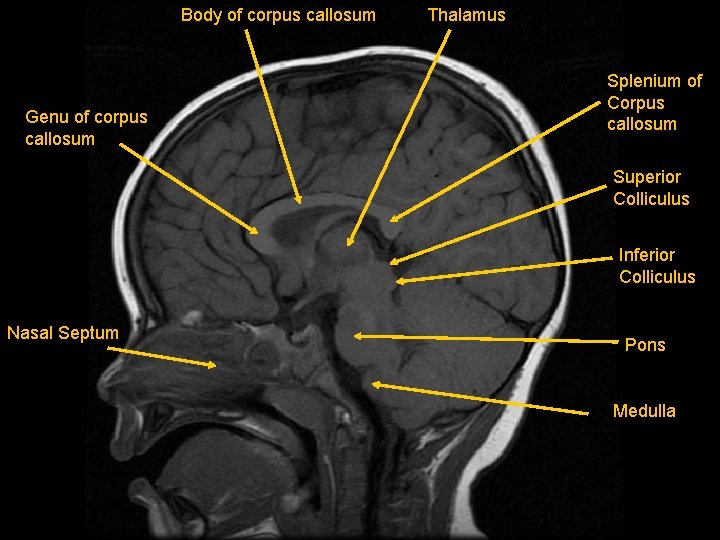

Body of corpus callosum Genu of corpus callosum Thalamus Splenium of Corpus callosum Superior Colliculus Inferior Colliculus Nasal Septuml Pons Medulla

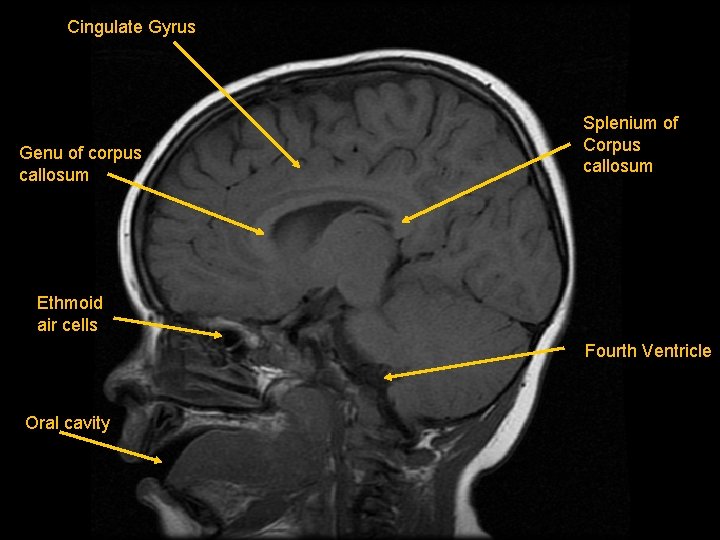

Cingulate Gyrus Genu of corpus callosum Splenium of Corpus callosum Ethmoid air cells Fourth Ventricle Oral cavity

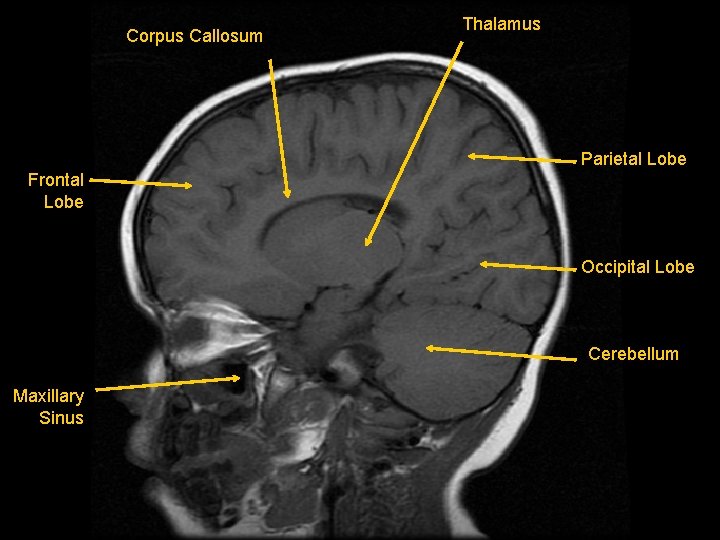

Corpus Callosum Thalamus Parietal Lobe Frontal Lobe Occipital Lobe Cerebellum Maxillary Sinus

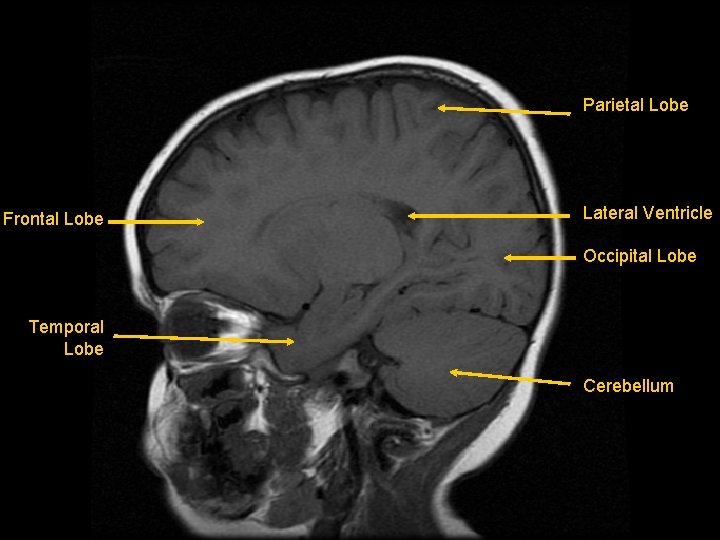

Parietal Lobe Frontal Lobe Lateral Ventricle Occipital Lobe Temporal Lobe Cerebellum

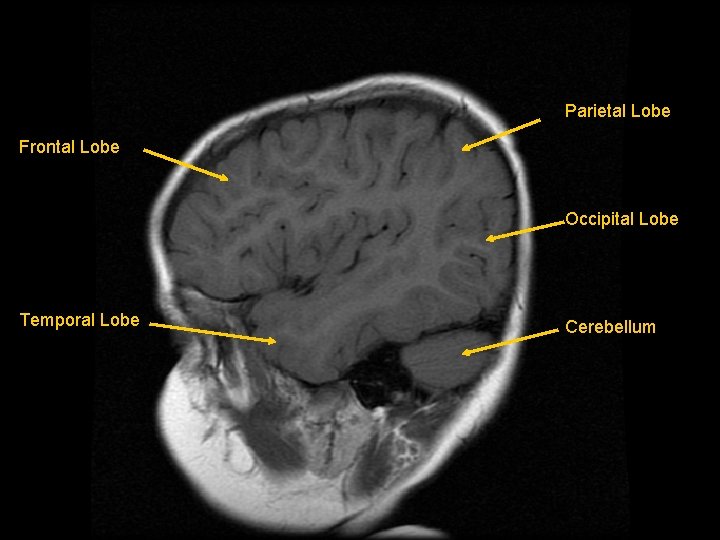

Parietal Lobe Frontal Lobe Occipital Lobe Temporal Lobe Cerebellum

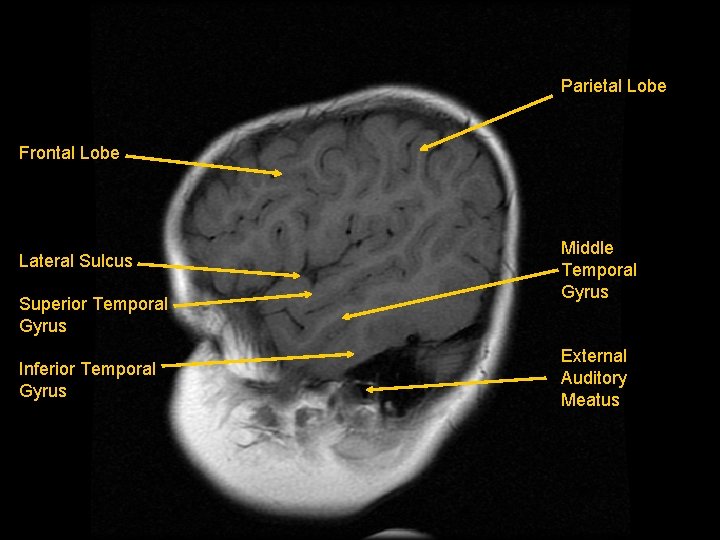

Parietal Lobe Frontal Lobe Lateral Sulcus Superior Temporal Gyrus Inferior Temporal Gyrus Middle Temporal Gyrus External Auditory Meatus

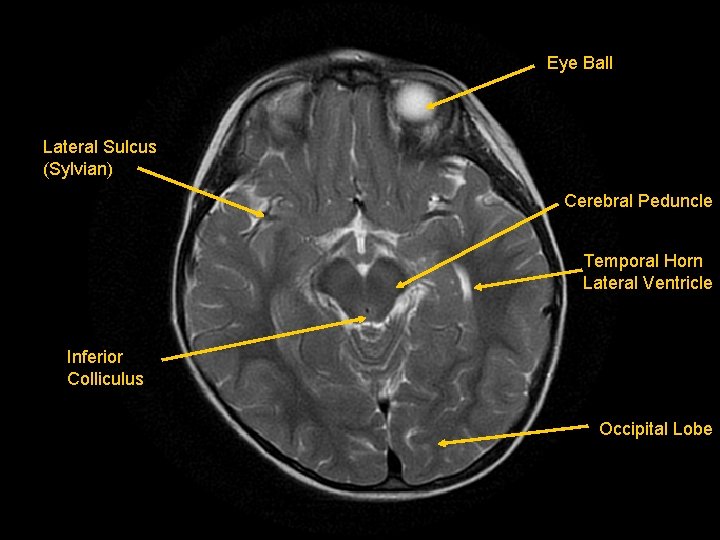

Eye Ball Lateral Sulcus (Sylvian) Cerebral Peduncle Temporal Horn Lateral Ventricle Inferior Colliculus Occipital Lobe

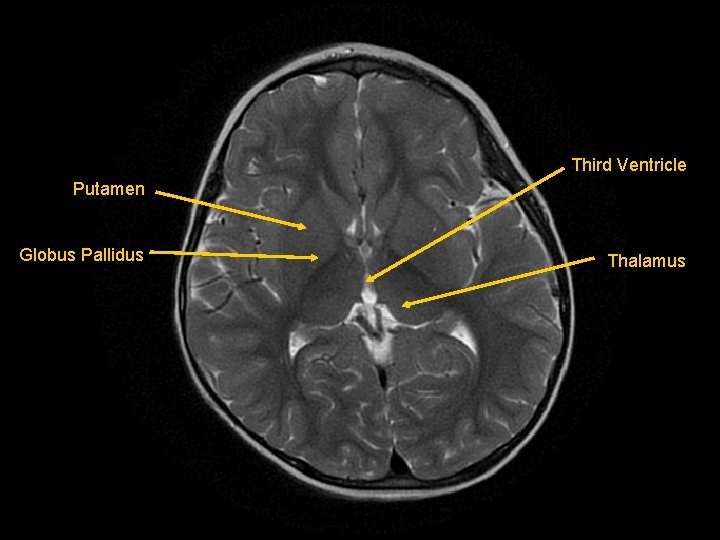

Third Ventricle Putamen Globus Pallidus Thalamus

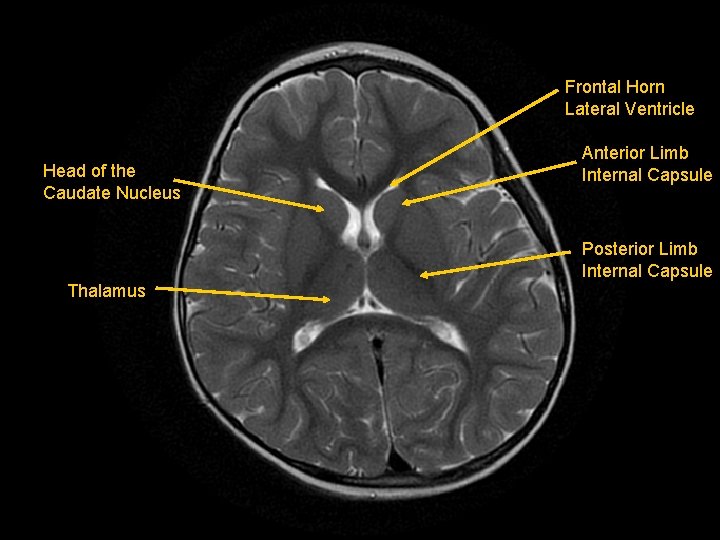

Frontal Horn Lateral Ventricle Head of the Caudate Nucleus Anterior Limb Internal Capsule Posterior Limb Internal Capsule Thalamus

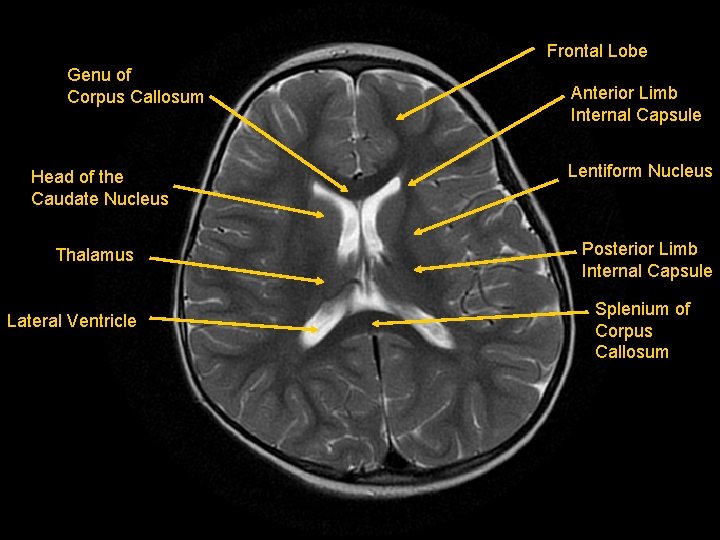

Frontal Lobe Genu of Corpus Callosum Head of the Caudate Nucleus Thalamus Lateral Ventricle Anterior Limb Internal Capsule Lentiform Nucleus Posterior Limb Internal Capsule Splenium of Corpus Callosum

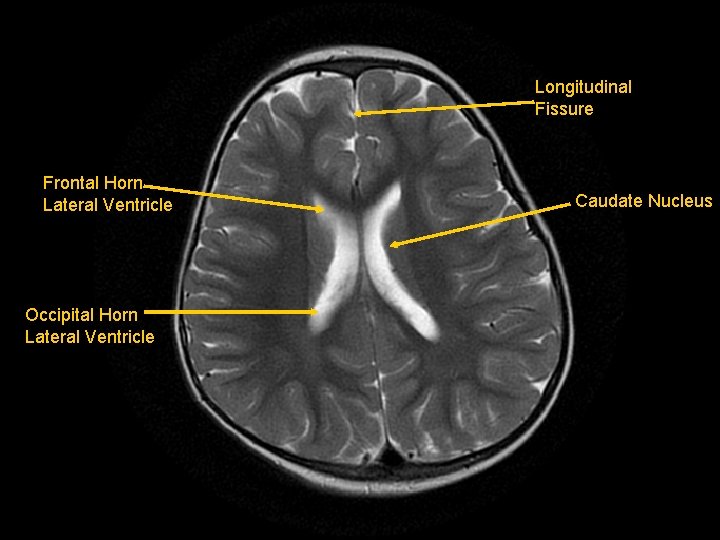

Longitudinal Fissure Frontal Horn Lateral Ventricle Occipital Horn Lateral Ventricle Caudate Nucleus

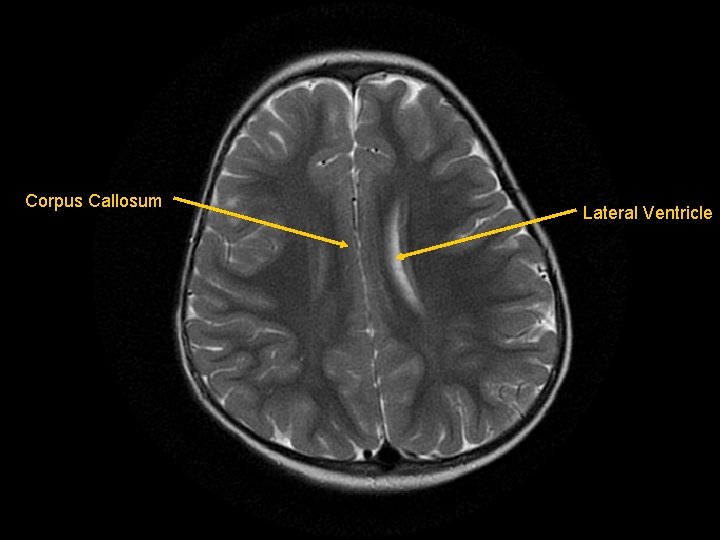

Corpus Callosum Lateral Ventricle

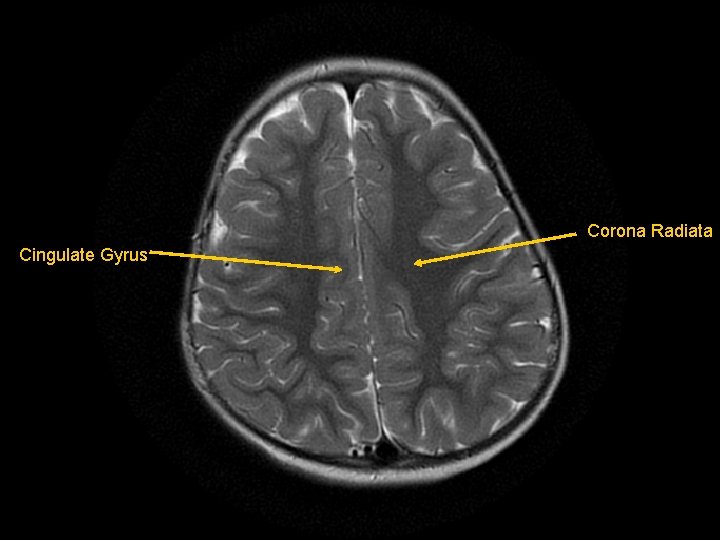

Corona Radiata Cingulate Gyrus

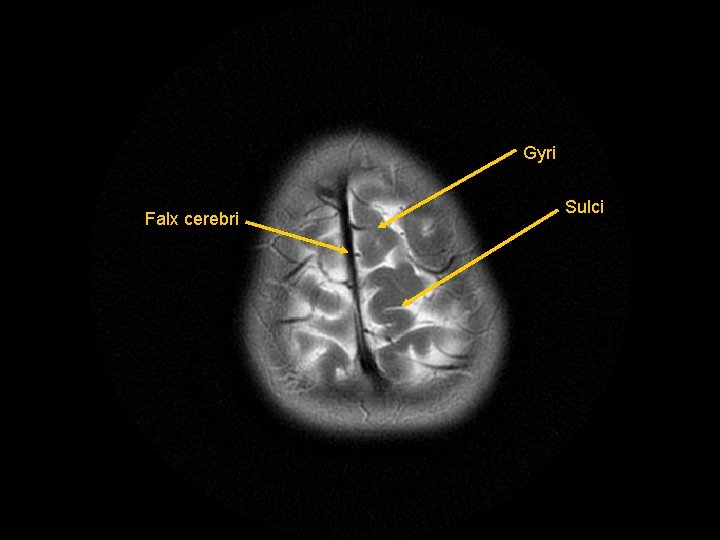

Gyri Falx cerebri Sulci

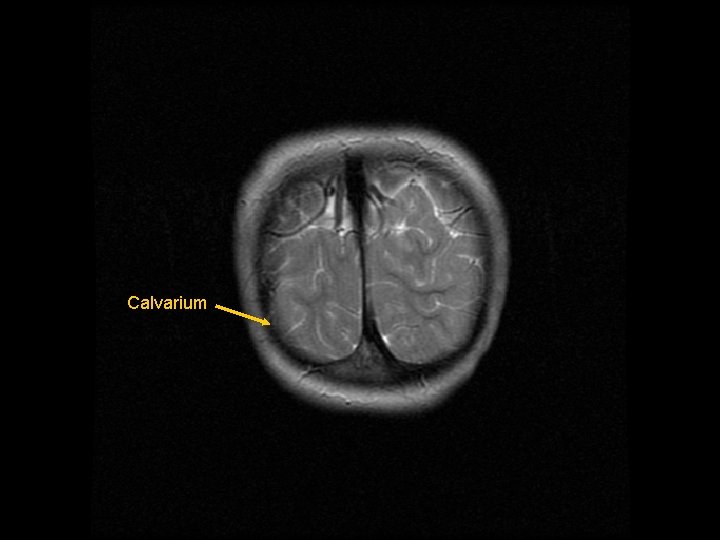

Calvarium

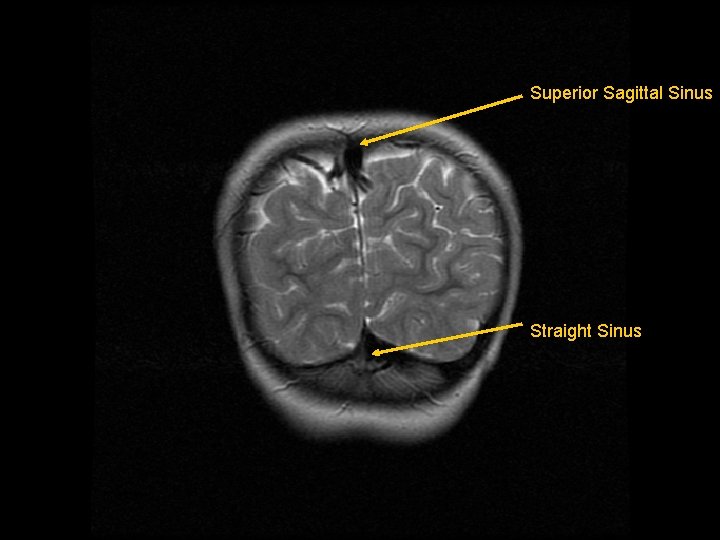

Superior Sagittal Sinus Straight Sinus

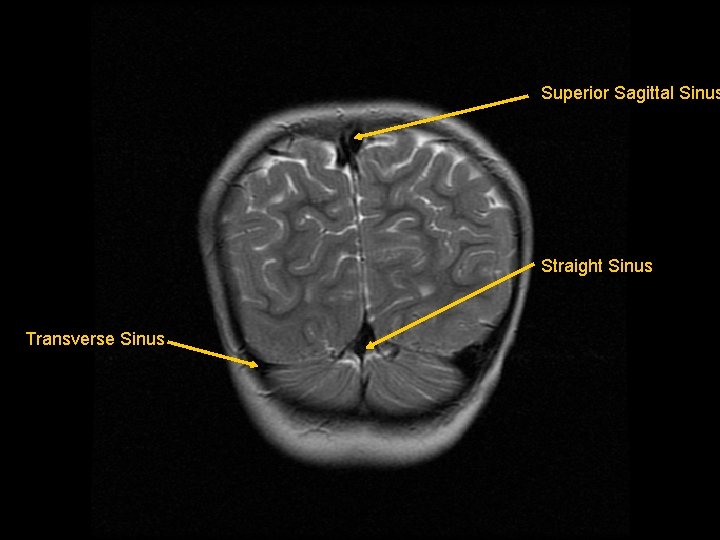

Superior Sagittal Sinus Straight Sinus Transverse Sinus

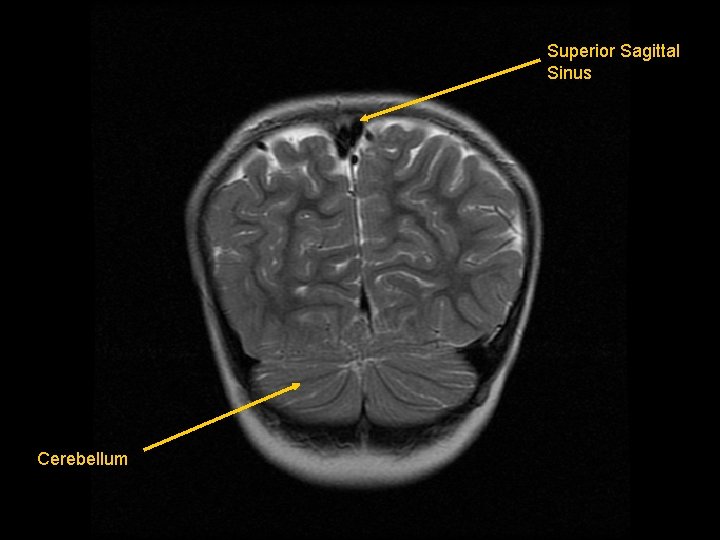

Superior Sagittal Sinus Cerebellum

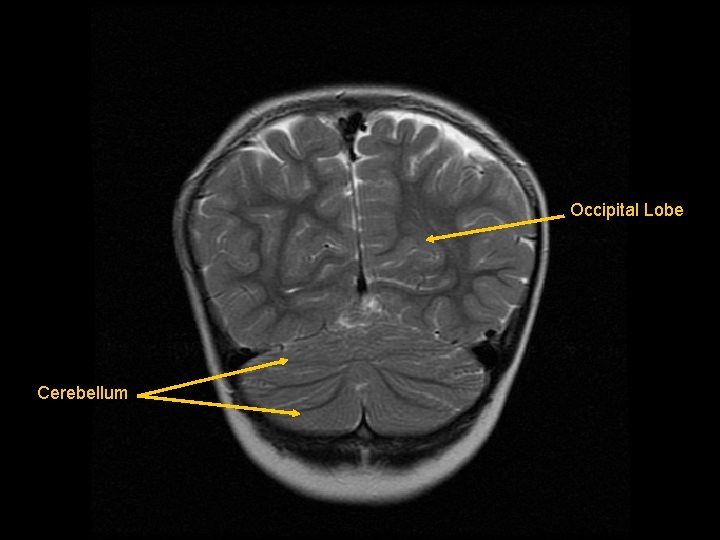

Occipital Lobe Cerebellum

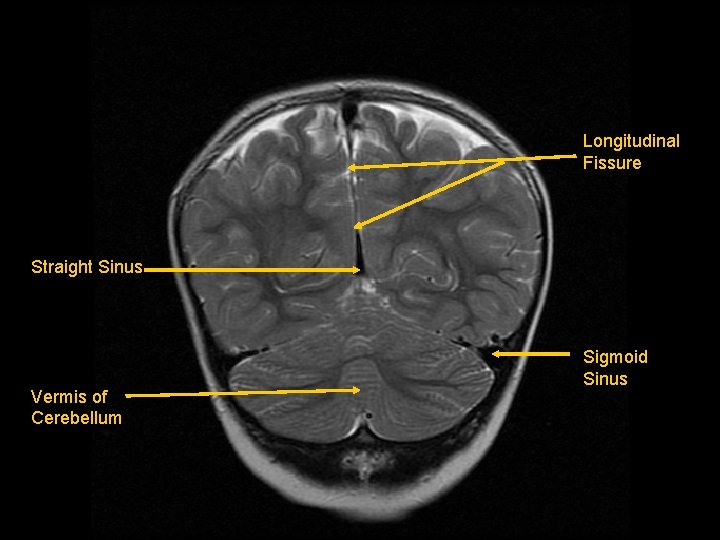

Longitudinal Fissure Straight Sinus Vermis of Cerebellum Sigmoid Sinus

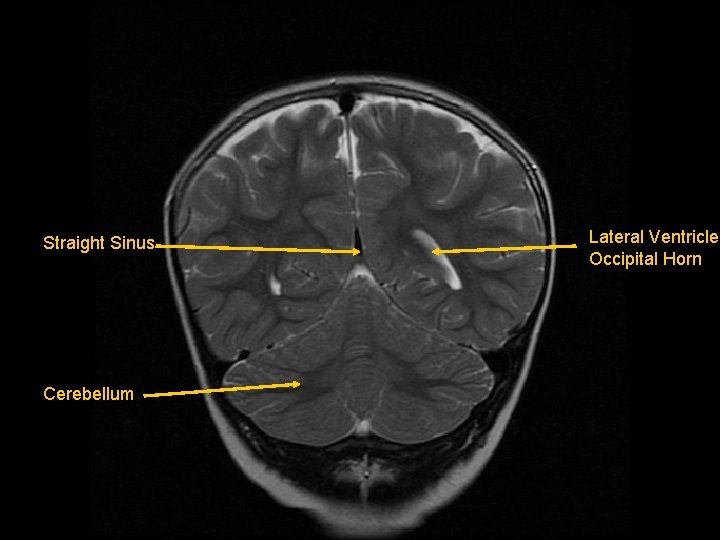

Straight Sinus Cerebellum Lateral Ventricle, Occipital Horn

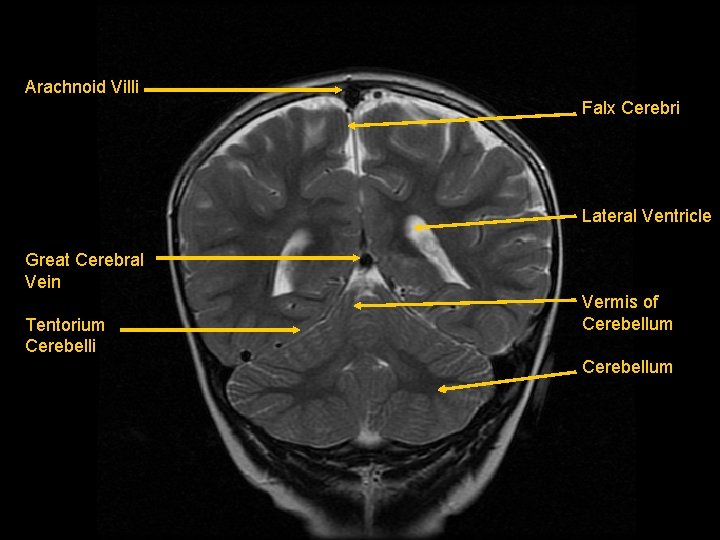

Arachnoid Villi Falx Cerebri Lateral Ventricle Great Cerebral Vein Tentorium Cerebelli Vermis of Cerebellum

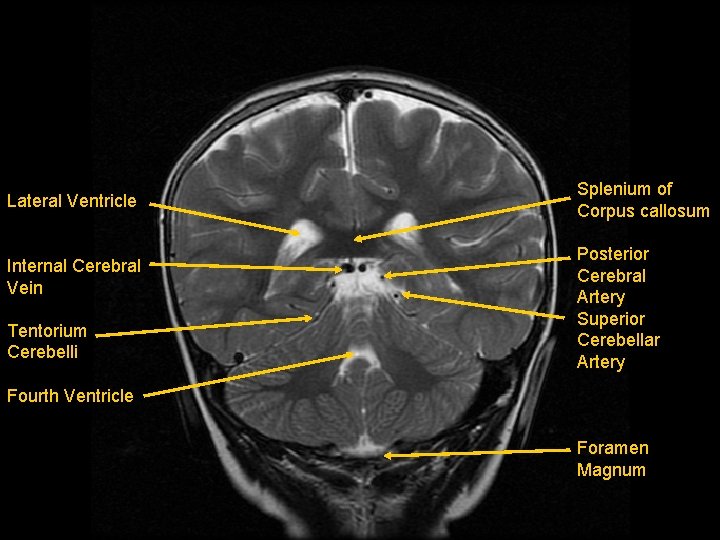

Lateral Ventricle Internal Cerebral Vein Tentorium Cerebelli Splenium of Corpus callosum Posterior Cerebral Artery Superior Cerebellar Artery Fourth Ventricle Foramen Magnum

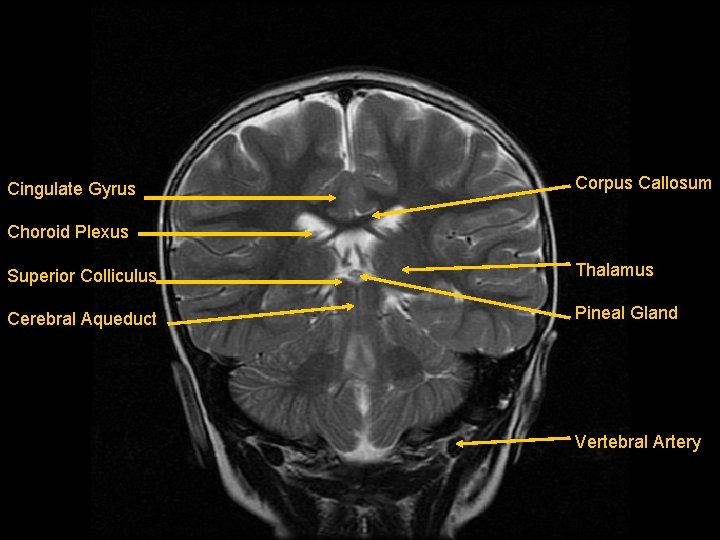

Cingulate Gyrus Corpus Callosum Choroid Plexus Superior Colliculus Thalamus Cerebral Aqueduct Pineal Gland Vertebral Artery

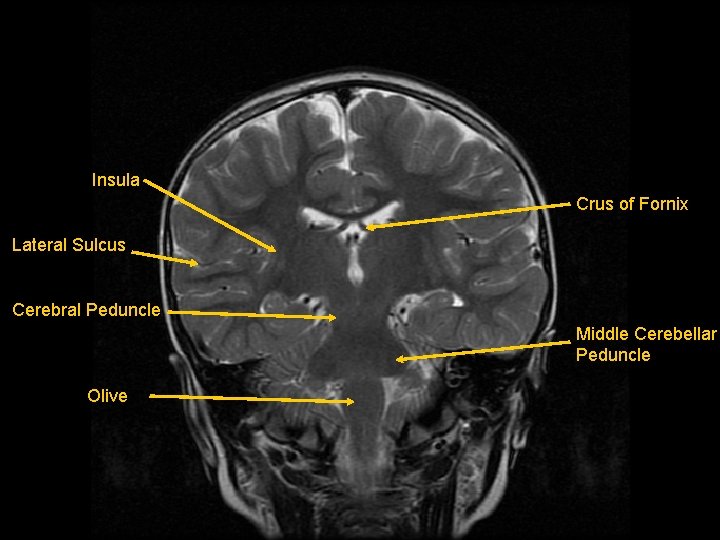

Insula Crus of Fornix Lateral Sulcus Cerebral Peduncle Middle Cerebellar Peduncle Olive

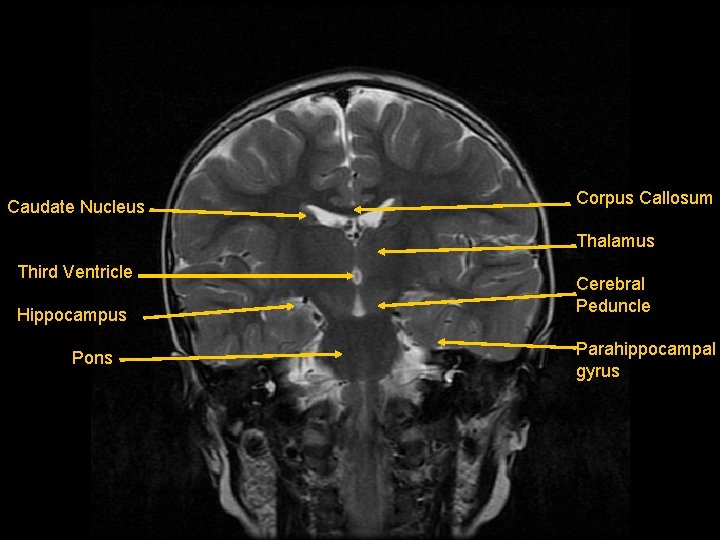

Caudate Nucleus Corpus Callosum Thalamus Third Ventricle Hippocampus Pons Cerebral Peduncle Parahippocampal gyrus

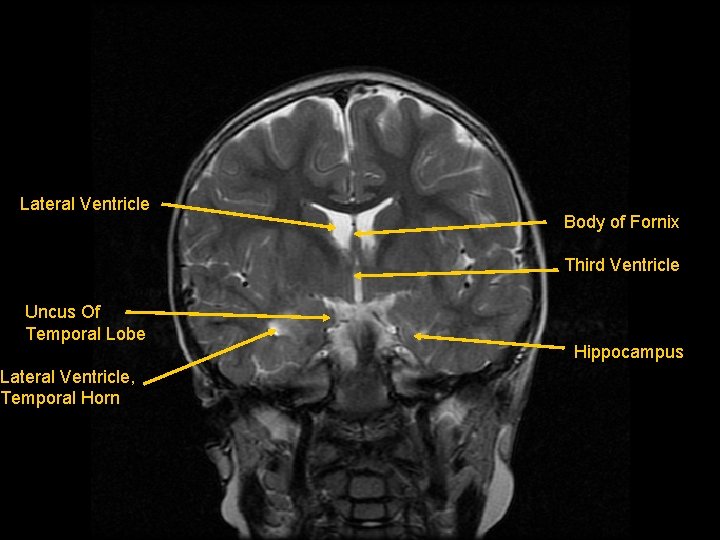

Lateral Ventricle Body of Fornix Third Ventricle Uncus Of Temporal Lobe Lateral Ventricle, Temporal Horn Hippocampus

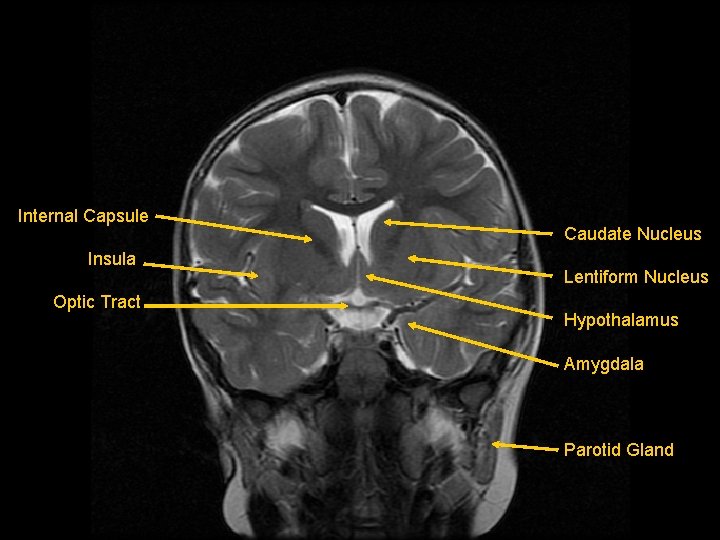

Internal Capsule Insula Optic Tract Caudate Nucleus Lentiform Nucleus Hypothalamus Amygdala Parotid Gland

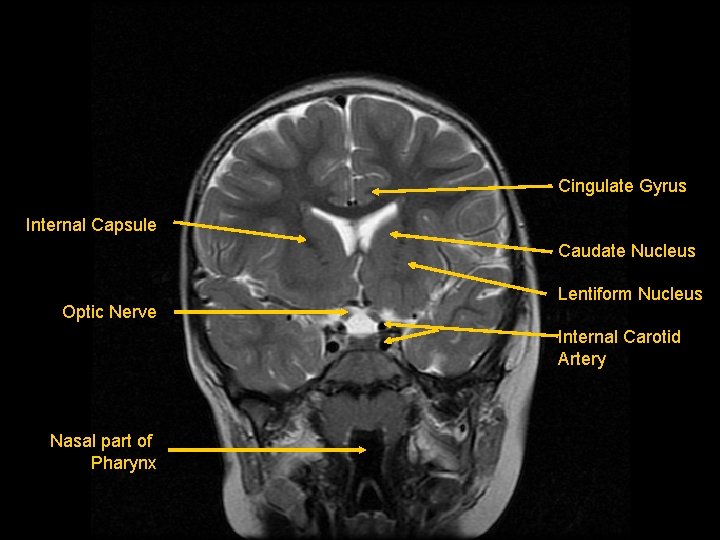

Cingulate Gyrus Internal Capsule Caudate Nucleus Optic Nerve Lentiform Nucleus Internal Carotid Artery Nasal part of Pharynx

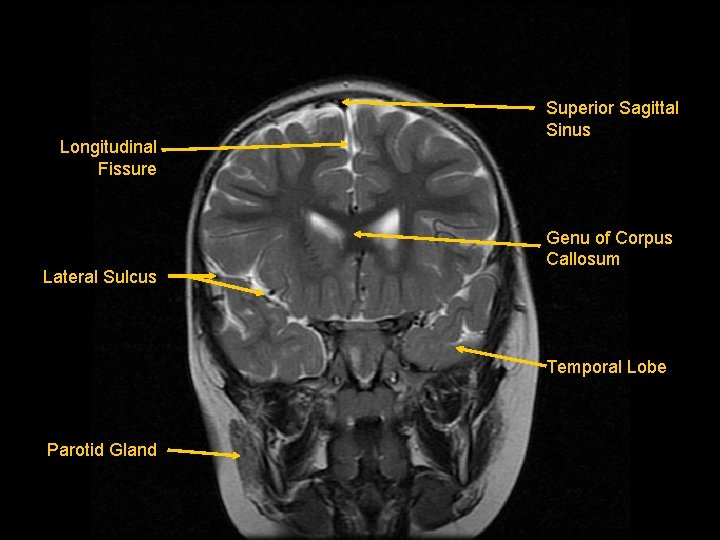

Longitudinal Fissure Lateral Sulcus Superior Sagittal Sinus Genu of Corpus Callosum Temporal Lobe Parotid Gland

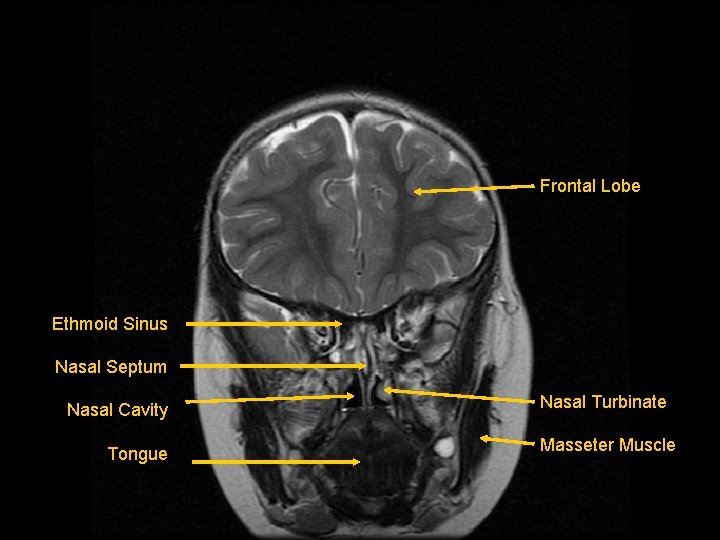

Frontal Lobe Ethmoid Sinus Nasal Septum Nasal Cavity Tongue Nasal Turbinate Masseter Muscle

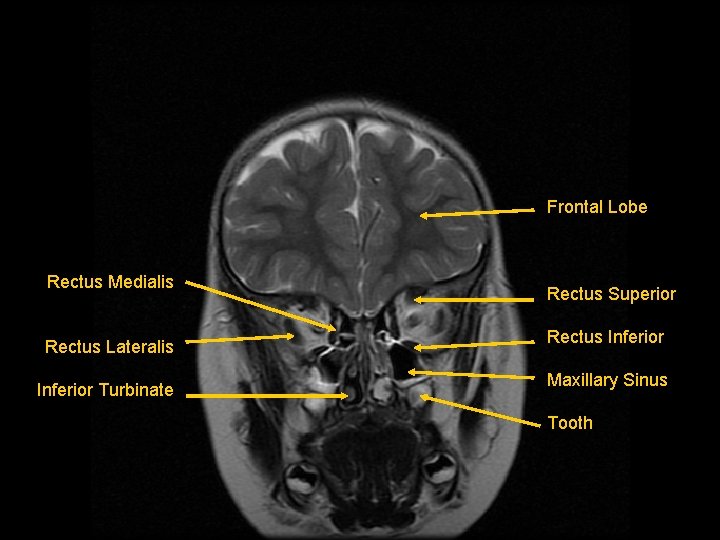

Frontal Lobe Rectus Medialis Rectus Lateralis Inferior Turbinate Rectus Superior Rectus Inferior Maxillary Sinus Tooth

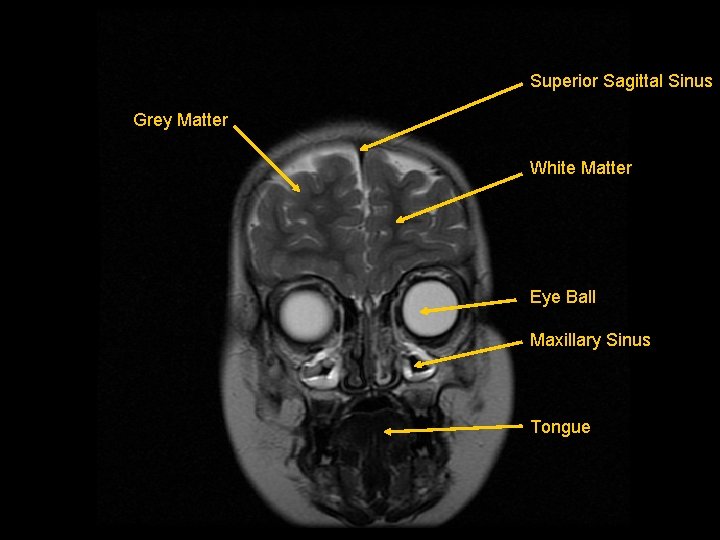

Superior Sagittal Sinus Grey Matter White Matter Eye Ball Maxillary Sinus Tongue

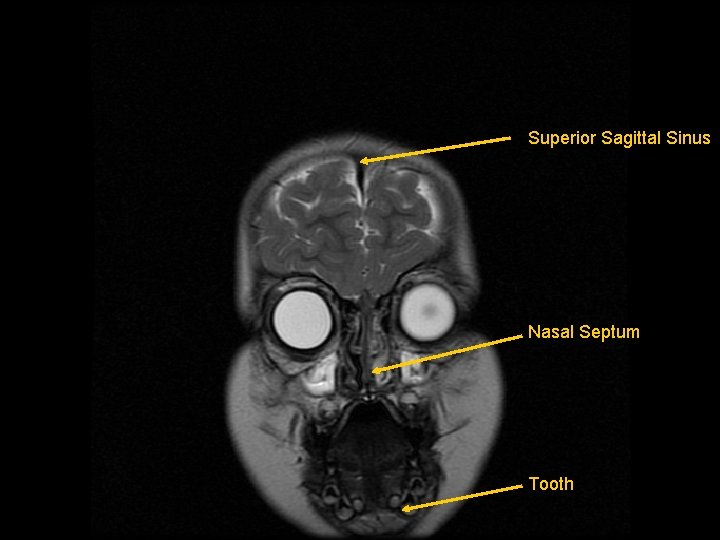

Superior Sagittal Sinus Nasal Septum Tooth

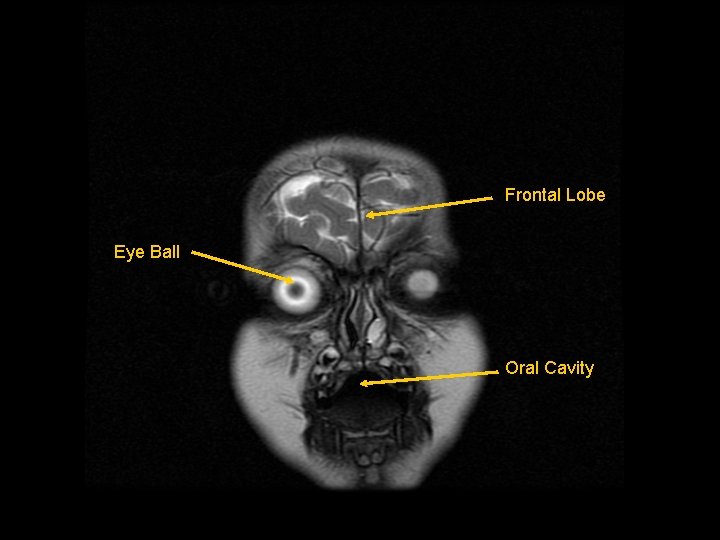

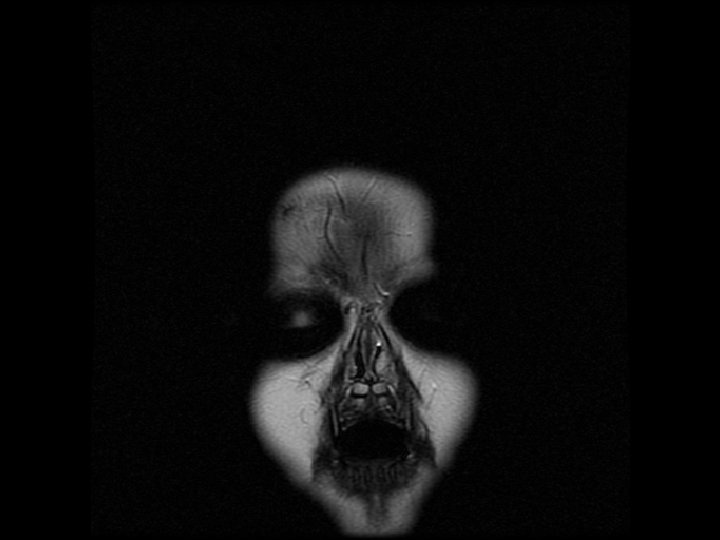

Frontal Lobe Eye Ball Oral Cavity

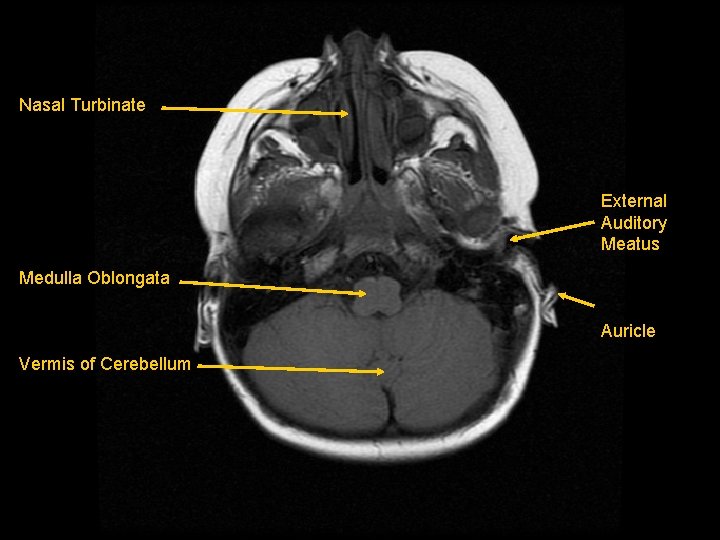

Nasal Turbinate External Auditory Meatus Medulla Oblongata Auricle Vermis of Cerebellum

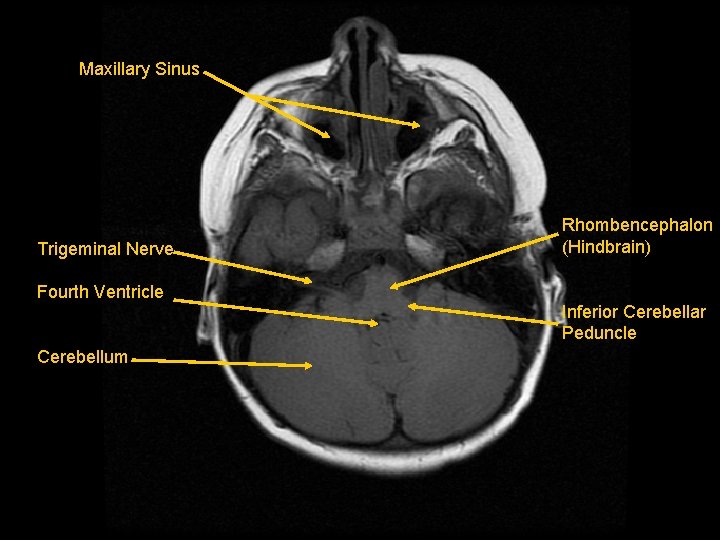

Maxillary Sinus Trigeminal Nerve Fourth Ventricle Cerebellum Rhombencephalon (Hindbrain) Inferior Cerebellar Peduncle

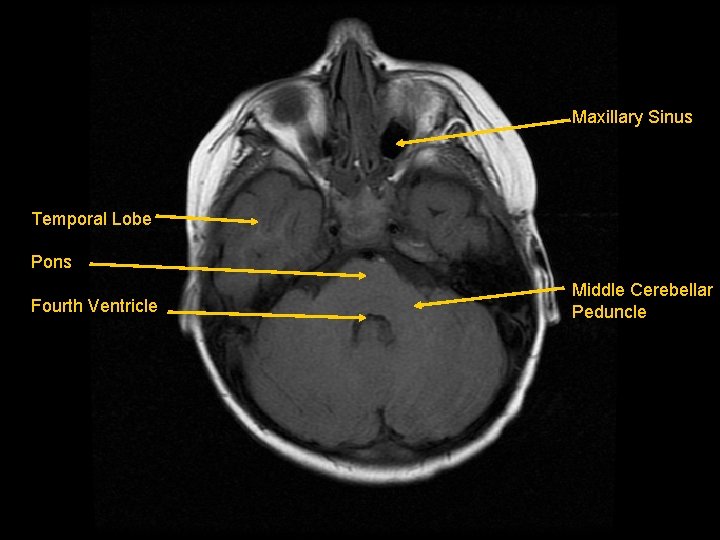

Maxillary Sinus Temporal Lobe Pons Fourth Ventricle Middle Cerebellar Peduncle

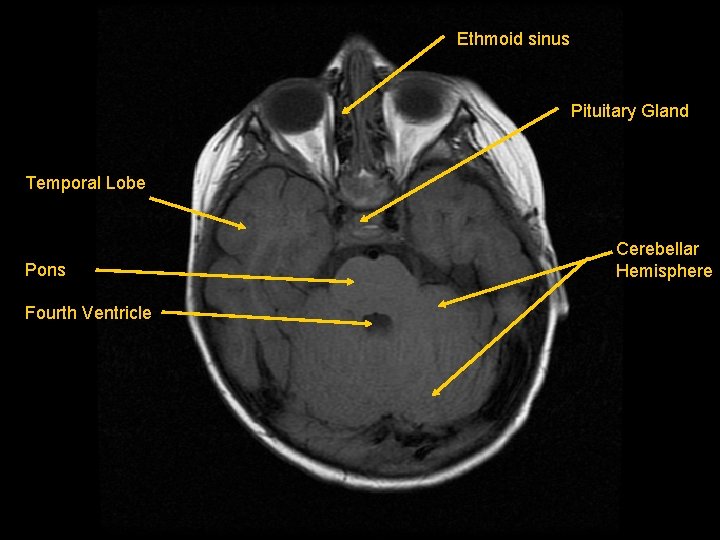

Ethmoid sinus Pituitary Gland Temporal Lobe Pons Fourth Ventricle Cerebellar Hemisphere

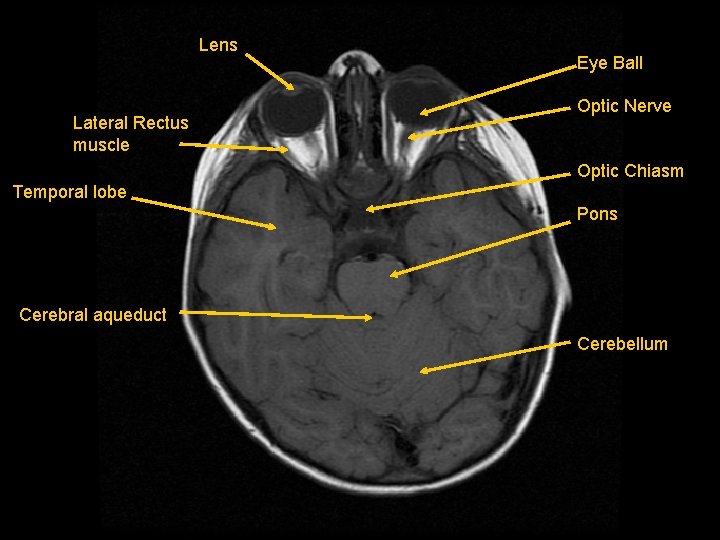

Lens Lateral Rectus muscle Eye Ball Optic Nerve Optic Chiasm Temporal lobe Pons Cerebral aqueduct Cerebellum

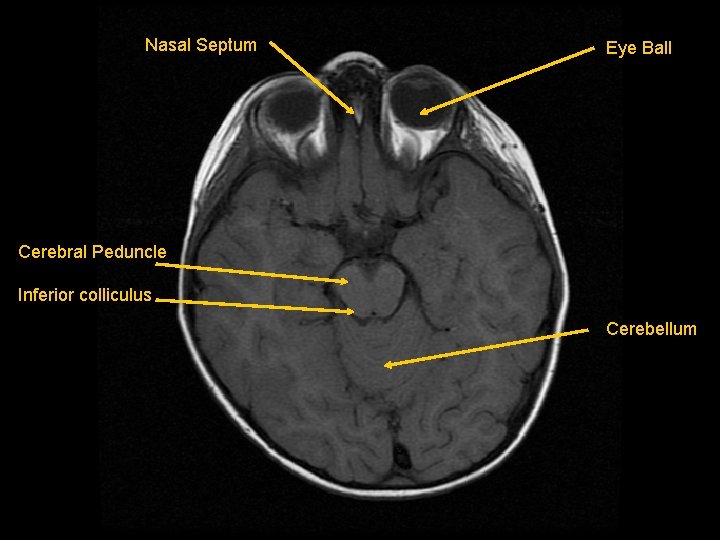

Nasal Septum Eye Ball Cerebral Peduncle Inferior colliculus Cerebellum

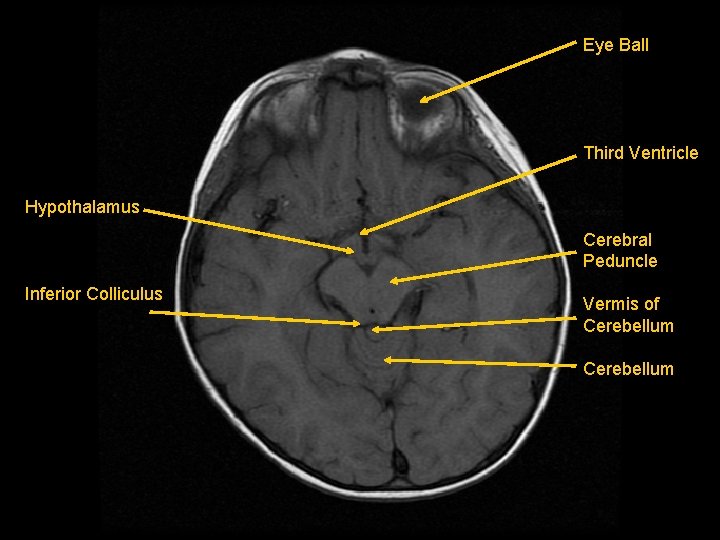

Eye Ball Third Ventricle Hypothalamus Cerebral Peduncle Inferior Colliculus Vermis of Cerebellum

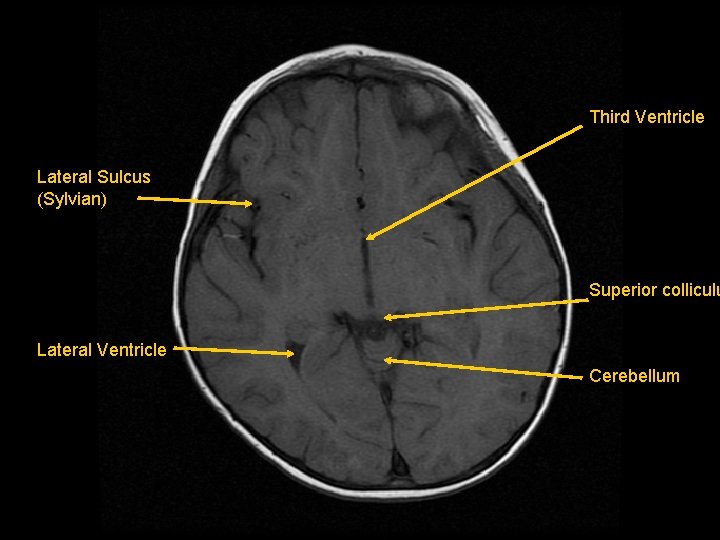

Third Ventricle Lateral Sulcus (Sylvian) Superior colliculu Lateral Ventricle Cerebellum

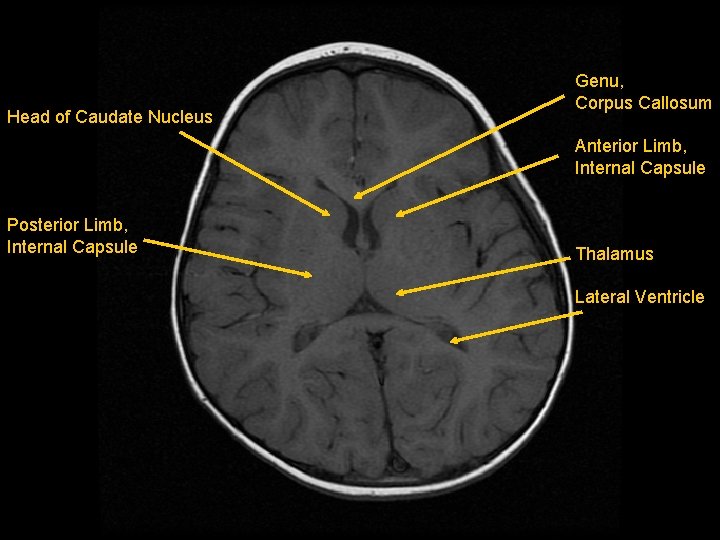

Head of Caudate Nucleus Genu, Corpus Callosum Anterior Limb, Internal Capsule Posterior Limb, Internal Capsule Thalamus Lateral Ventricle

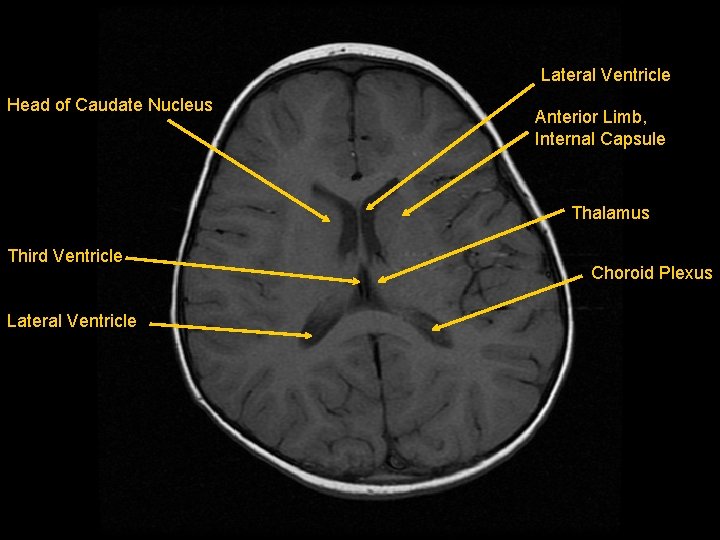

Lateral Ventricle Head of Caudate Nucleus Anterior Limb, Internal Capsule Thalamus Third Ventricle Lateral Ventricle Choroid Plexus

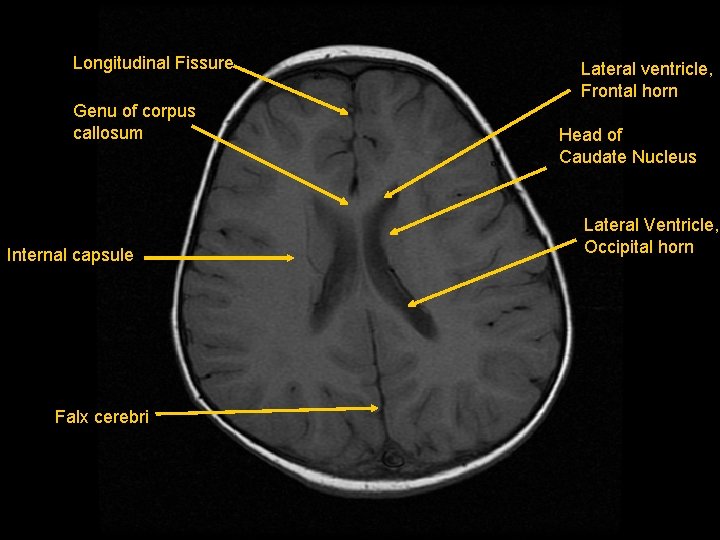

Longitudinal Fissure Genu of corpus callosum Internal capsule Falx cerebri Lateral ventricle, Frontal horn Head of Caudate Nucleus Lateral Ventricle, Occipital horn

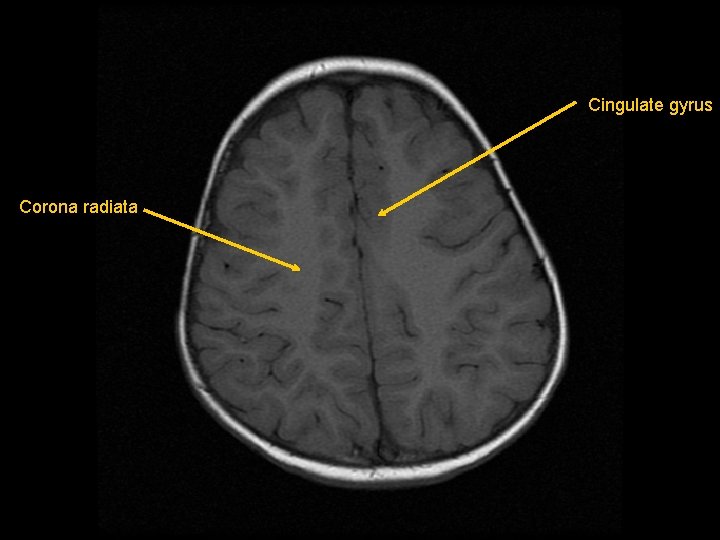

Cingulate gyrus Corona radiata

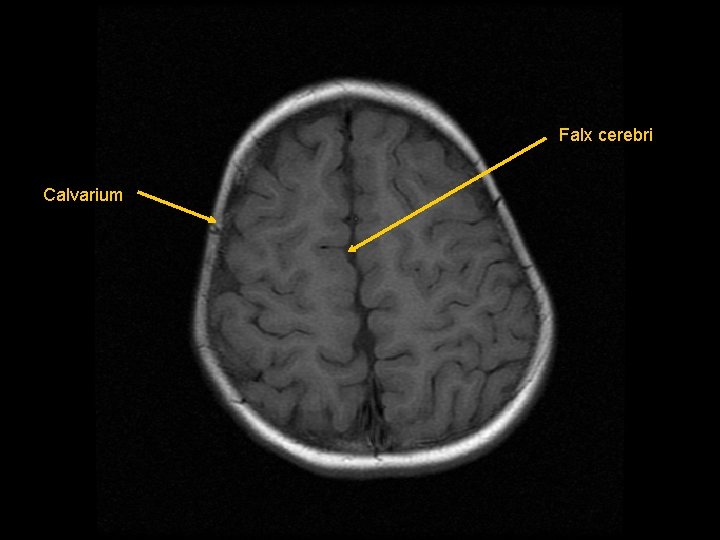

Falx cerebri Calvarium

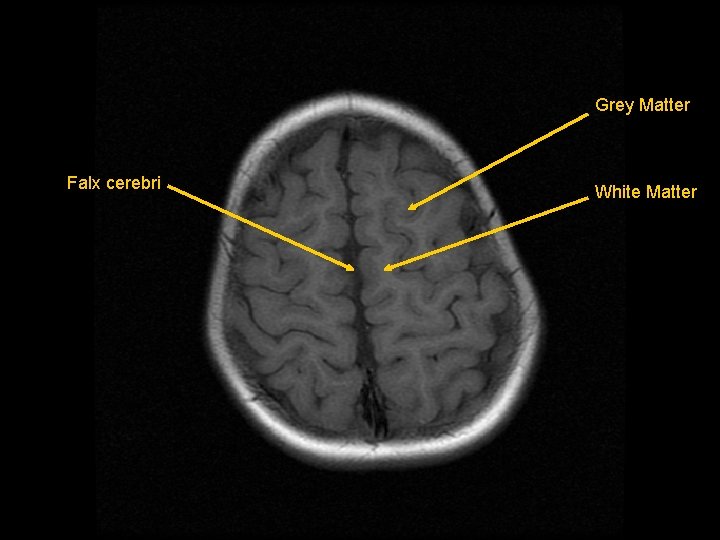

Grey Matter Falx cerebri White Matter

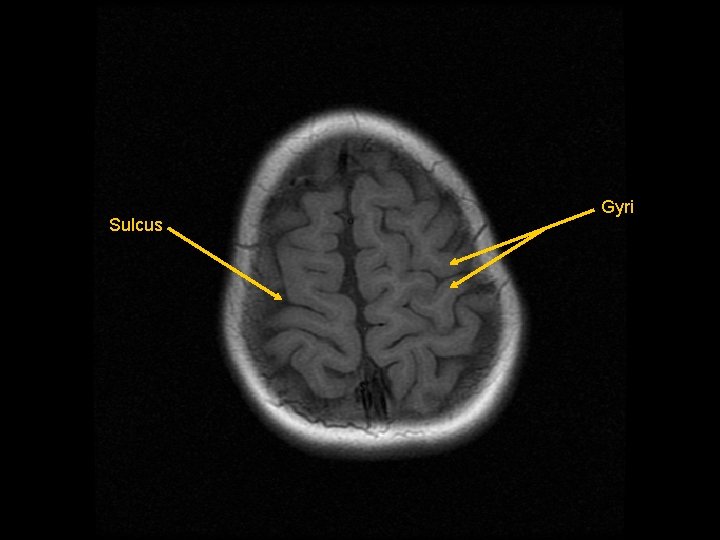

Sulcus Gyri
