MPLS TE Przebieg laboratorium Konfiguracja sieci zgodnie z
MPLS TE
Przebieg laboratorium • Konfiguracja sieci zgodnie z instrukcją • Konfiguracja protokołu OSPF • Konfiguracja MPLS Traffic-Eng – Dynamiczna (rekonfiguracja: zmiana wag łączy, reakcja na uszkodzenie) – Statyczna (reakcja na uszkodzenie) – Statyczno/dynamiczna (reakcja na uszkodzenia) • Konfiguracja LDP Dla każdego kroku proszę zaobserwować stan sieci i jego opis umieścić w sprawozdaniu
Konfiguracja sieci zgodnie z instrukcją ! no ip domain lookup ! interface Loopback 0 ip address 10. 0. 0. 25 255 no shutdown ! interface Fast. Ethernet 0/0 ip address 192. 168. 7. 25 255. 0 no shutdown duplex auto speed auto ip load-sharing per-packet ! interface Serial 0/1/0 ip address 192. 168. 2. 25 255. 0 no shutdown no fair-queue ip load-sharing per-packet !
Konfiguracja sieci zgodnie z instrukcją - konfiguracja ruterów ! no ip domain lookup ! interface Loopback 0 ip address 10. 0. 0. 25 255 no shutdown ! interface Fast. Ethernet 0/0 ip address 192. 168. 7. 25 255. 0 no shutdown duplex auto speed auto ip load-sharing per-packet ! interface Serial 0/1/0 ip address 192. 168. 2. 25 255. 0 no shutdown no fair-queue ip load-sharing per-packet !

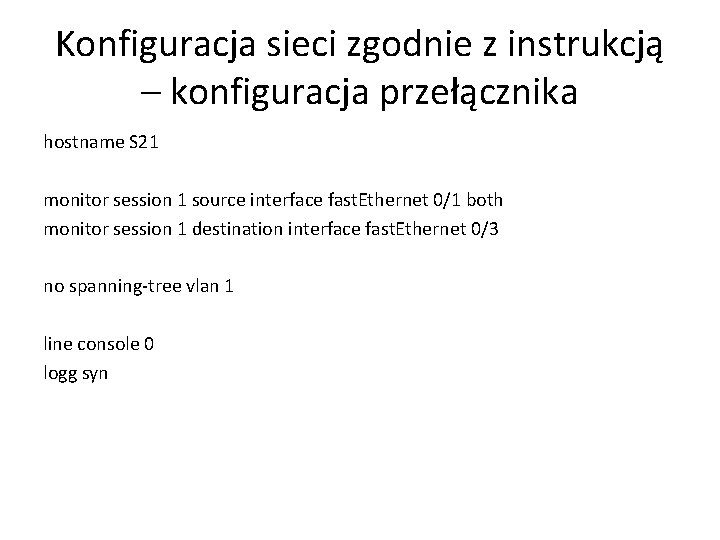

Konfiguracja sieci zgodnie z instrukcją – konfiguracja przełącznika hostname S 21 monitor session 1 source interface fast. Ethernet 0/1 both monitor session 1 destination interface fast. Ethernet 0/3 no spanning-tree vlan 1 line console 0 logg syn
Konfiguracja protokołu OSPF router ospf 1 log-adjacency-changes network 10. 0. 0. 25 0. 0 area 0 network 192. 168. 1. 0 0. 0. 0. 255 area 0 network 192. 168. 2. 0 0. 0. 0. 255 area 0 network 192. 168. 7. 0 0. 0. 0. 255 area 0 !
Konfiguracja MPLS Traffic-Eng – przygotowanie ruterów ! ip cef ! mpls traffic-eng tunnels ! interface Fast. Ethernet 0/1 ip address 192. 168. 4. 23 255. 0 mpls ip mpls traffic-eng tunnels ip rsvp bandwidth 1024 no shutdown !
Konfiguracja OSPF dla MPLS-TE ! router ospf 1 mpls traffic-eng router-id Loopback 0 mpls traffic-eng area 0 log-adjacency-changes network 10. 0. 0. 25 0. 0 area 0 network 192. 168. 1. 0 0. 0. 0. 255 area 0 network 192. 168. 2. 0 0. 0. 0. 255 area 0 network 192. 168. 7. 0 0. 0. 0. 255 area 0 !
Konfiguracja MPLS Traffic-Eng – zestawienie tunelu dynamicznego ! interface Tunnel 1 shutdown ip unnumbered Loopback 0 tunnel destination 10. 0. 0. 22 tunnel mode mpls traffic-eng tunnel mpls traffic-eng autoroute announce tunnel mpls traffic-eng priority 1 1 tunnel mpls traffic-eng bandwidth 100 tunnel mpls traffic-eng path-option 1 dynamic !

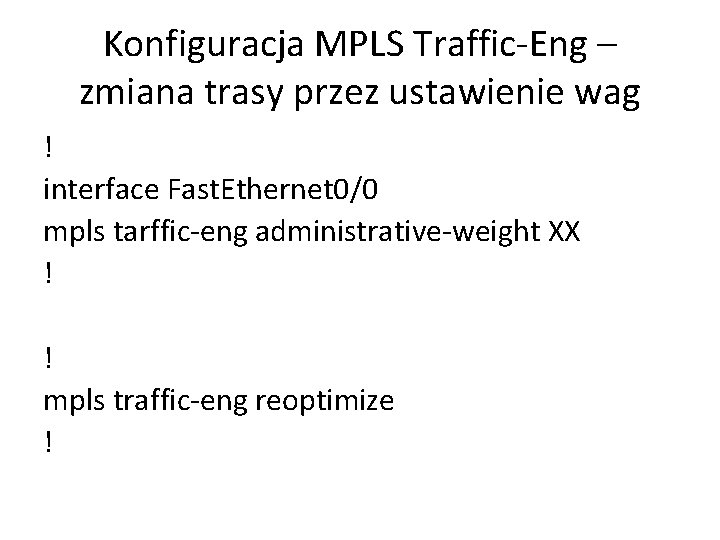

Konfiguracja MPLS Traffic-Eng – zmiana trasy przez ustawienie wag ! interface Fast. Ethernet 0/0 mpls tarffic-eng administrative-weight XX ! ! mpls traffic-eng reoptimize !
Konfiguracja MPLS Traffic-Eng – zmiana trasy przez awarię ! mpls traffic-eng reoptimize ! ! mpls traffic-eng reoptimize events link-up mpls traffic-eng reoptimize events timers !
Konfiguracja MPLS Traffic-Eng – zestawienie tunelu statycznego ! interface Tunnel 2 shutdown ip unnumbered Loopback 0 tunnel destination 10. 0. 0. XX tunnel mode mpls traffic-eng tunnel mpls traffic-eng autoroute announce tunnel mpls traffic-eng priority 1 1 tunnel mpls traffic-eng bandwidth 100 tunnel mpls traffic-eng path-option 1 explicit name LSP 1 tunnel mpls traffic-eng path-option 2 explicit name LSP 2 no routing dynamic !
Konfiguracja MPLS Traffic-Eng – zestawienie tunelu statycznego ! ip explicit-path name LSP 1 enable next-address 192. 168. 2. 23 next-address 192. 168. 4. 22 next-address 10. 0. 0. 22 ! ip explicit-path name LSP 2 enable next-address 192. 168. 2. 23 next-address 192. 168. 3. 24 next-address 192. 168. 5. 22 next-address 10. 0. 0. 22 !
Konfiguracja MPLS Traffic-Eng – zestawienie tunelu statyczno/dynamicznego ! interface Tunnel 3 shutdown ip unnumbered Loopback 0 tunnel destination 10. 0. 0. XX tunnel mode mpls traffic-eng tunnel mpls traffic-eng autoroute announce tunnel mpls traffic-eng priority 1 1 tunnel mpls traffic-eng bandwidth 100 tunnel mpls traffic-eng path-option 1 dynamic tunnel mpls traffic-eng path-option 2 explicit name LSP 2 !
MPLS - LDP ip cef ! interface Loopback 0 ip address 10. 0. 0. 25 255 no shutdown ! interface Serial 0/1/0 ip address 192. 168. 2. 25 255. 0 no shutdown mpls ip no fair-queue ip load-sharing per-packet ! mpls ldp router-id Loopback 0 !
Tunele • Static routing: – ip route 192. 168. 8. 0 255. 0 tunnel 1 • Waga Tunelu dla protokołu OSPF: – Na interfejsie tunnel: – ip ospf cost 1

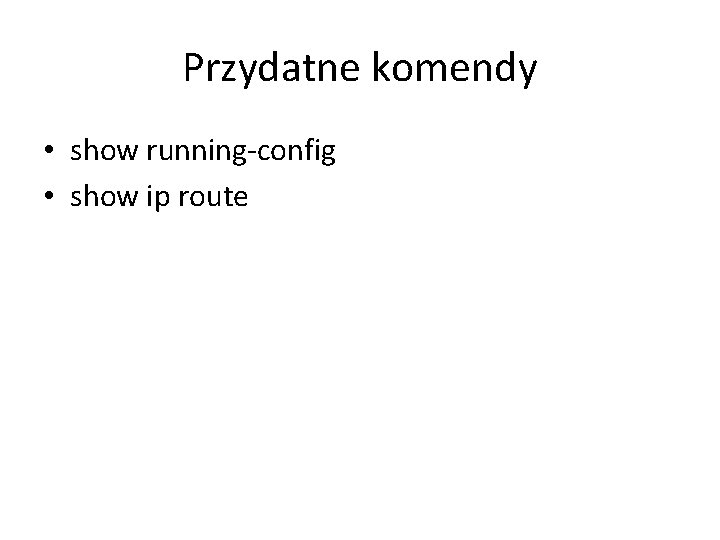

Przydatne komendy • show running-config • show ip route
