MOWER GMD 10 100 Features Benefits JMC 21

MOWER GMD 10 – 100 Features - Benefits JMC 21 01 2014

GMD 16 – 20 – 24 - 28

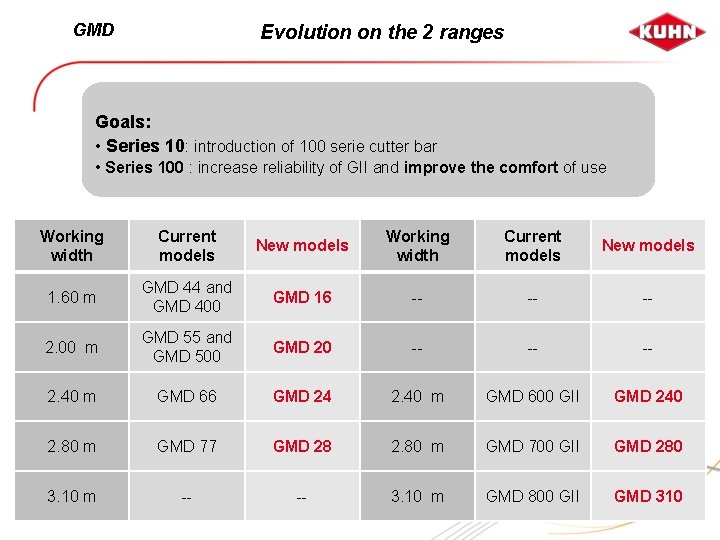

GMD Evolution on the 2 ranges Goals: • Series 10: introduction of 100 serie cutter bar • Series 100 : increase reliability of GII and improve the comfort of use Working width Current models New models 1. 60 m GMD 44 and GMD 400 GMD 16 -- -- -- 2. 00 m GMD 55 and GMD 500 GMD 20 -- -- -- 2. 40 m GMD 66 GMD 24 2. 40 m GMD 600 GII GMD 240 2. 80 m GMD 77 GMD 28 2. 80 m GMD 700 GII GMD 280 3. 10 m -- -- 3. 10 m GMD 800 GII GMD 310

GMD Evolution on the 2 ranges Goal: • Série 10: introduction of 100 series cutter bar Working width Current models New models 1. 60 m GMD 44 and GMD 400 GMD 16 2. 00 m GMD 55 and GMD 500 GMD 20 2. 40 m GMD 66 GMD 24 2. 80 m GMD 77 GMD 28

GMD Evolution on 10 Series New curtain frame and new locking device Cutter bar 100 series • Protectadrive bearing stations • 100 % of the surface of the discs is treated against wearing New frame to tractor Evolutions

GMD Evolution on 10 Series Swath wheel Replaces the swath shield better flow of forage for a better swath formation Hydraulic folding on all models • as option: manual oil pump for tractors without oil distributor Evolutions

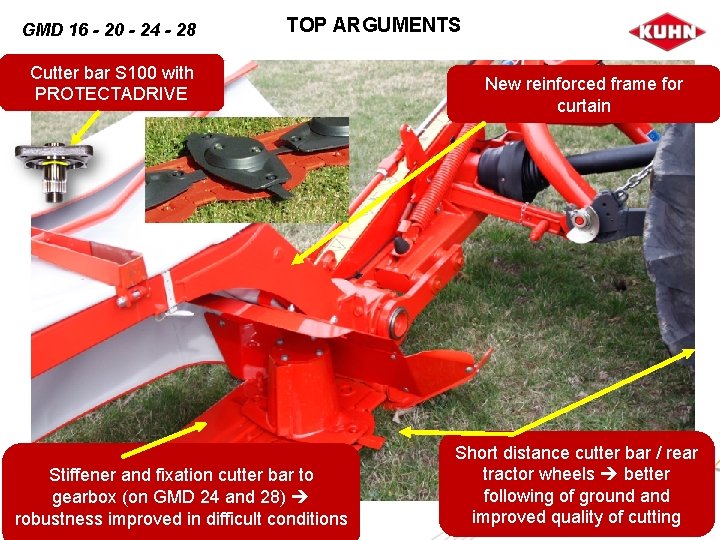

GMD 16 - 20 - 24 - 28 TOP ARGUMENTS Cutter bar S 100 with PROTECTADRIVE Stiffener and fixation cutter bar to gearbox (on GMD 24 and 28) robustness improved in difficult conditions New reinforced frame for curtain Short distance cutter bar / rear tractor wheels better following of ground and improved quality of cutting

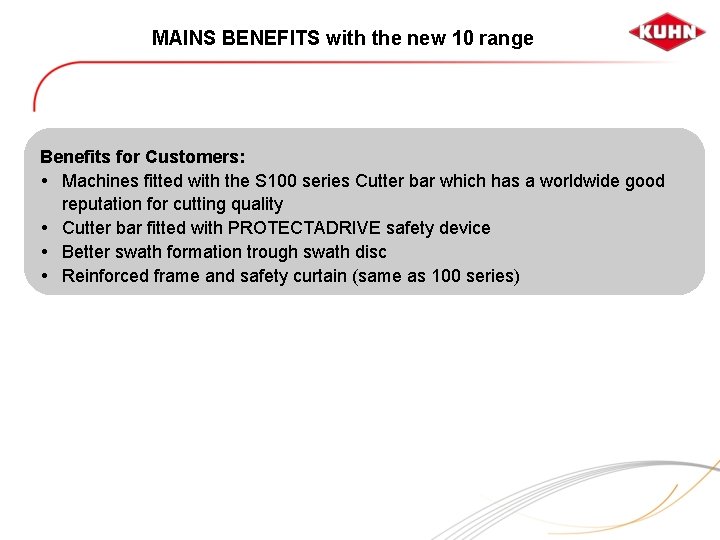

MAINS BENEFITS with the new 10 range Benefits for Customers: Machines fitted with the S 100 series Cutter bar which has a worldwide good reputation for cutting quality Cutter bar fitted with PROTECTADRIVE safety device Better swath formation trough swath disc Reinforced frame and safety curtain (same as 100 series)

GMD 240 -280 - 310

GMD Evolution on 100 series Goals: Series 100 : improve several reliability issues , add comfort of use Working width Current models New models 2. 40 m GMD 600 GII GMD 240 2. 80 m GMD 700 GII GMD 280 3. 10 m GMD 800 GII GMD 310

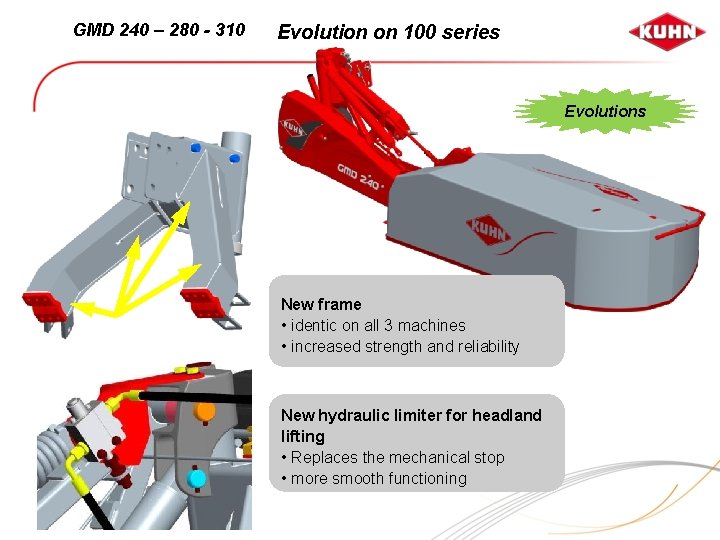

GMD 240 – 280 - 310 Evolution on 100 series Evolutions New frame • identic on all 3 machines • increased strength and reliability New hydraulic limiter for headland lifting • Replaces the mechanical stop • more smooth functioning

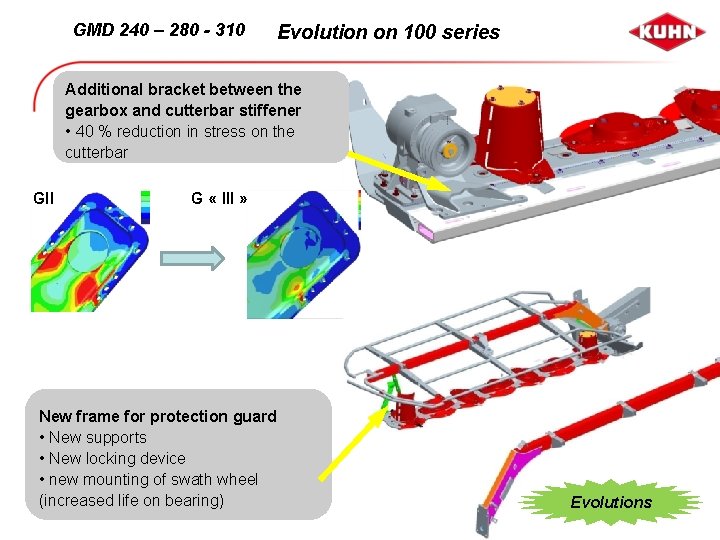

GMD 240 – 280 - 310 Evolution on 100 series Additional bracket between the gearbox and cutterbar stiffener • 40 % reduction in stress on the cutterbar GII G « III » New frame for protection guard • New supports • New locking device • new mounting of swath wheel (increased life on bearing) Evolutions

GMD 240 – 280 - 310 Evolution on 100 series Evolutions New axles and bushes • improved mechanical strength Parking standard New cilinder: • improved corrosion resistance New safety guard • Facilitates the assembly and maintenance of the transmission Bronze bushings: • improved mechanical strength New guard

GMD 240 – 280 - 310 Evolution on 100 series New reinforced shank identic on all 3 models • Stress reduction up to 75% • improved mechanical strength Evolutions Tube thickness changed 4 5 mm Modified design to allow the total use of the belts • increased belt life • cost reduction

GMD 240 – 280 - 310 Evolution on 100 series New protection New safety curtain modification of design and new locking device (locking is not exposed to damage by hedges, fences) Evolutions

GMD 240 – 280 - 310 Evolution on 100 series New design of belt guard with an integrated toolbox Evolutions

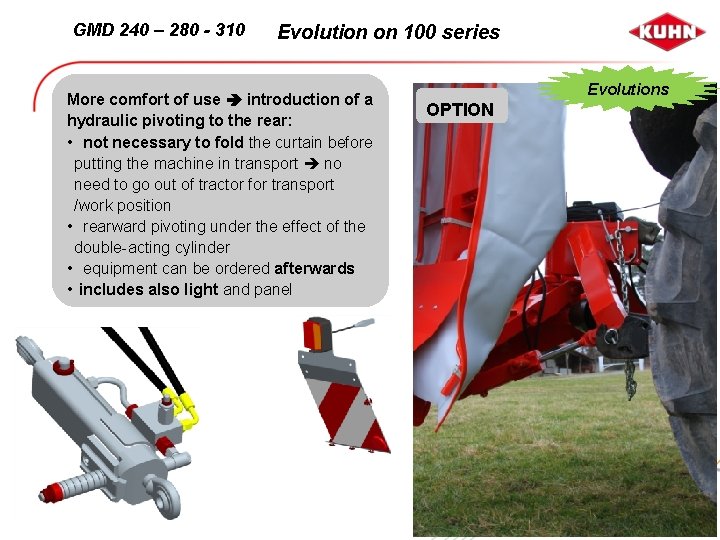

GMD 240 – 280 - 310 Evolution on 100 series More comfort of use introduction of a hydraulic pivoting to the rear: • not necessary to fold the curtain before putting the machine in transport no need to go out of tractor for transport /work position • rearward pivoting under the effect of the double-acting cylinder • equipment can be ordered afterwards • includes also light and panel Evolutions OPTION

BENEFITS for CUSTOMER with new 100 Series Benefits for Customers: Machines fitted with the S 100 series Cutter bar which has a worldwide good reputation for cutting quality Cutter bar fitted with PROTECTADRIVE safety device Better swath formation trough swath disc Good comfort for going from work to transport position (with rear pivoting), without the need to go out of the tractor Compact distance from tractor wheel to cutter bar for a good ground adaptation at high speed mowing Reinforced frame and safety curtain (same as 100 series)

GMD 240 – 280 - 310 TOP ARGUMENTS (1 /2) Cutter bar S 100 with PROTECTADRIVE New: frame, headstock, bronze bushes, … robust and reliable in all difficult situations Hydraulic limiter for headland position Transport position with pivoting cylinder full comfort

GMD 240 – 280 - 310 TOP ARGUMENTS (1 /2) New frame and curtain locking device Short distance cutter bar / rear tractor wheels better following of ground and improved quality of cutting New fixation cutter bar and stiffener to gearbox robustness increased in rough conditions

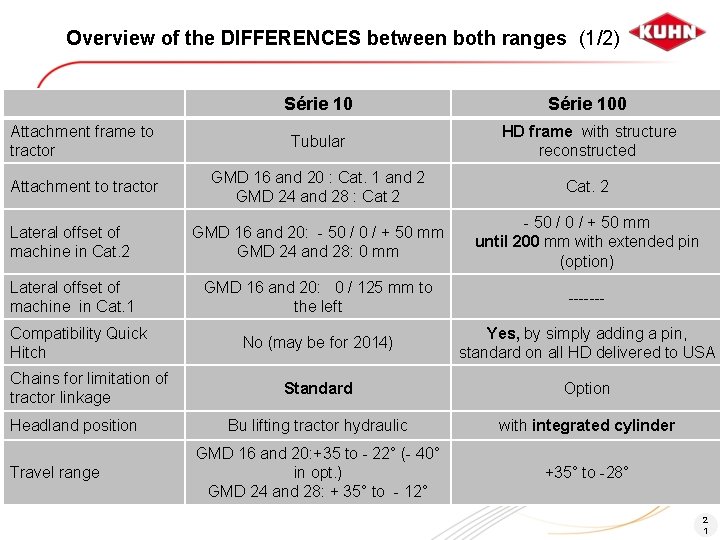

Overview of the DIFFERENCES between both ranges (1/2) Série 100 Attachment frame to tractor Tubular HD frame with structure reconstructed Attachment to tractor GMD 16 and 20 : Cat. 1 and 2 GMD 24 and 28 : Cat 2 Cat. 2 Lateral offset of machine in Cat. 2 GMD 16 and 20: - 50 / + 50 mm GMD 24 and 28: 0 mm - 50 / + 50 mm until 200 mm with extended pin (option) Lateral offset of machine in Cat. 1 GMD 16 and 20: 0 / 125 mm to the left ------- No (may be for 2014) Yes, by simply adding a pin, standard on all HD delivered to USA Standard Option Bu lifting tractor hydraulic with integrated cylinder GMD 16 and 20: +35 to - 22° (- 40° in opt. ) GMD 24 and 28: + 35° to - 12° +35° to -28° Compatibility Quick Hitch Chains for limitation of tractor linkage Headland position Travel range 2 1

Overview of the DIFFERENCES between both ranges (2/2) Série 100 Transport position After having manually fold the front curtain OR from tractor cab with hydraulic pivoting cilinder Articulation frame / cutter bar Plastic bushes Bronze bushes Manual tensioning adjustment Automatic tensioning device Standard (HD could be possible in particular aeras) Standard or HD Bolted Standard: Fast Fit of bolted HD: bolted Tension of belts Discs Fixation of knives Tool box Option, external fixation Standard, integrated on top of belt guard 2 2
