Moving Target Indicator Radar MTI Clutter is the

Moving Target Indicator Radar (MTI) Clutter is the term used for radar targets which are not of interest to the user. Clutter is usually caused by static objects near the radar but sometimes far away as well: n n 1

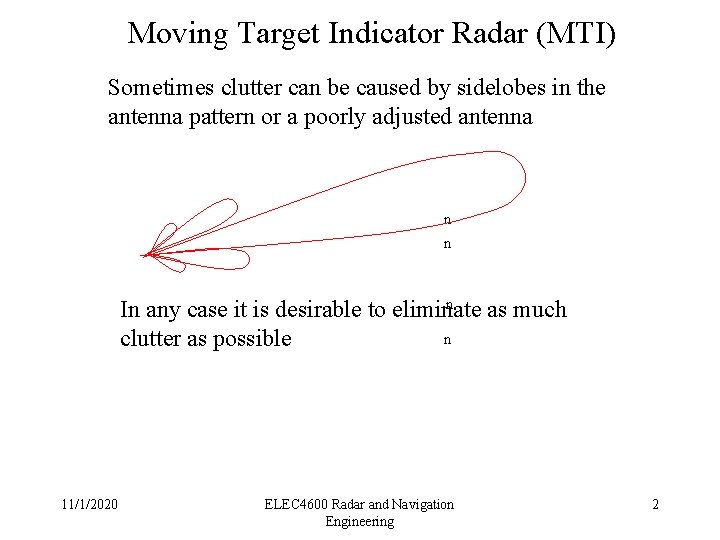

Moving Target Indicator Radar (MTI) Sometimes clutter can be caused by sidelobes in the antenna pattern or a poorly adjusted antenna n n n In any case it is desirable to eliminate as much n clutter as possible 11/1/2020 ELEC 4600 Radar and Navigation Engineering 2

Moving Target Indicator Radar (MTI) This is done by using the fact that the desired target is usually moving relative to the radar and thus causes a Doppler shift in the return signal. The Doppler shift can also be usedn to determine the n relative speed of the target. n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 3

Moving Target Indicator Radar (MTI) The simple CW example can be modified to incorporate pulse modulation n n Note that the same oscillator is used transmission and demodulation of the return Thus the return is processed coherently i. e. the phase of the signal is preserved 11/1/2020 ELEC 4600 Radar and Navigation Engineering 4

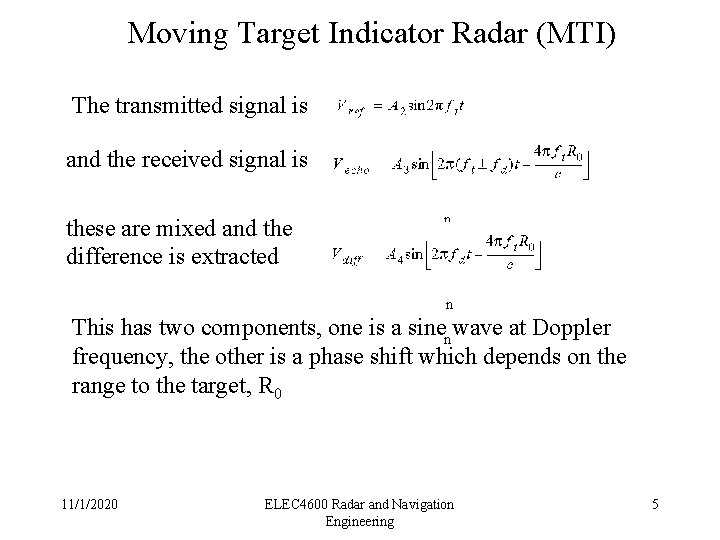

Moving Target Indicator Radar (MTI) The transmitted signal is and the received signal is these are mixed and the difference is extracted n n n This has two components, one is a sinenwave at Doppler frequency, the other is a phase shift which depends on the range to the target, R 0 11/1/2020 ELEC 4600 Radar and Navigation Engineering 5

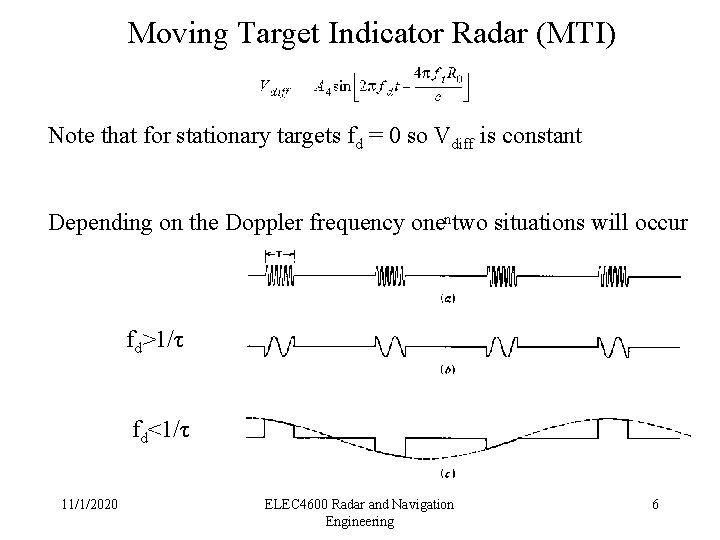

Moving Target Indicator Radar (MTI) Note that for stationary targets fd = 0 so Vdiff is constant Depending on the Doppler frequency onentwo situations will occur n n fd>1/τ n fd<1/τ 11/1/2020 ELEC 4600 Radar and Navigation Engineering 6

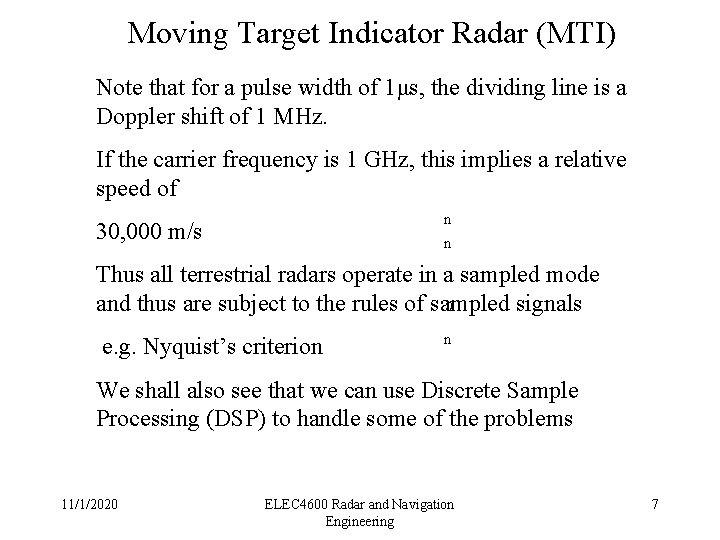

Moving Target Indicator Radar (MTI) Note that for a pulse width of 1μs, the dividing line is a Doppler shift of 1 MHz. If the carrier frequency is 1 GHz, this implies a relative speed of n n 30, 000 m/s Thus all terrestrial radars operate in a sampled mode n and thus are subject to the rules of sampled signals e. g. Nyquist’s criterion n We shall also see that we can use Discrete Sample Processing (DSP) to handle some of the problems 11/1/2020 ELEC 4600 Radar and Navigation Engineering 7

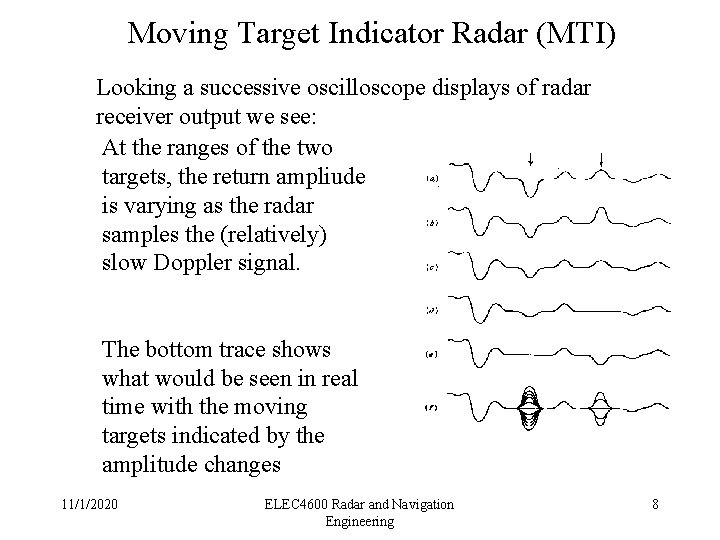

Moving Target Indicator Radar (MTI) Looking a successive oscilloscope displays of radar receiver output we see: At the ranges of the two targets, the return ampliude is varying as the radar n samples the (relatively) n slow Doppler signal. n The bottom trace shows what would be seen in real time with the moving targets indicated by the amplitude changes 11/1/2020 n ELEC 4600 Radar and Navigation Engineering 8

Moving Target Indicator Radar (MTI) We usually want to process the information automatically. To do this we take advantage of the fact that the amplitudes of successive pulse returns are different: n n n OR n z-1 11/1/2020 ELEC 4600 Radar and Navigation Engineering 9

Moving Target Indicator Radar (MTI) MTI Radar Block Diagrams MOPA (master oscillator, power amplifier) Power amplifiers: Klystron TWT (Travelling wave tube) Solid State (Parallel) n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 10

Moving Target Indicator Radar (MTI) One of the problems with MTI in pulsed radars is that magnetrons are ON/OFF devices. i. e. When the magnetron is pulsed it starts up with a random n phase and is thus its ouput is not coherent with the pulse n before it. Also it can not provide a reference oscillator to mix with the received signals. n n Therefore some means must be provided to maintain the coherence (at least during a single pulse period) 11/1/2020 ELEC 4600 Radar and Navigation Engineering 11

Moving Target Indicator Radar (MTI) n n n PLL n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 12

Moving Target Indicator Radar (MTI) The notes have a section on various types of delay line cancellers. This is a bit out of date because almost all radars today n required use digitized data and implementing the n delays is relatively trivial but it also opens up much more complex processing possibilities n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 13

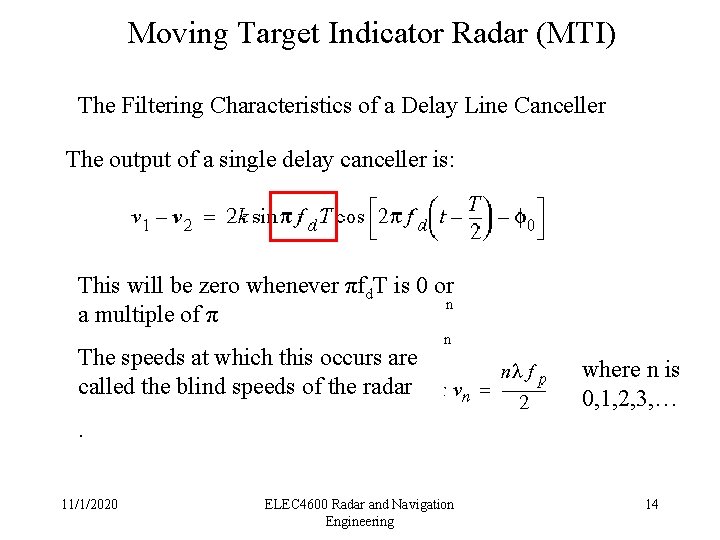

Moving Target Indicator Radar (MTI) The Filtering Characteristics of a Delay Line Canceller The output of a single delay canceller is: n n This will be zero whenever πfd. T is 0 or n a multiple of π The speeds at which this occurs are called the blind speeds of the radar n where n is 0, 1, 2, 3, … . 11/1/2020 ELEC 4600 Radar and Navigation Engineering 14

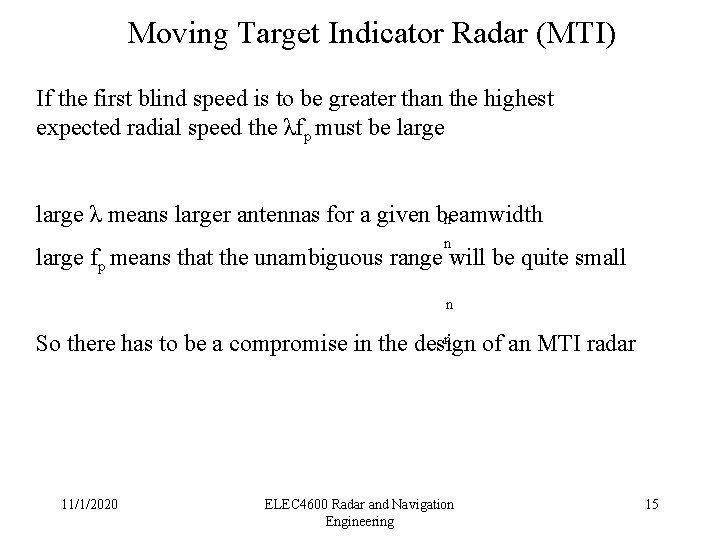

Moving Target Indicator Radar (MTI) If the first blind speed is to be greater than the highest expected radial speed the λfp must be large λ means larger antennas for a given beamwidth n n large fp means that the unambiguous range will be quite small n n So there has to be a compromise in the design of an MTI radar 11/1/2020 ELEC 4600 Radar and Navigation Engineering 15

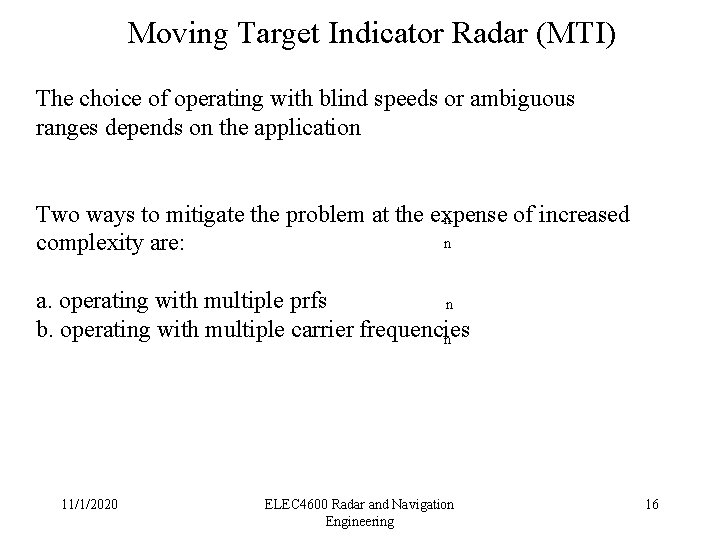

Moving Target Indicator Radar (MTI) The choice of operating with blind speeds or ambiguous ranges depends on the application Two ways to mitigate the problem at the expense of increased n n complexity are: a. operating with multiple prfs n b. operating with multiple carrier frequencies n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 16

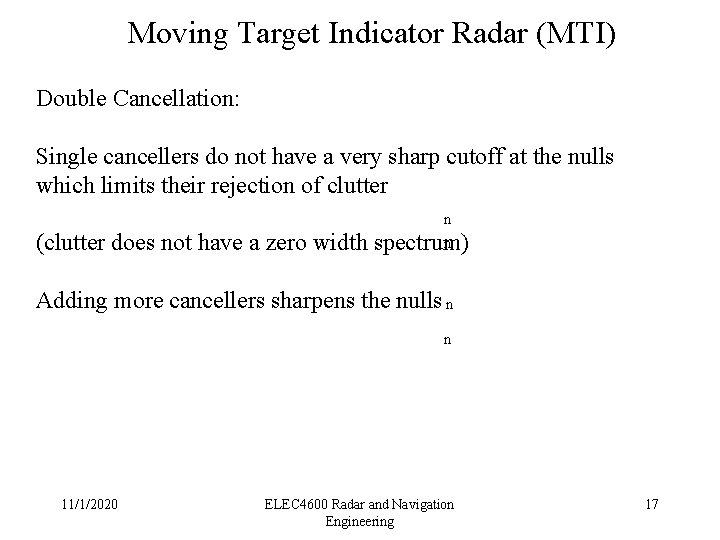

Moving Target Indicator Radar (MTI) Double Cancellation: Single cancellers do not have a very sharp cutoff at the nulls which limits their rejection of clutter (clutter does not have a zero width n n spectrum) Adding more cancellers sharpens the nulls n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 17

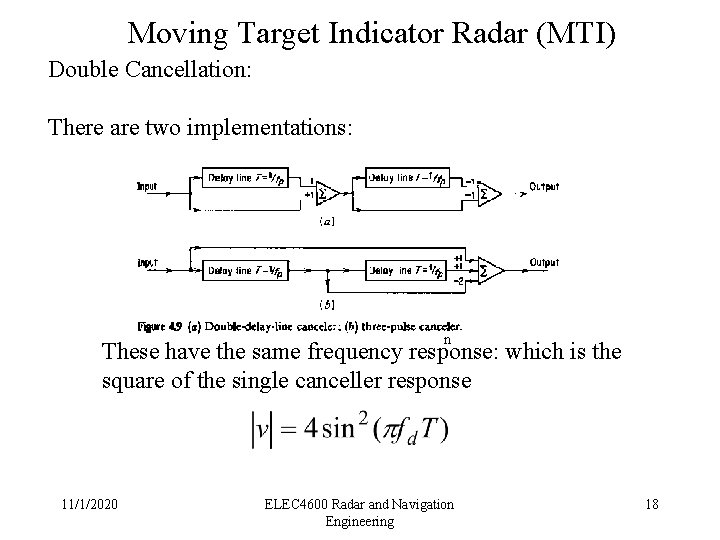

Moving Target Indicator Radar (MTI) Double Cancellation: There are two implementations: n n These have the same frequency response: which is the square of the single canceller response 11/1/2020 ELEC 4600 Radar and Navigation Engineering 18

Moving Target Indicator Radar (MTI) Double Cancellation: n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 19

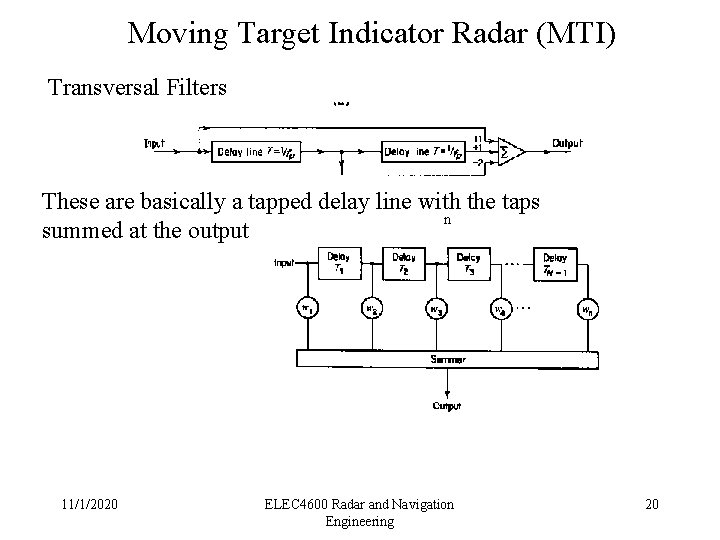

Moving Target Indicator Radar (MTI) Transversal Filters These are basically a tapped delay line with the taps n summed at the output n n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 20

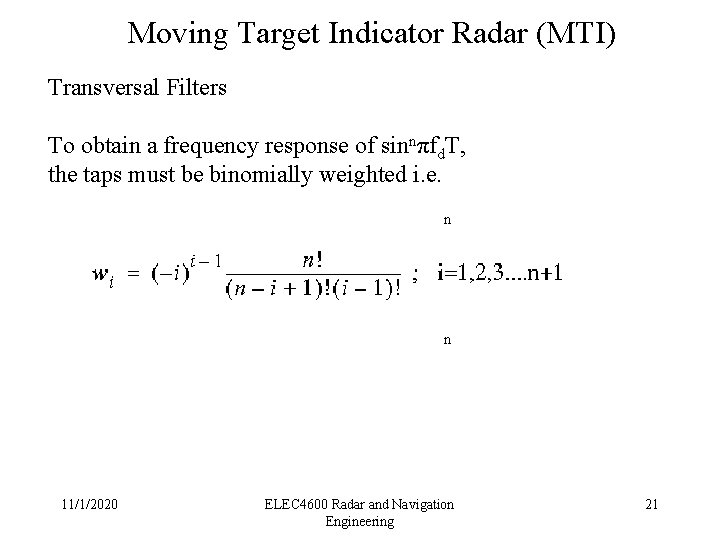

Moving Target Indicator Radar (MTI) Transversal Filters To obtain a frequency response of sinnπfd. T, the taps must be binomially weighted i. e. n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 21

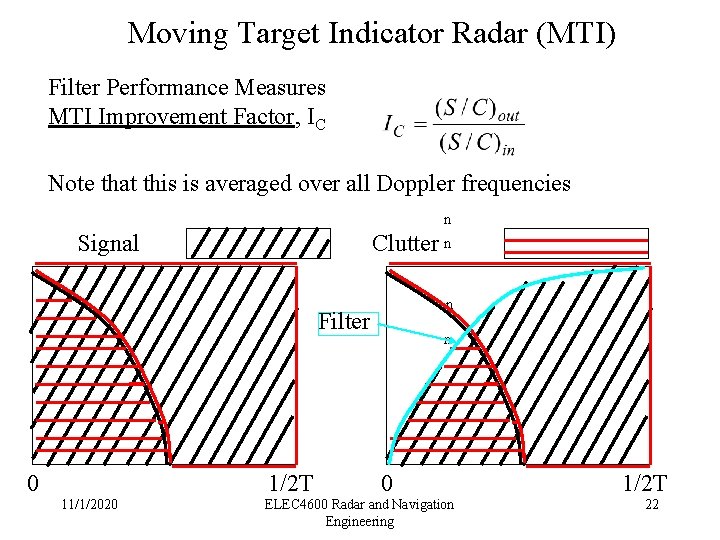

Moving Target Indicator Radar (MTI) Filter Performance Measures MTI Improvement Factor, IC Note that this is averaged over all Doppler frequencies Signal Clutter n Filter 0 1/2 T 11/1/2020 n n n 0 ELEC 4600 Radar and Navigation Engineering 1/2 T 22

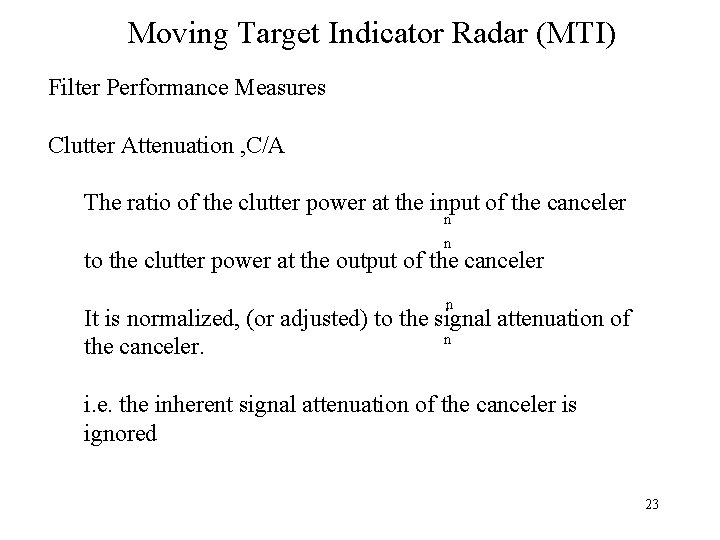

Moving Target Indicator Radar (MTI) Filter Performance Measures Clutter Attenuation , C/A The ratio of the clutter power at the input of the canceler n n to the clutter power at the output of the canceler n It is normalized, (or adjusted) to the signal attenuation of n the canceler. i. e. the inherent signal attenuation of the canceler is ignored 23

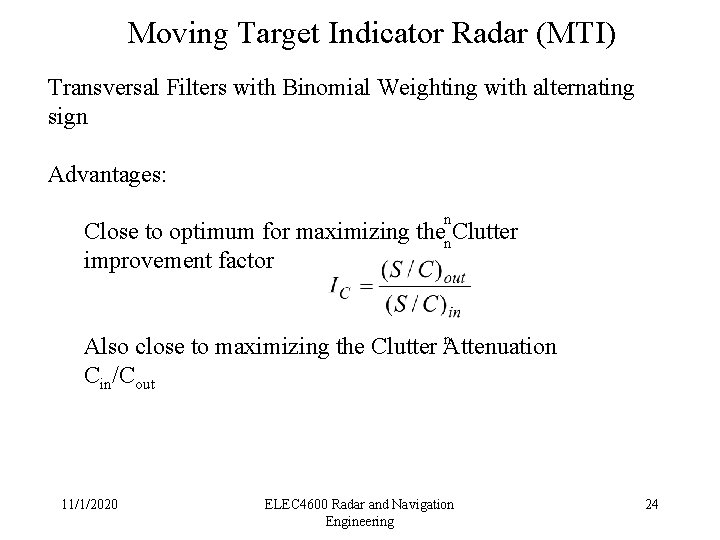

Moving Target Indicator Radar (MTI) Transversal Filters with Binomial Weighting with alternating sign Advantages: Close to optimum for maximizing improvement factor n then. Clutter n n Also close to maximizing the Clutter Attenuation Cin/Cout 11/1/2020 ELEC 4600 Radar and Navigation Engineering 24

Moving Target Indicator Radar (MTI) Transversal Filters with Binomial Weighting with alternating sign Disadvantage: sinn n more n As n increases the filter cuts off and more of the spectrum around DC and multiples of PRF n This leads to wider blind speed zones and hence loss of n legitimate targets. 11/1/2020 ELEC 4600 Radar and Navigation Engineering 25

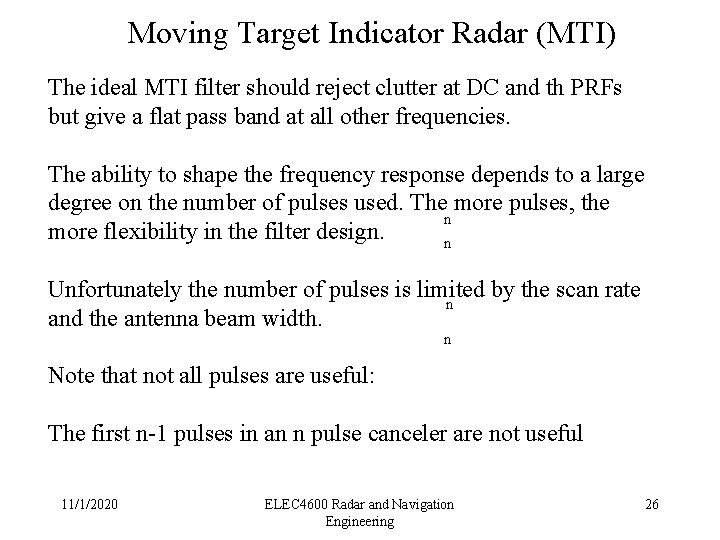

Moving Target Indicator Radar (MTI) The ideal MTI filter should reject clutter at DC and th PRFs but give a flat pass band at all other frequencies. The ability to shape the frequency response depends to a large degree on the number of pulses used. The more pulses, the n more flexibility in the filter design. n Unfortunately the number of pulses is limited by the scan rate n and the antenna beam width. n Note that not all pulses are useful: The first n-1 pulses in an n pulse canceler are not useful 11/1/2020 ELEC 4600 Radar and Navigation Engineering 26

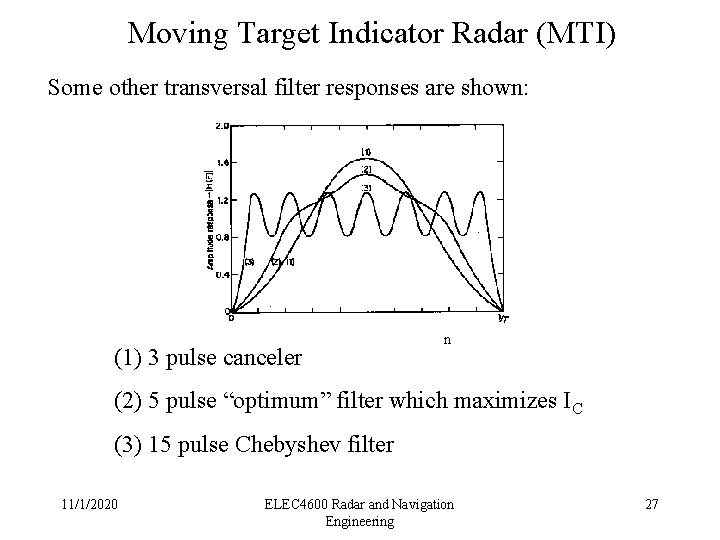

Moving Target Indicator Radar (MTI) Some other transversal filter responses are shown: n n n (1) 3 pulse canceler n (2) 5 pulse “optimum” filter which maximizes IC (3) 15 pulse Chebyshev filter 11/1/2020 ELEC 4600 Radar and Navigation Engineering 27

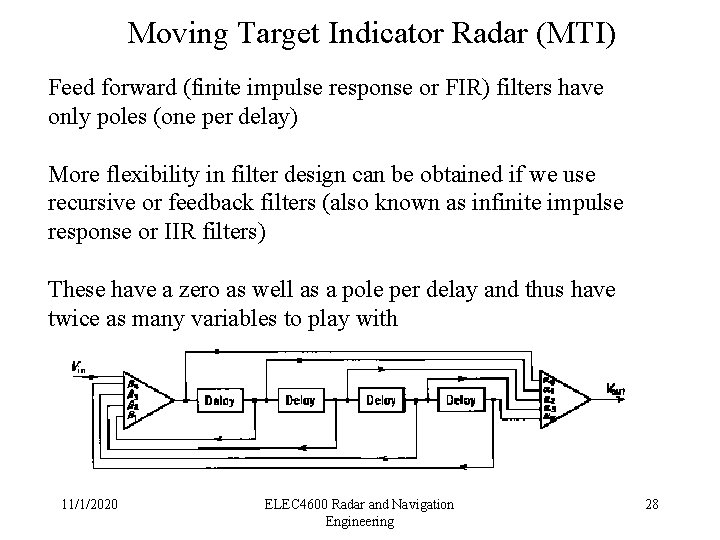

Moving Target Indicator Radar (MTI) Feed forward (finite impulse response or FIR) filters have only poles (one per delay) More flexibility in filter design can be obtained if we use recursive or feedback filters (also known as infinite impulse response or IIR filters) These have a zero as well as a pole per delay and thus have twice as many variables to play with 11/1/2020 ELEC 4600 Radar and Navigation Engineering 28

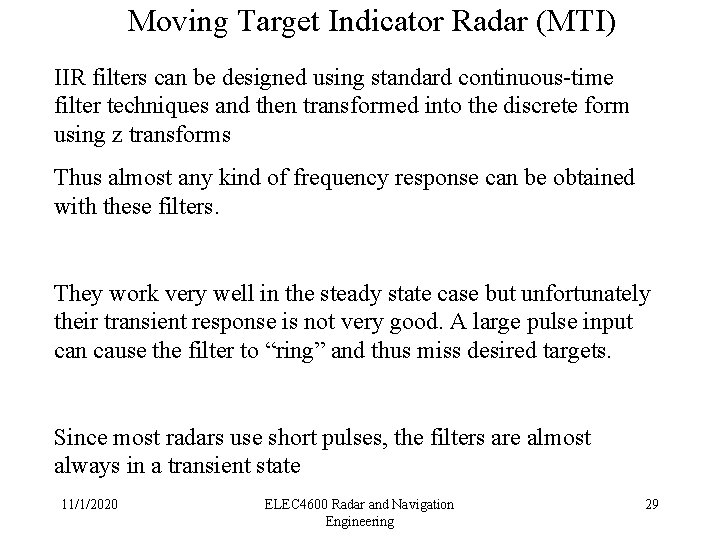

Moving Target Indicator Radar (MTI) IIR filters can be designed using standard continuous-time filter techniques and then transformed into the discrete form using z transforms Thus almost any kind of frequency response can be obtained with these filters. They work very well in the steady state case but unfortunately their transient response is not very good. A large pulse input can cause the filter to “ring” and thus miss desired targets. Since most radars use short pulses, the filters are almost always in a transient state 11/1/2020 ELEC 4600 Radar and Navigation Engineering 29

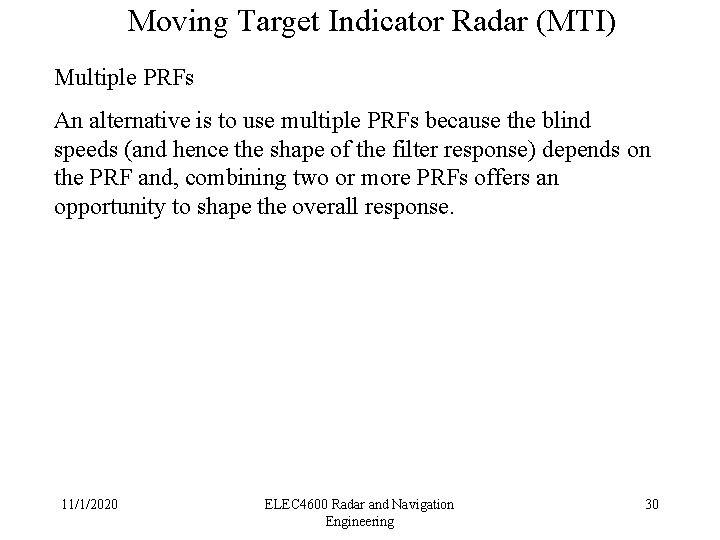

Moving Target Indicator Radar (MTI) Multiple PRFs An alternative is to use multiple PRFs because the blind speeds (and hence the shape of the filter response) depends on the PRF and, combining two or more PRFs offers an opportunity to shape the overall response. 11/1/2020 ELEC 4600 Radar and Navigation Engineering 30

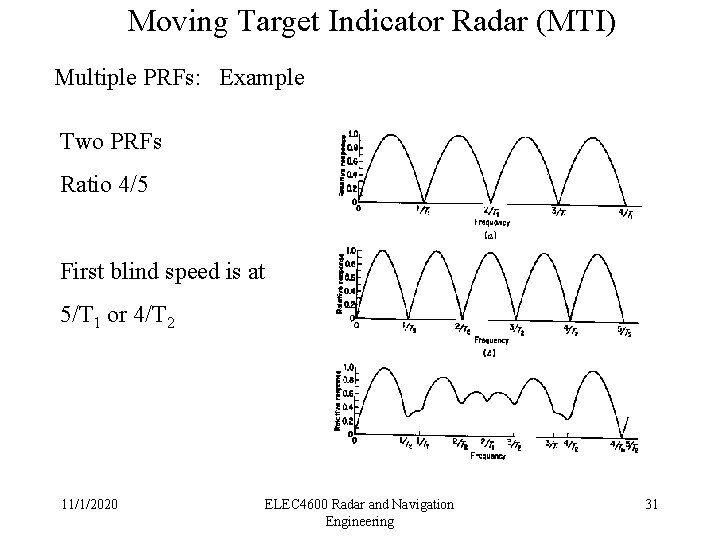

Moving Target Indicator Radar (MTI) Multiple PRFs: Example Two PRFs Ratio 4/5 First blind speed is at 5/T 1 or 4/T 2 11/1/2020 ELEC 4600 Radar and Navigation Engineering 31

Moving Target Indicator Radar (MTI) Multiple PRFs: Example Four PRFs Ratio 25/30/27/31 First blind speed is at about 28. 25/TAV where TAV is the average period of the four PRFs 11/1/2020 ELEC 4600 Radar and Navigation Engineering 32

Moving Target Indicator Radar (MTI) Multiple PRFs: Example Calculation of First Blind Speed if the relationship between the Pulse Periods is and v. B is the first blind speed of a PRF with average period The first blind speed is 11/1/2020 ELEC 4600 Radar and Navigation Engineering 33

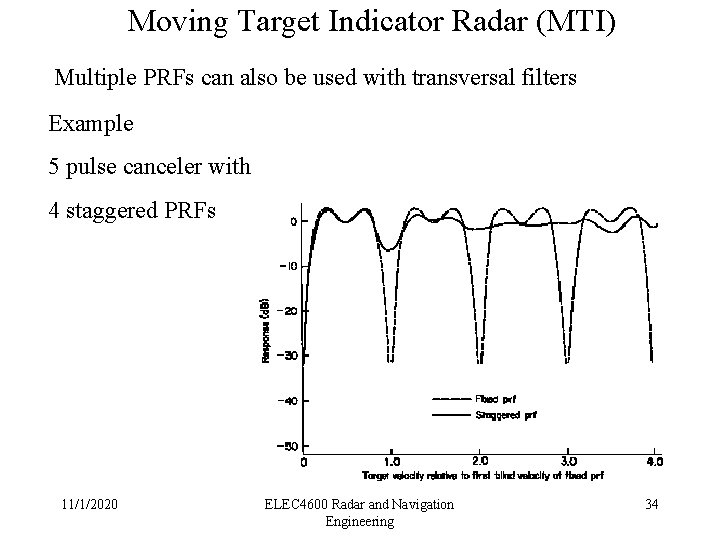

Moving Target Indicator Radar (MTI) Multiple PRFs can also be used with transversal filters Example 5 pulse canceler with 4 staggered PRFs n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 34

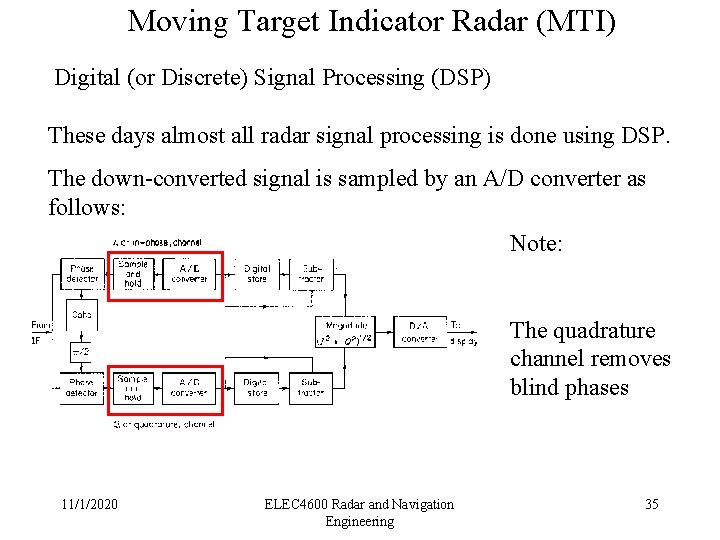

Moving Target Indicator Radar (MTI) Digital (or Discrete) Signal Processing (DSP) These days almost all radar signal processing is done using DSP. The down-converted signal is sampled by an A/D converter as follows: Note: The quadrature channel removes blind phases 11/1/2020 ELEC 4600 Radar and Navigation Engineering 35

Moving Target Indicator Radar (MTI) • Advantages of DSP • greater stability • greater repeatability • greater precision • greater reliability • easy to implement multiple PRFs • greater flexibility in designing filters • gives the ability to change the system parameters dynamically 11/1/2020 ELEC 4600 Radar and Navigation Engineering 36

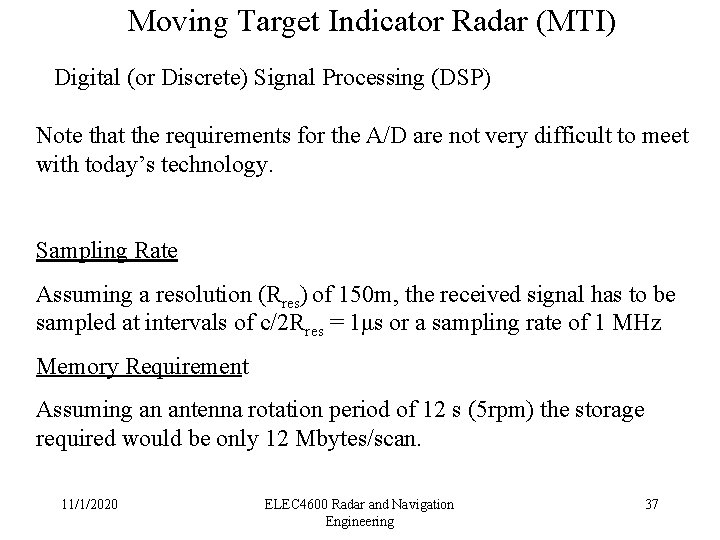

Moving Target Indicator Radar (MTI) Digital (or Discrete) Signal Processing (DSP) Note that the requirements for the A/D are not very difficult to meet with today’s technology. Sampling Rate Assuming a resolution (Rres) of 150 m, the received signal has to be sampled at intervals of c/2 Rres = 1μs or a sampling rate of 1 MHz Memory Requirement Assuming an antenna rotation period of 12 s (5 rpm) the storage required would be only 12 Mbytes/scan. 11/1/2020 ELEC 4600 Radar and Navigation Engineering 37

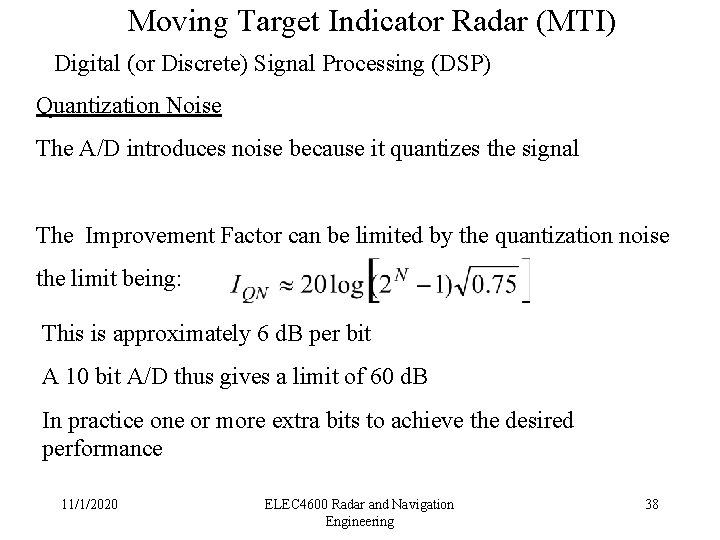

Moving Target Indicator Radar (MTI) Digital (or Discrete) Signal Processing (DSP) Quantization Noise The A/D introduces noise because it quantizes the signal The Improvement Factor can be limited by the quantization noise the limit being: This is approximately 6 d. B per bit A 10 bit A/D thus gives a limit of 60 d. B In practice one or more extra bits to achieve the desired performance 11/1/2020 ELEC 4600 Radar and Navigation Engineering 38

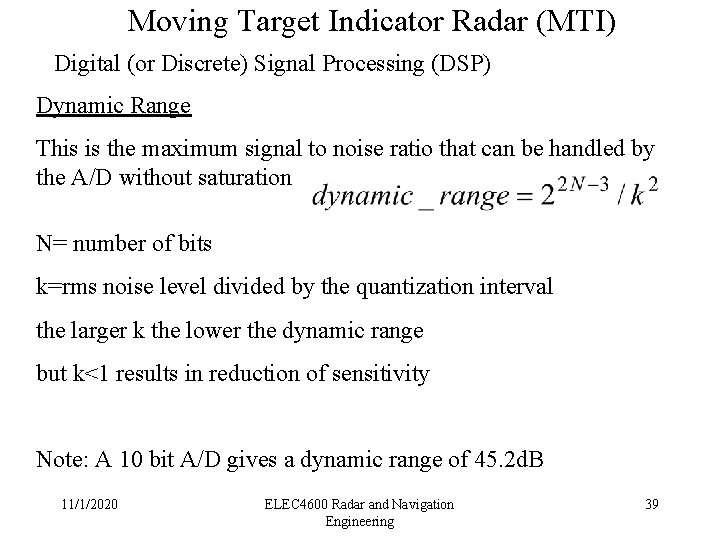

Moving Target Indicator Radar (MTI) Digital (or Discrete) Signal Processing (DSP) Dynamic Range This is the maximum signal to noise ratio that can be handled by the A/D without saturation N= number of bits k=rms noise level divided by the quantization interval the larger k the lower the dynamic range but k<1 results in reduction of sensitivity Note: A 10 bit A/D gives a dynamic range of 45. 2 d. B 11/1/2020 ELEC 4600 Radar and Navigation Engineering 39

Moving Target Indicator Radar (MTI) Blind Phases If the prf is double the Doppler frequency then every othyer pair of samples cane be the same amplitude and will thus be filtered out of the signal. By using both inphase and quadrature signals, blind phases can be eliminated 11/1/2020 ELEC 4600 Radar and Navigation Engineering 40

Moving Target Indicator Radar (MTI) Blind Phases If the prf is double the Doppler frequency then every other pair of samples can be the same amplitude and will thus be filtered out of the signal. (loss of 2. 8 d. B and 13. 7 d. B for Pd of 0. 5 and 0. 9 respectively) By using both inphase and quadrature signals, blind phases can be eliminated 11/1/2020 ELEC 4600 Radar and Navigation Engineering 41

Moving Target Indicator Radar (MTI) Digital Filter Banks and FFT Example: Transversal Filter with 8 delay elements: z-1 w z-1 z-1 w w w SUMMER If the weights are set to: i= 1, 2, 3…N and k is an index from 0 to N-1 11/1/2020 ELEC 4600 Radar and Navigation Engineering 42

Moving Target Indicator Radar (MTI) The impulse response of this filter is: And from the Fourier transform its frequency response is The magnitude of the response is 11/1/2020 ELEC 4600 Radar and Navigation Engineering 43

Moving Target Indicator Radar (MTI) k=0 0 1/T k=1 0 11/1/2020 1/T ELEC 4600 Radar and Navigation Engineering 44

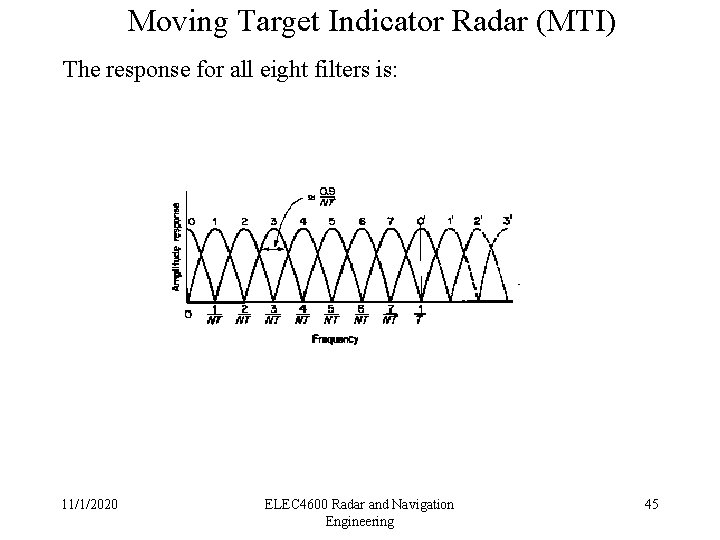

Moving Target Indicator Radar (MTI) The response for all eight filters is: 11/1/2020 ELEC 4600 Radar and Navigation Engineering 45

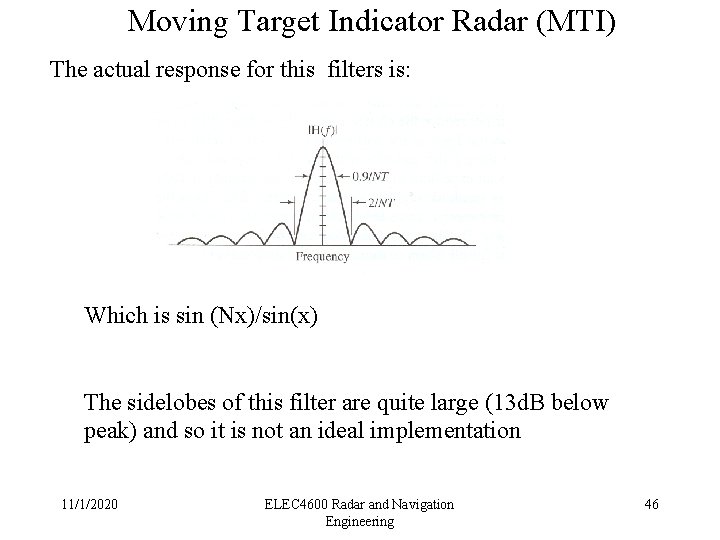

Moving Target Indicator Radar (MTI) The actual response for this filters is: Which is sin (Nx)/sin(x) The sidelobes of this filter are quite large (13 d. B below peak) and so it is not an ideal implementation 11/1/2020 ELEC 4600 Radar and Navigation Engineering 46

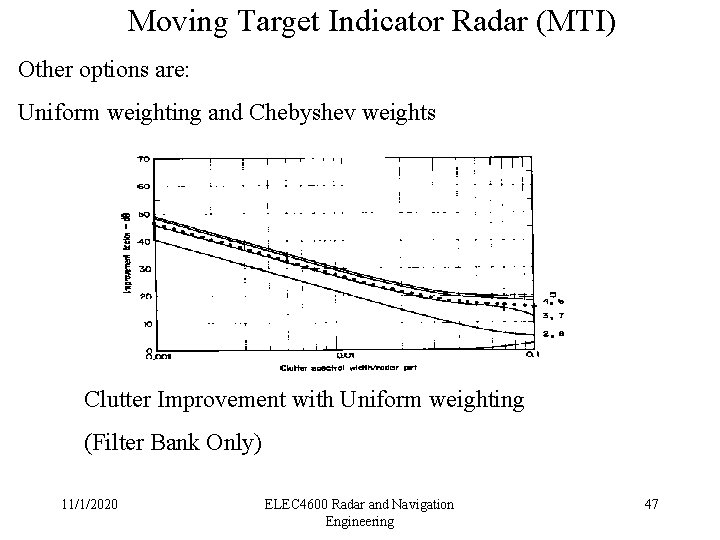

Moving Target Indicator Radar (MTI) Other options are: Uniform weighting and Chebyshev weights Clutter Improvement with Uniform weighting (Filter Bank Only) 11/1/2020 ELEC 4600 Radar and Navigation Engineering 47

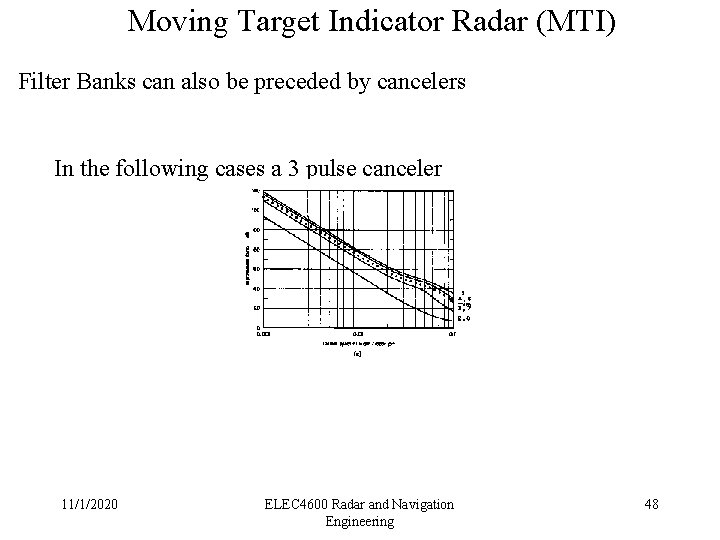

Moving Target Indicator Radar (MTI) Filter Banks can also be preceded by cancelers In the following cases a 3 pulse canceler 11/1/2020 ELEC 4600 Radar and Navigation Engineering 48

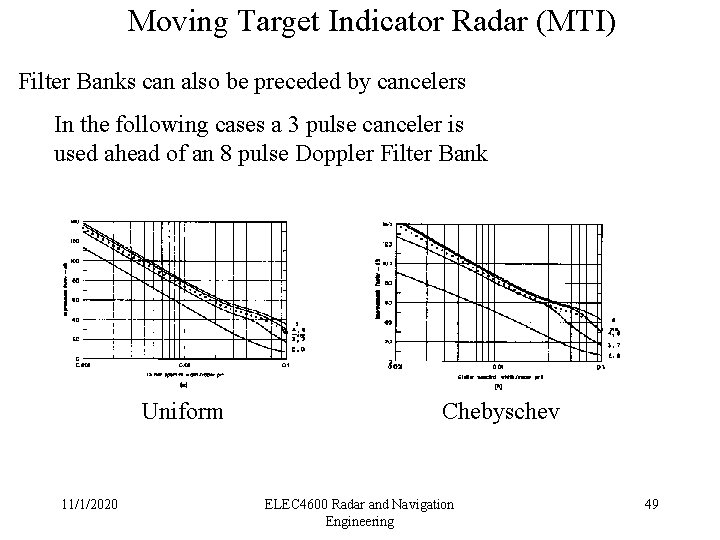

Moving Target Indicator Radar (MTI) Filter Banks can also be preceded by cancelers In the following cases a 3 pulse canceler is used ahead of an 8 pulse Doppler Filter Bank Uniform 11/1/2020 Chebyschev ELEC 4600 Radar and Navigation Engineering 49

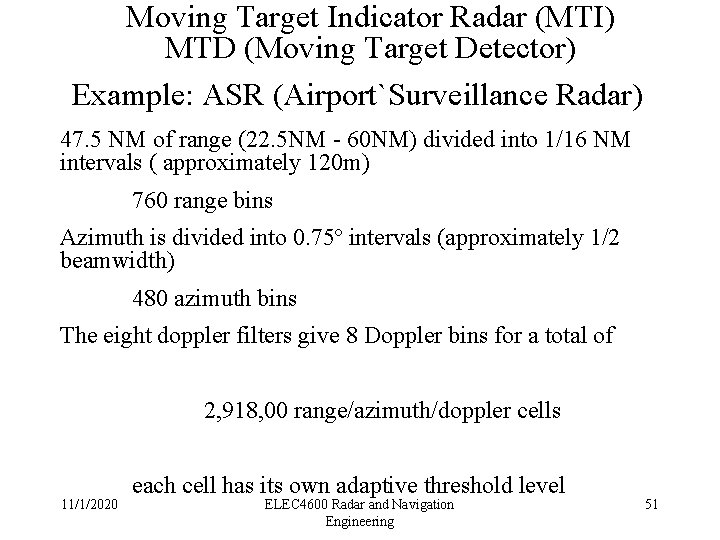

Moving Target Indicator Radar (MTI) MTD (Moving Target Detector) Example: ASR (Airport`Surveillance Radar) Range: 60 NM Frequency: 2. 7 - 2. 9 GHz Beamwidth: 1. 4º Antenna Rotation: 12. 5 - 15 rpm fp: 700 - 1200 Hz Uses a 3 pulse canceller with an 8 pulse doppler filter bank Measured IC = 45 d. B A/D converter uses 10 bits 11/1/2020 ELEC 4600 Radar and Navigation Engineering 50

Moving Target Indicator Radar (MTI) MTD (Moving Target Detector) Example: ASR (Airport`Surveillance Radar) 47. 5 NM of range (22. 5 NM - 60 NM) divided into 1/16 NM intervals ( approximately 120 m) 760 range bins Azimuth is divided into 0. 75º intervals (approximately 1/2 beamwidth) 480 azimuth bins The eight doppler filters give 8 Doppler bins for a total of 2, 918, 00 range/azimuth/doppler cells 11/1/2020 each cell has its own adaptive threshold level ELEC 4600 Radar and Navigation Engineering 51

Moving Target Indicator Radar (MTI) MTD (Moving Target Detector) Example: ASR (Airport`Surveillance Radar) 10 Pulses at one PRF is transmitted for 0. 75º of azimuth and 10 pulses at the other PRF for the next 0. 75º. This eliminates second time around clutter 11/1/2020 ELEC 4600 Radar and Navigation Engineering 52

Moving Target Indicator Radar (MTI) MTD (Moving Target Detector) Example: ASR (Airport`Surveillance Radar) 11/1/2020 ELEC 4600 Radar and Navigation Engineering 53

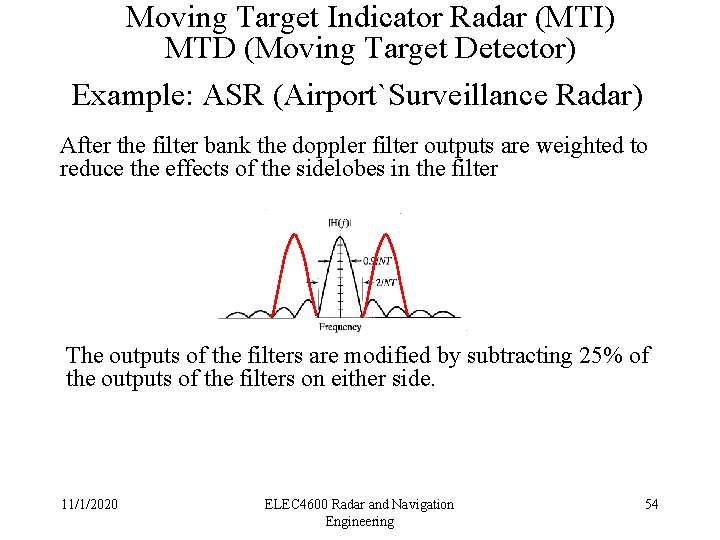

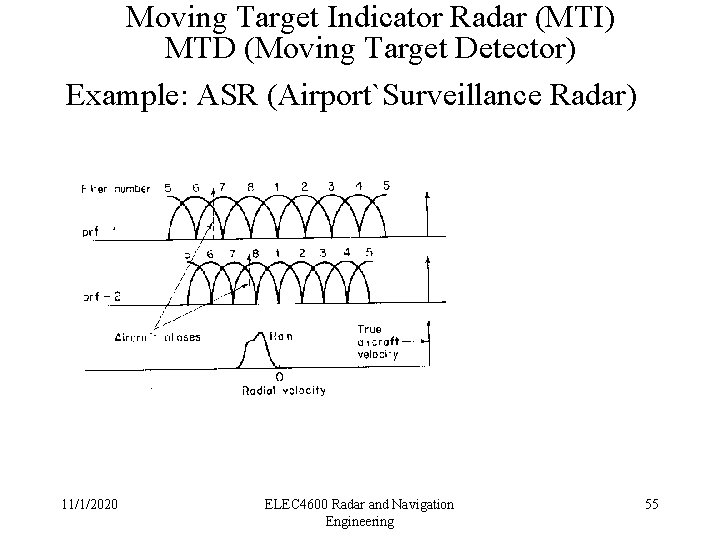

Moving Target Indicator Radar (MTI) MTD (Moving Target Detector) Example: ASR (Airport`Surveillance Radar) After the filter bank the doppler filter outputs are weighted to reduce the effects of the sidelobes in the filter The outputs of the filters are modified by subtracting 25% of the outputs of the filters on either side. 11/1/2020 ELEC 4600 Radar and Navigation Engineering 54

Moving Target Indicator Radar (MTI) MTD (Moving Target Detector) Example: ASR (Airport`Surveillance Radar) 11/1/2020 ELEC 4600 Radar and Navigation Engineering 55

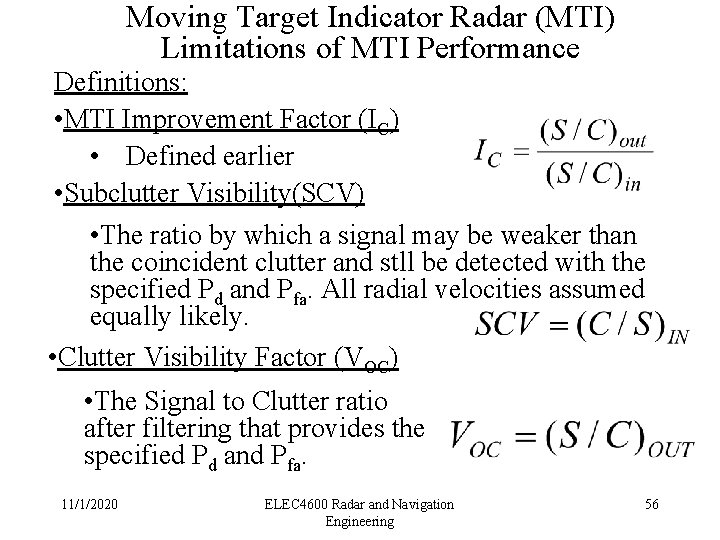

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Definitions: • MTI Improvement Factor (IC) • Defined earlier • Subclutter Visibility(SCV) • The ratio by which a signal may be weaker than the coincident clutter and stll be detected with the specified Pd and Pfa. All radial velocities assumed equally likely. • Clutter Visibility Factor (VOC) • The Signal to Clutter ratio after filtering that provides the specified Pd and Pfa. 11/1/2020 ELEC 4600 Radar and Navigation Engineering 56

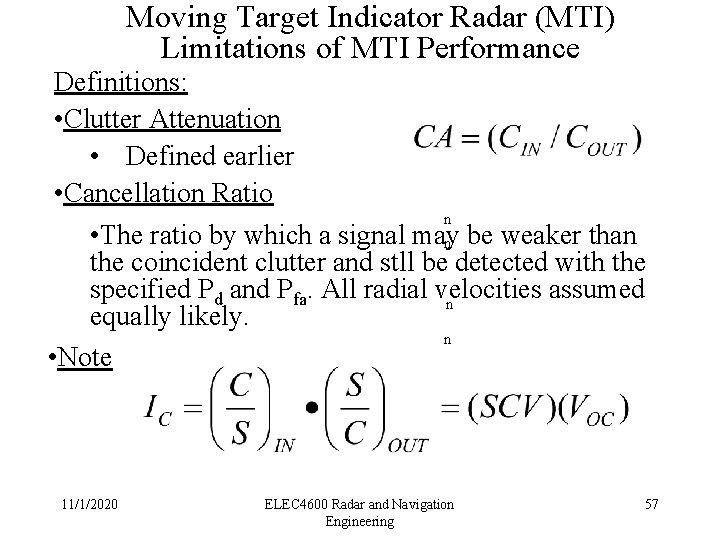

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Definitions: • Clutter Attenuation • Defined earlier • Cancellation Ratio n n • The ratio by which a signal may be weaker than the coincident clutter and stll be detected with the specified Pd and Pfa. All radial velocities assumed n equally likely. n • Note 11/1/2020 ELEC 4600 Radar and Navigation Engineering 57

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Equipment Instabilities: Changes in signal from pulse to pulse will result in apparent clutter Doppler shift These changes can have many sources n n • pulse to pulse change in amplitude • pulse to pulse change in frequency n • pulse to pulse change in phasen • timing jitter • Changes in pulse width • Changes in oscillator frequency between Tx and Rx 11/1/2020 ELEC 4600 Radar and Navigation Engineering 58

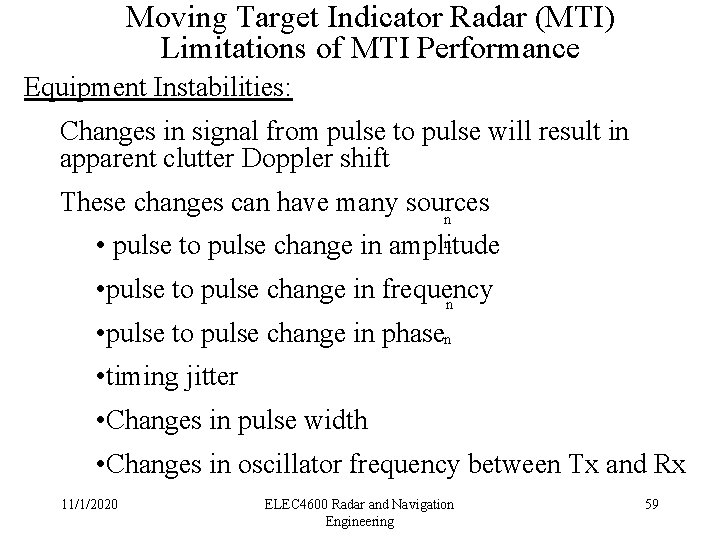

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Equipment Instabilities: Changes in signal from pulse to pulse will result in apparent clutter Doppler shift These changes can have many sources n n • pulse to pulse change in amplitude • pulse to pulse change in frequency n • pulse to pulse change in phasen • timing jitter • Changes in pulse width • Changes in oscillator frequency between Tx and Rx 11/1/2020 ELEC 4600 Radar and Navigation Engineering 59

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Equipment Instabilities: Example: Phase variation g 1 and g 2 are succesive pulses for a stationary target n n The output of the two pulse filter is n n Resulting in a minimum Improvement Factor of 11/1/2020 ELEC 4600 Radar and Navigation Engineering 60

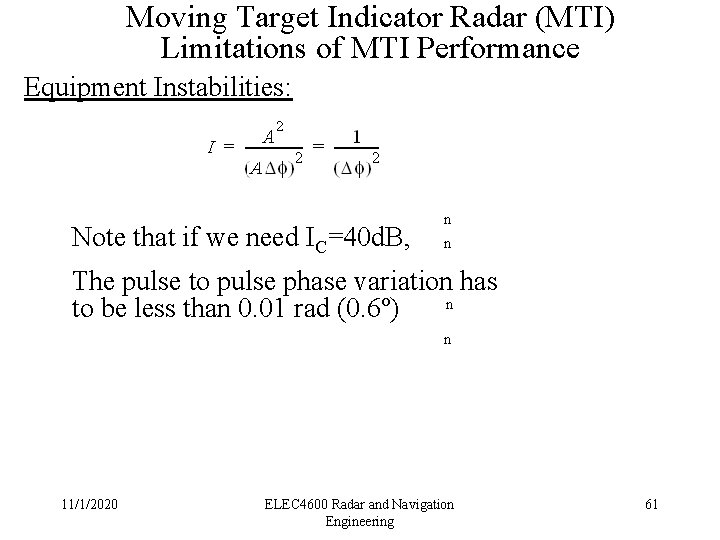

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Equipment Instabilities: Note that if we need IC=40 d. B, n n The pulse to pulse phase variation has n to be less than 0. 01 rad (0. 6º) n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 61

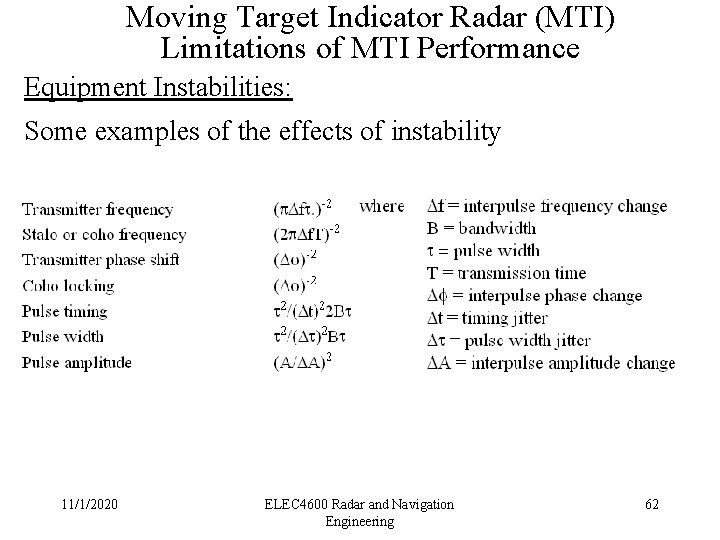

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Equipment Instabilities: Some examples of the effects of instability n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 62

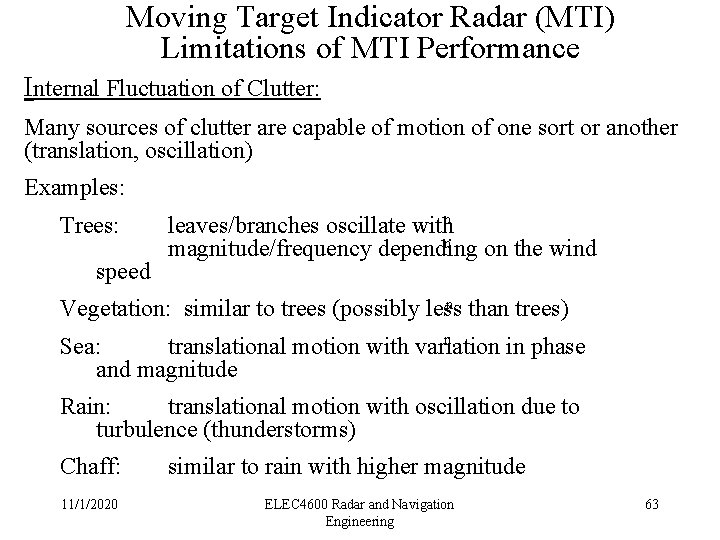

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Internal Fluctuation of Clutter: Many sources of clutter are capable of motion of one sort or another (translation, oscillation) Examples: Trees: speed leaves/branches oscillate withn n magnitude/frequency depending on the wind n than trees) Vegetation: similar to trees (possibly less n Sea: translational motion with variation in phase and magnitude Rain: translational motion with oscillation due to turbulence (thunderstorms) Chaff: 11/1/2020 similar to rain with higher magnitude ELEC 4600 Radar and Navigation Engineering 63

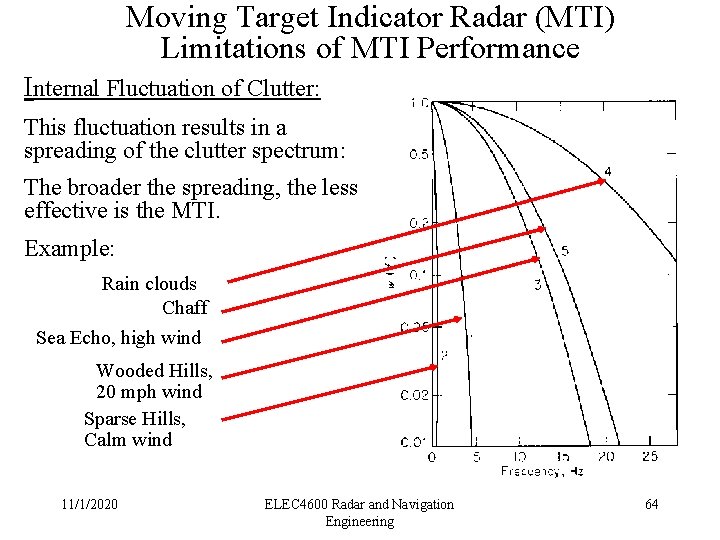

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Internal Fluctuation of Clutter: This fluctuation results in a spreading of the clutter spectrum: The broader the spreading, the less effective is the MTI. Example: Rain clouds Chaff Sea Echo, high wind n n Wooded Hills, 20 mph wind Sparse Hills, Calm wind 11/1/2020 ELEC 4600 Radar and Navigation Engineering 64

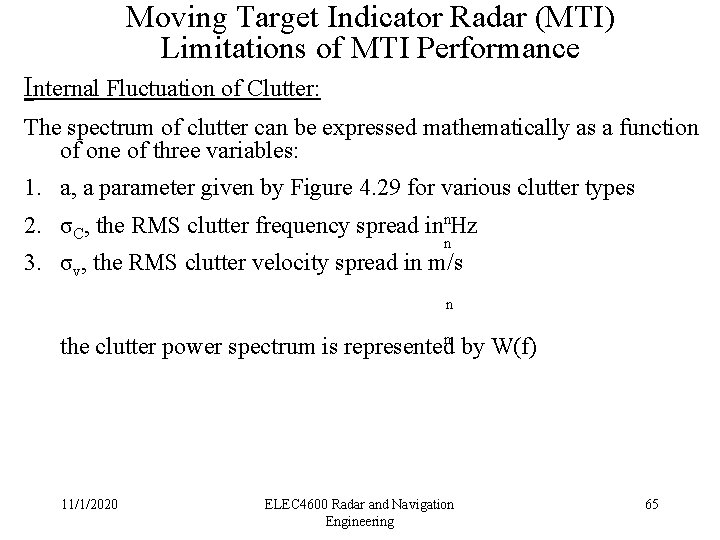

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Internal Fluctuation of Clutter: The spectrum of clutter can be expressed mathematically as a function of one of three variables: 1. a, a parameter given by Figure 4. 29 for various clutter types 2. σC, the RMS clutter frequency spread inn. Hz n 3. σv, the RMS clutter velocity spread in m/s n the clutter power spectrum is representedn by W(f) 11/1/2020 ELEC 4600 Radar and Navigation Engineering 65

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Internal Fluctuation of Clutter: The power spectra expressed in the three parameters are: 1. 2. n n n 3. 11/1/2020 n ELEC 4600 Radar and Navigation Engineering 66

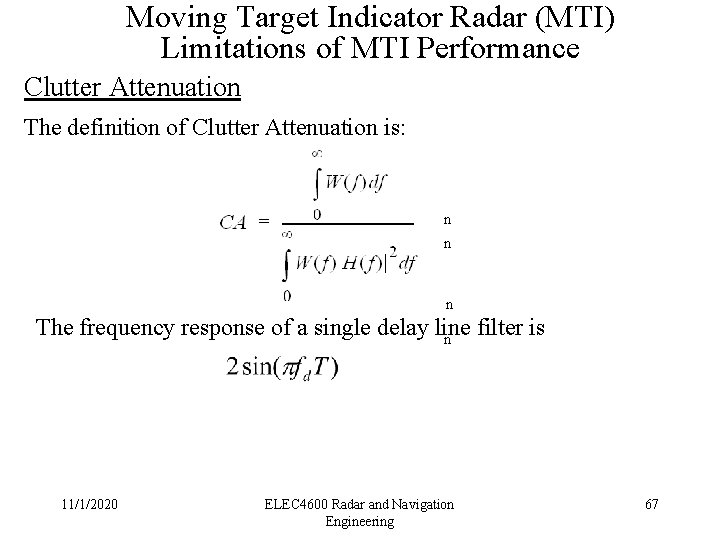

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Clutter Attenuation The definition of Clutter Attenuation is: n n n The frequency response of a single delay line filter is n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 67

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Clutter Attenuation The definition of Clutter Attenuation is: n n n The frequency response of a single delay line filter is n and the spectrum of the clutter in terms of frequency is 11/1/2020 ELEC 4600 Radar and Navigation Engineering 68

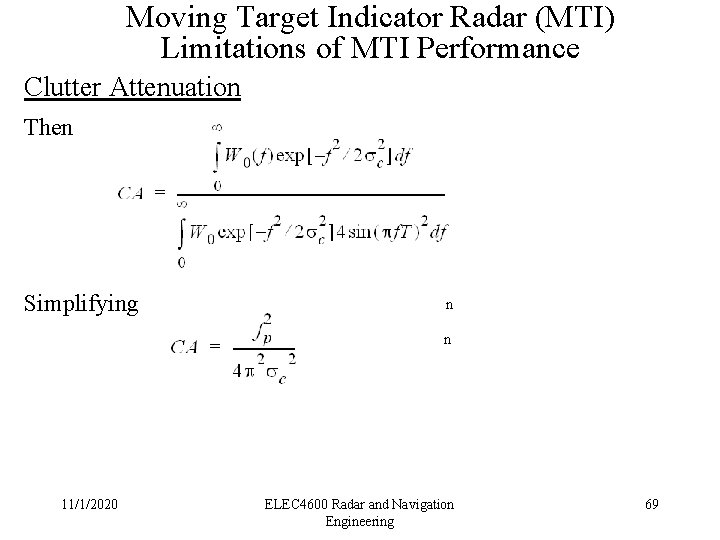

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Clutter Attenuation Then n n Simplifying n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 69

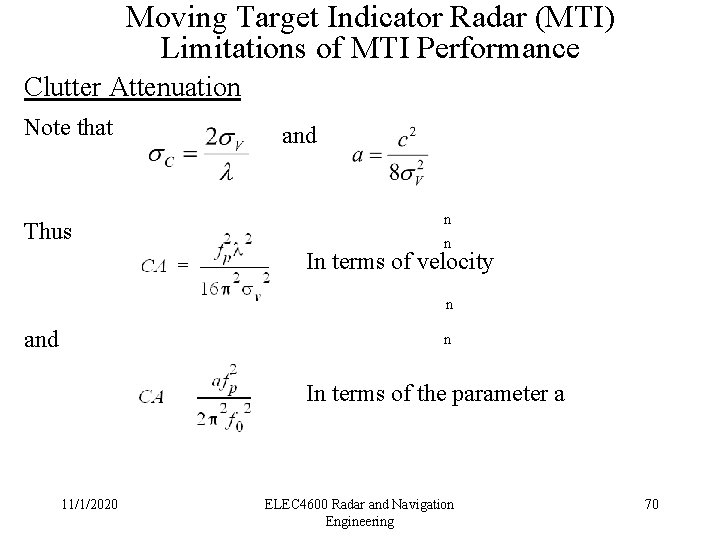

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Clutter Attenuation Note that Thus and n n In terms of velocity n and n In terms of the parameter a 11/1/2020 ELEC 4600 Radar and Navigation Engineering 70

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Improvement Factor Since the average gain of a two pulse canceler is 2. And for the three pulse canceler it is 6 n n n In general 11/1/2020 n ELEC 4600 Radar and Navigation Engineering 71

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Antenna Scanning Modulation Since the antenna spends only a short time on the target, the spectrum of any target is spread even if the target is perfectly stationary: The two way voltage antenna pattern is n n n Dividing numerator and denominator of exponent by the scan rate n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 72

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Antenna Scanning Modulation Since and (time on target) n n Taking the Fourier Transform n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 73

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Antenna Scanning Modulation Since this is a Gaussian function the exponent must be of the form Thus and n n (voltage spectrum) n or n (power spectrum) or 11/1/2020 ELEC 4600 Radar and Navigation Engineering 74

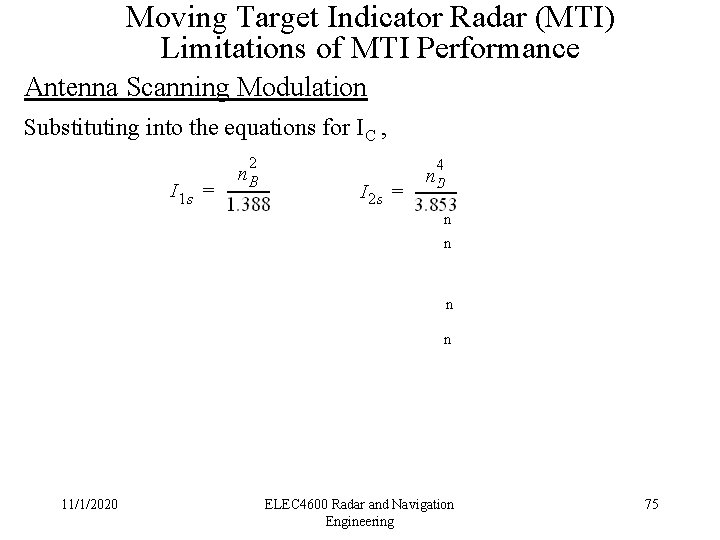

Moving Target Indicator Radar (MTI) Limitations of MTI Performance Antenna Scanning Modulation Substituting into the equations for IC , n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 75

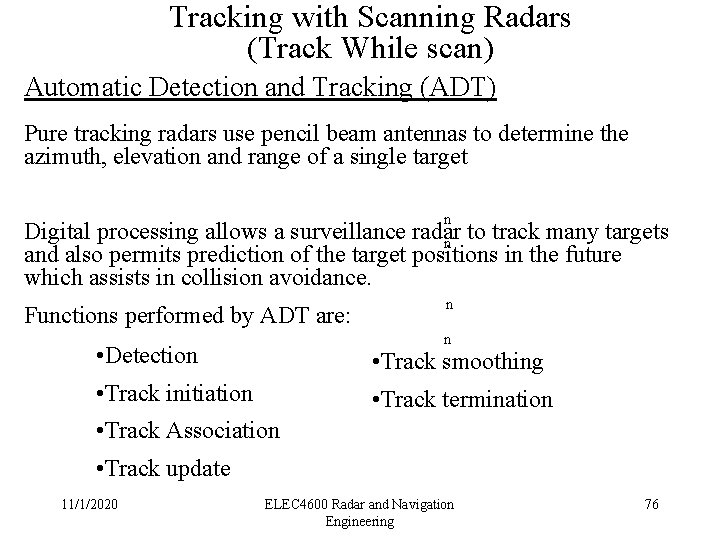

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Pure tracking radars use pencil beam antennas to determine the azimuth, elevation and range of a single target n radar n Digital processing allows a surveillance to track many targets and also permits prediction of the target positions in the future which assists in collision avoidance. Functions performed by ADT are: n n • Detection • Track smoothing • Track initiation • Track termination • Track Association • Track update 11/1/2020 ELEC 4600 Radar and Navigation Engineering 76

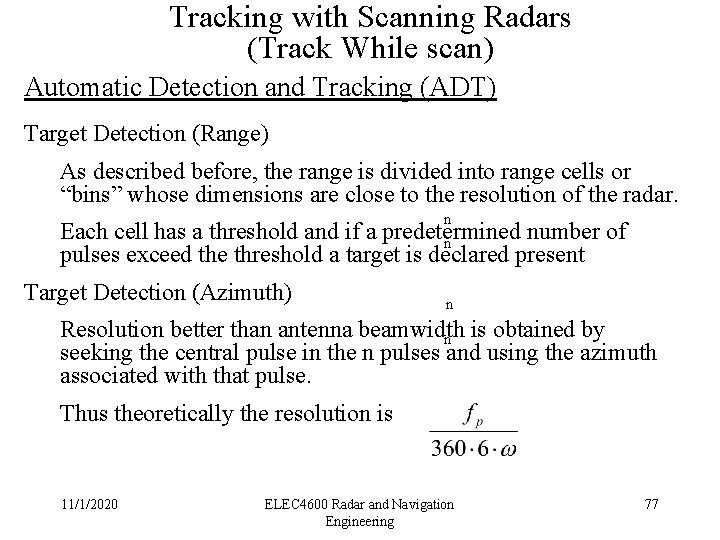

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Target Detection (Range) As described before, the range is divided into range cells or “bins” whose dimensions are close to the resolution of the radar. n predetermined n Each cell has a threshold and if a number of pulses exceed the threshold a target is declared present Target Detection (Azimuth) n Resolution better than antenna beamwidth n is obtained by seeking the central pulse in the n pulses and using the azimuth associated with that pulse. Thus theoretically the resolution is 11/1/2020 ELEC 4600 Radar and Navigation Engineering 77

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Track Initiation Radar needs enough information to establish direction and speed of all targets present. If only one target present, only two n scansn are required. Usually require many scans to build up all of the tracks present e. g. targets for two scans and two targetsn n 1 2 2 1 11/1/2020 ELEC 4600 Radar and Navigation Engineering 78

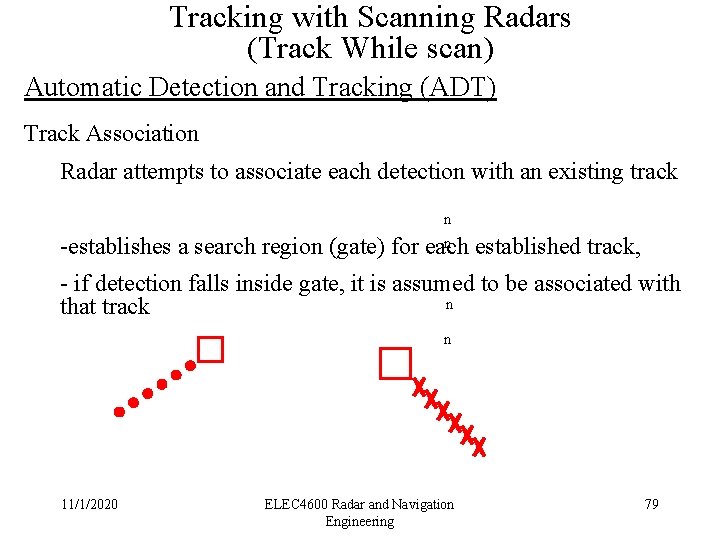

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Track Association Radar attempts to associate each detection with an existing track -establishes a search region (gate) for n n each established track, - if detection falls inside gate, it is assumed to be associated with n that track n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 79

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Track Association Tradeoffs Close tracks - small gate n n Small gate: can lose target if it manoeuvres n Gate size is made variable depending on n • Accuracy of track • Expected acceleration of the target 11/1/2020 ELEC 4600 Radar and Navigation Engineering 80

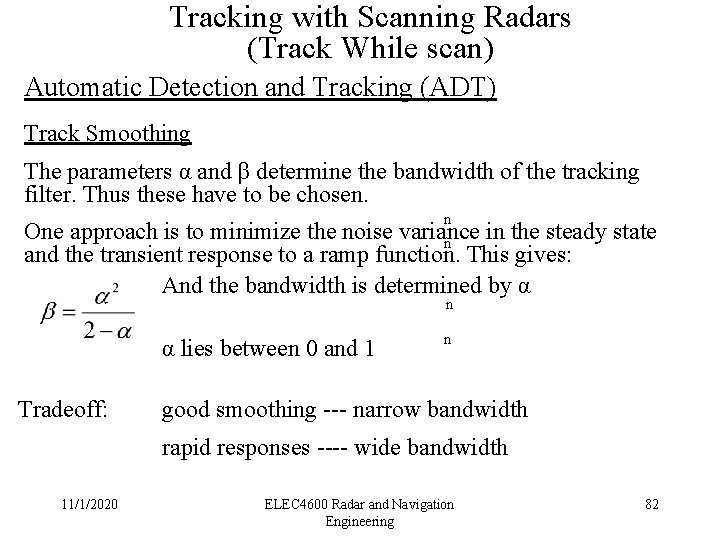

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Track Smoothing Predictions are based on track history predicted α-β Tracker measured n n Predicted position: 11/1/2020 ELEC 4600 Radar and Navigation Engineering 81

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Track Smoothing The parameters α and β determine the bandwidth of the tracking filter. Thus these have to be chosen. n variance n One approach is to minimize the noise in the steady state and the transient response to a ramp function. This gives: And the bandwidth is determined by α n α lies between 0 and 1 Tradeoff: n good smoothing --- narrow bandwidth rapid responses ---- wide bandwidth 11/1/2020 ELEC 4600 Radar and Navigation Engineering 82

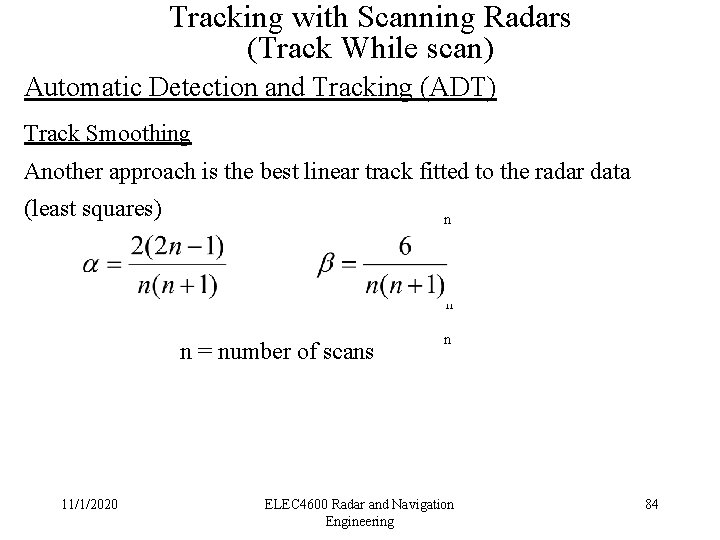

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Track Smoothing Another approach is the best linear track fitted to the radar data (least squares) n n = number of scans 11/1/2020 n ELEC 4600 Radar and Navigation Engineering 83

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Track Smoothing Another approach is the best linear track fitted to the radar data (least squares) n n = number of scans 11/1/2020 n ELEC 4600 Radar and Navigation Engineering 84

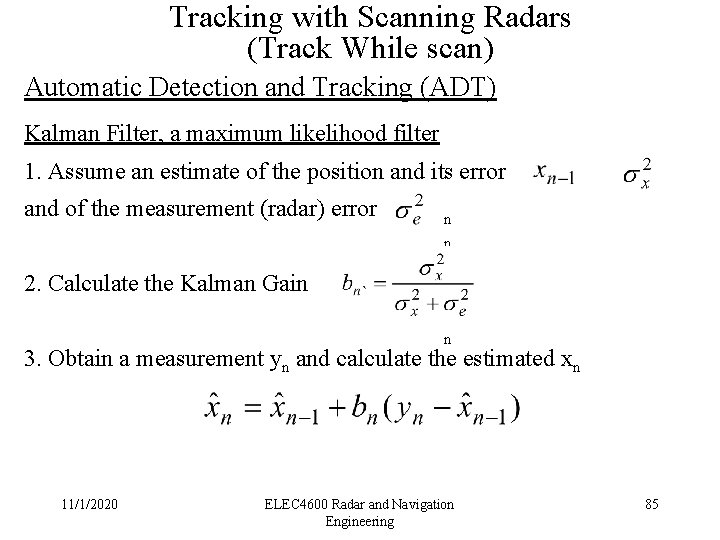

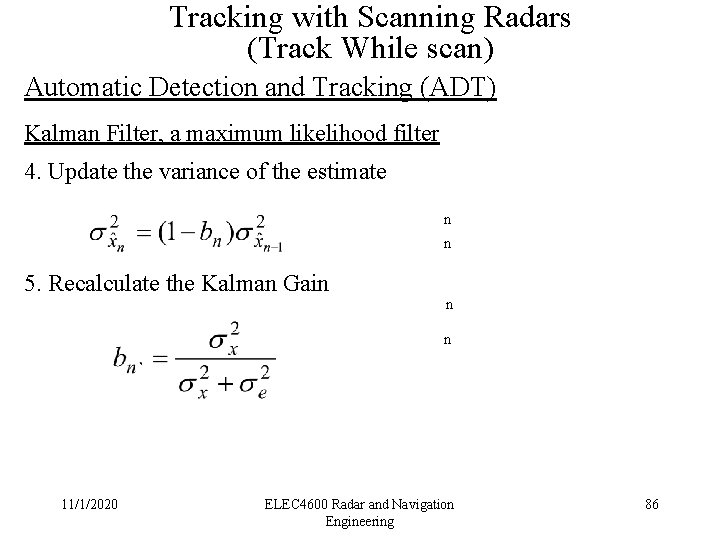

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Kalman Filter, a maximum likelihood filter 1. Assume an estimate of the position and its error and of the measurement (radar) error 2. Calculate the Kalman Gain n n 3. Obtain a measurement yn and calculate the estimated xn 11/1/2020 ELEC 4600 Radar and Navigation Engineering 85

Tracking with Scanning Radars (Track While scan) Automatic Detection and Tracking (ADT) Kalman Filter, a maximum likelihood filter 4. Update the variance of the estimate n n 5. Recalculate the Kalman Gain n n 11/1/2020 ELEC 4600 Radar and Navigation Engineering 86
