Movement and Storage of Groundwater Objectives Describe how

  • Slides: 75
Download presentation
Movement and Storage of Groundwater Objectives • Describe how groundwater is stored and moves

Movement and Storage of Groundwater Objectives • Describe how groundwater is stored and moves underground. • Explain what an aquifer is. Vocabulary – infiltration – water table – porosity – permeability – zone of saturation – aquifer

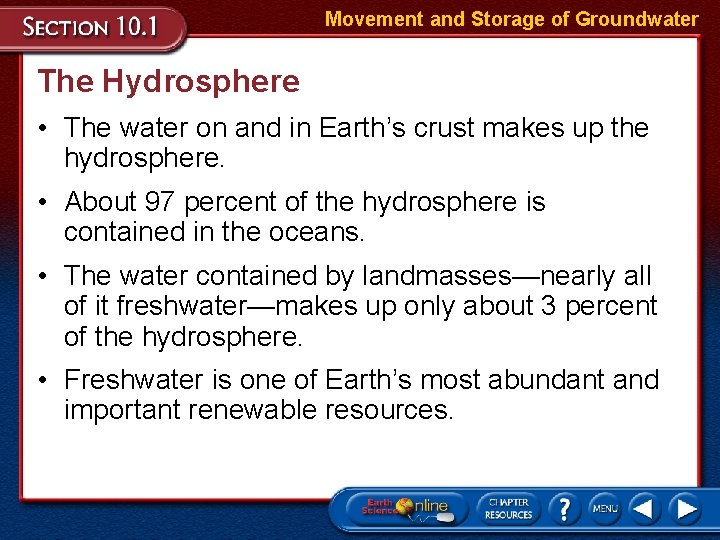

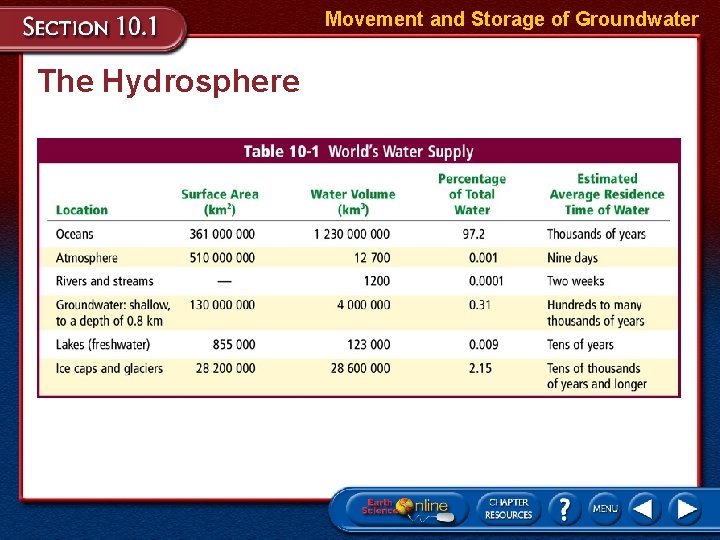

Movement and Storage of Groundwater The Hydrosphere • The water on and in Earth’s

Movement and Storage of Groundwater The Hydrosphere • The water on and in Earth’s crust makes up the hydrosphere. • About 97 percent of the hydrosphere is contained in the oceans. • The water contained by landmasses—nearly all of it freshwater—makes up only about 3 percent of the hydrosphere. • Freshwater is one of Earth’s most abundant and important renewable resources.

Movement and Storage of Groundwater The Hydrosphere

Movement and Storage of Groundwater The Hydrosphere

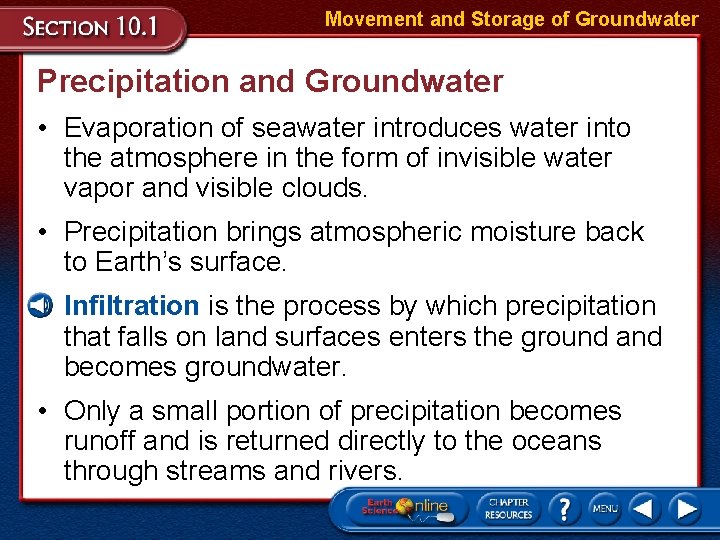

Movement and Storage of Groundwater Precipitation and Groundwater • Evaporation of seawater introduces water

Movement and Storage of Groundwater Precipitation and Groundwater • Evaporation of seawater introduces water into the atmosphere in the form of invisible water vapor and visible clouds. • Precipitation brings atmospheric moisture back to Earth’s surface. • Infiltration is the process by which precipitation that falls on land surfaces enters the ground and becomes groundwater. • Only a small portion of precipitation becomes runoff and is returned directly to the oceans through streams and rivers.

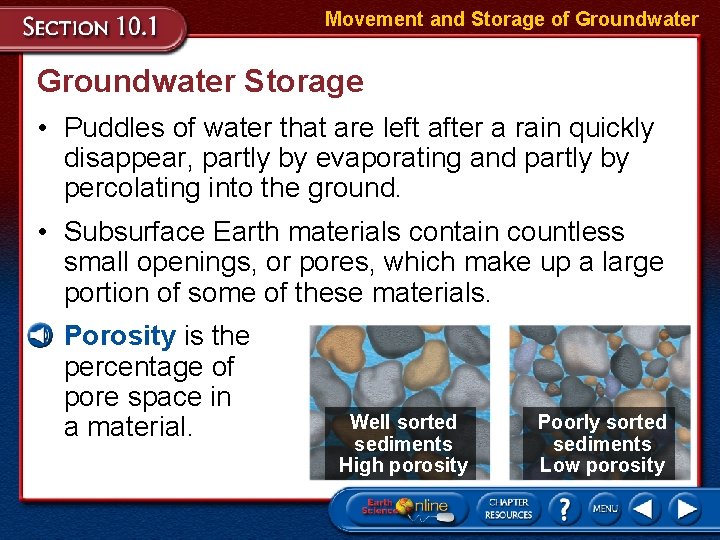

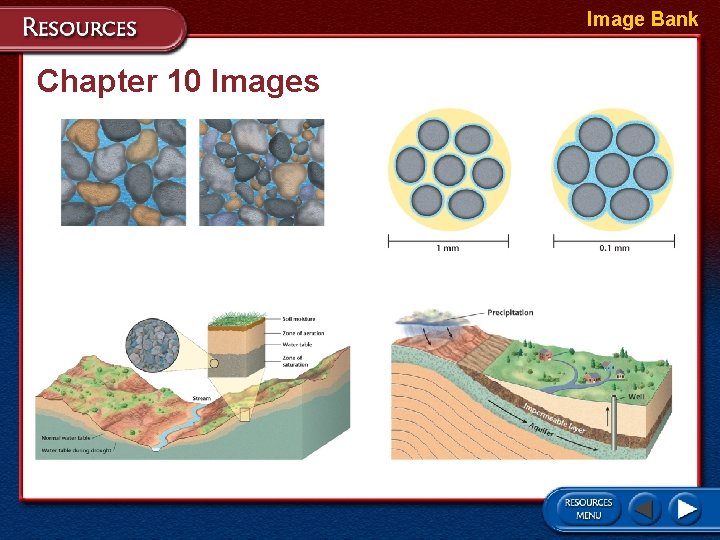

Movement and Storage of Groundwater Storage • Puddles of water that are left after

Movement and Storage of Groundwater Storage • Puddles of water that are left after a rain quickly disappear, partly by evaporating and partly by percolating into the ground. • Subsurface Earth materials contain countless small openings, or pores, which make up a large portion of some of these materials. • Porosity is the percentage of pore space in a material. Well sorted sediments High porosity Poorly sorted sediments Low porosity

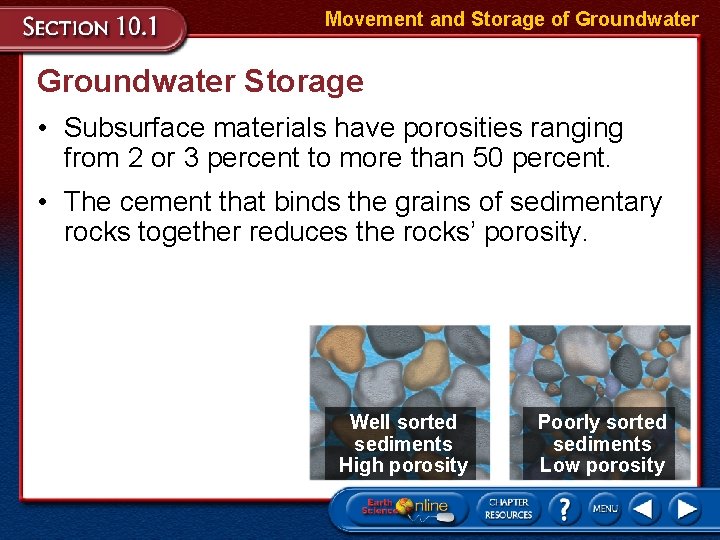

Movement and Storage of Groundwater Storage • Subsurface materials have porosities ranging from 2

Movement and Storage of Groundwater Storage • Subsurface materials have porosities ranging from 2 or 3 percent to more than 50 percent. • The cement that binds the grains of sedimentary rocks together reduces the rocks’ porosity. Well sorted sediments High porosity Poorly sorted sediments Low porosity

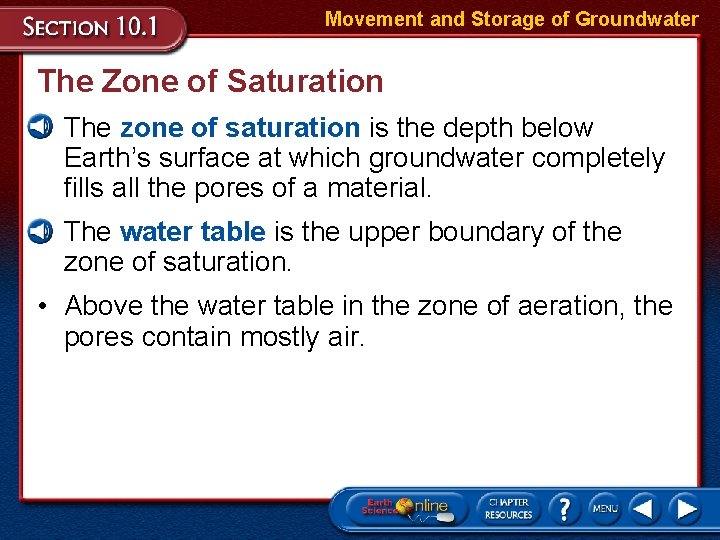

Movement and Storage of Groundwater The Zone of Saturation • The zone of saturation

Movement and Storage of Groundwater The Zone of Saturation • The zone of saturation is the depth below Earth’s surface at which groundwater completely fills all the pores of a material. • The water table is the upper boundary of the zone of saturation. • Above the water table in the zone of aeration, the pores contain mostly air.

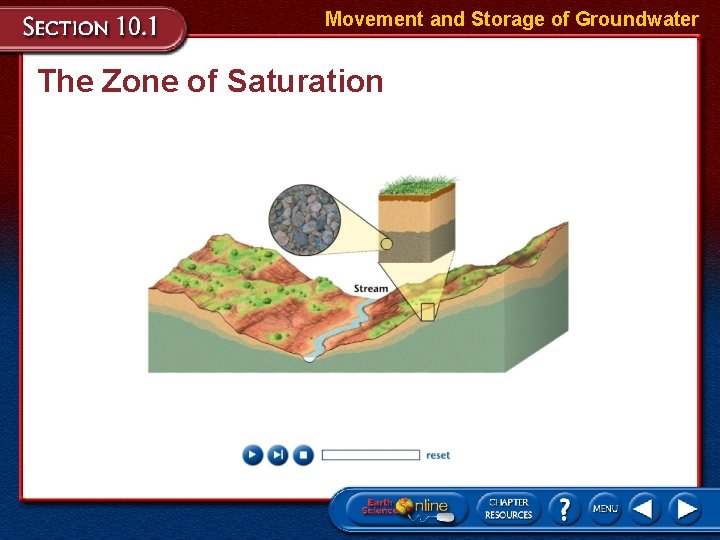

Movement and Storage of Groundwater The Zone of Saturation

Movement and Storage of Groundwater The Zone of Saturation

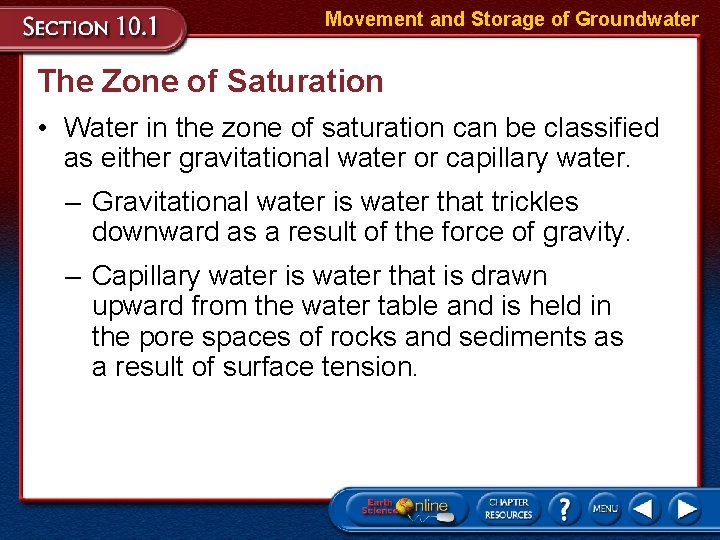

Movement and Storage of Groundwater The Zone of Saturation • Water in the zone

Movement and Storage of Groundwater The Zone of Saturation • Water in the zone of saturation can be classified as either gravitational water or capillary water. – Gravitational water is water that trickles downward as a result of the force of gravity. – Capillary water is water that is drawn upward from the water table and is held in the pore spaces of rocks and sediments as a result of surface tension.

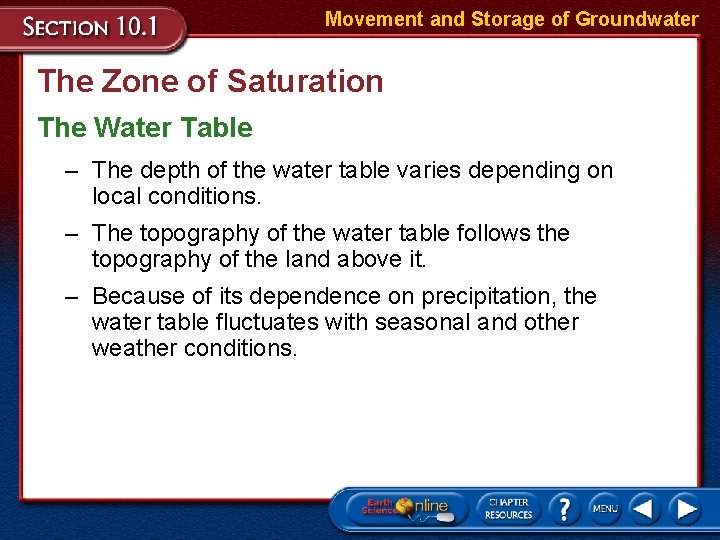

Movement and Storage of Groundwater The Zone of Saturation The Water Table – The

Movement and Storage of Groundwater The Zone of Saturation The Water Table – The depth of the water table varies depending on local conditions. – The topography of the water table follows the topography of the land above it. – Because of its dependence on precipitation, the water table fluctuates with seasonal and other weather conditions.

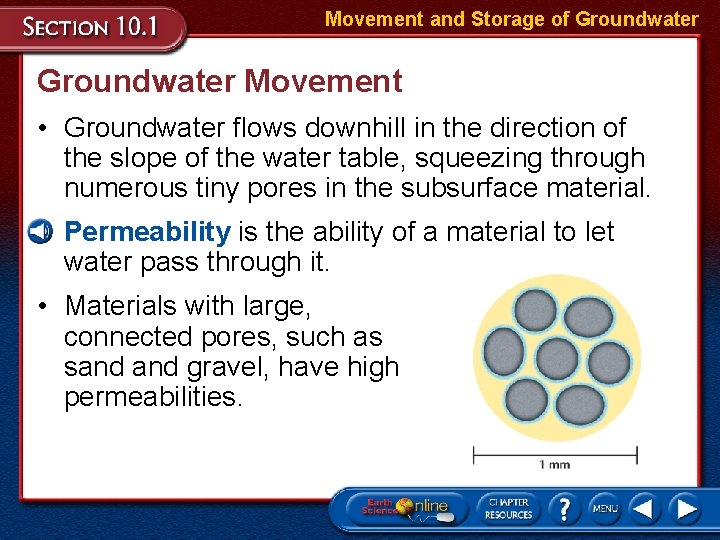

Movement and Storage of Groundwater Movement • Groundwater flows downhill in the direction of

Movement and Storage of Groundwater Movement • Groundwater flows downhill in the direction of the slope of the water table, squeezing through numerous tiny pores in the subsurface material. • Permeability is the ability of a material to let water pass through it. • Materials with large, connected pores, such as sand gravel, have high permeabilities.

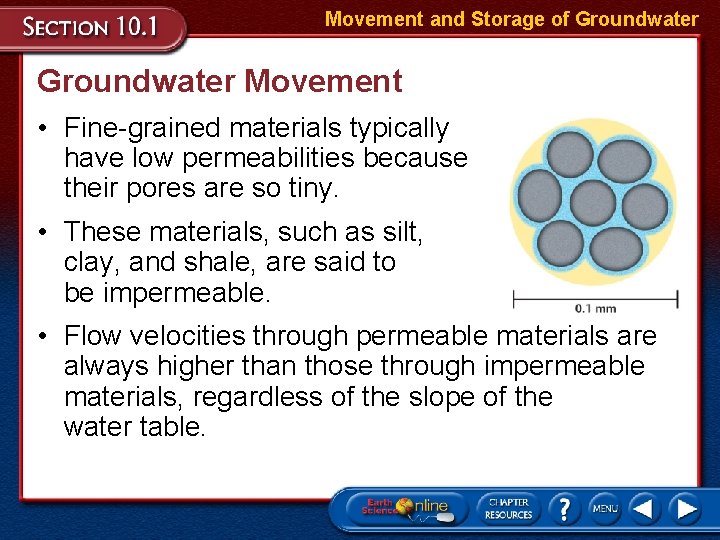

Movement and Storage of Groundwater Movement • Fine-grained materials typically have low permeabilities because

Movement and Storage of Groundwater Movement • Fine-grained materials typically have low permeabilities because their pores are so tiny. • These materials, such as silt, clay, and shale, are said to be impermeable. • Flow velocities through permeable materials are always higher than those through impermeable materials, regardless of the slope of the water table.

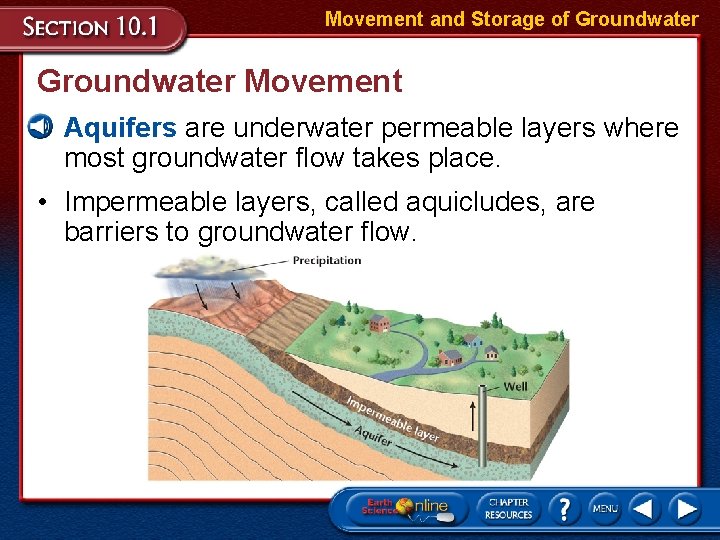

Movement and Storage of Groundwater Movement • Aquifers are underwater permeable layers where most

Movement and Storage of Groundwater Movement • Aquifers are underwater permeable layers where most groundwater flow takes place. • Impermeable layers, called aquicludes, are barriers to groundwater flow.

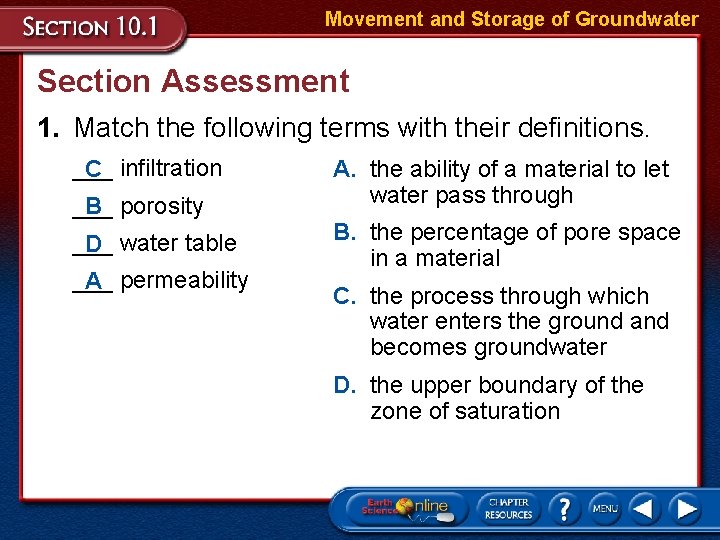

Movement and Storage of Groundwater Section Assessment 1. Match the following terms with their

Movement and Storage of Groundwater Section Assessment 1. Match the following terms with their definitions. ___ C infiltration ___ B porosity ___ D water table ___ A permeability A. the ability of a material to let water pass through B. the percentage of pore space in a material C. the process through which water enters the ground and becomes groundwater D. the upper boundary of the zone of saturation

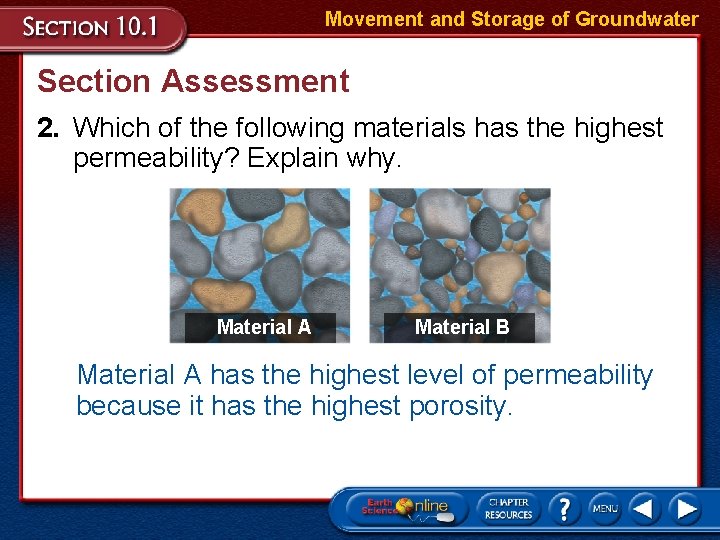

Movement and Storage of Groundwater Section Assessment 2. Which of the following materials has

Movement and Storage of Groundwater Section Assessment 2. Which of the following materials has the highest permeability? Explain why. Material A Material B Material A has the highest level of permeability because it has the highest porosity.

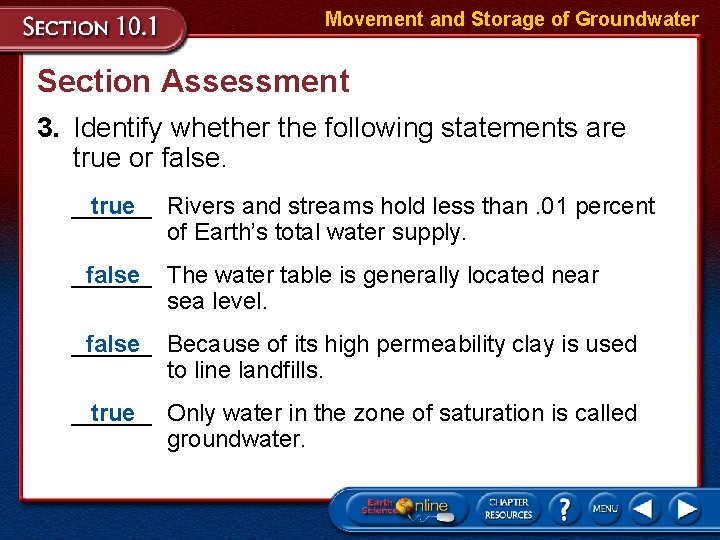

Movement and Storage of Groundwater Section Assessment 3. Identify whether the following statements are

Movement and Storage of Groundwater Section Assessment 3. Identify whether the following statements are true or false. ______ true Rivers and streams hold less than. 01 percent of Earth’s total water supply. ______ false The water table is generally located near sea level. ______ false Because of its high permeability clay is used to line landfills. ______ true Only water in the zone of saturation is called groundwater.

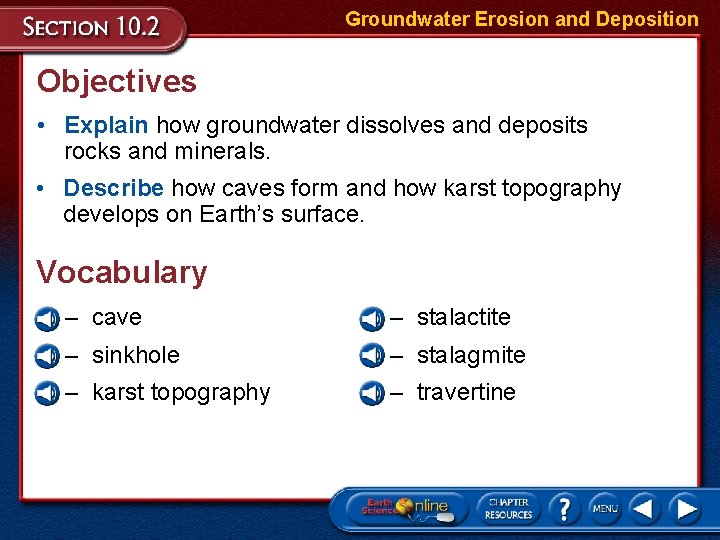

Groundwater Erosion and Deposition Objectives • Explain how groundwater dissolves and deposits rocks and

Groundwater Erosion and Deposition Objectives • Explain how groundwater dissolves and deposits rocks and minerals. • Describe how caves form and how karst topography develops on Earth’s surface. Vocabulary – cave – stalactite – sinkhole – stalagmite – karst topography – travertine

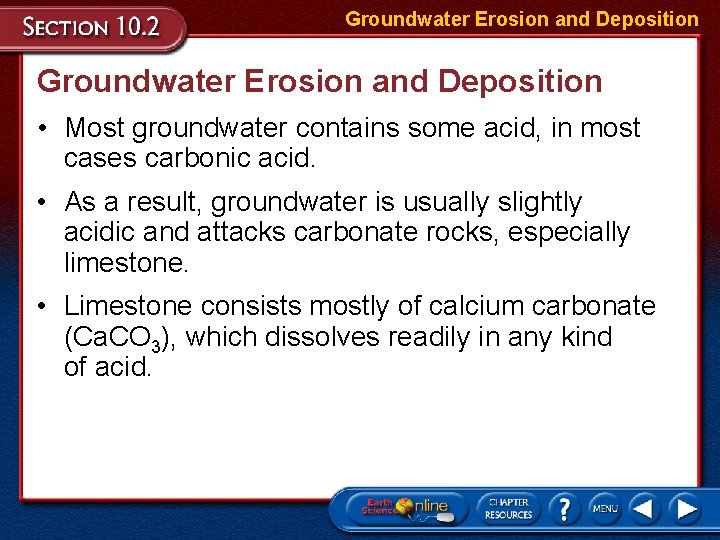

Groundwater Erosion and Deposition • Most groundwater contains some acid, in most cases carbonic

Groundwater Erosion and Deposition • Most groundwater contains some acid, in most cases carbonic acid. • As a result, groundwater is usually slightly acidic and attacks carbonate rocks, especially limestone. • Limestone consists mostly of calcium carbonate (Ca. CO 3), which dissolves readily in any kind of acid.

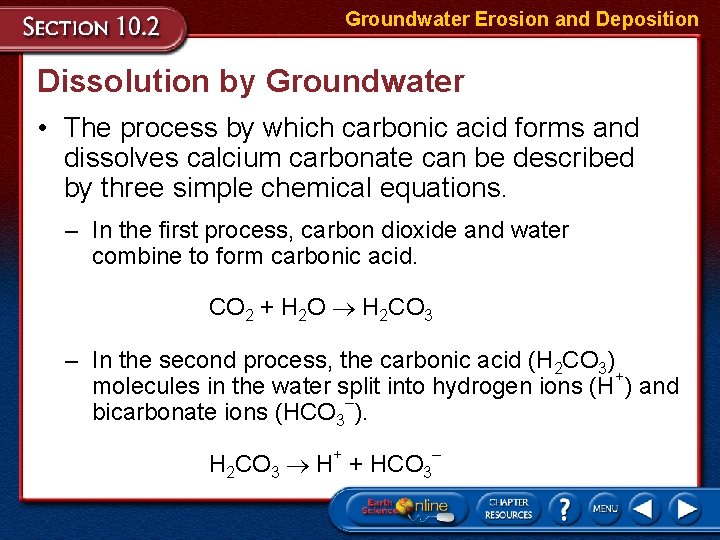

Groundwater Erosion and Deposition Dissolution by Groundwater • The process by which carbonic acid

Groundwater Erosion and Deposition Dissolution by Groundwater • The process by which carbonic acid forms and dissolves calcium carbonate can be described by three simple chemical equations. – In the first process, carbon dioxide and water combine to form carbonic acid. CO 2 + H 2 O ® H 2 CO 3 – In the second process, the carbonic acid (H 2 CO 3) molecules in the water split into hydrogen ions (H+) and bicarbonate ions (HCO 3–). H 2 CO 3 ® H+ + HCO 3–

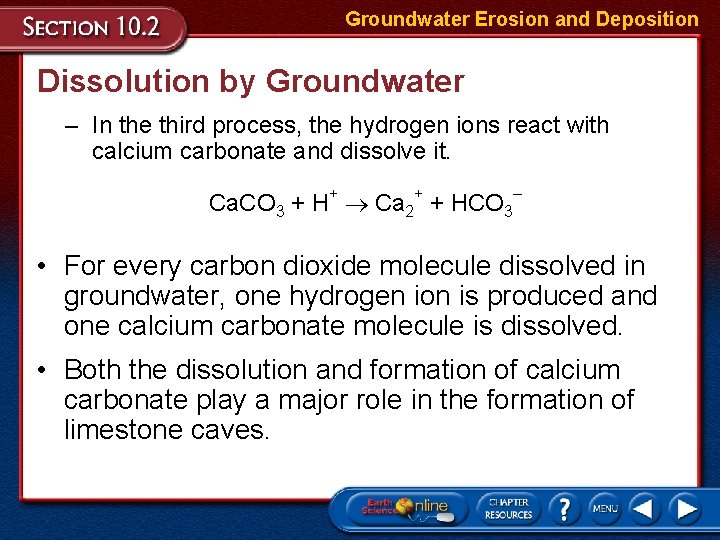

Groundwater Erosion and Deposition Dissolution by Groundwater – In the third process, the hydrogen

Groundwater Erosion and Deposition Dissolution by Groundwater – In the third process, the hydrogen ions react with calcium carbonate and dissolve it. Ca. CO 3 + H+ ® Ca 2+ + HCO 3– • For every carbon dioxide molecule dissolved in groundwater, one hydrogen ion is produced and one calcium carbonate molecule is dissolved. • Both the dissolution and formation of calcium carbonate play a major role in the formation of limestone caves.

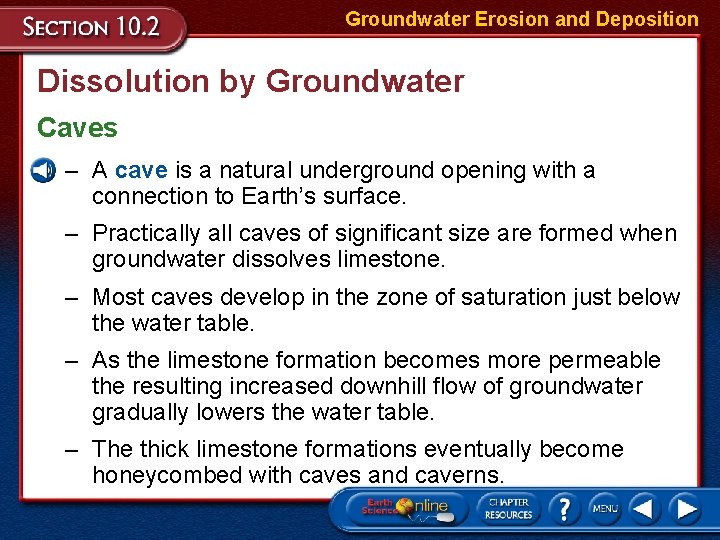

Groundwater Erosion and Deposition Dissolution by Groundwater Caves – A cave is a natural

Groundwater Erosion and Deposition Dissolution by Groundwater Caves – A cave is a natural underground opening with a connection to Earth’s surface. – Practically all caves of significant size are formed when groundwater dissolves limestone. – Most caves develop in the zone of saturation just below the water table. – As the limestone formation becomes more permeable the resulting increased downhill flow of groundwater gradually lowers the water table. – The thick limestone formations eventually become honeycombed with caves and caverns.

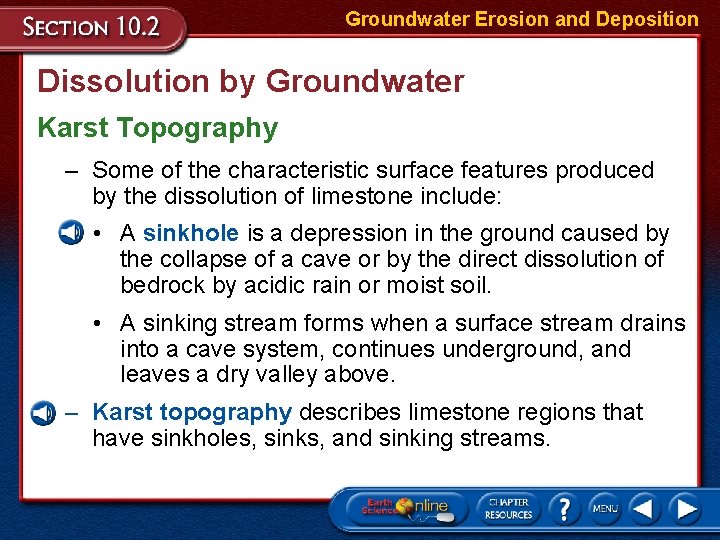

Groundwater Erosion and Deposition Dissolution by Groundwater Karst Topography – Some of the characteristic

Groundwater Erosion and Deposition Dissolution by Groundwater Karst Topography – Some of the characteristic surface features produced by the dissolution of limestone include: • A sinkhole is a depression in the ground caused by the collapse of a cave or by the direct dissolution of bedrock by acidic rain or moist soil. • A sinking stream forms when a surface stream drains into a cave system, continues underground, and leaves a dry valley above. – Karst topography describes limestone regions that have sinkholes, sinks, and sinking streams.

Groundwater Erosion and Deposition Dissolution by Groundwater Karst Topography

Groundwater Erosion and Deposition Dissolution by Groundwater Karst Topography

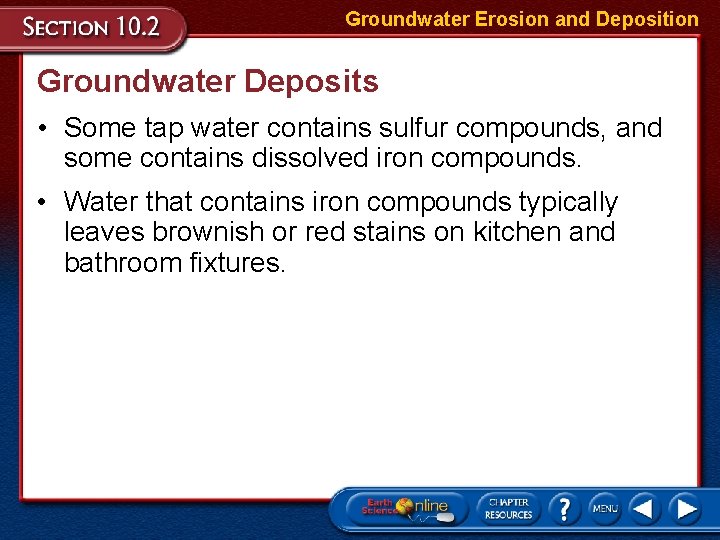

Groundwater Erosion and Deposition Groundwater Deposits • Some tap water contains sulfur compounds, and

Groundwater Erosion and Deposition Groundwater Deposits • Some tap water contains sulfur compounds, and some contains dissolved iron compounds. • Water that contains iron compounds typically leaves brownish or red stains on kitchen and bathroom fixtures.

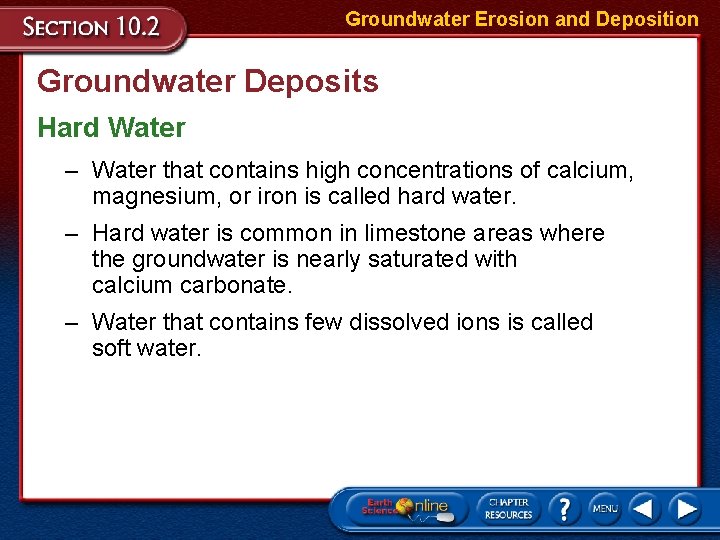

Groundwater Erosion and Deposition Groundwater Deposits Hard Water – Water that contains high concentrations

Groundwater Erosion and Deposition Groundwater Deposits Hard Water – Water that contains high concentrations of calcium, magnesium, or iron is called hard water. – Hard water is common in limestone areas where the groundwater is nearly saturated with calcium carbonate. – Water that contains few dissolved ions is called soft water.

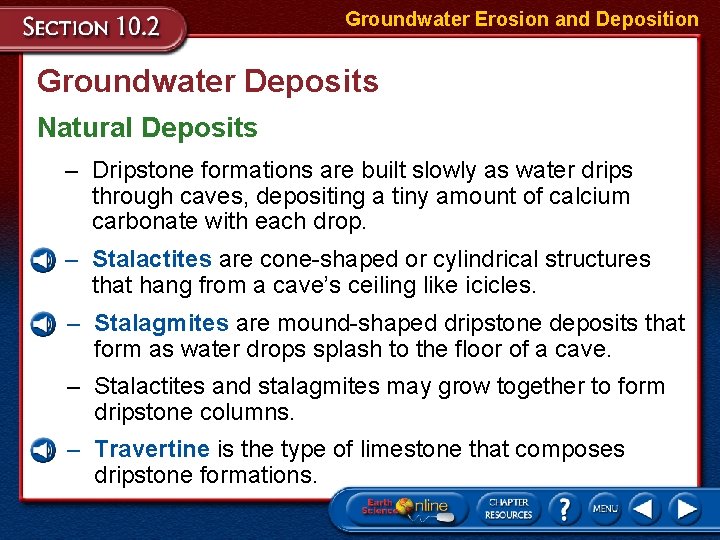

Groundwater Erosion and Deposition Groundwater Deposits Natural Deposits – Dripstone formations are built slowly

Groundwater Erosion and Deposition Groundwater Deposits Natural Deposits – Dripstone formations are built slowly as water drips through caves, depositing a tiny amount of calcium carbonate with each drop. – Stalactites are cone-shaped or cylindrical structures that hang from a cave’s ceiling like icicles. – Stalagmites are mound-shaped dripstone deposits that form as water drops splash to the floor of a cave. – Stalactites and stalagmites may grow together to form dripstone columns. – Travertine is the type of limestone that composes dripstone formations.

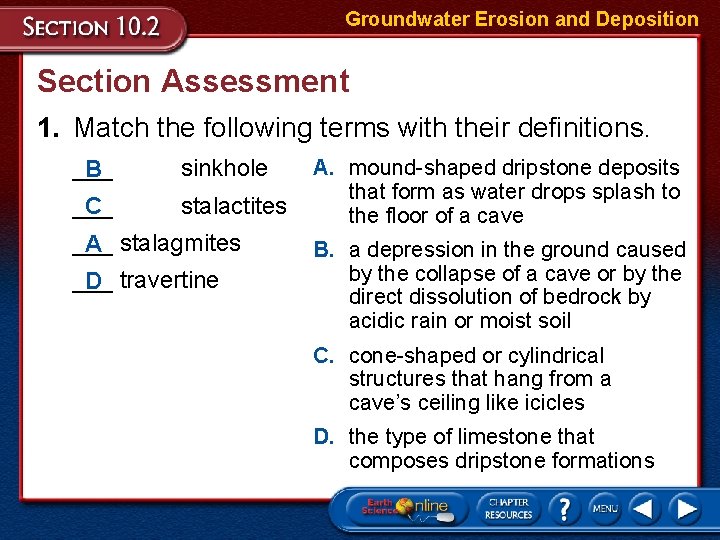

Groundwater Erosion and Deposition Section Assessment 1. Match the following terms with their definitions.

Groundwater Erosion and Deposition Section Assessment 1. Match the following terms with their definitions. ___ B sinkhole ___ C stalactites ___ A stalagmites ___ D travertine A. mound-shaped dripstone deposits that form as water drops splash to the floor of a cave B. a depression in the ground caused by the collapse of a cave or by the direct dissolution of bedrock by acidic rain or moist soil C. cone-shaped or cylindrical structures that hang from a cave’s ceiling like icicles D. the type of limestone that composes dripstone formations

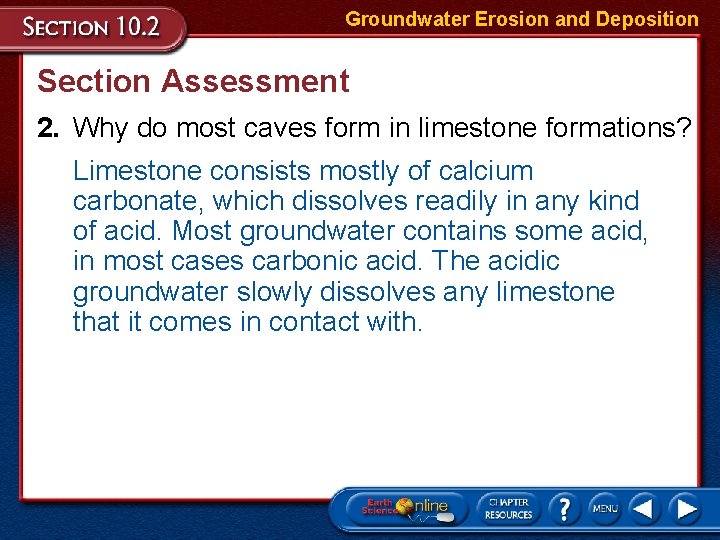

Groundwater Erosion and Deposition Section Assessment 2. Why do most caves form in limestone

Groundwater Erosion and Deposition Section Assessment 2. Why do most caves form in limestone formations? Limestone consists mostly of calcium carbonate, which dissolves readily in any kind of acid. Most groundwater contains some acid, in most cases carbonic acid. The acidic groundwater slowly dissolves any limestone that it comes in contact with.

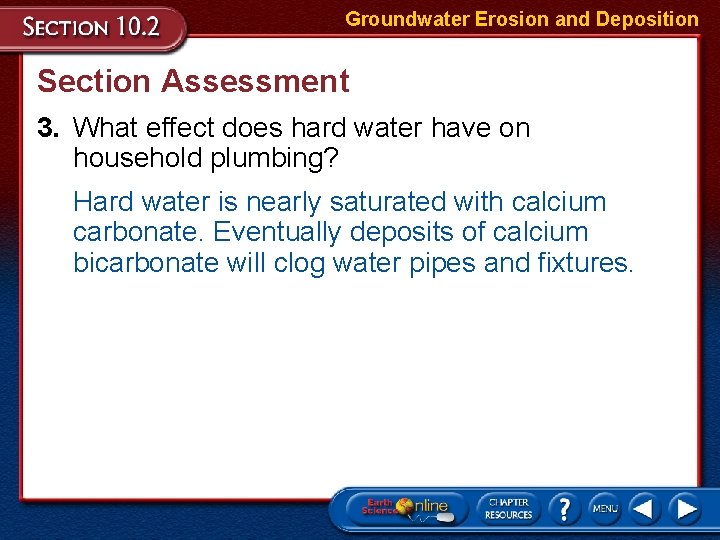

Groundwater Erosion and Deposition Section Assessment 3. What effect does hard water have on

Groundwater Erosion and Deposition Section Assessment 3. What effect does hard water have on household plumbing? Hard water is nearly saturated with calcium carbonate. Eventually deposits of calcium bicarbonate will clog water pipes and fixtures.

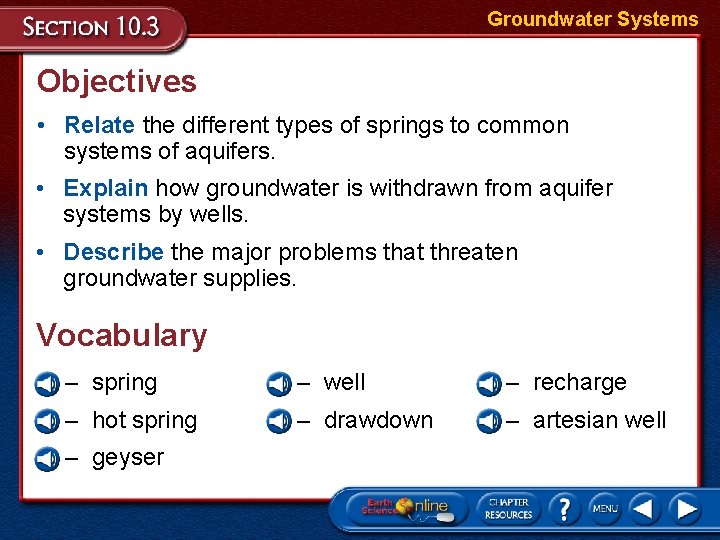

Groundwater Systems Objectives • Relate the different types of springs to common systems of

Groundwater Systems Objectives • Relate the different types of springs to common systems of aquifers. • Explain how groundwater is withdrawn from aquifer systems by wells. • Describe the major problems that threaten groundwater supplies. Vocabulary – spring – well – recharge – hot spring – drawdown – artesian well – geyser

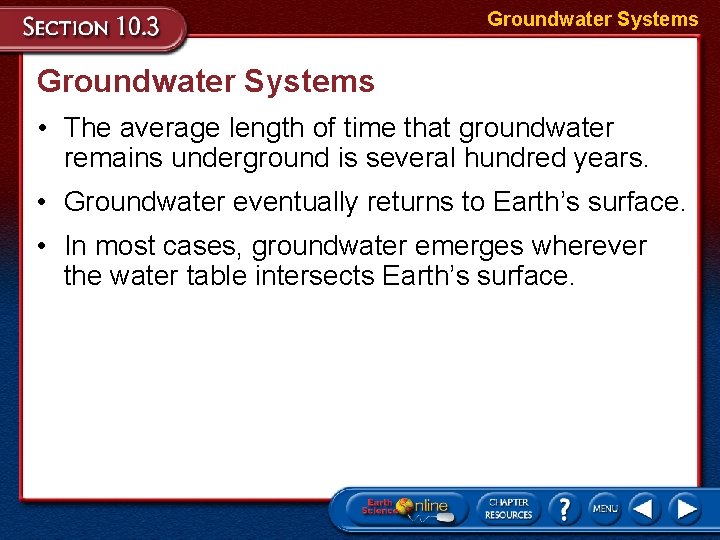

Groundwater Systems • The average length of time that groundwater remains underground is several

Groundwater Systems • The average length of time that groundwater remains underground is several hundred years. • Groundwater eventually returns to Earth’s surface. • In most cases, groundwater emerges wherever the water table intersects Earth’s surface.

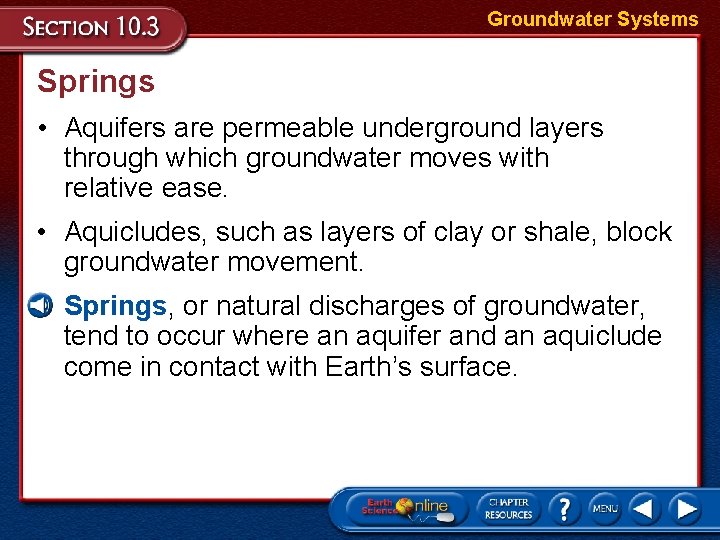

Groundwater Systems Springs • Aquifers are permeable underground layers through which groundwater moves with

Groundwater Systems Springs • Aquifers are permeable underground layers through which groundwater moves with relative ease. • Aquicludes, such as layers of clay or shale, block groundwater movement. • Springs, or natural discharges of groundwater, tend to occur where an aquifer and an aquiclude come in contact with Earth’s surface.

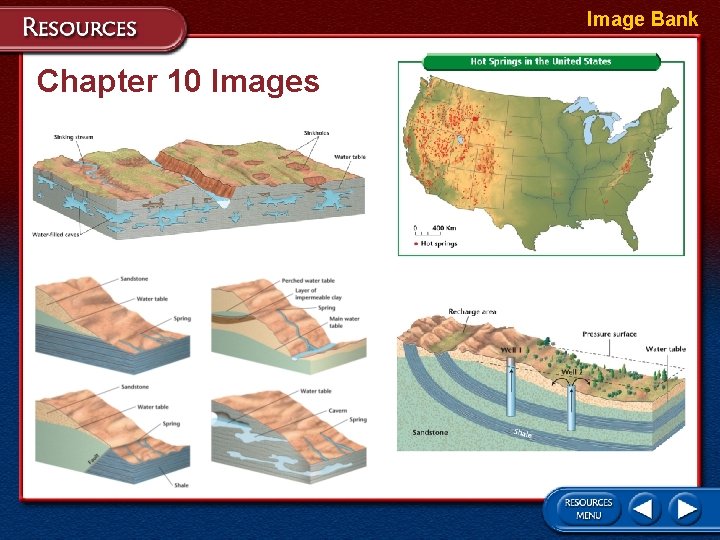

Groundwater Systems Springs Emergence of Springs – In regions of near-horizontal sedimentary rocks, springs

Groundwater Systems Springs Emergence of Springs – In regions of near-horizontal sedimentary rocks, springs often emerge on the sides of valleys at about the same elevation, at the bases of aquifers. – Springs may also emerge at the edges of perched water tables. A perched water table is a zone of saturation that overlies an aquiclude that separates it from the main water table below.

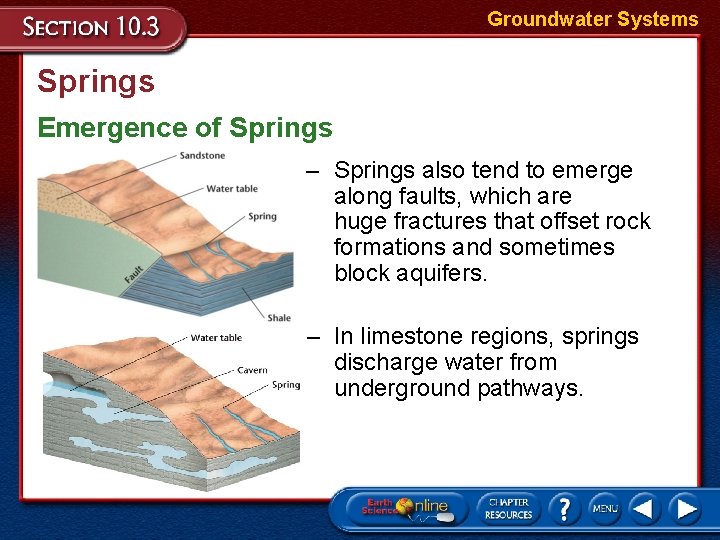

Groundwater Systems Springs Emergence of Springs – Springs also tend to emerge along faults,

Groundwater Systems Springs Emergence of Springs – Springs also tend to emerge along faults, which are huge fractures that offset rock formations and sometimes block aquifers. – In limestone regions, springs discharge water from underground pathways.

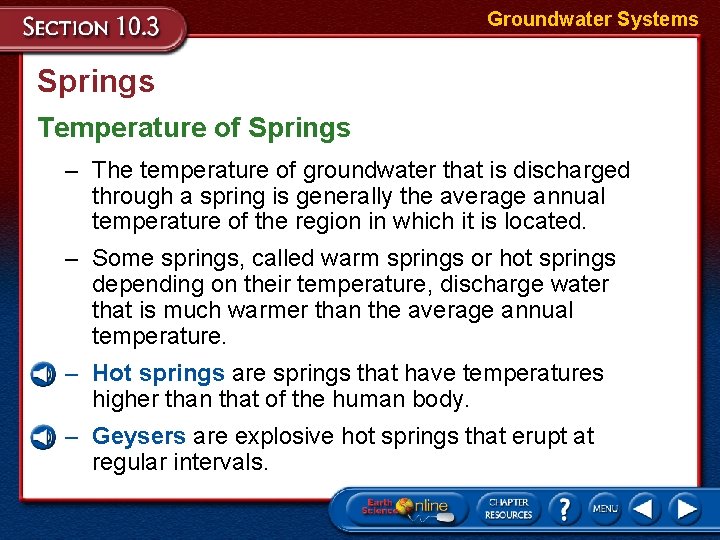

Groundwater Systems Springs Temperature of Springs – The temperature of groundwater that is discharged

Groundwater Systems Springs Temperature of Springs – The temperature of groundwater that is discharged through a spring is generally the average annual temperature of the region in which it is located. – Some springs, called warm springs or hot springs depending on their temperature, discharge water that is much warmer than the average annual temperature. – Hot springs are springs that have temperatures higher than that of the human body. – Geysers are explosive hot springs that erupt at regular intervals.

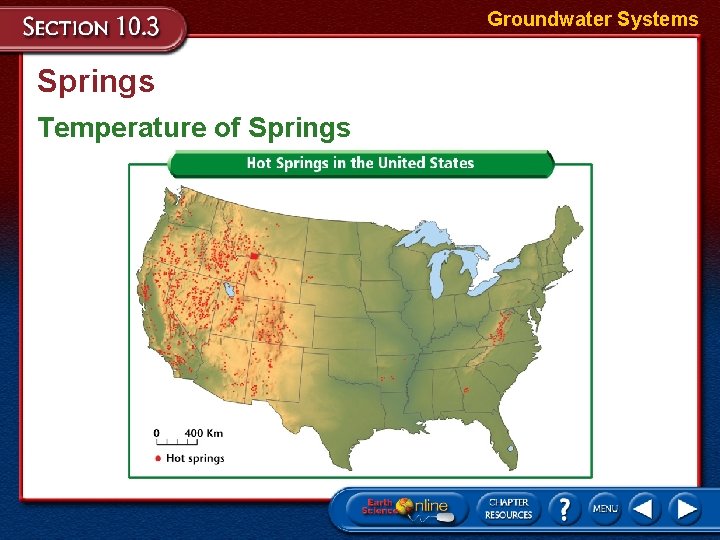

Groundwater Systems Springs Temperature of Springs

Groundwater Systems Springs Temperature of Springs

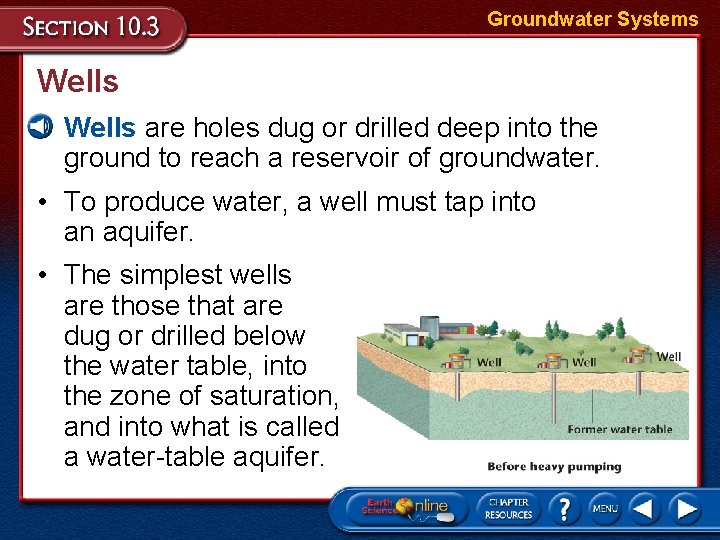

Groundwater Systems Wells • Wells are holes dug or drilled deep into the ground

Groundwater Systems Wells • Wells are holes dug or drilled deep into the ground to reach a reservoir of groundwater. • To produce water, a well must tap into an aquifer. • The simplest wells are those that are dug or drilled below the water table, into the zone of saturation, and into what is called a water-table aquifer.

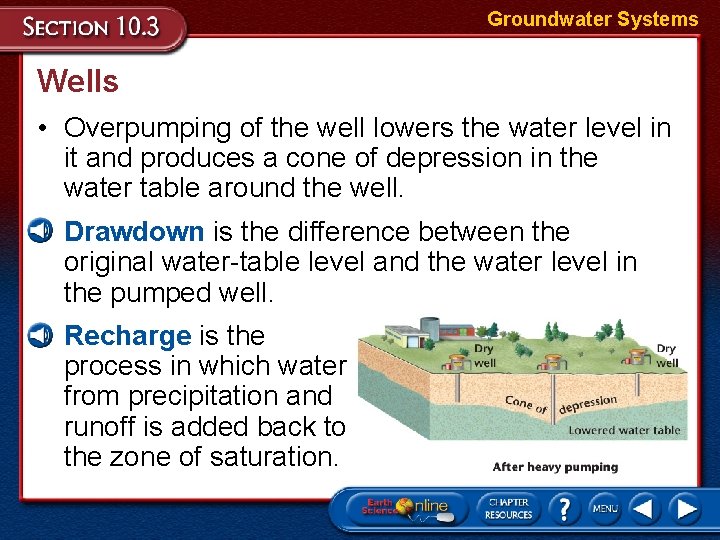

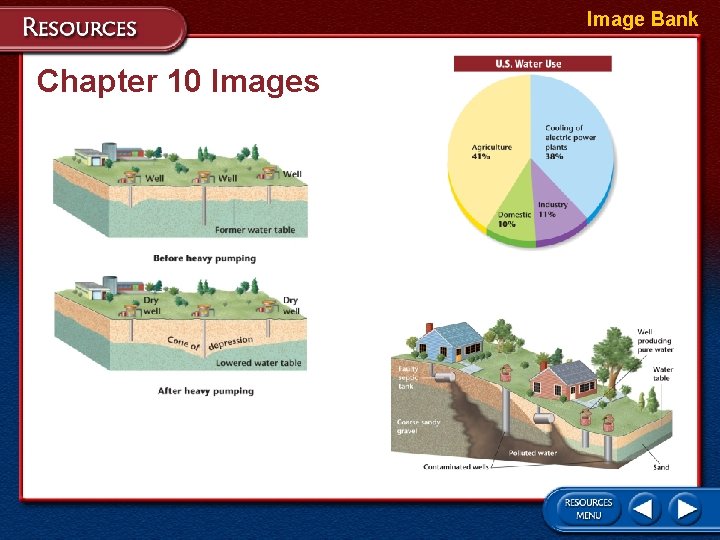

Groundwater Systems Wells • Overpumping of the well lowers the water level in it

Groundwater Systems Wells • Overpumping of the well lowers the water level in it and produces a cone of depression in the water table around the well. • Drawdown is the difference between the original water-table level and the water level in the pumped well. • Recharge is the process in which water from precipitation and runoff is added back to the zone of saturation.

Groundwater Systems Confined Aquifers • Water-table aquifers are unconfined and unprotected, and thus, they

Groundwater Systems Confined Aquifers • Water-table aquifers are unconfined and unprotected, and thus, they are easily polluted. • More reliable and less easily polluted water supplies can be found in deeper aquifers, called confined aquifers, which are generally sandwiched between aquicludes. • The aquicludes form barriers that prevent pollutants from reaching such aquifers.

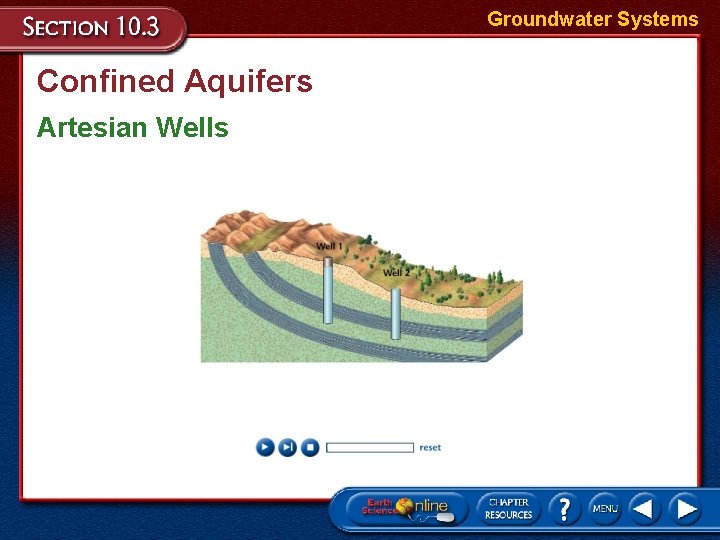

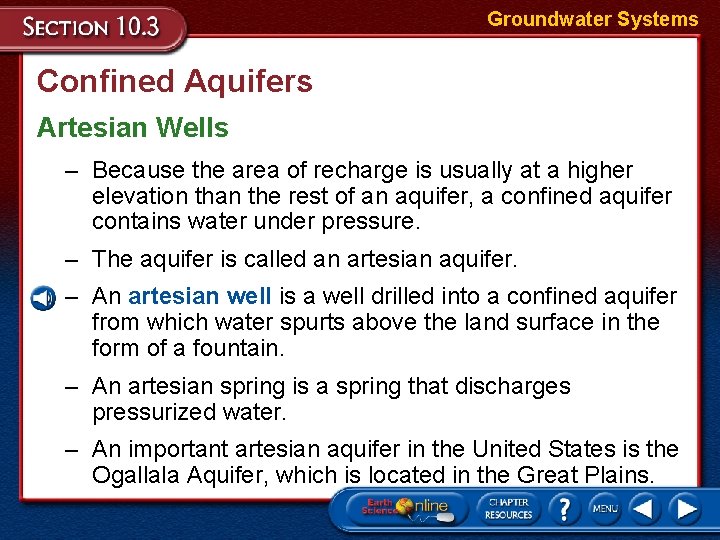

Groundwater Systems Confined Aquifers Artesian Wells – Because the area of recharge is usually

Groundwater Systems Confined Aquifers Artesian Wells – Because the area of recharge is usually at a higher elevation than the rest of an aquifer, a confined aquifer contains water under pressure. – The aquifer is called an artesian aquifer. – An artesian well is a well drilled into a confined aquifer from which water spurts above the land surface in the form of a fountain. – An artesian spring is a spring that discharges pressurized water. – An important artesian aquifer in the United States is the Ogallala Aquifer, which is located in the Great Plains.

Groundwater Systems Confined Aquifers Artesian Wells

Groundwater Systems Confined Aquifers Artesian Wells

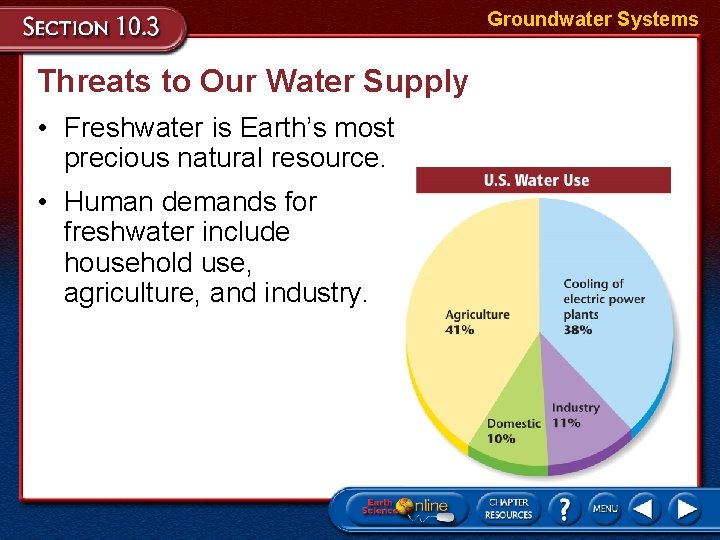

Groundwater Systems Threats to Our Water Supply • Freshwater is Earth’s most precious natural

Groundwater Systems Threats to Our Water Supply • Freshwater is Earth’s most precious natural resource. • Human demands for freshwater include household use, agriculture, and industry.

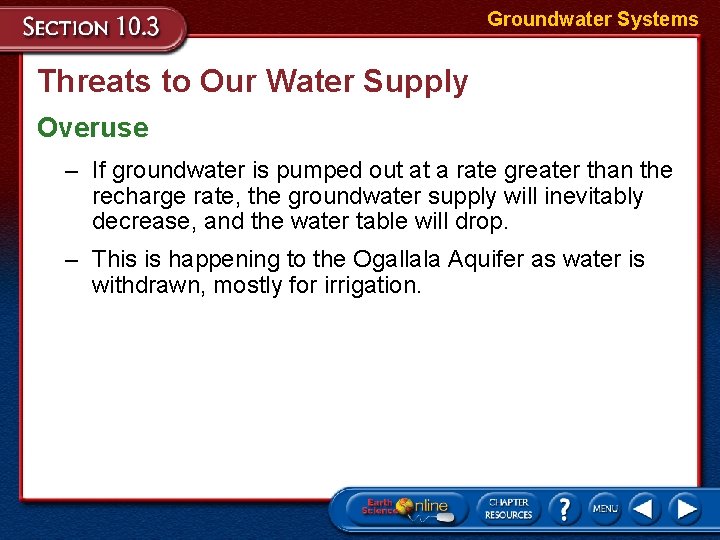

Groundwater Systems Threats to Our Water Supply Overuse – If groundwater is pumped out

Groundwater Systems Threats to Our Water Supply Overuse – If groundwater is pumped out at a rate greater than the recharge rate, the groundwater supply will inevitably decrease, and the water table will drop. – This is happening to the Ogallala Aquifer as water is withdrawn, mostly for irrigation.

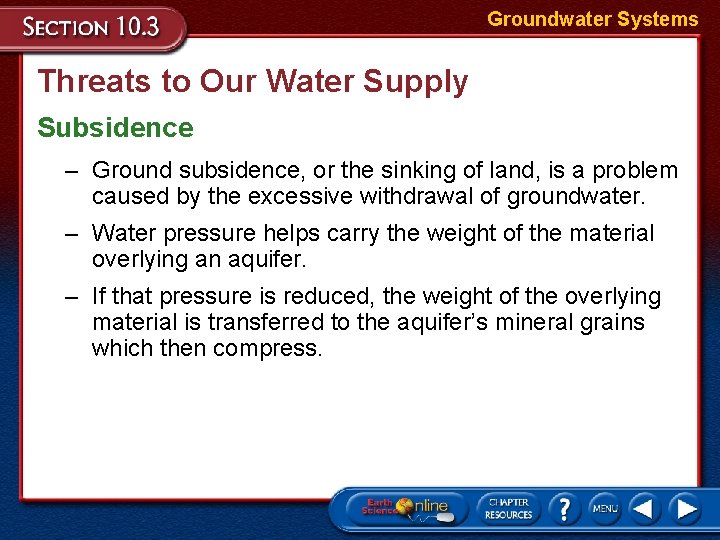

Groundwater Systems Threats to Our Water Supply Subsidence – Ground subsidence, or the sinking

Groundwater Systems Threats to Our Water Supply Subsidence – Ground subsidence, or the sinking of land, is a problem caused by the excessive withdrawal of groundwater. – Water pressure helps carry the weight of the material overlying an aquifer. – If that pressure is reduced, the weight of the overlying material is transferred to the aquifer’s mineral grains which then compress.

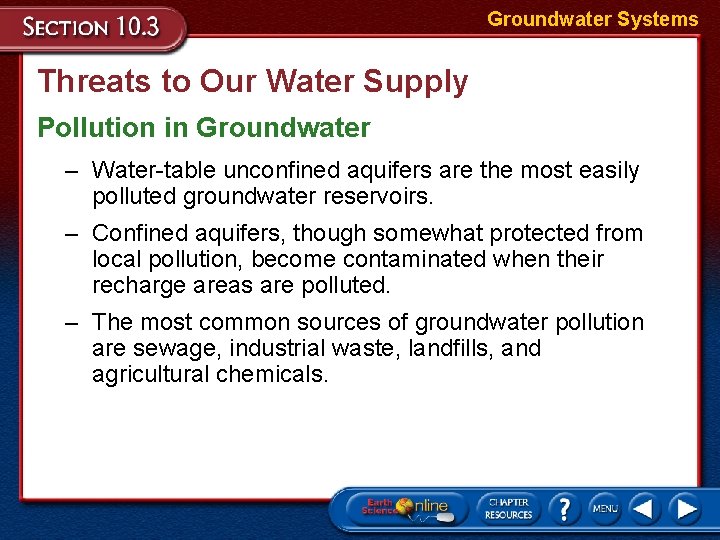

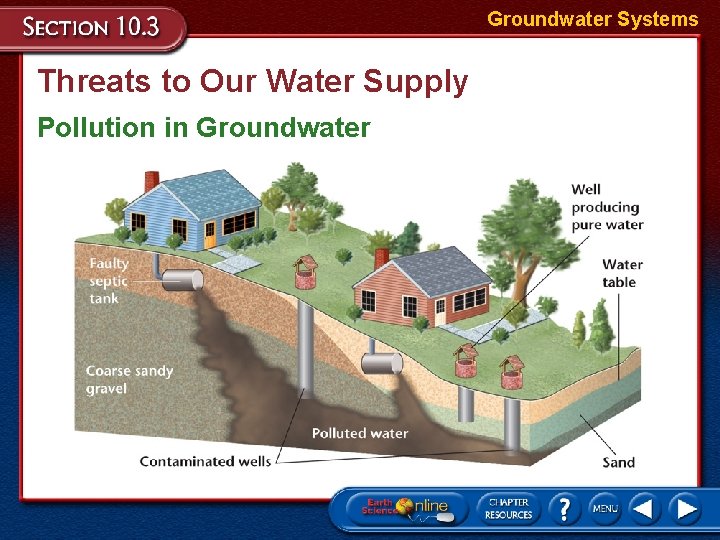

Groundwater Systems Threats to Our Water Supply Pollution in Groundwater – Water-table unconfined aquifers

Groundwater Systems Threats to Our Water Supply Pollution in Groundwater – Water-table unconfined aquifers are the most easily polluted groundwater reservoirs. – Confined aquifers, though somewhat protected from local pollution, become contaminated when their recharge areas are polluted. – The most common sources of groundwater pollution are sewage, industrial waste, landfills, and agricultural chemicals.

Groundwater Systems Threats to Our Water Supply Pollution in Groundwater

Groundwater Systems Threats to Our Water Supply Pollution in Groundwater

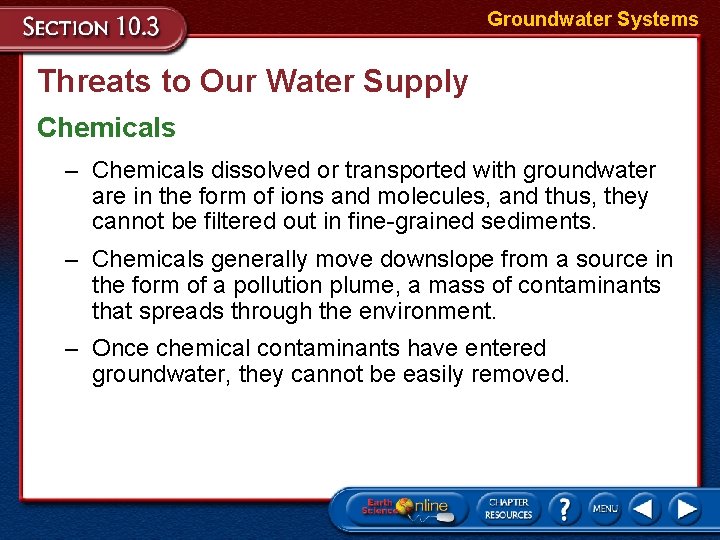

Groundwater Systems Threats to Our Water Supply Chemicals – Chemicals dissolved or transported with

Groundwater Systems Threats to Our Water Supply Chemicals – Chemicals dissolved or transported with groundwater are in the form of ions and molecules, and thus, they cannot be filtered out in fine-grained sediments. – Chemicals generally move downslope from a source in the form of a pollution plume, a mass of contaminants that spreads through the environment. – Once chemical contaminants have entered groundwater, they cannot be easily removed.

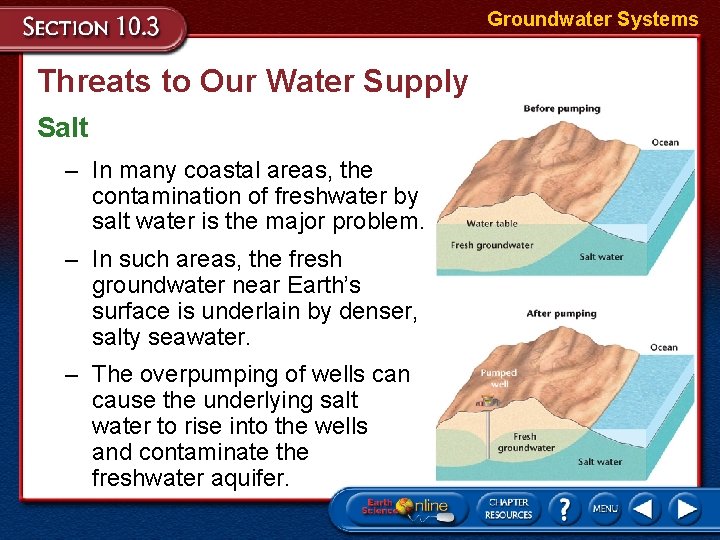

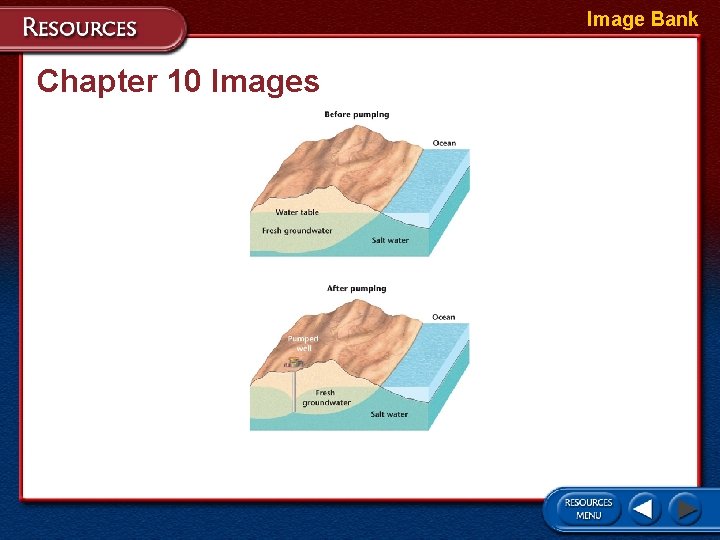

Groundwater Systems Threats to Our Water Supply Salt – In many coastal areas, the

Groundwater Systems Threats to Our Water Supply Salt – In many coastal areas, the contamination of freshwater by salt water is the major problem. – In such areas, the fresh groundwater near Earth’s surface is underlain by denser, salty seawater. – The overpumping of wells can cause the underlying salt water to rise into the wells and contaminate the freshwater aquifer.

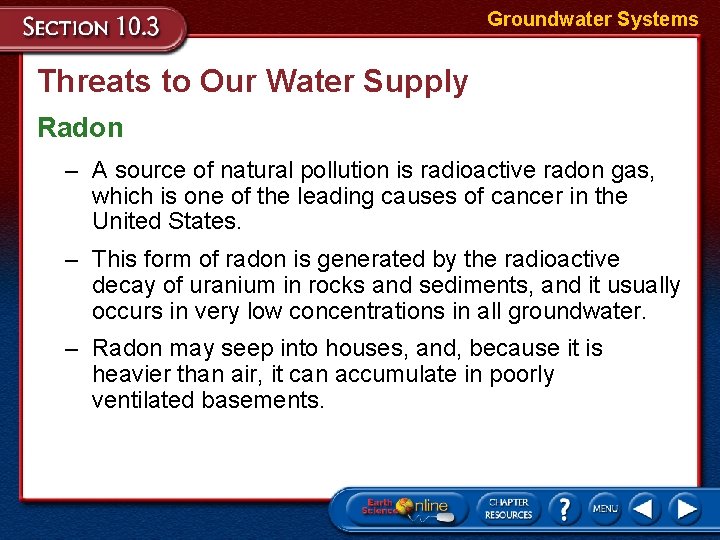

Groundwater Systems Threats to Our Water Supply Radon – A source of natural pollution

Groundwater Systems Threats to Our Water Supply Radon – A source of natural pollution is radioactive radon gas, which is one of the leading causes of cancer in the United States. – This form of radon is generated by the radioactive decay of uranium in rocks and sediments, and it usually occurs in very low concentrations in all groundwater. – Radon may seep into houses, and, because it is heavier than air, it can accumulate in poorly ventilated basements.

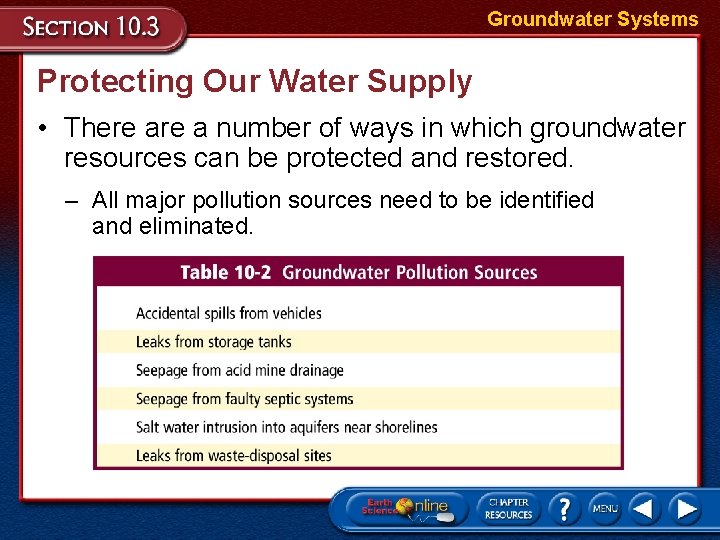

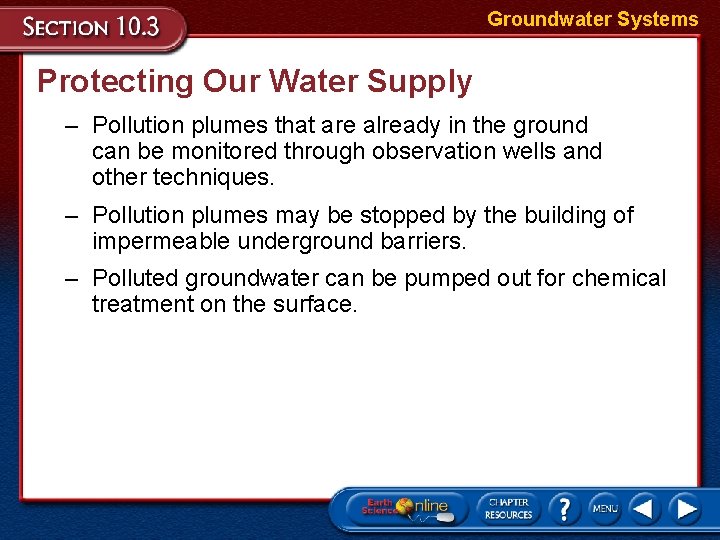

Groundwater Systems Protecting Our Water Supply • There a number of ways in which

Groundwater Systems Protecting Our Water Supply • There a number of ways in which groundwater resources can be protected and restored. – All major pollution sources need to be identified and eliminated.

Groundwater Systems Protecting Our Water Supply – Pollution plumes that are already in the

Groundwater Systems Protecting Our Water Supply – Pollution plumes that are already in the ground can be monitored through observation wells and other techniques. – Pollution plumes may be stopped by the building of impermeable underground barriers. – Polluted groundwater can be pumped out for chemical treatment on the surface.

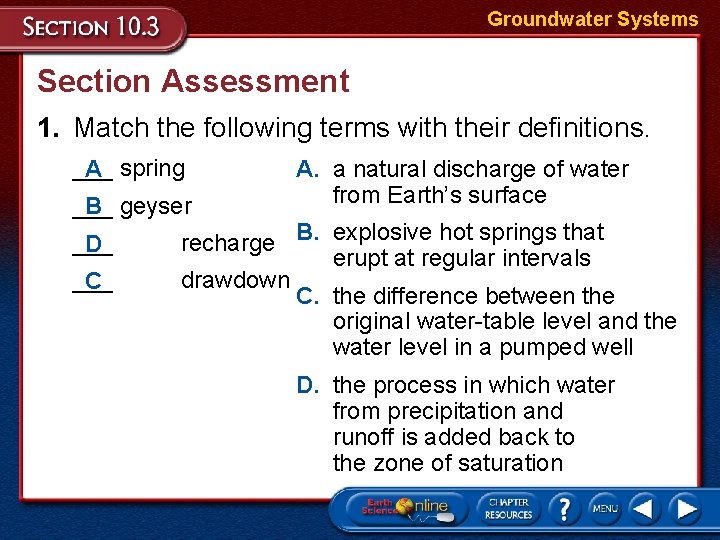

Groundwater Systems Section Assessment 1. Match the following terms with their definitions. ___ A

Groundwater Systems Section Assessment 1. Match the following terms with their definitions. ___ A spring ___ B geyser ___ D recharge ___ C drawdown A. a natural discharge of water from Earth’s surface B. explosive hot springs that erupt at regular intervals C. the difference between the original water-table level and the water level in a pumped well D. the process in which water from precipitation and runoff is added back to the zone of saturation

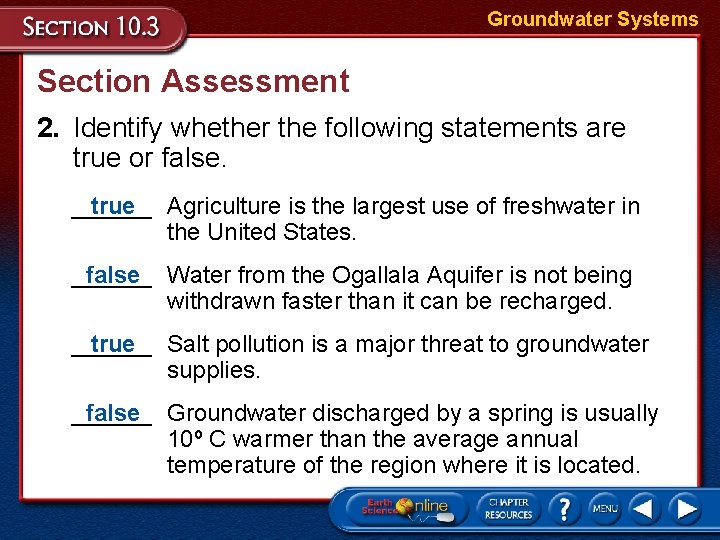

Groundwater Systems Section Assessment 2. Identify whether the following statements are true or false.

Groundwater Systems Section Assessment 2. Identify whether the following statements are true or false. ______ true Agriculture is the largest use of freshwater in the United States. ______ false Water from the Ogallala Aquifer is not being withdrawn faster than it can be recharged. ______ true Salt pollution is a major threat to groundwater supplies. ______ false Groundwater discharged by a spring is usually 10º C warmer than the average annual temperature of the region where it is located.

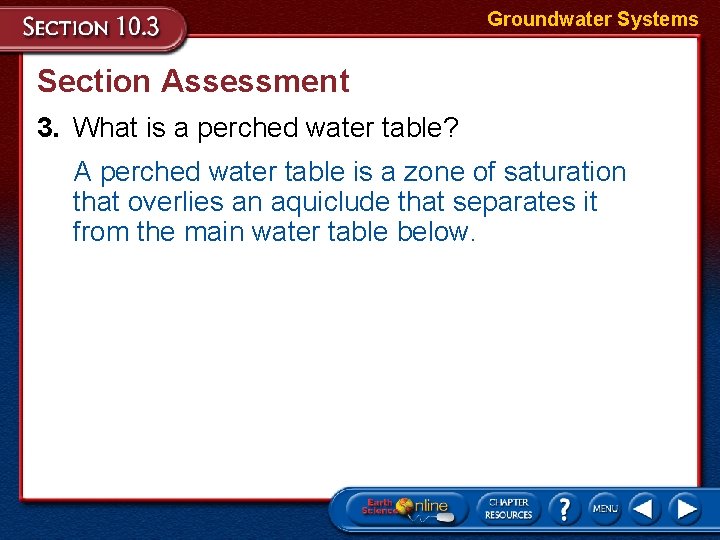

Groundwater Systems Section Assessment 3. What is a perched water table? A perched water

Groundwater Systems Section Assessment 3. What is a perched water table? A perched water table is a zone of saturation that overlies an aquiclude that separates it from the main water table below.

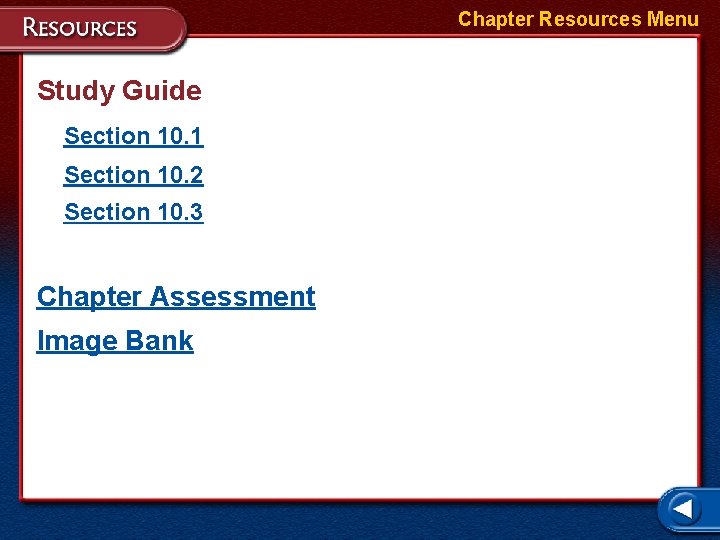

Chapter Resources Menu Study Guide Section 10. 1 Section 10. 2 Section 10. 3

Chapter Resources Menu Study Guide Section 10. 1 Section 10. 2 Section 10. 3 Chapter Assessment Image Bank

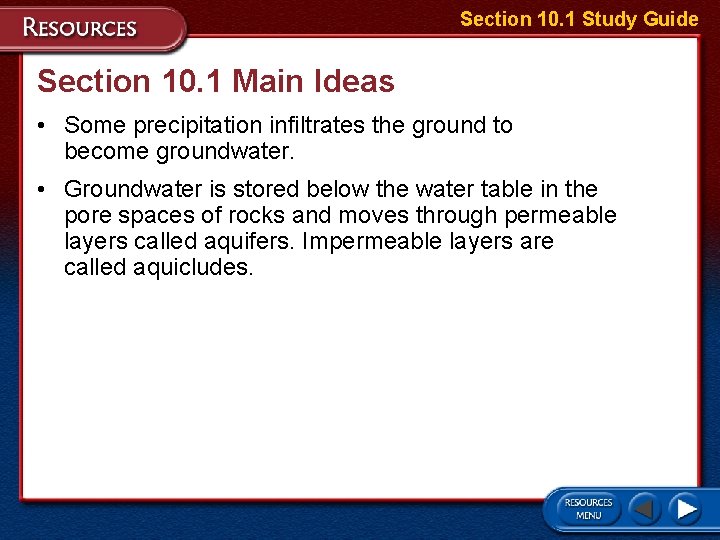

Section 10. 1 Study Guide Section 10. 1 Main Ideas • Some precipitation infiltrates

Section 10. 1 Study Guide Section 10. 1 Main Ideas • Some precipitation infiltrates the ground to become groundwater. • Groundwater is stored below the water table in the pore spaces of rocks and moves through permeable layers called aquifers. Impermeable layers are called aquicludes.

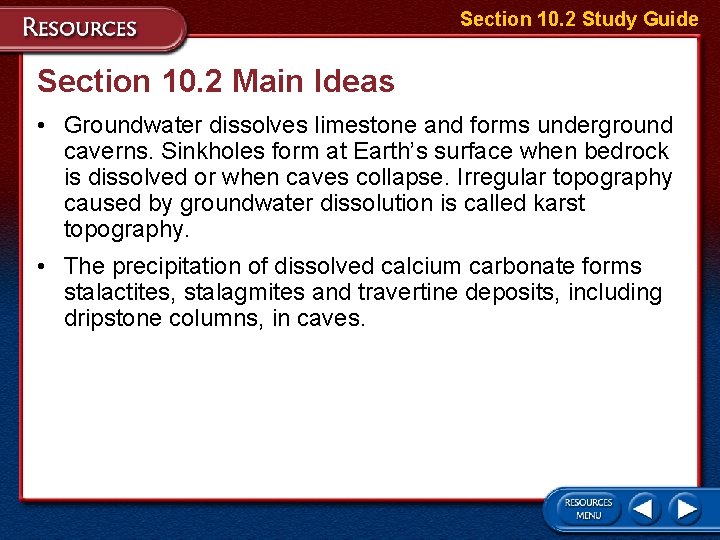

Section 10. 2 Study Guide Section 10. 2 Main Ideas • Groundwater dissolves limestone

Section 10. 2 Study Guide Section 10. 2 Main Ideas • Groundwater dissolves limestone and forms underground caverns. Sinkholes form at Earth’s surface when bedrock is dissolved or when caves collapse. Irregular topography caused by groundwater dissolution is called karst topography. • The precipitation of dissolved calcium carbonate forms stalactites, stalagmites and travertine deposits, including dripstone columns, in caves.

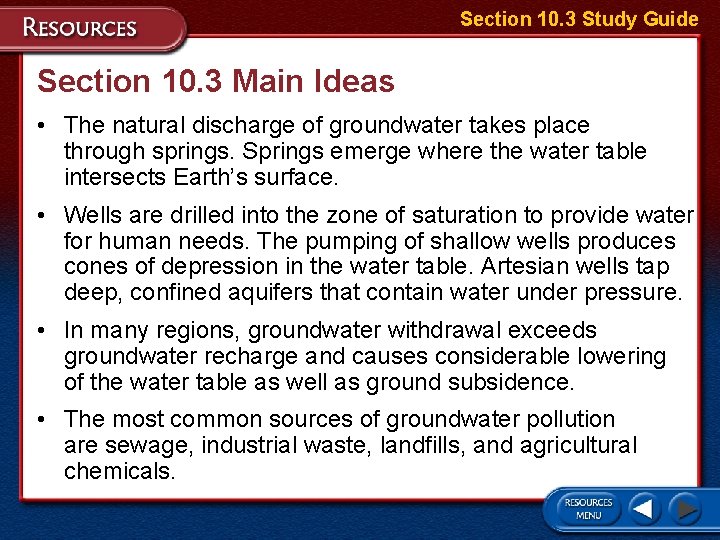

Section 10. 3 Study Guide Section 10. 3 Main Ideas • The natural discharge

Section 10. 3 Study Guide Section 10. 3 Main Ideas • The natural discharge of groundwater takes place through springs. Springs emerge where the water table intersects Earth’s surface. • Wells are drilled into the zone of saturation to provide water for human needs. The pumping of shallow wells produces cones of depression in the water table. Artesian wells tap deep, confined aquifers that contain water under pressure. • In many regions, groundwater withdrawal exceeds groundwater recharge and causes considerable lowering of the water table as well as ground subsidence. • The most common sources of groundwater pollution are sewage, industrial waste, landfills, and agricultural chemicals.

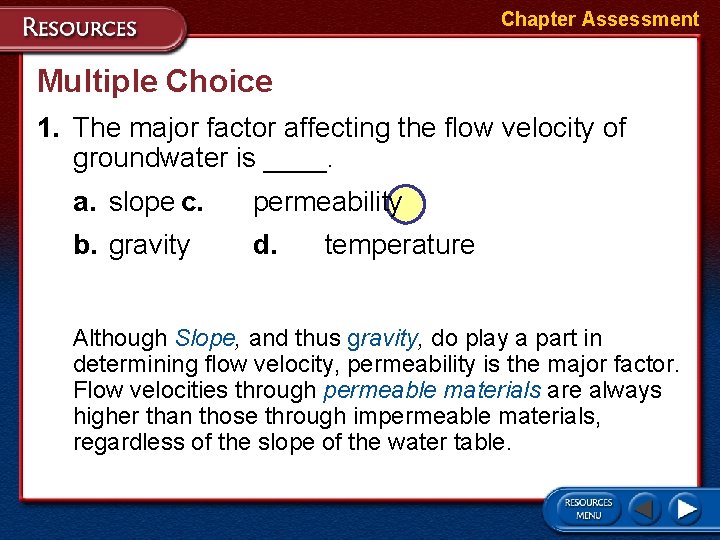

Chapter Assessment Multiple Choice 1. The major factor affecting the flow velocity of groundwater

Chapter Assessment Multiple Choice 1. The major factor affecting the flow velocity of groundwater is ____. a. slope c. permeability b. gravity d. temperature Although Slope, and thus gravity, do play a part in determining flow velocity, permeability is the major factor. Flow velocities through permeable materials are always higher than those through impermeable materials, regardless of the slope of the water table.

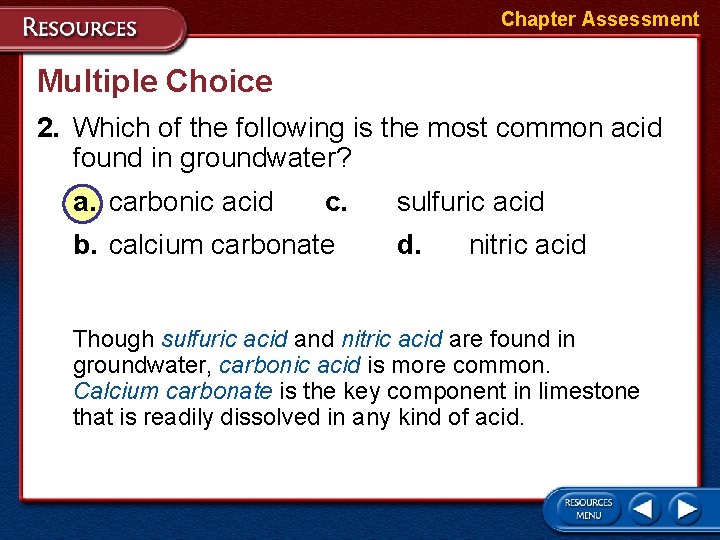

Chapter Assessment Multiple Choice 2. Which of the following is the most common acid

Chapter Assessment Multiple Choice 2. Which of the following is the most common acid found in groundwater? a. carbonic acid c. sulfuric acid b. calcium carbonate d. nitric acid Though sulfuric acid and nitric acid are found in groundwater, carbonic acid is more common. Calcium carbonate is the key component in limestone that is readily dissolved in any kind of acid.

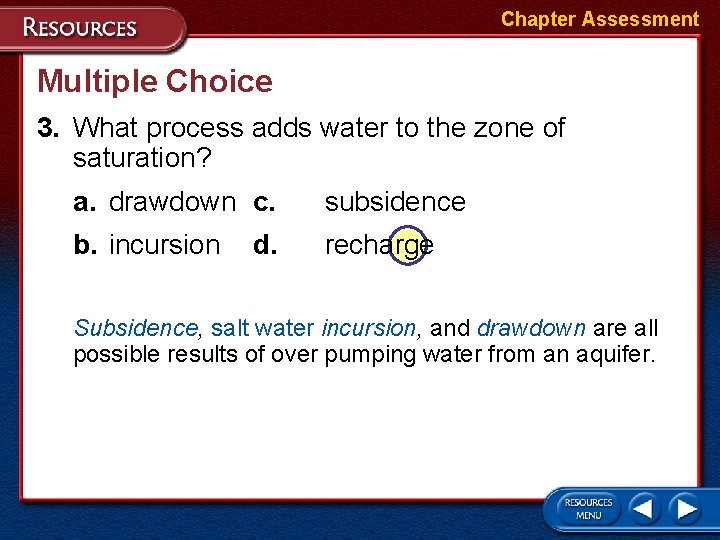

Chapter Assessment Multiple Choice 3. What process adds water to the zone of saturation?

Chapter Assessment Multiple Choice 3. What process adds water to the zone of saturation? a. drawdown c. subsidence b. incursion d. recharge Subsidence, salt water incursion, and drawdown are all possible results of over pumping water from an aquifer.

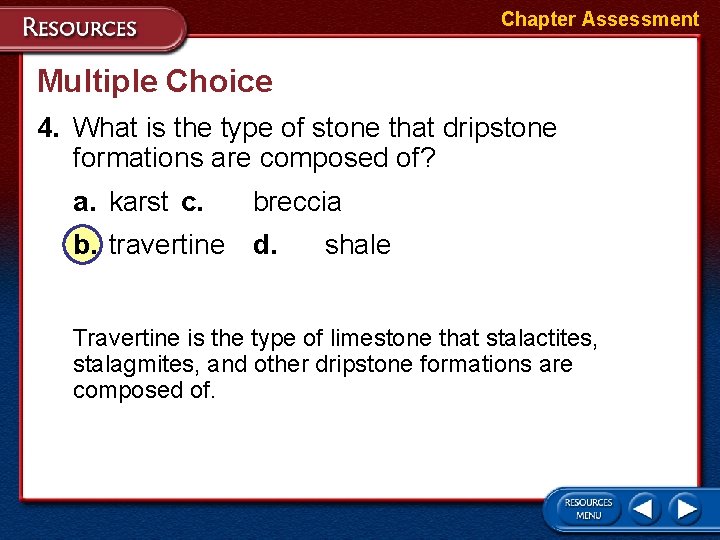

Chapter Assessment Multiple Choice 4. What is the type of stone that dripstone formations

Chapter Assessment Multiple Choice 4. What is the type of stone that dripstone formations are composed of? a. karst c. breccia b. travertine d. shale Travertine is the type of limestone that stalactites, stalagmites, and other dripstone formations are composed of.

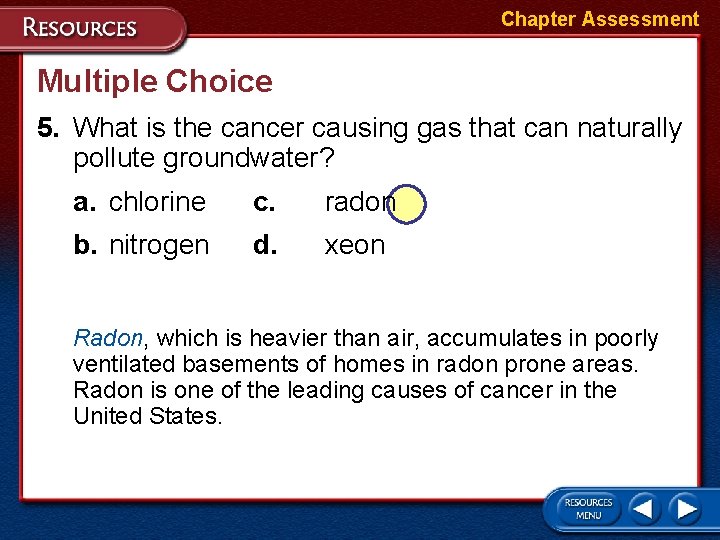

Chapter Assessment Multiple Choice 5. What is the cancer causing gas that can naturally

Chapter Assessment Multiple Choice 5. What is the cancer causing gas that can naturally pollute groundwater? a. chlorine c. radon b. nitrogen d. xeon Radon, which is heavier than air, accumulates in poorly ventilated basements of homes in radon prone areas. Radon is one of the leading causes of cancer in the United States.

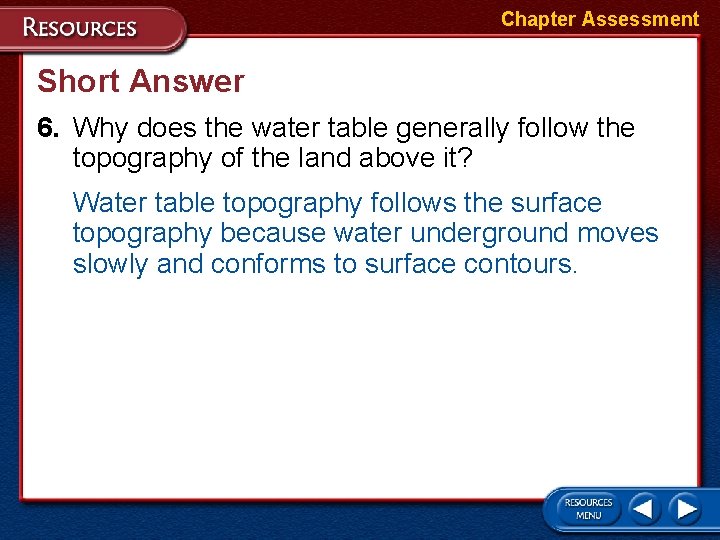

Chapter Assessment Short Answer 6. Why does the water table generally follow the topography

Chapter Assessment Short Answer 6. Why does the water table generally follow the topography of the land above it? Water table topography follows the surface topography because water underground moves slowly and conforms to surface contours.

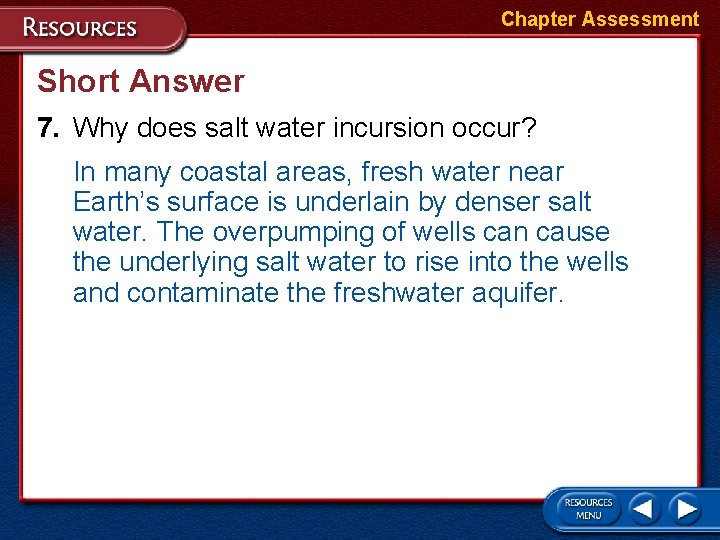

Chapter Assessment Short Answer 7. Why does salt water incursion occur? In many coastal

Chapter Assessment Short Answer 7. Why does salt water incursion occur? In many coastal areas, fresh water near Earth’s surface is underlain by denser salt water. The overpumping of wells can cause the underlying salt water to rise into the wells and contaminate the freshwater aquifer.

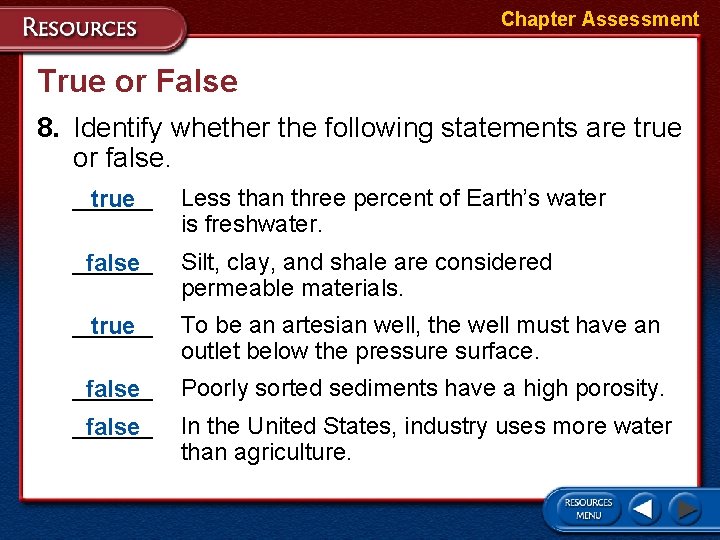

Chapter Assessment True or False 8. Identify whether the following statements are true or

Chapter Assessment True or False 8. Identify whether the following statements are true or false. ______ true Less than three percent of Earth’s water is freshwater. ______ false Silt, clay, and shale are considered permeable materials. ______ true To be an artesian well, the well must have an outlet below the pressure surface. ______ false Poorly sorted sediments have a high porosity. ______ false In the United States, industry uses more water than agriculture.
