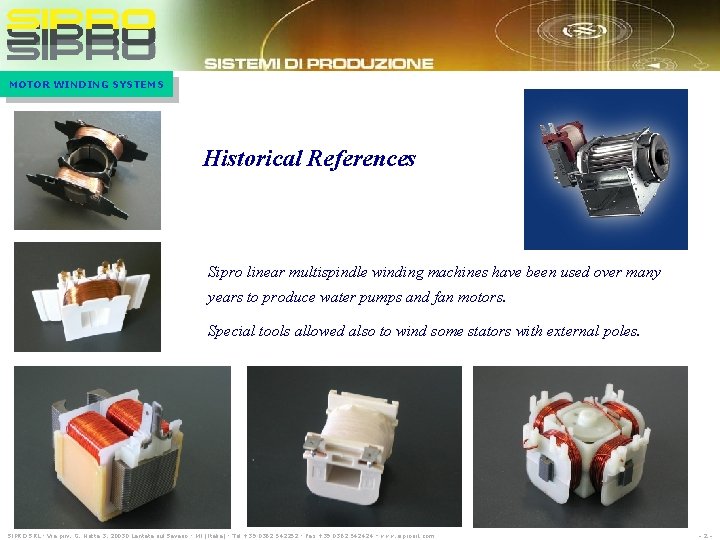

MOTOR WINDING SYSTEMS Historical References Sipro linear multispindle winding machines have been used over many years to produce water pumps and fan motors. Special tools allowed also to wind some stators with external poles. SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -2 -

MOTOR WINDING SYSTEMS New developments in motor design (segmented motors) have caused many changes: Motors are smaller and have higher performances If the windings of the motor are all separate (one per segment with 2 contacts each and no wire connecting 2 different segments) the multispindle winding technology can be easily used. If more segments are connected by the same wire without interruptions (pole chains) flyer winding or interpolated needle winding becomes the solution. In all cases the final motor is obtained by assembling single segments or pole chains and by connecting the wire leads. SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -3 -

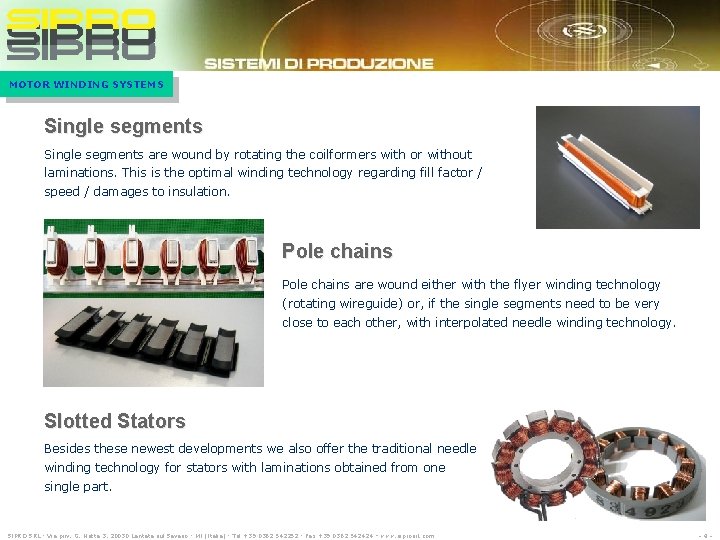

MOTOR WINDING SYSTEMS Single segments are wound by rotating the coilformers with or without laminations. This is the optimal winding technology regarding fill factor / speed / damages to insulation. Pole chains are wound either with the flyer winding technology (rotating wireguide) or, if the single segments need to be very close to each other, with interpolated needle winding technology. Slotted Stators Besides these newest developments we also offer the traditional needle winding technology for stators with laminations obtained from one single part. SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -4 -

MOTOR WINDING SYSTEMS Complete winding and assembly systems Besides the winding technology Sipro offers also a complete range of assembly solutions for the complete motor assembly. SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -5 -

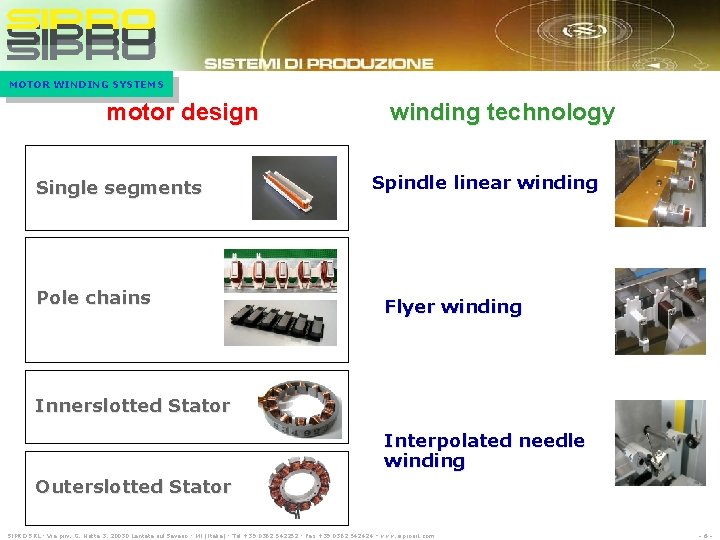

MOTOR WINDING SYSTEMS motor design Single segments Pole chains winding technology Spindle linear winding Flyer winding Innerslotted Stator Interpolated needle winding Outerslotted Stator SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -6 -

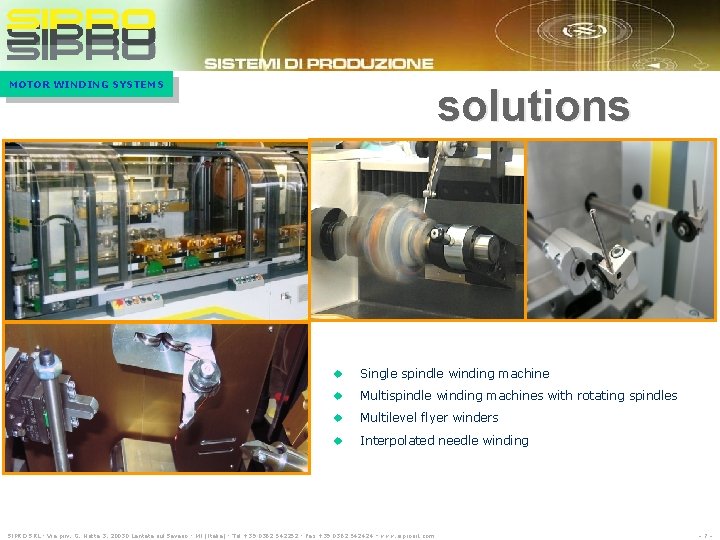

MOTOR WINDING SYSTEMS solutions Single spindle winding machine Multispindle winding machines with rotating spindles Multilevel flyer winders Interpolated needle winding SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -7 -

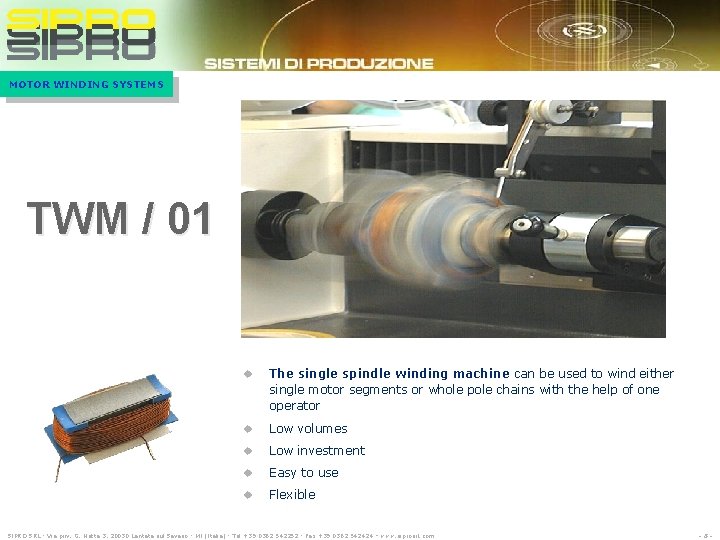

MOTOR WINDING SYSTEMS TWM / 01 The single spindle winding machine can be used to wind either single motor segments or whole pole chains with the help of one operator Low volumes Low investment Easy to use Flexible SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -8 -

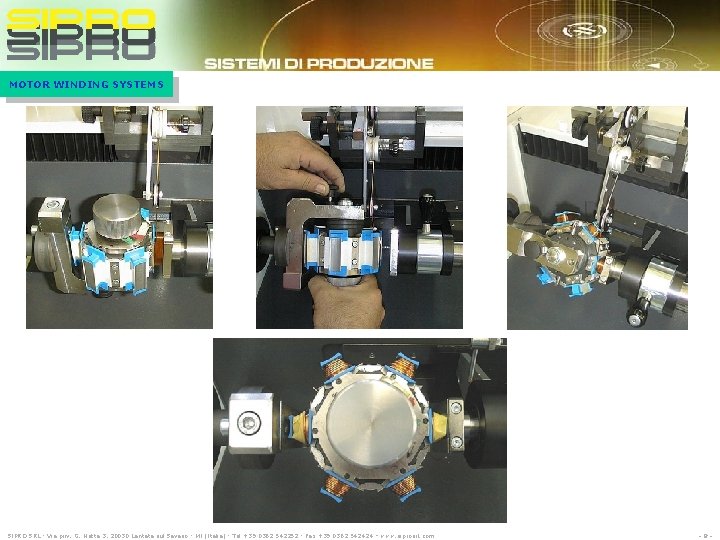

MOTOR WINDING SYSTEMS SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com -9 -

MOTOR WINDING SYSTEMS MULTISPINDLE WINDING Wind, contact and test single motor segments Flexible solution for a wide variety of different motor specs The production rate can be easily adapted to the customers requirements SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com - 10 -

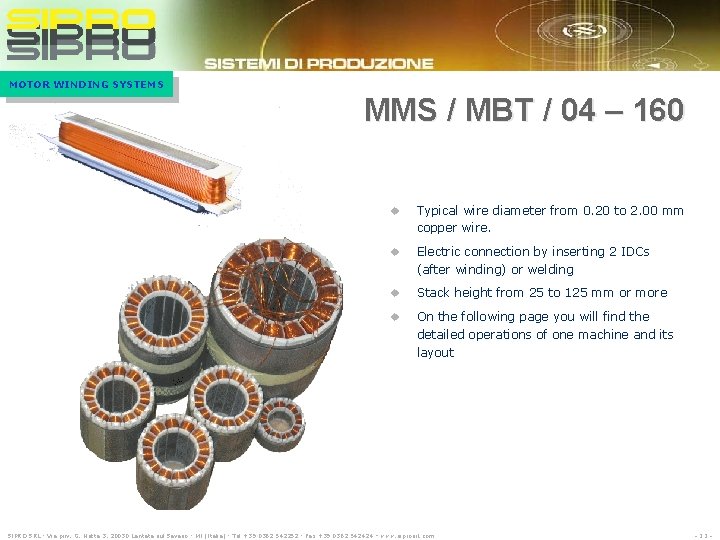

MOTOR WINDING SYSTEMS MMS / MBT / 04 – 160 Typical wire diameter from 0. 20 to 2. 00 mm copper wire. Electric connection by inserting 2 IDCs (after winding) or welding Stack height from 25 to 125 mm or more On the following page you will find the detailed operations of one machine and its layout SIPRO SRL - Via priv. G. Natta 3, 20030 Lentate sul Seveso - MI (Italia) - Tel +39 0362 542252 - Fax +39 0362 542424 – www. siprosrl. com - 11 -
