Motivation for the BC1 Amplifier 4 Unsophisticated amplifier

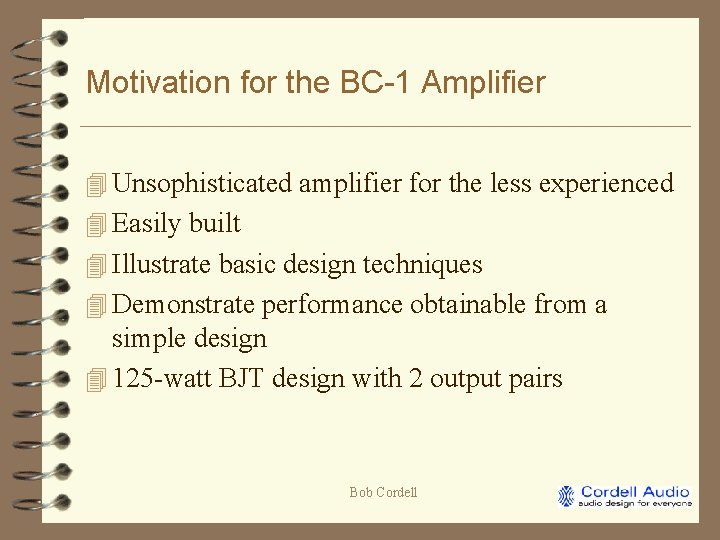

Motivation for the BC-1 Amplifier 4 Unsophisticated amplifier for the less experienced 4 Easily built 4 Illustrate basic design techniques 4 Demonstrate performance obtainable from a simple design 4 125 -watt BJT design with 2 output pairs Bob Cordell

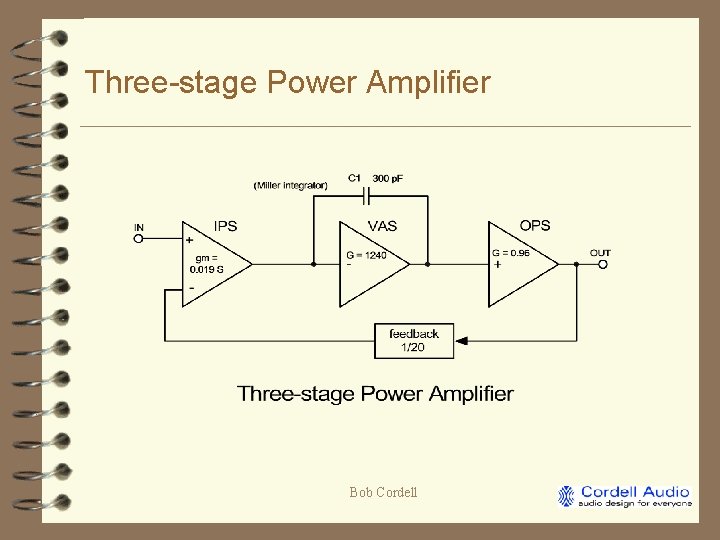

Three-stage Power Amplifier Bob Cordell

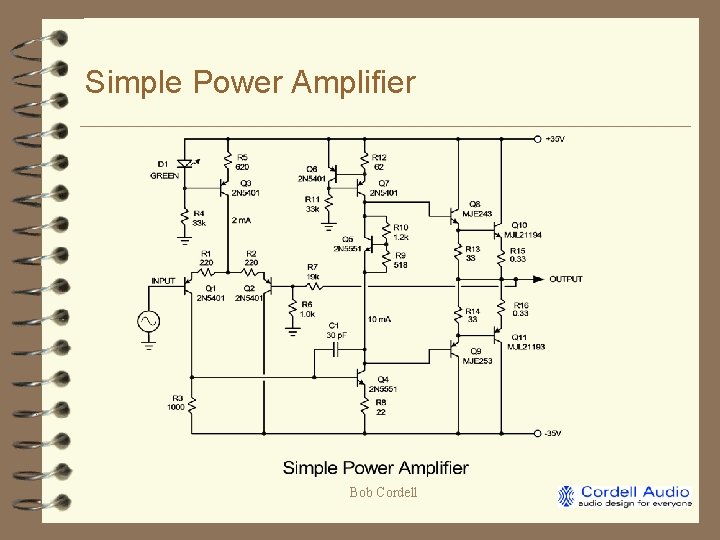

Simple Power Amplifier Bob Cordell

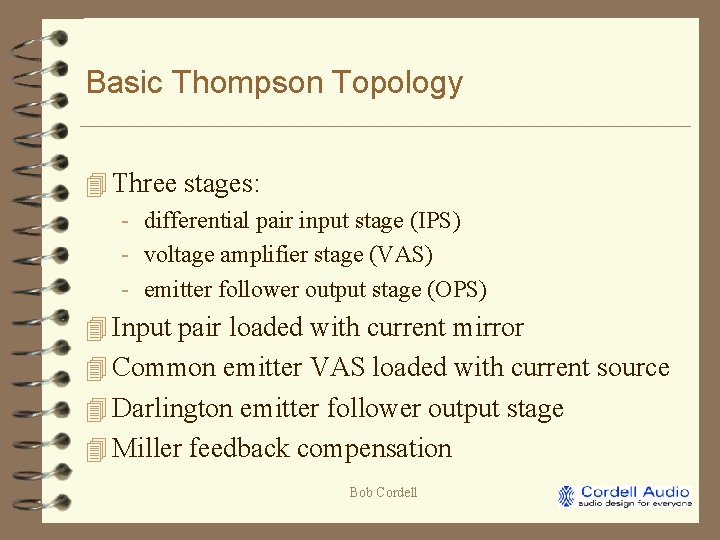

Basic Thompson Topology 4 Three stages: - differential pair input stage (IPS) - voltage amplifier stage (VAS) - emitter follower output stage (OPS) 4 Input pair loaded with current mirror 4 Common emitter VAS loaded with current source 4 Darlington emitter follower output stage 4 Miller feedback compensation Bob Cordell

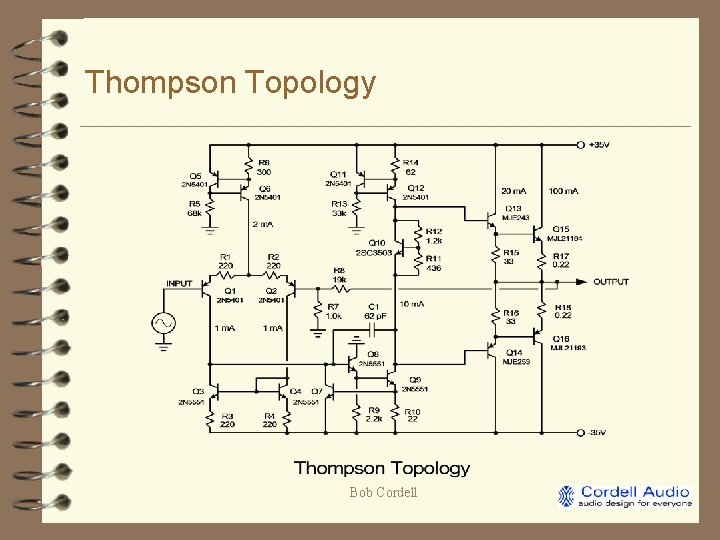

Thompson Topology Bob Cordell

BC-1 Featured Improvements 4 4 4 4 4 Current mirror load with “helper” transistor Clamping diodes on IPS output 2 -transistor (2 T) VAS Locanthi T-circuit 3 -EF output stage Fast output transistors High driver bias current Dual Vbe multiplier bias spreader “Natural” current limiting Comprehensive protection circuit Bob Cordell

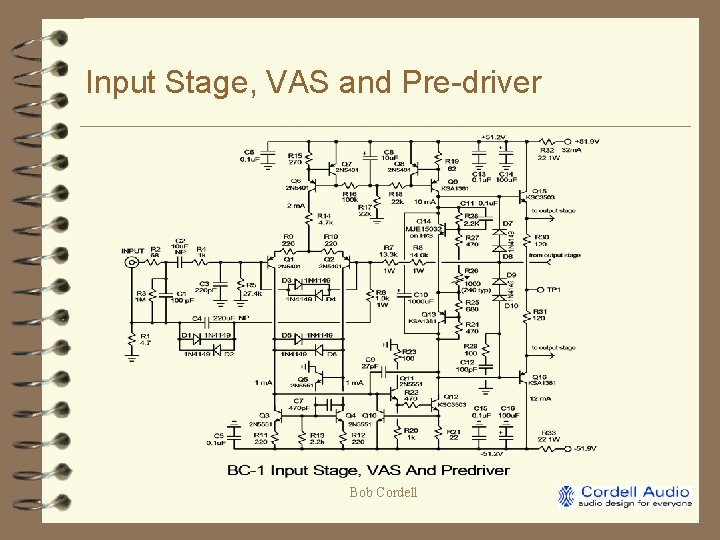

Input Stage, VAS and Pre-driver Bob Cordell

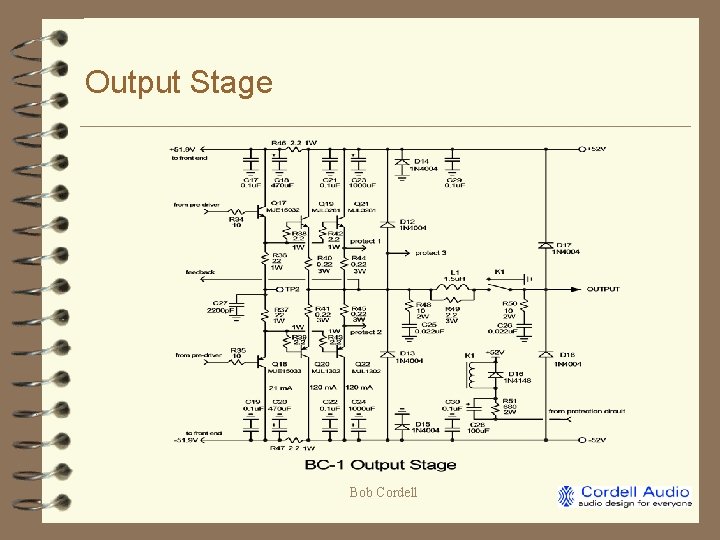

Output Stage Bob Cordell

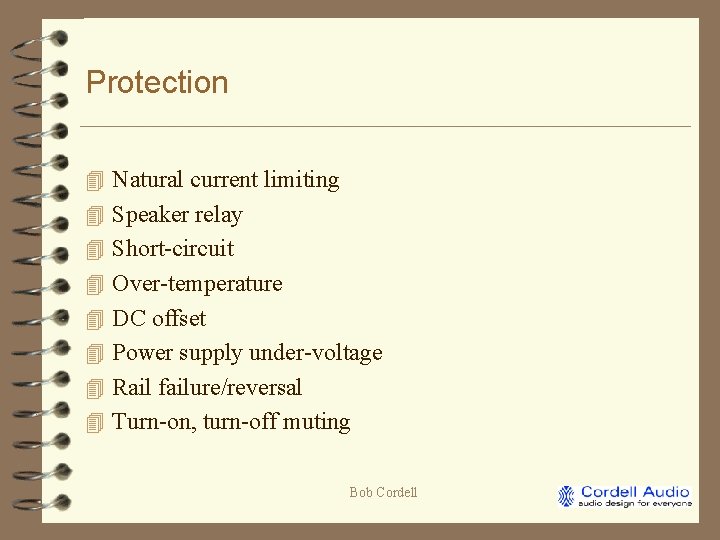

Protection 4 Natural current limiting 4 Speaker relay 4 Short-circuit 4 Over-temperature 4 DC offset 4 Power supply under-voltage 4 Rail failure/reversal 4 Turn-on, turn-off muting Bob Cordell

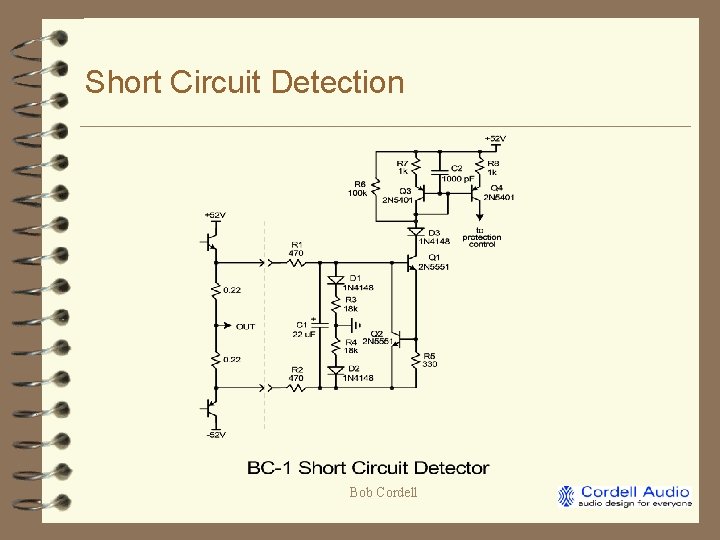

Short Circuit Detection Bob Cordell

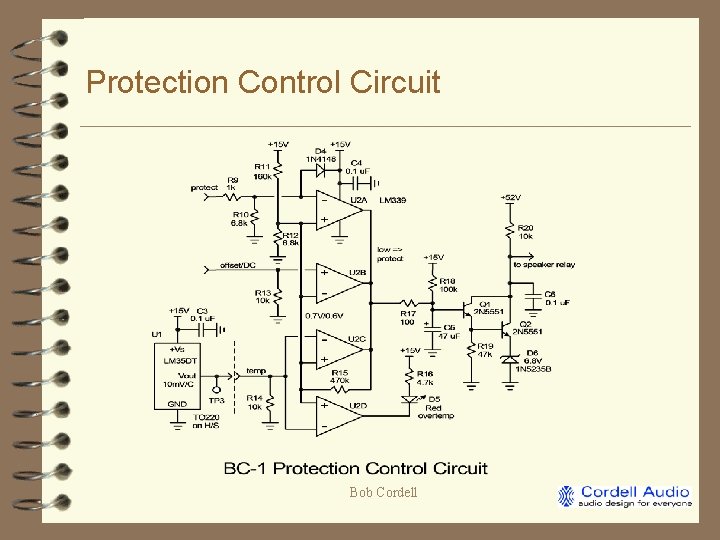

Protection Control Circuit Bob Cordell

DC Offset and Power Good Detection Bob Cordell

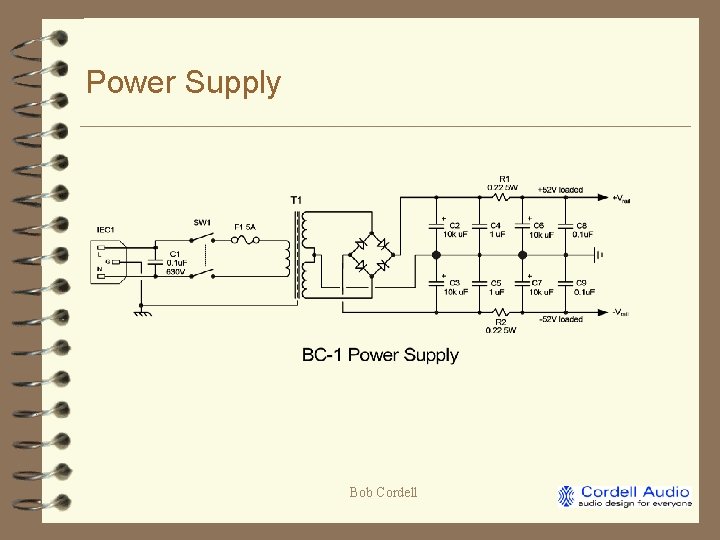

Power Supply Bob Cordell

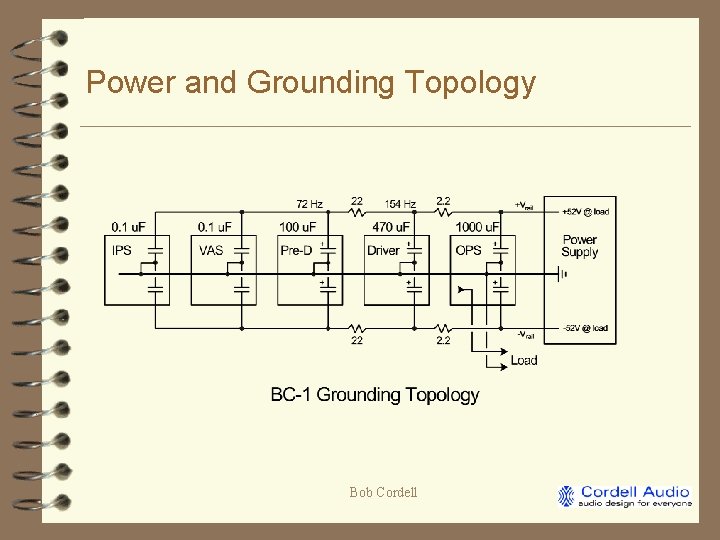

Power and Grounding Topology Bob Cordell

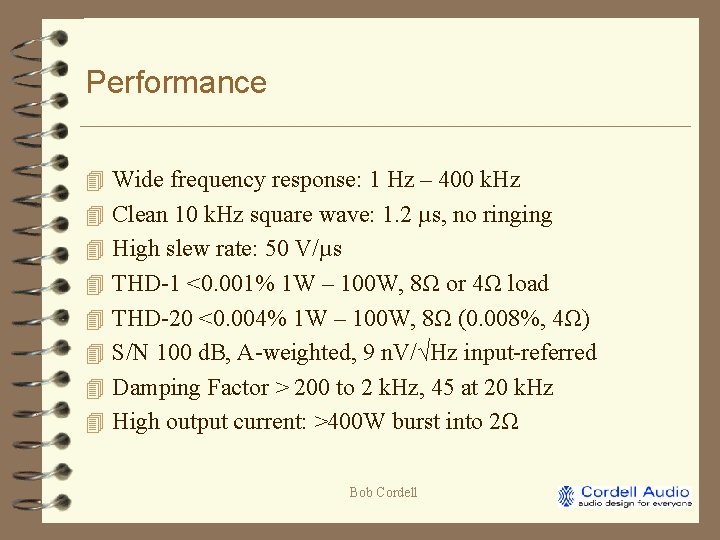

Performance 4 Wide frequency response: 1 Hz – 400 k. Hz 4 Clean 10 k. Hz square wave: 1. 2 µs, no ringing 4 High slew rate: 50 V/µs 4 THD-1 <0. 001% 1 W – 100 W, 8Ω or 4Ω load 4 THD-20 <0. 004% 1 W – 100 W, 8Ω (0. 008%, 4Ω) 4 S/N 100 d. B, A-weighted, 9 n. V/√Hz input-referred 4 Damping Factor > 200 to 2 k. Hz, 45 at 20 k. Hz 4 High output current: >400 W burst into 2Ω Bob Cordell

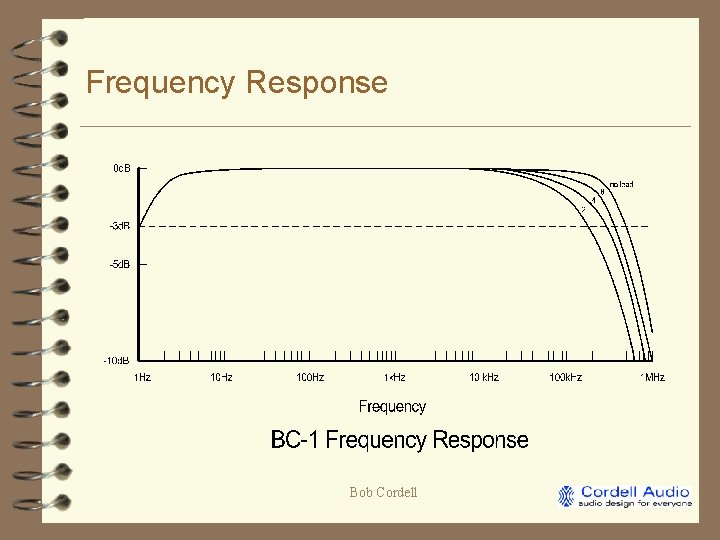

Frequency Response Bob Cordell

Square Wave Response Bob Cordell

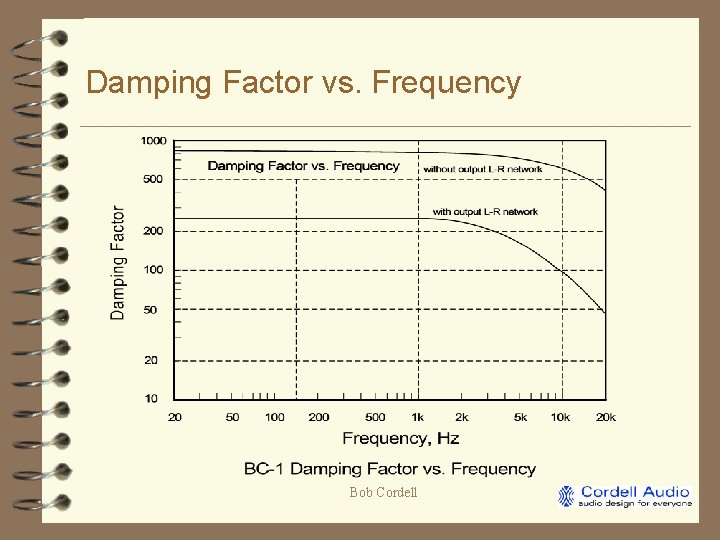

Damping Factor vs. Frequency Bob Cordell

THD+N vs. Power Bob Cordell

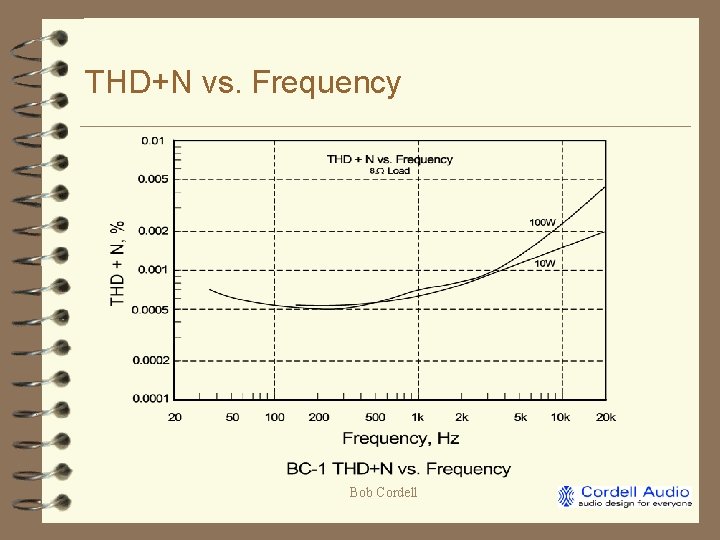

THD+N vs. Frequency Bob Cordell

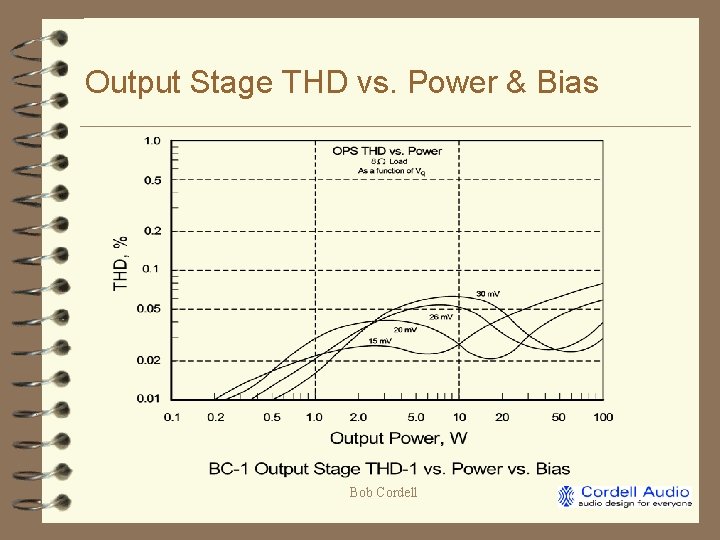

Output Stage THD vs. Power & Bias Bob Cordell

Complete Amplifier (less protection) Bob Cordell

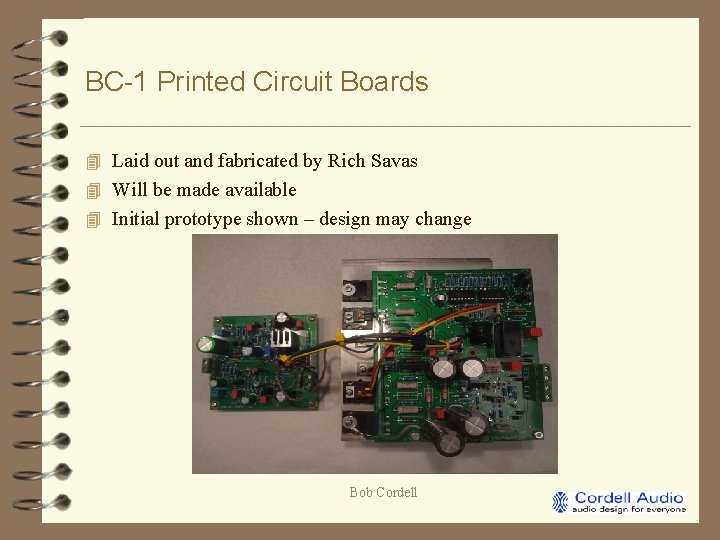

BC-1 Printed Circuit Boards 4 Laid out and fabricated by Rich Savas 4 Will be made available 4 Initial prototype shown – design may change Bob Cordell
