Motion in a plane Position and Displacement Vectors
- Slides: 48
Motion in a plane
Position and Displacement Vectors

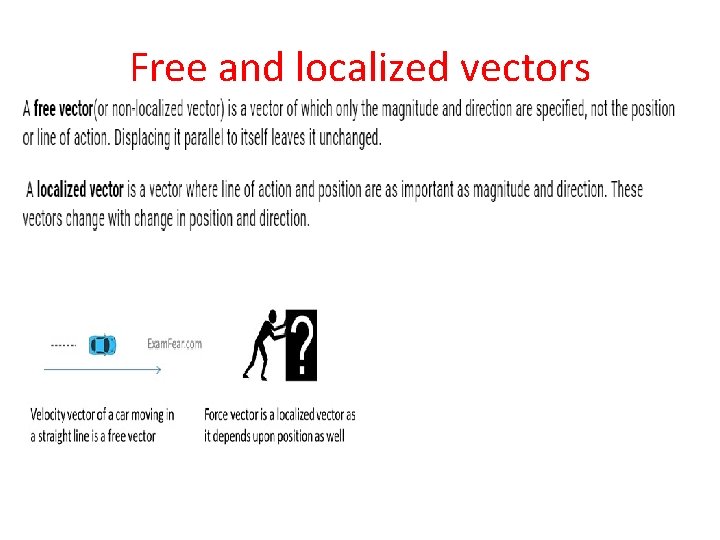

Free and localized vectors

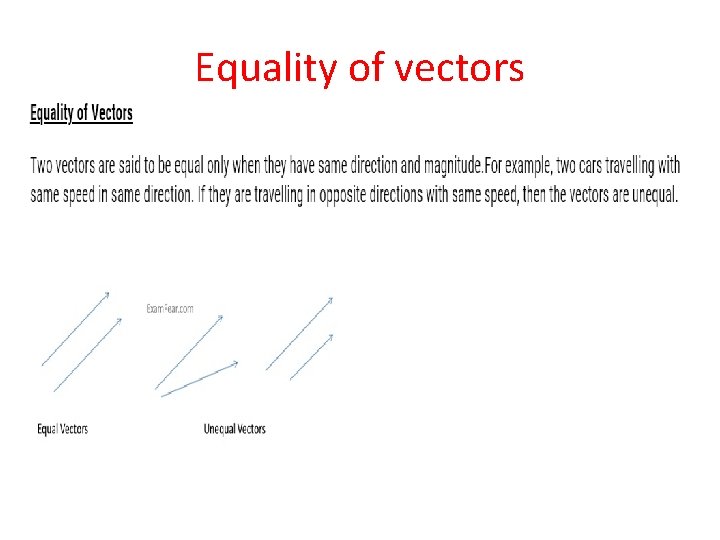

Equality of vectors
Unit Vectors

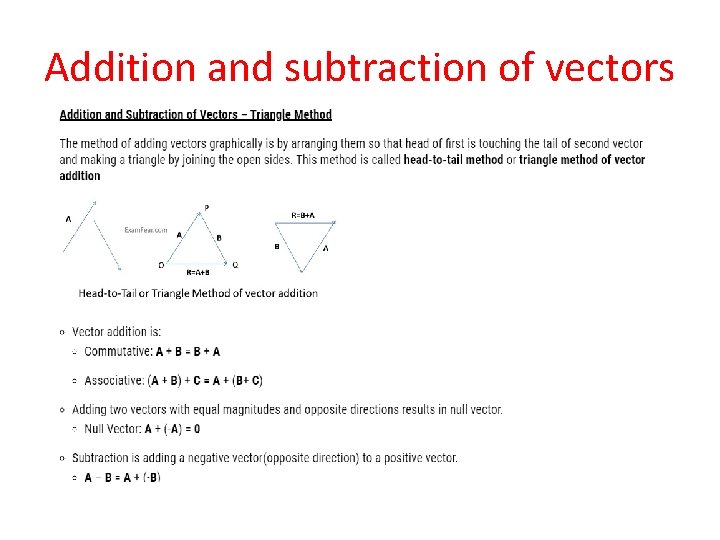

Addition and subtraction of vectors

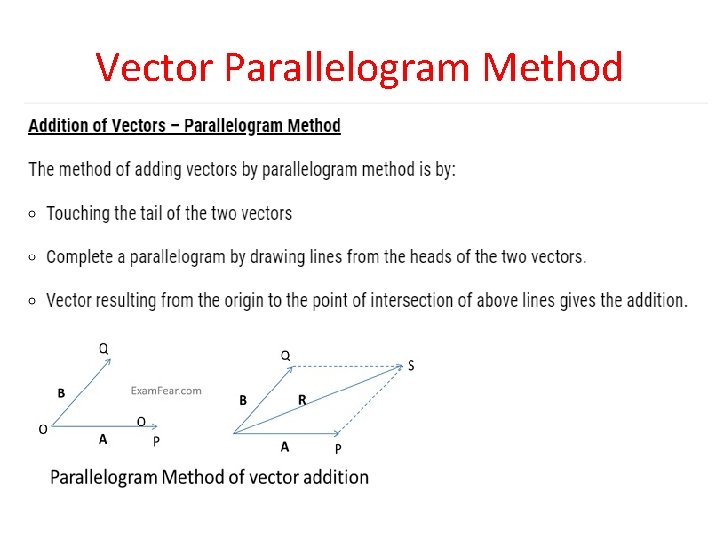

Vector Parallelogram Method

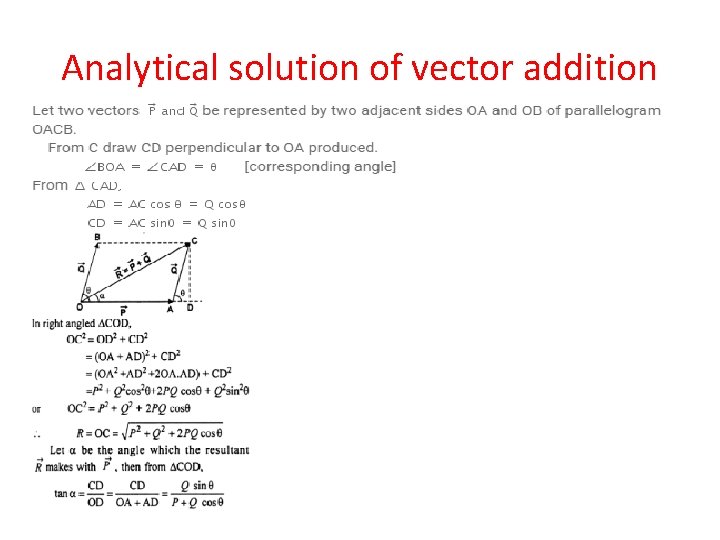

Analytical solution of vector addition
Special cases of addition of two vectors

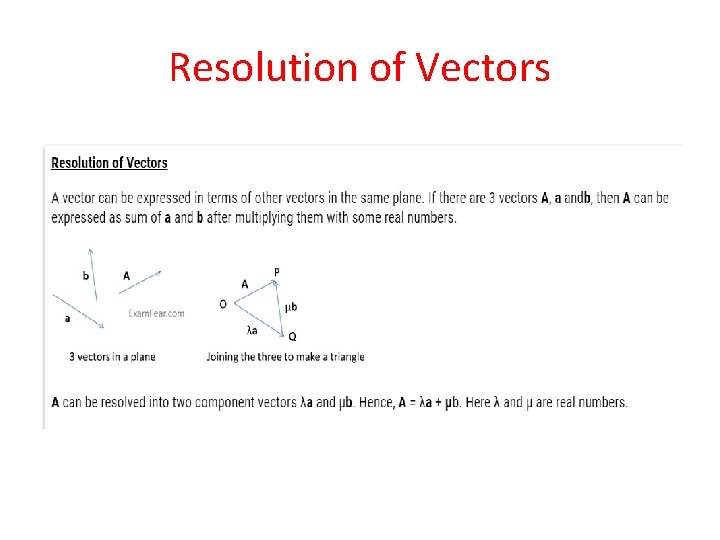

Resolution of Vectors

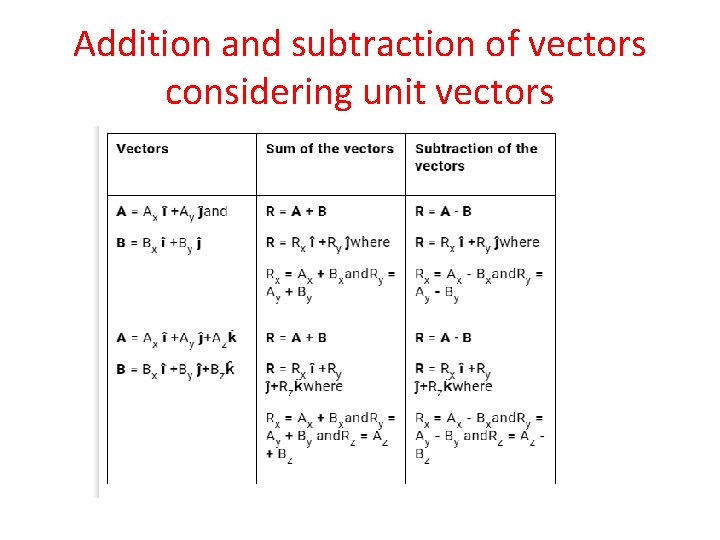

Addition and subtraction of vectors considering unit vectors

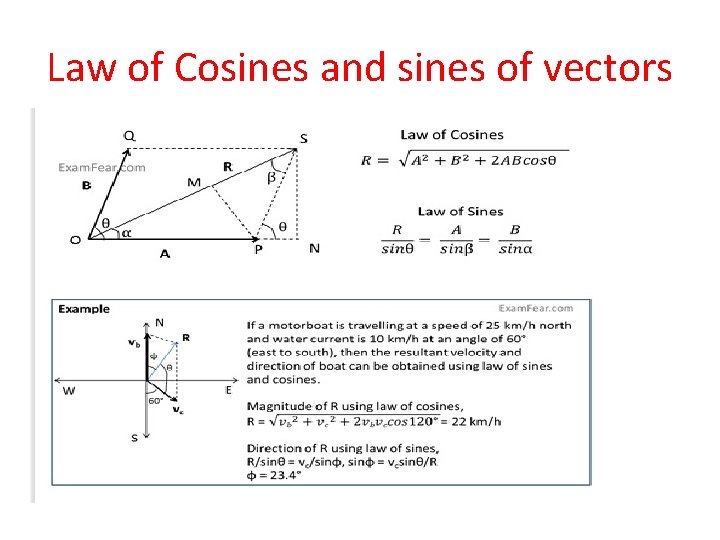

Law of Cosines and sines of vectors

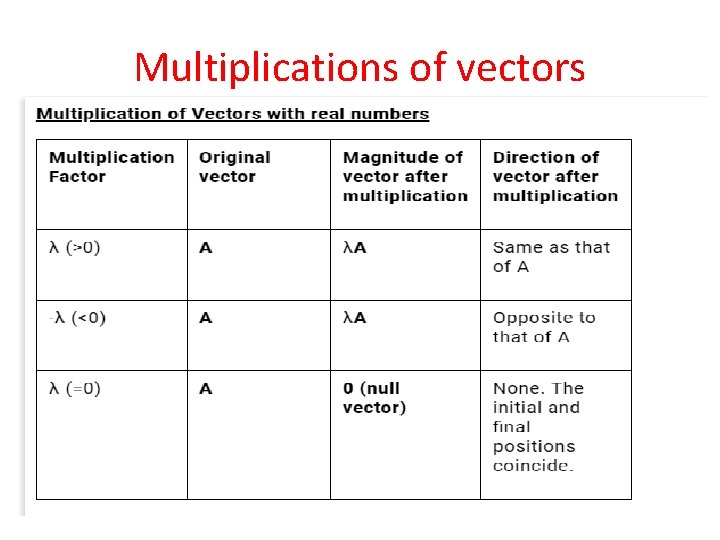

Multiplications of vectors

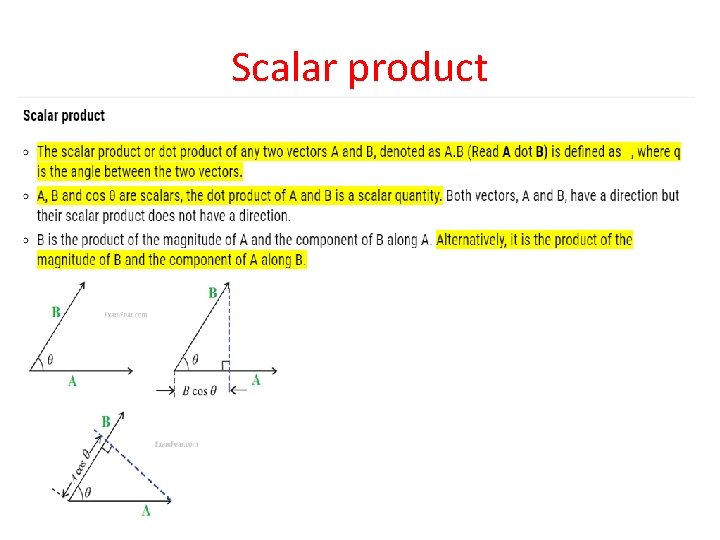

Scalar product

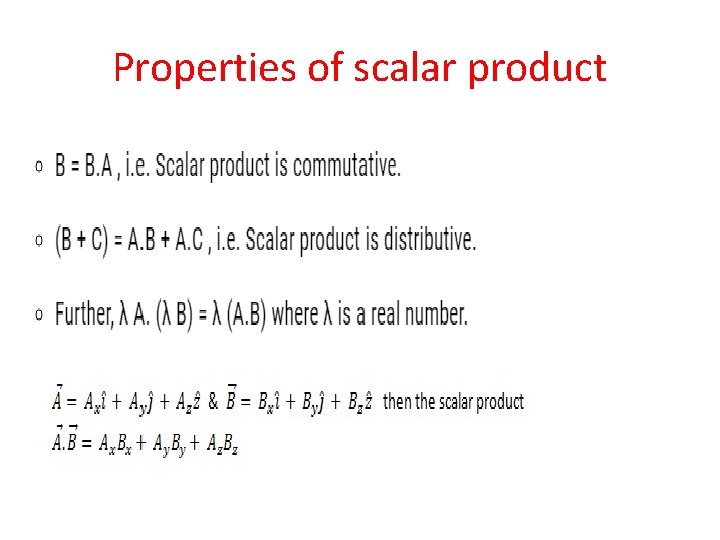

Properties of scalar product
Vector Product

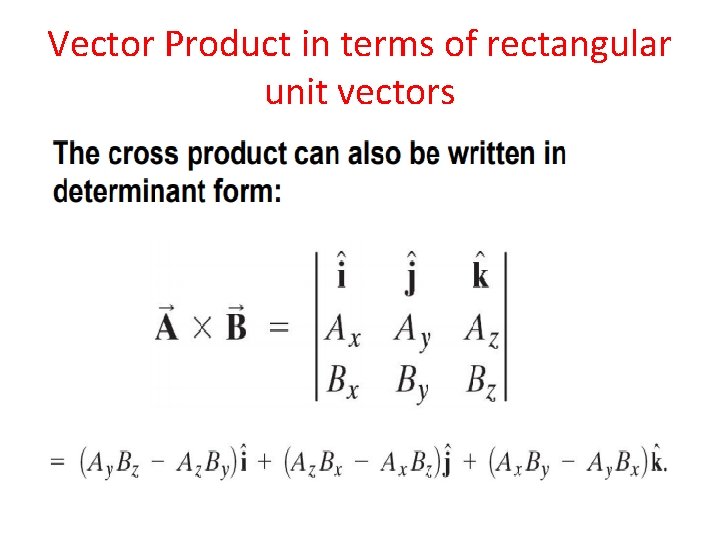

Vector Product in terms of rectangular unit vectors
Some properties of unit vectors
Quantities related to motion of an object in a plane
Motion in a plane with constant acceleration

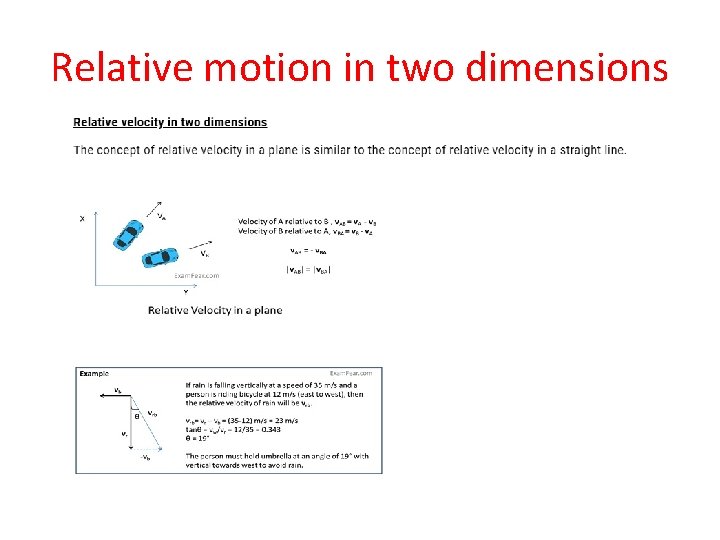

Relative motion in two dimensions

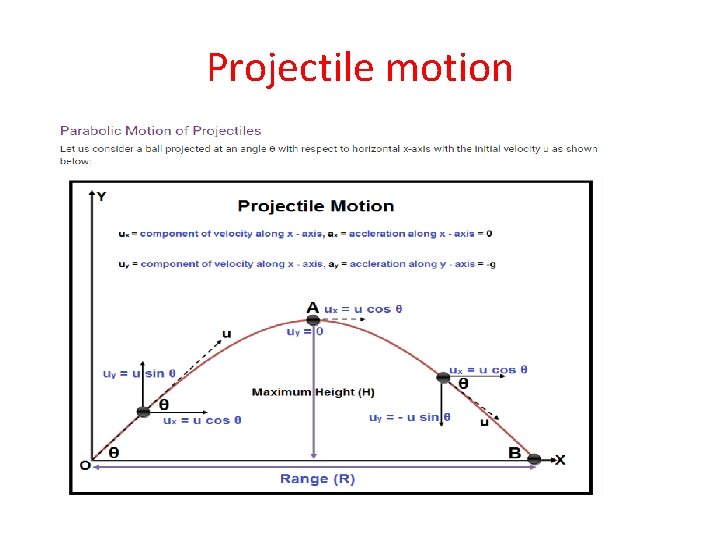

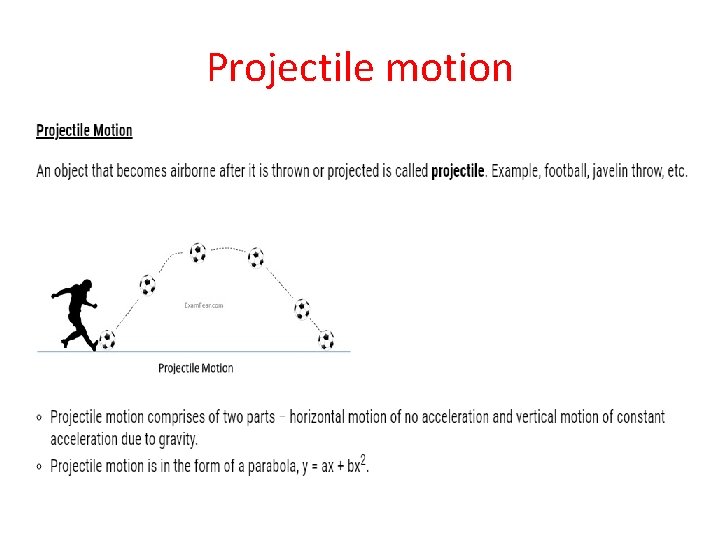

Projectile motion
Projectile motion

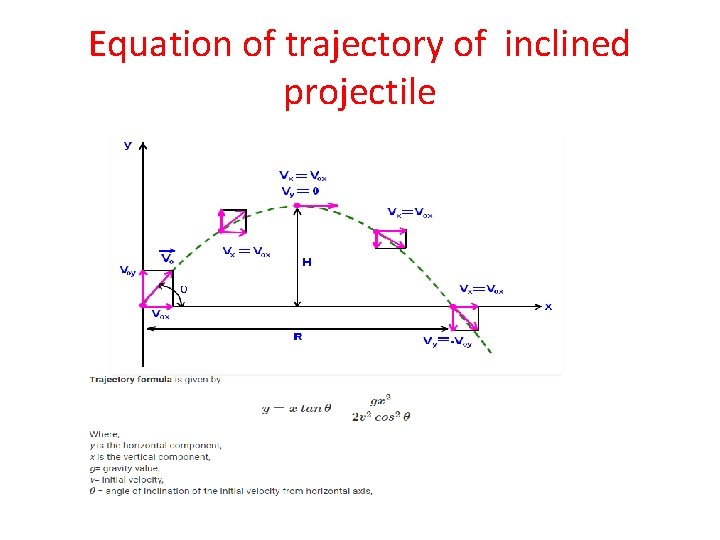

Equation of trajectory of inclined projectile
Time of flight, Horizontal Range and Maximum height of an inclined projectile

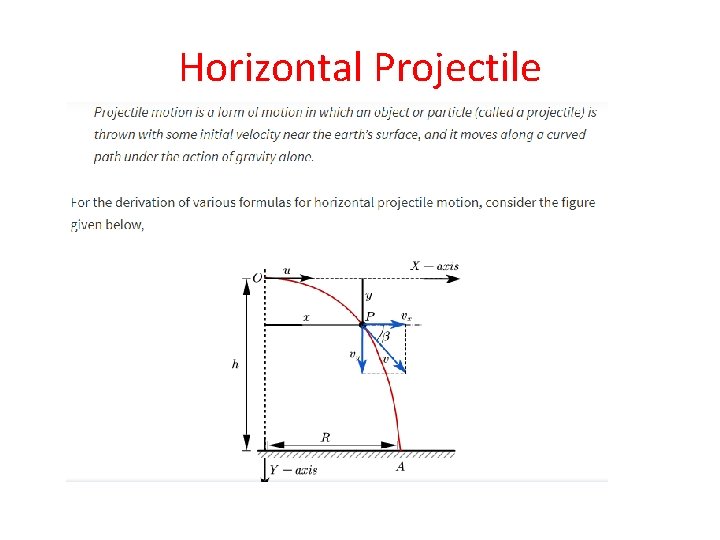

Horizontal Projectile

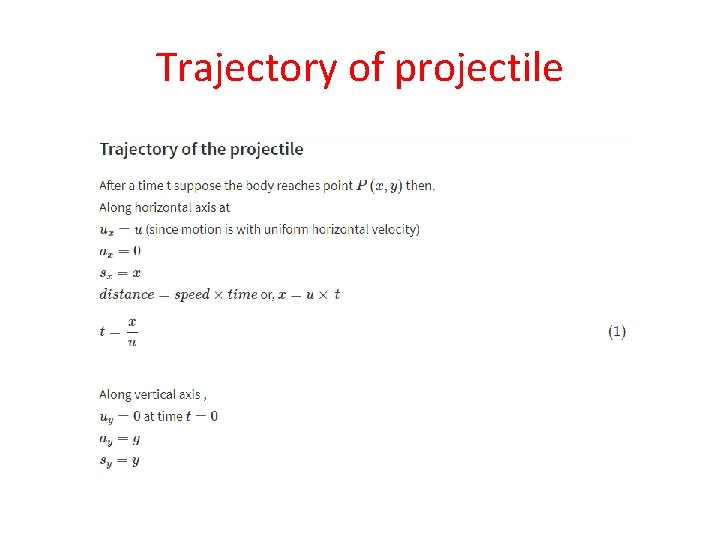

Trajectory of projectile

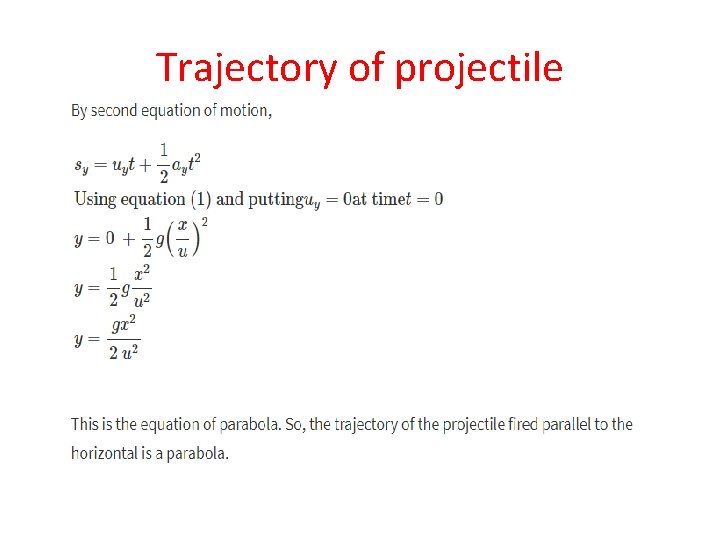

Trajectory of projectile

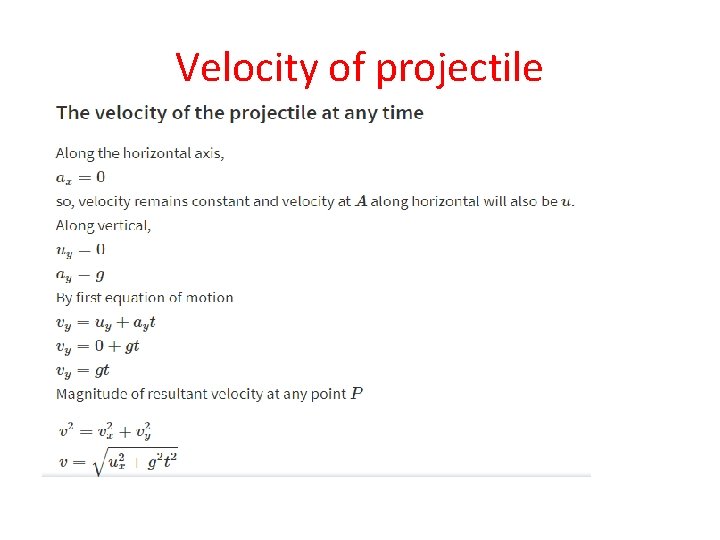

Velocity of projectile

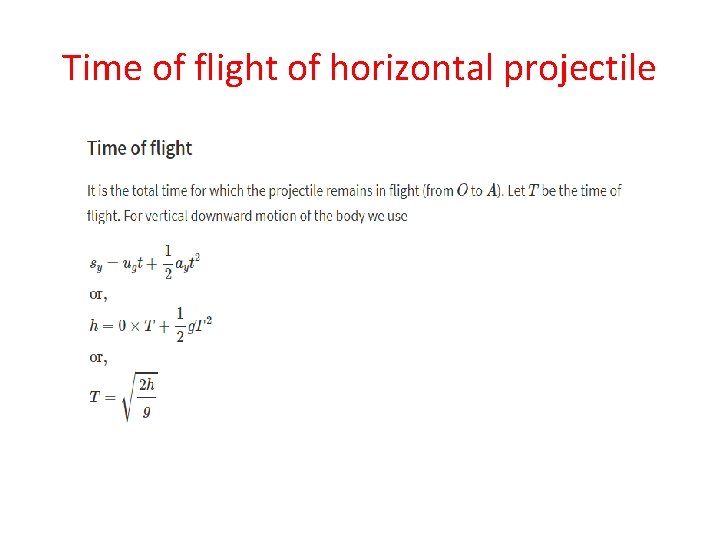

Time of flight of horizontal projectile

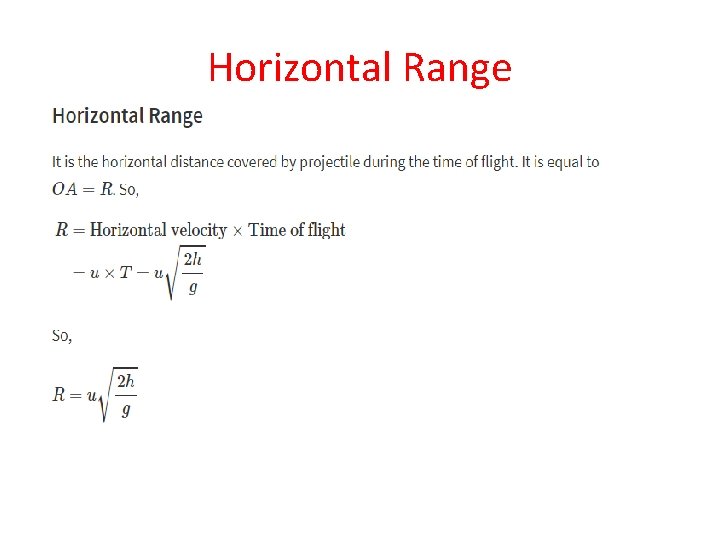

Horizontal Range

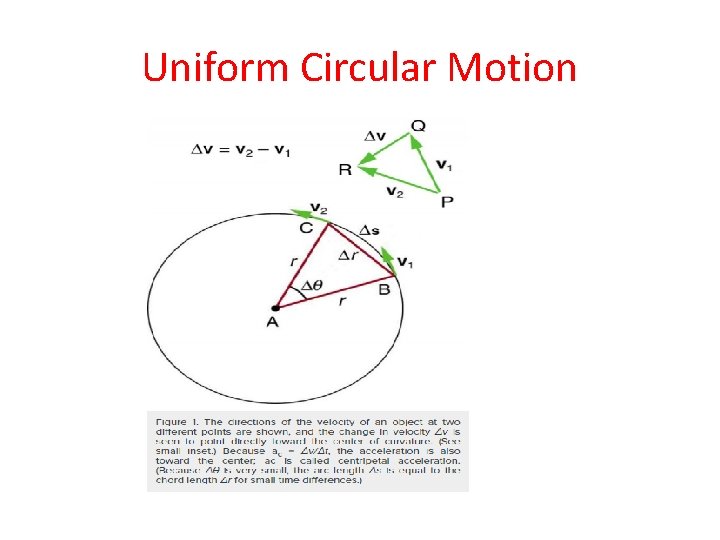

Uniform Circular Motion
Uniform Circular Motion
A stone is thrown from ground level over horizontal ground. It just clears three walls, the successive distances between them being r and 2 r. The inner wall is 15/7 times as high as the outer walls which are equal in height. The total horizontal range is nr, where n is an integer. Find n.
A particle moves such that x = (18. 0)t and y = 4 t - 4. 90 t 2 (a) Write a vector expression for the particle position as a function of time, using the unit vectors i and j (b) Obtain the expression for the velocity vector as a function of time (c) Obtain the expression for the acceleration vector a as a function of time. (d) Find the position, the velocity, and the acceleration of the particle at t = 1. 00 s.

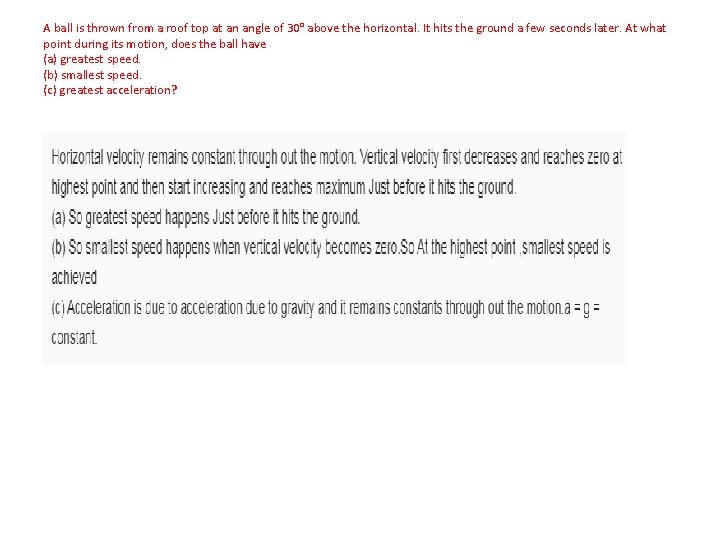

A ball is thrown from a roof top at an angle of 30° above the horizontal. It hits the ground a few seconds later. At what point during its motion, does the ball have (a) greatest speed. (b) smallest speed. (c) greatest acceleration?

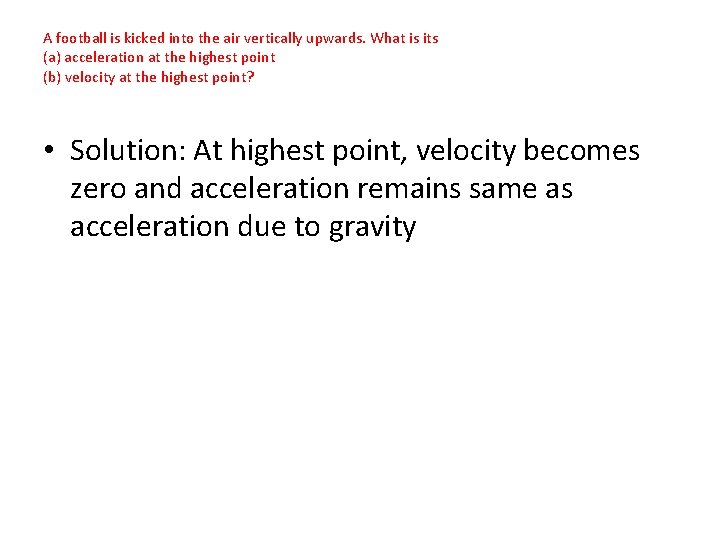

A football is kicked into the air vertically upwards. What is its (a) acceleration at the highest point (b) velocity at the highest point? • Solution: At highest point, velocity becomes zero and acceleration remains same as acceleration due to gravity
What will the effect on horizontal range of a projectile when its initial velocity is doubled keeping the angle of projection same? • See the mathematical equation

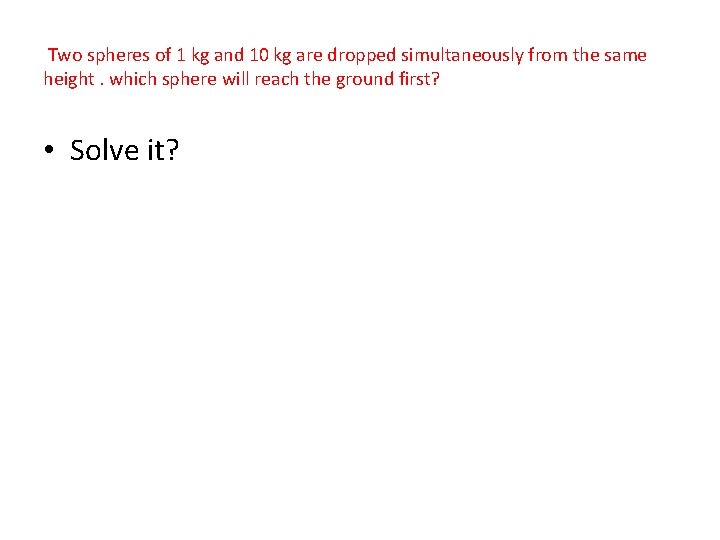

Two spheres of 1 kg and 10 kg are dropped simultaneously from the same height. which sphere will reach the ground first? • Solve it?
a. Can a scalar quantity be added to vector quantity b. Can the product of scalar quantity and vector quantity possible c. Is the magnitude and direction same for A + B and B + A d. Is the magnitude and direction same for A - B and B - A • a. No b. Yes c. Yes d. False. Magnitude is same but direction is opposite

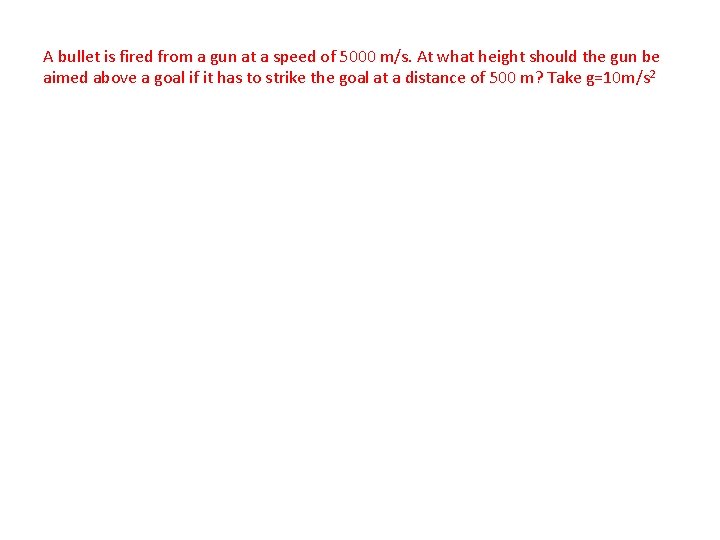

A bullet is fired from a gun at a speed of 5000 m/s. At what height should the gun be aimed above a goal if it has to strike the goal at a distance of 500 m? Take g=10 m/s 2

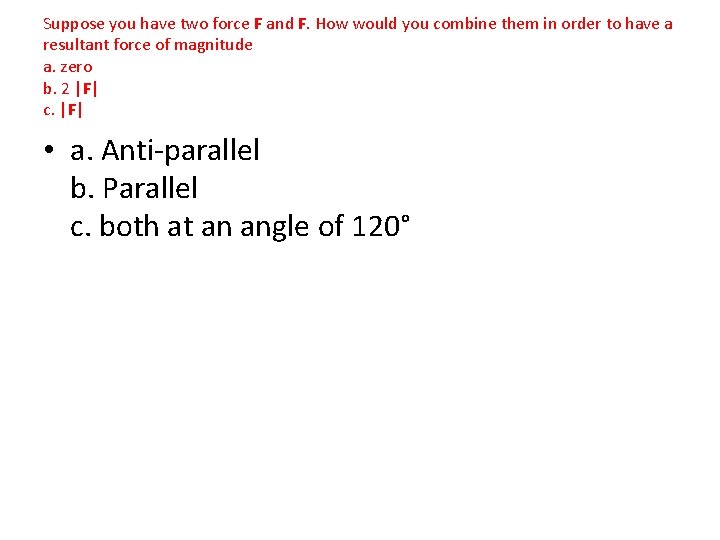

Suppose you have two force F and F. How would you combine them in order to have a resultant force of magnitude a. zero b. 2 |F| c. |F| • a. Anti-parallel b. Parallel c. both at an angle of 120°
A person sees a bird on a tree 39. 6 m high and at a distance of 59. 2 m. With what velocity the person should throw an arrow at an angle of 45° so that it may hit the bird? • Solve it?

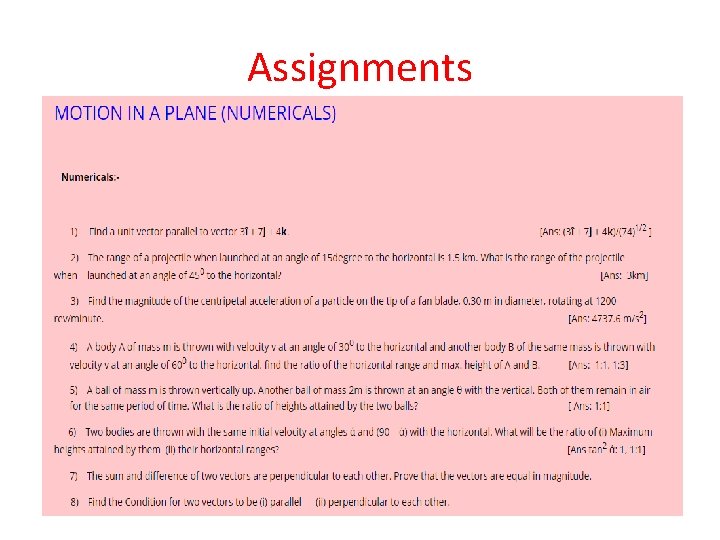

Assignments
Assignments
