Motif Finding Problem n Motifs are certain patterns in DNA and protein sequences that are strongly conserved i. e. they have important biological functions lik gene regulation and gene interaction n Finding these conserved patterns might be very useful for controlling the expression of genes n Motif finding problem is to detect novel, over-represented unknown signals in a set of sequences (for eg. transcription factor binding sites in a genome).
Motif Finding Problem Consensus Pattern - ‘ CCGATTACCGA ’ ( l, d ) – (11, 2) consensus pattern
Problem Definition Without any previous knowledge about the consensus pattern, discover all instances (alignment positions) of the motifs and then recover the final pattern to which all these instances are within a given number of mutations.
Complexity of the Problem Let n is the length of the DNA sequence l is the length of the motif t is the number of sequences d is the number of mutations in a motif The running time of a brute force approach: There are (n-l+1) l-mers in each of t sequences. Total combination is (n-l+1)t l-mers for t sequences. Typically, n is much larger than l. ie. n = 600, t = 20.
Existing methodologies Generative probabilistic representation continuous Gibbs Sampling n Expectation Maximization n Greedy CONSENSUS n HMM based n Mismatch representation – Discrete Consensus n n n Projection Methods Multiprofiler Suffix Trees
Existing methodologies Global Solvers n Advantage: neighborhood of global optimal solutions. n Disadvantage: misses out better solutions locally. n ie: Random Projection, Pattern Branching, etc… Local Solvers n Advantage: returns best solution in neighborhood. n Disadvantage: relies heavily on initial conditions. n ie: EM, Gibbs Sampling, Greedy CONSENSUS, etc…
Our Approach Performs global solver to estimate neighborhood of a promising solution. (Random Projection) n Using this neighborhood as initial guess, apply local solver to refine the solution to be the global optimal solution. (Expectation Maximization) n Performs efficient neighborhood search to jump out of convergence region to find another local solutions systematically. n A hybrid approach includes the advantages of both the global and local solvers. n

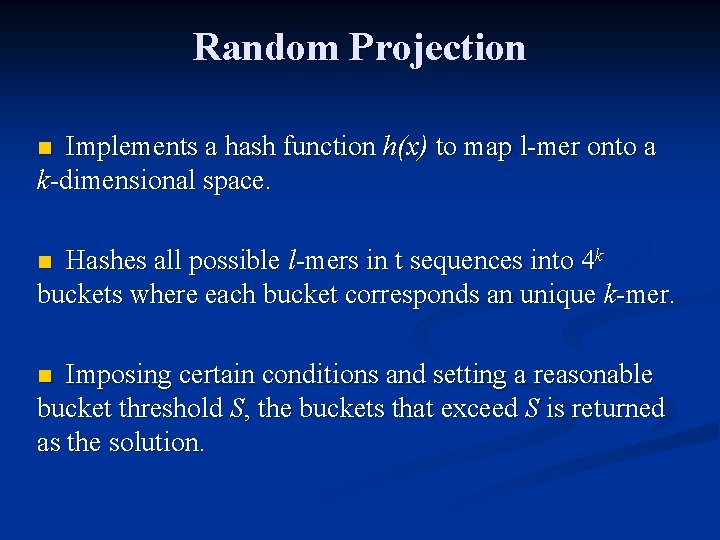

Random Projection Implements a hash function h(x) to map l-mer onto a k-dimensional space. n Hashes all possible l-mers in t sequences into 4 k buckets where each bucket corresponds an unique k-mer. n Imposing certain conditions and setting a reasonable bucket threshold S, the buckets that exceed S is returned as the solution. n

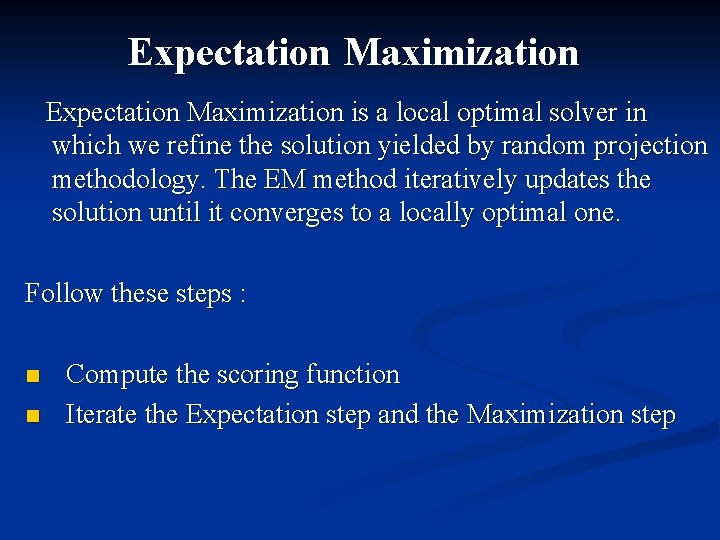

Expectation Maximization is a local optimal solver in which we refine the solution yielded by random projection methodology. The EM method iteratively updates the solution until it converges to a locally optimal one. Follow these steps : n n Compute the scoring function Iterate the Expectation step and the Maximization step
Profile Space A profile is a matrix of probabilities, where the rows represent possible bases, and the columns represent consecutive sequence positions. J k=b k=1 k=2 k=3 k=4 … k=l {A} C 0, 1 C 1, 1 C 2, 1 C 3, 1 C 4, 1 … Cl, 1 {T} C 0, 2 C 1, 2 C 2, 2 C 3, 2 C 4, 2 … Cl, 2 {G} C 0, 3 C 1, 3 C 2, 3 C 3, 3 C 4, 3 … Cl, 3 {C} C 0, 4 C 1, 4 C 2, 4 C 3, 4 C 4, 4 … Cl, 4 n Applying the Profile Space into the coefficient formula constructs PSSM.

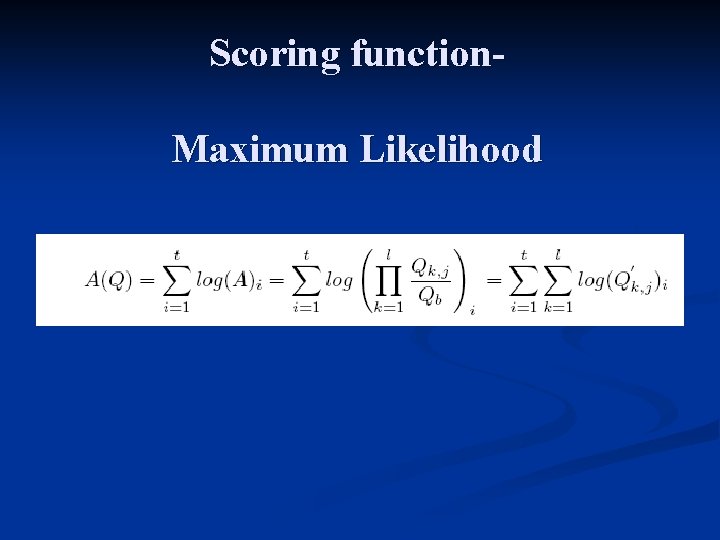

Scoring function. Maximum Likelihood

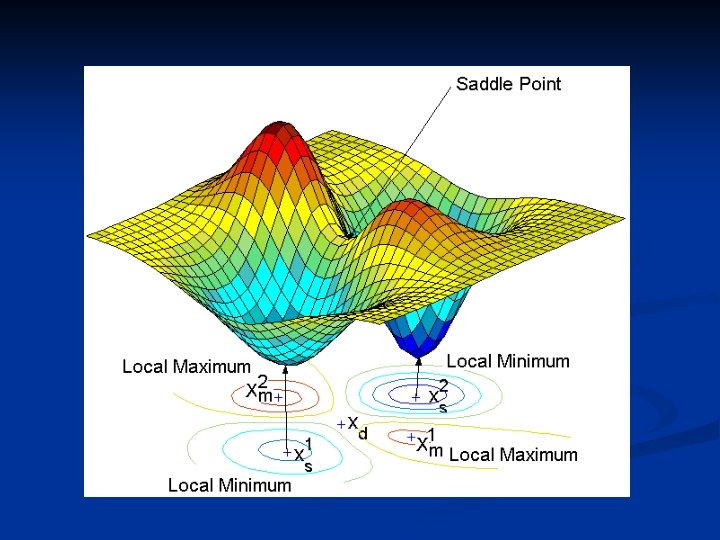

Basic Idea one-to-one correspondence of the critical points Local Minimum Stable Equilibrium Point Saddle Point Decomposition Point Local Maximum Source
Theoretical Background Practical Stability Boundary The problem of finding all the Tier-1 stable equilibrium points of xs is the problem of finding all the decomposition points on its stability boundary
Theoretical background Theorem (Unstable manifold of type-1 equilibrium point) : Let xs 1 be a stable e. p. of the gradient system (2) and xd be a type 1 e. p. on the practical stability boundary Ap(xs). Assume that there exist e and d such that | f (x)| > e unless x {x : f (x) =0}. If every e. p. of (1) is hyperbolic and its stable and unstable manifolds satisfy the transversality condition, then there exists another stable e. p. xs 2 to which the one dimensional unstable manifold of xd converges. Our method finds the stability boundary between the two local minima and traces the stability boundary to find the saddle point. We used a new trajectory adjustment procedure to move along the practical stability boundary.

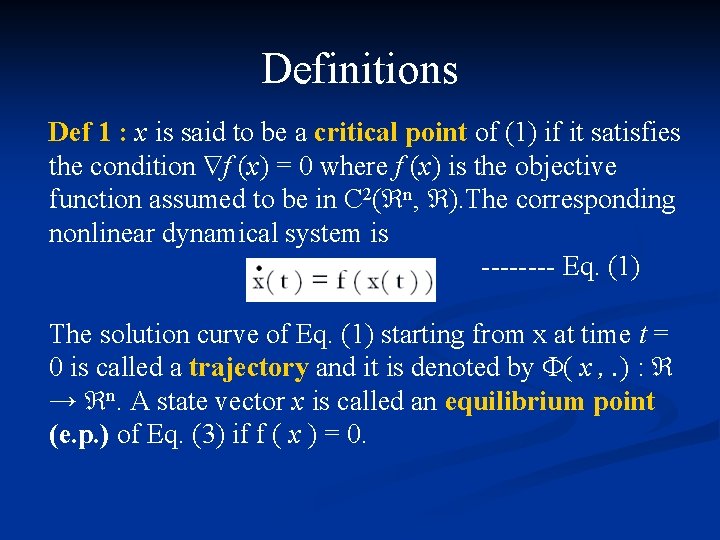

Definitions Def 1 : x is said to be a critical point of (1) if it satisfies the condition f (x) = 0 where f (x) is the objective function assumed to be in C 2( n, ). The corresponding nonlinear dynamical system is ---- Eq. (1) The solution curve of Eq. (1) starting from x at time t = 0 is called a trajectory and it is denoted by F( x , . ) : → n. A state vector x is called an equilibrium point (e. p. ) of Eq. (3) if f ( x ) = 0.
Our Method
Search Directions
Search Directions
Our Method The exit point method is implemented so that EM can move out of its convergence region to seek out other local optimal solutions. Construct a PSSM from initial alignments. n Calculate eigenvectors of Hessian matrix. n Find exit points (or saddle points) along each eigenvector. n Apply EM from the new stability/convergence region. n Repeat first step. n Return max score {A, a 1 i, a 2 j} n
Results
Improvements in the Alignment Scores Motif Original Pattern Score Second Tier Pattern Score (11, 2) AACGGTCGCAG 125. 1 CCCGGGAGCTG 153. 3 (11, 2) ATACCAGTTAC 145. 7 ATACCAGGGTC 153. 6 (13, 3) CTACGGTCGTCTT 142. 6 CCTCGGGTTTGTC 158. 7 (13, 3) GACGCTAGGGGGT 158. 3 GACCTTGGGTATT 165. 8 (15, 4) CCGAAAAGAGTCCGA 147. 5 CCGAAAGGACTGCGT 176. 2 (15, 4) TGGGTGATGCCTATG 164. 6 TGAGAGATGCCTATG 170. 4 (17, 5) TTGTAGCAAAGGCTAAA 143. 3 CAGTAGCAAAGACTTCC 175. 8 (17, 5) ATCGCGAAAGGTTGTGG 174. 1 ATTGCGAAAGAATGTGG 178. 3 (20, 6) CTGGTGATTGAGATCATCAT 165. 9 CATTTAGCTGAGTTCACCTT 194. 9 (20, 6) GGTCACTTAGTGGCGCCATG 216. 3 CGTCACTTAGTCGCGCCATG 219. 7
Improvements in the Alignment Scores Motif Original Pattern Score Second Tier Pattern Score (11, 2) TATCGCTGGGC 147. 5 TCTCGCTGGGC 161. 1 (13, 3) CACCTTGGTAATT 168. 4 GACCATGGGTATT 181. 5 (15, 4) ATGGCGTCCGCAATG 174. 7 ATGGCGTCCGAAAGA 188. 5 (17, 5) CGACACTTTCTCAATGT 178. 8 CGACACTATCTTAAGAT 196. 2 (20, 6) TCAAATAGACTAGAGGCGA C 189. 0 TCTACTAGACTGGAGGCGGC 201. 1 Random Projection method results
Performance Coefficient K is the set of the residue positions of the planted motif instances, and P is the corresponding set of positions predicted

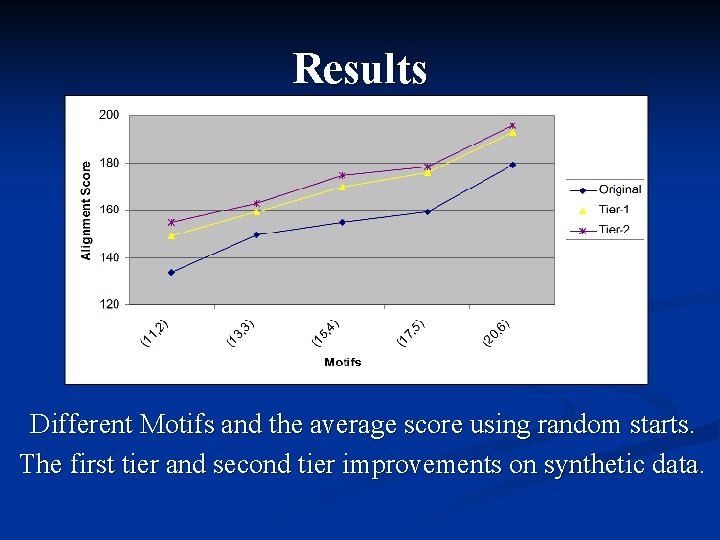

Results Different Motifs and the average score using random starts. The first tier and second tier improvements on synthetic data.
Results Different Motifs and the average score using random projection. The first tier and second tier improvements on synthetic data.
Results Different Motifs and the average score using random projections and the first tier and second tier improvements on real human sequences.
Results on Real data
Concluding discussion Using dynamical system approach, we have shown that the EM algorithm can be improved significantly. n In the context of motif finding, we see that there are many local optimal solutions and it is important to search the neighborhood space. n Try different global methods and other techniques like Gibbs. DNA n
