Morphological Change

Background Achondroplasia(ACH) is a typical disease of dwarfism. FGFR 3 gene mutation causes failure of endochondral ossification in ACH. The skull base development is interfered by the mutation, while the cranium is spared because it is composed with membranous ossification. Here, we show the morphologic changes on ACH associated with embryology of the skull.

Findings and procedure details Anatomy and development of the skull Terminology is complicated in embryology of the skull. Locations of the skull, type of ossification and mesenchymal origin are included in the terms to explain developmental course of the skull base. Be careful that each term doesn’t match to the other ones.

The first, on locations of the skull, the skull can be divided to the neurocranium and viscerocranium. The former covers and protects the brain and the latter composed the face. The second, on type of ossification, the most parts of the cranium are made by membranous ossification. On membranous　ossification, immature mesenchymal cells evolve into osteoblasts that create bone. On the other hand, the skull base is made by endochondral ossification. On endochondral ossification, immature mesenchymal cells evolve into chondroblasts and then chondrocytes that create cartilage template that turns into bone through the

The third, on mesenchymal origin, the skeletal structures of the head and face are derived from neural crest, lateral plate mesoderm and paraxial mesoderm. Squamous part of Temporal bone Frontal bone Parietal bone Nasal bone Occipital bone Fossa hypophysialis Maxilla Zygomatic bone Maxilla Petrous part of temporal bone Foramen　 magnum Lateral view and base of the skull: Blue, neural crest origin Yellow, paraxial mesoderm origin.

Purpose To understand morphologic change on the skull base by ACH, the second is especially important. Here, we summarize these three classifications.

A. Neurocranium i. Cartilaginous neurocranium This name means a part of neurocranium made by endochondral ossification. Cartilaginous neurocranium including most of the skull base and the occipital bone. Occipital bone Ethmoid bone Petrous part of Occipital temporal bone Sphenoi d. Petrous bone part of temporal bone Skull base and occipital bone are derived from neural crest and paraxial mesoderm, whose borderline is the sella turcica. The skull base is formed mainly from fusion of the hypophyseal plate and parachordal plate. The hypophyseal plate is derived from neural crest and the parachordal plate is derived from paraxial mesoderm. Ossification of the cartilaginous plate

A. Neurocranium ii. Membranous neurocranium • The roof and most of sides of the skull; the calvaria are derived from neural crest and paraxial mesoderm. The borderline is the coronal and squamosal sutures. Membranous neurocranium undergoes membranous ossification. Bone spicules are formed from ossification center and finally flat bones develop. Frontal bone Parietal bone

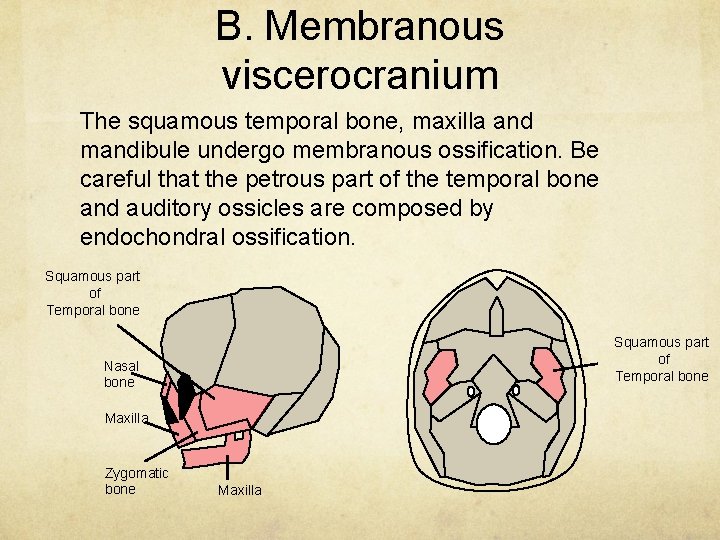

B. Membranous viscerocranium The squamous temporal bone, maxilla and mandibule undergo membranous ossification. Be careful that the petrous part of the temporal bone and auditory ossicles are composed by endochondral ossification. Squamous part of Temporal bone Nasal bone Maxilla Zygomatic bone Maxilla

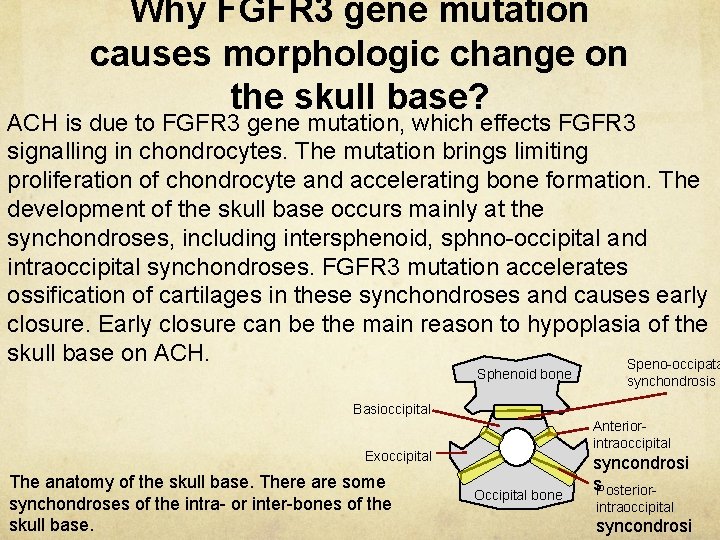

Why FGFR 3 gene mutation causes morphologic change on the skull base? ACH is due to FGFR 3 gene mutation, which effects FGFR 3 signalling in chondrocytes. The mutation brings limiting proliferation of chondrocyte and accelerating bone formation. The development of the skull base occurs mainly at the synchondroses, including intersphenoid, sphno-occipital and intraoccipital synchondroses. FGFR 3 mutation accelerates ossification of cartilages in these synchondroses and causes early closure. Early closure can be the main reason to hypoplasia of the skull base on ACH. Speno-occipata Sphenoid bone synchondrosis Basioccipital Anteriorintraoccipital Exoccipital The anatomy of the skull base. There are some synchondroses of the intra- or inter-bones of the skull base. Occipital bone syncondrosi s. Posteriorintraoccipital syncondrosi

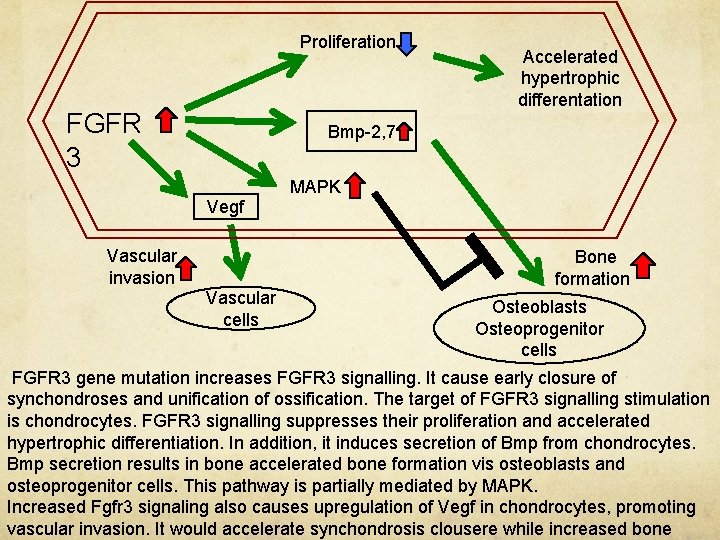

Proliferation FGFR 3 Accelerated hypertrophic differentation Bmp-2, 7 MAPK Vegf Vascular invasion Vascular cells Bone formation Osteoblasts Osteoprogenitor cells FGFR 3 gene mutation increases FGFR 3 signalling. It cause early closure of synchondroses and unification of ossification. The target of FGFR 3 signalling stimulation is chondrocytes. FGFR 3 signalling suppresses their proliferation and accelerated hypertrophic differentiation. In addition, it induces secretion of Bmp from chondrocytes. Bmp secretion results in bone accelerated bone formation vis osteoblasts and osteoprogenitor cells. This pathway is partially mediated by MAPK. Increased Fgfr 3 signaling also causes upregulation of Vegf in chondrocytes, promoting vascular invasion. It would accelerate synchondrosis clousere while increased bone

FGFR 3　 mutations Summary of imaging findings on ACH Early closure of spheno-occipital and occipital bone synchondroses. Narrowing of the jugular foramen Distortion of the skull base Stenosis of foramen magnum Dysplasia of temporal bone Sudden death ・Poor development of the mastoid air cells ・poor eustachian tube function otitis media Hearing loss ・Hydrocephalus ・Emissary foramina enlargement ・Towering petrous ridges. ・Rotation of the temporal bone structures

I. Early closure of synchondroses FGFR 3 mutation accelerates ossification of the synchondroses. Left column, case with ACH; right column, normal control of the same age. The spheno-occipital (orange) and intraoccipital synchondroses (blue) are already fused.

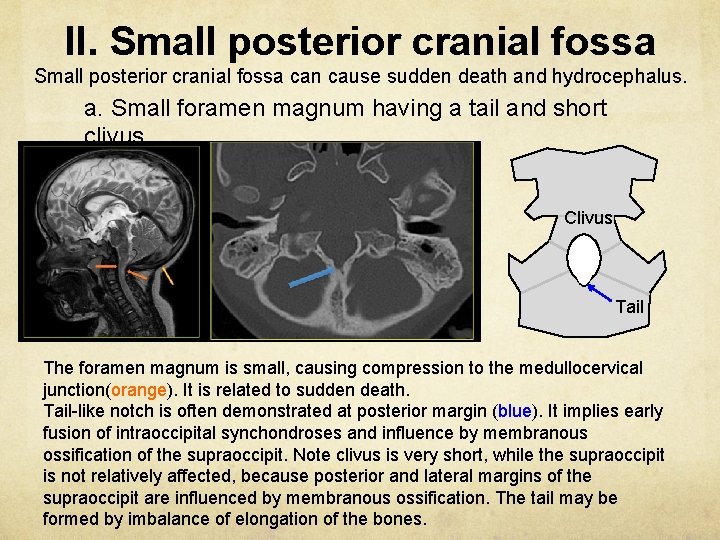

II. Small posterior cranial fossa can cause sudden death and hydrocephalus. a. Small foramen magnum having a tail and short clivus Clivus Tail The foramen magnum is small, causing compression to the medullocervical junction(orange). It is related to sudden death. Tail-like notch is often demonstrated at posterior margin (blue). It implies early fusion of intraoccipital synchondroses and influence by membranous ossification of the supraoccipit. Note clivus is very short, while the supraoccipit is not relatively affected, because posterior and lateral margins of the supraoccipit are influenced by membranous ossification. The tail may be formed by imbalance of elongation of the bones.

b. Narrowing of the jugular foramenc. Enlargement of collateral vein The jugular foramen is located between the temporal and occipital bones. Failure of endochondral ossification affects both the bones and causes narrowing of the jugular foramen. The mastoid emissary vein is prominent. In addition, leptomeningeal veins are enlarged in the convex. They have a role of collateral veins. Petrous part of temporal bone Jugular foramen Sigmoid sinus Occipital bone Emissary vein

d. Hydrocephalus e. Foreshortening of the carotid cana Elevated venous pressure may interrupt absorption of cerebrospinal fluid (CSF) and cause hydrocephalus. Narrowing of the foramen magnum also interferes with CSF flow and may be another cause of hydrocephalus. The carotid canal is shortened though the diameter is preserved. Note the carotid canal is involved in the sphenoid bone Carotid canal

III. Distortion of the skull base The skull base is distorted due to imbalance between cartilaginous and membranous neurocraniums. The distortion of the temporal bone can cause hearing loss. a. Towering petrous ridge The medial part of the bilateral petrous bones are elevated (arrows). The medial part of the petrous bone is strongly influenced by endochondral ossification. On the other hand, the influence for the lateral part is milder than the medial. The imbalance can cause towering petrous ridge.

b. Rotation of the temporal bone structures Towering petrous ridge accompany rotation of the structures in the temporal bone, including the auditory ossicles. The rotation cause conductive hearing loss. However, note that sensorineural or mixed hearing loss is often observed on ACH. Microscopic inner ear abnormalities may be associated with sensorineural hearing loss.

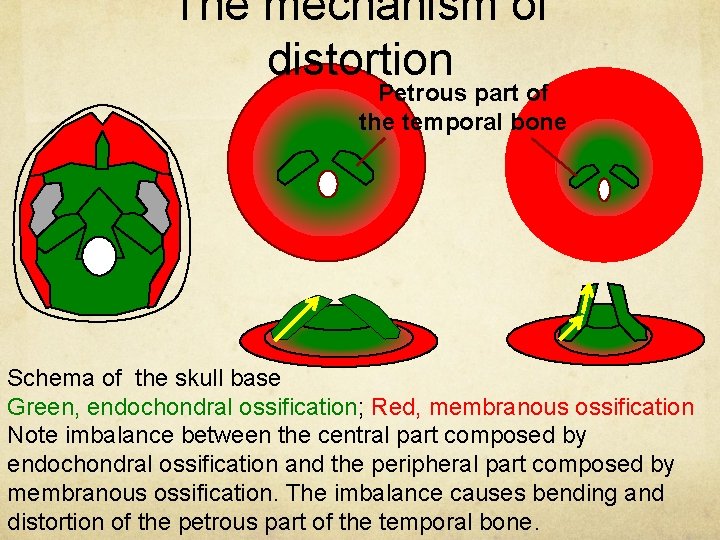

The mechanism of distortion Petrous part of the temporal bone Schema of the skull base Green, endochondral ossification; Red, membranous ossification Note imbalance between the central part composed by endochondral ossification and the peripheral part composed by membranous ossification. The imbalance causes bending and distortion of the petrous part of the temporal bone．

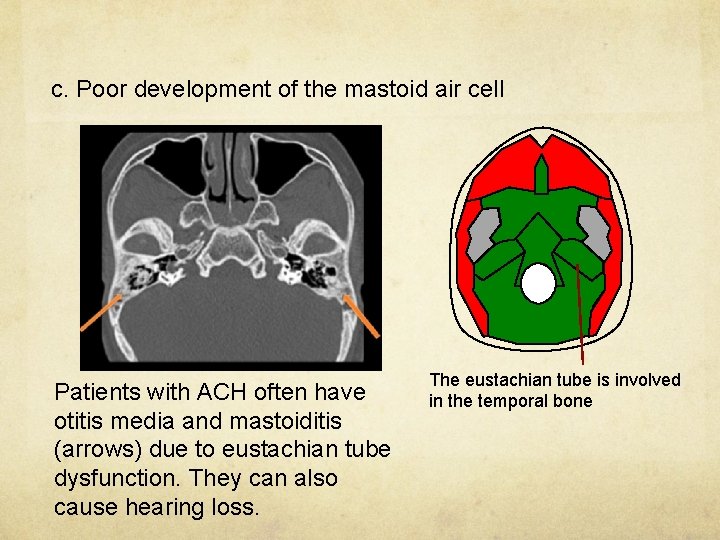

c. Poor development of the mastoid air cell Patients with ACH often have otitis media and mastoiditis (arrows) due to eustachian tube dysfunction. They can also cause hearing loss. The eustachian tube is involved in the temporal bone

Conclusion Understanding vital morphologic changes on the skull base with embryology helps you to know various neurological complications in ACH.

References 1. T. W. Sadler, Langmans`s. Medical Embryology(11 th) 2009. 2. Keith L. Moore, T. V. N. persaud. The Developing Human(8 th) 2007. 3. Cobb SR, Shohat M, Mehringer CM, et al. CT of the temporal bone in achondroplasia. AJNR Am J Neuroradiol. 1988: 9: 1195 -9. 4. Hecht JT, Horton WA, Reid CS, et al. Growth of the foramen magnum in achondroplasia. Am J Med Genet. 1989: 32: 528 -35. 5. Matsushita T, Wilcox WR, Chan YY, et al. FGFR 3 promotes synchondrosis closure and fusion of ossification centers through the MAPK pathway. Hum Mol Genet. 2009: 18: 227 -40. 6. Jung J, Yang C, Lee S, et al. Bilateral ossiculoplasty in 1 case of achondroplasia. Korean J Audiol. 2013: 17: 142 -7. 7. Shohat M, Flaum E, Cobb SR, et al. Hearing loss and temporal bone structure in achondroplasia. Am J Med Genet. 1993: 45: 548 -51. 8. Thangamadhan Bosemani , Gunes Orman , Benedikt Hergan, et al. Achondroplasia in children: correlation of ventriculomegaly, size of foramen magnum and jugular foramina, and emissary vein enlargement. Childs Nerv Syst. 2014.
