More on protocol implementation Packet parsing Memory management

More on protocol implementation • Packet parsing • Memory management • Data structures for lookup

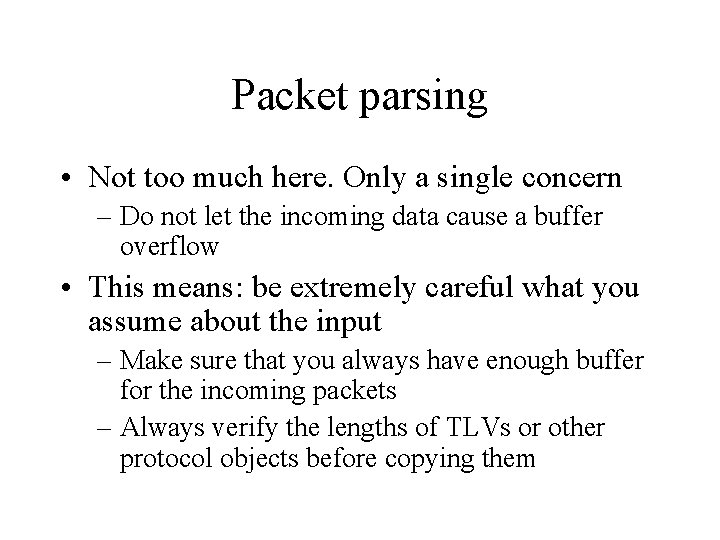

Packet parsing • Not too much here. Only a single concern – Do not let the incoming data cause a buffer overflow • This means: be extremely careful what you assume about the input – Make sure that you always have enough buffer for the incoming packets – Always verify the lengths of TLVs or other protocol objects before copying them

Memory • Problems – Fragmentation – Out of memory errors – Leaks – How to catch corruptions

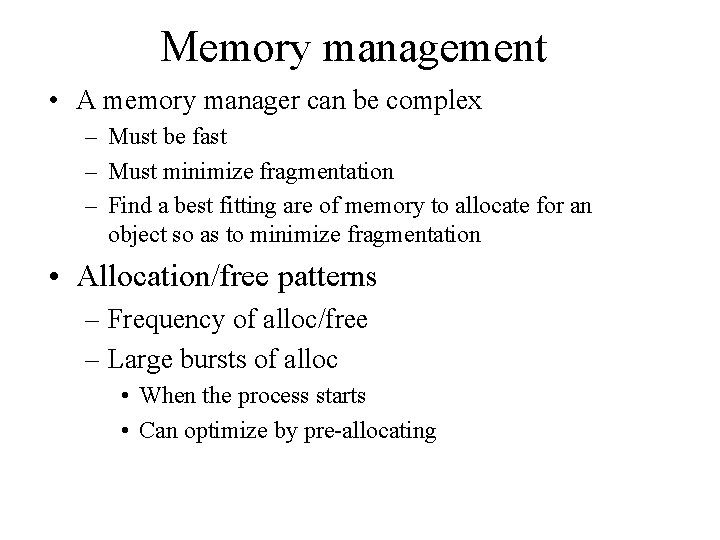

Memory management • A memory manager can be complex – Must be fast – Must minimize fragmentation – Find a best fitting are of memory to allocate for an object so as to minimize fragmentation • Allocation/free patterns – Frequency of alloc/free – Large bursts of alloc • When the process starts • Can optimize by pre-allocating

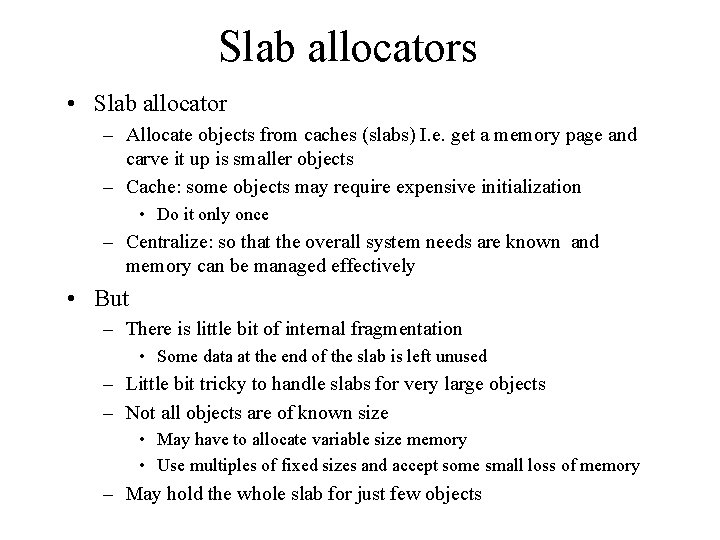

Slab allocators • Slab allocator – Allocate objects from caches (slabs) I. e. get a memory page and carve it up is smaller objects – Cache: some objects may require expensive initialization • Do it only once – Centralize: so that the overall system needs are known and memory can be managed effectively • But – There is little bit of internal fragmentation • Some data at the end of the slab is left unused – Little bit tricky to handle slabs for very large objects – Not all objects are of known size • May have to allocate variable size memory • Use multiples of fixed sizes and accept some small loss of memory – May hold the whole slab for just few objects

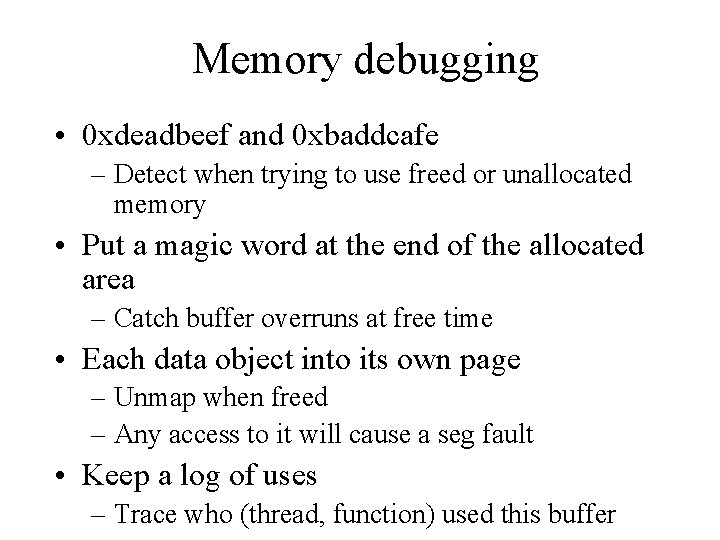

Memory debugging • 0 xdeadbeef and 0 xbaddcafe – Detect when trying to use freed or unallocated memory • Put a magic word at the end of the allocated area – Catch buffer overruns at free time • Each data object into its own page – Unmap when freed – Any access to it will cause a seg fault • Keep a log of uses – Trace who (thread, function) used this buffer

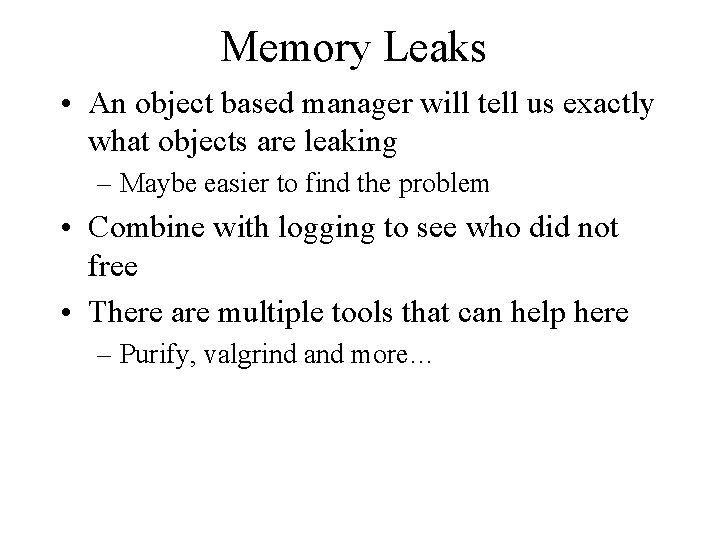

Memory Leaks • An object based manager will tell us exactly what objects are leaking – Maybe easier to find the problem • Combine with logging to see who did not free • There are multiple tools that can help here – Purify, valgrind and more…

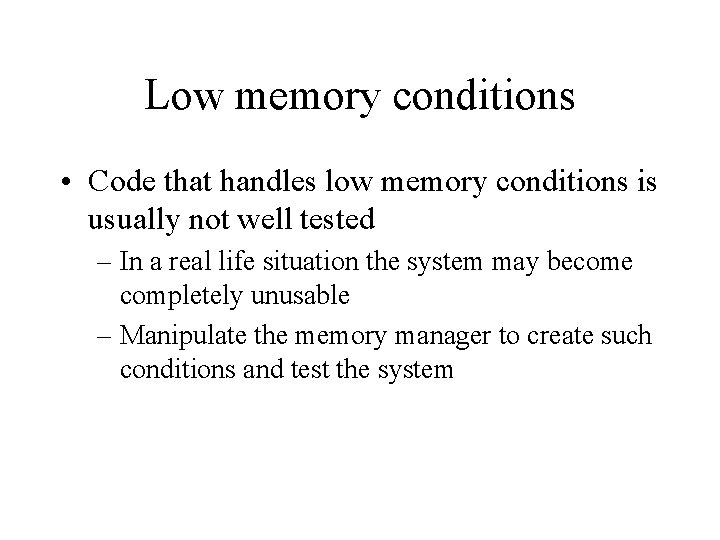

Low memory conditions • Code that handles low memory conditions is usually not well tested – In a real life situation the system may become completely unusable – Manipulate the memory manager to create such conditions and test the system

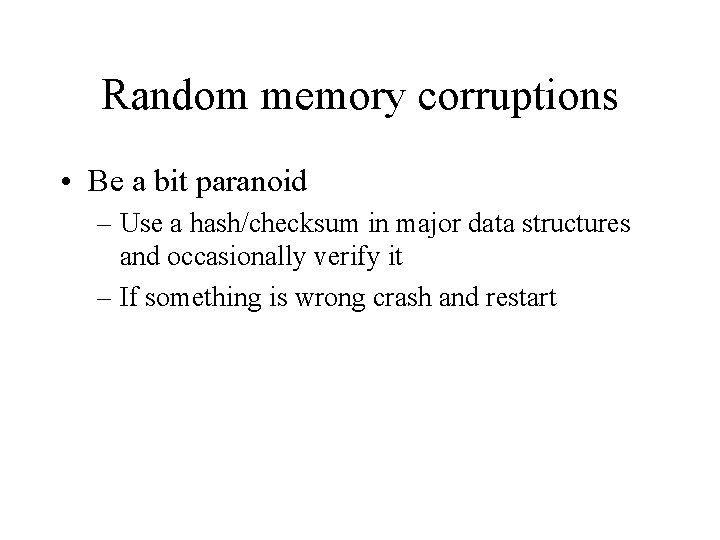

Random memory corruptions • Be a bit paranoid – Use a hash/checksum in major data structures and occasionally verify it – If something is wrong crash and restart

Lookups • • • Hashes Balanced trees Tries/radix Attacks Walks

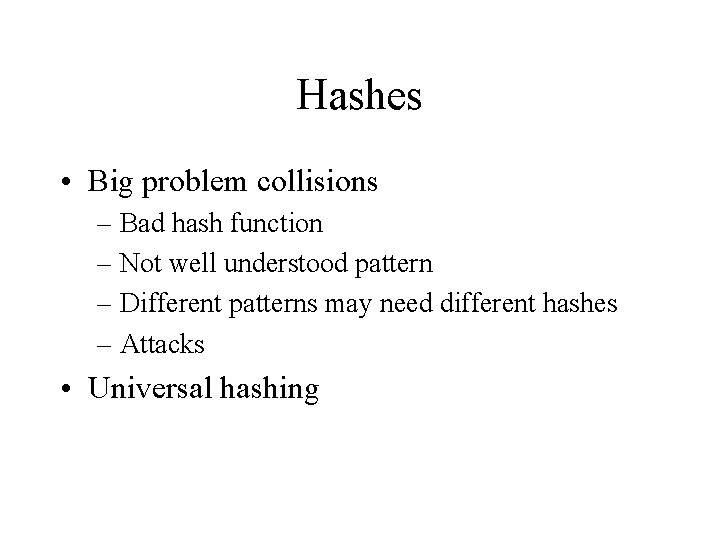

Hashes • Big problem collisions – Bad hash function – Not well understood pattern – Different patterns may need different hashes – Attacks • Universal hashing

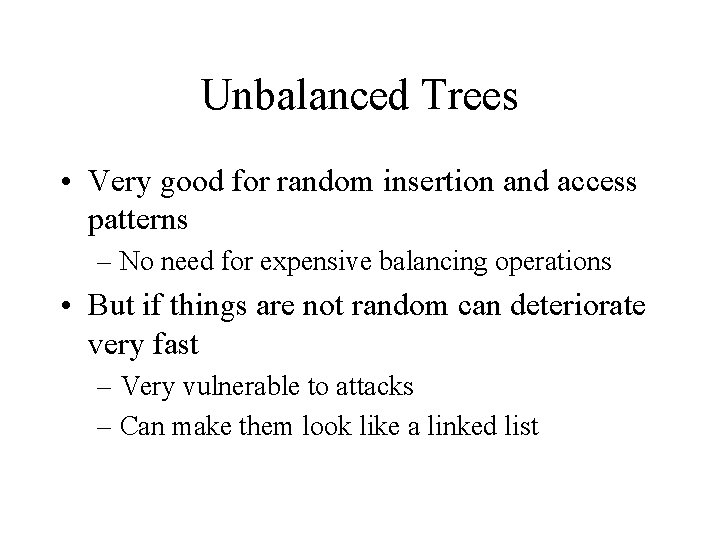

Unbalanced Trees • Very good for random insertion and access patterns – No need for expensive balancing operations • But if things are not random can deteriorate very fast – Very vulnerable to attacks – Can make them look like a linked list

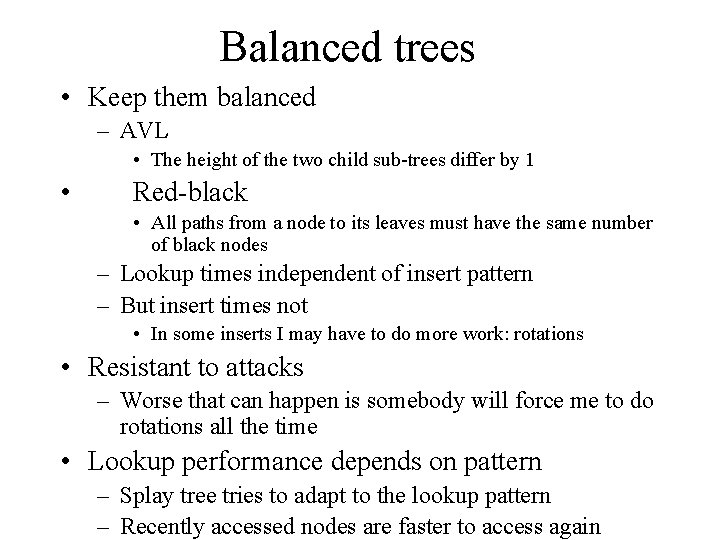

Balanced trees • Keep them balanced – AVL • The height of the two child sub-trees differ by 1 • Red-black • All paths from a node to its leaves must have the same number of black nodes – Lookup times independent of insert pattern – But insert times not • In some inserts I may have to do more work: rotations • Resistant to attacks – Worse that can happen is somebody will force me to do rotations all the time • Lookup performance depends on pattern – Splay tree tries to adapt to the lookup pattern – Recently accessed nodes are faster to access again

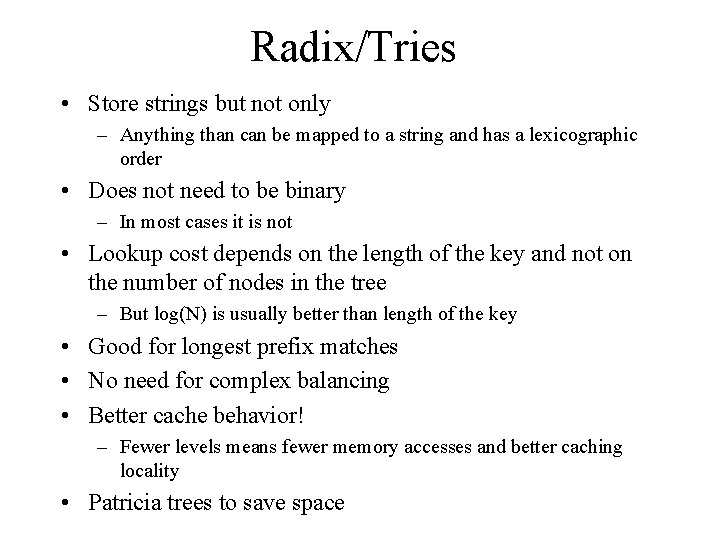

Radix/Tries • Store strings but not only – Anything than can be mapped to a string and has a lexicographic order • Does not need to be binary – In most cases it is not • Lookup cost depends on the length of the key and not on the number of nodes in the tree – But log(N) is usually better than length of the key • Good for longest prefix matches • No need for complex balancing • Better cache behavior! – Fewer levels means fewer memory accesses and better caching locality • Patricia trees to save space

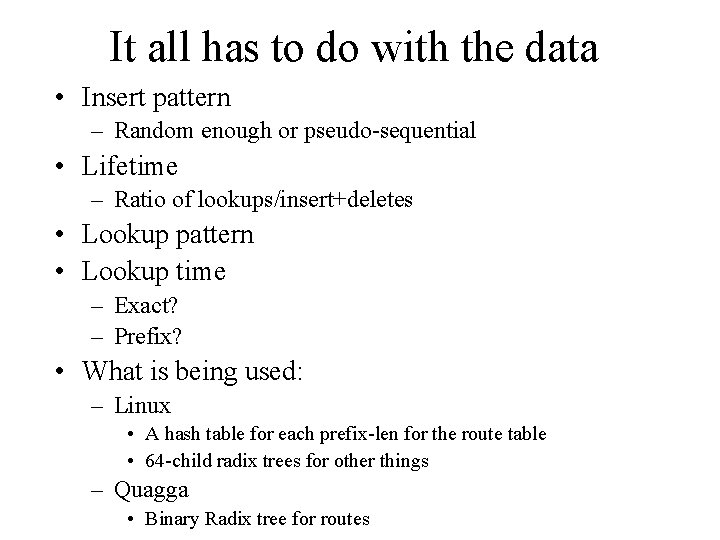

It all has to do with the data • Insert pattern – Random enough or pseudo-sequential • Lifetime – Ratio of lookups/insert+deletes • Lookup pattern • Lookup time – Exact? – Prefix? • What is being used: – Linux • A hash table for each prefix-len for the route table • 64 -child radix trees for other things – Quagga • Binary Radix tree for routes

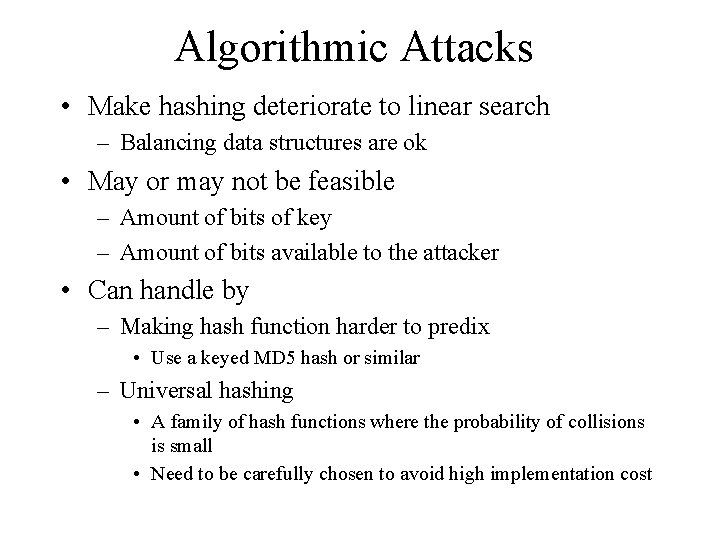

Algorithmic Attacks • Make hashing deteriorate to linear search – Balancing data structures are ok • May or may not be feasible – Amount of bits of key – Amount of bits available to the attacker • Can handle by – Making hash function harder to predix • Use a keyed MD 5 hash or similar – Universal hashing • A family of hash functions where the probability of collisions is small • Need to be carefully chosen to avoid high implementation cost

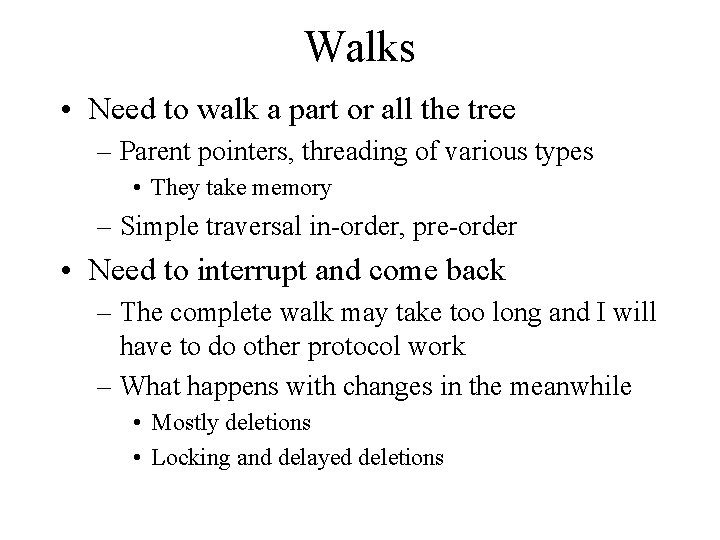

Walks • Need to walk a part or all the tree – Parent pointers, threading of various types • They take memory – Simple traversal in-order, pre-order • Need to interrupt and come back – The complete walk may take too long and I will have to do other protocol work – What happens with changes in the meanwhile • Mostly deletions • Locking and delayed deletions

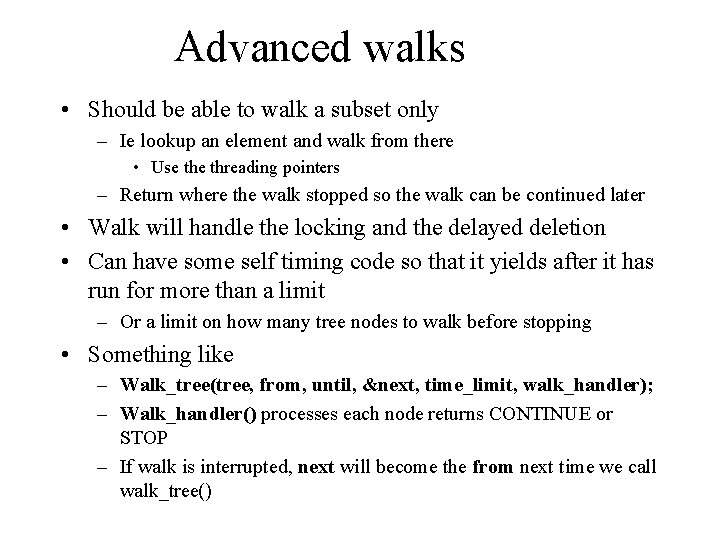

Advanced walks • Should be able to walk a subset only – Ie lookup an element and walk from there • Use threading pointers – Return where the walk stopped so the walk can be continued later • Walk will handle the locking and the delayed deletion • Can have some self timing code so that it yields after it has run for more than a limit – Or a limit on how many tree nodes to walk before stopping • Something like – Walk_tree(tree, from, until, &next, time_limit, walk_handler); – Walk_handler() processes each node returns CONTINUE or STOP – If walk is interrupted, next will become the from next time we call walk_tree()
