More DOM Manipulating DOM trees DOM unlike SAX

  • Slides: 11
Download presentation
More DOM

More DOM

Manipulating DOM trees • DOM, unlike SAX, gives you the ability to create and

Manipulating DOM trees • DOM, unlike SAX, gives you the ability to create and modify XML trees • There a few roadblocks along the way – Practically everything in the JAXP implementation is an interface, with a few abstract classes – Interfaces, such as Node, don’t have constructors; this makes it hard to get started – Since DOM was designed to be applicable from a number of languages, many things are not done “the Java way” • Once you get past these problems, the individual methods are pretty straightforward – Even with straightforward methods, working with trees is seldom simple

Overview • There are three basic kinds of operations: – Creating a new DOM

Overview • There are three basic kinds of operations: – Creating a new DOM – Modifying the structure of a DOM – Modifying the content of a DOM • Creating a new DOM requires a few extra methods just to get started – Afterwards, you can “grow” the DOM by modifying its structure and content

Creating a DOM import javax. xml. parsers. *; import org. w 3 c. dom.

Creating a DOM import javax. xml. parsers. *; import org. w 3 c. dom. Document; try { Document. Builder. Factory factory = Document. Builder. Factory. new. Instance(); Document. Builder builder = factory. new. Document. Builder(); Document doc = builder. new. Document(); } catch (Parser. Configuration. Exception e) {. . . }

The rest of the methods • Most of the other methods are either instance

The rest of the methods • Most of the other methods are either instance methods of a Document object, or are inherited from Node – A few are from Attr, Text, Entity, and so on • Almost all of these methods may throw a DOMException • I’ll just go through some of the more important methods briefly – The details can be looked up in the API if needed

Creating structure • The following are instance methods of Document: – public Element create.

Creating structure • The following are instance methods of Document: – public Element create. Element(String tag. Name) – public Element create. Element. NS(String namespace. URI, String qualified. Name) – public Attr create. Attribute(String name) – public Attr create. Attribute. NS(String namespace. URI, String qualified. Name) – public Processing. Instruction create. Processing. Instruction (String target, String data) – public Entity. Reference create. Entity. Reference(String name) • The above may all throw a DOMException – public Text create. Text. Node(String data) – public Comment create. Comment(String data)

Methods inherited from Node • public Node append. Child(Node new. Child) • public Node

Methods inherited from Node • public Node append. Child(Node new. Child) • public Node insert. Before(Node new. Child, Node ref. Child) • public Node remove. Child(Node old. Child) • public Node replace. Child(Node new. Child, Node old. Child) • set. Node. Value(String node. Value) – What this does depends on the type of node • public void set. Prefix(String prefix) • public void normalize() – Combines adjacent Text. Nodes

Methods of Element • public void set. Attribute(String name, String value) • public Attr

Methods of Element • public void set. Attribute(String name, String value) • public Attr set. Attribute. Node(Attr new. Attr) • public void set. Attribute. Node. NS(String namespace. URI, String qualified. Name, String value) • public Attr set. Attribute. Node. NS(Attr new. Attr) • public void remove. Attribute(String name) • public void remove. Attribute. NS(String namespace. URI, String local. Name) • public Attr remove. Attribute. Node(Attr old. Attr)

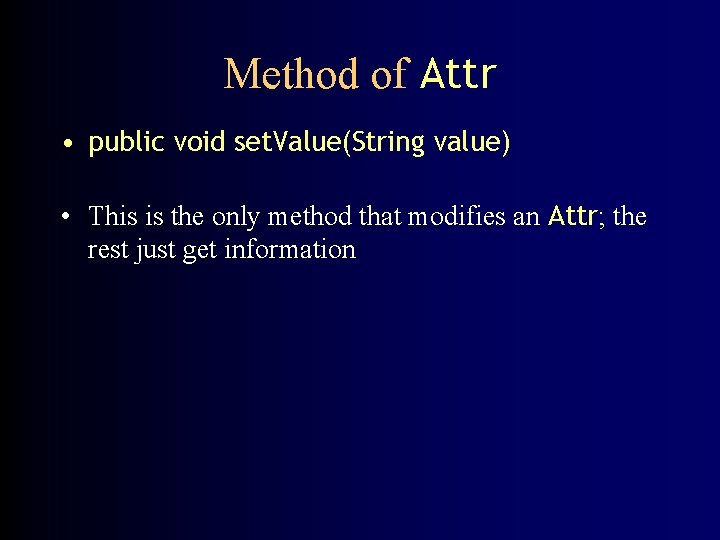

Method of Attr • public void set. Value(String value) • This is the only

Method of Attr • public void set. Value(String value) • This is the only method that modifies an Attr; the rest just get information

Writing out the DOM as XML • There are no Java-supplied methods for writing

Writing out the DOM as XML • There are no Java-supplied methods for writing out a DOM as XML • Writing out a DOM is conceptually simple—it’s just a tree walk – However, there a lot of details—various node types and so on—so doing a good job isn’t complicated, but it is lengthy

The End

The End
