Monte Carlo Simulation For Nuclear Imaging GATE : Geant 4 Applications for Tomographic Emissions Sébastien Jan Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 1

Monte Carlo Simulation for Nuclear Imaging Outline Ø How to define a Monte Carlo simulation ? Ø GATE : A platform for Monte Carlo Simulation Ø Pre-clinical imaging applications Ø Clinical imaging applications Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 2

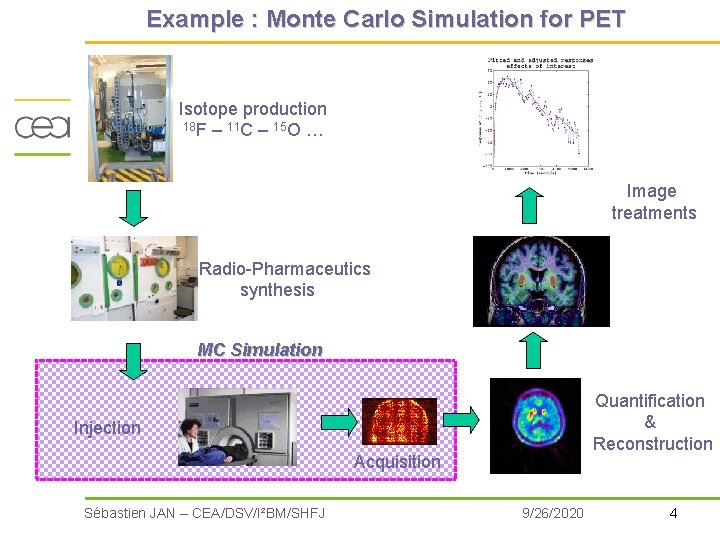

Example : Monte Carlo Simulation for PET Isotope production 18 F – 11 C – 15 O … Image treatments Radio-Pharmaceutics synthesis MC Simulation Quantification & Reconstruction Injection Acquisition Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 4

Which physics for the simulation ? q Physical processes + decay Multi-scattering & multiionisation for e+ in the tissue Annihilation : e+e - interactions : compton, rayleigh, photoelec. q Detection and signal acquisition detection : coincidence detection Electronic collimation Block detector Ring detector PMT for light collection 511 ke. V ‘Anger’ & Barycentre calculation Crystal matrix (BGO , LSO. . . ) Sébastien JAN – CEA/DSV/I²BM/SHFJ 511 ke. V 9/26/2020 position reconstruction 5

Modelling the activity distribution q Organ and structure descriptions Human brain Rodents Human body Rat brain For each organ or structure : • Material (μ(E)) • Isotope (T 1/2) and activity concentration (Bq/ml(t)) Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 6

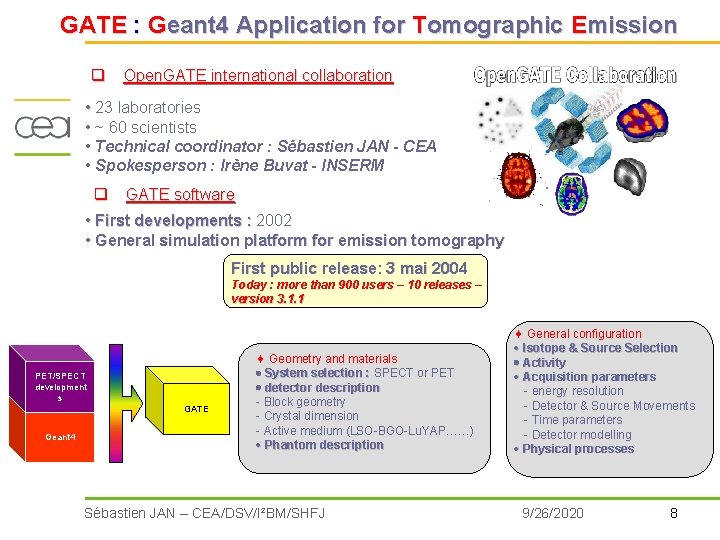

GATE : Geant 4 Application for Tomographic Emission q Open. GATE international collaboration • 23 laboratories • ~ 60 scientists • Technical coordinator : Sébastien JAN - CEA • Spokesperson : Irène Buvat - INSERM q GATE software • First developments : 2002 • General simulation platform for emission tomography First public release: 3 mai 2004 Today : more than 900 users – 10 releases – version 3. 1. 1 PET/SPECT development s GATE Geant 4 Geometry and materials System selection : SPECT or PET detector description - Block geometry - Crystal dimension - Active medium (LSO-BGO-Lu. YAP……) · Phantom description Sébastien JAN – CEA/DSV/I²BM/SHFJ General configuration · Isotope & Source Selection Activity · Acquisition parameters - energy resolution - Detector & Source Movements - Time parameters - Detector modelling · Physical processes 9/26/2020 8

GATE today: practical features • Can be freely downloaded, including the source codes • On-line documentation • Help about the use of GATE can be obtained through the gate-user mailing list • Many commercial tomographs and prototypes have already been modeled and models have been validated • Developed as a collaborative effort (23 labs worldwide) • 2 public releases each year • An official publication: Jan S, et al. GATE: a simulation toolkit for PET and SPECT. Phys Med Biol 49: 4543 -4561, 2004. • Website: http: //www. opengatecollaboration. org • GATE workshops at the IEEE Medical Imaging Conferences (2003, 2004, 2005, 2006) • GATE training sessions – 1 / year Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 9

GATE : detector and scanner geometry q Geometry description by script A complete AAscanner block tomograph detector module # BLOCK # R E P E A T MODULE BLOCK /gate/module/daughters/name block /gate/block/repeaters/insert cubic. Array /gate/module/repeaters/insert ring /gate/module/daughters/insert box /gate/block/cubic. Array/set. Repeat. Number. X 1 /gate/module/ring/set. Repeat. Number 8 /gate/block/cubic. Array/set. Repeat. Number. Y 8 # CRYSTAL /gate/block/cubic. Array/set. Repeat. Number. Z 12 /gate/block/daughters/name crystal /gate/block/cubic. Array/set. Repeat. Vector 0. 0 1. 6 2. 0 cm /gate/block/daughters/insert box /gate/crystal/placement/set. Translation 0. 0 cm /gate/crystal/geometry/set. XLength 3. 0 cm /gate/crystal/geometry/set. YLength 3. 0 mm /gate/crystal/geometry/set. ZLength 3. 8 mm /gate/crystal/set. Material Air /gate/crystal/vis/set. Visible 0 # REPEAT CRYSTAL /gate/crystal/repeaters/insert cubic. Array /gate/crystal/cubic. Array/set. Repeat. Number. X 1 /gate/crystal/cubic. Array/set. Repeat. Number. Y 5 /gate/crystal/cubic. Array/set. Repeat. Number. Z 5 /gate/crystal/cubic. Array/set. Repeat. Vector 0. 0 3. 2 4. 0 mm Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 10

GATE : phantom geometry q Geometrical description q Voxelized description Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 11

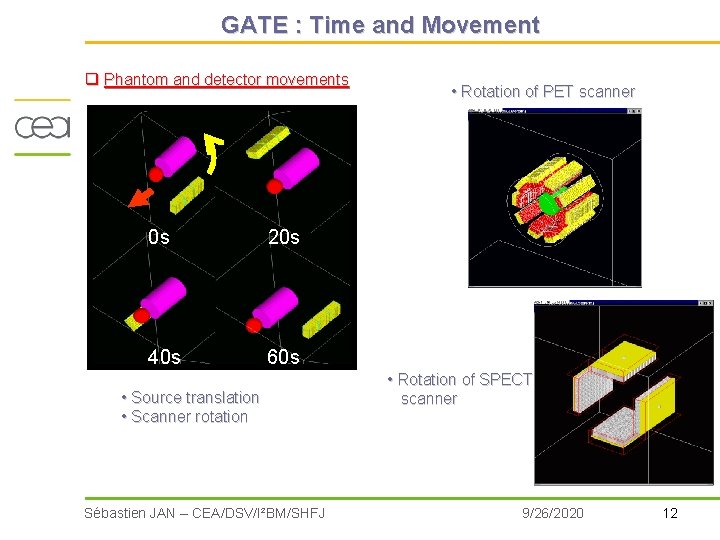

GATE : Time and Movement q Phantom and detector movements 0 s 20 s 40 s 60 s • Source translation • Scanner rotation Sébastien JAN – CEA/DSV/I²BM/SHFJ • Rotation of PET scanner • Rotation of SPECT scanner 9/26/2020 12

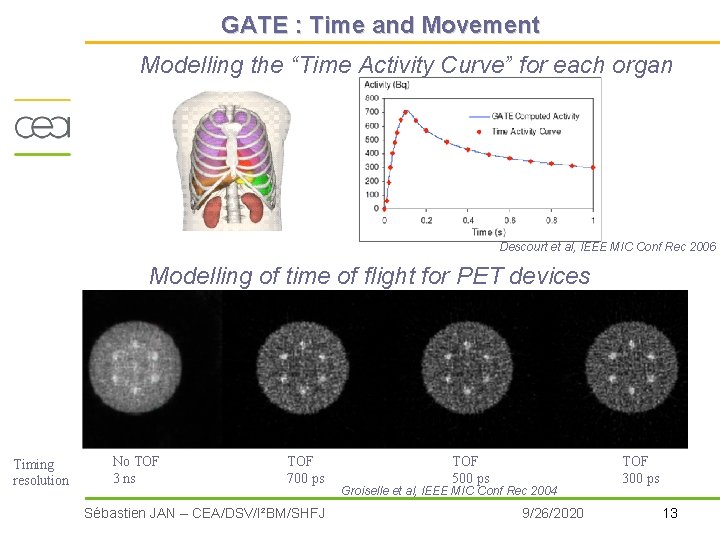

GATE : Time and Movement Modelling the “Time Activity Curve” for each organ Descourt et al, IEEE MIC Conf Rec 2006 Modelling of time of flight for PET devices Timing resolution No TOF 3 ns TOF 700 ps Sébastien JAN – CEA/DSV/I²BM/SHFJ TOF 500 ps Groiselle et al, IEEE MIC Conf Rec 2004 9/26/2020 TOF 300 ps 13

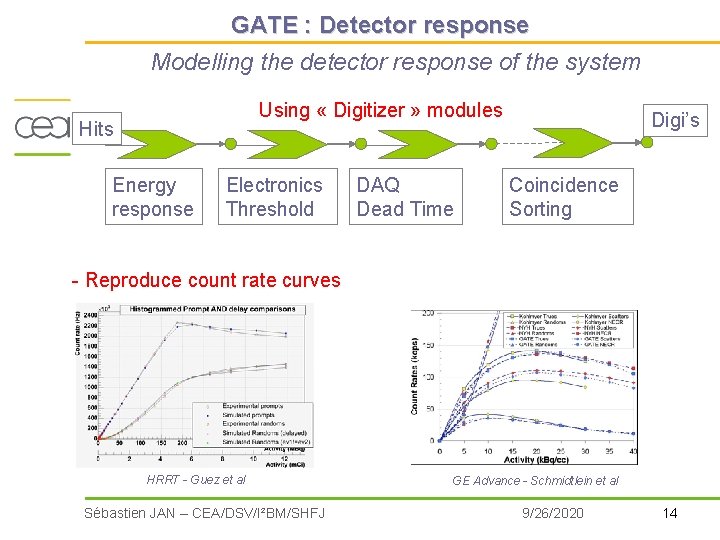

GATE : Detector response Modelling the detector response of the system Using « Digitizer » modules Hits Energy response Electronics Threshold DAQ Dead Time Digi’s Coincidence Sorting - Reproduce count rate curves HRRT - Guez et al Sébastien JAN – CEA/DSV/I²BM/SHFJ GE Advance - Schmidtlein et al 9/26/2020 14

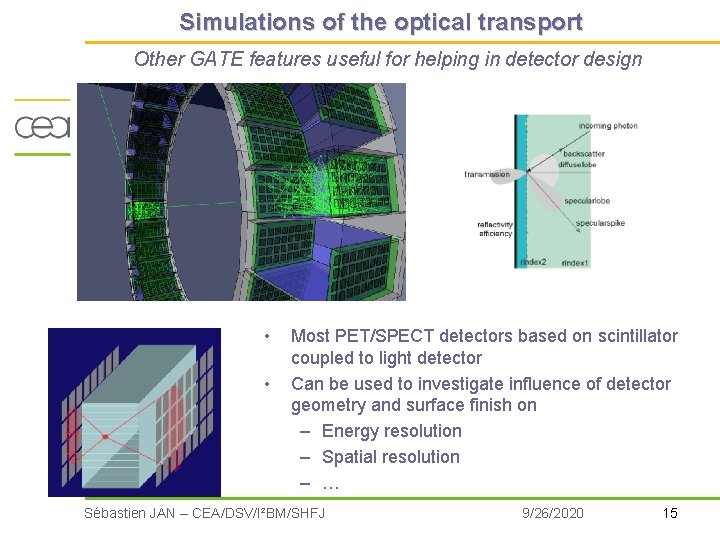

Simulations of the optical transport Other GATE features useful for helping in detector design • • Most PET/SPECT detectors based on scintillator coupled to light detector Can be used to investigate influence of detector geometry and surface finish on – Energy resolution – Spatial resolution – … Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 15

CT Scanner simulation PIXSCAN developments Morel et al. – CPPM Marseille Detector : 100 x 100 pixels, 130 m Cd. Te 5º source 20 ke. V 32 ke. V Sébastien JAN – CEA/DSV/I²BM/SHFJ 10 cm Top view 9/26/2020 16

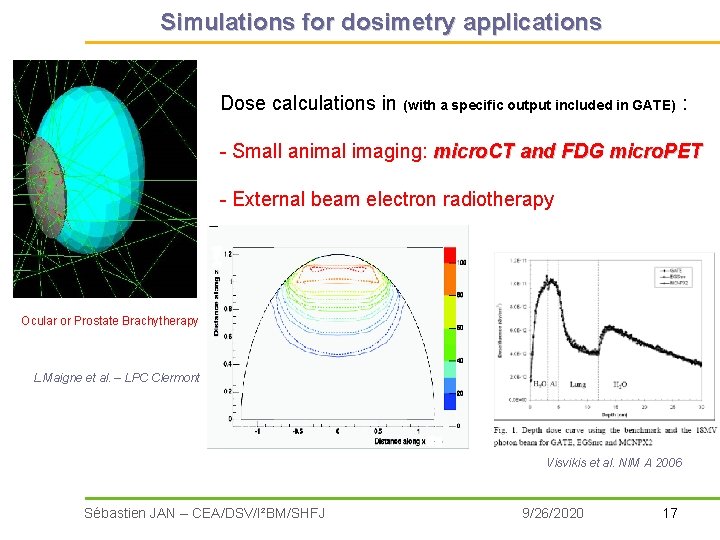

Simulations for dosimetry applications Dose calculations in (with a specific output included in GATE) : - Small animal imaging: micro. CT and FDG micro. PET - External beam electron radiotherapy Ocular or Prostate Brachytherapy L. Maigne et al. – LPC Clermont Visvikis et al. NIM A 2006 Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 17

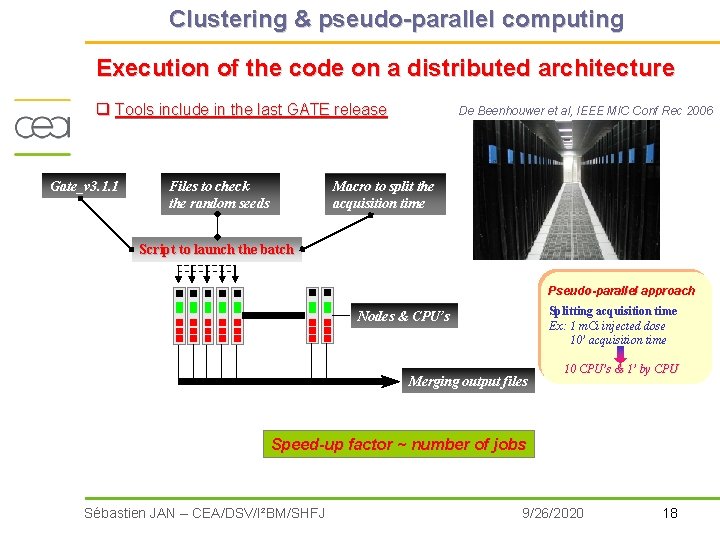

Clustering & pseudo-parallel computing Execution of the code on a distributed architecture q Tools include in the last GATE release Gate_v 3. 1. 1 Files to check the random seeds De Beenhouwer et al, IEEE MIC Conf Rec 2006 Macro to split the acquisition time Script to launch the batch Pseudo-parallel approach Splitting acquisition time Ex: 1 m. Ci injected dose 10’ acquisition time Nodes & CPU’s Merging output files 10 CPU’s & 1’ by CPU Speed-up factor ~ number of jobs Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 18

Objectives for biologic applications Re ce pt or im ag in g Small Animal PET Imaging Neurology - Rat brain imaging - [11 C]Raclopride & [18 F]LDOPA…. M Oncology eta bo - Whole body imaging for rat and mouse l ic - [18 F]FDG im ag in g Monte Carlo Simulations for what ? . . . ü Data corrections optimisation (Partial Volume, scatter correction…) ü Reconstruction optimisation ü A tool for quantitative analysis Main goal: Simulation of realistic exams • Rat brain studies: [11 C]Raclopride … [18 F]FDG… • Whole Body studies, Rat & Mouse : [18 F]FDG Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 20

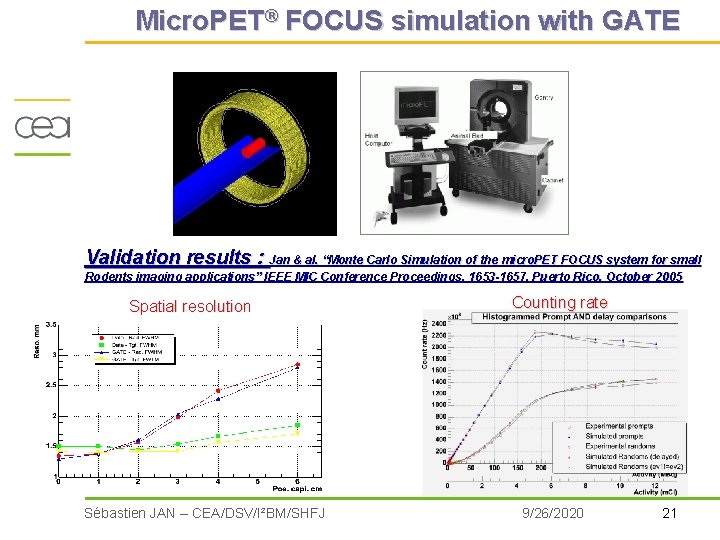

Micro. PET® FOCUS simulation with GATE Validation results : Jan & al. “Monte Carlo Simulation of the micro. PET FOCUS system for small Rodents imaging applications” IEEE MIC Conference Proceedings, 1653 -1657, Puerto Rico, October 2005 Spatial resolution Sébastien JAN – CEA/DSV/I²BM/SHFJ Counting rate 9/26/2020 21

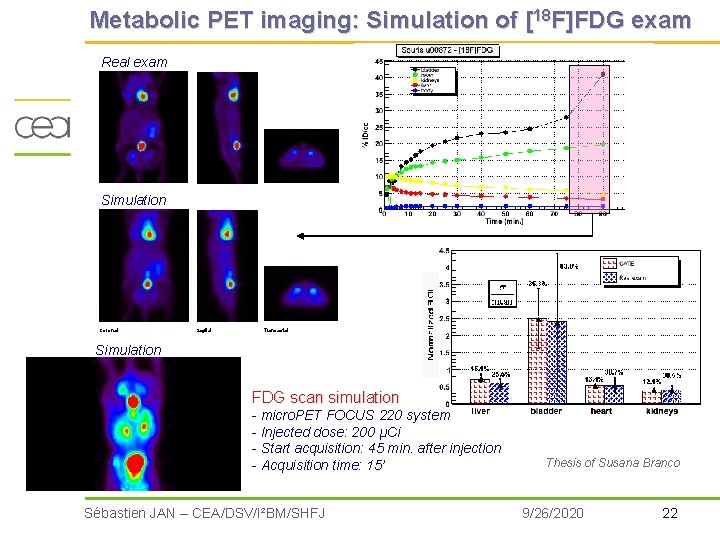

Metabolic PET imaging: Simulation of [18 F]FDG exam Real exam Simulation Coronal Sagital Transaxial Simulation FDG scan simulation - micro. PET FOCUS 220 system - Injected dose: 200 μCi - Start acquisition: 45 min. after injection - Acquisition time: 15’ Sébastien JAN – CEA/DSV/I²BM/SHFJ Thesis of Susana Branco 9/26/2020 22

Brain an whole body simulations for clinical applications General objective with GATE On co log y im ag ing Re cep tor M eta bo lic im ag in g - Simulation of realistic exams - Generation of realistic Monte Carlo Data Base Optimisations with GATE: ü Acquisition protocol (injected dose, acquisition time, threshold…dedicated for each patient) ü Algorithms for data corrections and reconstructions ü Quantitative analysis ü Dosimetry studies Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 24

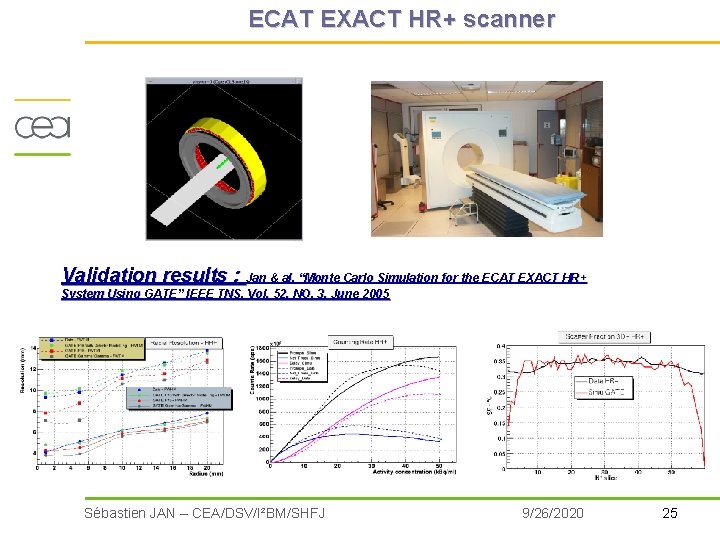

ECAT EXACT HR+ scanner Validation results : Jan & al. “Monte Carlo Simulation for the ECAT EXACT HR+ System Using GATE” IEEE TNS, Vol. 52, NO. 3, June 2005 Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 25

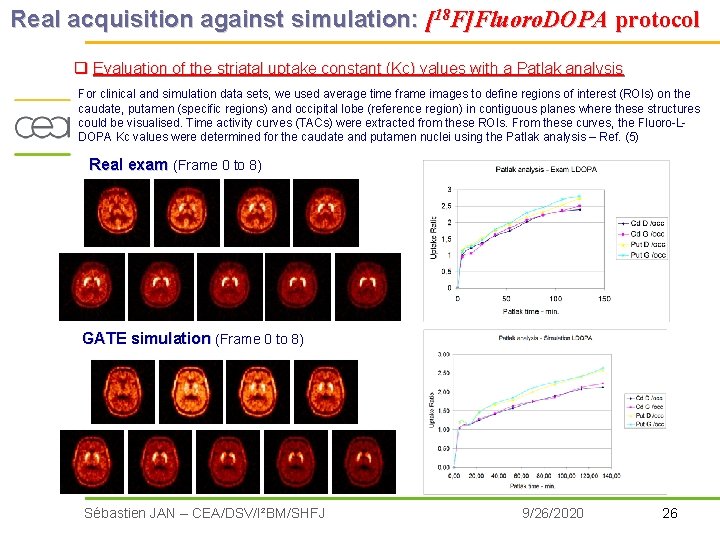

Real acquisition against simulation: [18 F]Fluoro. DOPA protocol q Evaluation of the striatal uptake constant (Kc) values with a Patlak analysis For clinical and simulation data sets, we used average time frame images to define regions of interest (ROIs) on the caudate, putamen (specific regions) and occipital lobe (reference region) in contiguous planes where these structures could be visualised. Time activity curves (TACs) were extracted from these ROIs. From these curves, the Fluoro-LDOPA Kc values were determined for the caudate and putamen nuclei using the Patlak analysis – Ref. (5) Real exam (Frame 0 to 8) GATE simulation (Frame 0 to 8) Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 26

To know more about GATE… http: //www. opengatecollaboration. org Sébastien JAN – CEA/DSV/I²BM/SHFJ 9/26/2020 27
