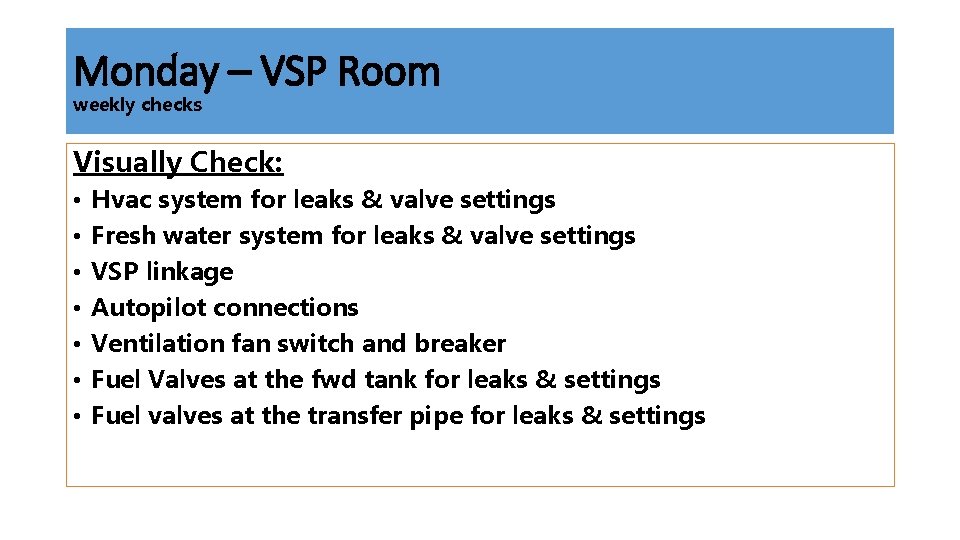

Monday – VSP Room weekly checks Visually Check: • • Hvac system for leaks

Monday – VSP Room weekly checks Visually Check: • • Hvac system for leaks & valve settings Fresh water system for leaks & valve settings VSP linkage Autopilot connections Ventilation fan switch and breaker Fuel Valves at the fwd tank for leaks & settings Fuel valves at the transfer pipe for leaks & settings

Monday – VSP Room Weekly Checks • Cycle all valves in the VSP room

Monday – VSP Room Weekly Checks • Cycle all valves in the VSP room • Check oil level in the VSP units • Check oil level in the VSP header tanks • Check bilge for water and pump or suction as needed • Check fresh water system for leaks • Check hot water heater for heat • Fill day tanks and check and record fuel level in the fwd fuel storage tank • Pump out grey water tank as needed • Check hydraulic oil storage tank level – fill as needed • Check and replace lights • Check ventilation fan plenum for water – drain as needed • Check general alarm bell & light • Check phone & intercom # 107 • Clean / wipe / wash / service all areas as needed

Monday - VSP Room Pump switch Pump out grey water tank 50 gal. tank

Monday - VSP Room Pump switch Pump out grey water tank 50 gal. tank Cycle the overboard valve located on the starboard side Overboard valve

Monday – VSP Room • Fill day tanks • Stick and measure main storage

Monday – VSP Room • Fill day tanks • Stick and measure main storage tank • Measure sight gauge for the fwd storage tank • Record fuel onboard Between each colored mark is 1000 gallons

Monday – VSP Room weekly checks • Cycle VSP cooling overboard valves P&S •

Monday – VSP Room weekly checks • Cycle VSP cooling overboard valves P&S • Cycle HVAC overboard valve starboard side • Cycle grey water overboard valve starboard side Port Side VSP cooling

Monday – VSP Room weekly checks Starboard Side Grey water overboard VSP cooling HVAC

Monday – VSP Room weekly checks Starboard Side Grey water overboard VSP cooling HVAC overboard

Monday – VSP Room weekly checks Check VSP unit oil level P & S

Monday – VSP Room weekly checks Check VSP unit oil level P & S Replace gently to avoid cross threading Dipstick location Look for signs of water (foam/milk) Operating range

Monday – VSP Room weekly checks Tank Fill Sight gauge Refill at this Level

Monday – VSP Room weekly checks Tank Fill Sight gauge Refill at this Level Discharge – Oil out

Monday – VSP Room weekly checks • Remove / Lift floor plate and check

Monday – VSP Room weekly checks • Remove / Lift floor plate and check for water • NEVER PUMP OILY WATER OVERBOARD • Start pump and listen for prime – NEVER run dry – use prime valves if necessary • Close all valves when finished Check under this floor plate Bilge suction under floor plate On / Off VSP Room Valve Prime valves
