Momentum Objectives Momentum and Newtons Second Law Impulse

Momentum Objectives: • Momentum and Newton’s Second Law • Impulse of a Force • Collisions

Momentum = (Mass ) x (Velocity) Magnitude Direction Newton’s Second Law Revisited: Net Force = (Change in Momentum) (Time) No Net Force Momentum Before = Momentum After Net Force Momentum changes due to the Force

Conservation of Momentum Q 1. You fall into a deep pool and begin sinking. Can you grab yourself by the hair and pull yourself upward? (a) Yes (b) No (c) I don’t know Q 2. You are performing an extravehicular activity (EVA) just outside the International Space Station (ISS). You have some instruments in your pocket, but your safety rope has just broken. What can you do to begin moving toward the ISS?

Conservation of Momentum Q 3. A bullet with a mass 60. 0 g is fired with an initial velocity of 575 m/s from a gun with a mass 4. 50 kg. What is the speed of the recoil of the gun?

Conservation of Momentum Q 3. A bullet with a mass 60. 0 g is fired with an initial velocity of 575 m/s from a gun with a mass 4. 50 kg. What is the speed of the recoil of the gun? Before collision: (0. 060 kg)(0 m/s) + (4. 50 kg)(0 m/s) = 0 kg. m/s

Conservation of Momentum Q 3. A bullet with a mass 60. 0 g is fired with an initial velocity of 575 m/s from a gun with a mass 4. 50 kg. What is the speed of the recoil of the gun? Before collision: (0. 060 kg)(0 m/s) + (4. 50 kg)(0 m/s) = 0 kg. m/s After collision: ? ? ? 575 m/s

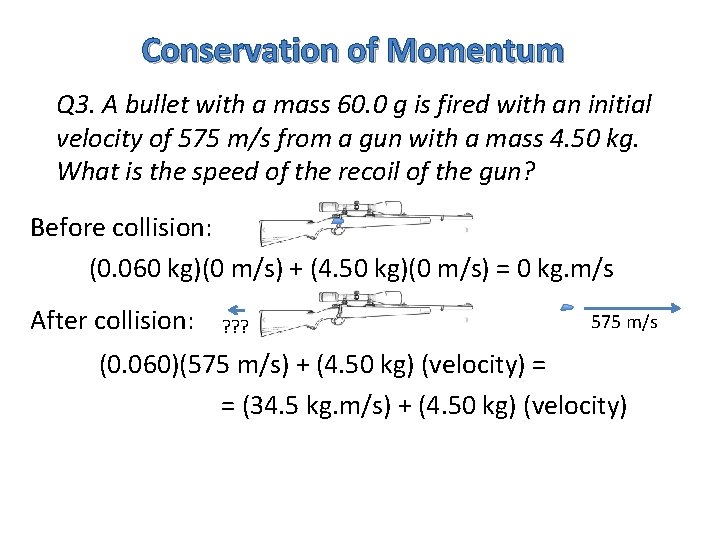

Conservation of Momentum Q 3. A bullet with a mass 60. 0 g is fired with an initial velocity of 575 m/s from a gun with a mass 4. 50 kg. What is the speed of the recoil of the gun? Before collision: (0. 060 kg)(0 m/s) + (4. 50 kg)(0 m/s) = 0 kg. m/s After collision: ? ? ? 575 m/s (0. 060)(575 m/s) + (4. 50 kg) (velocity) = = (34. 5 kg. m/s) + (4. 50 kg) (velocity)

Conservation of Momentum Q 3. A bullet with a mass 60. 0 g is fired with an initial velocity of 575 m/s from a gun with a mass 4. 50 kg. What is the speed of the recoil of the gun? Before collision: (0. 060 kg)(0 m/s) + (4. 50 kg)(0 m/s) = 0 kg. m/s After collision: 575 m/s ? ? ? (0. 060)(575 m/s) + (4. 50 kg) (velocity) = = (34. 5 kg. m/s) + (4. 50 kg) (velocity) 0 = 34. 5 + (4. 50 kg) (velocity) -34. 5 = 4. 50 (velocity) v = 7. 67 m/s

Impulse The force acting during a certain interval of time Impulse = (Force) x (Time Interval) (change in momentum) Q 4. Which way hurts less? Jumping from a tree with your knees stiff or bent? (a) stiff (b) bent (c) It doesn’t matter

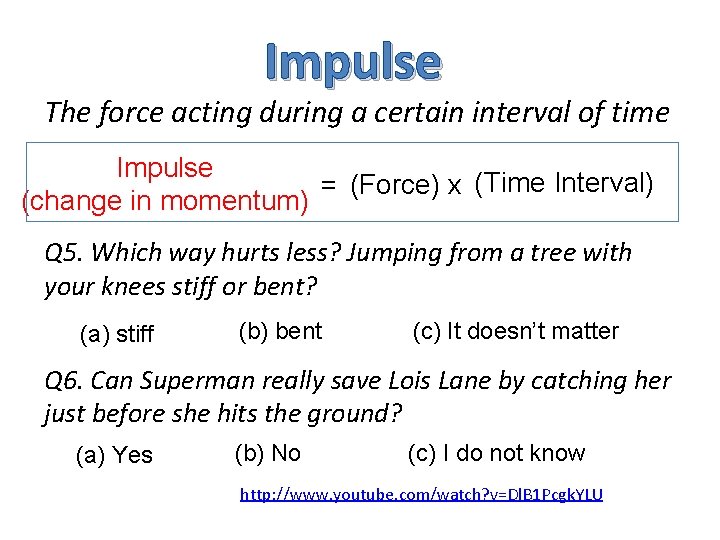

Impulse The force acting during a certain interval of time Impulse = (Force) x (Time Interval) (change in momentum) Q 5. Which way hurts less? Jumping from a tree with your knees stiff or bent? (a) stiff (b) bent (c) It doesn’t matter Q 6. Can Superman really save Lois Lane by catching her just before she hits the ground? (a) Yes (b) No (c) I do not know http: //www. youtube. com/watch? v=Dl. B 1 Pcgk. YLU

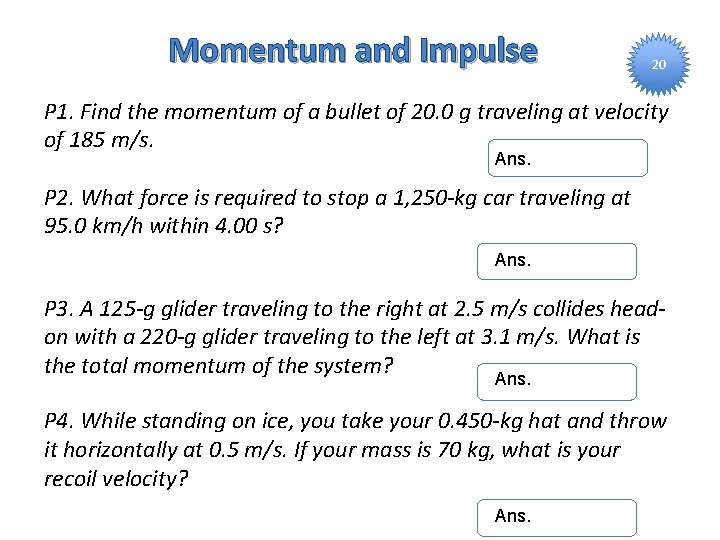

Momentum and Impulse 20 P 1. Find the momentum of a bullet of 20. 0 g traveling at velocity of 185 m/s. Ans. P 2. What force is required to stop a 1, 250 -kg car traveling at 95. 0 km/h within 4. 00 s? Ans. P 3. A 125 -g glider traveling to the right at 2. 5 m/s collides headon with a 220 -g glider traveling to the left at 3. 1 m/s. What is the total momentum of the system? Ans. P 4. While standing on ice, you take your 0. 450 -kg hat and throw it horizontally at 0. 5 m/s. If your mass is 70 kg, what is your recoil velocity? Ans.

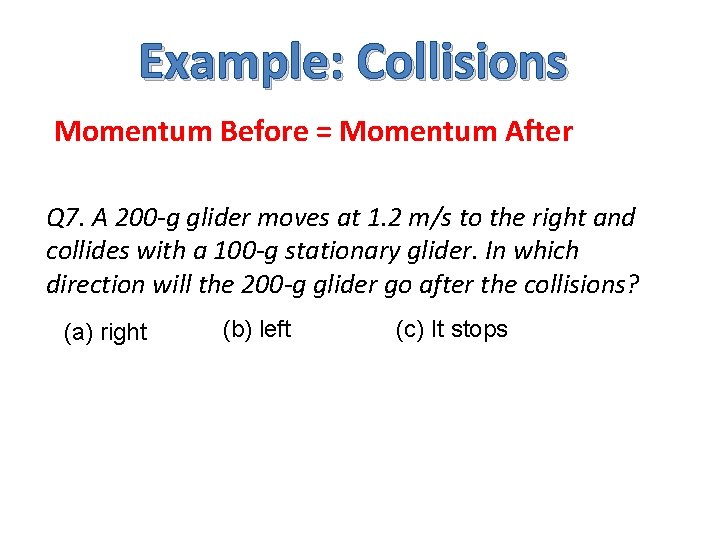

Example: Collisions Momentum Before = Momentum After Q 7. A 200 -g glider moves at 1. 2 m/s to the right and collides with a 100 -g stationary glider. In which direction will the 200 -g glider go after the collisions? (a) right (b) left (c) It stops

Example: Collisions Momentum Before = Momentum After Q 8. A 200 -g glider moves at 1. 2 m/s to the right and collides with a 100 -g that is moving to the left at 0. 8 m/s. After the collisions, the two gliders stick together. With what velocity are they moving?

Example: Collisions Momentum Before = Momentum After Q 8. A 200 -g glider moves at 1. 2 m/s to the right and collides with a 100 -g that is moving to the left at 0. 8 m/s. After the collisions, the two gliders stick together. With what velocity are they moving? Before collision: (0. 200 kg)(1. 2 m/s) + (0. 100 kg)(-0. 8) = 0. 16 kg. m/s After collision: (0. 200 kg + 0. 100 kg)(velocity) = (0. 3 kg) (velocity) 0. 16 = 0. 3 v v = 0. 53 m/s

Collisions 20 P 1. A 125 -g glider moves east at 1. 2 m/s and collides with a 90 -g stationary glider. After the collision, the 125 -g glider continues to move east at 0. 7 m/s. What is the velocity of the 90 -g glider? Ans. P 2. A 75 -g glider moves east at 1. 2 m/s and collides head-on with a 45 -g glider moving west at 0. 8 m/s. If both collide and stick together, what is their velocity after the collision? Ans.
