Molecules Chapter 2 The Material World Bonds Octet

Molecules Chapter 2 The Material World

Bonds

Octet Rule An atom is chemically stable if it has a full outer shell – For most elements this means 8 electrons in its outermost shell An atoms that has fewer than 8 electrons tends to combine with another atom or atoms to fill the outermost shell. Exceptions: H, He, Li, Be and B, desire 1 orbital only with 2 electrons in this shell.

• Example of an ionic bond: 2+ Mg S 2 -

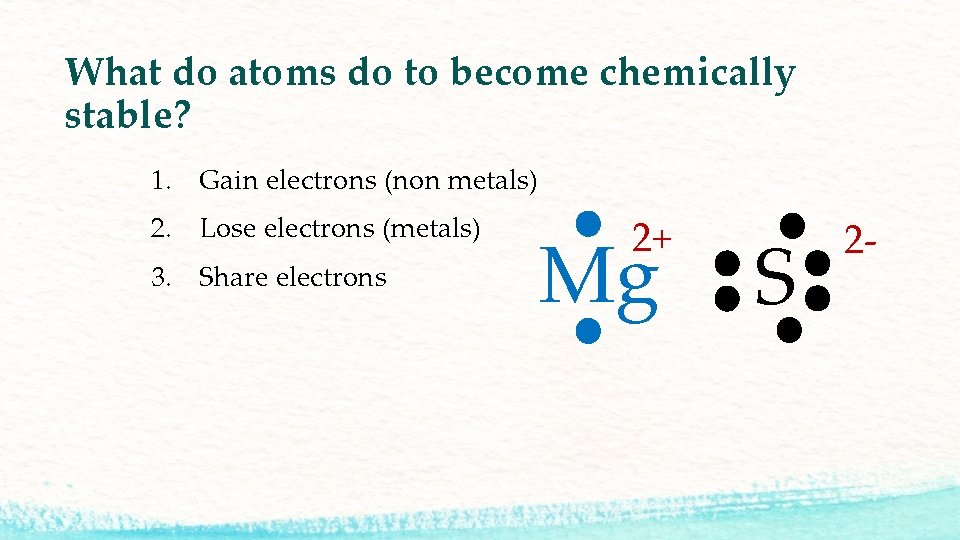

What do atoms do to become chemically stable? 1. Gain electrons (non metals) 2. Lose electrons (metals) 3. Share electrons 2+ Mg S 2 -

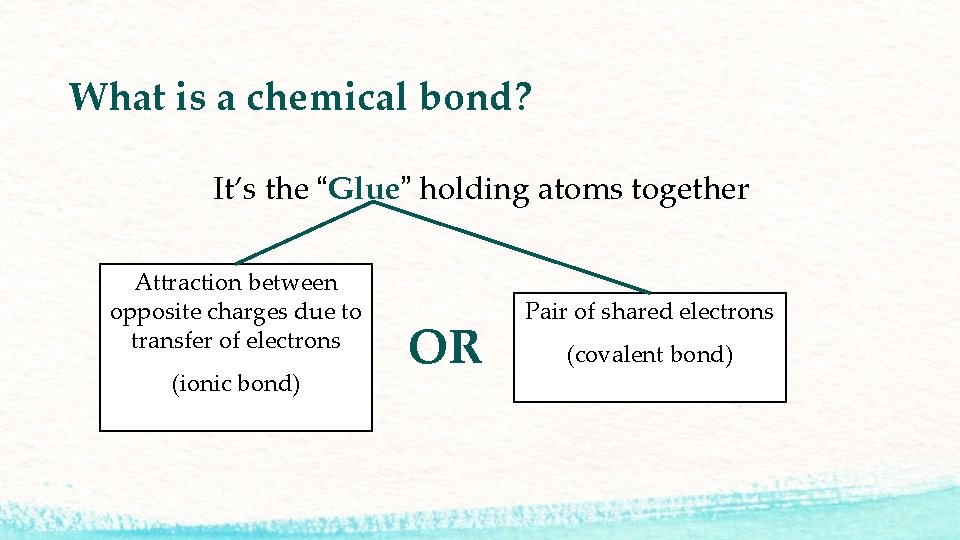

What is a chemical bond? It’s the “Glue” holding atoms together Attraction between opposite charges due to transfer of electrons (ionic bond) OR Pair of shared electrons (covalent bond)

Ionic Bonds formed by the transfer of valence electrons between atoms → Forming ions

Covalent Bonds formed by the sharing of valence electrons between atoms

Review: Lewis Dot Notation

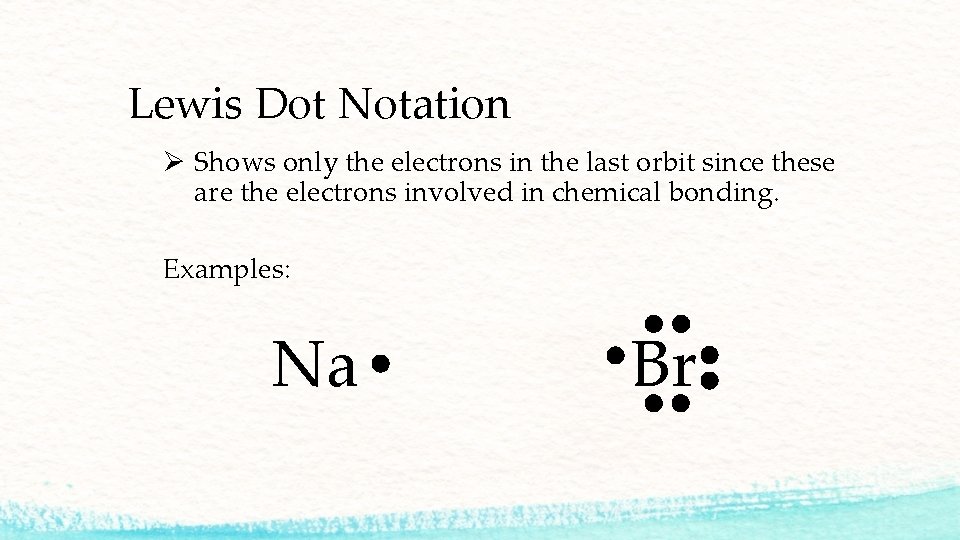

Lewis Dot Notation Ø Shows only the electrons in the last orbit since these are the electrons involved in chemical bonding. Examples: Na Br

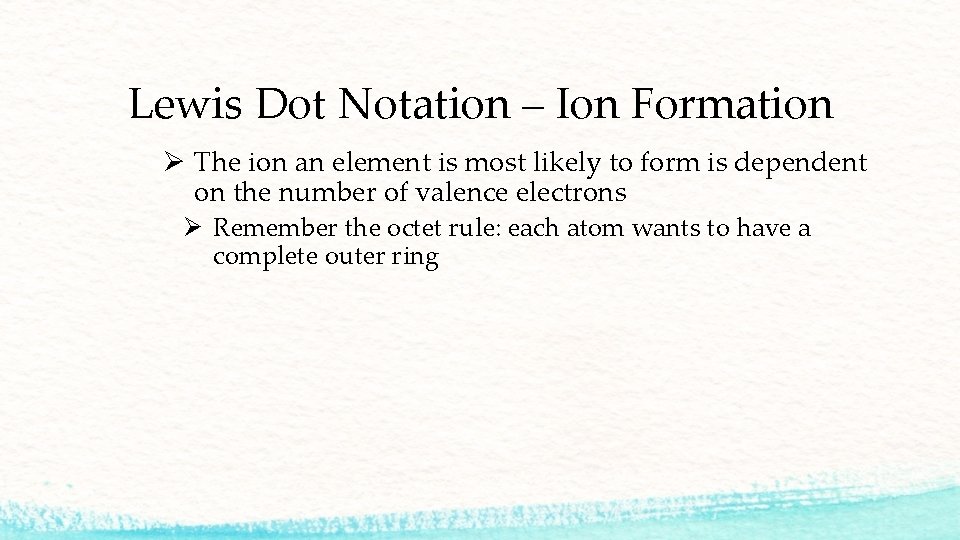

Lewis Dot Notation – Ion Formation Ø The ion an element is most likely to form is dependent on the number of valence electrons Ø Remember the octet rule: each atom wants to have a complete outer ring

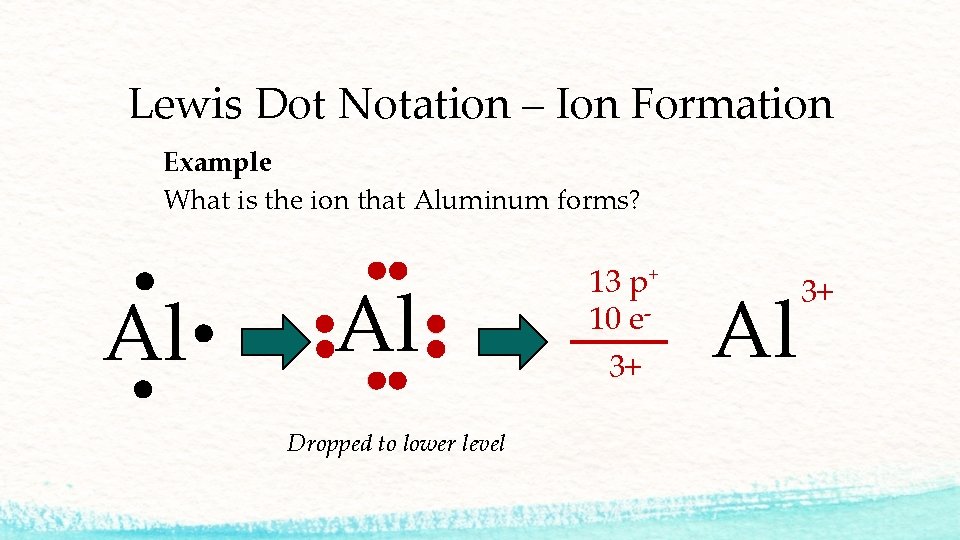

Lewis Dot Notation – Ion Formation Example What is the ion that Aluminum forms? Al Al Dropped to lower level 13 p+ 10 e 3+ Al 3+

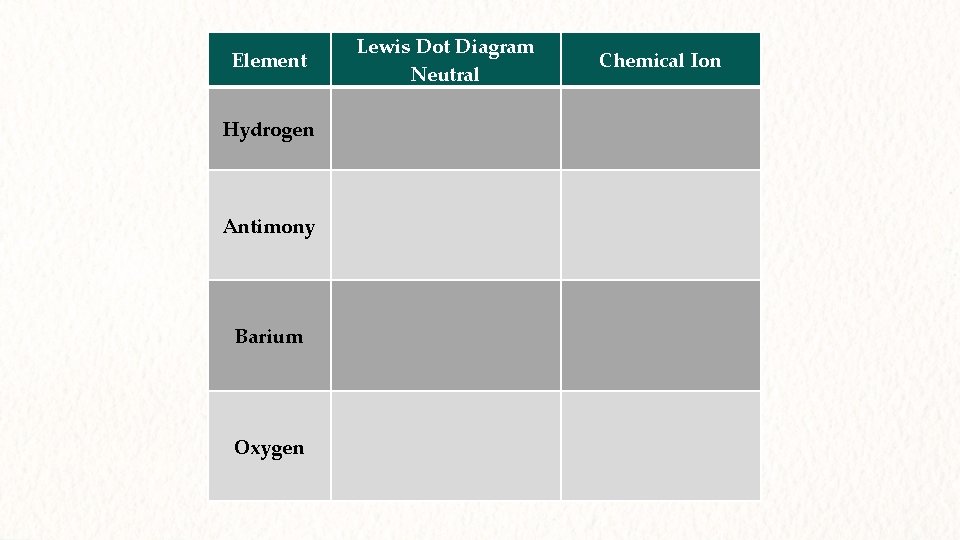

Element Hydrogen Antimony Barium Oxygen Lewis Dot Diagram Neutral Chemical Ion

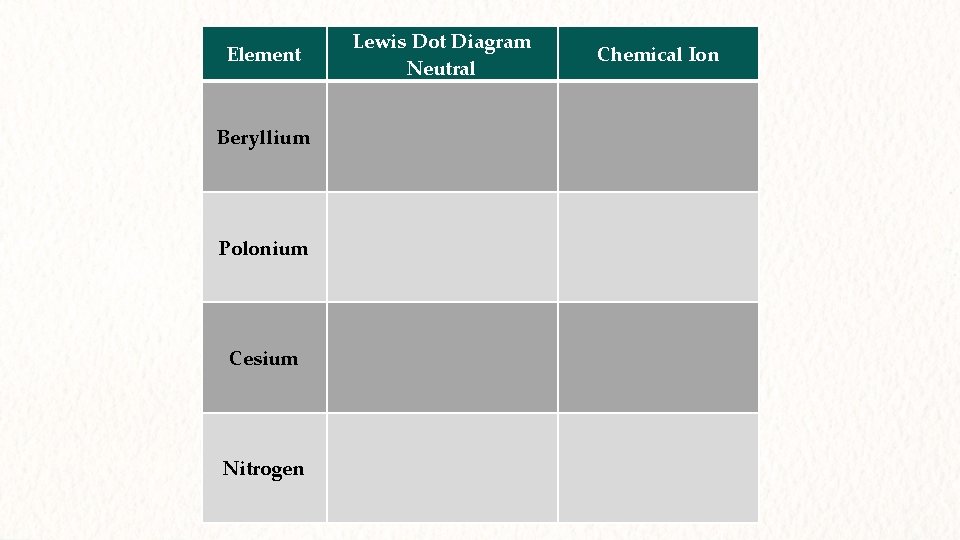

Element Beryllium Polonium Cesium Nitrogen Lewis Dot Diagram Neutral Chemical Ion
