Molecules and Ions Image courtesy of www labinitio

Molecules and Ions Image courtesy of www. lab-initio. com

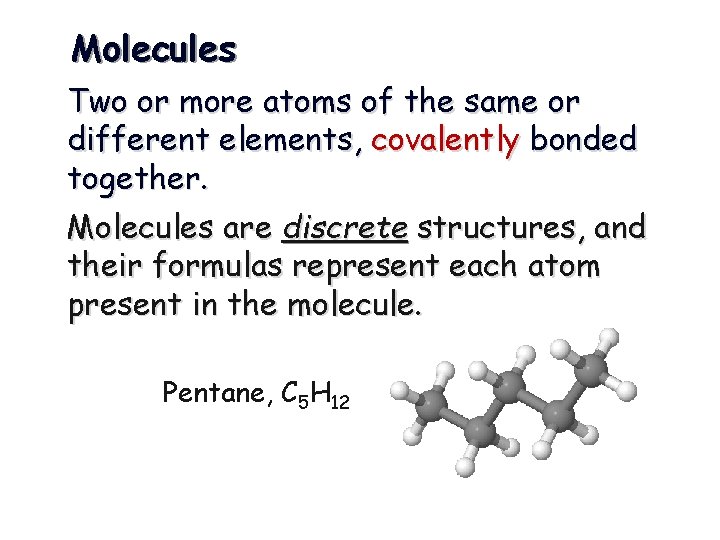

Molecules Two or more atoms of the same or different elements, covalently bonded together. Molecules are discrete structures, and their formulas represent each atom present in the molecule. Pentane, C 5 H 12

Covalent Network Substances Covalent network substances have covalently bonded atoms, but do not have discrete formulas. Why Not? ? Graphene – carbon allotrope

Ions v Cation: A positive ion v Mg 2+, NH 4+ v Anion: A negative ion v Cl-, SO 42 v Ionic Bonding: Force of attraction between oppositely charged ions. v Ionic compounds form crystals, so their formulas are written empirically (lowest whole number ratio of ions).

Predicting Ionic Charges Group 1: Lose 1 electron to form 1+ ions H+ Li+ Na+ K+ Rb+ Cs+

Predicting Ionic Charges Group 2: Loses 2 electrons to form 2+ ions Be 2+ Mg 2+ Ca 2+ Sr 2+ Ba 2+

Predicting Ionic Charges B 3+ Al 3+ Ga 3+ Group 13: Loses 3 electrons to form 3+ ions

Predicting Ionic Charges Caution! C 2 and are both called carbide 2 - C 4 - Group 14: Loses 4 electrons or gains 4 electrons

Predicting Ionic Charges N 3 - Nitride P 3 - Phosphide As 3 - Arsenide Group 15: Gains 3 electrons to form 3 - ions

Predicting Ionic Charges O 2 - Oxide S 2 - Sulfide Se 2 - Selenide Group 16: Gains 2 electrons to form 2 - ions

Predicting Ionic Charges F 1 - Fluoride Cl 1 - Chloride Br 1 - Bromide I 1 - Iodide Group 17: Gains 1 electron to form 1 - ions

Predicting Ionic Charges Group 18: Stable Noble gases do not form ions!

Predicting Ionic Charges Groups 3 - 12: Many transition metals have more than one possible oxidation state. Iron(II) = Fe 2+ Iron(III) = Fe 3+

Predicting Ionic Charges Groups 3 - 12: Some transition metals have only one possible oxidation state. Zinc = Zn 2+ Silver = Ag+

Writing Ionic Compound Formulas Example: Barium nitrate 1. Write the formulas for the cation and anion, including CHARGES! 2. Check to see if charges are balanced. 3. Balance charges , if necessary, using subscripts. Use parentheses if you need more than one of a polyatomic ion. Ba 2+ ( NO 3 - ) 2 Not balanced

Writing Ionic Compound Formulas Example: Ammonium sulfate 1. Write the formulas for the cation and anion, including CHARGES! 2. Check to see if charges are balanced. 3. Balance charges , if necessary, using subscripts. Use parentheses if you need more than one of a polyatomic ion. + ( NH 4 ) SO 422 2 Not balanced

Writing Ionic Compound Formulas Example: Iron(III) chloride 1. Write the formulas for the cation and anion, including CHARGES! 2. Check to see if charges are balanced. 3. Balance charges , if necessary, using subscripts. Use parentheses if you need more than one of a polyatomic ion. Fe 3+ Cl 3 3 Not balanced

Writing Ionic Compound Formulas Example: Aluminum sulfide 1. Write the formulas for the cation and anion, including CHARGES! 2. Check to see if charges are balanced. 3. Balance charges , if necessary, using subscripts. Use parentheses if you need more than one of a polyatomic ion. 3+ Al 2 2 S Not balanced 3

Writing Ionic Compound Formulas Example: Magnesium carbonate 1. Write the formulas for the cation and anion, including CHARGES! 2. Check to see if charges are balanced. 2+ Mg CO 32 - They are balanced

Writing Ionic Compound Formulas Example: Zinc hydroxide 1. Write the formulas for the cation and anion, including CHARGES! 2. Check to see if charges are balanced. 3. Balance charges , if necessary, using subscripts. Use parentheses if you need more than one of a polyatomic ion. Zn 2+ ( OH- ) 2 Not balanced

Writing Ionic Compound Formulas Example: Aluminum phosphate 1. Write the formulas for the cation and anion, including CHARGES! 2. Check to see if charges are balanced. Al 3+ PO 43 They ARE balanced

Naming Ionic Compounds Ø Cation first, then anion Ø Monatomic cation = name of the element Ø Ca 2+ = calcium ion Ø Monatomic anion = root + -ide Ø Cl- = chloride Ø Ca. Cl 2 = calcium chloride

Naming Ionic Compounds Metals with multiple oxidation states Ø some metal forms more than one cation Ø use Roman numeral in name Ø Pb. Cl 2 Ø Pb 2+ is cation Ø Pb. Cl 2 = lead(II) chloride

Binary Molecular Compounds § Compounds between two nonmetals § First element in the formula is named first. § Keeps its element name § Gets a prefix if there is a subscript on it § Second element is named second § Use the root of the element name plus the -ide suffix § Always use a prefix on the second element

§ 1 = mon(o) § 2 = di § 3 = tri § 4 = tetra § 5 = penta § 6 = hexa § 7 = hepta § 8 = octa § 9 = nona § 10 = deka List of Prefixes

Naming Binary Compounds P 2 O 5 = diphosphorus pentoxide CO 2 = carbon dioxide CO = carbon monoxide N 2 O = dinitrogen monoxide

Practice – Write the Formula Compound Name Compound Formula Carbon dioxide Carbon monoxide Diphosphorus pentoxide Dinitrogen monoxide Silicon dioxide Carbon tetrabromide Sulfur dioxide Phosphorus pentabromide Iodine trichloride Nitrogen triiodide Dinitrogen trioxide Check next slide for answers

Answers – Write the Formula Compound Name Compound Formula Carbon dioxide CO 2 Carbon monoxide CO Diphosphorus pentoxide P 2 O 5 Dinitrogen monoxide N 2 O Silicon dioxide Si. O 2 Carbon tetrabromide CBr 4 Sulfur dioxide SO 2 Phosphorus pentabromide PBr 5 Iodine trichloride ICl 3 Nitrogen triiodide NI 3 Dinitrogen trioxide N 2 O 3

Practice – Name the Compounds Compound Formula Compound Name N 2 O 4 SO 3 NO NO 2 As 2 O 5 PCl 3 CCl 4 H 2 O Se. F 6 Check next slide for answers

Answers – Name the Compounds Compound Formula Compound Name N 2 O 4 dinitrogen tetroxide SO 3 sulfur trioxide NO nitrogen monoxide NO 2 nitrogen dioxide As 2 O 5 diarsenic pentoxide PCl 3 phosphorus trichloride CCl 4 carbon tetrachloride H 2 O dinitrogen monoxide Se. F 6 selenium hexafluoride
