Molecular Thin Films and SmallMolecule Organic Photovoltaics Sanggyu
- Slides: 41
Molecular Thin Films and Small-Molecule Organic Photovoltaics Sanggyu Yim Kookmin University 진공학회 2011하계학술대회 Tutorial 1
Organic? OLED Flexible Display 진공학회 2011하계학술대회 Tutorial vs. Inorganic? Organic Semiconductors Nano(Bio) Sensor Solar Cell OTFT 3
Why Solar Cells? Humanity’s Top 10 Problems for Next 50 year 1. Energy 2. Water 3. Food 4. Environment 150, 000 km 1. 5 x 1022 J/day 5. Poverty 6. Terrorism & War 7. Disease 8. Education 9. Democracy 10. Population 진공학회 2011하계학술대회 Tutorial 4

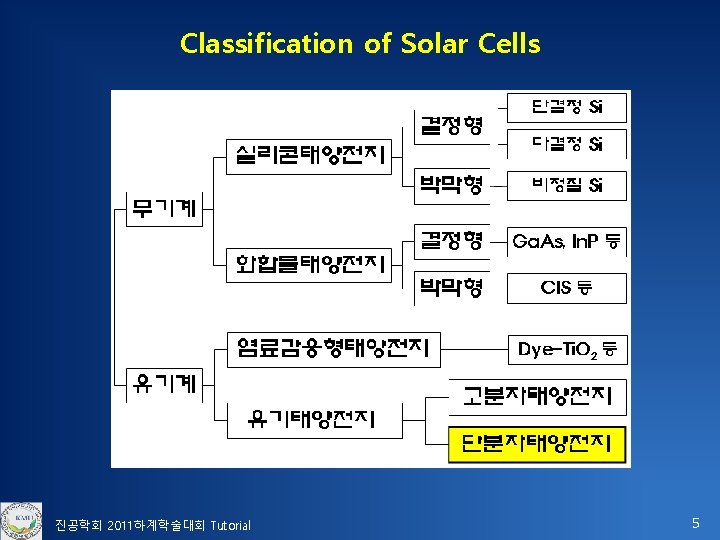

Classification of Solar Cells 진공학회 2011하계학술대회 Tutorial 5
Why Organic Thin-Film Solar Cells? 1. Low Cost • Room temp. processing • Cheap materials • Mass production : roll-to-roll, ink-jet printing, etc. 2. Flexibility • Flexible substrate • Unbreakable devices 3. Variety of Property • Various materials : fine tuning available • Unlimited possibility 진공학회 2011하계학술대회 Tutorial 6
Solar Cell Efficiencies 진공학회 2011하계학술대회 Tutorial 7
Energy Conversion Process of Si Solar Cell 진공학회 2011하계학술대회 Tutorial 8

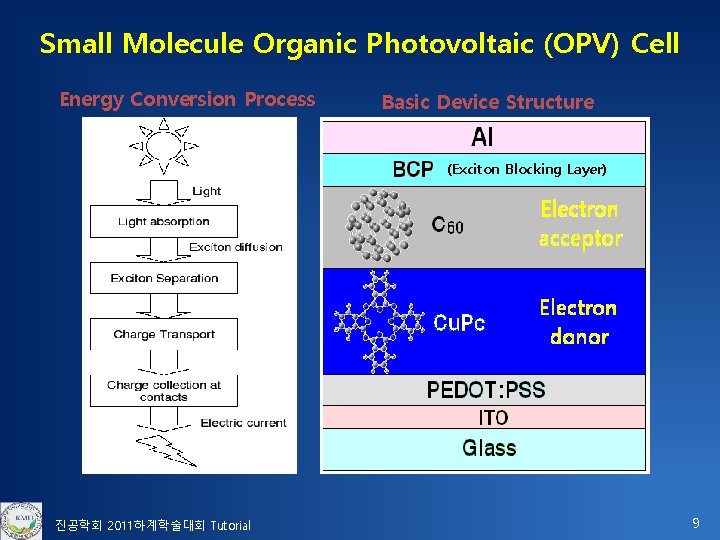

Small Molecule Organic Photovoltaic (OPV) Cell Energy Conversion Process Basic Device Structure (Exciton Blocking Layer) 진공학회 2011하계학술대회 Tutorial 9
Materials Electron Donor Materials Sub. Pc Phthalocyanine (Pc) Electron Acceptor Materials EBL Materials PTCDA C 60 진공학회 2011하계학술대회 Tutorial PTCBI BCP BPhen 10
History of Small Molecule OPV Cells v First Organic Solar Cell ITO/Cu. Pc(30 nm)/PV(50 nm)/Ag hp = 0. 95% @ AM 2. 0 C. W. Tang, Appl. Phys. Lett, 48(1986)183 진공학회 2011하계학술대회 Tutorial v Bulk Heterojunction ITO/Cu. Pc(15 nm)/Cu. Pc: C 60 (1: 1, 10 nm)/C 60(35 nm)/BCP/Ag hp = 5. 0% @ AM 1. 5 J. Xue et al, Adv. Mater. , 17(2005)66 v Tandem Cell hp = 5. 7% @ AM 1. 5 J. Xue et al, Appl. Phys. Lett, 85 (2004)5757 11
Timeline of Power Conversion Efficiency (PCE) of Small Molecule OPV cells B. P. Rand et al, Prog. Photovolt. : Res. Appl. , 15 (2007) 659. 진공학회 2011하계학술대회 Tutorial 12
Efficiency Measurement h. EQE(l) = Af(l) · h. CG(l) · h. CC(g, m) h. IQE(l) = h. CG(l) · h. CC(g, m) Jmax · Vmax JSC · VOC · FF h. PCE (%) = ----- X 100 = ------ X 100 Pin (l) A · IAM 1. 5 G 진공학회 2011하계학술대회 Tutorial 13

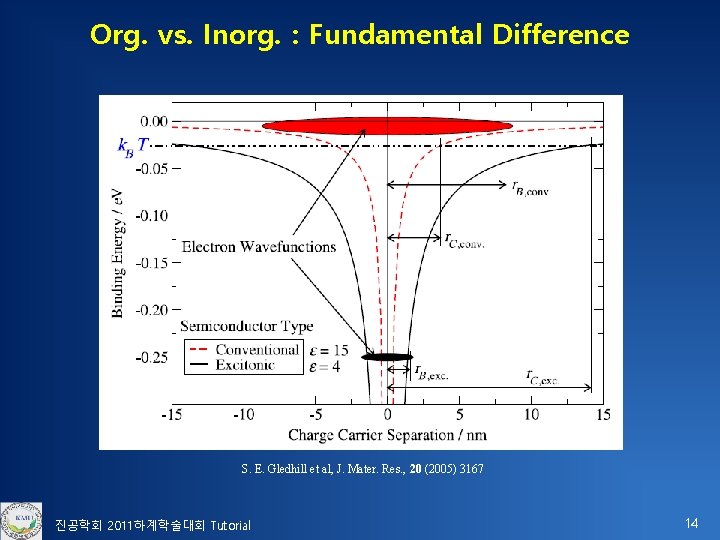

Org. vs. Inorg. : Fundamental Difference S. E. Gledhill et al, J. Mater. Res. , 20 (2005) 3167 진공학회 2011하계학술대회 Tutorial 14
Excitons (a) Frenkel, (b) Wannier and (c) Charge-Transfer exciton 진공학회 2011하계학술대회 Tutorial 15
Energy Level Diagram of Organic Heterojunction between a Donor(D) and an Acceptor(A) Layer 0 vacuum level Energy / e. V 3. 5 Cu. Pc 4. 8 ITO 5. 2 5. 3 ITO/PEDOT: PSS 3. 5 4. 2 4. 5 C 60 BCP Al 6. 2 7. 0 B. P. Rand et al, Prog. Photovolt. : Res. Appl. , 15 (2007) 659. 진공학회 2011하계학술대회 Tutorial 16

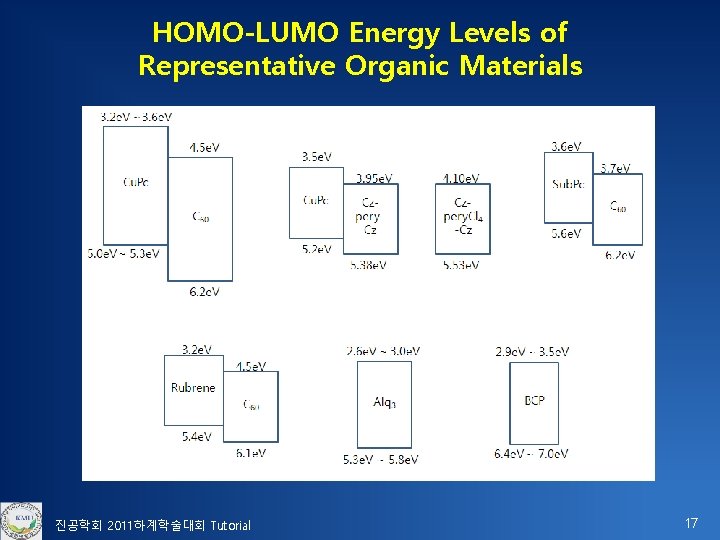

HOMO-LUMO Energy Levels of Representative Organic Materials 진공학회 2011하계학술대회 Tutorial 17
Possible Reasons for Low PCE of Small Molecule OPV cells 1. Narrow absorption band 2. Low charge carrier mobility 3. Lack of ways of controlling morphology § Material selection § Material growth technique § Device architecture 진공학회 2011하계학술대회 Tutorial 18
Device Fabrication 진공학회 2011하계학술대회 Tutorial 19
Schematic of Device Fabrication System 진공학회 2011하계학술대회 Tutorial 20

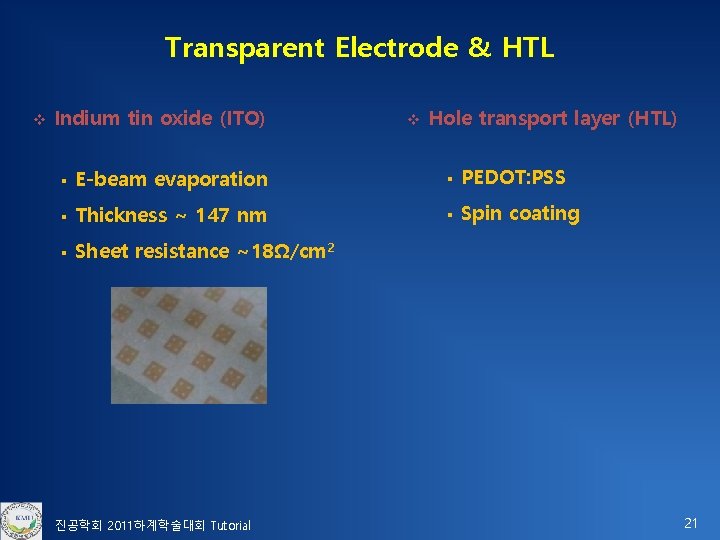

Transparent Electrode & HTL v Indium tin oxide (ITO) v Hole transport layer (HTL) § E-beam evaporation § PEDOT: PSS § Thickness ~ 147 nm § Spin coating § Sheet resistance ~18Ω/cm 2 진공학회 2011하계학술대회 Tutorial 21

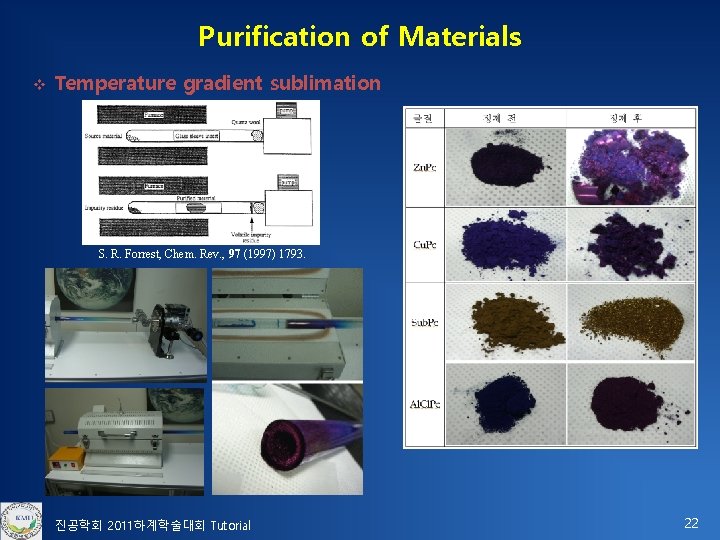

Purification of Materials v Temperature gradient sublimation S. R. Forrest, Chem. Rev. , 97 (1997) 1793. 진공학회 2011하계학술대회 Tutorial 22
Organic Molecular Beam Deposition (OMBD) Substrate s lid So l so ce ur o u rce Knudsen Effusion Cell 진공학회 2011하계학술대회 Tutorial 23

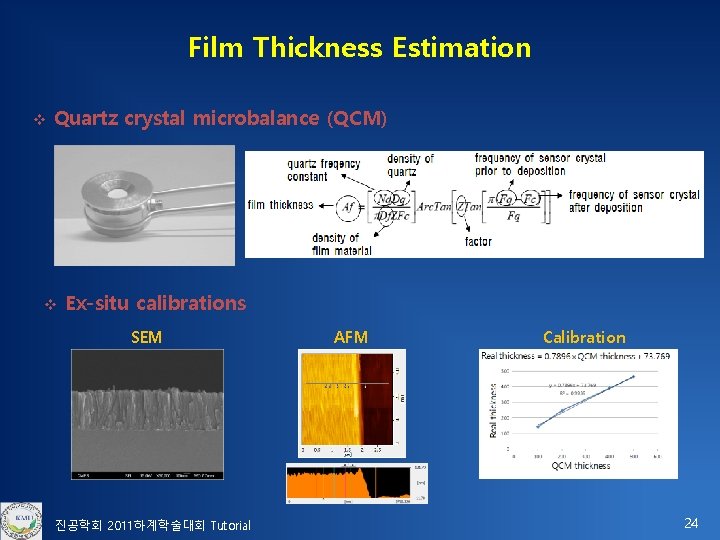

Film Thickness Estimation v Quartz crystal microbalance (QCM) v Ex-situ calibrations SEM 진공학회 2011하계학술대회 Tutorial AFM Calibration 24
Molecular Thin Film Growth Techniques 1. Organic molecular beam deposition (OMBD) 2. Vacuum thermal evaporation (VTE) 3. Organic vapor phase deposition (OVPD) F. Yang et al, Nat. Mater. , 4 (2005) 37. 진공학회 2011하계학술대회 Tutorial 25

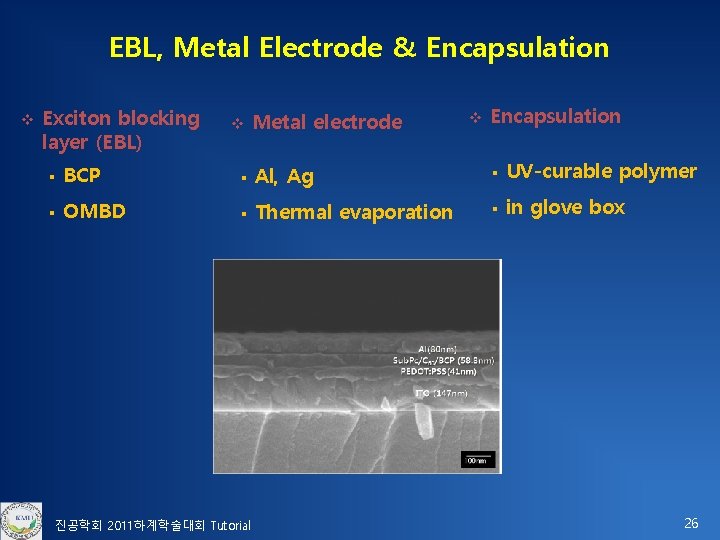

EBL, Metal Electrode & Encapsulation v Exciton blocking layer (EBL) v Metal electrode v Encapsulation § BCP § Al, Ag § UV-curable polymer § OMBD § Thermal evaporation § in glove box 진공학회 2011하계학술대회 Tutorial 26

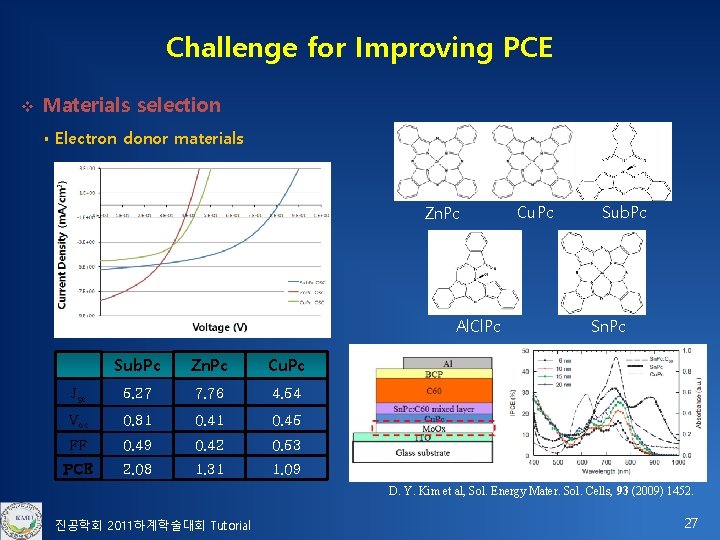

Challenge for Improving PCE v Materials selection § Electron donor materials Zn. Pc Al. Cl. Pc Sub. Pc Zn. Pc Cu. Pc Jsc 5. 27 7. 76 4. 54 Voc 0. 81 0. 45 FF 0. 49 0. 42 0. 53 PCE 2. 08 1. 31 1. 09 Cu. Pc Sub. Pc Sn. Pc D. Y. Kim et al, Sol. Energy Mater. Sol. Cells, 93 (2009) 1452. 진공학회 2011하계학술대회 Tutorial 27
Challenge for Improving PCE v Materials selection § Electron acceptor materials F 16 Cu. Pc J. L. Yang et al, Org. Electron. , 11 (2010) 1399. 진공학회 2011하계학술대회 Tutorial DBP D. Fujishima et al, Sol. Energy Mater. Sol. Cells, 93 (2009) 1029. C 70 S. Pfuetzner et al, Appl. Phys. Lett. , 94 (2009) 223307. 28
Challenge for Improving PCE v Tandem structure Narrow absorption band M. Riede et al, Nanotechnology. , 19 (2008) 424001. J. Xue et al, Appl. Phys. Lett. , 85 (2004) 5757. 진공학회 2011하계학술대회 Tutorial 29
Challenge for Improving PCE v Tandem structure J. Drechsel et al, Appl. Phys. Lett. , 86 (2005) 244102. 진공학회 2011하계학술대회 Tutorial 30
Challenge for Improving PCE v Bulk heterojunction (BHJ) § OVPD (organic vapor phase deposition) F. Yang et al Nature Mater. , 4 (2005) 37. 진공학회 2011하계학술대회 Tutorial 31

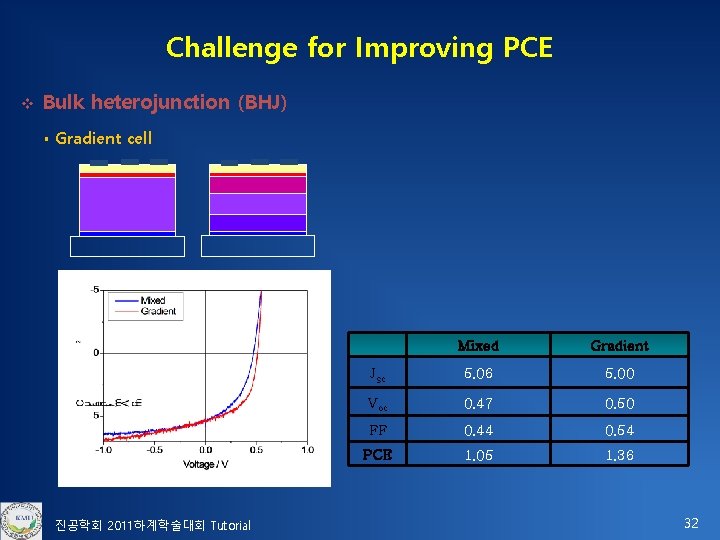

Challenge for Improving PCE v Bulk heterojunction (BHJ) § Gradient cell 진공학회 2011하계학술대회 Tutorial Mixed Gradient Jsc 5. 06 5. 00 Voc 0. 47 0. 50 FF 0. 44 0. 54 PCE 1. 05 1. 36 32
Challenge for Improving PCE v Bulk heterojunction (BHJ) B, P. Rand et al, J. Appl. Phys. , 98 (2005) 124902. Low hole mobility 진공학회 2011하계학술대회 Tutorial 33

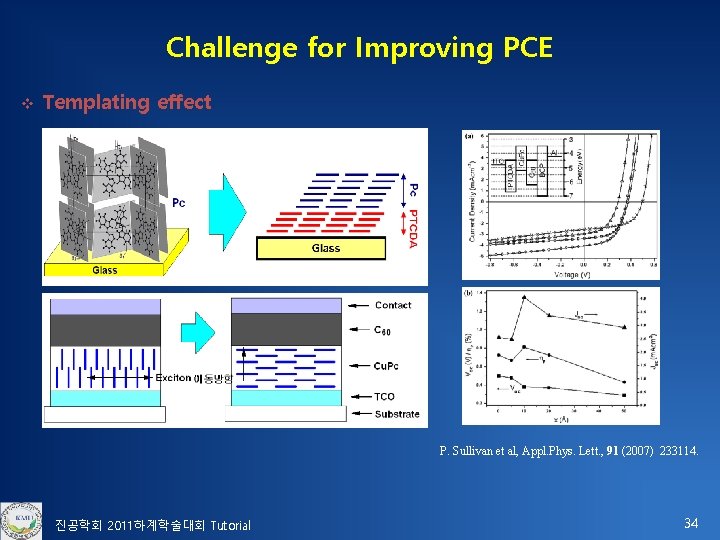

Challenge for Improving PCE v Templating effect P. Sullivan et al, Appl. Phys. Lett. , 91 (2007) 233114. 진공학회 2011하계학술대회 Tutorial 34

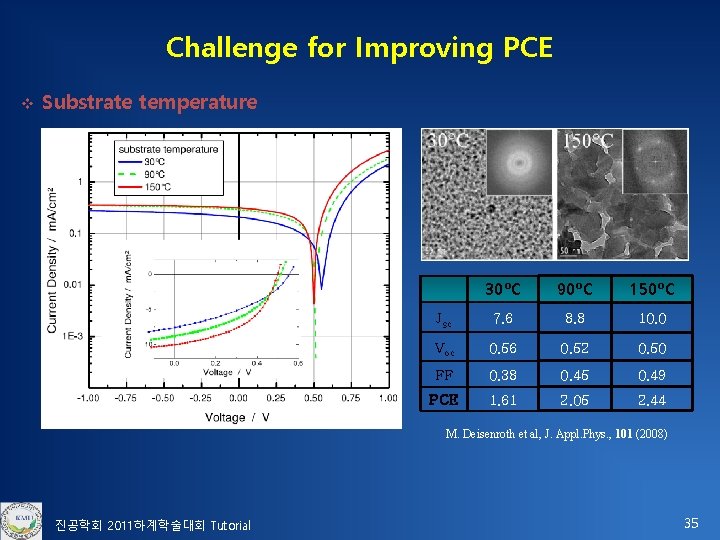

Challenge for Improving PCE v Substrate temperature 30ºC 90ºC 150ºC Jsc 7. 6 8. 8 10. 0 Voc 0. 56 0. 52 0. 50 FF 0. 38 0. 45 0. 49 PCE 1. 61 2. 05 2. 44 M. Deisenroth et al, J. Appl. Phys. , 101 (2008) 진공학회 2011하계학술대회 Tutorial 35
Theoretical Maximum of PCE M. Riede et al, Nanotechnology. , 19 (2008) 424001. 진공학회 2011하계학술대회 Tutorial 36
Long Term Stability Zn. Pc: C 60 tandem solar cell R. Franke et al, Sol. Energy Mater. Sol. Cells, 92 (2008) 732. pentacene: C 60 solar cell W. J. Potscavage et al, Appl. Phys. Lett. , 90 (2007) 253511. § Only few data on OSCs based on small molecules § Need to standardize measurements for OSCs. 진공학회 2011하계학술대회 Tutorial 37
Current Challenge v Surface nanostructuring – solvent vapor treatment 진공학회 2011하계학술대회 Tutorial 38
Current Challenge v Surface nanostructuring – NIL (nanoimprint lithography) 진공학회 2011하계학술대회 Tutorial 39
Current Challenge v Organic photonic crystal (PC) layer 진공학회 2011하계학술대회 Tutorial 40

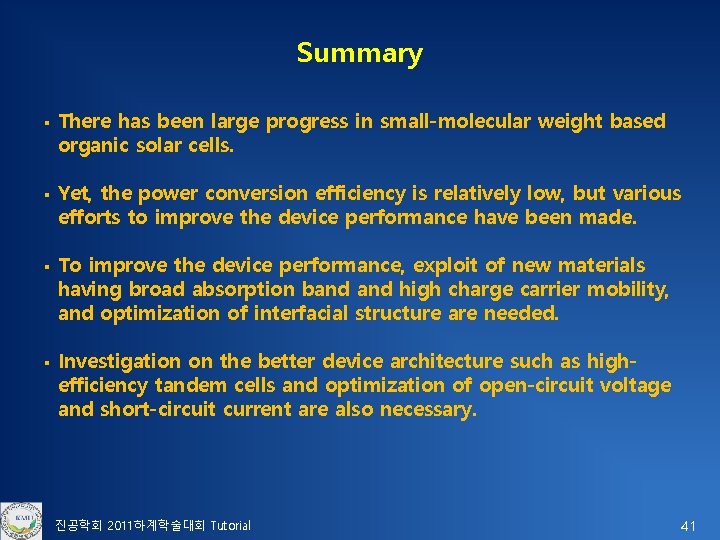

Summary § § There has been large progress in small-molecular weight based organic solar cells. Yet, the power conversion efficiency is relatively low, but various efforts to improve the device performance have been made. To improve the device performance, exploit of new materials having broad absorption band high charge carrier mobility, and optimization of interfacial structure are needed. Investigation on the better device architecture such as highefficiency tandem cells and optimization of open-circuit voltage and short-circuit current are also necessary. 진공학회 2011하계학술대회 Tutorial 41
