Molecular Basis for Relationship between Genotype and Phenotype

Molecular Basis for Relationship between Genotype and Phenotype genotype DNA sequence transcription RNA translation protein function phenotype organism amino acid sequence

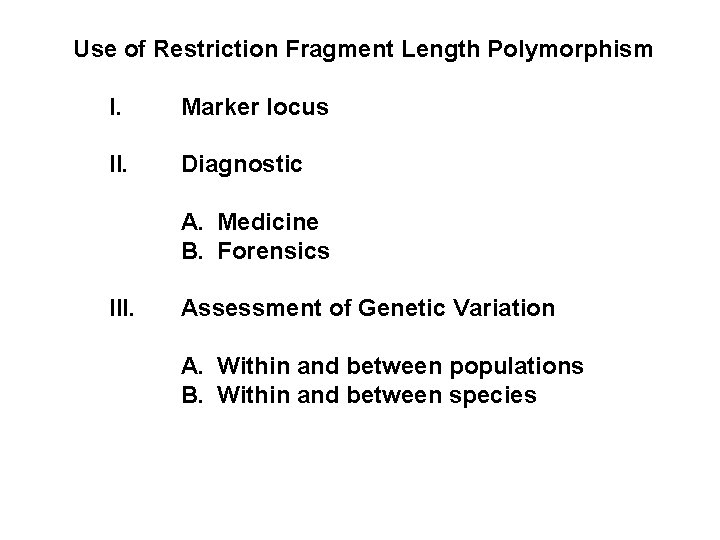

Use of Restriction Fragment Length Polymorphism I. Marker locus II. Diagnostic A. Medicine B. Forensics III. Assessment of Genetic Variation A. Within and between populations B. Within and between species

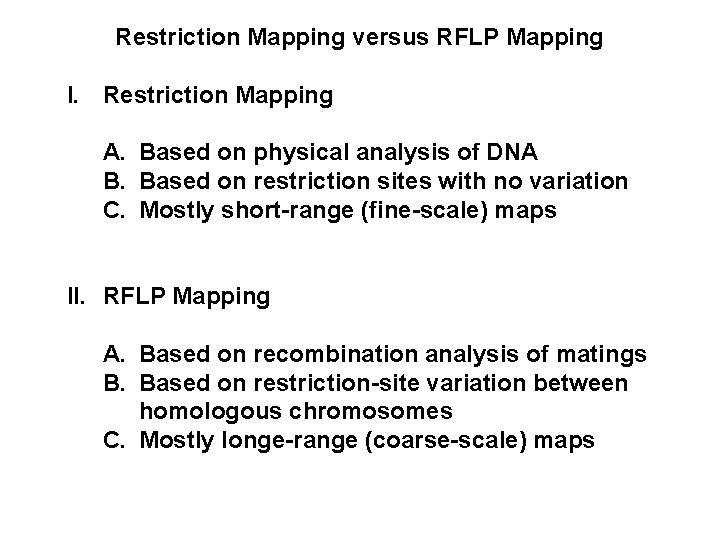

Restriction Mapping versus RFLP Mapping I. Restriction Mapping A. Based on physical analysis of DNA B. Based on restriction sites with no variation C. Mostly short-range (fine-scale) maps II. RFLP Mapping A. Based on recombination analysis of matings B. Based on restriction-site variation between homologous chromosomes C. Mostly longe-range (coarse-scale) maps

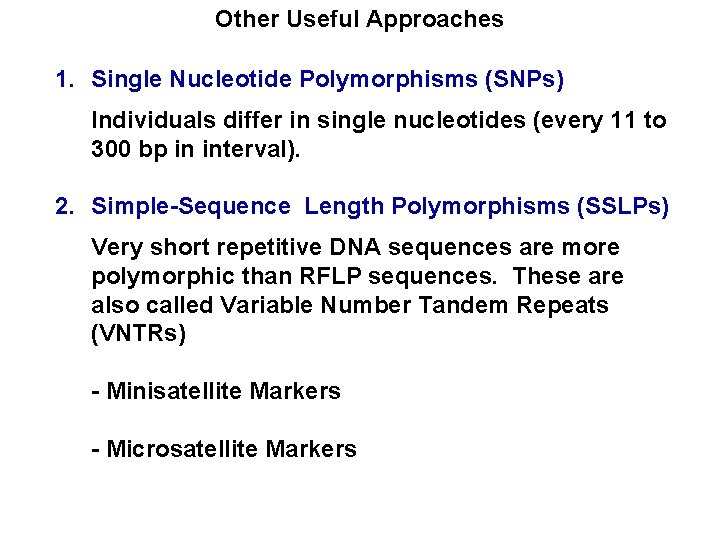

Other Useful Approaches 1. Single Nucleotide Polymorphisms (SNPs) Individuals differ in single nucleotides (every 11 to 300 bp in interval). 2. Simple-Sequence Length Polymorphisms (SSLPs) Very short repetitive DNA sequences are more polymorphic than RFLP sequences. These are also called Variable Number Tandem Repeats (VNTRs) - Minisatellite Markers - Microsatellite Markers

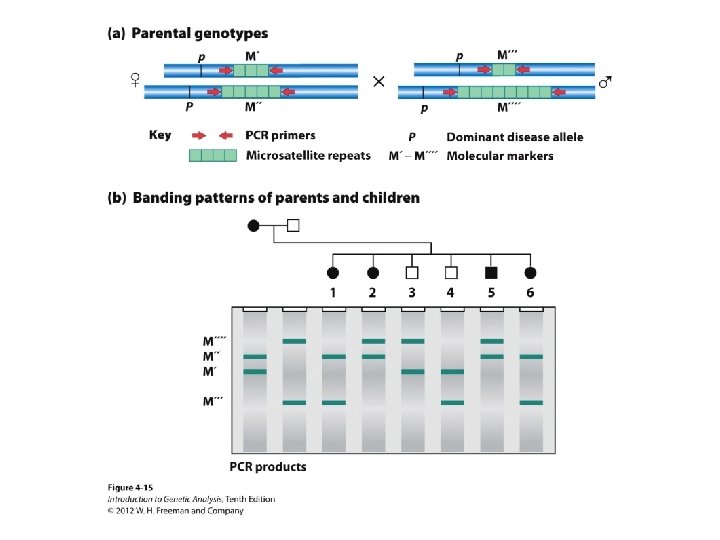

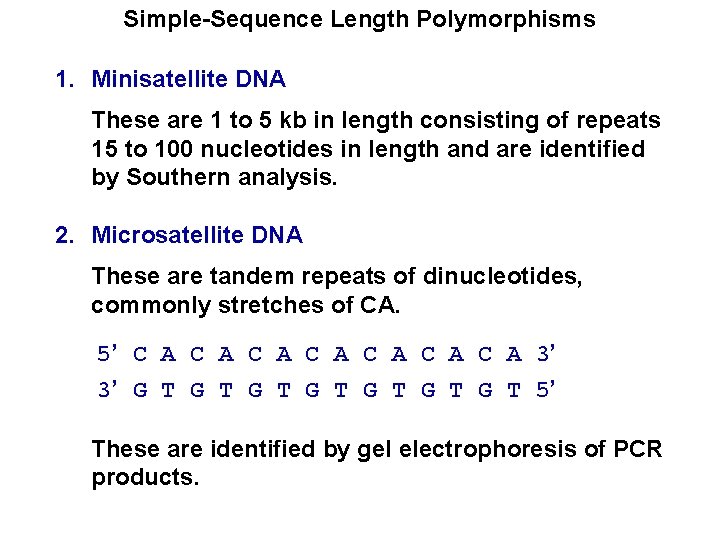

Simple-Sequence Length Polymorphisms 1. Minisatellite DNA These are 1 to 5 kb in length consisting of repeats 15 to 100 nucleotides in length and are identified by Southern analysis. 2. Microsatellite DNA These are tandem repeats of dinucleotides, commonly stretches of CA. 5’ C A C A 3’ 3’ G T G T 5’ These are identified by gel electrophoresis of PCR products.

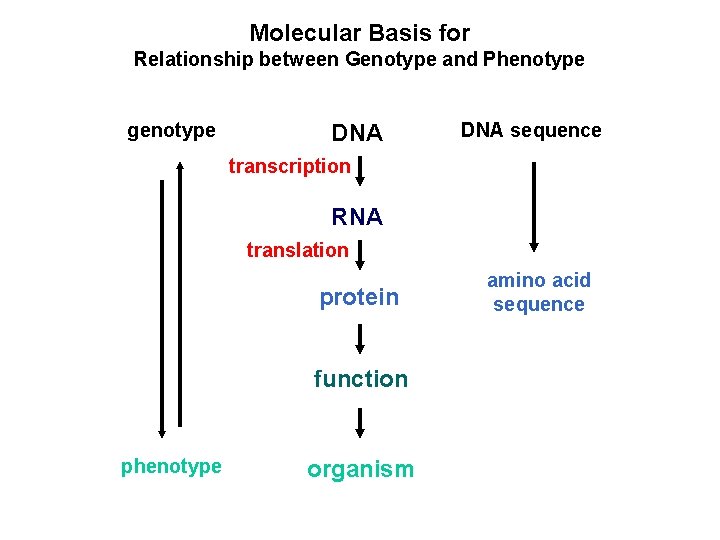

Molecular Basis for Relationship between Genotype and Phenotype genotype DNA sequence transcription RNA translation protein function phenotype organism amino acid sequence

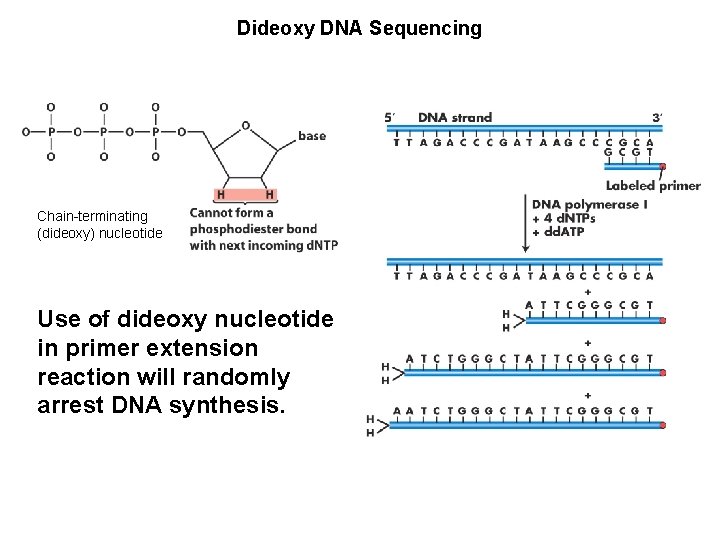

Dideoxy DNA Sequencing Chain-terminating (dideoxy) nucleotide Use of dideoxy nucleotide in primer extension reaction will randomly arrest DNA synthesis.

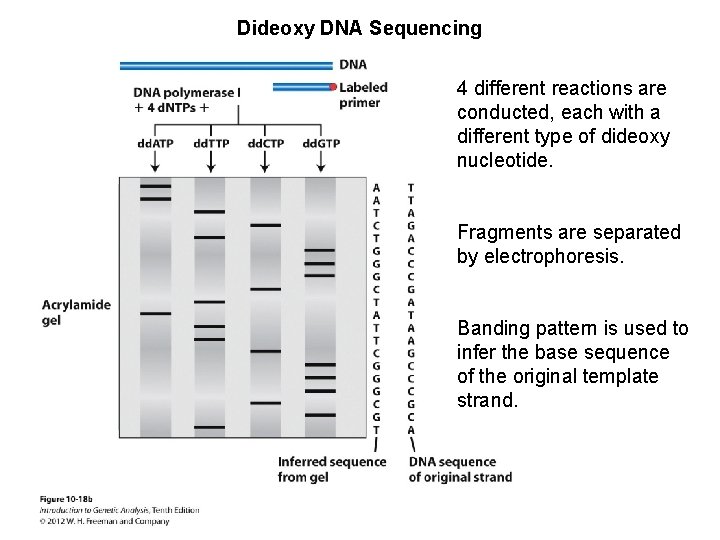

Dideoxy DNA Sequencing 4 different reactions are conducted, each with a different type of dideoxy nucleotide. Fragments are separated by electrophoresis. Banding pattern is used to infer the base sequence of the original template strand.

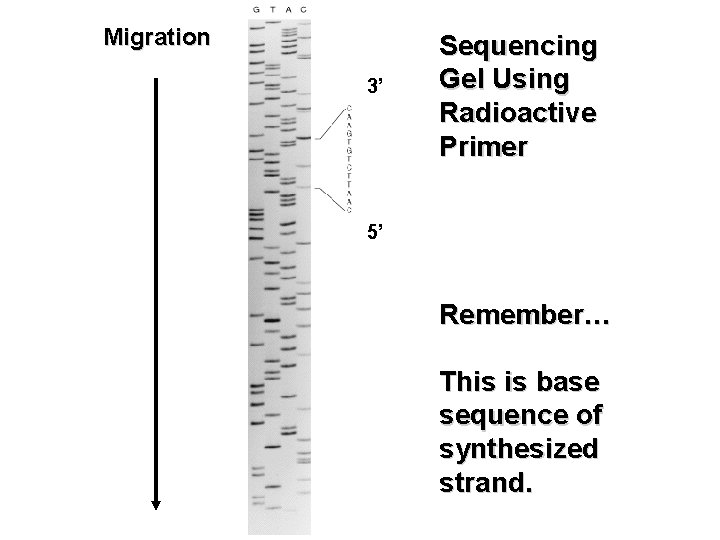

Migration 3’ Sequencing Gel Using Radioactive Primer 5’ Remember… This is base sequence of synthesized strand.

Reading the DNA sequence from an automatic sequencer Oligonucleotide primers can be tagged with fluorescent dyes instead of radioactive labels. A different colored dye can be used for each of the four reactions.

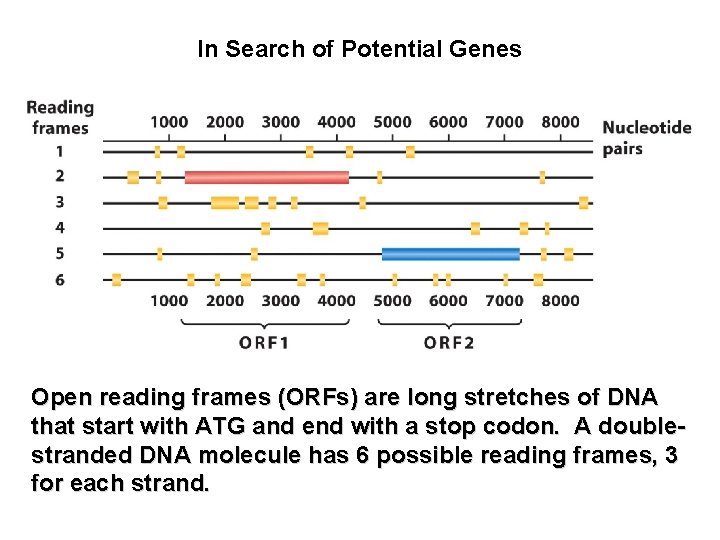

In Search of Potential Genes Open reading frames (ORFs) are long stretches of DNA that start with ATG and end with a stop codon. A doublestranded DNA molecule has 6 possible reading frames, 3 for each strand.
