CAD Connectivity Tools § Moldflow Design Link 5. 2 § Moldflow CAD Doctor 2. 0 § Moldflow Magics STL Expert 2. 0

CAD Connectivity Tools * UDM IGES MGX STL * UDM ADV STL Expert 2. 0 STL Embedded software link CTM STL Embedded software link * UDM file used by STL Expert and MPA contains facetted representation only (no surfaces) Parasolid CAD Pro/E CATIA V 5 MDL 5. 2 Embedded software link IGES STEP Solid. Works Embedded software link STL MFL MPI CATIA V 4 IGES DRF CAD Doctor 2. 0 SDY UDM

Moldflow Design Link™ Version 5. 2 CAD Interfacing Software

Moldflow Design Link § Generates solid surfaces for: – Moldflow Plastics Insight (MPI) § Generates analysis-ready mesh for: – Moldflow Plastics Advisers (MPA) – Moldflow Plastics Insight (MPI) § Generates STL model for: – Moldflow Magics STL Expert § Allows import of CAD data for: – Moldflow CAD Doctor

Moldflow Design Link § MDL is available in three versions: – MDL/Parasolid - for the import of: § § Parasolid (17. 0 or earlier) Solid. Works part models (2005 & 2006) IGES STEP – MDL/Pro/ENGINEER - for the import of: § Pro/ENGINEER part models (Wildfire 2. 0 (M 100) or earlier) § IGES § STEP – MDL/CATIA V 5 - for the import of: § CATIA V 5 part models (Release 15 SP 0 or earlier)

Moldflow Design Link Compatibility § MDL 5. 2 is compatible with – – MPI 5. 1 & 6. 0 MPA 7. 1 & MPA 7. 2 Moldflow Magics STL Expert 2. 0 Moldflow CAD Doctor 2. 0

Moldflow CAD Doctor™ Version 2. 0 3 D CAD Model Fixing, Healing and Simplification Software

Moldflow CAD Doctor § CAD Doctor allows you to – Check, Correct & Simplify 3 D CAD models § Repair errors § Remove unnecessary detail – Export high quality models for use with MPI or MPA – Drastically reduce project time § Reduce mesh modification time § Reduce model clean up time § Reduce mesh size and analysis time CAD MPA MPI Doctor

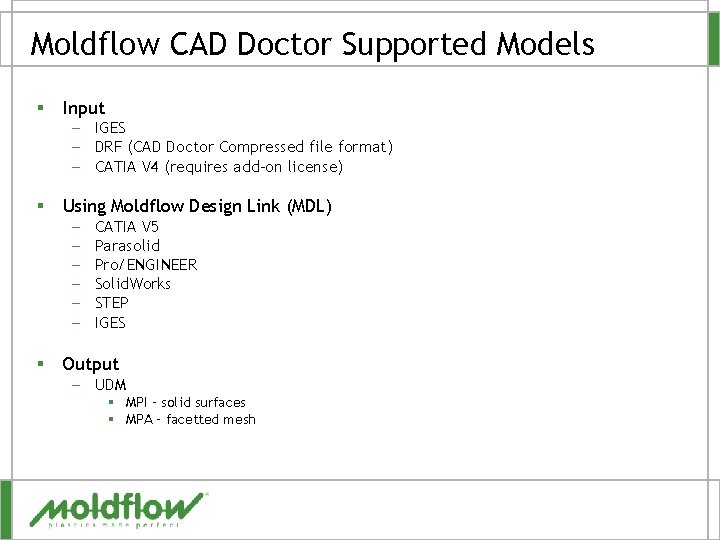

Moldflow CAD Doctor Supported Models § Input – IGES – DRF (CAD Doctor Compressed file format) – CATIA V 4 (requires add-on license) § Using Moldflow Design Link (MDL) – – – § CATIA V 5 Parasolid Pro/ENGINEER Solid. Works STEP IGES Output – UDM § MPI – solid surfaces § MPA – facetted mesh

Moldflow Magics STL Expert 2. 0 STL Model Editing & Optimization Software

Moldflow Magics STL Expert § Magics STL Expert allows you to – Convert IGES and 3 D CAD Solid models to STL – Locate errors with STL – Fix Wizard for automated repair – Manual editing and fixing tools – Export high quality STL models for use with MPI or MPA Magics MPA MPISTL Expert

Magics STL Expert Supported Models § Input – STL – IGES – MGX (Materialise compressed STL format) § Using Moldflow Design Link (MDL) – – – CATIA V 5 Parasolid Pro/ENGINEER Solid. Works STEP IGES § Output – STL – UDM (facetted mesh only)
