MOJO: A Distributed Physical Layer Anomaly Detection System for 802. 11 WLANs Richard D. Gopaul CSCI 388
Authors • • • Anmol Sheth Christian Doerr Dirk Grunwald Richard Han Douglas Sicker Department of Computer Science University of Colorado at Boulder, CO, 80309
Problem • Existing 802. 11 deployments provide unpredictable performance • 802. 11 Wireless Networks – Cheap – Easy to deploy • Two Classes – Planned deployments (large companies) – Small scale chaotic deployments (home users)
Reasons for Unpredictable Performance • Noise and Interference – Co-channel interference, Bluetooth, Microwave Oven, … • Hidden Terminals – Node location, Heterogeneous Transmit Powers • Capture Effects – Simultaneous transmission • MAC Layer limitations – Timers, Rate adaptation, … • Heterogeneous Receiver Sensitivities
Problems With Existing Solutions • Wireless networks encounter time-varying conditions – A single site survey is not enough • Cannot distinguish or determine root cause of problem – Existing tools for diagnosing WLANs only look at MAC layer and up – Aggregate effects of multiple PHY layer anomalies – Results in misdiagnosis, suboptimal solution
How Faults Propagate in the Network Stack
How Faults Propagate in the Network Stack
Contributions of this paper: • Attempts to build a unified framework for detecting underlying physical layer anomalies • Quantifies the effects of different faults on a real network • Builds statistical detection algorithms for each physical effect and evaluates algorithm effectiveness in a real network testbed
System Architecture • Provide visibility into PHY layer • Faults observed by multiple sensors • Based on an iterative design process – Artificially replicated faults in a testbed – Measured impact of fault at each layer of network stack
MOJO • Distributed Physical Layer Anomaly Detection System for 802. 11 WLANs • Design Goals: – Flexible sniffer deployment – Inexpensive, $ + Comms. – Accurate in diagnosing PHY layer root causes – Implements efficient remedies – Near-real-time
Initial Design • Main components: – Wireless sniffers – Data collection mechanism – Inference engine • Diagnose problems, Suggest remedies • Data collection and inference engine initially centralized at a single server
Operation Overview • Wireless sniffers sense PHY layer – Network interference, signal strength variations, concurrent transmissions – Modified Atheros based Madwifi driver run on client nodes • Periodically transmit a summary to centralized inference engine. • Inference engine collects information from the sniffers and runs detection algorithms.
Sniffer Placement • Sniffer placement key to monitoring and detection – Sniffer locations may need to change as clients move over time – Cannot assume fixed locations, suboptimal monitoring • Multiple sniffers, merged sniffer traces necessary to account for missed data
Prototype Implementation • Uses two wireless interfaces on each client – One for data, the other for monitoring – Second radio receives every frame transmitted by the primary radio • Avg. sniffer payload of 768 bytes/packet – 1. 3 KB of data every 10 sec. – < 200 bytes/sec.
Detection of Noise • Caused by interfering wireless nodes or non-802. 11 devices such as microwave ovens, Bluetooth, cordless phones, … • Signal generator used to emulate noise source – Node A connected to access point and signal generator using RF splitter Node A
Detection of Noise • Power of signal generator increased from 90 d. Bm to -50 d. Bm • Packet payload increased from 256 bytes to 1024 bytes in 256 byte steps • 1000 frames transmitted for each power and payload size setting
RTT vs. Signal Power • RTT stable until -65 d. Bm • Beyond -50 d. Bm 100% packet loss
% Data Frames Retransmitted • Signal power set to -60 d. Bm
Time Spent in Backoff and Busy Sensing of Medium
Detection of Noise • Noise floor sampled every 5 mins. for a period of 5 days in a residential environment.
Hidden Terminal and Capture Effect • Both caused by concurrent transmissions and collisions at the receiver • In the Hidden Terminal case, nodes are not in range and can collide at any time • In Capture Effect, the receivers are not necessarily hidden from one another – Why would they transmit concurrently?

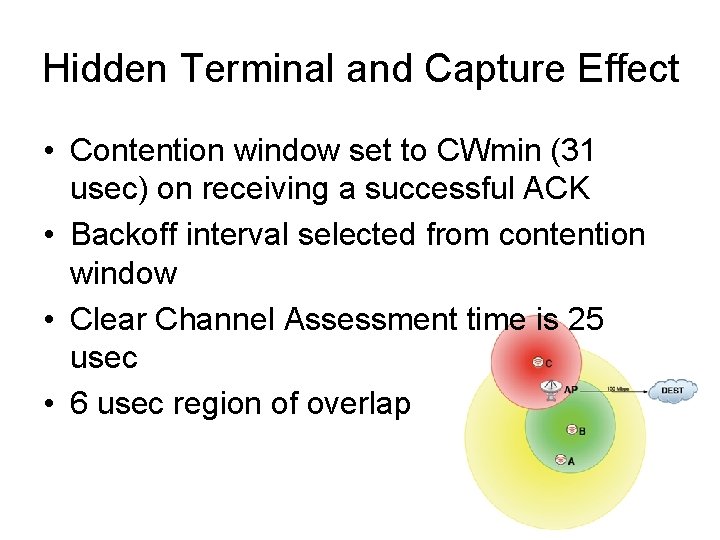

Hidden Terminal and Capture Effect • Contention window set to CWmin (31 usec) on receiving a successful ACK • Backoff interval selected from contention window • Clear Channel Assessment time is 25 usec • 6 usec region of overlap
Hidden Terminal and Capture Effect • Experiment Setup: – Node B higher SNR than node A at AP – Node C not visible to node B or node A – Rate fallback disabled – Node pairs A-B or A-C generating TCP traffic to DEST node – TCP packets varied in size from 256 -1024 Bytes – 10 test runs for each payload size, 5. 5 and 11 Mbps
Hidden Terminal and Capture Effect • Experimental Results

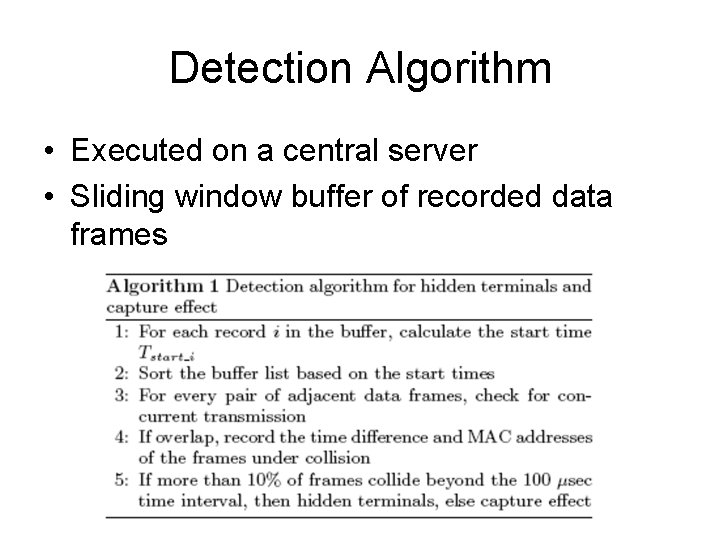

Detection Algorithm • Executed on a central server • Sliding window buffer of recorded data frames
Detection Accuracy • Time synchronization is essential • 802. 11 time synchronization protocol • +/- 4 usec measured error
Long Term Signal Strength Variations of AP • Different hardware = different powers and sensitivities • Transmit power of AP varied, 100 m. W, 5 m. W
Detection Algorithm • Signal strength variations observed by one sniffer are not enough to differentiate – Localized events, i. e. fading – Global events, i. e. change in TX power of AP • Multiple distributed sniffers needed • Experiments show three distributed sensors are sufficient to detect correlated changes in signal strength
Observations From Three Sniffers AP Power Reduced
Detection Accuracy vs. AP Signal Strength • AP Power changed once every 5 mins.
Conclusion • MOJO, a unified framework to diagnose physical layer faults in 802. 11 based wireless networks. • Experimental results from a real testbed • Information collected used to build threshold based statistical detection algorithms for each fault. • First step toward self-healing wireless networks?
