Module Objectives Upon completing this module you will

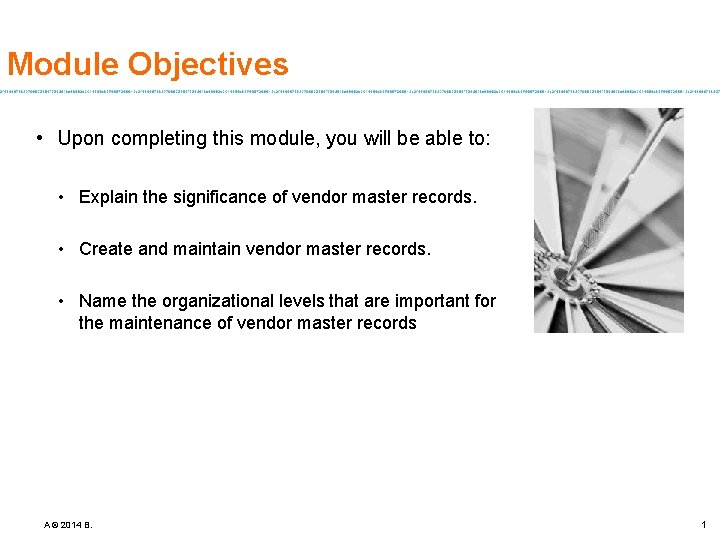

Module Objectives • Upon completing this module, you will be able to: • Explain the significance of vendor master records. • Create and maintain vendor master records. • Name the organizational levels that are important for the maintenance of vendor master records A © 2014 B. 1
Agenda • • • Various levels of Vendor master data Account Group Reconciliation Account Partner Function Creation and maintenance of Vendor master. Configuration of vendor master A © 2014 B. 2

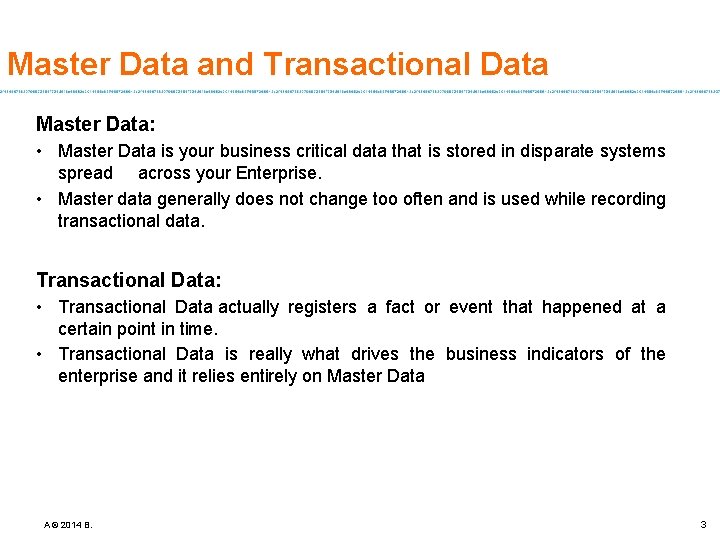

Master Data and Transactional Data Master Data: • Master Data is your business critical data that is stored in disparate systems spread across your Enterprise. • Master data generally does not change too often and is used while recording transactional data. Transactional Data: • Transactional Data actually registers a fact or event that happened at a certain point in time. • Transactional Data is really what drives the business indicators of the enterprise and it relies entirely on Master Data A © 2014 B. 3
Master Data and Transactional Data (Cont. . ) • Consider the details about supplier (name, address, telephone number, email) which will not be changing frequently. Hence, the supplier detail forms a part of master data. • The supplier is an entity that is used in event of placing order which is a transactional data. A © 2014 B. 4
Master Data and Transactional Data • Another example, consider the following sentence: “Jack ordered two Sun-glasses on March twenty third at fifty five dollars each from Walmart. ” You will notice that this sentence expresses a event – i. e. that someone placed an order. • You can also see that in this sentence, “Jack”, “Sunglasses” and “Walmart” are key elements without which the order wouldn’t exist or make sense and whose properties would not change over period of time. • Master Data Elements: Jack (Customer), Sunglasses (Product), Walmart (Vendor) A © 2014 B. 5

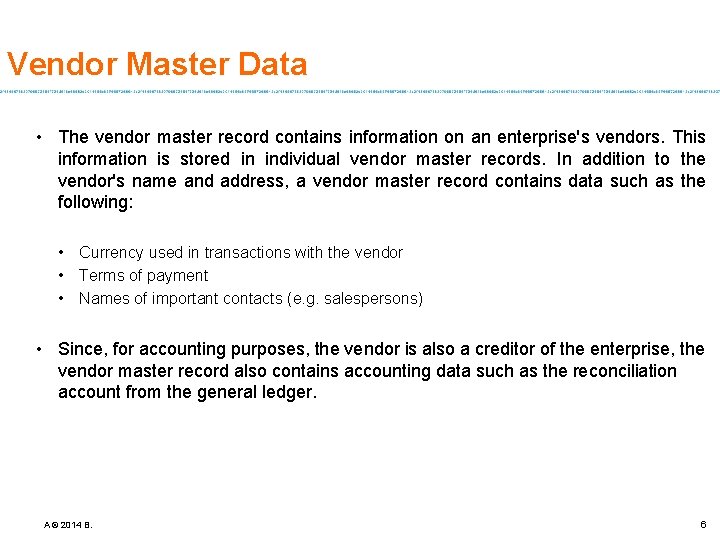

Vendor Master Data • The vendor master record contains information on an enterprise's vendors. This information is stored in individual vendor master records. In addition to the vendor's name and address, a vendor master record contains data such as the following: • Currency used in transactions with the vendor • Terms of payment • Names of important contacts (e. g. salespersons) • Since, for accounting purposes, the vendor is also a creditor of the enterprise, the vendor master record also contains accounting data such as the reconciliation account from the general ledger. A © 2014 B. 6
Vendor Master Data (cont. ) • The vendor master record is therefore maintained by both purchasing and accounting. This is also the reason for the subdivision of the data in the vendor master record into different categories. A © 2014 B. 7
Vendor Master Data (cont. ) The data in the vendor master record is subdivided into the following categories: • General data: This data is valid for the whole client. It includes the vendor’s address and bank details, for example. • Accounting data: This is maintained at company code level. It comprises data such as the number of the reconciliation account and the payment methods for automatic payment transactions. A © 2014 B. 8
Vendor Master Data (cont. ) • Purchasing data: • This data is maintained for each purchasing organization. It includes the purchase order currency, Incoterms, and various control data pertaining to the vendor. You can also maintain different data for specific plants or for vendor sub ranges. • You can decide whether vendor master records are to be maintained centrally (that is, all data is maintained together), or on a decentralized basis (that is, the relevant departments each maintain their own data). A © 2014 B. 9
Configuration of Vendor Master • Overview of Settings for the Vendor Master Record : The account group determines all the key properties for the vendor master record. You can change the field selection for the maintenance of vendor master records according to the specific requirements of your enterprise. A © 2014 B. 10
Account Group • When creating a vendor master record, you must decide which account group you are going to assign to this vendor. • The account group has control functions. • When you maintain the vendor master record, for example, only the screens and fields that are needed for the relevant role of your business partner appear and are ready to accept user input. This is controlled by the account group. A © 2014 B. 11

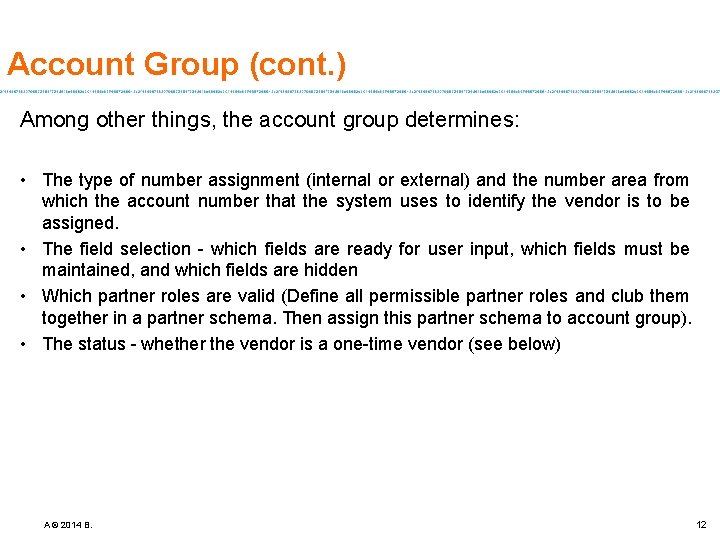

Account Group (cont. ) Among other things, the account group determines: • The type of number assignment (internal or external) and the number area from which the account number that the system uses to identify the vendor is to be assigned. • The field selection - which fields are ready for user input, which fields must be maintained, and which fields are hidden • Which partner roles are valid (Define all permissible partner roles and club them together in a partner schema. Then assign this partner schema to account group). • The status - whether the vendor is a one-time vendor (see below) A © 2014 B. 12
Account Group : Customization • Account Group Controls following Important functions for a Vendor Master we defined in Customization. A © 2014 B. 13

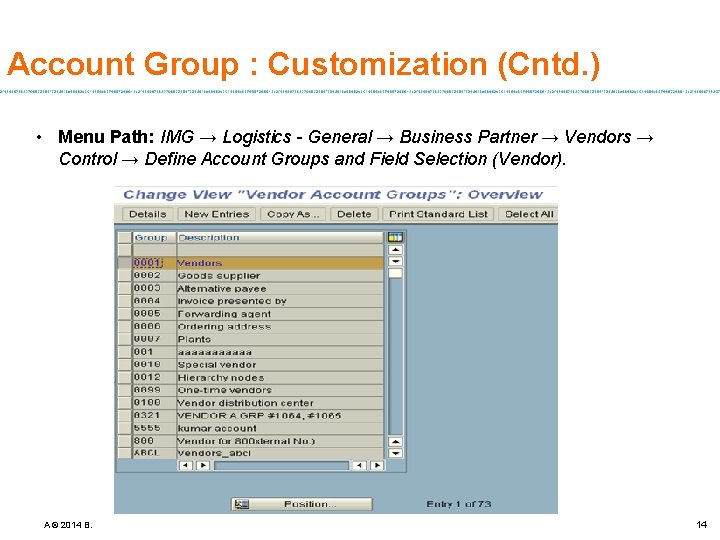

Account Group : Customization (Cntd. ) • Menu Path: IMG → Logistics - General → Business Partner → Vendors → Control → Define Account Groups and Field Selection (Vendor). A © 2014 B. 14
Account Group : Customization (Cntd. ) • Menu Path: IMG → Logistics - General → Business Partner → Vendors → Control → Define Account Groups and Field Selection (Vendor). A © 2014 B. 15
Number Assignment : Customization When a vendor master record is being created, a number is assigned which uniquely identifies the master record. This number is derived from the number range (numeric or alphanumeric) that is assigned to the account group. There are two options for assigning the number: • Internal number assignment: The system automatically assigns a sequential number from the defined number range. The last number assigned is logged in the number level. • External number assignment: In the external number assignment, when creating the vendor master record, the user must assign a number from the defined number range. This number must be within the defined number range. A © 2014 B. 16

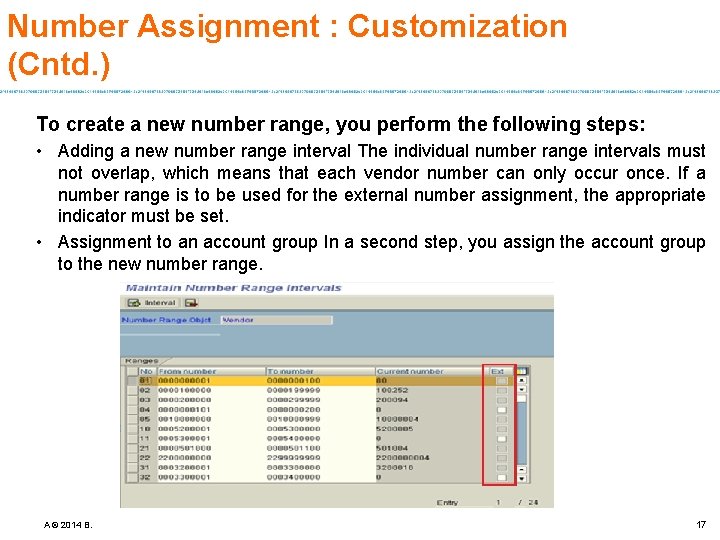

Number Assignment : Customization (Cntd. ) To create a new number range, you perform the following steps: • Adding a new number range interval The individual number range intervals must not overlap, which means that each vendor number can only occur once. If a number range is to be used for the external number assignment, the appropriate indicator must be set. • Assignment to an account group In a second step, you assign the account group to the new number range. A © 2014 B. 17
Number Assignment : Customization (Cntd. ) A © 2014 B. 18
Field Selection Group : Customization Influencing Factors for Field Selection: • • • You use the field status to specify: In which fields data must be entered (mandatory) In which fields data can be entered (optional) Which fields should not be displayed (hide) Which fields should only be displayed, but should not be ready for input (display) A © 2014 B. 19
Field Selection Group : Customization (Cntd. ) • Menu Path: IMG → Logistics - General → Business Partner → Vendors → Control → Define Account Groups and Field Selection (Vendor). • The following excerpt from the SAP system Customizing shows the settings for field selection for vendor master records: General Data for the account Group 0001 A © 2014 B. 20
Field Selection Group : Customization (Cntd. ) A © 2014 B. 21
Reconciliation Account • Each and every sub-ledger (vendor) account should have a corresponding reconciliation account in the general ledger. • SAP automatically posts an entry in the reconciliation account as and when an entry is made in sub-ledger. • To take a simple example the G/L account "payable account for goods and services" is an example of a reconciliation account for suppliers. A © 2014 B. 22
Partner Roles • The business partner “vendor” can assume various roles in dealings with your enterprise. For example, during a procurement transaction, the vendor is first the order recipient, then the supplier of goods, and finally the invoicing party (invoice presenter). A © 2014 B. 23
Partner Roles • The maintenance of partner roles in the vendor master record enables you to distribute one or more of these roles among different vendor master records. Using the partner role functionality, you can define a different creditor as a freight forwarder for a certain vendor, for example. • Example: You have Vendor ABC who has a branch in Bangalore and having headquarters in Mumbai. So, if your organization situated in Bangalore wants to place an order, it places with Bangalore branch of vendor ABC which it then forwards to Mumbai to deliver the goods. • In this case, we have 2 roles – one is the vendor (VN – performed by Mumbai Head Quarter) and another the Ordering Address (OA – Order being placed at Bangalore). So, the ordering address has to be created as a separate vendor (say ABC-Bangalore branch) and assigned to Vendor ABC. A © 2014 B. 24

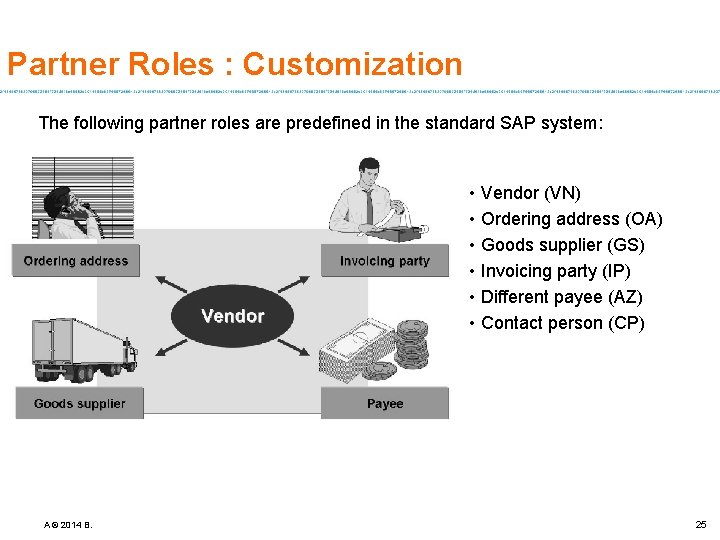

Partner Roles : Customization The following partner roles are predefined in the standard SAP system: • Vendor (VN) • Ordering address (OA) • Goods supplier (GS) • Invoicing party (IP) • Different payee (AZ) • Contact person (CP) A © 2014 B. 25

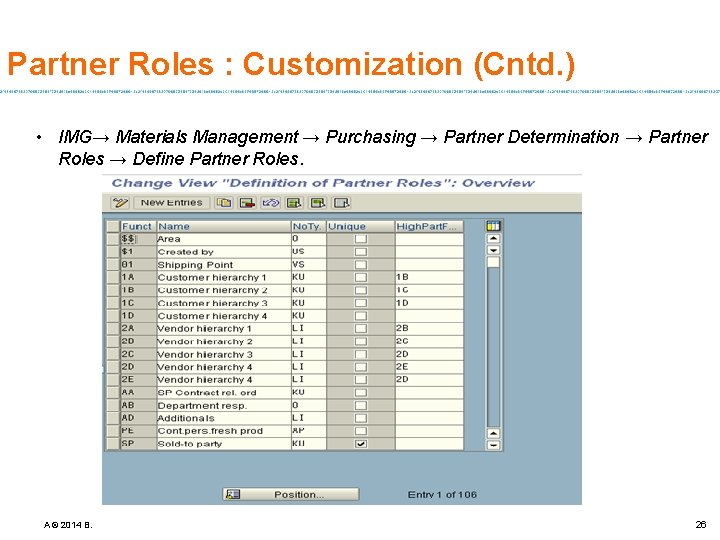

Partner Roles : Customization (Cntd. ) • IMG→ Materials Management → Purchasing → Partner Determination → Partner Roles → Define Partner Roles. A © 2014 B. 26
Partner Roles : Customization (Cntd. ) • IMG→ Materials Management → Purchasing → Partner Determination → Partner Roles → Define Permissible Partner Roles for account group. A © 2014 B. 27
Partner Schema : Customization (Cntd. ) • IMG→ Materials Management → Purchasing → Partner Determination → Partner Settings in Vendor Master Record→ Define Partner Schema. A © 2014 B. 28
Partner Schema : Customization (Cntd. ) • IMG→ Materials Management → Purchasing → Partner Determination → Partner Settings in Vendor Master Record→ Assign Partner Schema to Account groups. A © 2014 B. 29
Discussion • Discuss about different Organization Levels of Vendor Master. • Discuss about the significance of Account Group. • Discuss about functionality of Partner Functions. • Discuss about Reconciliation account and uses. A © 2014 B. 30
Checkpoint • List down different Levels of Vendor Master? • Is it possible to create Both Internal and external number ranges for Same Vendor account Group? • How to block a Vendor ? A © 2014 B. 31
Module X Summary You should now be able to: • Explain the significance of vendor master records • Create and maintain vendor master records • Name the organizational levels that are important for the maintenance of vendor master records. A © 2014 B. 32
Questions and Comments • What questions or comments do you have? A © 2014 B. 33

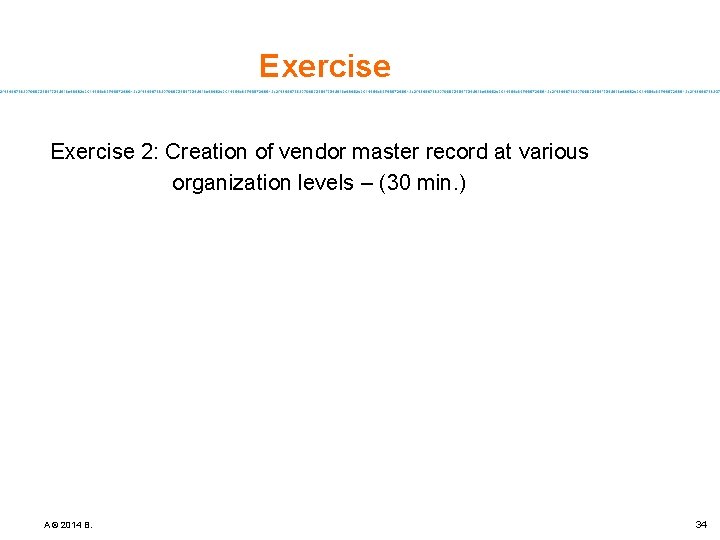

Exercise 2: Creation of vendor master record at various organization levels – (30 min. ) A © 2014 B. 34
