Module 7 Subtalar Control Foot Orthosis Overview Definition
Module 7 Subtalar Control Foot Orthosis

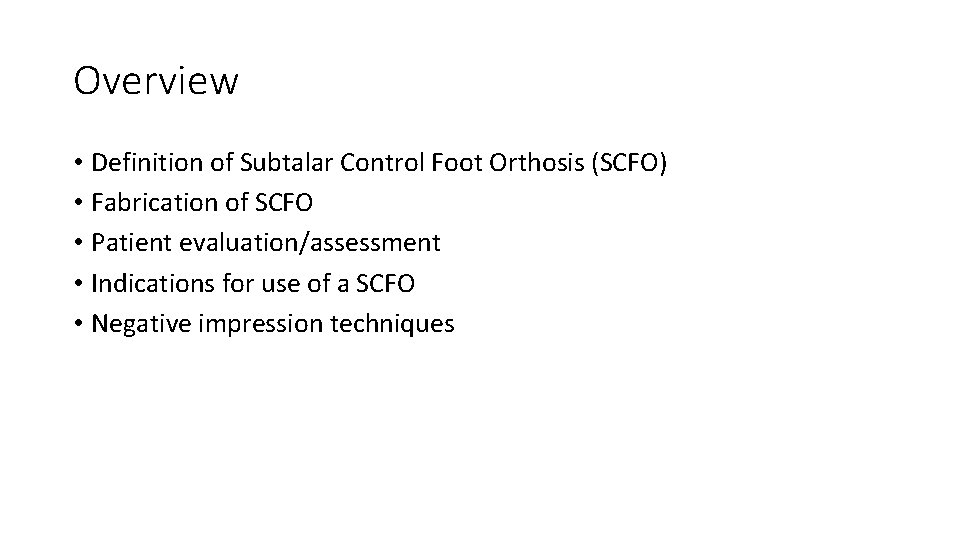

Overview • Definition of Subtalar Control Foot Orthosis (SCFO) • Fabrication of SCFO • Patient evaluation/assessment • Indications for use of a SCFO • Negative impression techniques

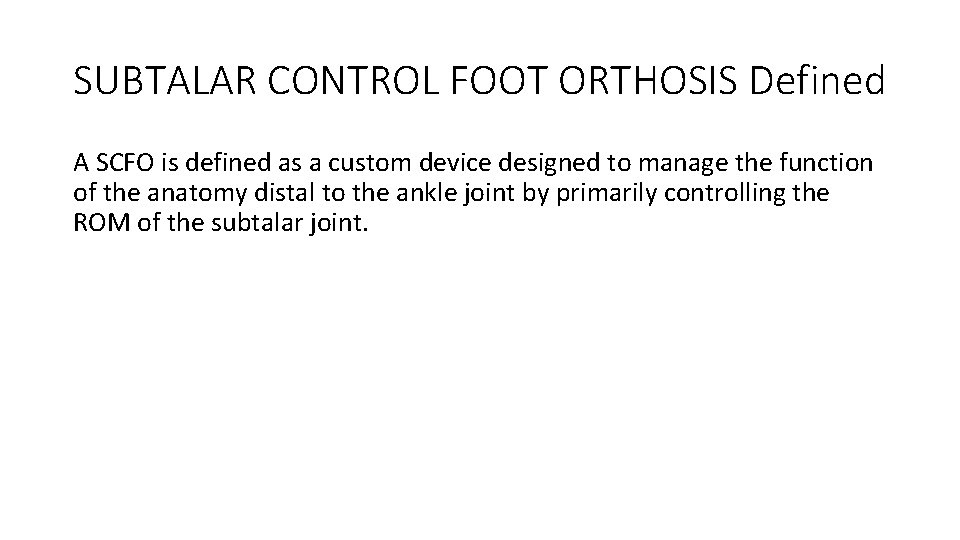

SUBTALAR CONTROL FOOT ORTHOSIS Defined A SCFO is defined as a custom device designed to manage the function of the anatomy distal to the ankle joint by primarily controlling the ROM of the subtalar joint.

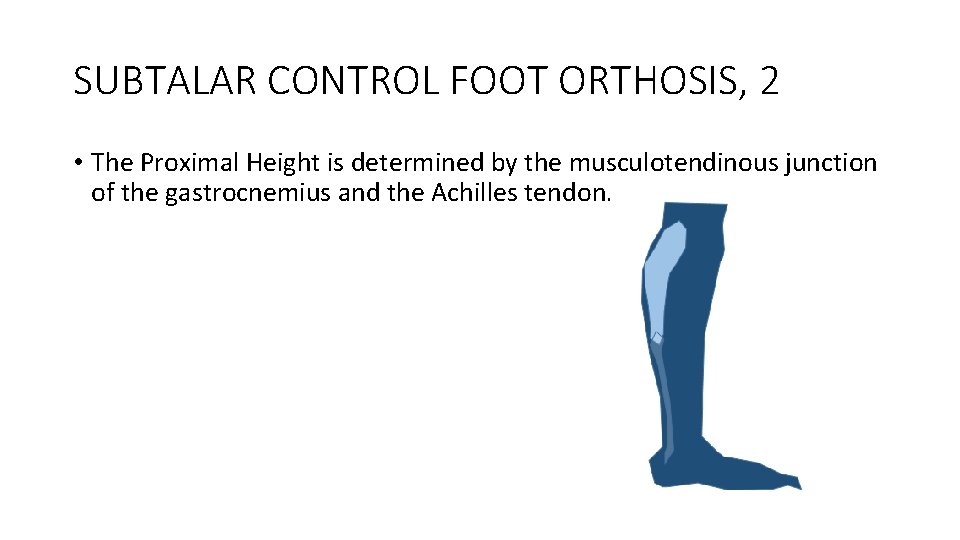

SUBTALAR CONTROL FOOT ORTHOSIS, 2 • The Proximal Height is determined by the musculotendinous junction of the gastrocnemius and the Achilles tendon.
SUBTALAR CONTROL FOOT ORTHOSIS, 3 • PLASTIC-IN-LEATHER GAUNTLET STYLE ANKLE FOOT ORTHOSIS: • Patient specific considerations 1. Closure: Laces vs. Velcro 2. Plastic inner: Flexible vs Rigid 3. Full length vs. partial 4. Soft interface or not
PATIENT EVALUATION/ASSESSMENT • History • Patient Assessment : § MMT § ROM § Joint Stability § Observational gait analysis
INDICATIONS FOR USE OF A SCFO • Chronic ankle instability • Posterior tibial tendon dysfunction (PTTD) • Charcot disease of the foot • Degenerative joint disease (DJD) • Arthritis (Osteo, Rheumatoid, Gout, etc. ) • Foot and ankle trauma • Partial foot amputation
Taking a Negative Impression Alignment and positioning is critical for control of a body segment with an orthosis or prosthesis. This means that an accurate cast must be taken.

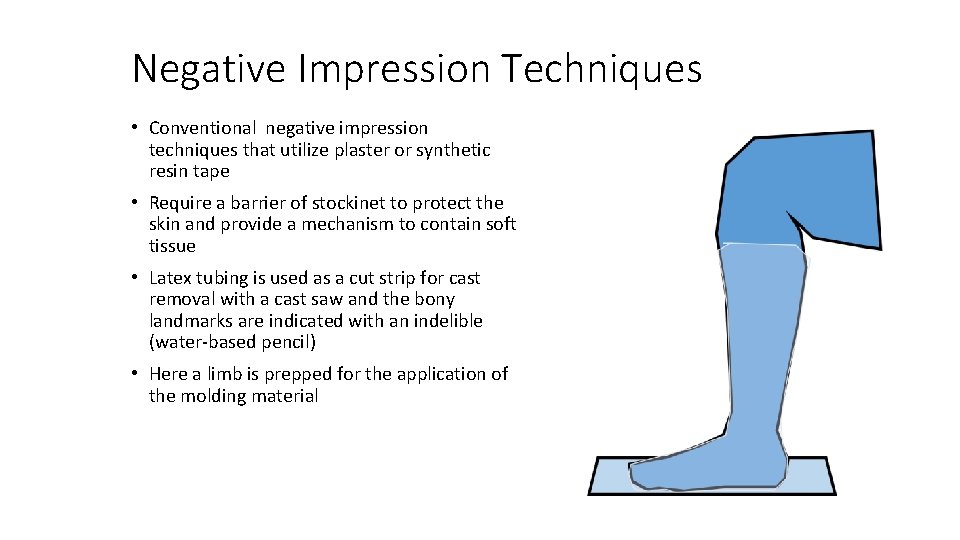

Negative Impression Techniques • Conventional negative impression techniques that utilize plaster or synthetic resin tape • Require a barrier of stockinet to protect the skin and provide a mechanism to contain soft tissue • Latex tubing is used as a cut strip for cast removal with a cast saw and the bony landmarks are indicated with an indelible (water-based pencil) • Here a limb is prepped for the application of the molding material
Negative Impression Techniques, 2 • Fiber resin tape is a applied by wrapping the extremity circumferentially • To avoid excessive tissue displacement from the application of the material minimal tension is applied • Note that a special foot plate board is used to emulate the shoe interface • Maintain the foot and ankle at 90 degrees if possible and cast a minimum of 1 inch higher than the proximal trim line of the gauntlet.

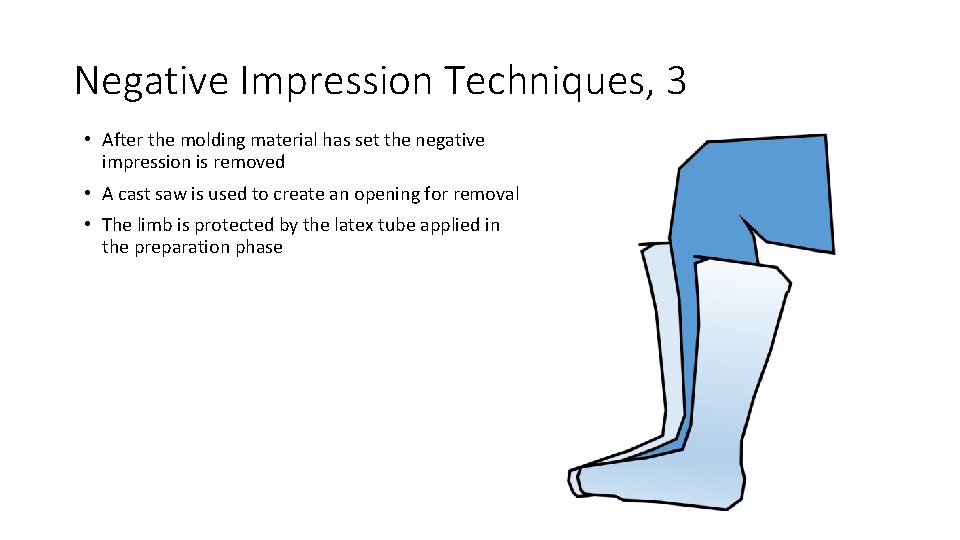

Negative Impression Techniques, 3 • After the molding material has set the negative impression is removed • A cast saw is used to create an opening for removal • The limb is protected by the latex tube applied in the preparation phase
Pedorthic Program of Study This workforce product was funded by a grant awarded by the U. S. Department of Labor’s Employment and Training Administration. The product was created by the grantee and does not necessarily reflect the official position of the U. S. Department of Labor. The U. S. Department of Labor makes no guarantees, warranties, or assurances of any kind, express or implied, with respect to such information, including any information on linked sites and including, but not limited to, accuracy of the information or its completeness, timeliness, usefulness, adequacy, continued availability, or ownership. Produced 2016. HOPE Careers Consortium is a partnership of five institutions of higher education that is building exciting new programs that will provide valuable career education and training in the Orthotics, Prosthetics, and Pedorthics (O&P) sector. The five institutions are: Baker College— Flint, Michigan; Century College—White Bear Lake, Minnesota; Oklahoma State University Institute of Technology—Okmulgee, Oklahoma; Spokane Falls Community College—Spokane, Washington; and St. Petersburg College—St. Petersburg, Florida. Although the authoring institution of this educational resource has made every effort to ensure that the information presented is correct, the institution assumes no liability to any party for any loss, damage, or disruption caused by errors or omissions. Except where otherwise noted, this work by St. Petersburg College is licensed under the Creative Commons Attribution 4. 0 International License. To view a copy of this license, click on the following link: Creative Commons Licenses 4. 0.
