Module 5 1 Mitigation Methods and Tools in

Module 5. 1 Mitigation Methods and Tools in the Energy Sector 1

Purpose of this Module • To introduce different approaches for GHG mitigation assessment in the energy sector. • To review the benefits and drawbacks of different approaches. • To introduce various software tools that may be useful for GHG mitigation analysis. • To provide participants with information to help them choose an appropriate tool for their own assessments. • NB: will NOT provide in-depth training in the use of any one tool. • Separate, in-depth training will be likely required for any tools selected. 2

Module 5. 1: Energy Sector Mitigation Methods a. Approaches for Energy Sector Mitigation Modeling b. Review of Modeling Tools c. MARKAL d. ENPEP-BALANCE e. LEAP f. RETScreen g. Conclusions 3

Module 5. 1 a) Approaches for Energy Sector Mitigation Modeling 4

Some Background… • Decision 17/CP. 8, para 38: – Based on national circumstances, NA 1 Parties are encouraged to use whatever methods are available and appropriate in order to formulate and prioritize programmes containing measures to mitigate climate change and that this should be done within the framework of sustainable development objectives, which should include social, economic and environmental factors. 5

Approaches for Energy Sector Mitigation Assessment Bottom-up Top-down • Use aggregated economic data • • Assess costs/benefits through impact on output, income, GDP Implicitly capture administrative, implementation and other costs. Assume efficient markets, and no “efficiency gap” • • Capture intersectoral feedbacks and • interactions Commonly used to assess impact of carbon taxes and fiscal policies • Not well suited for examining technology-specific policies. Use detailed data on fuels, technologies and policies Assess costs/benefits of individual technologies and policies Can explicitly include administration and program costs Don’t assume efficient markets, overcoming market barriers can offer cost-effective energy savings Capture interactions among projects and policies Commonly used to assess costs and benefits of projects and programs 6

Top-Down Assessments (1) • Examine general impact on economy of GHG mitigation. • Important where GHG mitigation activities will cause substantial changes to an economy. • Typically examine variables such as GDP, employment, imports, exports, public finances, etc. • Assume competitive equilibrium and optimizing behavior in consumers and producers. • Should also consider role of informal sector, which may be important in many non-Annex 1 countries. • Can be used in conjunction with bottom-up approaches to help check consistency. – E. g. energy sector investment requirements from a bottom-up energy model used in macroeconomic assessment to iteratively check the GDP forecasts driving the energy model. 7

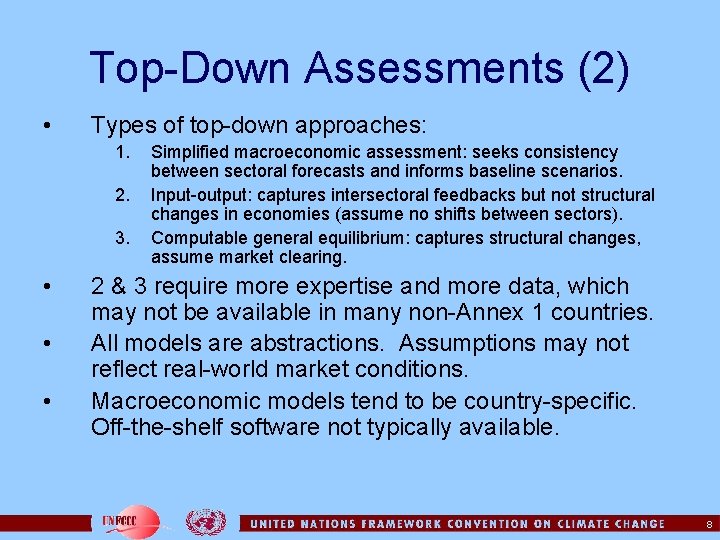

Top-Down Assessments (2) • Types of top-down approaches: 1. 2. 3. • • • Simplified macroeconomic assessment: seeks consistency between sectoral forecasts and informs baseline scenarios. Input-output: captures intersectoral feedbacks but not structural changes in economies (assume no shifts between sectors). Computable general equilibrium: captures structural changes, assume market clearing. 2 & 3 require more expertise and more data, which may not be available in many non-Annex 1 countries. All models are abstractions. Assumptions may not reflect real-world market conditions. Macroeconomic models tend to be country-specific. Off-the-shelf software not typically available. 8

Bottom-Up Models (Energy Sector) • Optimization Models e. g. MARKAL • Iterative Equilibrium/Simulation Models e. g. ENPEP • Hybrid Models e. g. MARKAL-MACRO • Accounting Frameworks e. g. LEAP 9

Models for Mitigation Analysis in the UNFCCC Context • UNFCCC Guidelines do not specify which approach is appropriate for national communications on mitigation. • Both Top-Down and Bottom-up models can yield useful insights on mitigation. – Top-down models are most useful for studying broad macroeconomic and fiscal policies for mitigation such as carbon or other environmental taxes. – Bottom-up models are most useful for studying options that have specific sectoral and technological implications. • The lack of off-the-shelf top-down models, the greater availability of physical, sectoral and technological data, and the focus on identifying potential projects has meant that most mitigation modeling has so far focused on bottom-up approaches. 10

Module 5. 1 b Types of Bottom-Up Models 11

Optimization Models • Use mathematical programming to identify configurations of energy systems that minimize the total cost of providing energy services. – Cost-minimization is performed within constraints (e. g. limits on CO 2 emissions, technology availability, foreign exchange, etc. ). Constraints also ensure balance of supply and demand. – May optimize over all time periods (perfect foresight) or year-on-year (myopic). • • Useful energy services forecast exogenously. Select among technologies based on their relative costs. – Dual solution yields estimates of energy prices. – Can yield extreme “knife edge” solutions (model allocates all market share to cheapest technology – even if only slightly cheaper) – Must be constrained to yield “reasonable” results: by using “hurdle” rates, by disaggregating demands into more homogenous groups, or by manually constraining market allocations. • • • Typically assume perfect competition and that energy cost is only factor in technology choice. Especially useful where many technical options need to be analyzed and future costs are well known. Cost-minimization assumptions may be inappropriate for simulating “most likely” evolution of real-world energy systems in a baseline scenario. Data intensive Calculations are complex making approach hard to apply where expertise is limited. Examples: MARKAL/TIMES 12

Iterative Equilibrium/Simulation Models • Simulates behavior of energy consumers and producers under various signals (e. g. price, income levels) and constraints (e. g. limits on rate of stock replacement). • Easier to include non-price factors in analysis compared to optimizing models. • Balances demand supply by calculating marketclearing prices. • Prices and quantities are adjusted endogenously using iterative calculations to seek equilibrium prices. • Behavioral relationships can be controversial and hard to parameterize. Crucial parameters are highly abstracted or poorly known, especially in countries where time series data is lacking. • Example: ENPEP-BALANCE 13

Hybrid Models • Maximizes present value of utility of a representative consumer. • Goes beyond energy system optimization to examine macroeconomic impacts of energy system on the wider economy. • Changes in the energy system can feed-back to effect macroeconomic growth and structure. • A production function allows for substitution among capital, labor and different forms of energy. • Useful energy demands are endogenous to the model. • Example: MARKAL-MACRO 14

Accounting Frameworks • Account for flows of energy in a system based on simple engineering relationships (e. g. conservation of energy). • Rather than simulating decisions of energy consumers and producers, user explicitly accounts for outcomes of those decisions (e. g. as market penetration rates, energy service demands). • Simple, transparent, intuitive & easy to parameterize. • Evaluation and comparison of policies are largely performed externally by the analyst: framework serves primarily as a sophisticated calculator. • Framework ensures physical consistency but not economic consistency. • Example: LEAP 15

Types and Sources of Data 16

Projected Costs of GHG Mitigation • Repetto and Austin (WRI, 1997) compared the results from bottom-up and top-down modeling exercises • Their analysis clearly illustrates the extent to which results depend critically on a handful of key assumptions 17

Predicted Impacts of CO 2 Abatement on U. S. GDP in 2020: 162 Projections from 16 models 2 % Change in GDP 0 CO 2 Abatement 20 40 60 80 100 -2 -4 -6 -8 -10 -12 Adapted from Repetto and Austin, WRI, 1997 18

Changing Assumptions Takes Results From Costs to Benefits 6 % Change in GDP 4 2 0 % CO 2 Abatement 10 20 30 40 50 60 -2 -4 -6 -8 Climate change damages averted Air pollution damages averted Revenues recycled efficiently Joint Implementation Increased energy and product substitution Efficient economic responses Non-carbon backstop fuel available Worst Case Assumptions Adapted from Repetto and Austin, WRI, 1997 19

Module 5. 1 c Review of Modeling Tools 20

Criteria for Inclusion of Tools in this Review Tools must be: – widely applied in a variety of international settings, – thoroughly tested and generally found to be credible, – actively being developed and professionally supported, – primarily designed for integrated energy and GHG mitigation analysis, or screening of energy sector technologies. 21

Included Tools • LEAP – Long-range Energy Alternatives Planning system – Primary Developer: Stockholm Environment Institute • ENPEP – Energy and Power Evaluation Program – Primary Developers: Argonne National Laboratory and the International Atomic Energy Authority (IAEA) • MARKAL and MARKAL-MACRO – MARKet Allocation model – Primary Developers: IEA/ETSAP • RETSCREEN – Renewable Energy Technology Screening – Primary Developers: Natural Resources Canada • All are integrated scenario modeling tools except RETSCREEN, which screens renewable and CHP technologies. • Modeling can also use spreadsheets and/or other tools. • Full Disclosure: Dr. Heaps is the developer of LEAP: reviewed here. 22

Included Tools Compared (1) 23

Included Tools Compared (2) 24

Module 5. 1 d MARKAL 25

MARKAL and MARKAL-MACRO • Developed International Energy Agency, Energy Technology Systems Analysis Programme (IEA/ETSAP). • Generates energy, economic, engineering, and environmental equilibrium models. • Models are represented as Reference Energy Systems (RES), which describe an entire energy system from resource extraction, through energy transformation and end-use devices, to the demand for useful energy services. • Calculates the quantity and prices of each commodity that maximize either the utility (MARKAL-MACRO) or the producer/consumer surplus (MARKAL) over the planning horizon, thereby minimizing totally energy system cost. • Note: TIMES: “The Integrated MARKAL-EFOM System” is gradually expected to replace MARKAL and MARKAL-MACRO. 26

Assessing Energy, Economy, Environment & Trade Interactions Energy Economy Availability of technologies Constraints on Import and Mining of Energy Capital Needs & Technology Deployment Demand for MARKAL Energy Services Energy Consumption Economy and Society Ecological effects Emissions Environment 27

What Does MARKAL Do? • Identifies least-cost solutions for energy system planning. • Evaluates options within the context of the entire energy/materials system by: – – balancing all supply/demand requirements, ensuring proper process/operation, monitoring capital stock turnover, and adhering to environmental & policy restrictions. • Selects technologies based on life-cycle costs of competing alternatives. • Provides estimates of: – – – energy/material prices; demand activity; technology and fuel mixes; marginal value of individual technologies to the energy system; GHG and other emission levels, and mitigation and control costs. 28

What Aspects of Mitigation Assessment Can MARKAL Support? • • • Macroeconomic policies (e. g. carbon taxes) Transportation Energy demand Energy conversion and supply Energy sector emissions Non-energy sector industrial process emissions Solid waste management Geological sequestration Value of carbon rights 29

MARKAL-MACRO • • • MARKAL-MACRO (M-M) is an extension of the MARKAL model that simultaneously solves the energy and economic systems. M-M merges the “bottom-up” engineering and “top-down” macroeconomic approaches. M-M has price responsive demands (i. e. , determined endogenously), as does MARKAL-Elastic Demands, while MARKAL does not (i. e. , demands are exogenously defined). M-M maximizes consumer welfare over the solution period, optimizes aggregate investment in the economy and provides least cost energy system configurations to meet endogenously determined demands. Energy service costs, energy service demands, and energy prices are determined simultaneously during optimization. Relative energy costs determine types and levels of substitution between energy carriers and technologies. 30

MARKAL-ED: Producer/Consumer Equilibrium for each Commodity w/ Technology Detail 31

MARKAL Requirements • • Windows PC with 512 MB RAM. MARKAL/TIMES source code (written in GAMS) GAMS modeling language and a Solver Data Management and Reporting User Interface – Two available: ANSWER and VEDA • Cost of software: US $8, 500 -$15, 000 depending on institutional arrangements. 32

The ANSWER User Interface 33

MARKAL Applications • • • International Energy Agency (IEA): technology detail for the World Energy Outlook scenarios. U. S. DOE/SAGE: an analytic framework for the International Energy Outlook. European Union: 25 state European model: examines externalities and life cycle assessment issues. Six New England States: Analysis of Clean Air Act goals and support for climate change commitments. USAID: establishing a common framework for assessing demand-side management. IEA/ETSAP partner institutions: supporting their national governments planning (Canada, UK, Italy, U. S. DOE & EPA) China and India: examining reform and energy sector evolution to meet economic development goals, and developing multi-region national models. APEC: cost-effective levels of renewable generation in 4 APEC economies. ASEAN: 8 countries participating in a Aus. AID sponsored energy planning initiative Three Central America countries: baselines and opportunities within the realm of Climate Change. Bolivia: GHG reduction strategies, including modeling of forestation as a carbon reduction option. South Africa: National energy and environmental planning. 34

MARKAL Data Requirements • Useful Energy Demands, and own price elasticities for MED or demand decoupling factors for MACRO • Costs – Resource, investment, fixed, variable, fuel delivery, hurdle rates • Technology Profiles – Fuels in/out, efficiency, availability – Resource supply steps, cumulative resources limits, installed capacity, new investment • Environmental Impacts – Unit emissions per resource, technology, investment • System and other parameters – Discount rate, seasonal/day-night fractions, electric reserve margin 35

MARKAL Support & Training • Technical support offered by phone and email. • Cost is US $500 -$2500 depending on institutional arrangements. • Training is offered through ETSAP and its partners in different parts of the world. • A minimum of 2 trainings of 4 days each are recommended, with follow-up support included. • Cost is US $15, 000 -$40, 000 plus expenses. 36

For more information on MARKAL/TIMES • • Gary Goldstein International Resources Group Sag Harbor, New York, 11963, USA Phone: +1 (631) 725 -1869 Fax: +1 (631) 725 -1869 Email: ggoldstein@irgltd. com www. etsap. org 37

Module 5. 1 e ENPEP-BALANCE 38

ENPEP • The Energy and Power Evaluation Program (ENPEP) is a set of ten integrated energy, environmental, and economic analysis tools. • Here the focus is on one tool, BALANCE, which is most frequently used for the integrated assessment of energy and GHG emissions. • BALANCE is a market-based simulation that determines how various segments of the energy system may respond to changes in energy prices and demands. • BALANCE consists of a system of simultaneous linear and nonlinear relationships that specify the transformation of energy quantities and energy prices through the various stages of energy production, processing, and use. • BALANCE also calculates emissions of GHGs and local air pollutants. • BALANCE can be run in combination with other detailed ENPEP tools, such as MAED and WASP. 39

BALANCE Approach • BALANCE matches the demand for energy with available resources and technologies. • The user creates an energy network that traces the flow of energy from primary resources to useful energy demands. • Networks are constructed graphically using various nodes and links. • Nodes represent resources, conversion processes, energy demands, and economic processes. • Links connect the nodes and transfer information among nodes. 40

Nodes and Links in BALANCE 41

BALANCE User Interface 42

BALANCE Market Share Simulation • A logit function estimates the market share of supply alternatives. • Market share is sensitive to a commodity’s price relative to the price of alternatives. • Other constraints (e. g. , capacity limits), government policies (taxes, subsidies, etc. ), and the ability of markets to respond to price signals can also be modeled. • Consumer preferences can also be included via a “premium multiplier” variable. • Simultaneously finds the intersection of supply and demand curves for all energy supply forms and all energy uses in the energy network. • Equilibrium is reached when the model finds the set of market clearing prices and quantities. • The objective is not to minimize costs, but rather, to simulate the response of consumers and producers to changes in energy prices and demand levels and to determine the resulting market equilibrium and its evolution over time. 43

BALANCE CALCULATIONS 44

Other ENPEP Modules • MACRO-E: feedbacks between the energy sector and the wider economy. • MAED: a bottom-up energy demand model. • LOAD: hourly electric loads and generates load duration curves for use in other ENPEP modules. • PC-VALORAGUA: optimal generating strategy for mixed hydro-thermal electric power systems. • WASP: least-cost electric generation expansion paths. • GTMax: marketing and system operational issues in deregulated energy markets. • ICARUS: reliability and economic performance of alternative electric generation expansion paths. • IMPACTS: physical and economic damages from air pollution (now part of BALANCE). • DAM: a decision analysis tool used to analyze tradeoffs between technical, economic, and environmental concerns. 45

ENPEP Applications • ENPEP has been used extensively in Africa, Asia, Europe and North and South America for a variety of integrated energy analyses. • Numerous countries used ENPEP to help prepare GHG mitigation assessments as part of their national communications to the UNFCCC. • Numerous ENPEP applications are described at the ENPEP web site, in most cases with links to related reports. 46

BALANCE Support & Training • Technical support offered by phone, email, or on -line. • Basic support is free; premium support packages available for up to US $10, 000 per year. • Training is offered by the developers on-site or at ANL. • Since 1978, ANL has trained over 1300 experts from over 80 countries. • Minimum of 5 days training is recommend. • Cost is US $10, 000 plus expenses. 47

For more information on ENPEP: • Guenter Conzelmann • Center for Energy, Economic, and Environmental Systems Analysis (CEEESA), Argonne National Laboratory (ANL) • 9700 South Cass Avenue, Argonne, IL 60439, USA • Phone: +1 (630) 252 -7173 • Fax: +1 (630) 252 -6073 • Email: guenter@anl. gov • http: //www. dis. anl. gov/ceeesa/programs/enpepwin. html 48

Module 5. 1 f LEAP: Long-range Energy Alternatives Planning System 49

Long-range Energy Alternatives Planning System · An integrated energy-environment, scenario-based modeling system. · Based on simple physical accounting and simulation modeling approaches. · Flexible and intuitive data management and advanced reporting. · Scope: demand, transformation, resource extraction, GHG emissions and local air pollutants, full system social cost-benefit analysis, non-energy sector sources and sinks. · Annual time-step, unlimited number of years. · Methodology: physical accounting for energy demand supply via a variety of methodologies. – Optional specialized methodologies for modeling of certain sectors/issues. E. g. stock/turnover modeling for transport analyses. · Links to MS-Office (Excel, Word and Power. Point). · Low initial data requirements (for example costs not required for simplest energy and GHG assessment). Many aspects optional. 50

Compared to ENPEP and MARKAL · Unlike ENPEP and MARKAL, LEAP does not require the user to subscribe to a particular view of how an energy system behaves (e. g. least cost optimization, market-clearing equilibrium). · Instead LEAP is based on relatively simple physical energy and environmental accounting principles. · Thus all of the basic calculations in LEAP are non-controversial and can be easily verified, making the system highly transparent. · Instead of the model endogenously calculating market shares of devices, in LEAP the user must tell the software how those shares will evolve in each scenario. · Thus instead of using a complex tool that tells you “what’s best”, the approach in LEAP is to use a relatively simple tool that makes it quick and easy for the user to explore the implications (cost, GHGs, etc. ) of different hypothetical scenarios. 51

LEAP User Interface: Analysis View 52

Expressions in LEAP • Basic non-controversial energy-environment accounting relationships are built-in to LEAP. • Data are specified using spreadsheet-like expressions. • Expressions can be simple static values or they can be time-series functions that describe how variables change over time in different scenarios. • Expressions can also be used to create relationships between variables: allowing for engineering, econometric or simulation models. • Expressions can also be used to create live links to Excel spreadsheets: allowing LEAP to function as an overall organizing and integrating framework for separate spreadsheet analyses. 53

Expression Examples • Growth(3. 2%) Exponential growth after the base year. • Interp(2000, 40, 2010, 65, 2020, 80) Interpolates between specified data points. • Step(2000, 300, 2005, 500, 2020, 700) Discrete changes in particular years. • Growth. As(Income, e) Future years calculated from rate of growth in variable “Income” and an elasticity variable, “e”. • Interp(c: sample. xls, Importrange) Interpolate based on values in range “importrange” from sheet “sample. xls” 54

Scenarios in LEAP • • • Scenarios are story-lines about how an energy system might evolve over time. Can be used for analysis of alternative policy assumptions and for sensitivity analysis. In LEAP, the Scenario Manager is used to create a hierarchy of scenarios. Typically users create one baseline scenario, and one or more scenarios used to screen individual policies or measure. These policy scenarios are then combined to form overall integrated mitigation scenarios, which examine the interactions between measures. Default expressions are inherited from one scenario to another, thus minimizing data entry and allowing common assumptions to be edited in one place. On screen, expressions are color coded to show which have been entered explicitly in a scenario (blue), which are inherited from a parent scenario (black), and which are inherited from another region (purple). 55

A Simple Demand Data Structure Households (8 million) Urban (30%) Electrified (100%) Lighting (100%) Existing (80%, 400 k. Wh/yr) Efficient (20%, 300 k. Wh/yr) Refrigeration (80%) Rural (70%) Electrified (20%) Cooking (100%) Other (50%) Non-Electrified (80%) • The tree is the main data structure used for organizing data and models, and for reviewing results. • Icons indicate the types of data (e. g. , categories, technologies, fuels and environmental effects). • Users can edit the tree on-screen using standard editing functions (copy, paste, drag & drop) • Structure can be detailed and end-use oriented, or highly aggregate (e. g. sector by fuel). • Detail can be varied from sector to sector. 56

Results Reporting in LEAP 57

GIS/Mapping of Results 58

Transformation Analysis • Analysis of energy conversion, transmission and distribution, and resource extraction. • Demand-driven engineering-based simulation. • Basic hierarchy: “modules” (sectors), each containing one or more “processes”. Each process can have one or more feedstock fuels and one or more auxiliary fuels. • Exogenous and/or endogenous capacity expansion. Endogenous capacity added in scenarios to maintain planning reserve margin. • Optional system load data, & choice of methods for simulation of dispatch to meet peak power requirements. • Calculates imports, exports and primary resource requirements. • Tracks costs and environmental loadings. 59

LEAP Transformation Module 60

Load-Duration Curve and System Dispatch in LEAP 100 95 Peak Load Plants 90 85 Percent of Peak Load 80 75 70 65 Intermediate Load Plants 60 55 50 45 40 35 30 Baseload Plants 25 20 Capacity (MW) * MCF 15 10 5 0 0 500 1, 000 1, 500 2, 000 2, 500 3, 000 3, 500 4, 000 4, 500 5, 000 5, 500 6, 000 6, 500 7, 000 7, 500 8, 000 8, 500 Hours Sorted from Highest to Lowest Demand 61

Typical Data Requirements NB: data requirements vary greatly depending on type of analysis. 62

TED: The Technology and Environmental Database 63

LEAP Selected Applications • • • • Greenhouse Gas Mitigation Studies: Argentina, Bolivia, Cambodia, Ecuador, El Salvador, Lebanon, Mali, Mongolia, Korea, Senegal, Tanzania, Vietnam and many others through US and Danish Country Studies Programs and as part of UNFCCC national communications. USA: Greenhouse Gas Emissions Mitigation studies in California, Washington, Oregon and Rhode Island. U. S. DOE: ongoing project to construct a global end-use oriented energy model. Energy and Carbon Scenarios: Chinese Energy Research Institute (ERI) and U. S. DOE. U. S. Light Duty Vehicle Energy Use and Emissions: Various U. S. transportation NGOs. APERC Energy Outlook: Energy forecasts for each APEC economy. East Asia Energy Futures Project: Study of energy security issues in East Asian countries including the Koreas, China, Mongolia, Russia, Japan. U. N. Millennium Project: Costs of meeting a parallel millennium development goal (MDG) for energy. Integrated Resource Planning: Brazil, Malaysia, Indonesia, Ghana, South Africa. City Level Energy Strategies: Cape Town South Africa. Transportation Studies: Texas (Tellus) and 7 Asian Cities (AIT). Sulfur Abatement Scenarios for China: Chinese EPA/UNEP. Rural Wood Energy Planning in South Asia: FAO. 64

Social Cost-Benefit Analysis in LEAP · · · Societal perspective of costs and benefits (i. e. economic not financial analysis). Avoids double-counting by drawing consistent boundary around analysis (e. g. whole system including. Cost-benefit analysis calculates the Net Present Value (NPV) of the differences in costs between two scenarios. NPV sums all costs in all years of the study discounted to a common base year. Optionally includes externality costs. 65

LEAP Support & Training • Technical support offered by phone, email and web forum. • Free to registered users. • Minimum of 5 days training is recommended • On-site training is offered by the developers (SEI) and regional partners. • Cost is US $5, 000 plus expenses. • Regular regional trainings also being organized. Cost to attend is minimal, but participants must cover travel expenses. 66

• Four year initiative (2003 -2006) sponsored by the Govt. of the Netherlands to build capacity and foster a community among developing country energy analysts working on sustainability issues. • Managed by the Stockholm Environment Institute in collaboration with regional partners in Africa, Europe and Latin America. • Open to everyone at no charge. • Activities: – – – Regional training workshops (Africa, Latin America, Planned in Asia). Community web site Technical support for Southern energy analysts LEAP development & maintenance Semi-annual newsletter • http: //www. energycommunity. org 67

For more information on LEAP • • Dr. Charles Heaps Stockholm Environment Institute – Boston Center 11 Arlington Street, Boston, MA, 02116, USA Phone: +1 (617) 266 8090 Fax: +1 (617) 266 8303 Email: leap@tellus. org http: //www. energycommunity. org 68

Module 5. 1 g RETScreen 69

RETScreen • Evaluates the energy production, life-cycle costs and GHG emissions reductions from renewable energy and energy efficient technologies. • Intended primarily for project-level analysis (screening/feasibility), not for national-level integrated analyses. • Does allow options to be compared to a counter-factual situation, but this is primarily a static comparison. • Complements other tools reviewed here. – Can be used for screening of options before inclusion in integrated assessments, or for detailed project-level assessments. Can help develop the technical, cost and performance variables required in other models. 70

RETScreen Modules • Structured as a set of separate modules, each with a common look and approach. • Each module is developed in Microsoft Excel • Modules include: – – – – – Wind energy Small hydro Photovoltaics Combined heat & power Biomass heating Solar air heating Solar water heating Passive solar heating Ground-source heat pumps Energy efficiency measures (coming soon) 71

RETScreen Interface 72

RETScreen Data Requirements • Data requirements are those needed for a technical and financial assessment of any clean energy project. • This includes location data, meteorological data, equipment data, cost data, and financial data. • RETScreen includes both meteorological and product cost and performance databases which help determine the amount of clean energy that can be delivered (or saved) by a project, and help calculate parameters such as heating loads. • The weather database has data from 4, 720 meteorological stations around the world. • The product database is linked online to continuously updated data. 73

RETScreen Support & Training • Free support is available via email or a web-based forum. • Because RETScreen is developed in Excel, training requirements are minimal. • Users with little experience of the technologies being analyzed, will need to study the introductory training materials available for free on the website • Free training materials include: slides, teacher’s notes, etextbooks, online manual, case studies. • An online distance-learning course is also freely available to all registered users. • A network of trainers conducts other training events, which are posted on the RETScreen Website. 74

RETScreen Applications • • RETScreen has > 65, 000 users in 207 countries around the world. Some examples are: – – – – Canada, Archemy Consulting, Solar/wind electric - Solar thermal, 21 k. W Canada, DGV Engineering Services, Small hydro, 35 MW Canada, Wind. Share, Wind energy, 750 k. W Australia, Power and Water, Photovoltaics & Wind energy, 890 k. W & 50 k. W Brazil, Negawatt, Small hydro, 4 MW Czech Republic, Hydrohrom, Small hydro, 2 MW France, Electricité de France, Small hydro & wind energy, 27 MW & 7 MW Ireland, Sustainable Energy Authority, Wind energy, 100 MW India, IT Power India, Photovoltaics & Small hydro, 89 k. W & 1 MW Italy, Seriana Servizi, Biomass power, 48 MW Nicaragua, Comisión Nacional de Energía, Mini hydro, 12 MW Russia, SKIF-TECH. , Earth energy, 320 k. W Romania, SPERIN, Wind & solar thermal, 8. 4 MW & 80 m 2 Senegal, ASERA, Wind energy & Photovoltaics, 9 k. W & 5 k. W United States, Artha Renewable Energy, Solar water heating, 560 m 2 75

For more information on RETScreen • RETScreen Customer Support • Natural Resources Canada • 1615 Boulevard Lionel-Boulet, Varennes, QC, J 3 X 1 S 6, Canada • Phone: +1 (450) 652 -4621 • Fax: +1 (450) 652 -5177 • Email: rets@nrcan. gc. ca • http: //www. retscreen. net 76

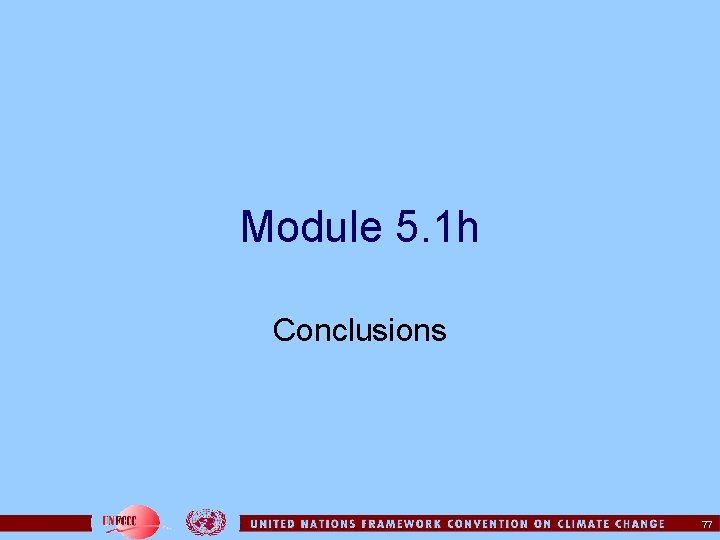

Module 5. 1 h Conclusions 77

Conclusions • MARKAL is a good choice if: – Already have MARKAL modeling experience. – Technical and statistical data are relatively plentiful. – A large number of complex and interacting technology options need to be assessed. – Assessment team is familiar with concepts of optimization. – Assumptions of optimizing models are reasonable in the study context. – Assessment will be conducted over a relatively long time frame (e. g. one year) and able to invest considerable human resources in the assessment. – Cost of software & support is acceptable. 78

Conclusions (2) • ENPEP-BALANCE is a good choice in similar situations to MARKAL: – particularly if there is need to take a market-simulation approach, and optimization assumptions are not appropriate, • LEAP is a good choice if: – – – Data is less plentiful. Team has less modeling expertise. Time frame for analysis is relatively short. Inherent assumptions of MARKAL/ENPEP are not appropriate. Assessment will focus on both technology choice and other mitigation options. • RETScreen, is complementary to all of the integrated/national level tools. • Country-specific approaches, using spreadsheets or other models may make sense for many Parties. 79

Further Reading • Sathaye, J. and Meyers, S. 1995. Greenhouse Gas Mitigation Assessment: A Guidebook; Kluwer. http: //ies. lbl. gov/iespubs/iesgpubs. html • Halsnaes, K. ; Callaway, J. M. ; Meyer, H. J. 1999. Economics of Greenhouse Gas Limitations: Methodological Guidelines. UNEP Collaborating Centre on Energy and Environment, Denmark. http: //uneprisoe. org/Economics. GHG/Meth. Guidelines. pdf • Swisher, J. ; Januzzi, G. ; Redlinger, R. Y. 1997. Tools and Methods for Integrated Resource Planning. UNEP Collaborating Centre on Energy and Environment, Denmark. http: //www. uneprisoe. org/IRPManual/IRPmanual. pdf • Heaps, C. 2005. User Guide for LEAP 2005. SEI-Boston. http: //forums. seib. org/leap 80

Possible Topics for Discussion • What additional information do you need to allow you to decide on a modeling approach? • How well do the existing models fit the needs of your national communications assessments? • How can training needs best be addressed in your country? 81
