Module 2 Storage, Networking and Availability in Windows Server 2012

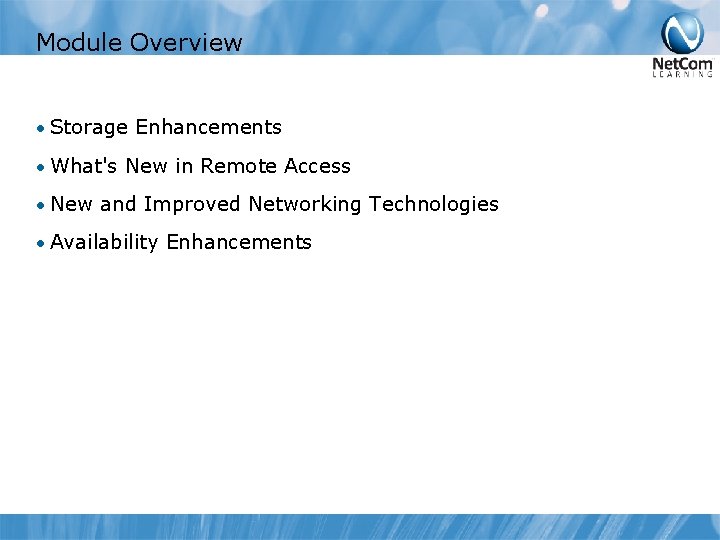

Module Overview • Storage Enhancements • What's New in Remote Access • New and Improved Networking Technologies • Availability Enhancements

Lesson 1: Storage Enhancements • New Storage Features in Windows Server 2012 • Storage Spaces and Storage Pools • SMB 3. 0 • i. SCSI Target Server • Microsoft Online Backup

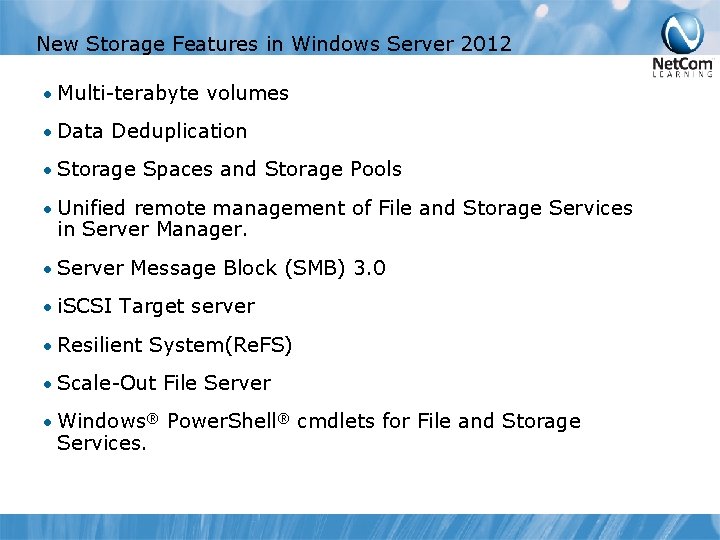

New Storage Features in Windows Server 2012 • Multi-terabyte volumes • Data Deduplication • Storage Spaces and Storage Pools • Unified remote management of File and Storage Services in Server Manager. • Server Message Block (SMB) 3. 0 • i. SCSI Target server • Resilient System(Re. FS) • Scale-Out File Server • Windows® Power. Shell® cmdlets for File and Storage Services.

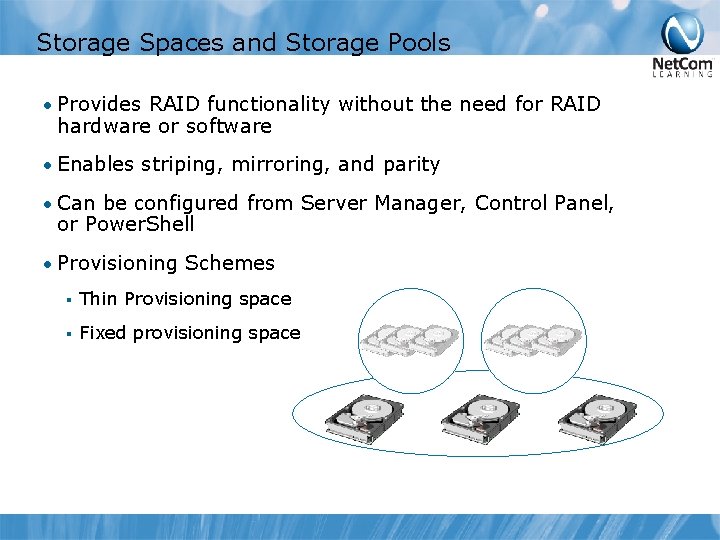

Storage Spaces and Storage Pools • Provides RAID functionality without the need for RAID hardware or software • Enables striping, mirroring, and parity • Can be configured from Server Manager, Control Panel, or Power. Shell • Provisioning Schemes § Thin Provisioning space § Fixed provisioning space

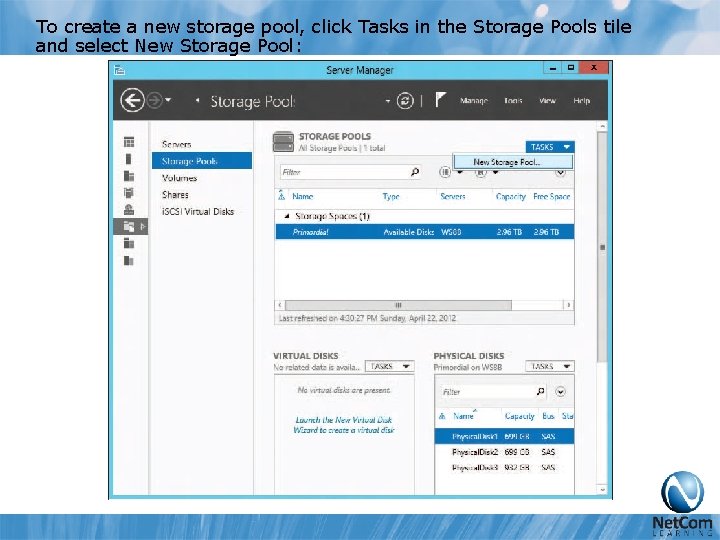

To create a new storage pool, click Tasks in the Storage Pools tile and select New Storage Pool:

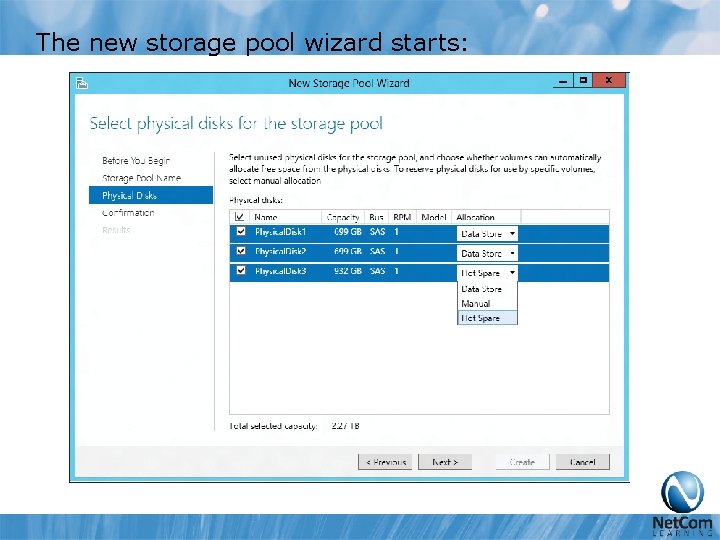

The new storage pool wizard starts:

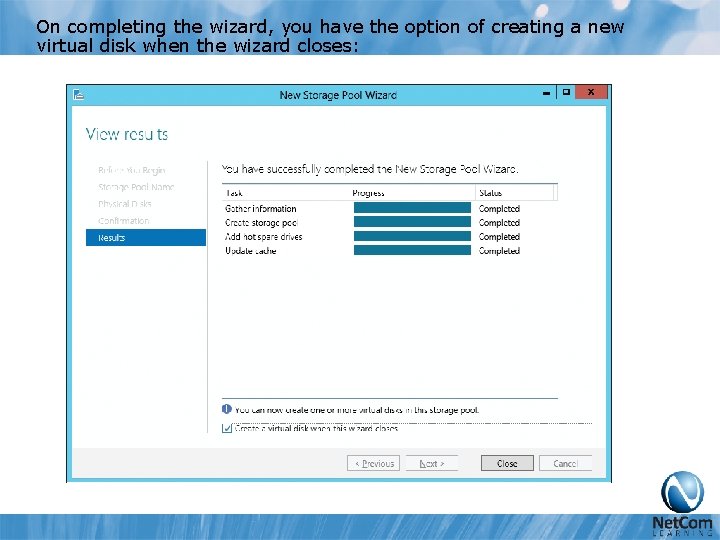

On completing the wizard, you have the option of creating a new virtual disk when the wizard closes:

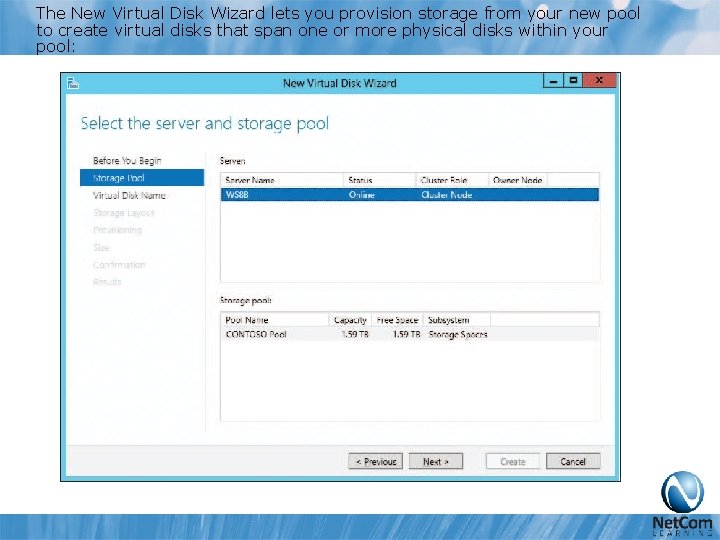

The New Virtual Disk Wizard lets you provision storage from your new pool to create virtual disks that span one or more physical disks within your pool:

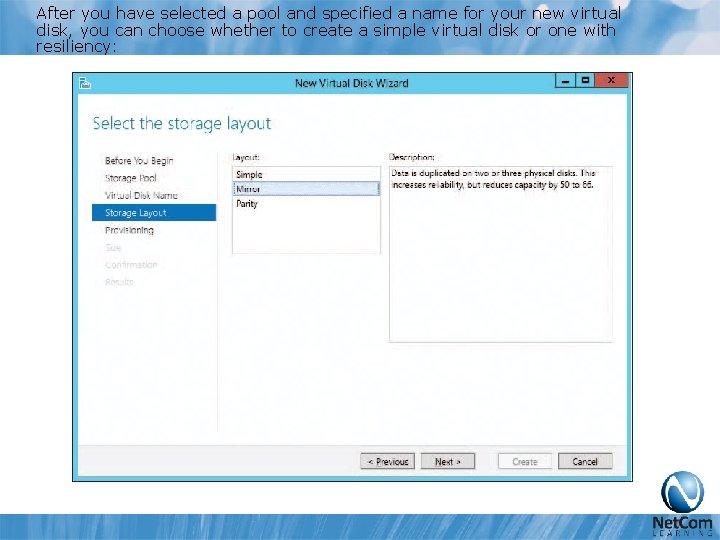

After you have selected a pool and specified a name for your new virtual disk, you can choose whether to create a simple virtual disk or one with resiliency:

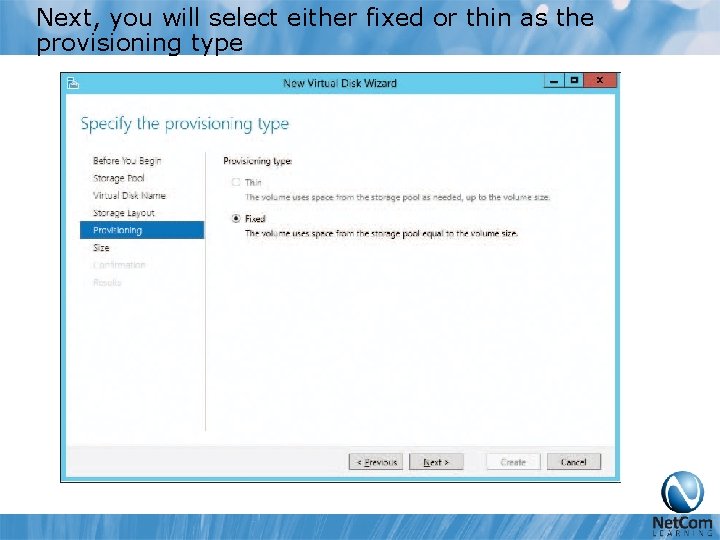

Next, you will select either fixed or thin as the provisioning type

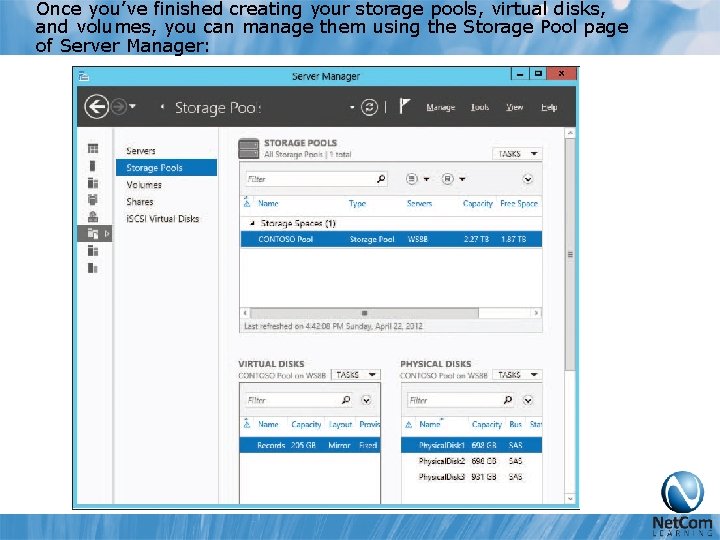

Once you’ve finished creating your storage pools, virtual disks, and volumes, you can manage them using the Storage Pool page of Server Manager:

SMB 3. 0 High Speed SMB Multi-Channel SMB Direct SMB Encryption

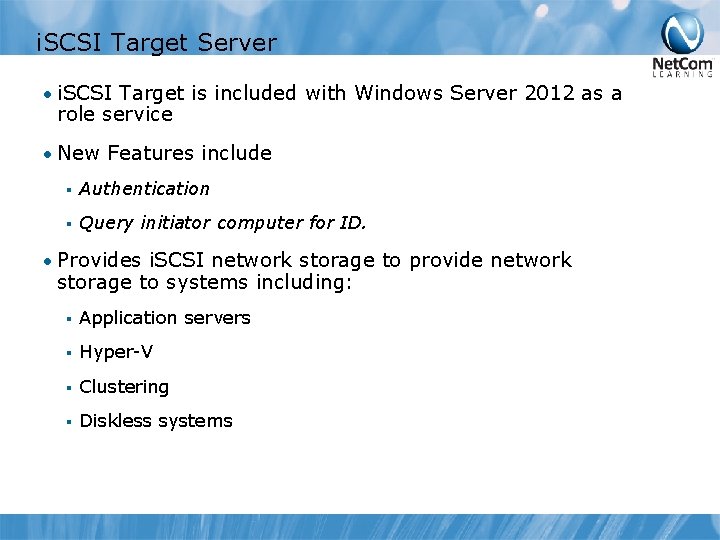

i. SCSI Target Server • i. SCSI Target is included with Windows Server 2012 as a role service • New Features include § Authentication § Query initiator computer for ID. • Provides i. SCSI network storage to provide network storage to systems including: § Application servers § Hyper-V § Clustering § Diskless systems

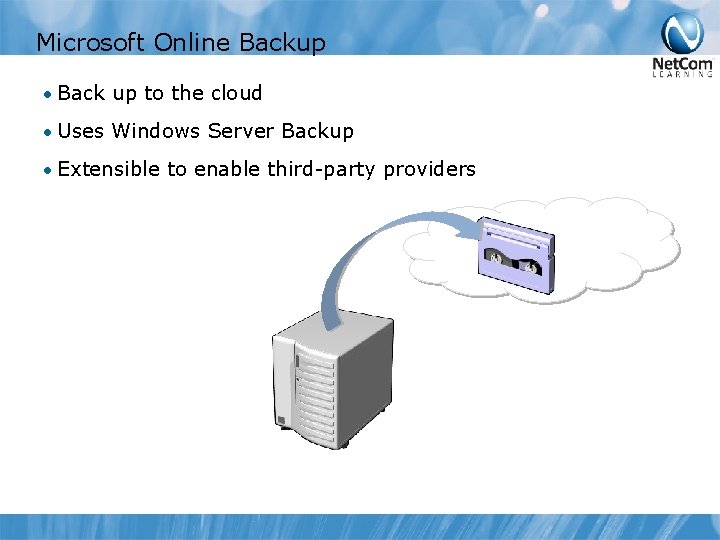

Microsoft Online Backup • Back up to the cloud • Uses Windows Server Backup • Extensible to enable third-party providers

POLLS

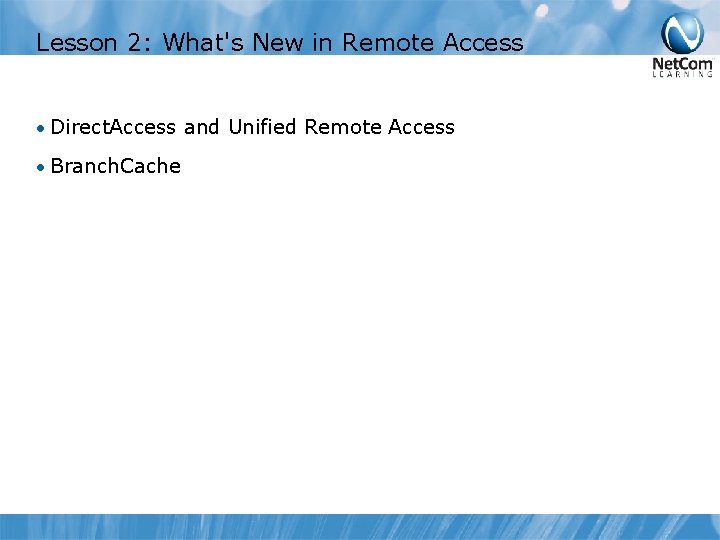

Lesson 2: What's New in Remote Access • Direct. Access and Unified Remote Access • Branch. Cache

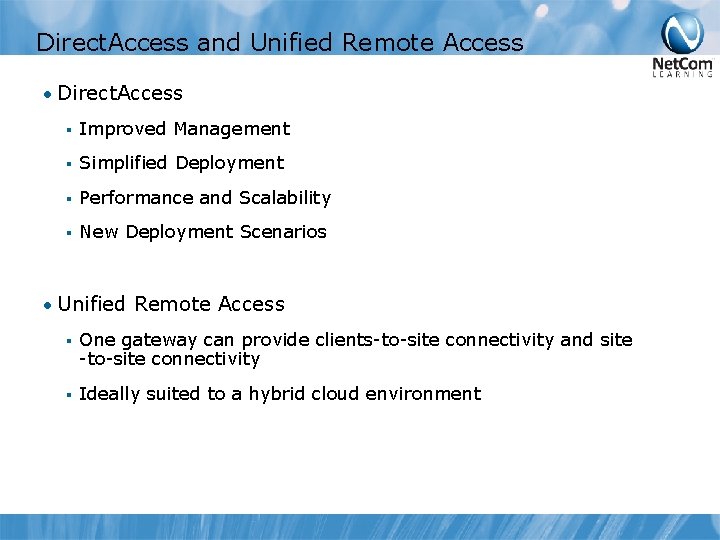

Direct. Access and Unified Remote Access • Direct. Access § Improved Management § Simplified Deployment § Performance and Scalability § New Deployment Scenarios • Unified Remote Access § One gateway can provide clients-to-site connectivity and site -to-site connectivity § Ideally suited to a hybrid cloud environment

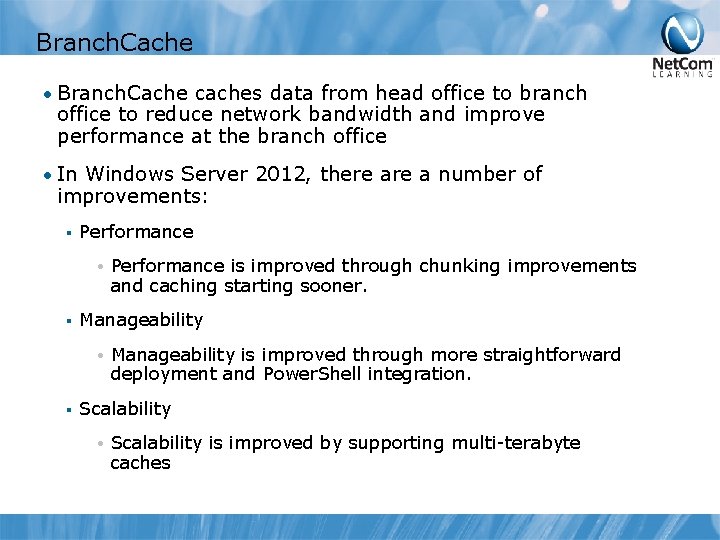

Branch. Cache • Branch. Cache caches data from head office to branch office to reduce network bandwidth and improve performance at the branch office • In Windows Server 2012, there a number of improvements: § Performance • § Manageability • § Performance is improved through chunking improvements and caching starting sooner. Manageability is improved through more straightforward deployment and Power. Shell integration. Scalability • Scalability is improved by supporting multi-terabyte caches

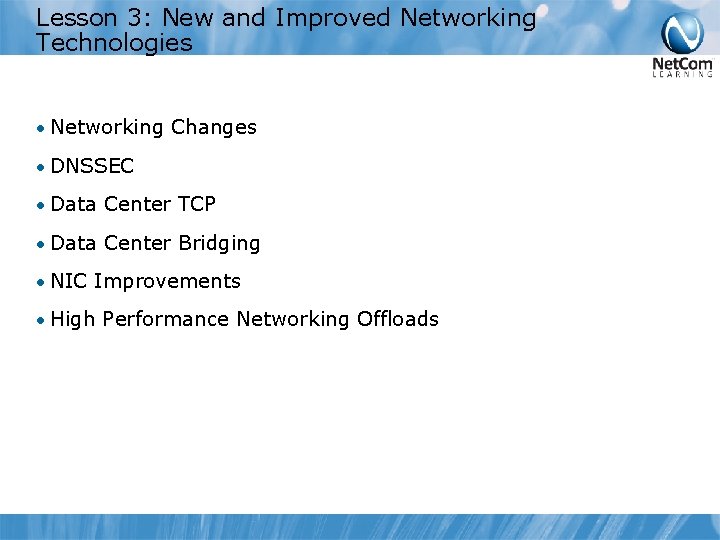

Lesson 3: New and Improved Networking Technologies • Networking Changes • DNSSEC • Data Center TCP • Data Center Bridging • NIC Improvements • High Performance Networking Offloads

Networking Changes • DNSSEC • Extensible Authentication Protocol (EAP) for Network Access Landing Page • 802. 1 X Authenticated Wireless Access Overview • Data Center Bridging (DCB) • Data Center Transmission Control Protocol (DCTCP) • Network Direct • IPSec. TOv 2 • SR-IOV • Receive Segment Coalescing (RSC) • Receive Side Scaling (RSS) • Quality of Service (Qo. S) • NIC Teaming (Load balancing and failover (LBFO))

Data Center TCP • TCP traffic flow is interrupted in the presence of network congestion, so it is affected regardless of the degree of that congestion • DCTCP reacts to the amount of congestion • Traffic is smoothed • Buffer memory is dramatically decreased Congested traffic Smoothed traffic

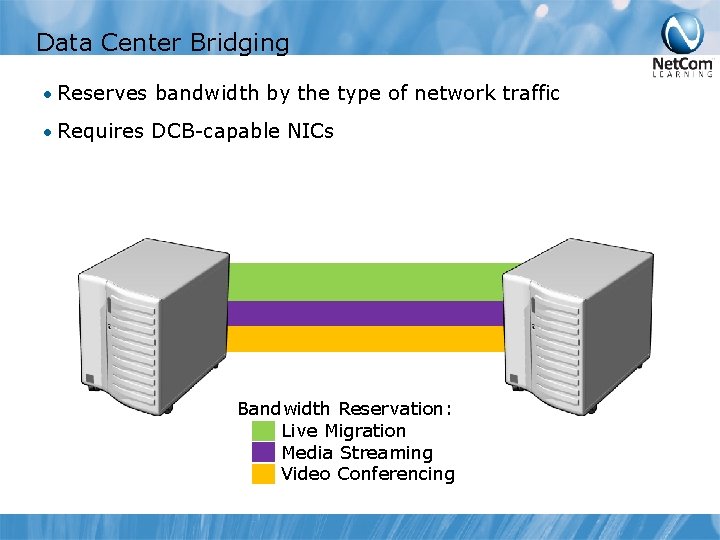

Data Center Bridging • Reserves bandwidth by the type of network traffic • Requires DCB-capable NICs Bandwidth Reservation: Live Migration Media Streaming Video Conferencing

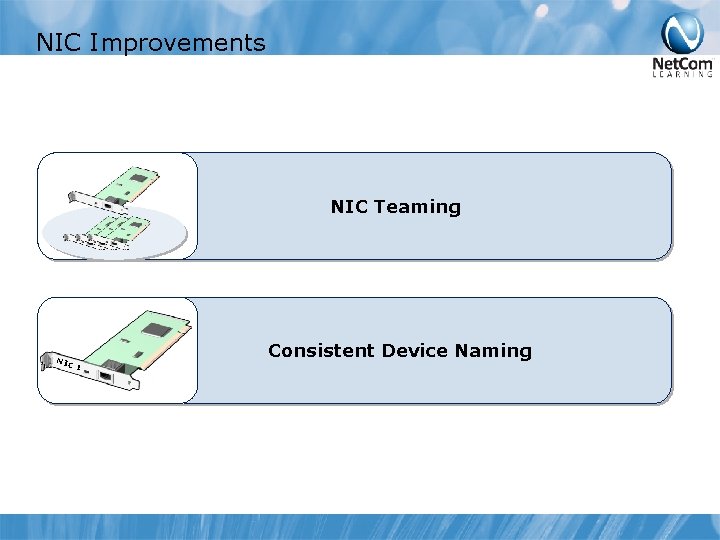

NIC Improvements NIC Teaming NIC Consistent Device Naming 1

Demonstration: Configure NIC Teaming • Server Manager to enable NIC teaming, you can begin by right- clicking the server you want. To configure and selecting Configure NIC Teaming:

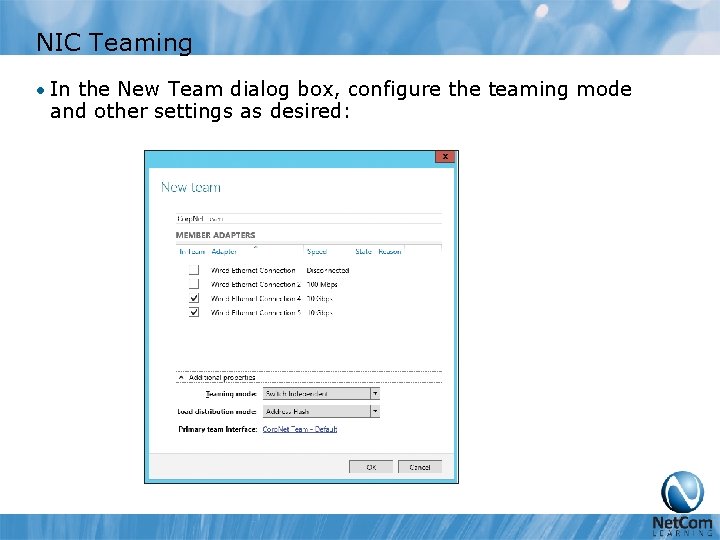

NIC Teaming • In the New Team dialog box, configure the teaming mode and other settings as desired:

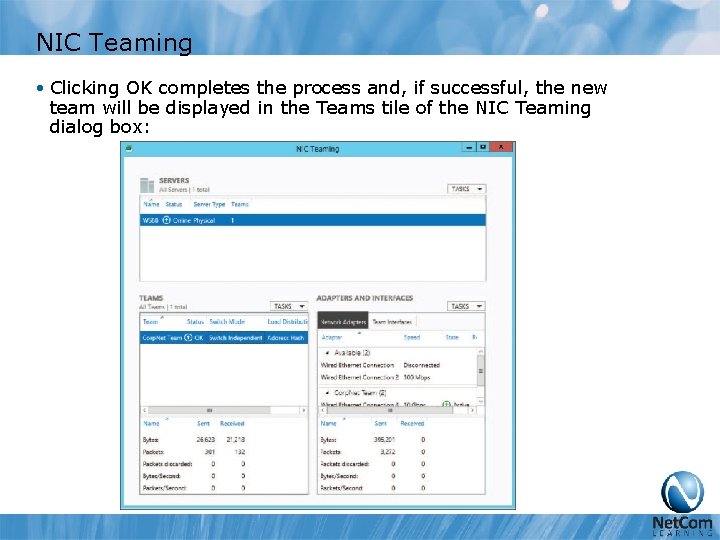

NIC Teaming • Clicking OK completes the process and, if successful, the new team will be displayed in the Teams tile of the NIC Teaming dialog box:

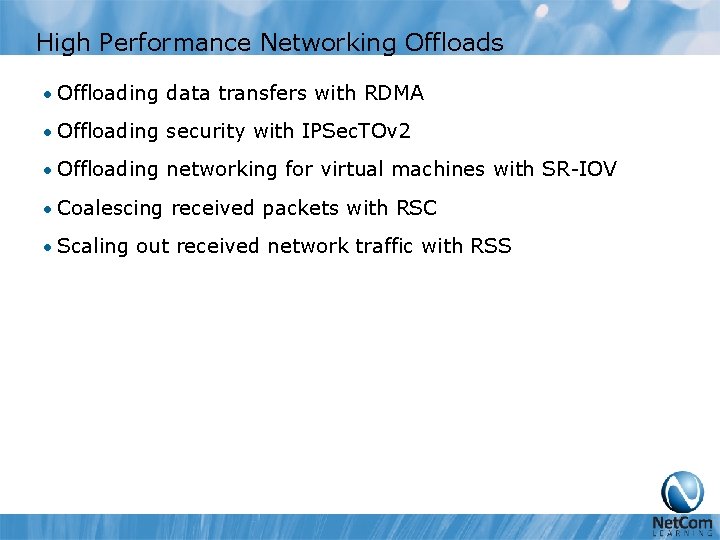

High Performance Networking Offloads • Offloading data transfers with RDMA • Offloading security with IPSec. TOv 2 • Offloading networking for virtual machines with SR-IOV • Coalescing received packets with RSC • Scaling out received network traffic with RSS

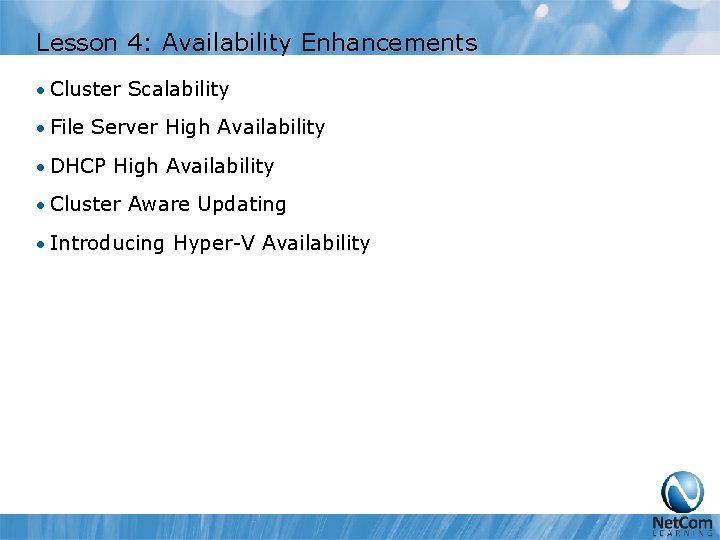

Lesson 4: Availability Enhancements • Cluster Scalability • File Server High Availability • DHCP High Availability • Cluster Aware Updating • Introducing Hyper-V Availability

Cluster Scalability • Clustering is now much more scalable • Clustering is now available in Standard Edition

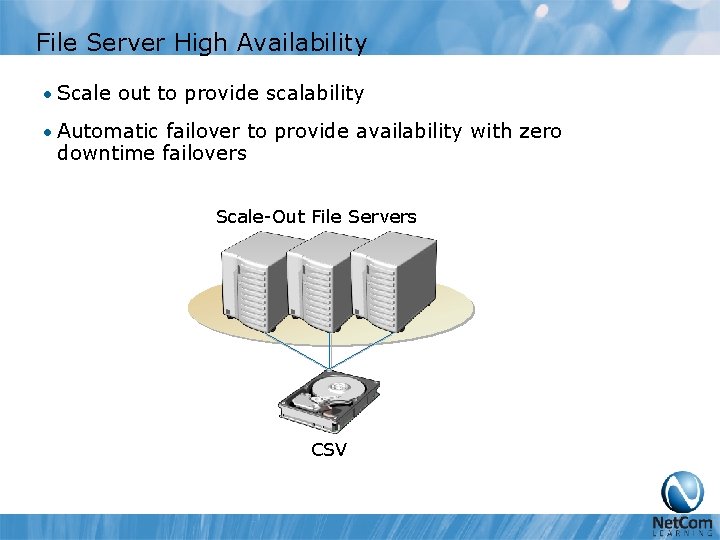

File Server High Availability • Scale out to provide scalability • Automatic failover to provide availability with zero downtime failovers Scale-Out File Servers CSV

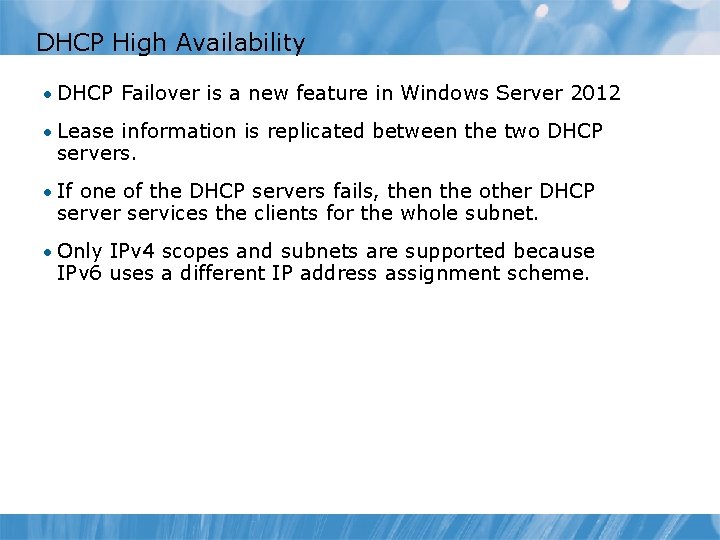

DHCP High Availability • DHCP Failover is a new feature in Windows Server 2012 • Lease information is replicated between the two DHCP servers. • If one of the DHCP servers fails, then the other DHCP server services the clients for the whole subnet. • Only IPv 4 scopes and subnets are supported because IPv 6 uses a different IP address assignment scheme.

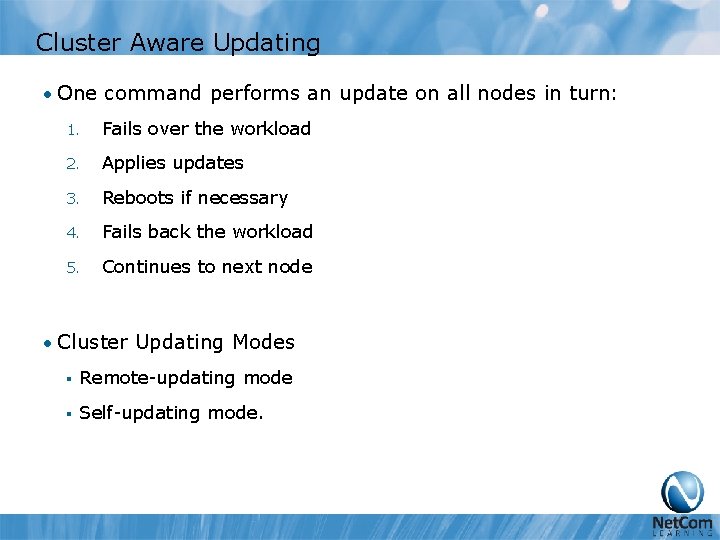

Cluster Aware Updating • One command performs an update on all nodes in turn: 1. Fails over the workload 2. Applies updates 3. Reboots if necessary 4. Fails back the workload 5. Continues to next node • Cluster Updating Modes § Remote-updating mode § Self-updating mode.

Introducing Hyper-V Availability • Virtual machine monitoring • Live Migration
