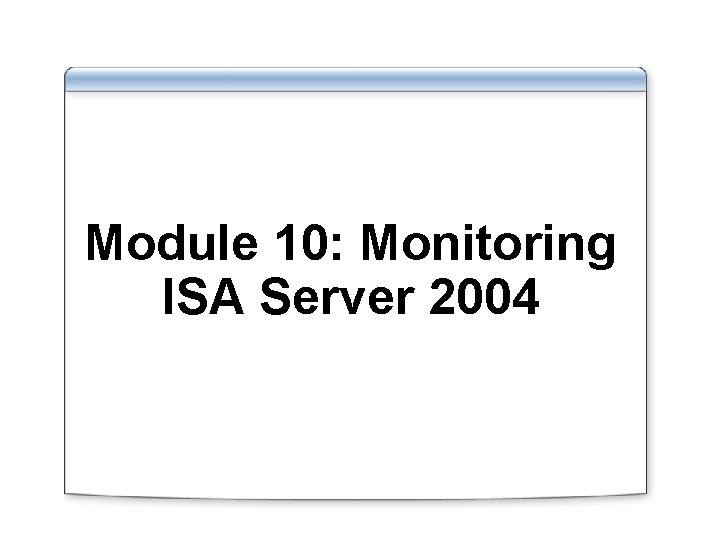

Module 10: Monitoring ISA Server 2004

Overview Monitoring Overview Configuring Alerts Configuring Session Monitoring Configuring Logging Configuring Reports Monitoring Connectivity Monitoring Services and Performance

Lesson: Monitoring Overview Why Implement Monitoring? ISA Server Monitoring Components Designing a Monitoring and Reporting Strategy Using the ISA Server Dashboard for Monitoring

Why Implement Monitoring? Use monitoring to: Monitor traffic between networks to ensure that only legitimate traffic passes between networks Troubleshoot network connectivity between ISA Server clients, servers, and networks Collect information about attacks and to detect attacks as they occur Plan future modifications to the ISA Server or Internet access infrastructure

ISA Server Monitoring Components Component s Explanation Monitors ISA Server for configured events and then performs actions when the Alerts specified events occur Provides information on the current client Sessions sessions Provides detailed archived information about the Web Proxy, Microsoft Firewall Logging service, or SMTP Message Screener Summarizes information about the usage Reports patterns on ISA Server Monitors connections from ISA Server to Connectivity any other computer or URL on any network Monitors server performance in real time, Performance create a log file of server performance or configure performance alerts

Designing a Monitoring and Reporting Strategy When: Determine: Which events should trigger an alert Monitoring real-time information Collecting long-term information Developing a response strategy The event threshold before the alert is triggered The information that you need to monitor server performance The information you need to monitor server performance over time The information you need to monitor server usage The information you need to monitor security events How to respond to the critical events that occur on the ISA Server

Using the ISA Server Dashboard for Monitoring Monitor connections Monitor alerts Monitor sessions Monitor traffic

Lesson: Configuring Alerts What Is an Alert? How to Configure Alert Definitions How to Configure Alert Events and Conditions How to Configure Alert Actions Alert Management Tasks

What Is an Alert? An alert is: A notification of an event or action that has occurred on ISA Server Triggered according to the conditions and trigger thresholds specified for the event associated with the alert When a server event takes place and records an The alert: ISA Server Management console displays the alert in the Alerts view An entry appears in the alerts view that lists column headings such as type of alert, the date and time, status, and category

How to Configure Alert Definitions

How to Configure Alert Events and Conditions Define the trigger thresholds Define subsequent alerts Define the event that will trigger the alert Define specific conditions for the event

How to Configure Alert Actions Configure e-mail action Define a program to run Define other alert actions

Alert Management Tasks Alerts are managed by performing the following tasks: Acknowledge registered alerts Reset registered alerts When you configure an alert to stop the ISA Server Firewall Service, ISA Server goes into a lockdown mode. While in lockdown mode, ISA Server blocks most network traffic

Practice: Configuring and Managing Alerts Creating a New Alert Definition Modifying an Existing Alert Definition Gen-Web-01 Den-ISA-01 Den-Clt-01 Den-DC-01 Internet

Lesson: Configuring Session Monitoring What Is Session Monitoring? About Managing Sessions How to Configure Session Filtering

What Is Session Monitoring? Session monitoring: Provides real-time information about client sessions hosted through ISA Server Includes information on: When the session was established The session type The source network The client user name and computer name Provides the ability to immediately stop any unwanted sessions

About Managing Sessions Right click session to disconnect Use these options to manage sessions

How to Configure Session Filtering Add multiple filters Configure filters to view specific sessions

Practice: Configuring Session Monitoring Sessions Applying a Session Filter Gen-Web-01 Den-ISA-01 Den-Clt-01 Den-DC-01 Internet

Lesson: Configuring Logging What Is Logging? Log Storage Options How to Configure Logging How to View ISA Server Logs How to Configure Log Filter Definitions

What Is Logging? The. Provides loggingextended feature: log storage to generate reports, analyze trends, or investigate security issues Can be configured to provide Firewall logging, Web proxy logging, and SMTP message screener logging Provides a log viewer to assist in monitoring and analyzing server activity for MSDEbased logs

Log Storage Options Log storage option: MSDE SQL database Explanation: Logs can be viewed in the log viewer Default format for Web proxy and Firewall Service logs Logs can be stored on separate server Logs can be analyzed by using database tools Logs can be stored in W 3 C or ISA Server format File The MSDE and log files are stored by default in the Only available format SMTP ISALogs folder, which is located in the ISAfor Server message screener logs installation folder

How to Configure Logging Configure log storage format Configure the information captured in the logs

How to View ISA Server Logs

How to Configure Log Filter Definitions Add multiple filters Configure filters to view specific log entries

Lesson: Configuring Reports What Are Reports? How to Configure the Report Summary Database How to Generate a Report How to Create a Recurring Report Job How to View Reports How to Publish Reports

What Are Reports? Use reporting to summarize and analyze: Who is accessing the Internet, as well as which web sites are being accessed Which protocols and applications are being used most often General traffic patterns The cache hit ratio Reports can be generated immediately Reports need to be scheduled to generate on a recurring basis

How to Configure the Report Summary Database Select to enable log summaries Configure summary files location Configure number of saved summaries

How to Generate a Report Configure the content to include in the report Configure the time period included in the report Configure where the report will be stored

How to Create a Recurring Report Job Configure the content to include in the recurring report Configure when the recurring report will run

How to View Reports can be viewed: ü Only on the computer running ISA Server Management ü By double-clicking the report name in the Report view of ISA Server Management

How to Publish Reports You can publish reports to a shared folder where users without ISA Server Management installed can view the reports

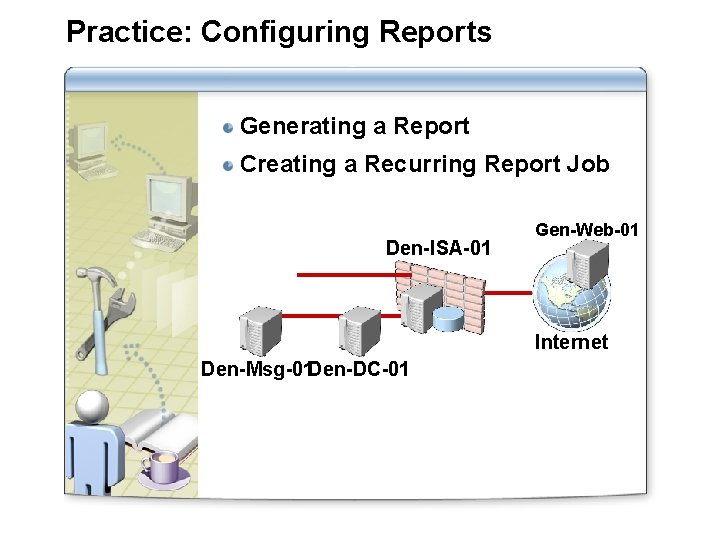

Practice: Configuring Reports Generating a Report Creating a Recurring Report Job Den-ISA-01 Gen-Web-01 Internet Den-Msg-01 Den-DC-01

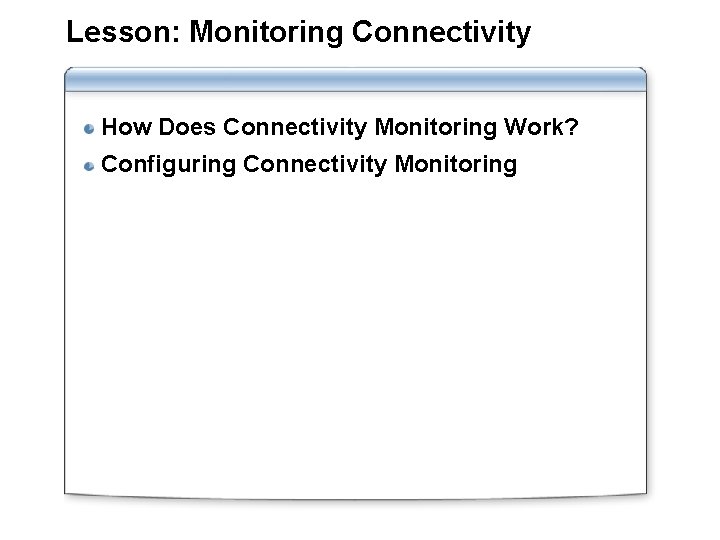

Lesson: Monitoring Connectivity How Does Connectivity Monitoring Work? Configuring Connectivity Monitoring

How Does Connectivity Monitoring Work? Connectivity monitoring: Uses connectivity verifiers to monitor connections from ISA Server to other servers or URLs Can be configured to use any of the following in connection methods: Ping to check for simple network connectivity TCP connection to verify that a service is running on the destination server HTTP GET request to verify that a Web server is running on the destination server

Configuring Connectivity Monitoring Configure the URL or server to connect to Configure the method used to test connectivity Configure the timeout for the connection attempt

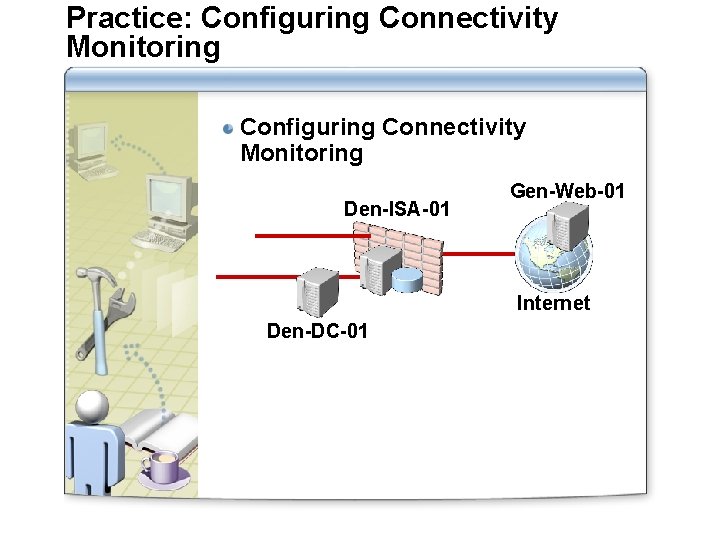

Practice: Configuring Connectivity Monitoring Den-ISA-01 Gen-Web-01 Internet Den-DC-01

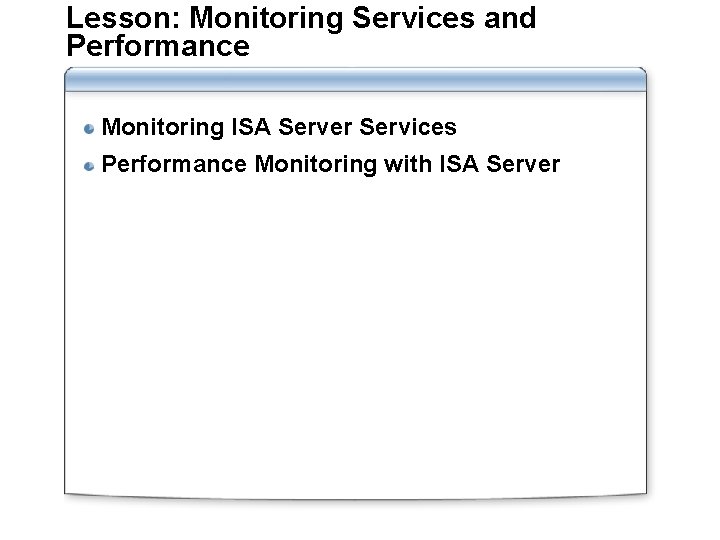

Lesson: Monitoring Services and Performance Monitoring ISA Server Services Performance Monitoring with ISA Server

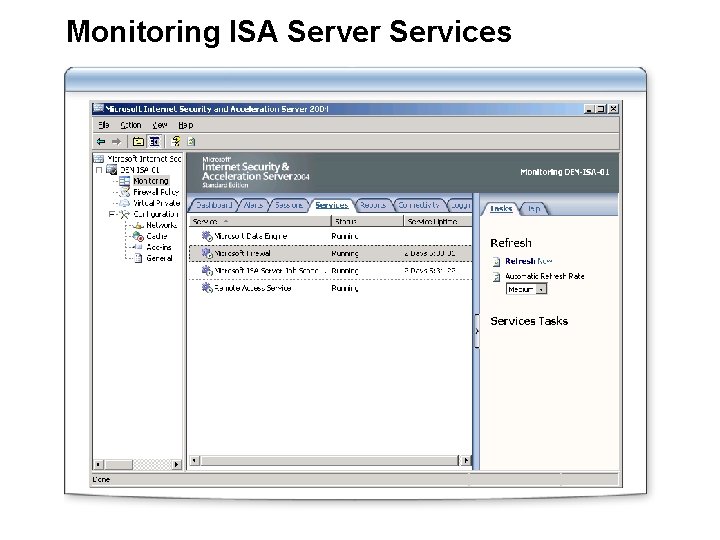

Monitoring ISA Server Services

Performance Monitoring with ISA Server Performance Objects Explanation Includes performance counters to monitor connections and throughput for the firewall engine Includes performance counters to monitor the memory, disk, and URL ISA Server Cache activity associated with the cache as well as cache performance Includes counters to monitor Firewall service connections and associated ISA Server Firewall services such as DNS. This object Service monitors only Firewall client connections Includes counters to monitor the numbercounters of users and which Monitoring the ISA Server as the wellrate asatother ISA Server Web ISA Server transfers data for Web performance counters to determine server Proxy Service Proxy clients to remote and upstream performance and bottlenecks servers ISA Server Firewall Engine

Lab: Monitoring ISA Server 2004 Exercise 1: Testing the Alerts Feature Exercise 2: Testing the Reporting Feature Exercise 3: Testing the Gen-Web-01 Connectivity. Den-ISA-01 Monitoring Feature Internet Den-Msg-01 Den-DC-01
