Module 1 Introduction to OP Terminology B 1

Module 1 Introduction to O&P Terminology B 1. 0 O&P Terminology and Techniques

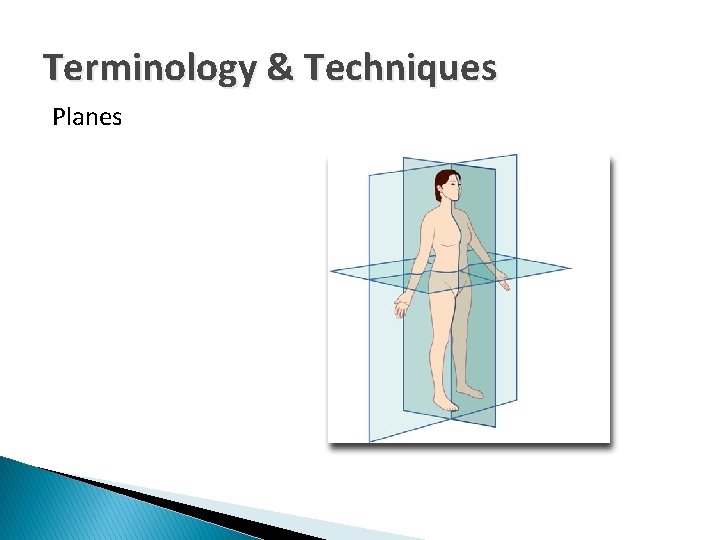

Terminology & Techniques Planes

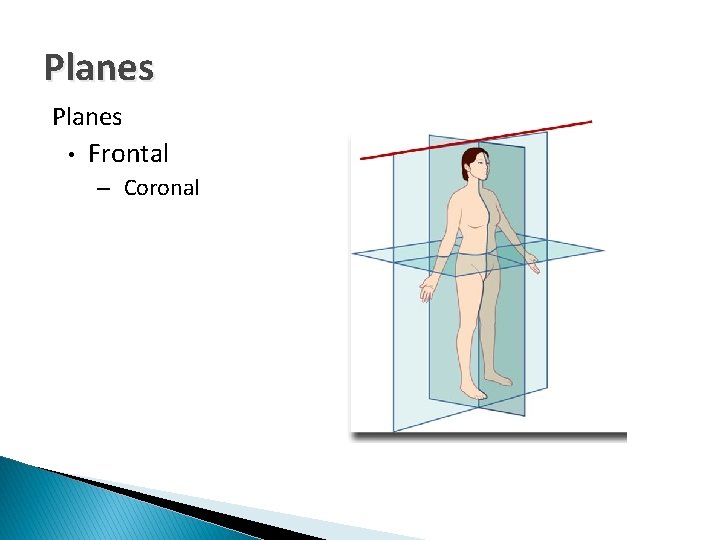

Planes • Frontal – Coronal

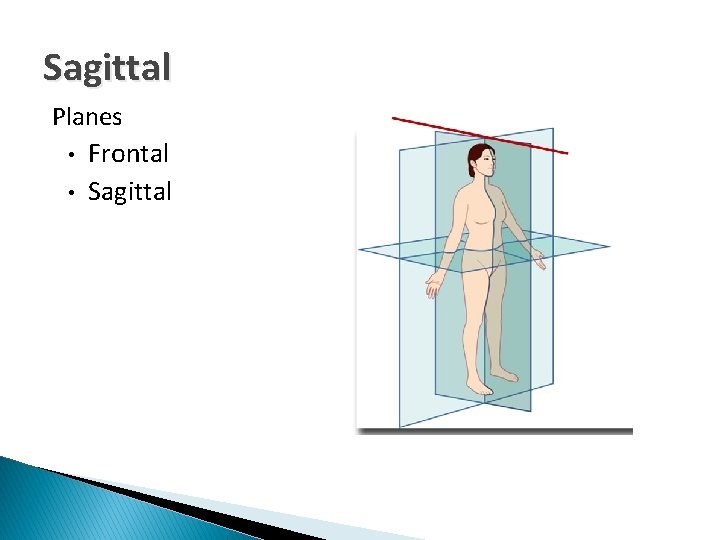

Sagittal Planes • Frontal • Sagittal

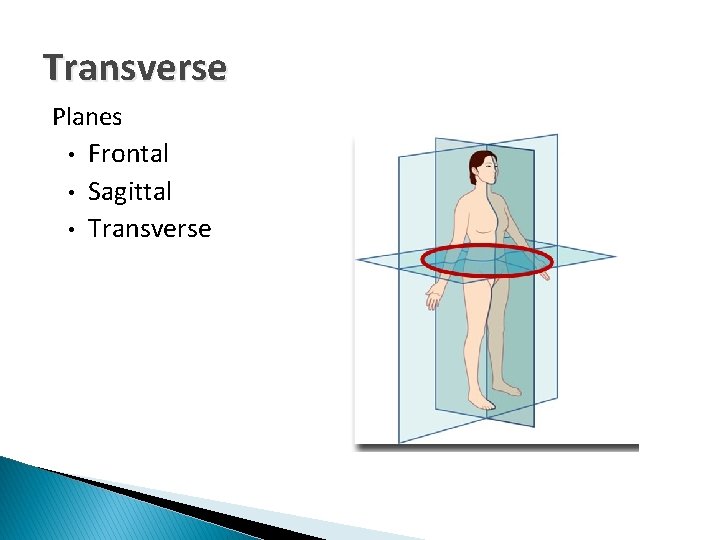

Transverse Planes • Frontal • Sagittal • Transverse

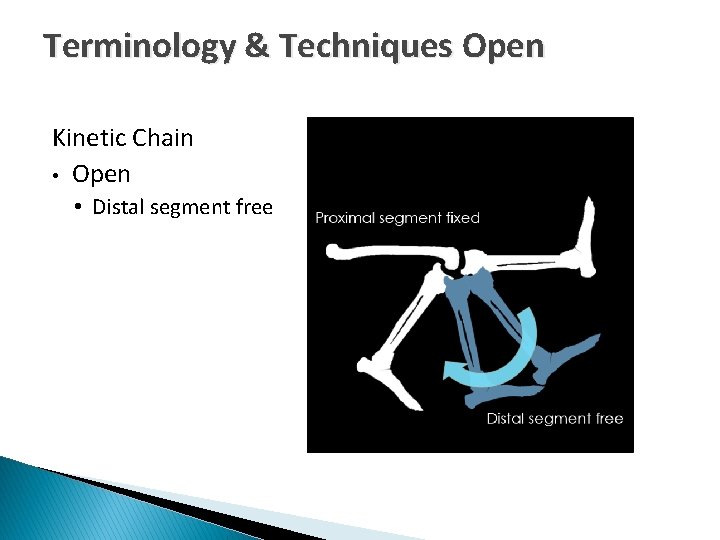

Terminology & Techniques Open Kinetic Chain • Open • Distal segment free

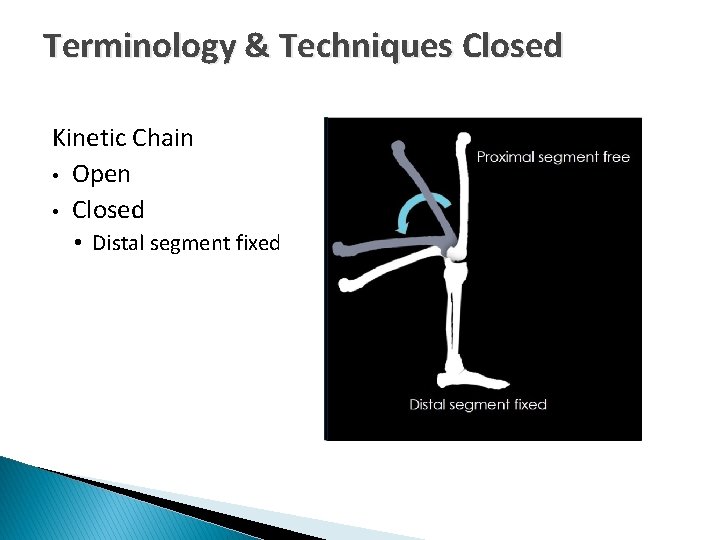

Terminology & Techniques Closed Kinetic Chain • Open • Closed • Distal segment fixed

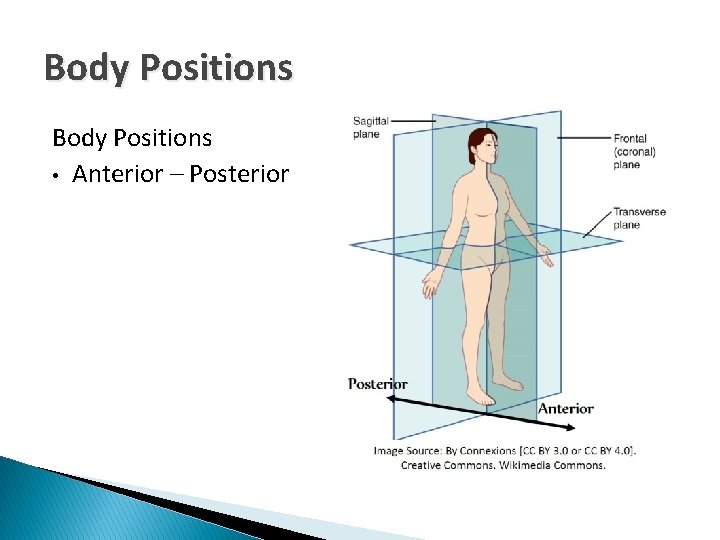

Body Positions • Anterior – Posterior

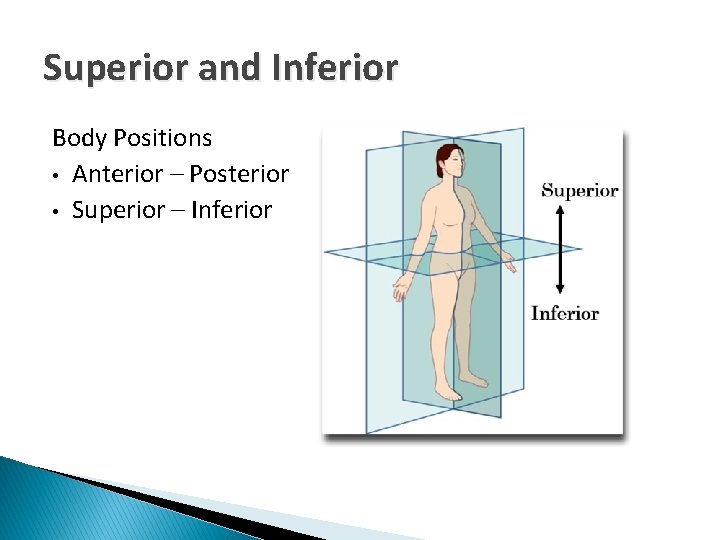

Superior and Inferior Body Positions • Anterior – Posterior • Superior – Inferior

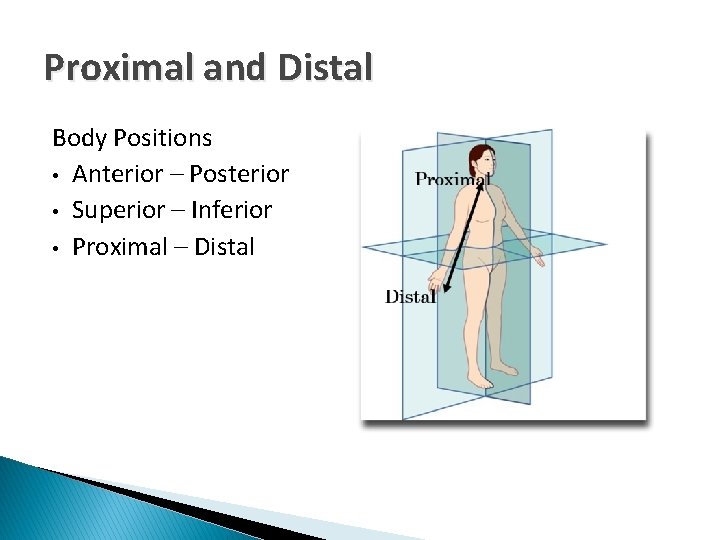

Proximal and Distal Body Positions • Anterior – Posterior • Superior – Inferior • Proximal – Distal

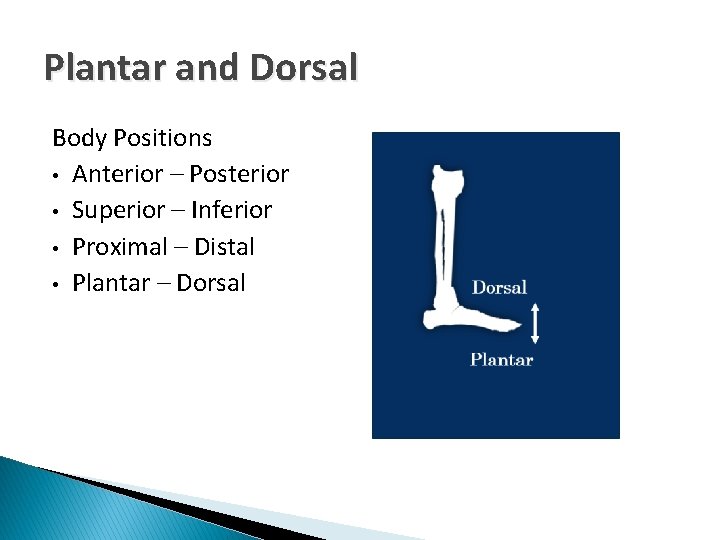

Plantar and Dorsal Body Positions • Anterior – Posterior • Superior – Inferior • Proximal – Distal • Plantar – Dorsal

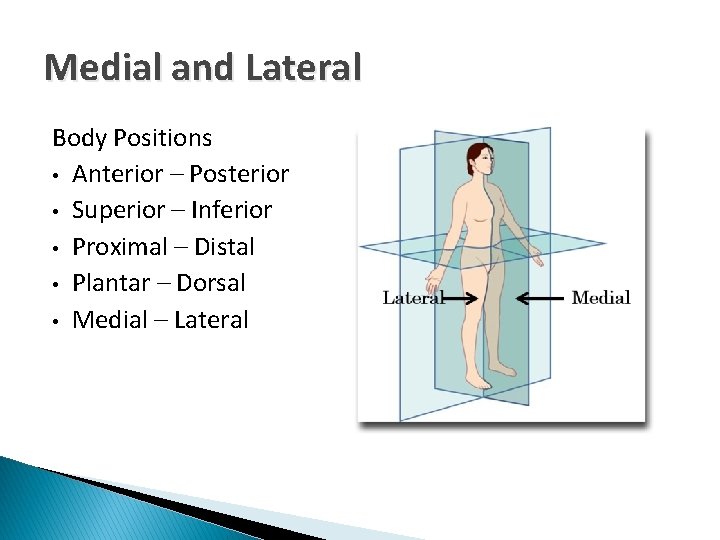

Medial and Lateral Body Positions • Anterior – Posterior • Superior – Inferior • Proximal – Distal • Plantar – Dorsal • Medial – Lateral

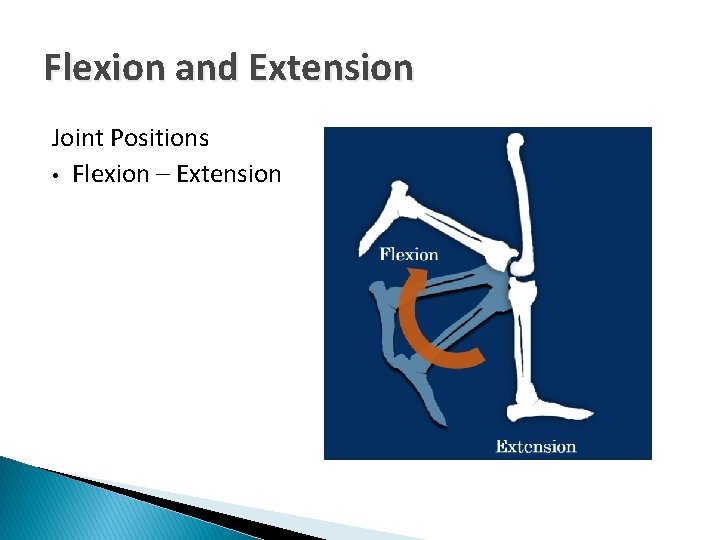

Flexion and Extension Joint Positions • Flexion – Extension

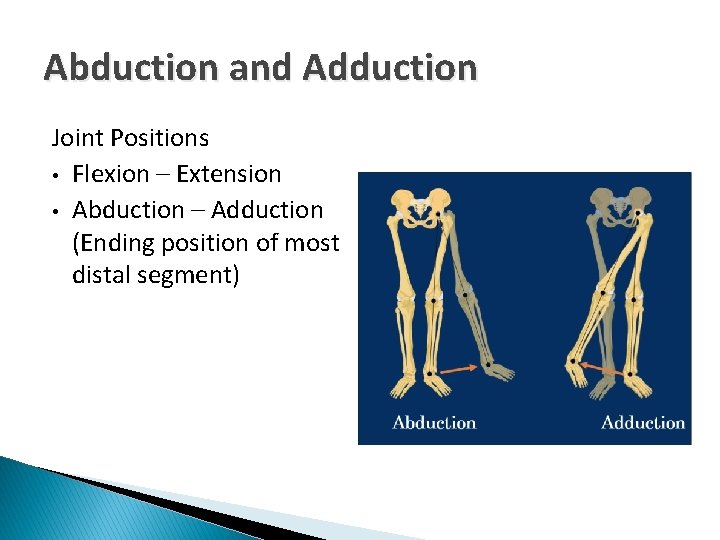

Abduction and Adduction Joint Positions • Flexion – Extension • Abduction – Adduction (Ending position of most distal segment)

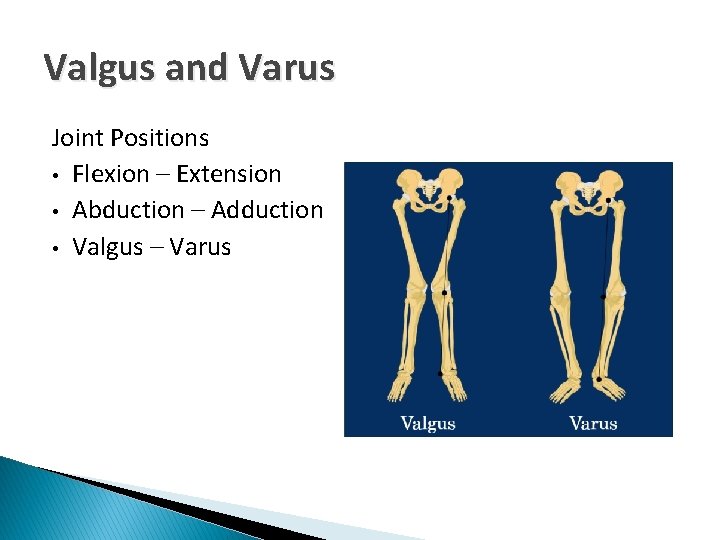

Valgus and Varus Joint Positions • Flexion – Extension • Abduction – Adduction • Valgus – Varus

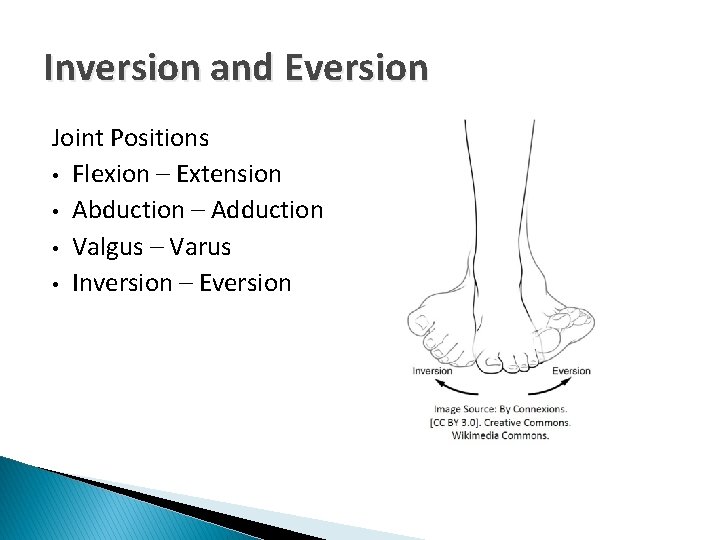

Inversion and Eversion Joint Positions • Flexion – Extension • Abduction – Adduction • Valgus – Varus • Inversion – Eversion

Lateral and Medial Joint Positions • Flexion – Extension • Abduction – Adduction • Valgus – Varus • Inversion – Eversion • External – Internal • (Lateral) (Medial)

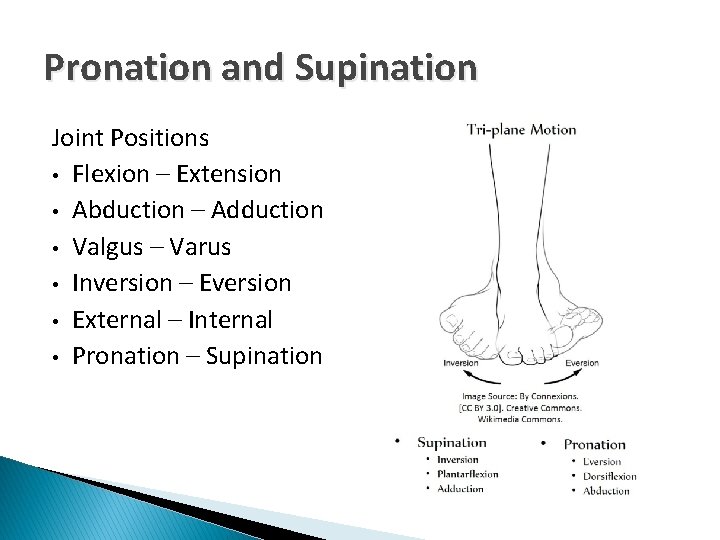

Pronation and Supination Joint Positions • Flexion – Extension • Abduction – Adduction • Valgus – Varus • Inversion – Eversion • External – Internal • Pronation – Supination

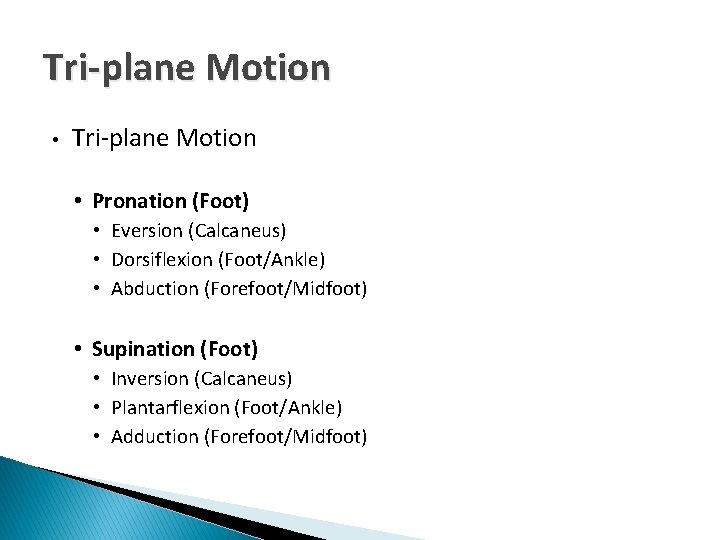

Tri-plane Motion • Pronation (Foot) • Eversion (Calcaneus) • Dorsiflexion (Foot/Ankle) • Abduction (Forefoot/Midfoot) • Supination (Foot) • Inversion (Calcaneus) • Plantarflexion (Foot/Ankle) • Adduction (Forefoot/Midfoot)

Support Systems • Compressive

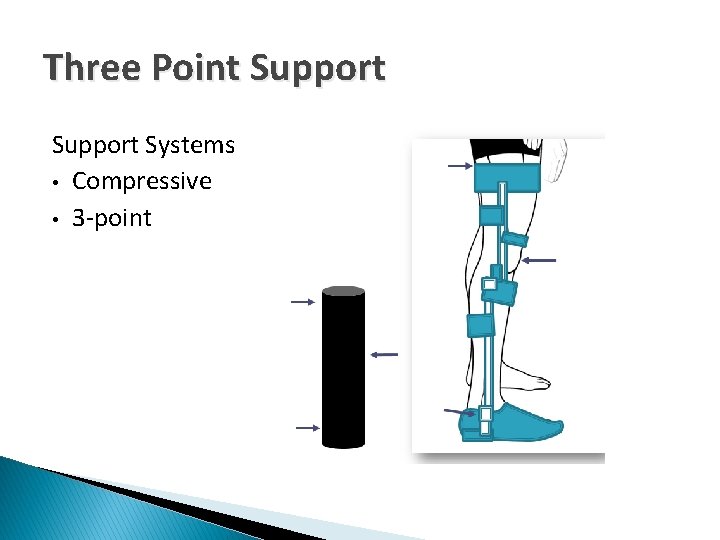

Three Point Support Systems • Compressive • 3 -point

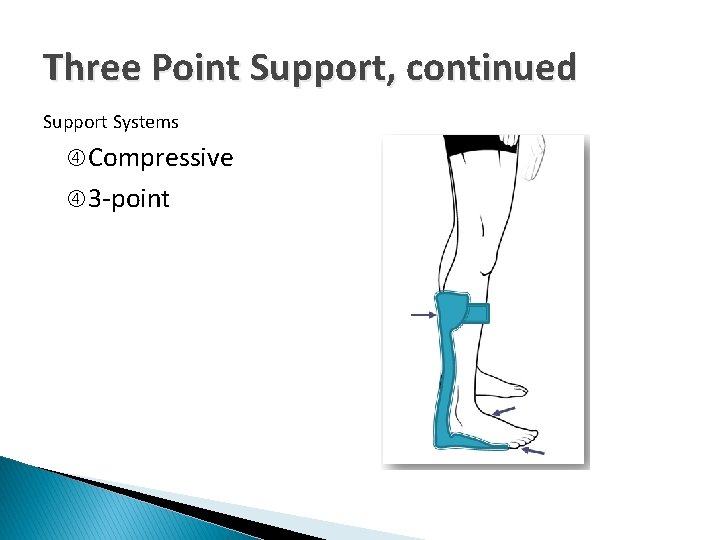

Three Point Support, continued Support Systems Compressive 3 -point

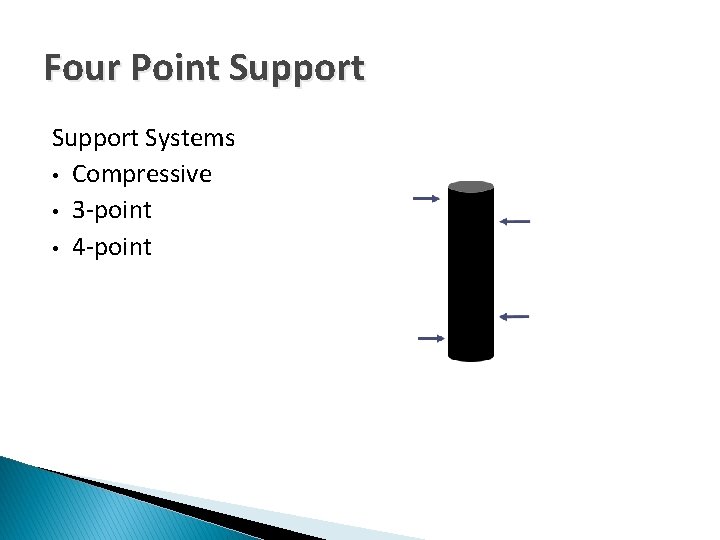

Four Point Support Systems • Compressive • 3 -point • 4 -point

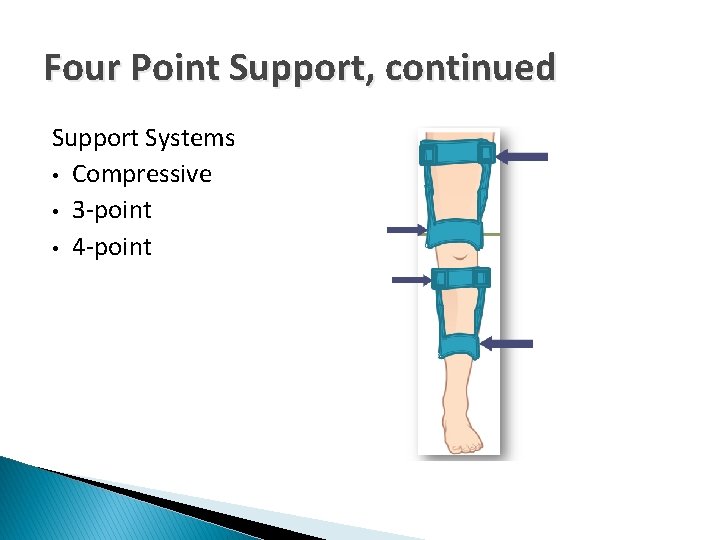

Four Point Support, continued Support Systems • Compressive • 3 -point • 4 -point

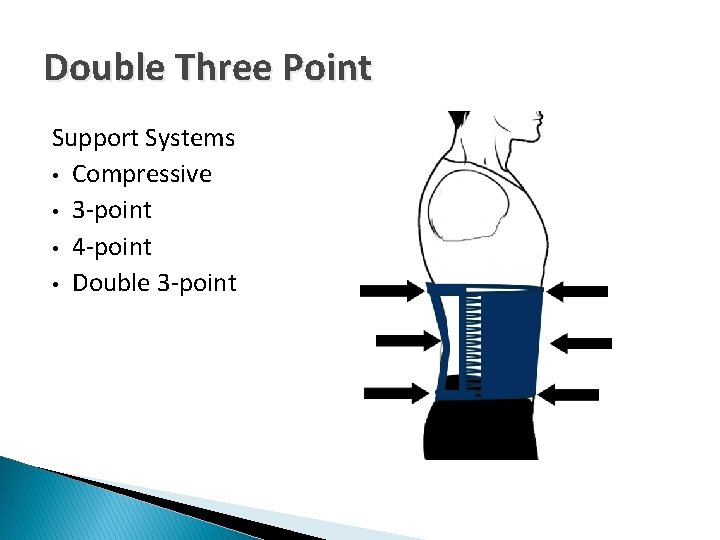

Double Three Point Support Systems • Compressive • 3 -point • 4 -point • Double 3 -point

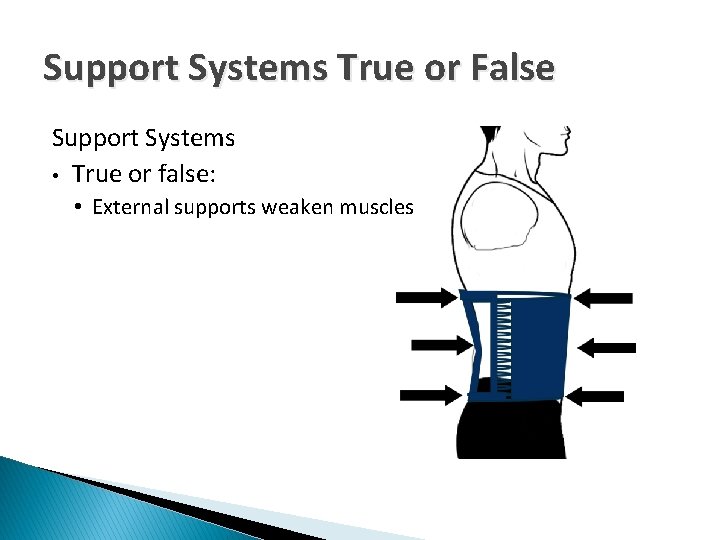

Support Systems True or False Support Systems • True or false: • External supports weaken muscles

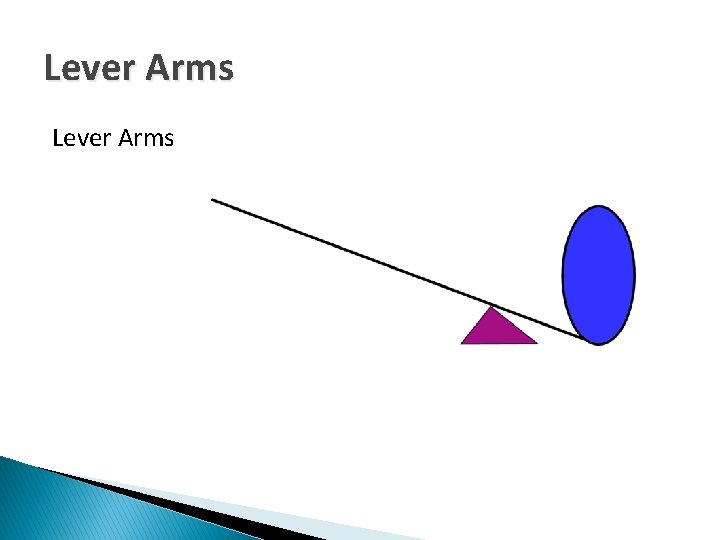

Lever Arms

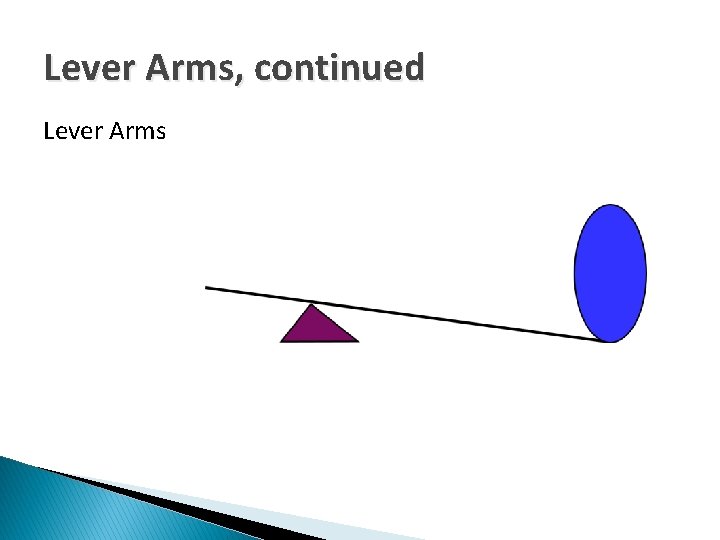

Lever Arms, continued Lever Arms

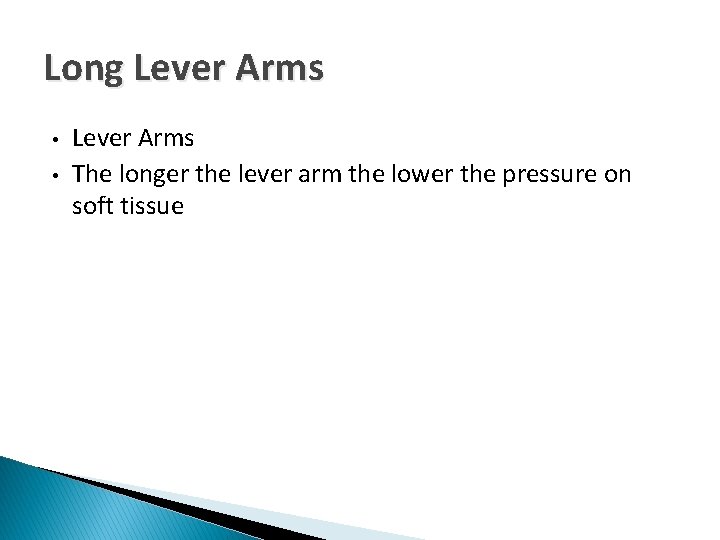

Long Lever Arms • • Lever Arms The longer the lever arm the lower the pressure on soft tissue

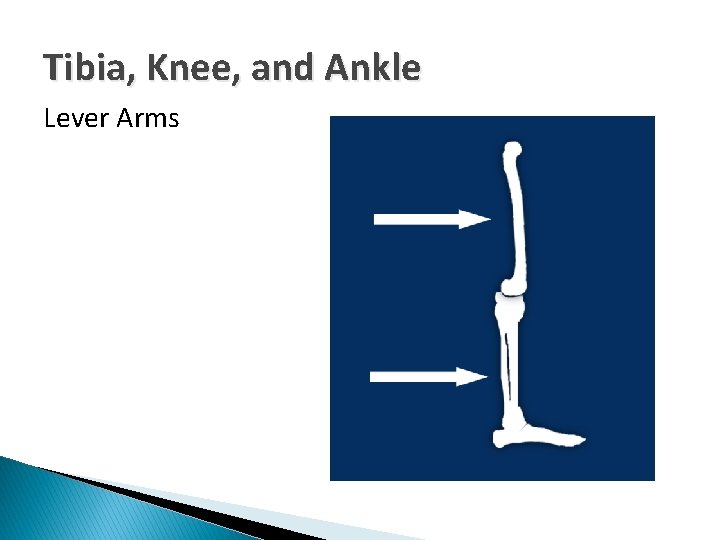

Tibia, Knee, and Ankle Lever Arms

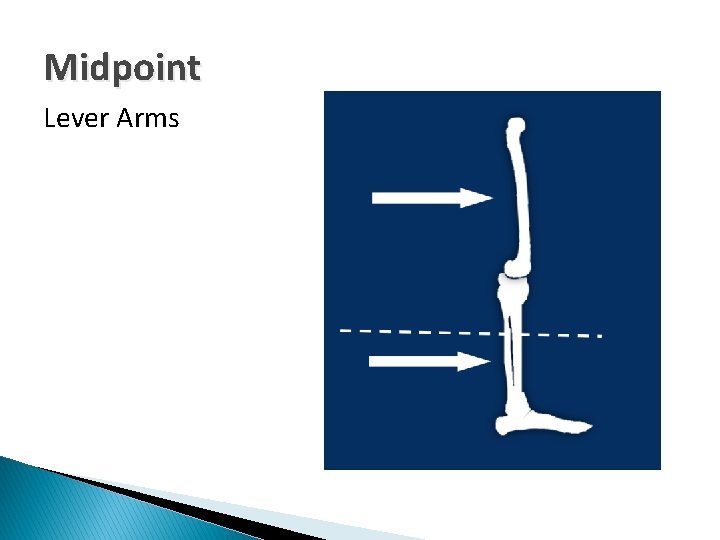

Midpoint Lever Arms

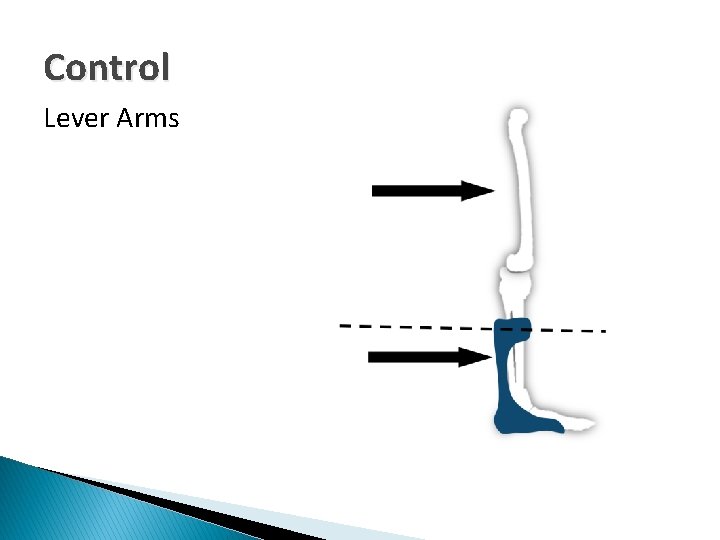

Control Lever Arms

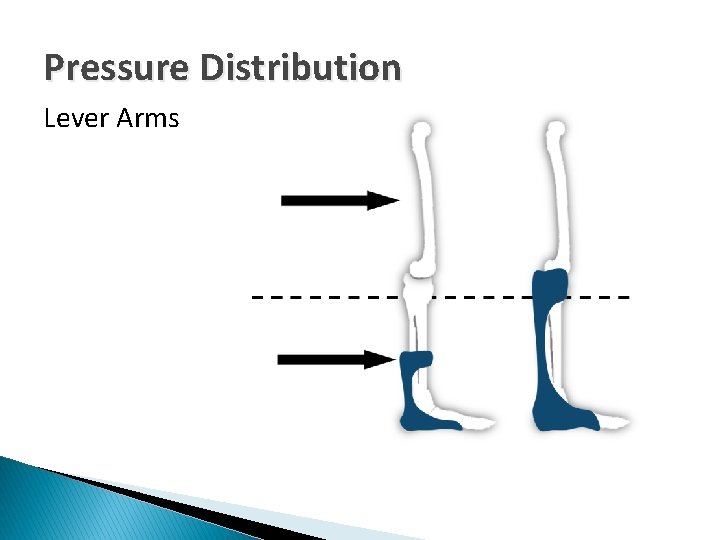

Pressure Distribution Lever Arms

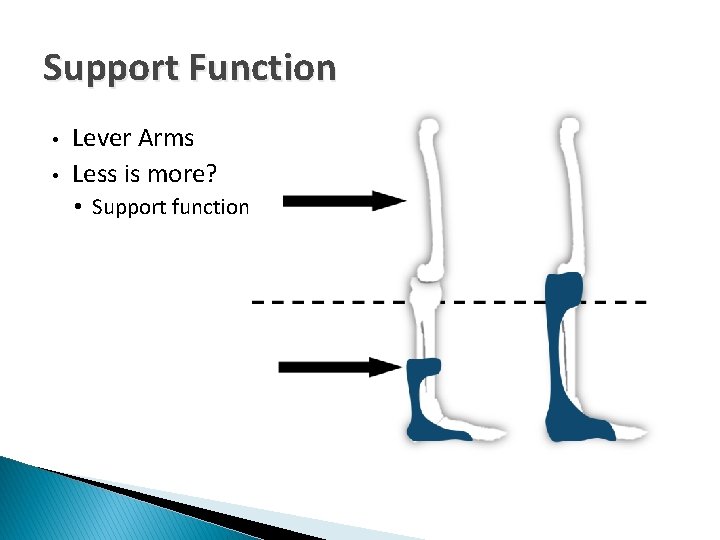

Support Function • • Lever Arms Less is more? • Support function

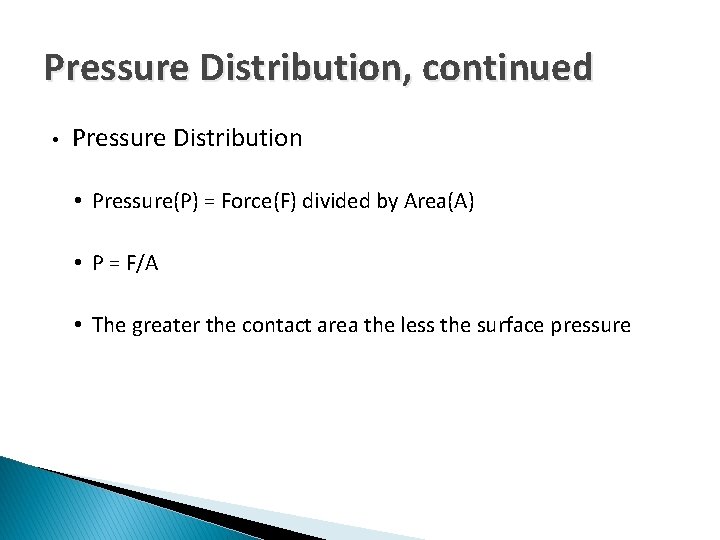

Pressure Distribution, continued • Pressure Distribution • Pressure(P) = Force(F) divided by Area(A) • P = F/A • The greater the contact area the less the surface pressure

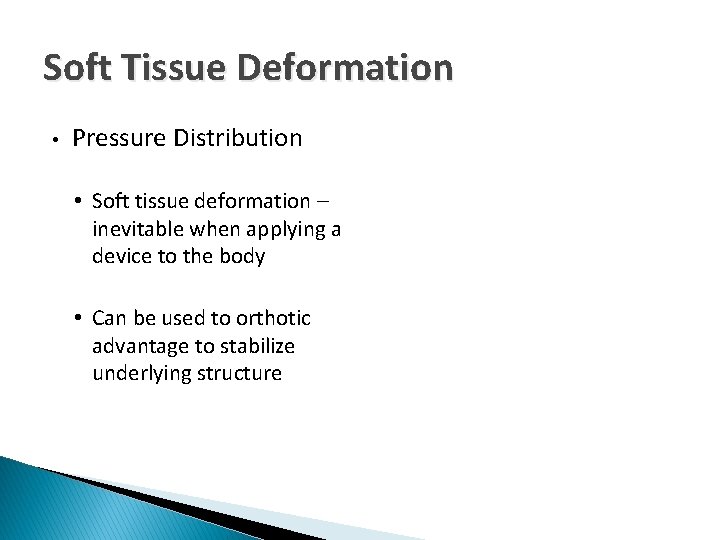

Soft Tissue Deformation • Pressure Distribution • Soft tissue deformation – inevitable when applying a device to the body • Can be used to orthotic advantage to stabilize underlying structure

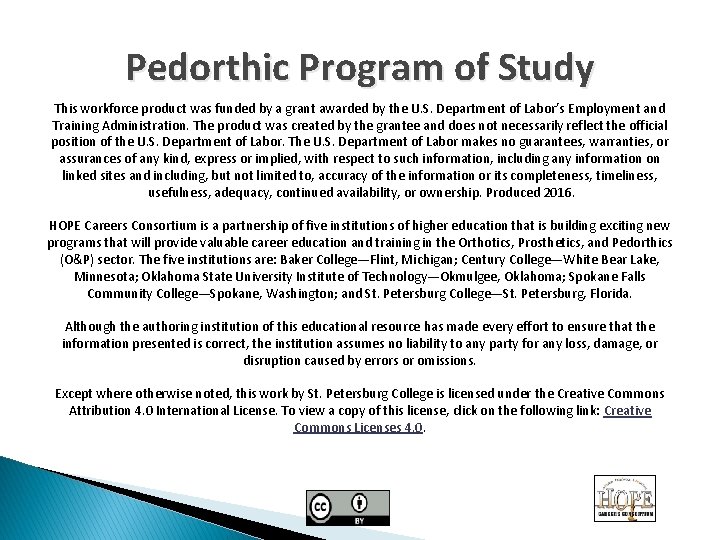

Pedorthic Program of Study This workforce product was funded by a grant awarded by the U. S. Department of Labor’s Employment and Training Administration. The product was created by the grantee and does not necessarily reflect the official position of the U. S. Department of Labor. The U. S. Department of Labor makes no guarantees, warranties, or assurances of any kind, express or implied, with respect to such information, including any information on linked sites and including, but not limited to, accuracy of the information or its completeness, timeliness, usefulness, adequacy, continued availability, or ownership. Produced 2016. HOPE Careers Consortium is a partnership of five institutions of higher education that is building exciting new programs that will provide valuable career education and training in the Orthotics, Prosthetics, and Pedorthics (O&P) sector. The five institutions are: Baker College—Flint, Michigan; Century College—White Bear Lake, Minnesota; Oklahoma State University Institute of Technology—Okmulgee, Oklahoma; Spokane Falls Community College—Spokane, Washington; and St. Petersburg College—St. Petersburg, Florida. Although the authoring institution of this educational resource has made every effort to ensure that the information presented is correct, the institution assumes no liability to any party for any loss, damage, or disruption caused by errors or omissions. Except where otherwise noted, this work by St. Petersburg College is licensed under the Creative Commons Attribution 4. 0 International License. To view a copy of this license, click on the following link: Creative Commons Licenses 4. 0.
