Modularization of Assertion Crosscutting Objects Takashi IshioToshihiro Kamiya

Modularization of Assertion Crosscutting Objects Takashi Ishio†，Toshihiro Kamiya‡， Shinji Kusumoto† ，Katsuro Inoue† †Osaka University ‡ National Institute and Technology of Advanced Industrial Science {t-isio, kusumoto, inoue}@ist. osaka-u. ac. jp t-kamiya@aist. go. jp Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 1

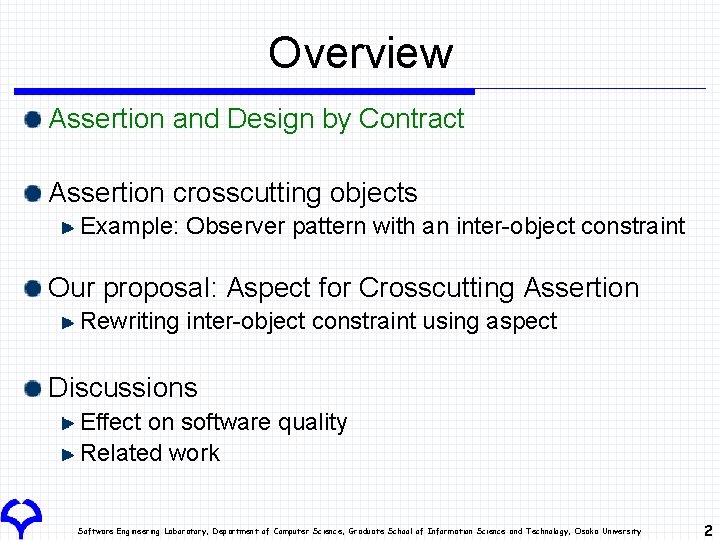

Overview Assertion and Design by Contract Assertion crosscutting objects Example: Observer pattern with an inter-object constraint Our proposal: Aspect for Crosscutting Assertion Rewriting inter-object constraint using aspect Discussions Effect on software quality Related work Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 2

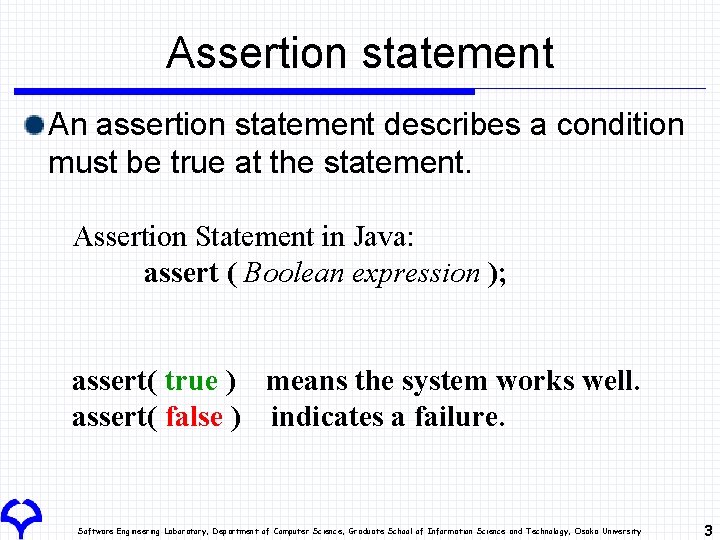

Assertion statement An assertion statement describes a condition must be true at the statement. Assertion Statement in Java: assert ( Boolean expression ); assert( true ) means the system works well. assert( false ) indicates a failure. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 3

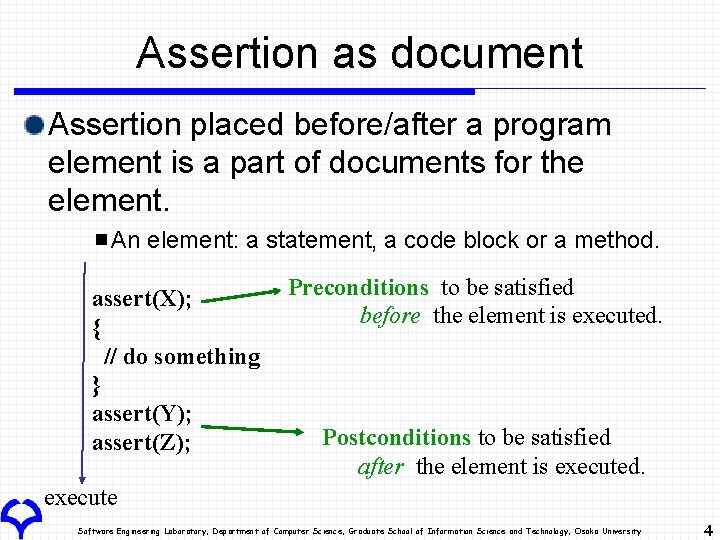

Assertion as document Assertion placed before/after a program element is a part of documents for the element. An element: a statement, a code block or a method. assert(X); { // do something } assert(Y); assert(Z); Preconditions to be satisfied before the element is executed. Postconditions to be satisfied after the element is executed. execute Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 4

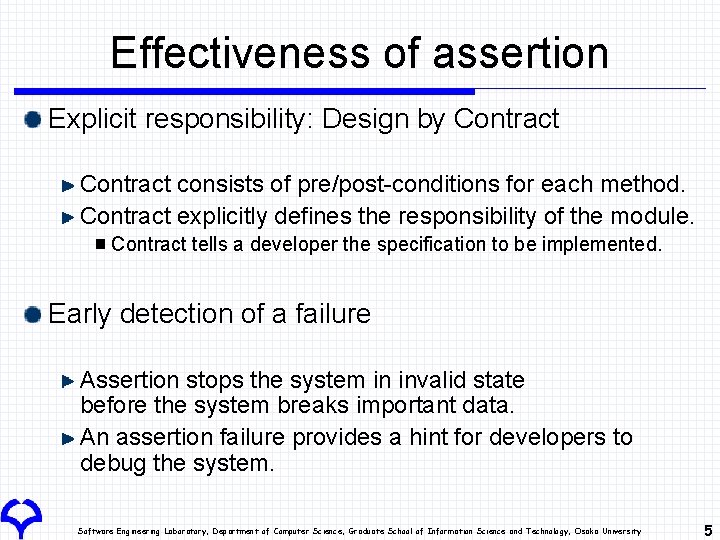

Effectiveness of assertion Explicit responsibility: Design by Contract consists of pre/post-conditions for each method. Contract explicitly defines the responsibility of the module. Contract tells a developer the specification to be implemented. Early detection of a failure Assertion stops the system in invalid state before the system breaks important data. An assertion failure provides a hint for developers to debug the system. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 5

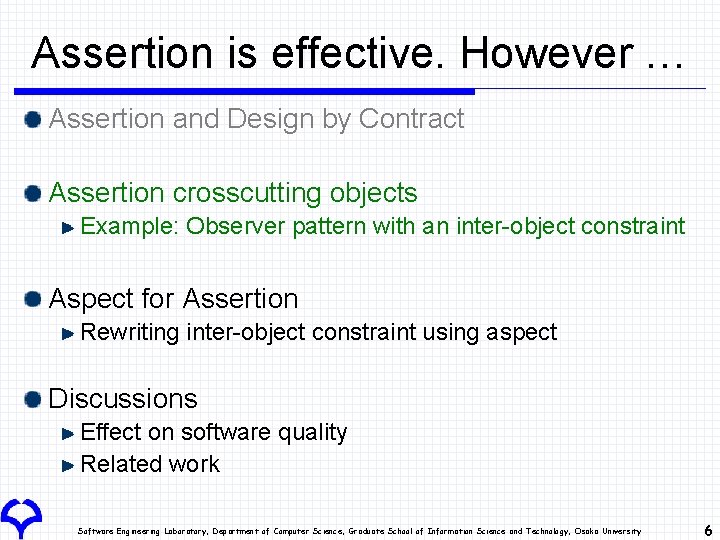

Assertion is effective. However … Assertion and Design by Contract Assertion crosscutting objects Example: Observer pattern with an inter-object constraint Aspect for Assertion Rewriting inter-object constraint using aspect Discussions Effect on software quality Related work Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 6

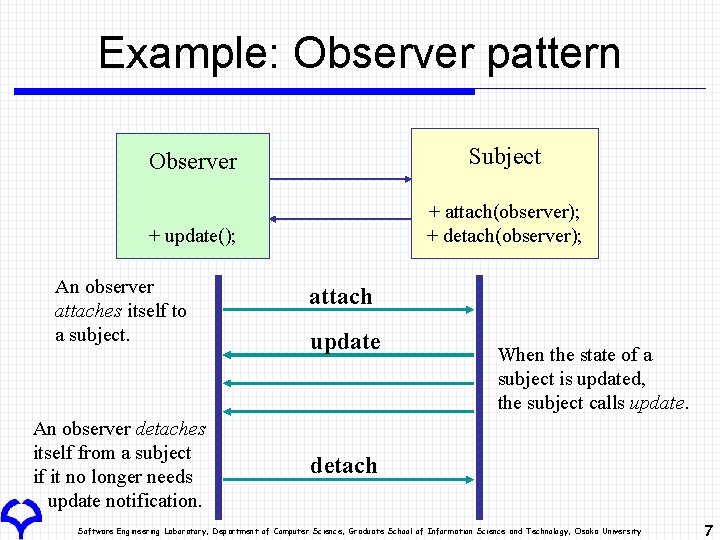

Example: Observer pattern Observer Subject + update(); + attach(observer); + detach(observer); An observer attaches itself to a subject. An observer detaches itself from a subject if it no longer needs update notification. attach update When the state of a subject is updated, the subject calls update. detach Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 7

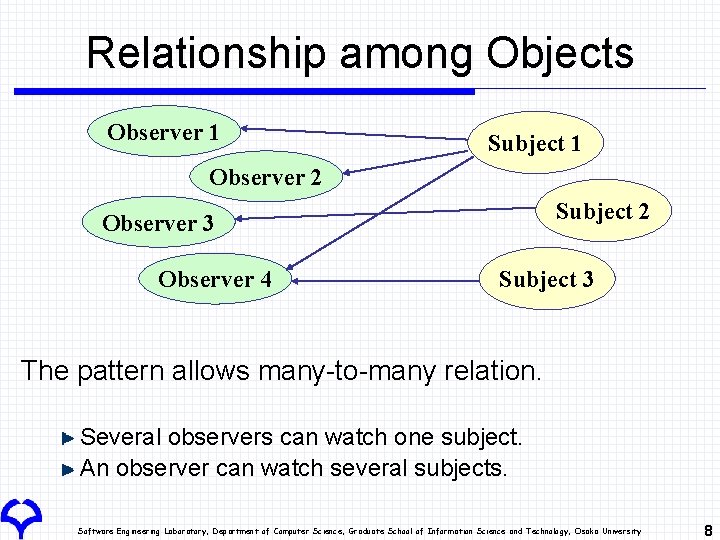

Relationship among Objects Observer 1 Subject 1 Observer 2 Subject 2 Observer 3 Observer 4 Subject 3 The pattern allows many-to-many relation. Several observers can watch one subject. An observer can watch several subjects. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 8

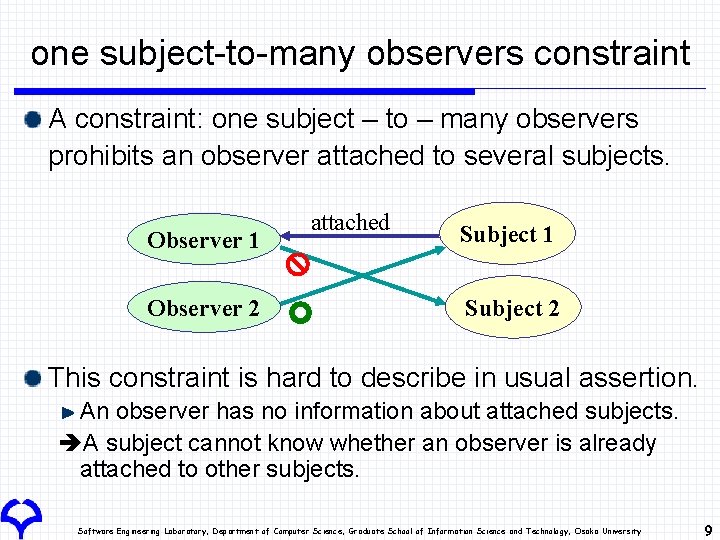

one subject-to-many observers constraint A constraint: one subject – to – many observers prohibits an observer attached to several subjects. Observer 1 Observer 2 attached Subject 1 Subject 2 This constraint is hard to describe in usual assertion. An observer has no information about attached subjects. A subject cannot know whether an observer is already attached to other subjects. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 9

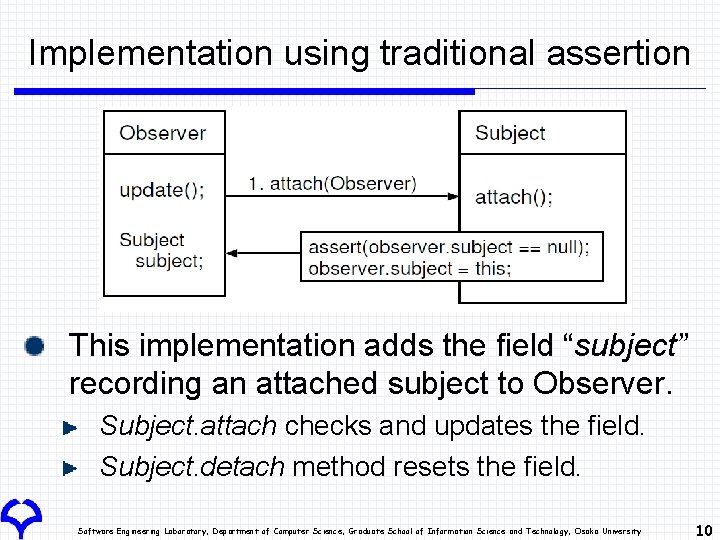

Implementation using traditional assertion This implementation adds the field “subject” recording an attached subject to Observer. Subject. attach checks and updates the field. Subject. detach method resets the field. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 10

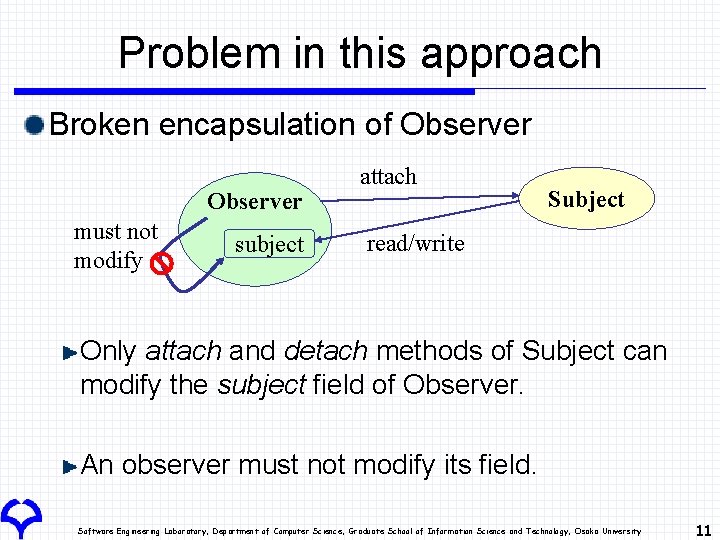

Problem in this approach Broken encapsulation of Observer must not modify subject attach Subject read/write Only attach and detach methods of Subject can modify the subject field of Observer. An observer must not modify its field. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 11

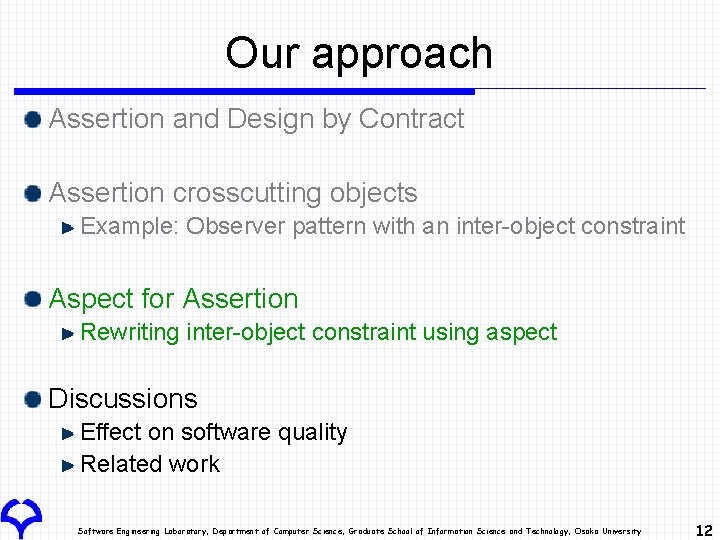

Our approach Assertion and Design by Contract Assertion crosscutting objects Example: Observer pattern with an inter-object constraint Aspect for Assertion Rewriting inter-object constraint using aspect Discussions Effect on software quality Related work Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 12

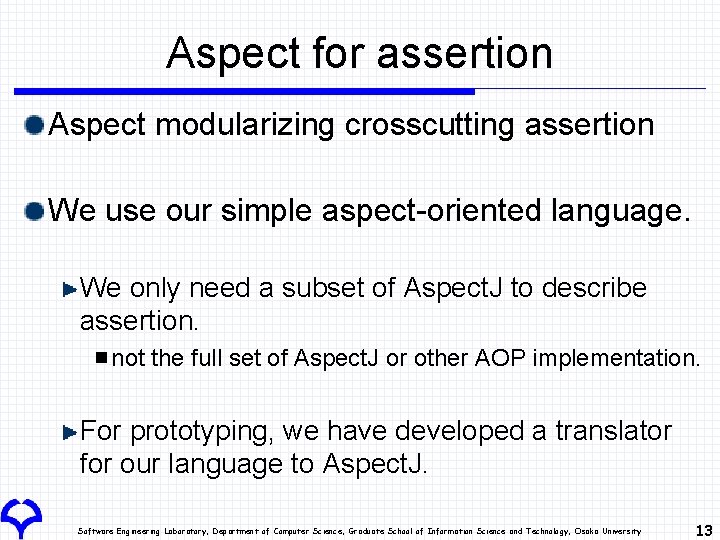

Aspect for assertion Aspect modularizing crosscutting assertion We use our simple aspect-oriented language. We only need a subset of Aspect. J to describe assertion. not the full set of Aspect. J or other AOP implementation. For prototyping, we have developed a translator for our language to Aspect. J. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 13

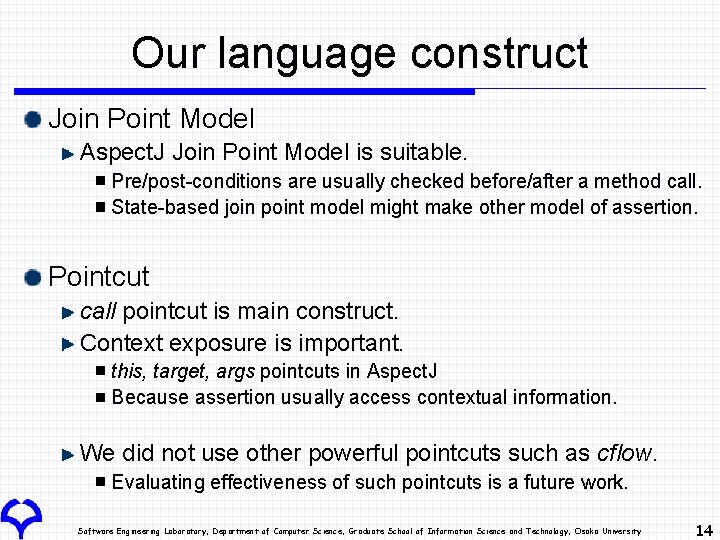

Our language construct Join Point Model Aspect. J Join Point Model is suitable. Pre/post-conditions are usually checked before/after a method call. State-based join point model might make other model of assertion. Pointcut call pointcut is main construct. Context exposure is important. this, target, args pointcuts in Aspect. J Because assertion usually access contextual information. We did not use other powerful pointcuts such as cflow. Evaluating effectiveness of such pointcuts is a future work. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 14

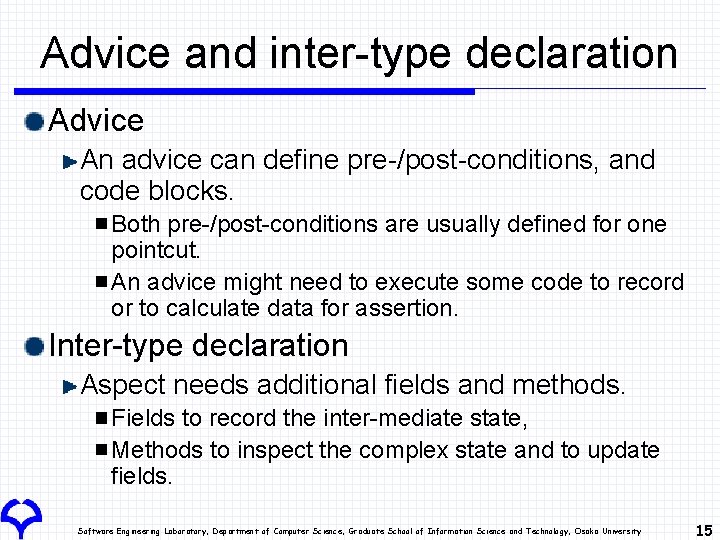

Advice and inter-type declaration Advice An advice can define pre-/post-conditions, and code blocks. Both pre-/post-conditions are usually defined for one pointcut. An advice might need to execute some code to record or to calculate data for assertion. Inter-type declaration Aspect needs additional fields and methods. Fields to record the inter-mediate state, Methods to inspect the complex state and to update fields. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 15

Constraint aspect for Observer The beginning of aspect definition Advice for Subject. attach (Next) Advice for Subject. detach (omitted) The end of aspect definition Inter-type declaration (Aspect. J style) Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 16

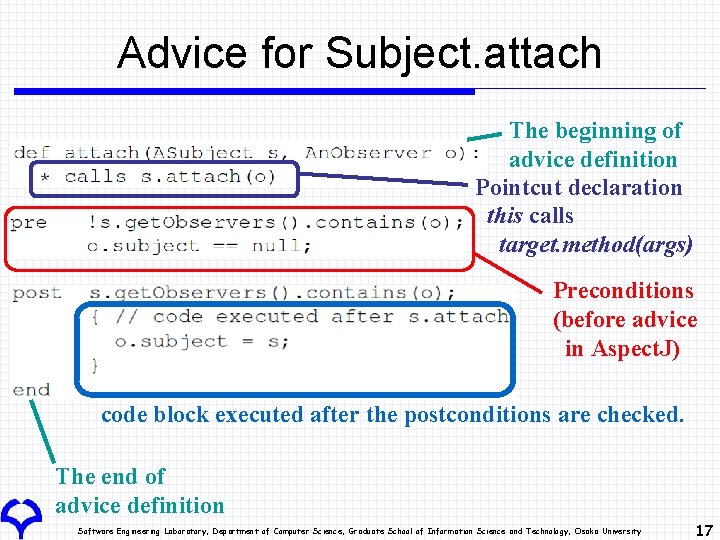

Advice for Subject. attach The beginning of advice definition Pointcut declaration this calls target. method(args) Preconditions (before advice in Aspect. J) code block executed after the postconditions are checked. The end of advice definition Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 17

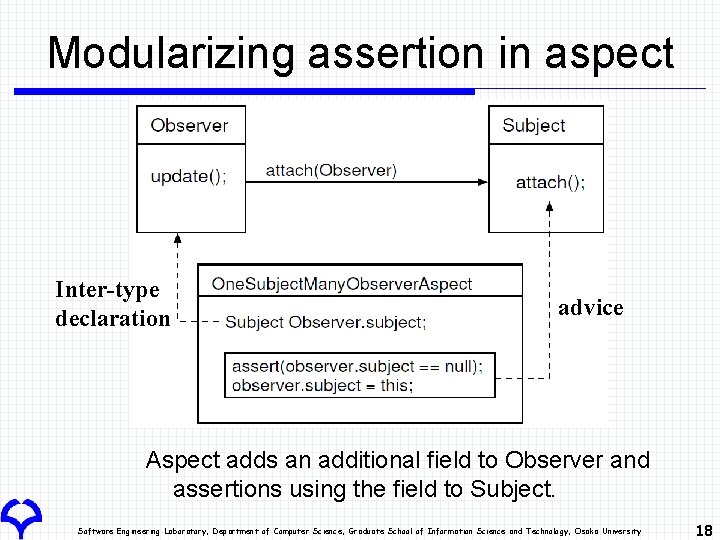

Modularizing assertion in aspect Inter-type declaration advice Aspect adds an additional field to Observer and assertions using the field to Subject. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 18

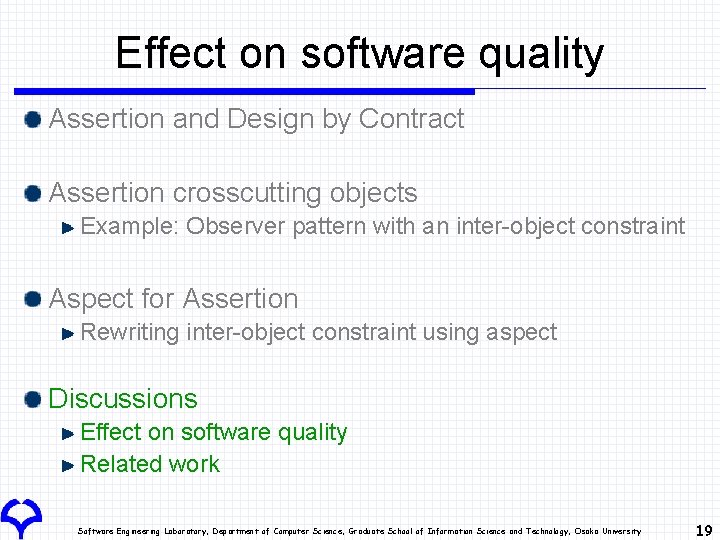

Effect on software quality Assertion and Design by Contract Assertion crosscutting objects Example: Observer pattern with an inter-object constraint Aspect for Assertion Rewriting inter-object constraint using aspect Discussions Effect on software quality Related work Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 19

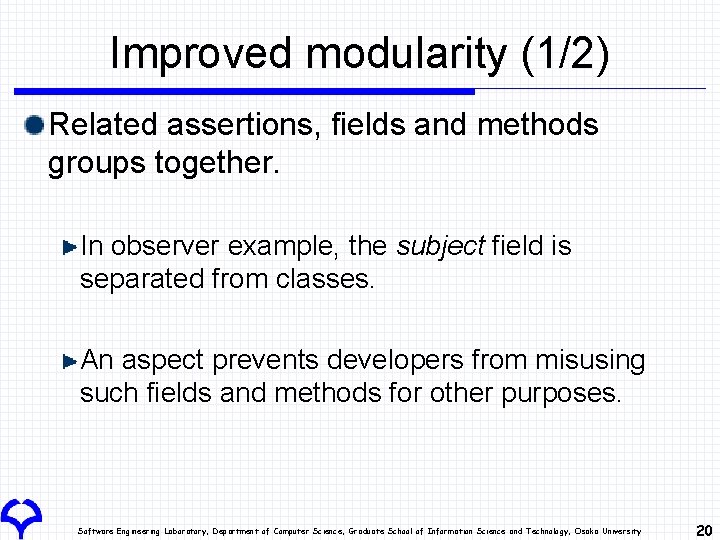

Improved modularity (1/2) Related assertions, fields and methods groups together. In observer example, the subject field is separated from classes. An aspect prevents developers from misusing such fields and methods for other purposes. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 20

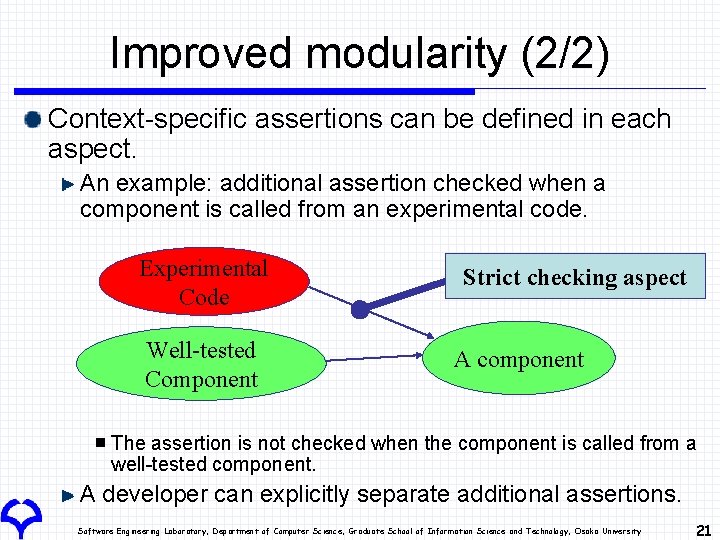

Improved modularity (2/2) Context-specific assertions can be defined in each aspect. An example: additional assertion checked when a component is called from an experimental code. Experimental Code Well-tested Component Strict checking aspect A component The assertion is not checked when the component is called from a well-tested component. A developer can explicitly separate additional assertions. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 21

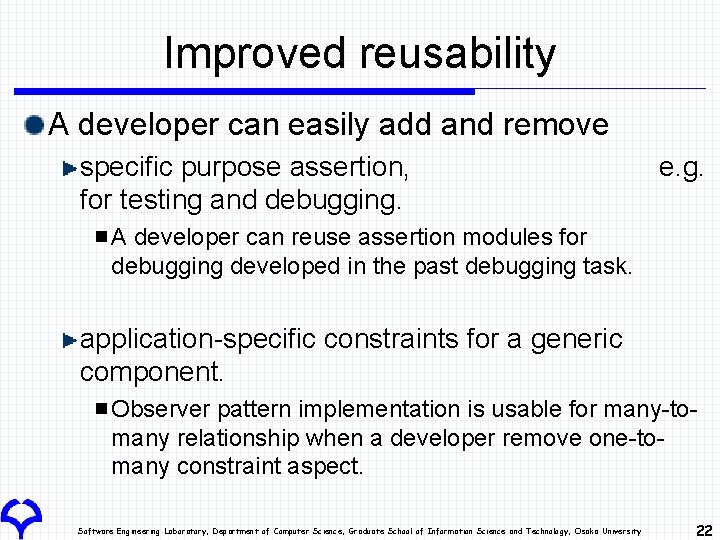

Improved reusability A developer can easily add and remove specific purpose assertion, for testing and debugging. e. g. A developer can reuse assertion modules for debugging developed in the past debugging task. application-specific constraints for a generic component. Observer pattern implementation is usable for many-tomany relationship when a developer remove one-tomany constraint aspect. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 22

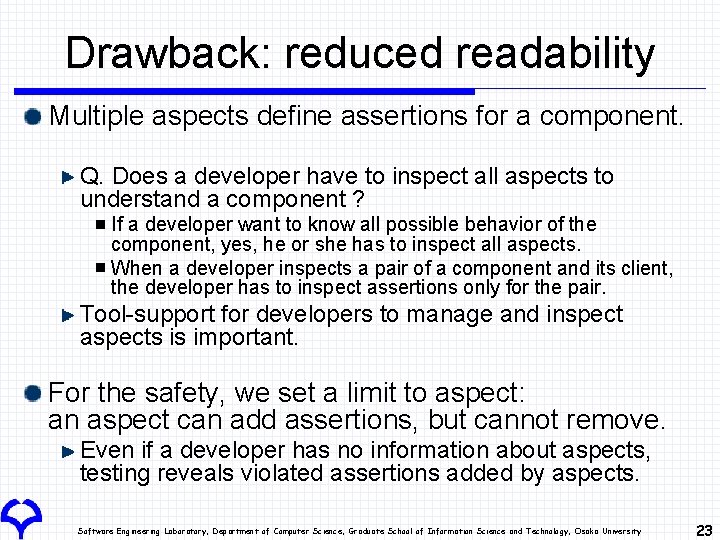

Drawback: reduced readability Multiple aspects define assertions for a component. Q. Does a developer have to inspect all aspects to understand a component ? If a developer want to know all possible behavior of the component, yes, he or she has to inspect all aspects. When a developer inspects a pair of a component and its client, the developer has to inspect assertions only for the pair. Tool-support for developers to manage and inspect aspects is important. For the safety, we set a limit to aspect: an aspect can add assertions, but cannot remove. Even if a developer has no information about aspects, testing reveals violated assertions added by aspects. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 23

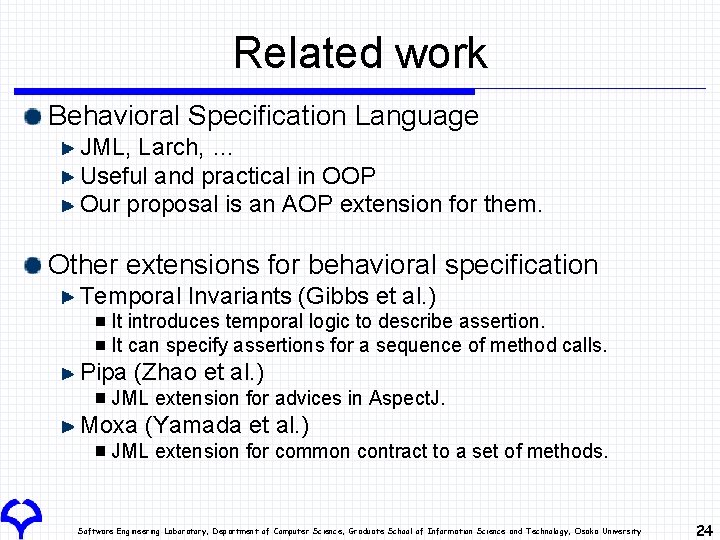

Related work Behavioral Specification Language JML, Larch, … Useful and practical in OOP Our proposal is an AOP extension for them. Other extensions for behavioral specification Temporal Invariants (Gibbs et al. ) It introduces temporal logic to describe assertion. It can specify assertions for a sequence of method calls. Pipa (Zhao et al. ) JML extension for advices in Aspect. J. Moxa (Yamada et al. ) JML extension for common contract to a set of methods. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 24

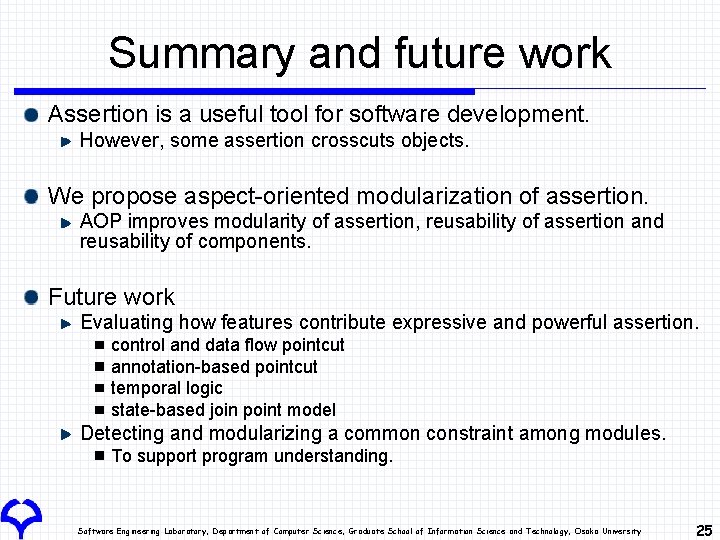

Summary and future work Assertion is a useful tool for software development. However, some assertion crosscuts objects. We propose aspect-oriented modularization of assertion. AOP improves modularity of assertion, reusability of assertion and reusability of components. Future work Evaluating how features contribute expressive and powerful assertion. control and data flow pointcut annotation-based pointcut temporal logic state-based join point model Detecting and modularizing a common constraint among modules. To support program understanding. Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 25

Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 26

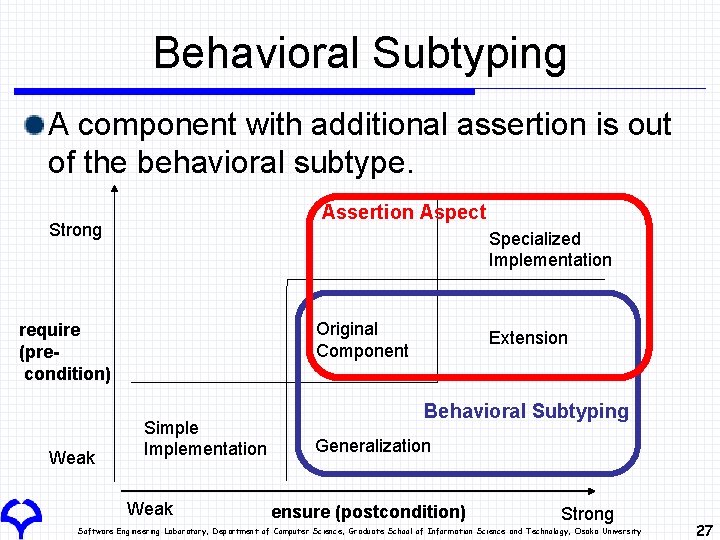

Behavioral Subtyping A component with additional assertion is out of the behavioral subtype. Assertion Aspect Strong Specialized Implementation Original Component require (precondition) Weak Simple Implementation Weak Extension Behavioral Subtyping Generalization ensure (postcondition) Strong Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 27

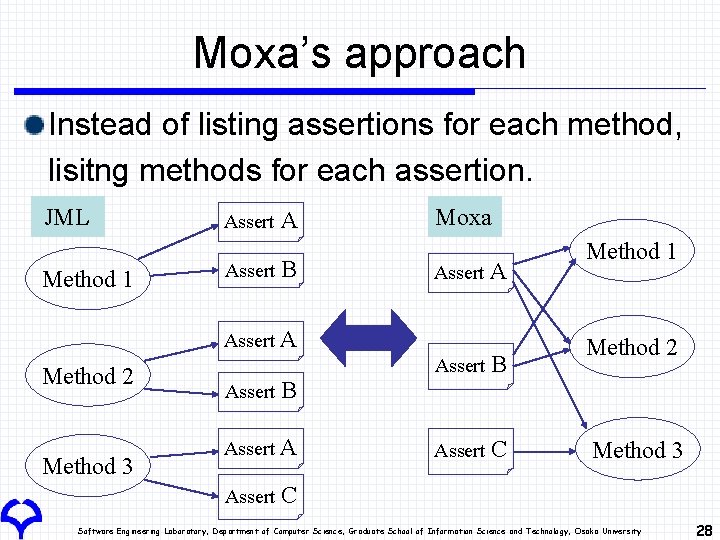

Moxa’s approach Instead of listing assertions for each method, lisitng methods for each assertion. JML Method 1 Assert A Assert B Assert A Method 2 Method 3 Assert B Assert A Moxa Assert A Assert B Assert C Method 1 Method 2 Method 3 Assert C Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 28

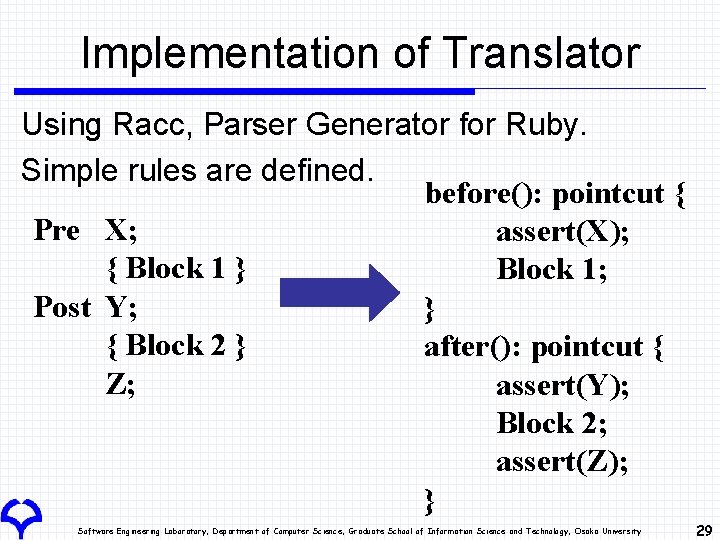

Implementation of Translator Using Racc, Parser Generator for Ruby. Simple rules are defined. before(): pointcut { Pre X; assert(X); { Block 1 } Block 1; Post Y; } { Block 2 } after(): pointcut { Z; assert(Y); Block 2; assert(Z); } Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 29

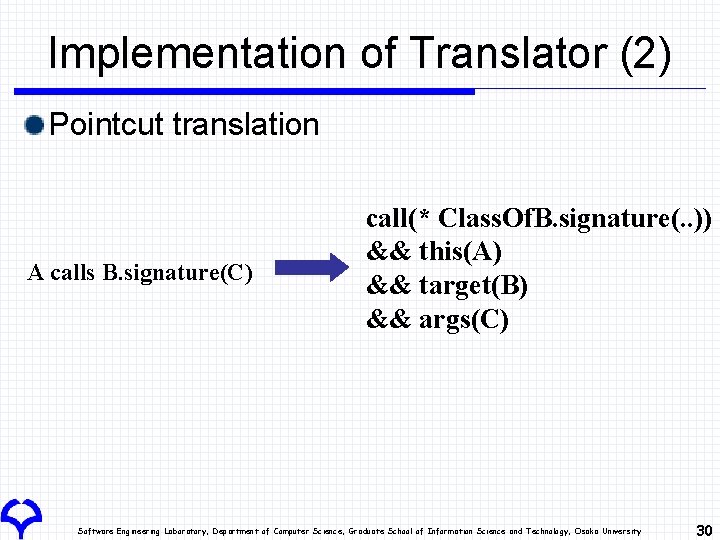

Implementation of Translator (2) Pointcut translation A calls B. signature(C) call(* Class. Of. B. signature(. . )) && this(A) && target(B) && args(C) Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 30
